Podab BaseLine TS 43 E User manual

Drying cabinet BaseLine TS 43 E
Installation and operation manual

Thank you for choosing the drying cabinet TS 43 E from PODAB.
We hope that it will be of great use for you and ask you kindly to
read the instructions carefully.
See page 25
Art. No: 427001145
Article and serial number
Manufacturer: NIMO-VERKEN AB

3
THIS USER MANUAL 4
SAFE OPERATION 5
DESCRIPTION OF THE DRYING CABINET 6
UNPACKING 8
PACKAGING MATERIALS 8
ASSEMBLY KIT 9
REHANGING OF DOOR 10
POSITIONING/ATTACHMENT 11
EVACUATION / SUPPLY AIR 12
CONNECTION TO EVACUATION 12
ELECTRICAL CONNECTION 14
STARTUP 15
ARRANGING LAUNDRY FOR DRYING 16
USER TIPS 16
AIR FLOW 16
OPERATION 17
CHOICE OF AUTOMATIC PROGRAMME 17

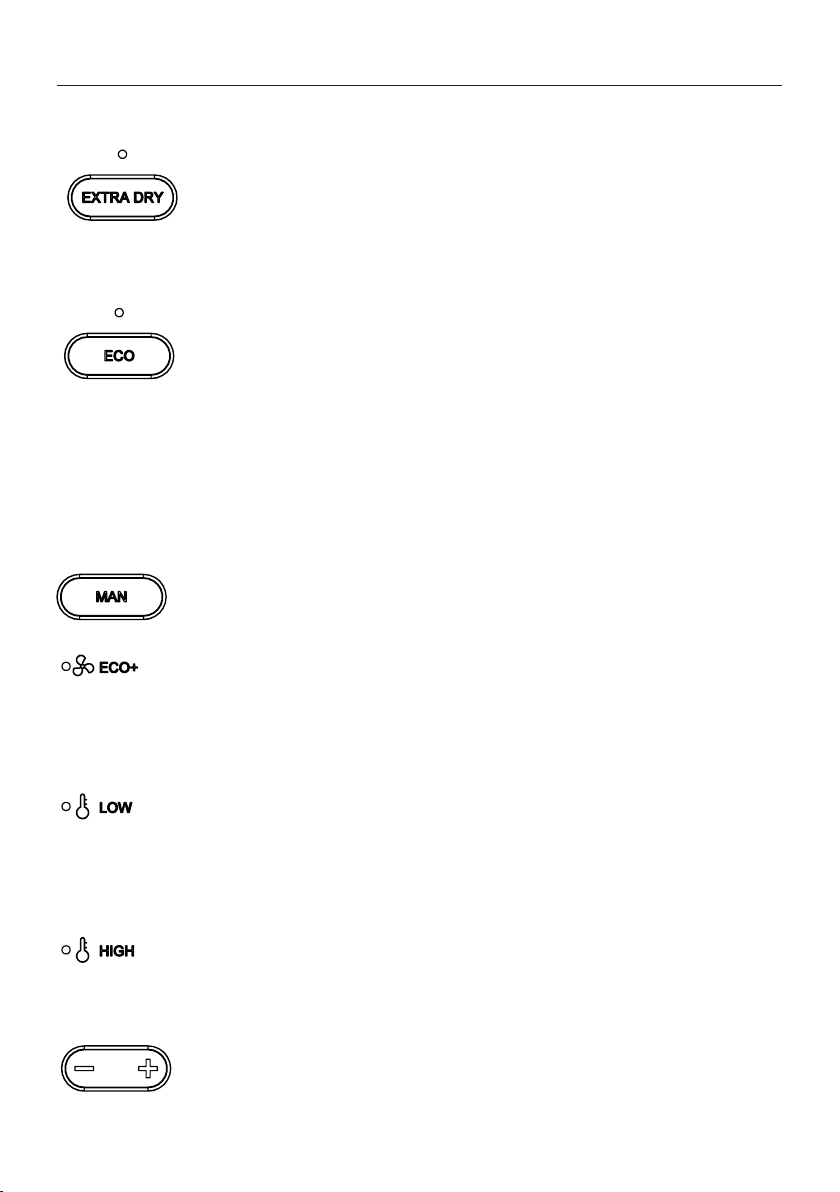

CONTROL PANEL 18
STARTUP OF THE DRYING CABINET
WITH AUTOMATIC TIME CONTROL 20
STARTING THE DRYING CABINET WITH
MANUAL TIME CONTROL 21
DOOR 22
ADJUSTMENT OF PARAMETERS AND
CALIBRATION OF SENSORS 22
BREAKDOWNS 24
OVERHEAT CUTOUT 24
CARE 25
CLEANING 25
SERVICING 25
MANAGEMENT OF ENDOFLIFE DRYING
CABINET 26
TECHNICAL DATA 27
TROUBLESHOOTING 28
LIST OF ERROR CODES 29
DIMENSIONAL DRAWING 30
CONTENTS

4
The contents of this user manual de-
scribe the drying cabinet’s function
and operation and instructions for
installation and maintenance.
THIS USER MANUAL
Note: Keep this user
manual so that it is always
to hand for future use

5
SAFE OPERATION
This advice on safe operation has been compiled to enable you to
avoid incorrect use and unnecessary risks of accidents and should
be read before the drying cabinet is installed and used.
CAUTION This equipment is intended only to be used to dry fabrics
washed in water.
pApplicable to installation in the EU
This drying cabinet can be used by children over the age of
8 and persons (including children) with various disabilities or
inadequate experience and knowledge, provided they are kept
under supervision or are given instructions on how to use the
appliance in a safe way and understand the risks that use entails.
Children must not play with the appliance.
pApplicable to installation in countries outside the EU
The appliance is not intended for use by persons (including
children) with various disabilities or inadequate experience and
knowledge.
They may use the appliance only under supervision or if they
have received instructions on how to use the appliance from a
person who is responsible for their safety.
Children must be supervised to ensure that they do not play
with the appliance.
pApplicable to all installation
CAUTION To avoid danger due to accidental resetting of the
overheat cut-out this product must not be connected to an
external switching device such as a timer or to a circuit that
regularly turns the product on and o.
pIf the power cord is damaged, it must be immediately replaced,
and this must be done only by the manufacturer, the manufac-
turer's service agent or similarly qualied persons in order to
avoid danger.

6
DESCRIPTION OF THE DRYING CABINET
Connecting lead
Control panel
Three extendible hanging
sections, depending on choice of
interior ttings
The hanging sections can be
folded up, except for the top one.
Door, right or left-hand version
Door hangers
Adjusting feet (4x)
Moist air outlet
Air intake
Hole for power cord
Air intake
The drying cabinet operates with hot air that removes moisture from the laundry. Heat-
ing and fan components are combined in the upper part of the drying cabinet behind
the control panel.

7

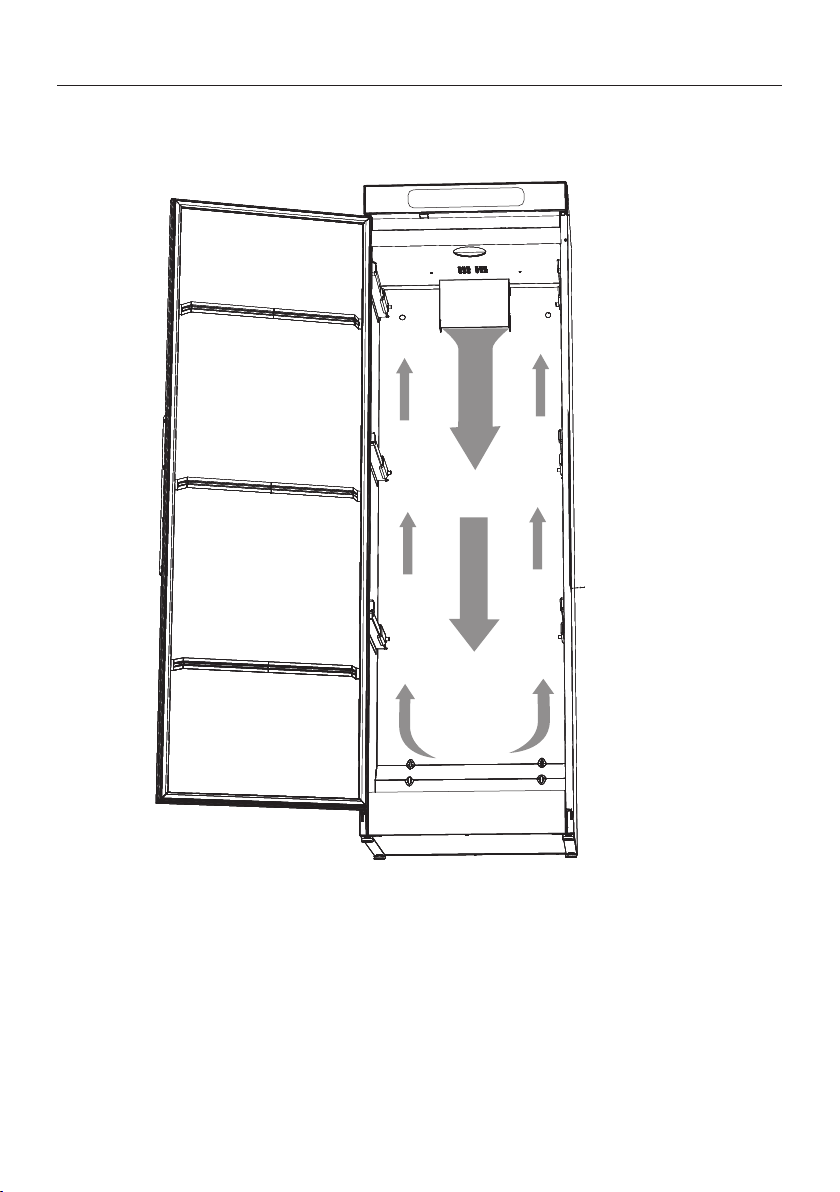

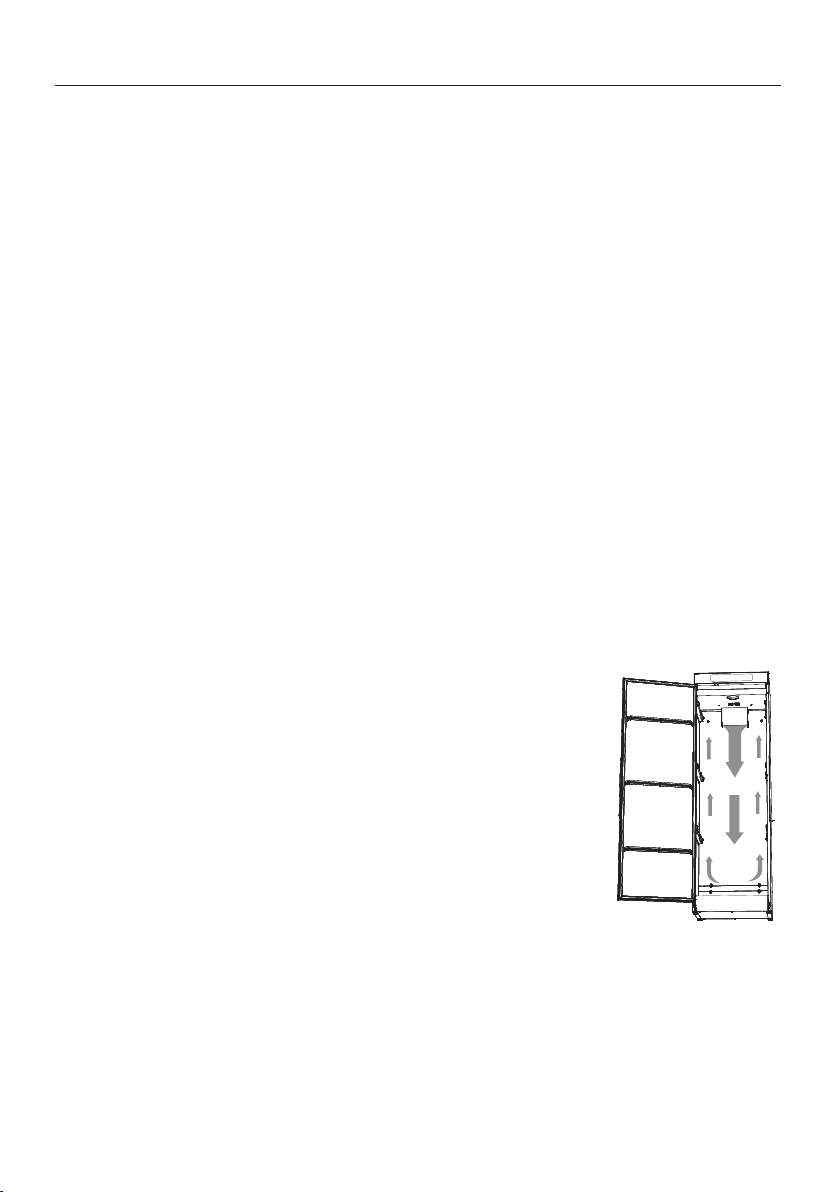

AIR FLOW IN THE DRYING CABINET
Note the direction of air ow inside the cabinet
when positioning laundry. See also this section.

8
UNPACKING
A complete delivery must in-
clude:
Packaging materials such as plastic
and Styrofoam must be kept out of the
reach of children.
Check that all transport securing devices
have been removed before connecting the
drying cabinet.
After unpacking, check that the product is
intact. Damage, defects and any missing
parts must be reported to the dealer
immediately.
Check that the product has not been
damaged in transit. Any damage incurred
in transit must be reported to PODAB
within 7 days.
The drying cabinet must be installed and
kept indoors.
pCabinet with installed fan unit
pAssembly kit
pUser manual
The drying cabinet must
be handled carefully if it
is standing unsupported
on its pallet. RISK OF
TIPPING OVER
PACKAGING MATERIALS
The packaging that protects the drying cabinet against damage in transit has been
chosen with concern for the environment in mind and is therefore recyclable.
Packaging that is returned to the material cycle means reduced consumption of
raw materials and a smaller volume of waste.

9

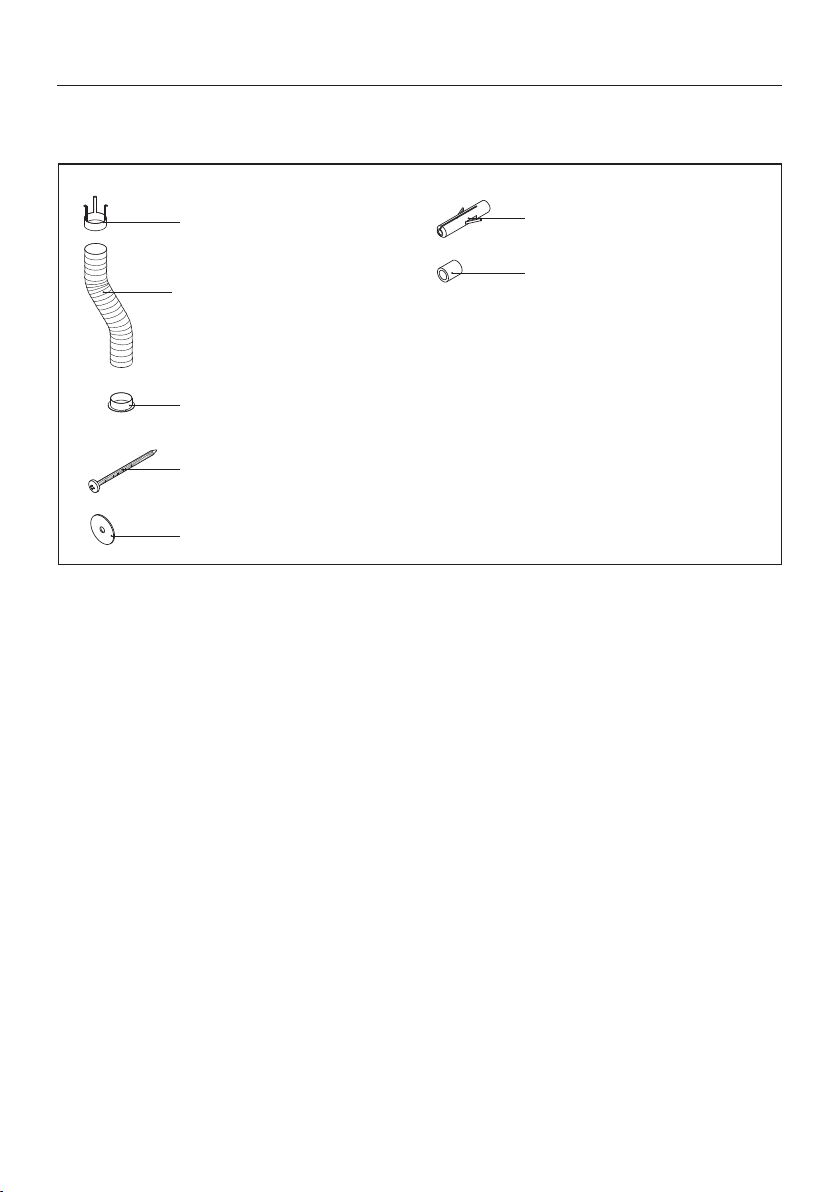

Qty
Draught stabiliser 1
Hose, Ø 120 x 1000 mm 1
Spigot 1
Screw TRX 5x70 fzk 2
Washer NB 5x25 2
ASSEMBLY KIT
Qty
Plastic plug 2
Spacer 8.2x12x15 2
UNPACKING

10
1
2
3
The door may be right-hung or left-hung.
1Lay the drying cabinet down on its side.
2Loosen the hinge pin at the lower
hinge (1) and lift o the door. Retain
the washer (3).
3Detach the hinge pin at the upper
hinge (2) and install it on the opposite
side.The pin has a slot for a screwdriver.
4Rotate the door, t and screw in the
door with the lower hinge pin (1) and
the washer (3).
REHANGING OF DOOR

11
2
14
3
5

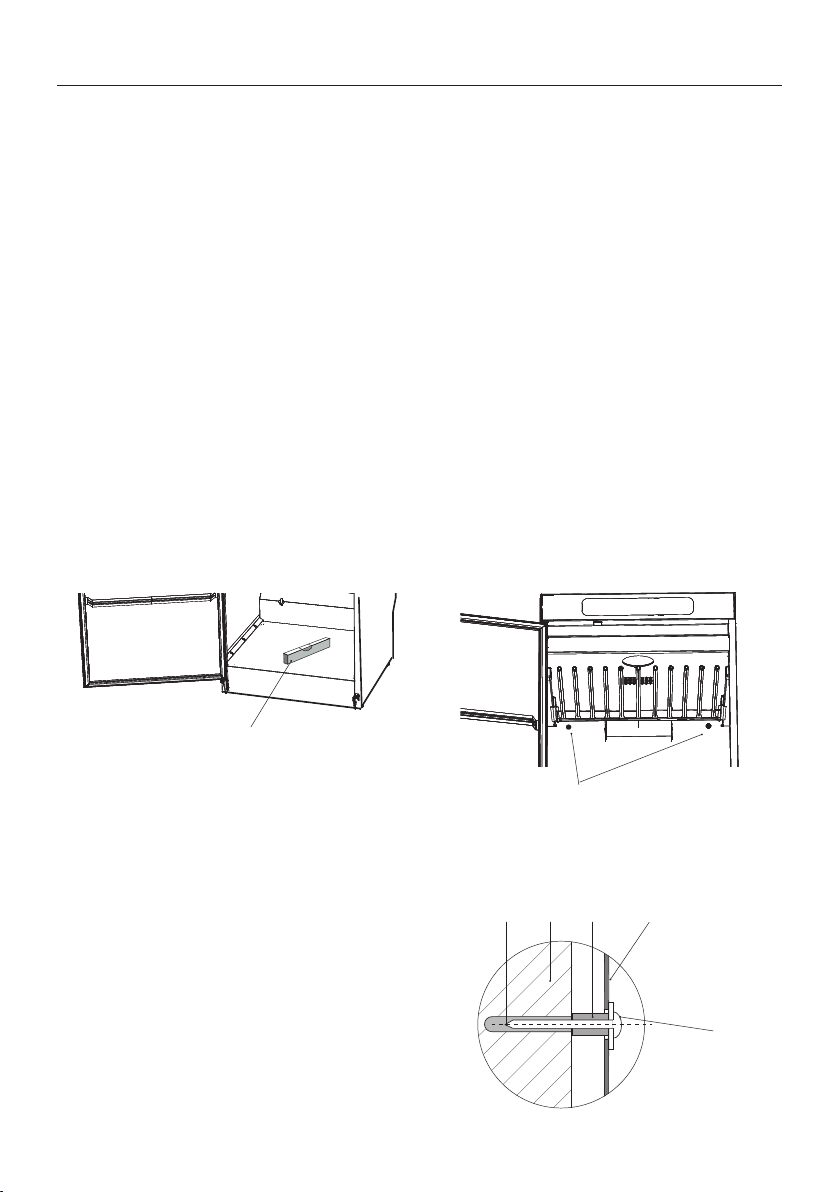

POSITIONING/ATTACHMENT
The drying cabinet must be level on a at
surface, resting on all four feet.
If there is a need for adjustment, lean the
cabinet and adjust the adjusting feet.
Check with a spirit level that the cabinet
is level.
1. Plastic plug
2. Wall behind drying cabinet
3. Spacer
4. Rear wall of drying cabinet
5. Fixing screw with washer
The drying cabinet must not be placed in an environment in which high-pressure water is
used for cleaning.
The drying cabinet is intended only for location indoors in a dry place and secured to a wall.
CAUTION The drying cabinet must not
be used without being secured to a wall
owing to the risk of tipping over forward.
Bear in mind that the cabinet is top-heavy
and there is a risk of it tipping over. This
adjustment should be carried out by two
people.
The cabinet must be attached to a wall to
prevent tipping over.
1Open the door and drill 8 mm holes in
the wall through the two pre-drilled
holes in the rear of the drying cabinet.
2Fit the plastic plugs in the wall.Thread the
spacer onto the screw and t with washer
as illustrated. Screws are contained in the
assembly kit.
Spirit level
Pre-drilled holes
Attaching to a wall also means a better
door seal.

12
1
EVACUATION / SUPPLY AIR
When the cabinet is on, approx. 95 m³ moist air per hour is evacuated. It must
therefore be ensured that air can enter the room to replace the moist air that is
vented out.
CONNECTION TO EVACUATION
The drying cabinet can be connected to the evacuation duct in two ways, either
with a draft stabiliser or permanently tted to a mechanical exhaust vent.
If the drying cabinet is to be connected to an existing vent system, a draught
stabiliser must always be used, so that the general ventilation in the room is not
aected.
Permanent tting must only be carried out when a separate exhaust-air duct is
routed to the drying cabinet, the air ow in the exhaust-air duct being adjusted
to 95 m³ per hour.
The drying cabinet has been tested and factory-set for connection with a draught
stabiliser.

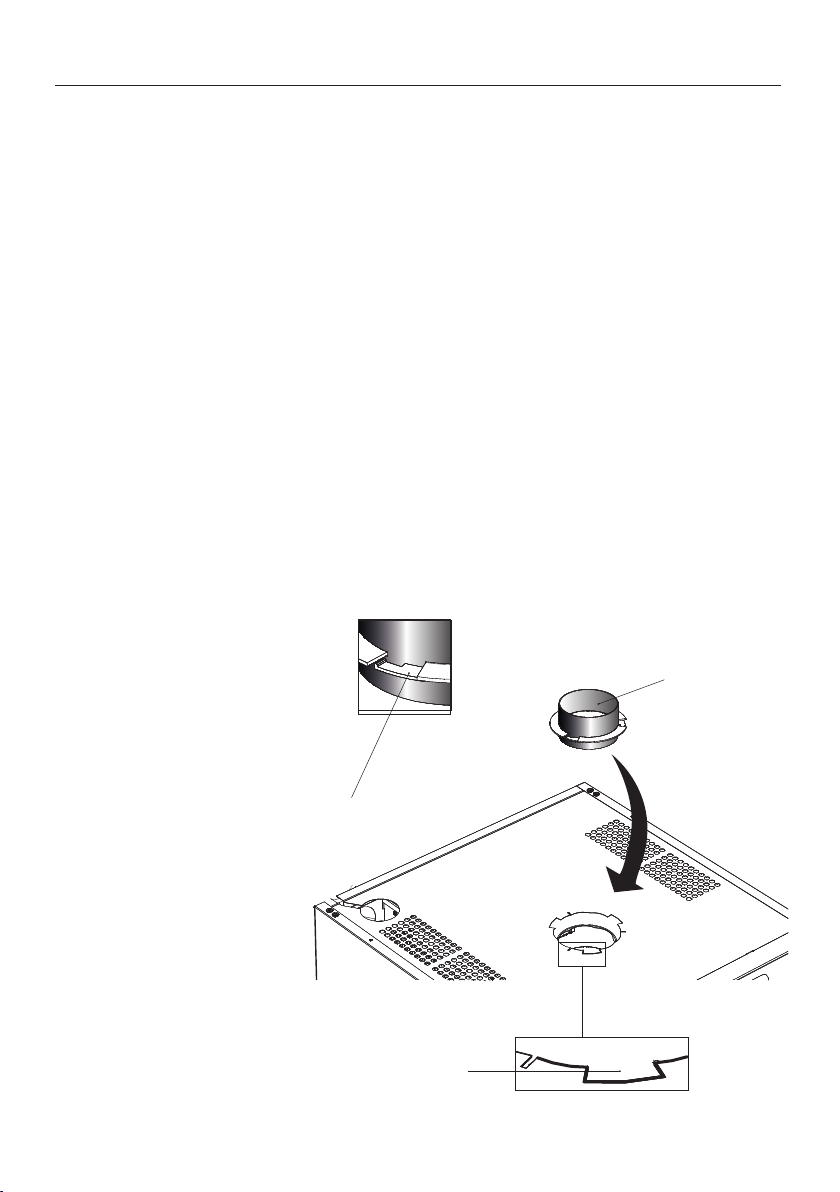

Air connection on the cabinet
Position and t the supplied
spigot (1) over the hole on
the top of the drying cabi-
net. Rotate clockwise until
the spigot clicks into place
in the slots in the roof.
Fixing hook in
spigot
Slot in roof for
xing hook

13
297
348
297
348
2
4
2
3
Adapter is not supplied.
The air intake must not be blocked.

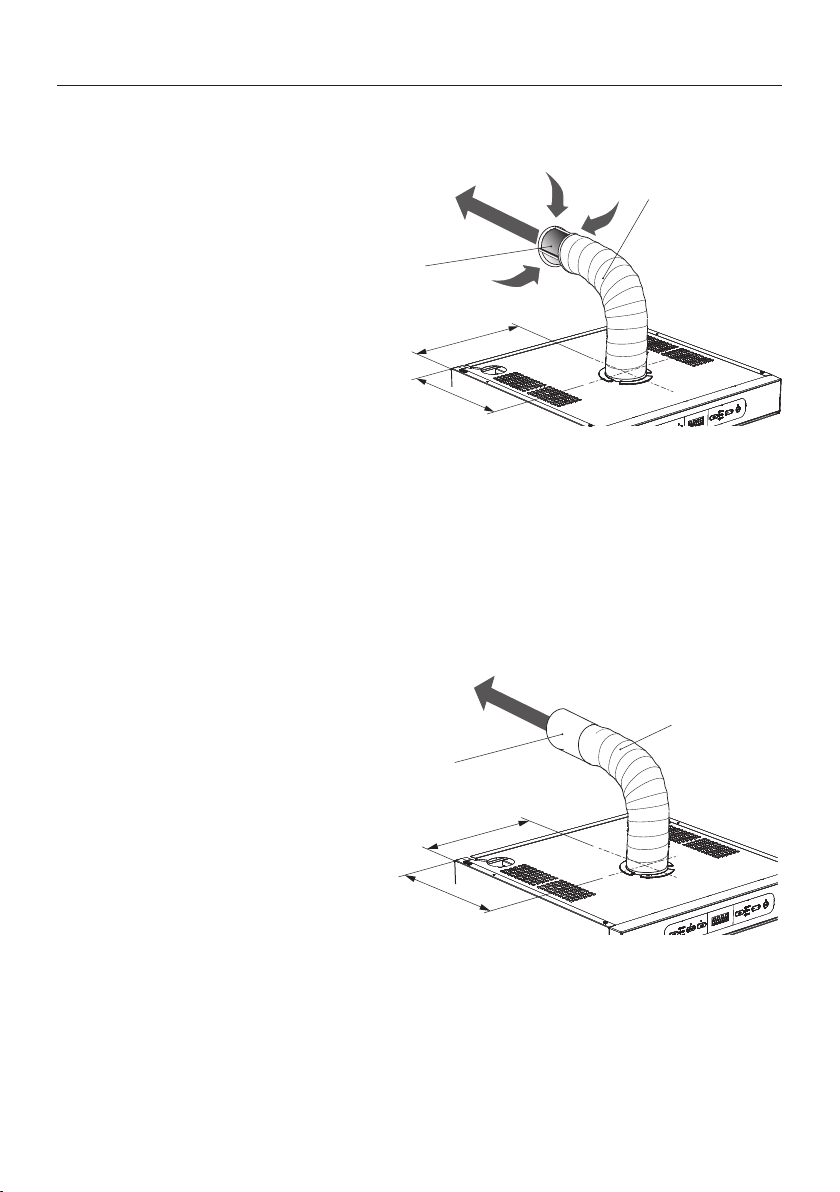

Permanently tted to mechanical exhaust vent
EVACUATION / SUPPLY AIR
Moist air out
Connect the exible hose (2) to
the spigot. Connect the other
end of the hose to the adapter (4)
and then press this home on the
exhaust vent in the room.
The air intake must not be blocked.
The drying cabinet must not be
connected to a flue.
Connect the exible hose (2) to the
spigot. Connect the other end of
the hose to the draught stabiliser
(3) which is then pressed home on
the exhaust vent in the room.
With draught stabiliser
Moist air out
1. Spigot (page 12)
2. Hose, Ø 120 x 1000 mm
3. Draught stabiliser
4. Adapter

14
The drying cabinet must be connected to
a 230 V single-phase 50-60 Hz and protec-
tively earthed wall socket.
Fuse 10A.
The drying cabinet is supplied ready for
connection with a cable and an earthed
plug.
ELECTRICAL CONNECTION
The manufacturer disclaims all liability
if the electrical connection has not been
carried out in the way described in this
user manual.
The drying cabinet must be connected to
a dedicated circuit.
Check that the connection current agrees
with the data on the identification plate
and that the power cord is earthed
correctly in accordance with applicable
standard. We recommend that the power
cord be fitted with a residual current
device (RCD).
The socket should be located so that the
plug can be easily pulled out if necessary.
The drying cabinet should be connected
to an earthed wall socket using the
connecting cable supplied and must not
be permanently wired.
Note: A replacement cord must only be
fitted by a qualified electrician.
If the mains lead for any reason is dam-
aged, it must be replaced. A genuine
spare part can be obtained from the
dealer who supplied the cabinet.

15
STARTUP
CAUTION Read the safety instructions on
page 5 before using the cabinet.
1Make sure that the cabinet is rmly
attached to the wall. See page 11.
2Make sure that no packaging mate-
rial has been left behind.
3Use a mild detergent with hot water
and wash the inside and outside of
the drying cabinet. Dry carefully. See
also the ‘Care’ section later in the
manual.
Read these operating
instructions before using
the drying cabinet for the
first time.

16
ARRANGING LAUNDRY FOR DRYING
p Hang the items in the drying cabinet
according to how much space they require
- not according to their weight.
p For most ecient drying, do not lay
item at on the upper hanger section.
pPosition long items closest to the
walls of the cabinet and shorter items
towards the centre of the cabinet.
The most ecient drying results are
achieved by hanging the items in this
way.
pFold up the two bottom hanger sec-
tions if long items are to be dried.
p
Hang gloves, caps, scarves and similar
items on the hanger strips on the inside
of the door.
p All the hanger sections are extendible to
make it easier to hang laundry.The hanger
sections must be in their inner position
when the door is closed.
pDo not overload the drying cabinet.
If you do, the laundry will become
creased and dry unevenly. Instead,
leave a space between the items if
possible.
pIf there is a risk of particular items shed-
ding colour, free space should be left
around them.
pAvoid drying heavy items of clothing
together with lighter items as they have
very dierent drying times.
pDry knitted products flat. These are
heavy when wet and stretch unneces-
sarily if they are hung on a peg.
USER TIPS
pAlways following the laundry instruc-
tions on the item of clothing if present.
pIf a fabric conditioner or anti-static
agent is used, follow the manufacturer's
instructions for use of this product.
pAdapt the drying temperature in the
cabinet for products that contain foam
rubber or similar material. Follow the
manufacturer's instructions closely for
the washing and drying of such prod-
ucts.
AIR FLOW
The illustration shows the air ow in the
drying cabinet.
Keep the area
around the evacu-
ation duct clear of
dust and dirt.
Make sure that the
air intake and ex-
haust duct are not
blocked.
See page 6.
Note: When the cabinet is cold it may
happen that the door’s sealing strip does
not close completely. However, this is fully
compensated when the cabinet is operating
with heat as the sealing strip expands.
There are three sections with hangers in the cabinet, depending on choice of
interior ttings. Each section has a number of rails for hanging laundry.

17
OPERATION
The drying cabinet is equipped with three automatic programmes and three
manually time-controlled programmes suited to dierent types of clothing.
There are also extra functions for the automatic programmes.
The drying process is controlled by sensors or timer and temperature settings.
Choice of drying programme is guided by: - energy eciency
- gentle treatment of fabrics
- dealing with fabrics that are dicult to
dry
- total time for drying process
CHOICE OF AUTOMATIC PROGRAMME
When choosing automatic programme, you need to ask some questions
1WHEN MUST THE LAUNDRY BE DRY?
Can it wait for a long time? Or is it urgent?
Long tine: choose ECO+, which is the cabinet's most energy-ecient pro-
gramme.
Medium time: Choose between HIGH and LOW with the option ECO.
Short time: choose between HIGH and LOW.
2WHAT TYPE OF FABRICS ARE THEY?
If they are tough fabrics, such as cotton, choose HIGH.
If they are sensitive fabrics, choose LOW.
If they are fabrics that are dicult to dry, such as children's overalls, choose
Extra Dry for either HIGH or LOW.
3WHY DOES THE CABINET NOT CLOSE BY ITSELF?
The cabinet is adjusted to a particular environment. If the environment in
question diers from this reference environment, you may need to make
some adjustment to the parameters controlling the drying process.
The procedure for setting is described in “Adjustment of parameters and cali-
bration of sensor” on page 22.

18
CONTROL PANEL
OPERATION
Programme selection for au-
tomatic time control of the
drying process
Programme selec-
tion for manual time
control of the drying
process
ON/OFF
Display showing time
remaining for selected drying
programme.
Under the time reading, a row
of LEDs shows that the drying
process is under way.
Start/Stop
Buttons for automatic time control of the drying process
Button for activation of automatic drying process
Only the fan is started.This programme selection is highly energy-
ecient and very gentle on the laundry. Use this programme when
you have plenty of time. AUTO ECO now lights up.
Here both the fan and the element are active but have a limited
temperature inside the cabinet. Use this programme when you
need to have your sensitive fabrics dry in a shorter time. AUTO
LOW now lights up.
Here both the fan and the element are active. The temperature
restriction is significantly higher than in AUTO LOW. This
programme dries the fabrics quickly. AUTO HIGH now lights up.

19
OPERATION
Button for activation of manual time control of drying process
Only the fan is started.This programme selection is highly energy-
ecient and very gentle on the laundry. Use this programme when
you have plenty of time. MAN ECO+ now lights up.
Here both the fan and the element are active but have a limited
temperature inside the cabinet. Use this programme when you
need to have your sensitive fabrics dry in a shorter time. AUTO
LOW now lights up.
Here both the fan and the element are active. The temperature
restriction is signicantly higher than in MAN LOW. MAN HIGH
now lights up.
Reduces/Increases the manual drying time.
Buttons for manual time control of the drying process
You can choose an optional extra function, EXTRA DRY, for AUTO LOW and AUTO HIGH.
EXTRA DRY is for fabrics that are thicker and more dicult to dry,
such as children's overalls, ski suits, etc. AUTO HIGH and EXTRA
DRY or AUTO LOW and EXTRA DRY now light up.
In addition, there is an extra function, ECO, as an option for AUTO HIGH.
ECO is a programme that makes use of the thermal energy where
it produces the greatest benet. This results in a programme that
is longer than the normal programme, but consumes less energy. If
AUTO ECO+ has been chosen as a drying programme as above, this
function is already pre-selected. AUTO HIGH and ECO now light up.

20
OPERATION
STARTUP OF THE DRYING CABINET WITH AUTOMATIC TIME CONTROL
The cabinet is started by pressing ON/OFF.
The cabinet is activated by default with the previous programme selection active.
If no programme has been selected previously or if the cabinet has been without
power or is completely new, the cabinet is started in AUTO HIGH by default.
AUTO HIGH lights up and Start/Stop ashes.
If this is OK, start the cabinet by pressing Start/Stop.
The LED at Start/Stop stops ashing and is lit with a steady glow.
The estimated drying time is shown on the display, where the time is counted
down. After the time has ended, the process stops automatically.
Selection of other automatic programme
Select automatic programme by pressing the AUTO button.
Step through to the desired programme by pressing AUTO one or
more times.
An extra function EXTRA DRY can be chosen in the AUTO LOW pro-
gramme.
An extra function, EXTRA DRY or ECO, can be chosen in
the AUTO HIGH programme.
Press Start/Stop. The LED is lit with a steady glow and shows that
the process is under way.
