Polaris 3900S User manual

POLARIS 3900S
Description: Polaris 3900 Sport
1 Year Warranty
IMPORTANT INFORMATION
Always disconnect the Polaris from the pool wall when cleaning or backwashing the pool•
filter.
After cleaning or backwashing, let the filtration system run for at least five minutes before•
re-connecting the Polaris.
New plumbing lines should be flushed out before installing the Polaris.•
The Polaris should not be used to remove plaster dust in new pools.•
Always remove the Polaris• before swimmers enter the pool.
Except when checking the wheel RPM, do not handle the Polaris while it is operating.•
Always remove the Polaris from the pool before chemical shock treatments.•
Polaris® 3900 Sport Limited Warranty
This one year limited warranty is extended to the original consumer purchaser of this Polaris®
3900 Sport Automatic Pool Cleaner manufactured by Zodiac Pool Systems, Inc., (“Zodiac”) from
date of manufacture of the unit as established by the serial number, or one year from date of
purchase with proof of purchase, whichever is later. Zodiac warrants this product, including all parts
and components thereof, to be free of defects in material and workmanship. Normal replacement
items such as bags, tires, sweep hoses or sweep hose scrubbers which have been worn out by
use or improper installation are not covered by this warranty. The Polaris® 3900 Sport frame is
warranted for a period of ten years.
This limited warranty does not apply if the failure is caused or contributed to by any of the
following: improper handling, improper usage, improper storage, winter freezing, abuse, improper
installation, removal of the in-filter screen, unsuitable application of the unit, improper maintenance,
lack of reasonable and necessary maintenance, damage in transit or during installation, or
damage from repairs/alterations made or attempted by anyone other than Zodiac or one of its
Authorized Service Centers. IN NO EVENT SHALL ZODIAC BE LIABLE FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY NATURE OR FOR DAMAGES TO PERSONS OR
PROPERTY, INCLUDING ANY DAMAGES TO VINYL LINERS, PLASTER, TILE, AGGREGATE-
BASED AND OTHER POOL SURFACES, OR DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT WITH A SUBSTANDARD POOL CIRCULATION SYSTEM OR A CHEMICAL
IMBALANCE.
Authorization to return a unit or part to the plant of manufacture must be obtained from the
Zodiac Customer Service Department. Check with your dealer for the local procedure before
exercising this warranty. If further directions or instructions should be required, contact the
Customer Service Department at 1-800-822-7933 (USA and Canada only) or [phone]. Be
sure to insure the shipment against loss or damage in transit.
This limited warranty is valid only in the United States of America, Mexico and Canada, and it
does not apply to Polaris® 3900 Sport Automatic Swimming Pool Cleaners sold or installed in any
other country.

WARNING: USE OF POLARIS ATV IN A VINYL LINER POOL
Certain vinyl liner patterns are particularly susceptible to rapid surface wear or pattern removal
caused by objects coming into contact with the vinyl surface, including pool brushes, pool toys,
floats, fountains, chlorine dispensers, and automatic pool cleaners. Some vinyl liner patterns can
be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the
pattern can also rub off during the installation process or when it comes into contact with objects
in the pool. Zodiac Pool Systems, Inc. is not responsible for, and the Limited Warranty does not
cover, pattern removal, abrasion or markings on vinyl liners.
POLARIS ATV COMPLETE CLEANER
1. SuperBag, (Double) All-Purpose Zippered
Bag 7. Hose Floats
2. Cleaner Body 8. Back-up Valve
3. Float 9. Feed Hose Connector
4. Sweep Hose 10. In-Line Filter with Filter Screen
5. Sweep Hose Scrubber 11. Quick Disconnect with Universal Wall
Fitting
6. Feed Hose 12. UWF Restrictor Disks, Red and Blue
9
1
3
4
5
6
10
7
12
8
11
2

QUICK INSTALLATION INSTRUCTIONS

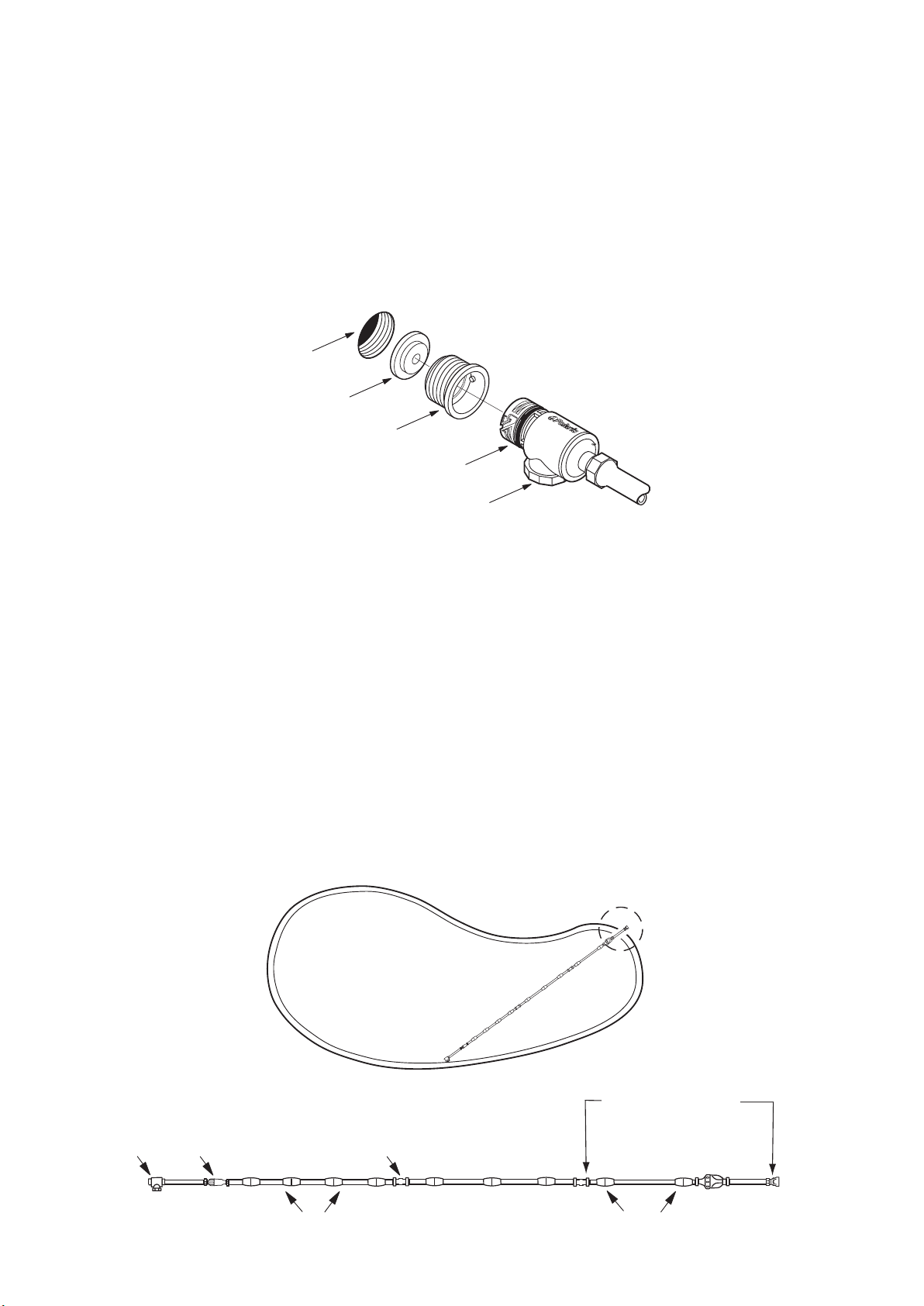

1. Install the Universal Wall Fitting
Installs in minutes on pools with a dedicated cleaner return line.
Turn on the filtration pump and flush out the plumbing line.Turn pump off.1.
Remove the Universal Wall Fitting (UWF) from the Quick Disconnect and screw it into the2.
return opening with the blue restrictor disk in place.
Turn the Quick Disconnect clockwise into the UWF and pull away to secure.3.
UWF
Quick Disconnect
Pressure Relief Valve
Dedicated
Return Line
Restrictor Disk
2. Adjust Feed Hose To Fit Pool Length
Measure the deepest part of the pool. Cut leader hose, from end that attaches to feed1.
hose, so length is equal to the greatest depth of the pool.
Attach leader hose to feed hose and connect hose to the pool wall at the return line.2.
Extend hose to farthest point of pool. The hose end must be within 6” – longer or shorter –
of the farthest point. See diagram below.
If hose is too long:Separate hose at center swivel. Cut equal amounts of the overage
from each 10-foot feed hose section.
If hose is too short: Add a feed hose section (part #9-100-3104), a swivel (part #D20)
and two hose nuts (part #D15). Adjust to proper length.
Each feed hose section should be equal in length after adjustments.
After adjusting the length, position the hose floats as shown.3.
Return
Line
Furthest
Point
Leader Hose Floats
2-3' apart
UFW
Feed Hose Floats
1.5 to 3' apart
Center
Swivel
In-Line
Filter
Leader Hose
Length = Max. Depth

3. Assemble the Cleaner
Attach the feed hose connector to the1.
feed pipe by pressing it down firmly
until it locks.
The filter bag is packaged in the collar2.
area on the vacuum tube. Pull out bag.
Wrap bag around hose and secure
with Velcro strips.
Turn on the pool filtration pump and3.
allow it to prime before turning on the
booster pump.
Feed Hose
Connector
Feed
Pipe
Hose
Bag
Velcro
4. Check for Proper RPM
Before operating the Polaris®, check
for proper wheel revolutions per minute
(RPM).
For maximum efficiency, the cleaner
should operate between 30 and 36 RPM.
Mark the single-wheel side tire.1.
Turn pump on, hold cleaner below2.
water level and count wheel
revolutions for one minute.
If count is not in target range, refer
to Adjusting the Wheel RPM in the
Troubleshooting section for more
information.
Single-wheel Side
Sweep Hose

FINE TUNING THE CLEANER
When operating correctly, the cleaner vacuums, sweeps and scrubs all surfaces randomly
throughout the pool. Approximately every three minutes the cleaner goes into back-up mode.
This action pulls the cleaner away from pool obstacles and increases its random pattern.
Thrust Jet Adjustment
The thrust jet powers the
direction of the cleaner.
Factory position is seven
o’clock but, depending on
the pool, other settings
can be helpful to improve
cleaner coverage.
Sweep Hose Adjustment
The sweep hose should move
in a gentle sweeping motion.
To adjust the motion, turn off
the booster pump and turn
the sweep jet clockwise to
increase or counter-clockwise
to decrease the movement.
Thrust Jet
Sweep
Hose
Jet
P
u
s
h
e
s
U
n
i
t
L
e
f
t
P
u
s
h
e
s
U
n
i
t
R
i
g
h
t
12
6
39
I
n
c
r
e
a
s
e
s
C
l
i
m
b
i
n
g
D
e
c
r
e
a
s
e
s
C
l
i
m
b
i
n
g
7
ROUTINE MAINTENANCE
Cleaning the Bag
Detach the Velcro strips. Twist the bag collar and pull up to free the bag from the cleaner.
Unzip both sides of the bag to remove the debris.
Empty the filter bag when it is
half full, especially if the debris
load is sand.
It is easier to empty the filter bag
when it is dry. Alternate between
two bags.
Zipper
Closure

Cleaning the Filters
Always disconnect the Polaris® before
cleaning or backwashing the pool filter,
and let the filtration system run for at
least five minutes before re-connecting
the cleaner.
To clean the in-line filter screen, pull it
out of the filter assembly, rinse it and
press it firmly back into place.
Storage and Winterising
Never store the cleaner in direct sunlight.
When storing for the winter, drain all the water from the cleaner (freeze
damage is not covered under the warranty). Use the Quick Disconnect to
remove the UWF from the pool wall. If necessary, use the UWF Removal
Tool (part #10-102-00) available from any authorized Polaris® dealer.

TROUBLESHOOTING
If the cleaner regularly displays any of the following actions, adjustments may be necessary to
restore performance. Refer to the exploded parts diagram for part references.
Action: Cleaner hangs up on steps or other obstacles for longer than 3 minutes.
Solution: 1. Check the wheel RPM.
2. Verify the back-up valve is cycling. Lift the valve out of the water and watch
the jet. It should come on and go off.
3. Adjust the thrust jet.
4. Remove unnecessary pool hardware or install a Ladder Guard Kit
(part #G21).
Action: Cleaner is sluggish, running with less power than normal.
Solution: 1. Check the filter screen in the in-line filter assembly and clean if necessary.
2. Clean the skimmer basket, pump basket, and pool filter.
3. Check the hoses, hose connections, and swivels for leaks that could cause
loss of water pressure.
4. Check the wheel RPM. If below 30 RPM, see Adjusting the Wheel RPM to
increase flow to cleaner.
Action: Cleaner races around the pool and/or does not make contact with the pool
bottom.
Solution: 1. Check the wheel RPM. If more than 36 RPM, see Adjusting the Wheel RPM
to reduce flow.
2. Verify the back-up valve is cycling. Lift the valve out of the water and watch
the jet. It should come on and go off.
Action: Cleaner doesn’t back up.
Solution: 1. Verify the back-up valve is cycling. Lift the valve out of the water and watch
the jet. It should come on and go off.
2. Check the wheel RPM. If not in 30-36 RPM range, see Adjusting the Wheel
RPM.
3. If the filter bag is full, empty or replace it.
4. Make sure feed hose is floating.
Action: Cleaner only turns in one direction.
Solution: 1. Adjust the thrust jet.
2. Make sure feed hose is floating.

Action: Feed hose becomes tangled.
Solution: 1. Remeasure the hose to verify that it is adjusted to the proper length for the
pool.
2. With the cleaner operating, check that the swivels and hose connections turn
freely.
3. Make sure the feed hose is floating.
4. With the Polaris® operating, hold the cleaner under water and verify that all
three wheels are turning together.
Action: The front end of the cleaner lifts all the time.
Solution: 1. Check the wheel RPM. If not in 30-36 RPM range, see Adjusting the Wheel
RPM.
2. Adjust the thrust jet downward.
3. Verify the back-up valve is cycling. Lift the valve out ofthe water and watch the
jet. It should come on and go off.
4. Check for water inside the cleaner float.
Action: Sweep hose is sucked into the vacuum tube.
Solution: 1. Make sure the opening at the end of the sweep hose is not blocked by the
sweep hose scrubber. Replace scrubber if it is worn or missing.
2. Adjust the sweep hose to a gentle sweeping motion.
3. Check the wheel RPM. If more than 36 RPM, see Adjusting the Wheel RPM
to reduce flow.
4. Add a sweep hose weight (part #B2).
Action: Sweep hose sprays too much water out of the pool.
Solution: 1. Adjust the speed of the sweep hose.
2. Pull the sweep hose scrubber down to cover more of the tip of the hose.
3. Replace the scrubber if it is worn or missing.
4. Add a sweep hose weight (part #B2).
Action: The cleaner does not clean the entire pool.
Solution: 1. Verify that feed hose reaches within 6” of the farthest point of the pool. If not,
order a new hose section from your Polaris® dealer.
2. Adjust thrust jet to improve coverage.
Action: The cleaner is running in circles on its side.
Solution: 1. Check for water inside the cleaner float.
2. Check the filter bag, if full it can weigh the cleaner down on one side.
3. Check the hose floats to make sure they are spaced evenly.
4. Check the wheel RPM. If more than 36 RPM, make adjustments to reduce
flow.

Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: [email protected]
Web: www.rainbowpoolproducts.com.au
Adjusting the wheel RPM:
If count is less than 30 RPM:
If an adjustable valve is installed on the cleaner line, open it completely so water can flow•
freely to the Polaris®.
Check the filter screen in the in-line filter for debris that restricts water flow.•
Clean the skimmer, filter and pump basket, clearing debris that restricts water flow.•
Check the hoses, connections and swivels for leaks that cause loss of water pressure.•
Remove the blue restrictor disk from the UWF.•
If count is more than 36 RPM:
Replace the blue restrictor disk in the UWF with the red restrictor. If the flow is still too•
high, unscrew the pressure relief valve until the proper RPM is reached. Note: The
pressure relief valve should only be adjusted when a restrictor is installed.
If an adjustable valve is installed on the cleaner line, adjust it to reduce the water flow to•
the cleaner.
