Polaris Quattro User manual

OWNER’S MANUAL
English |Français |Español
H0645700_REVA
Works with Polaris Booster Pump
Fonctionne avec un surpresseur
Funciona con bomba de presión adicional

English
2
To avoid risk of potentially serious injury:
• Do not handle the Polaris cleaner while it is operating, except when checking the wheel RPM.
• Always remove the Polaris cleaner before swimmers enter the pool.
CAUTION
WARNING
USE OF A POLARIS QUATTRO IN A VINYL LINER POOL
Certain vinyl liner patterns are particularly susceptible to rapid surface wear or pattern removal caused by
objects coming into contact with the vinyl surface, including pool brushes, pool toys, oats, fountains, chlorine
dispensers, and automatic pool cleaners. Some vinyl liner patterns can be seriously scratched or abraded
simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the installation
process or when it comes into contact with objects in the pool. Zodiac Pool Systems LLC and its afliates and
subsidiaries are not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or
markings on vinyl liners.
original instructions

English
3
For customer service or support:
• Before installing the Polaris®cleaner, make sure the pool filter is clean.
• New plumbing lines should be flushed out before installing the cleaner.
• The cleaner should not be used to remove plaster dust in new pools.
• Except when checking the wheel RPM, do not handle the cleaner while it is operating.
• Always remove the cleaner before swimmers enter the pool.
• Disconnect the cleaner from the pool wall when cleaning or backwashing the pool filter.
• Always remove the cleaner from the pool before chemical shock treatments.
• After cleaning or backwashing, let the filtration system run for at least five minutes before
re-connecting the cleaner.
Before You Start: Important Information
Zodiac Pool Systems LLC
2620 Commerce Way, Vista, CA 92081
1.800.822.7933 | polarispool.com
Zodiac Pool Care Europe
Boulevard de la Romanerie -BP 90023
49180 St. Barthelemy d’Anjou cedex FRANCE
zodiac-poolcare.fr
Zodiac Pool Systems Canada, Inc.
2-3365 Mainway, Burlington, ON L7M 1A6
1.800.822.7933 | ZodiacPoolSystems.ca
Zodiac Group Australia PTY, Ltd.
219 Woodpark Rd. Smithfield
NSW, 2164
1300 763 021 | Zodiac.com.au

English
4
a - Cleaner Body
b - Filter Canister - All-Purpose Debris
c - Filter Canister - Fine Debris
d - Hose Assembly
e - In-Line Filter Assembly
f - Quick Disconnect
f1 - Pressure Relief Valve
g - Universal Wall Fitting (UWF
®
)
h - Retrictor Disks (Blue and Red)
i - Hose Nuts
j - Feed Hose Connector
k - Hose Floats
l - Hose Swivels
Included in the Box
Installed in cleaner
i
in bag
blue
red
i

English
5
Read the complete owner’s
manual before you begin installation.
1 Prepare the Pool
1. Turn on the filtration pump, allow to prime.
2. Turn on the booster pump and flush plumbing lines for five minutes.
3. Turn off both pumps.
2 Install the Universal Wall Fitting
The UWF installs on pools with a dedicated cleaner return line and a threaded 1-1/2”
female pipe fitting.
1. Remove the Universal Wall Fitting (UWF) (g) from the Quick Disconnect (f).
2. Thread the UWF (g) with Blue Restrictor Disk (h) in place, into the dedicated
cleaner return line.
3. Attach the Quick Disconnect (f) and hose to the UWF (g). Turn clockwise then
pull away to secure.
Cleaner return line
Buse de refoulement de la piscine
línea de retorno para el limpiador
dedicated cleaner
return line

English
6

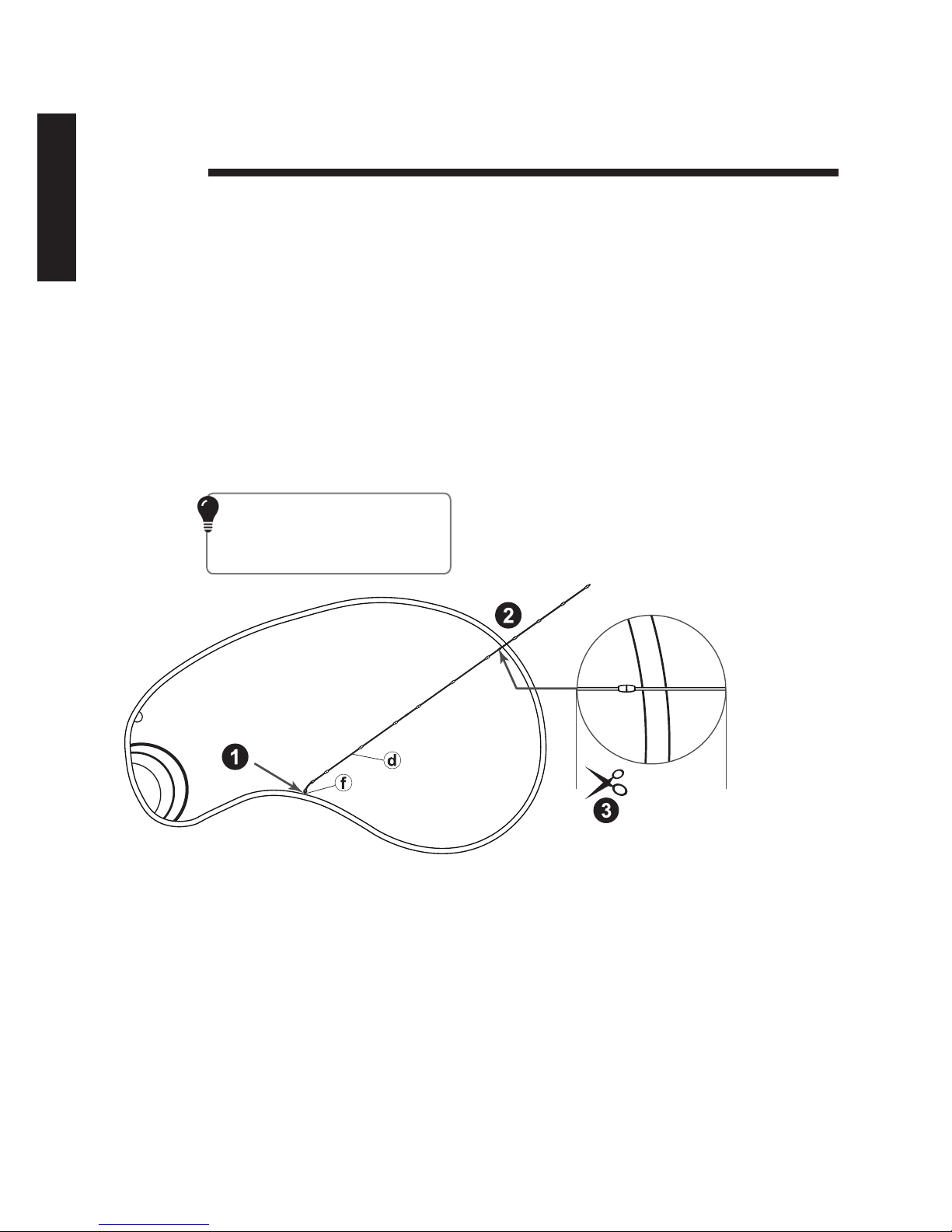

3 Adjust Hose Length
1. With the hose assembly (d) connected at the cleaner return line, extend the
end of the hose to the farthest point of the pool. Do not include steps or
seating areas.
2. Theendofthehoseshouldbewithin6″(15cm),longerorshorter,of
farthest point.
• If hose is too short, add a feed hose section with floats, a swivel and two
hose nuts, available through your local Polaris dealer. Adjust to proper
length.
3. Cutthehosesothatitiswithin6”(15cm)ofthefarthestpoint.
Cut to within 6” (15 cm) of the farthest point
Couper à 15 cm du point le plus éloigné
Corte a 15 cm o menos del punto más lejano
Walk hose around to
determine farthest point.

English
7
1-3'
(30-90 cm)
1-3'
(30-90 cm)
1-3'
(30-90 cm)
1-3'
(30-90 cm)
i

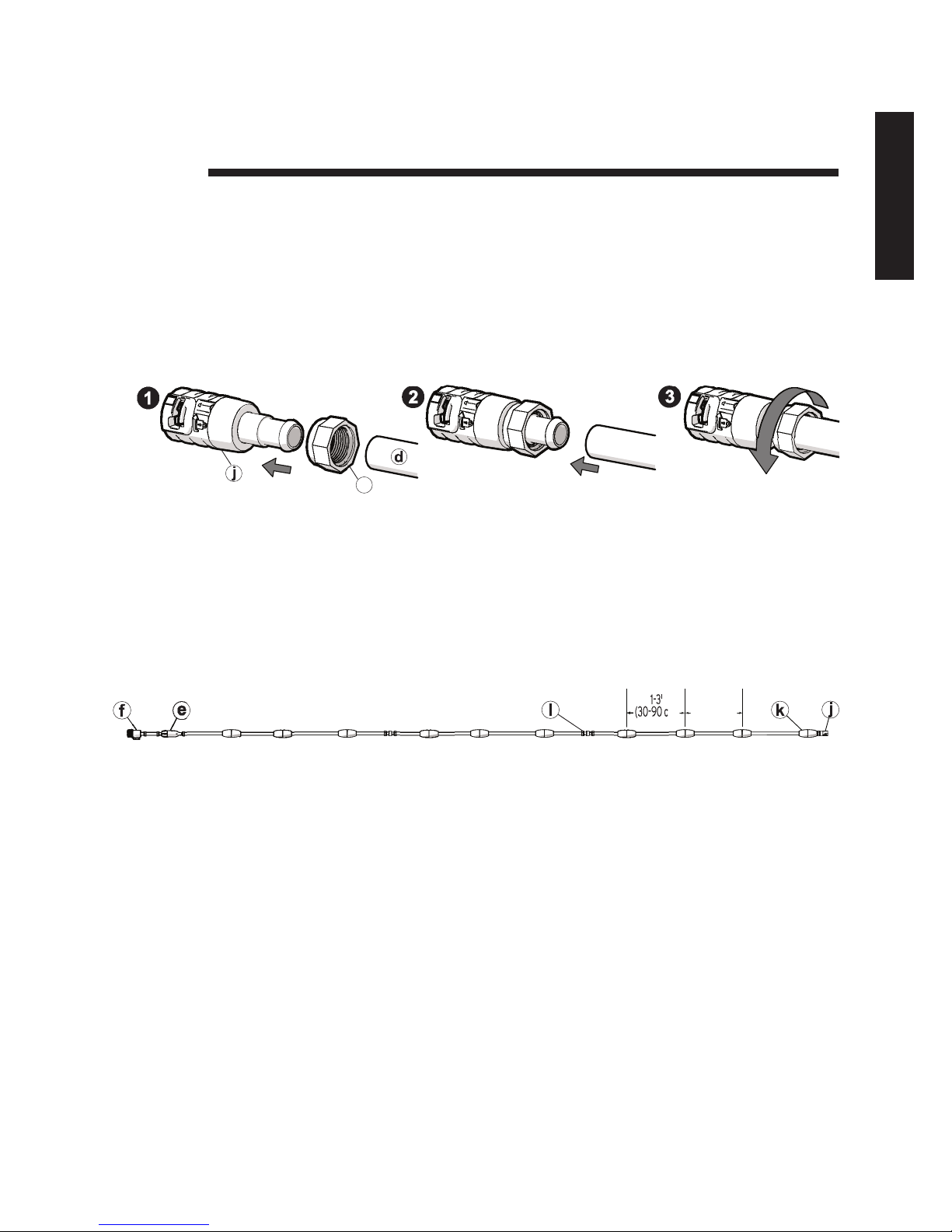

4 Connect Hose Fitting and Adjust Floats
1. Place the hose nut (i) onto the end of the feed hose connector (j).
2. Push the hose assembly (d) onto the feed hose connector (j).
Water can be used to lubricate the hose.
• Tightly secure the hose nut (i) onto the hose assembly (d).
3.
3. Position the first hose float (k) up against the feed hose connector (j) and then space
hose floats 1-3 ft (30-90 cm) apart.
4.

English
8
5 Assemble the Cleaner
WARNING
To avoid risk of potentially serious injury, do not swim or use the pool
when the cleaner is submerged or operating.
1. Attach the feed hose connector (j) to the cleaner.
2. Confirm the first hose float (k) is up against the feed hose connector (j).
3. Submerge the cleaner, allow it to sink to the bottom of the pool.

English
9
6 Check for Proper Wheel RPM
Before operating the cleaner, check for proper wheel revolutions per minute (RPM). For
maximum efficiency, the cleaner should operate between 28 and 32 RPM.
IMPORTANT: Keep the cleaner submerged for accurate wheel speed count.
1. Turn on the filtration pump and allow it to prime.
2. Turn on the booster pump, the cleaner will begin to move.
3. With both pumps on, pull the cleaner to the waterline and keep submerged.
CAUTION: Always lift the cleaner using the handle and take care to avoid possible
hair entanglement when leaning over.
NOTE: The Polaris®logo latch is not a handle.
4. Using the Polaris logo on the left-front wheel as a reference, count wheel
revolutions (RPM) for 1 minute. If wheels change direction during timing, start over.
5. Targetwheelspeedis28 to 32 RPM. If wheel speed is not in target range, refer to
Section 7 Adjust Wheel Speed.
1 min.
28-32
RPM
RPM
Keep cleaner
submerged for accurate
wheel speed count.

English
10

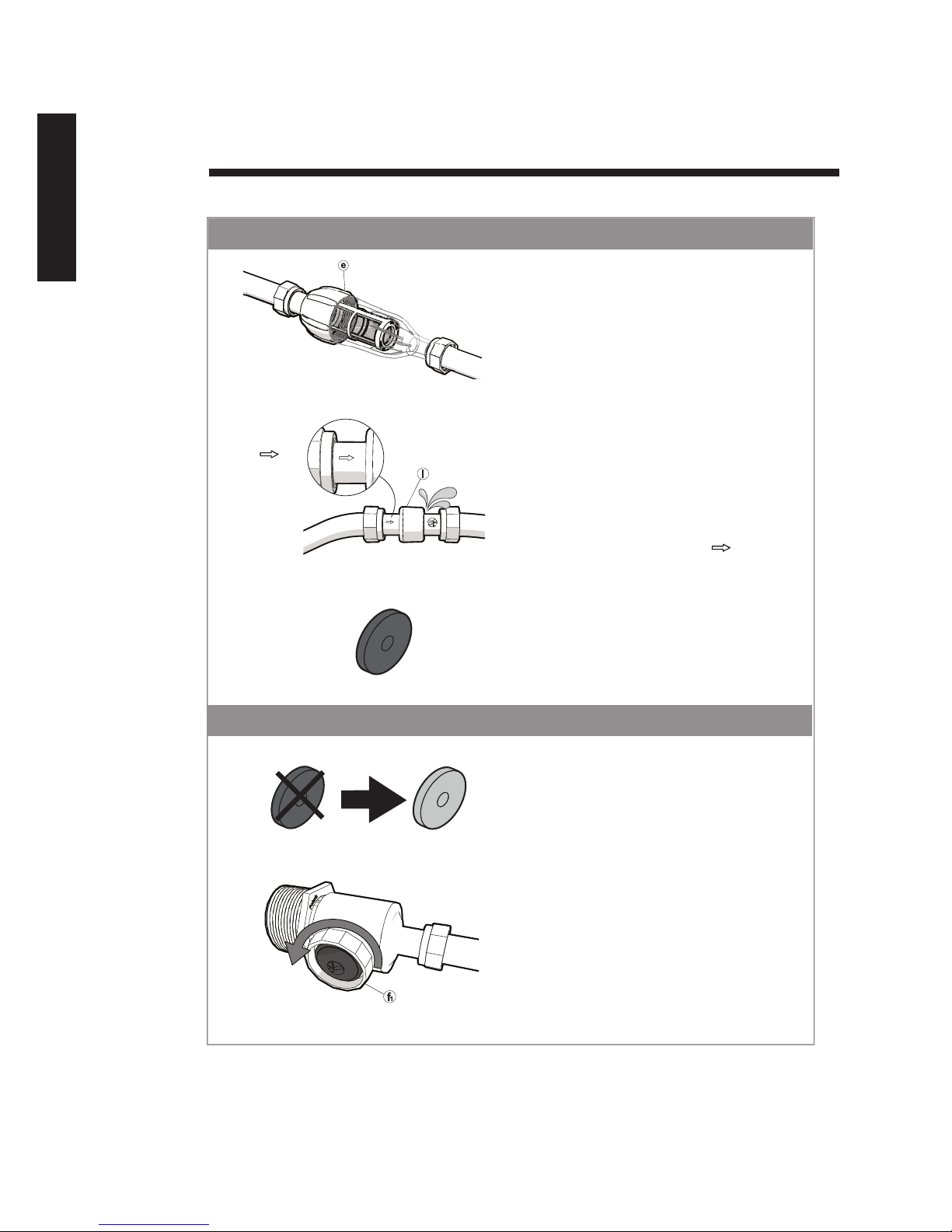

7 Adjust the Wheel Speed
< 28 RPM
• Check the filter screen in the in-line filter
assembly (e) for debris that restricts
water flow.
• Clean the skimmer, filter, and pump
basket, clearing debris that restricts
water flow.
• Check the hoses and connections
for leaks that cause loss of water
pressure.
• Check hose swivels (l) for for
excessive leaking or spraying.
Verify flow direction arrow ( ) is
toward the cleaner.
• Remove the blue restrictor disk (h)
from the UWF®(g).
> 32 RPM
• Replace the blue restrictor disk with
the red restrictor disk (h).
• Loosen the pressure relief valve (f1)
until proper RPM is reached.
NOTE: The Pressure Relief Valve
should only be adjusted when a
restrictor disk is installed.
red
rouge
rojo
Flow direction
arrow ( )
toward
the cleaner

English
11

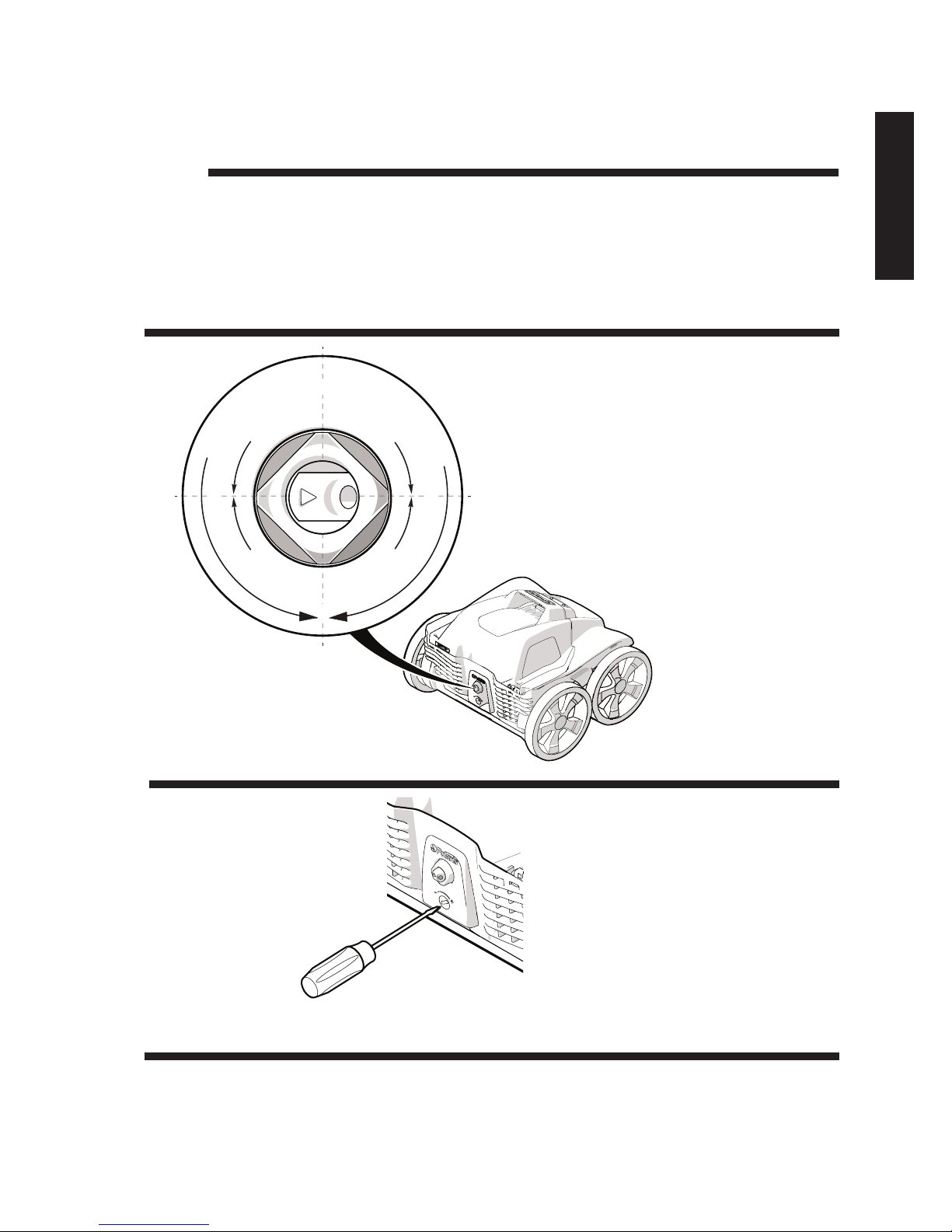

Thrust Jet Position
When operating correctly, the Polaris®cleaner vacuums, sweeps and scrubs all surfaces randomly
throughoutthepool.Theclimbingabilitydependsonthepool’sshapeandwaterpressureorflow.
The cleaner climbs best in pools without sharp angles or curves in the transition from the pool floor
to the pool wall. Fine tune your cleaner for optimal operation, as necessary.
The thrust jet powers the direction of
the cleaner. Factory position is three
(3)o’clock,but,dependingonthepool,
other thrust jet positions can be helpful
to improve cleaner coverage.
If needed, use a wrench to loosen the
square nut, fine tune and then tighten
to secure.
P
u
s
h
e
s
C
l
e
a
n
e
r
R
i
g
h
t
P
u
s
h
e
s
C
l
e
a
n
e
r
L
e
f
t
D
e
c
r
e
a
s
e
s
C
l
i
m
b
i
n
g
I
n
c
r
e
a
s
e
s
C
l
i
m
b
i
n
g
3
3
9
12
6
8 Fine Tuning
Thrust Jet Flow
Adjust the flow by turning
counter-clockwise to decrease
and clockwise to increase.
Cleaning Schedule
Thecleaner’squickandefficientpoolcoveragemayallowforareducedcleaningschedule
and runtime. The Polaris Quattro cleans most pools in one to two hours or less.

English
12
Clean the Filter Canister
Perform routine maintenance to prolong the life of your cleaner.
1. Press the lid release latch.
2. Lift the handle to remove the filter canister.
3. Press the filter cover release to remove the filter canisters.
4. Separate the fine debris canister (c) from the all-purpose canister (b).
5. Emptydebrisandrinsethefiltercanisterswithfreshwater.
b
c
c
c
c
5
9 Maintenance

English
13
Storage/Winterizing
NOTE: Never store the cleaner in direct sunlight.
To store the cleaner for the winter:
1. Remove cleaner from the pool and drain all water to avoid freezing water damage
(freeze damage is not covered under the warranty).
2. Remove the UWF from the pool wall using the Quick Disconnect. Use a pulling
pressure as you unscrew.
If necessary, use the UWF Removal Tool (part #10-102-00) available from
any Polaris®dealer.
Clean the In-Line Filter Screen
1. Turn off the booster pump.
2. Loosen the in-line filter cap.
3. Separate the in-line filter body from the filter cap.
4. Remove the filter screen.
5. Rinse with fresh water.

English
14
Troubleshooting
Problem Solution
Hose assembly
becomes tangled.
1. Remeasure the hose to verify that it is adjusted to
the proper length for the pool shape.
2. With the cleaner operating, check that the hose
swivels and the hose connections turn freely.
3. Ensure the hose is floating and the hose floats
are positioned properly. Position the first float (k)
up against the feed hose connector (j) and then
space hose floats 1-3 ft (30-90 cm) apart.
4. Check the wheel RPM. Target wheel speed is
28-32 RPM. If wheel speed is not in target range,
refer to Section 7 Adjust Wheel Speed.
5. Straighten the hose assembly by laying it out flat
in the sun.
Cleaner hangs up on steps or other
obstacles for longer than
3 minutes.
1. Check the wheel RPM. Target wheel speed is
28-32 RPM. If wheel speed is not in target range,
refer to Section 7 Adjust Wheel Speed.
2. Check for debris in the filter canister and clean, if
necessary.
3. Ensure the hose is floating and the hose floats
are positioned properly. Position the first float (k)
up against the feed hose connector (j) and then
space hose floats 1-3 ft (30-90 cm) apart.
4. Adjust the thrust jet. Refer to Section 8 Fine
Tuning.
5. Remove unnecessary pool hardware or install
a Ladder Guard Kit (part # G21) from a Polaris®
dealer.
6. Install a Back-Up Valve accessory (part # G62,
blackorpart#G52,white)fromaPolarisdealer.
Additional hose nuts and swivel may be required.
Position the back-up valve and its adjacent hose
float 6-8 ft (1.8 - 2.4m) away from the cleaner.
Thrust jet sprays too much
water out of pool.
Check the thrust jet position and adjust thrust jet
flow, if necessary. Refer to Section 8 Fine Tuning.
Cleaner does not clean
the entire pool.
1. Ensure the hose length is adjusted to the proper
length for the pool shape. Refer to Section 3
Adjust Hose Length.
2. Adjust the thrust jet to improve coverage. Refer to
Section 8 Fine Tuning.

English
15
Problem Solution
Cleaner is sluggish, running with less
power than normal or not
moving.
1. Check the wheel RPM. Target wheel speed is
28-32 RPM. If wheel speed is not in target range,
refer to Section 7 Adjust Wheel Speed.
2. Check for debris in the filter canister and clean, if
necessary.
3. Check the filter screen and the in-line filter and
clean, if necessary.
4. Clean the skimmer basket, pump basket, and pool
filter.
5. Check all of the hoses, connections, and swivels for
leaks that could cause loss of water pressure.
Cleaner does not climb walls. 1. Check the wheel RPM. Target wheel speed is
28-32 RPM. If wheel speed is not in target range,
refer to Section 7 Adjust Wheel Speed.
2. Ensure the hose is floating and the hose floats
are positioned properly. Position the first float (k)
up against the feed hose connector (j) and then
space hose floats 1-3 ft (30-90 cm) apart.
3. Check for debris in the filter canister and clean, if
necessary.
4. Adjust the thrust jet. Refer to Section 8 Fine
Tuning.
5. For smooth surface pools (tile, fiberglass, etc.),
replace both rear tires with PosiTrax®tires for
more traction (available from a Polaris®dealer).
Smooth Surface Pools (tile, fiberglass, etc.)
Problem Solution
Not enough traction on smooth
surface pools (tile,
fiberglass, etc.).
Replace both rear tires with PosiTrax tires for more
traction (available from a Polaris dealer).

Zodiac Pool Systems LLC
2620 Commerce Way, Vista, CA 92081
1.800.822.7933 | polarispool.com
Zodiac Pool Care Europe
Boulevard de la Romanerie -BP 90023
49180 St. Barthelemy d’Anjou cedex FRANCE
zodiac-poolcare.fr
Zodiac Pool Systems Canada, Inc.
2-3365 Mainway, Burlington, ON L7M 1A6
1.800.822.7933 | ZodiacPoolSystems.ca
Zodiac Group Australia PTY, Ltd.
219 Woodpark Rd. Smithfield
NSW, 2164
1300 763 021 | Zodiac.com.au
©2019 Zodiac Pool Systems LLC H0646400 REV A
Polaris®y el diseño de limpiafondos de tres ruedas son marcas registradas de Zodiac Pool Systems LLC
Las demás marcas mencionadas en esta guía son propiedad de sus respectivos propietarios.
Polaris®and the 3-wheeled cleaner design are registered trademarks of Zodiac Pool Systems LLC
All other trademarks referenced herein are the property of their respective owners.
Polaris®et la conception de nettoyeur à 3 roues sont des marques déposées de Zodiac Pool Systems LLC
Toutes les autres marques de commerce citées dans le présent document appartiennent à leurs propriétaires respectifs.
