Politec GAPID WS User manual

THREE-AXIAL ACCELEROMETER SENSOR
ANTI CLIMBING / CUTTING
Installation Manual

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
2
INDEX
1
MAIN COMPONENTS LIST
Pag. 3
2
MOUNTING
Pag. 4
3
CABLE AND CONNECTIONS
Pag. 5
4
MOTHERBOARD
Pag. 6
5
DECRIPTION OF COMPONENTS
Pag. 7
6
DESCRIPTION OF THE FUNCTIONS
Pag. 8
LIGHT METALLIC GRID
Pag. 8
RIGID GRID/THICK
Pag. 9
GARDEN NETTING NOT WELDED
Pag. 9
WELDED GARDEN NETTING
Pag. 9
WALL \ RAILINGS –ANTI BREAK DOWN
Pag. 9
WINDOWS
Pag. 10
SELF-LEARNING FOR ALARM
Pag. 10
SELF-LEARNING FOR DISQUALIFICATION
Pag. 10
SELF-LEARNING FOR SPONTANEOUS VIBRATION
Pag. 10
RESET
Pag. 10
7
CALIBRATION
Pag. 11
CALIBRATION WITH SELF-LEARNING FUNCTIONS
Pag. 11
SELF-LEARNING FUNCTION FOR ALARM
Pag. 11
SELF-LEARNING FUNCTION FOR DISQUALIFICATION
Pag. 11
SELF-LEARNING FUNCTION FOR SPONTANEOUS VIBRATION
Pag. 12
8
TECHNICAL FEATURES
Pag. 12
NB: Installation tips
Once installed, you must ensure that the sensor is properly closed through its water-tight cover.
Not using appropriate accessories will void the degree of protection (IP).

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
3
1MAIN COMPONENTS LIST
N°
Description
1
Fixing plate
2
Base
3
Fastening screws
4
Motherboard
5
Battery 3,6V 2,7Ah
6
Radio transmitter
compartment
7
O-Ring
8
Closing cover
9
Closing screws
1
2
3
4
5
6
7
8
9

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
4

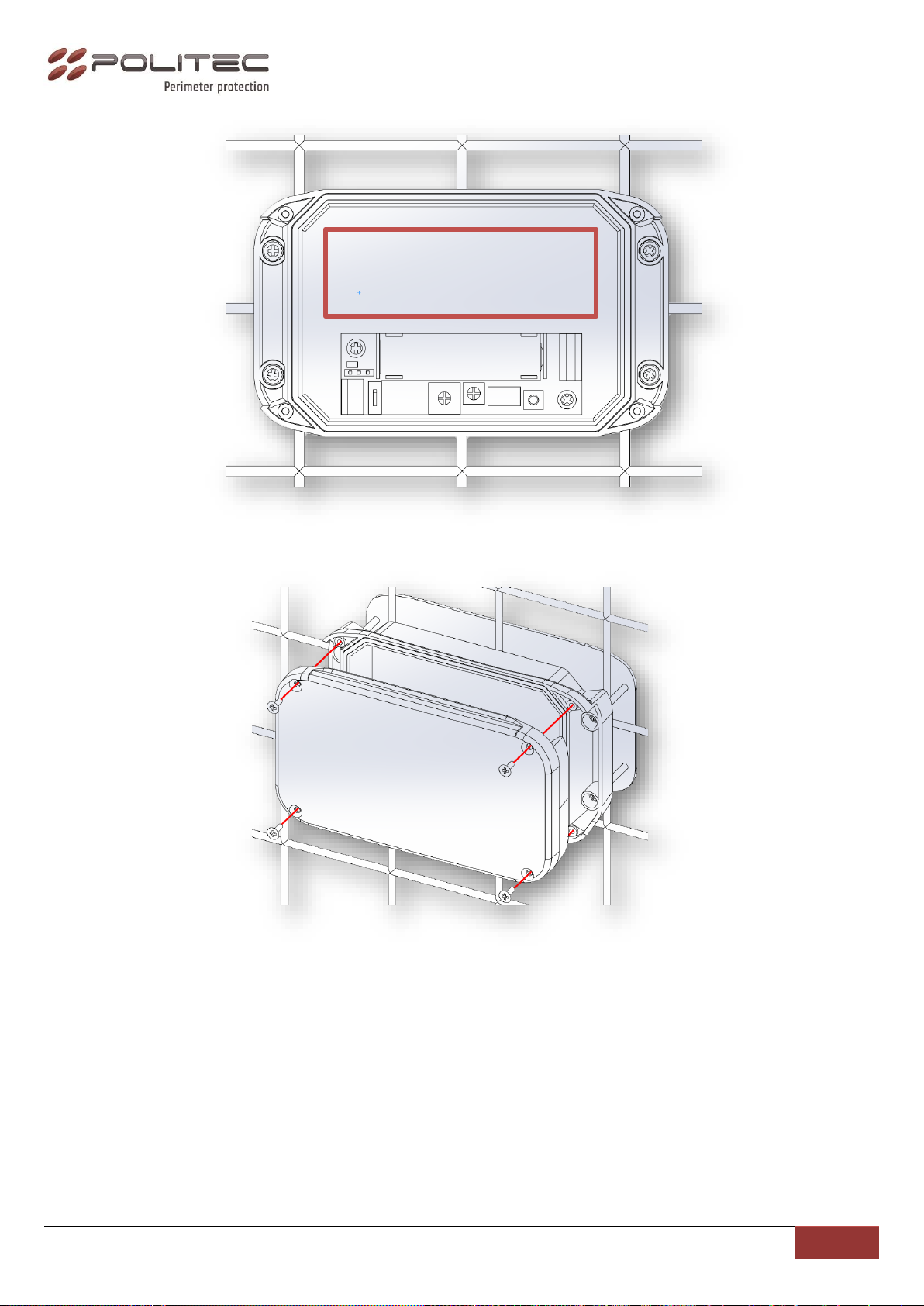

2MOUNTING
1. Place GAPID in the middle of the panel or the grid and fasten it to mounting plate located on the other side
with proper screws. Tighten well the screws to prevent improper device moving.
2. Put the O-Ring in the dedicated place.
3. Make wiring with the radio transmitter and power the sensor by paying attention to the battery polarity.

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
5
4. Stick with the velcro strip the radio transmitter.
5. After programming and calibration of the sensor, close it carefully, paying attention to well placement of
OR.
RADIO TRANSMITTER

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
6
3CABLE AND CONNECTIONS
GAPID WS is pre-wired with cables to connect to the radio transmitter
COLOR
DESCRIPTION
FUNCTION
Red
3.6V
Supply by cable
Screen
GND
Negative power supply
White
BL
Battery low
COLOR
DESCRIPTION
FUNCTION
Red
TMP
Tamper output NC
Green
TMP
Tamper output NC
Yellow
ALM
Alarm output NC
White
ALM
Alarm output NC
N.B.: CUTTING AND COVER THE CABLES NOT USED.

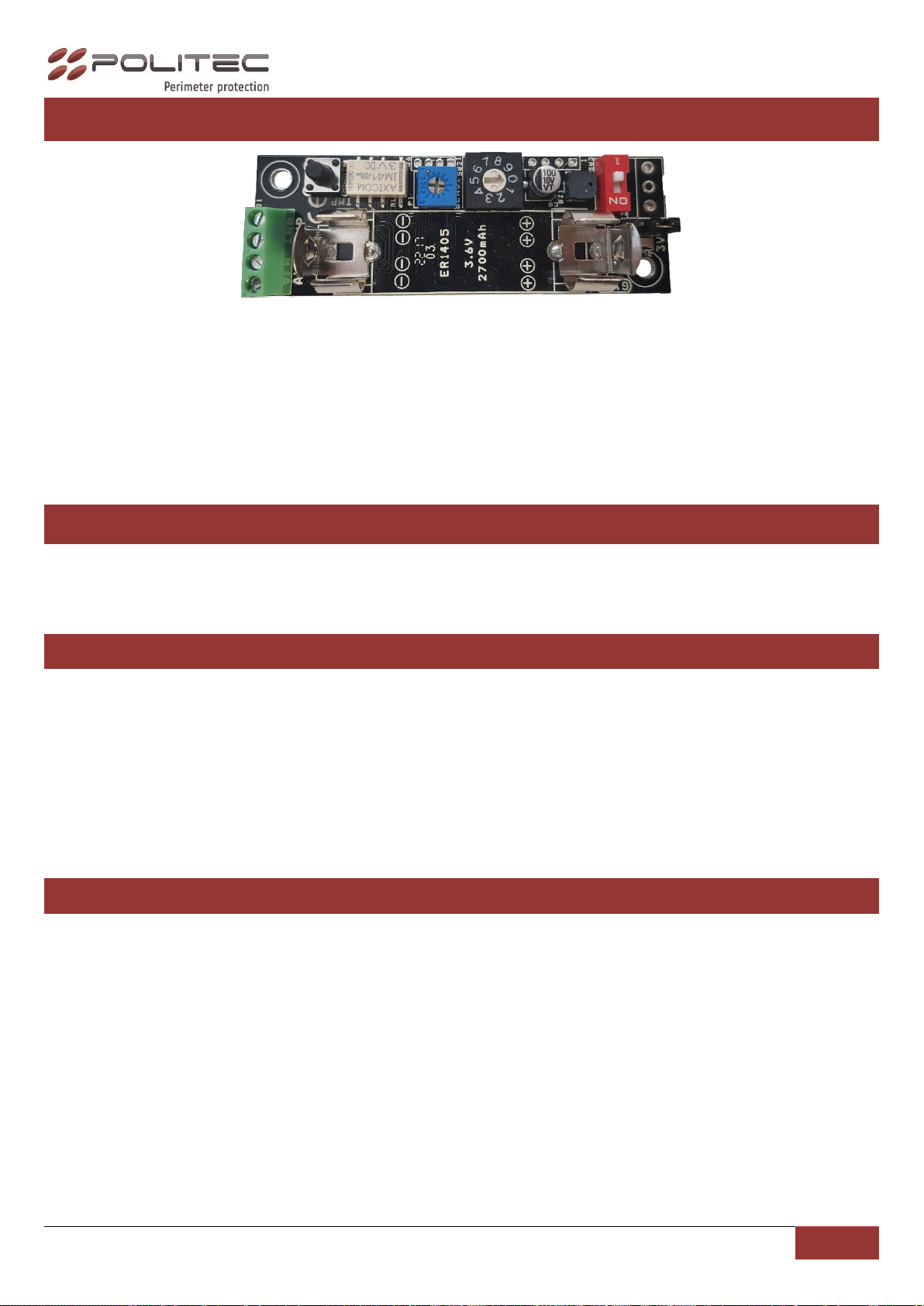

4MOTHERBOARD
1
TERMINAL
BLOCK
1
2
TMP
Output for Tamper balancing
3
ALM
Output for Alarm balancing
4
2
TEST DIP
3
SIGNALING LED
4
BUZZER
5
ANTI-REMOVAL TAMPER
6
FUNCTION SELECTOR
7
SENSITIVITY TRIMMER ADJUSTMENT
8
PLACE FOR BATTERY 3,6V 2,7Ah
3
1
5
8
1
2
3
4
4
6
7
2

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
7
5DECRIPTION OF COMPONENTS
1. TERMINAL BLOCK:
Free output NC contact of tamper and alarm, with possibility of balancing in terminal block.
2. TEST DIP:
SET ON to activate LED and BUZZER signals.
During normal working mode this DIP MUST be set OFF.
3. SIGNALING LED:
RED LED
when test mode is activated, it turns on together with BUZZER when sensor goes to
alarm.
BLUE LED
Anytime an operation mode is set by function selector, this led will blink to indicate
a new program selection.
6. FUNCTION SELECTOR:
6.1. STANDARD INSTALLATION
1
Light Metallic Grid
2
Rigid Grid\Thick
3
Garden Netting Not Welded
4
Welded Garden Netting
5
Wall\Railings –Anti Break down
6
Windows
6.2. SELF-LEARNING
7
Self-learning For Alarm
8
Self-learning For Disqualification
9
Self-learning For Spontaneous Vibration
6.3. RESET
0
Reset

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
8
7. SENSIVITY TRIMMER ADJUSTMENT
For any selected application it is possible to adjust the alarm sensibility.
Increase sensitivity involves a greater detection range and a lower intervention time. It is suggested to
increase sensitivity when the fence is easy to be climbed.
6DESCRIPTION OF THE FUNCTIONS
6.1 LIGHT METALLIC GRID
With this program GAPID detects attempts of climbing, break
down and cut of metal grids with thickness up to 5mm.
With maximum sensitivity is reached a radius of action of about
2.5 m.
N.B.: Sensitivity may depend on the type of grid and from
its anchorage to the ground.
Higher
Sensitivity
Lower
Sensitivity

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
9

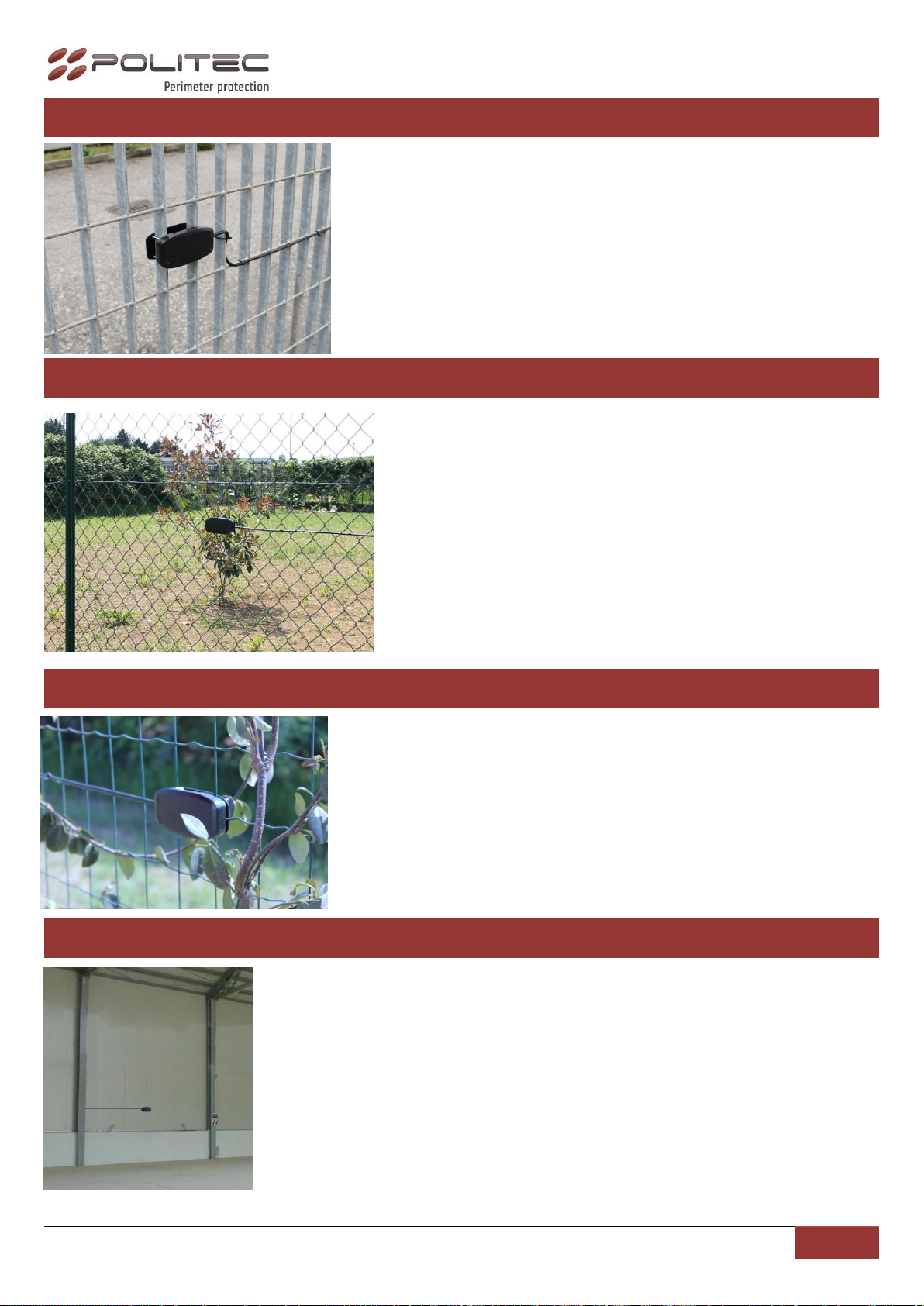

6.2 RIGID GRID/THICK
With this program GAPID detects attempts of climbing, break down
and cut of metal grids with more than 5mm thickness.
With maximum sensitivity is reached a radius of action of about 2.5 m.
N.B.: Sensitivity may depend on the type of grid and from
its anchorage to the ground.
6.3 GARDEN NETTING NOT WELDED
With this program GAPID detects attempts of climbing, break
down and cut of garden netting not welded.
With maximum sensitivity is reached a radius of action of about
2.5 m.
N.B.: Sensitivity may depend on the type of garden netting
and from its anchorage to the ground.
N.B.: Avoid for this type of net the application of sun
screens which can act as a "sail effect" possibly
causing false alarms in case of strong wind.
6.4 WELDED GARDEN NETTING
With this program GAPID detects attempts to of climbing, break down
and cut of welded garden netting well anchored to the ground.
With maximum sensitivity is reached a radius of action of about 2.5 m.
N.B.: Sensitivity may depend on the type of garden netting and
from its anchorage to the ground.
6.5 WALL \ RAILINGS –ANTI BREAK DOWN
With this program GAPID detects attempts to break down of walls and cutting of
iron railings.
With maximum sensitivity is reached a radius of action of about 2.5 m.
N.B.: Sensitivity may depend on the type and thickness of the wall /
railings.

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
10
6.6 WINDOWS
With this program GAPID detects attempts to break down of windows.
With maximum sensitivity is reached a radius of action of about 2.5 m.
N.B.: Sensitivity may depend on the type and thickness of the
glass.
6.7 SELF-LEARNING FOR ALARM
It is possible to record to sensor a different signal than standard ones (climbing, cut, break down, exc…).
Anytime will be reproduced a similar signal for intensity and duration as the one recorded during self-learning,
GAPID will give an alarm output.
To Have an alarm signal, with low sensitivity, the received signal must be identical to the one recorded, instead
with high sensitivity, the received signal may deviate slightly to the one recorded.
6.8 SELF-LEARNING FOR DISQUALIFICATION
It is possible to record to sensor a different signal than standard ones (climbing, cut, break down, exc…).
Anytime will be reproduced a similar signal for intensity and duration as the one recorded during self-learning,
GAPID will inhibits the alarm output for the duration of that signal.
To have a disqualification, with high sensitivity, the received signal must be identical to the one recorded,
instead with low sensitivity, the received signal may deviate slightly to the one recorded.
NB: if recorded signal is large in duration there is the risk that your system can go into alarm before the
sensor has been able to correctly identify all the signal.
6.9 SELF-LEARNING FOR SPONTANEOUS VIBRATION
It is possible to record to sensor the spontaneous vibration of the fence.
In particular metallic grids and garden netting may fluctuate due to environmental effects such as wind and rain.
These oscillations NOT occur during attempts to climb over, cutting and similar.
It is so possible to teach the resonance of the fence to GAPID so that it gets filtered in order to prevent false
alarms due to these oscillations.
6.0 RESET
All the signals recorded during the self-learning functions will be cleared.

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
11
7.CALIBRATION
1. Set ON the DIP to start the calibration.
2. Select standard function requested due to application.
BLUE signal LED will indicate chosen program followed by a confirmation “BIP” by the buzzer.
3. Adjust the sensitivity using the trimmer dedicated performing the intrusion test.
Whenever the sensor detects an alarm, the event is signalled with the lighting of RED LED and buzzer.
Between an alarm and the next must pass 30 seconds.
4. Set to 1 the DIP to finish the calibration.
7.1. CALIBRATION WITH SELF-LEARNING FUNCTIONS
Use them only if you want to record a special signals other than the standard ones.
ALL THREE FUNCTIONS MAY BE USED AT THE SAME TIME.
7.1.1. SELF-LEARNING FUNCTION FOR ALARM
a. Set ON the DIP.
b. Select the function n.7 and wait the confirmation of BLUE signal LED and buzzer.
c. Perform the disturbance to be recorded. Once such disturbance started the RED LED will light up and turn
off as soon as such disturbance will be finished and will be given a double beep of confirm acquisition. If
the RED LED does not turn ON means that the disturbance is too light to be recorded.
d. Re-select standard function.
e. Set to 1 the DIP to finish.
It is suggested to perform a disturbance for a time up to 10sec.
7.1.2. SELF-LEARNING FUNCTION FOR DISQUALIFICATION
a. Set ON the DIP.
b. Select the function n.8 and wait the confirmation of BLUE signal LED and buzzer.
c. Perform the disturbance to be recorded. Once such disturbance started the RED LED will light up and turn
off as soon as such disturbance will be finished and will be given a double beep of confirm acquisition. If
the RED LED does not turn ON means that the disturbance is too light to be recorded.
d. Re-select standard function.
e. Set to 1 the DIP to finish.
It is suggested to perform a disturbance for a time up to 10sec.

POLITEC s.r.l. | Manual Gapid WS –Ver. 1.0
12
7.1.3. SELF-LEARNING FUNCTION FOR SPONTANEOUS
VIBRATION
a. Set ON the DIP.
b. Select the function n.9 and wait the confirmation of BLUE signal LED and buzzer.
c. Perform the disturbance to be recorded for example hitting the fence making it oscillate. Once such
disturbance started the RED LED will light up and turn off as soon as such disturbance will be finished and
will be given a double beep of confirm acquisition. If the RED LED does not turn ON means that the
disturbance is too light to be recorded.
d. Re-perform the disturbance as point c. It is necessary to have to consecutive recordings to confirm the
learning. If after a few attempts you do not get two surveys with satisfactory outcomes means that the fence
has different oscillation frequencies, and you cannot use this function.
e. Re-select standard function.
f. Set to 1 the DIP to finish.
8. TECHNICAL FEATURES
MAX COVERAGE AREA
3 x 5 m (max dimension of panel with sensor placed in the middle)
SETTING AND SENSOR PROGRAMMING DIRECTLY ON BOARD
3 SELF-LEARNING FUNCTIONS
5 STANDARD OPERATING FUNCTIONS
POWER SUPPLY
3,6 V
BATTERY LIFE
3 year with battery 3,6V 2,7Ah
POWER CONSUMPTION
0,05 mA at rest / 0,8 mA on alarm
OUTPUT
Alarm (NC)
Tamper (NC)
Battery Low (Negative open collector)
DIMENSIONS (L x H x D)
129 x 76 x 29 mm
CASE MATERIAL
Black polycarbonate anti-scratch, UV resistant
WEATHER RATING
IP 66
OPERATION TEMPERATURE
-40°C +80°C
Mounting kit included with screws and metallic plate.
WARRANTY 2 YEARS
TECHNICAL DEPT: [phone]
