1.Introduction
3
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
Congratulations on having purchased a Politec curtain sensor.This appliance guarantees long-
lasting and reliable operation if installed correctly.For correct and effective use, it is necessary to
read this instruction manual carefully.
The system has been designed to detect intrusions and activate the alarm; it is not a
device that prevents intrusion.Politec is not responsible for damage, injury or loss
caused by accidents, theft, force majeure (including momentary lightning-induced
overcurrent), abuse, improper or incorrect use, faulty installation or inadequate
maintenance.
2. Product description
This curtain sensor has been designed for the protection of entrances (doors and windows) both
for outdoor and indoor use.
Thanks to its small size, it is particularly suitable for protecting doors, windows and shop
windows and, thanks to the materials used and advanced technology, it can be used in any
outdoor installation where it is necessary to protect well-defined areas.
In order to ensure correct performance, it must be installed on the upper part of the window,
door, or French window to detect the movement of a stranger through the entrance.
Before installation, check the following conditions:
•the wall must not have depressions or excessive protrusions;
•avoid positioning the detector near heat sources or in direct sunlight;
•avoid the reflection of electromagnetic energy on large surfaces such as, for example, mirrors,
metal walls, etc .;
•avoid pointing the detector at fluorescent lamps or placing it in their immediate vicinity.
If installed outdoors it must be sheltered (not completely exposed to the elements).
Warnings
Mounting, installation of the sensor and connection to the mains must be carried out
by expert and qualified personnel, in compliance with rules and regulations applicable
to electrical systems.

3.General warnings
4
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
This installation manual contains important information regarding safety for installation: it is
necessary to read all the instructions before proceeding with the installation.
Keep this manual for future use.
•If you have any questions or doubts during installation, do not carry out any operations and contact
the support service.
•Use of these products for purposes other than those specified in these instructions is prohibited.
•You must not make any change to the components of the product unless stated in the manual in
order not to void the warranty; such operations can only lead to malfunctions; Politec assumes no
liability for malfunctions or damage due to modified products.
•Depending on the specific situation of use, check for the need for additional devices: detectors or
signalling devices.
•During installation, mounting and use of the product, make sure no foreign objects (solids, metals
or liquids) are able to penetrate inside the open devices.
•Manufacturer's liability:Politec assumes no liability for failures resulting from incorrect installation;
lack of maintenance, incorrect assembly or use.
•Politec is also not liable for incorrect or incomplete operation of the product or failure to detect
intrusion.
•Warranty (summary of conditions):Politec guarantees its products for a period of 2 years from the
production date.The warranty is applied to those purchasing directly from Politec; there is no
warranty for the end user who, in the event of breakdowns or faults, must contact the installer or
dealer.
•The warranty excludes aesthetic parts as well as parts subject to normal wear and parts subject to
normal consumption such as batteries and accumulators.
3.1 Additional warnings for devices powered by mains voltage
This manual is intended only for technical personnel qualified to install such devices.
•Assessing the hazards that may occur during installation and use of the system, in order to achieve
complete safety, it is necessary that installation takes place in full compliance with applicable laws,
methods, rules and regulations.
•Before accessing the internal terminals of the product, it is necessary to disconnect all the power
circuits.
•If automatic circuit breakers or fuses trip, before resetting them it is necessary to identify the fault
and repair it.
3.2 Installation warnings
•Check that all the material to be used is in excellent condition and suitable for use.
•Before proceeding with the installation, check the environmental class of the products in the
"technical specifications" chapter.
•Check, comparing with the values shown in the paragraph "technical specifications", that the range
of the devices is correct
•Check that the sensor is positioned in areas protected against potential impact, in flat areas and on
fixed supports to avoid movements.
•Do not place the system components close to heat sources as they could be damaged.
•Each sensor has its own operating principle: check the instructions for choosing the right position in
the respective instruction manual.

4.List of main components
5
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
The package contains the following components and accessories.
When opening the package, check that everything has been included.
No.
COMPONENT
No.
COMPONENT
1 Cover 8 3.6V lithium batteries
2 PIR LIMITER 9 Interface board + cable
3 Circuit board 10 Radio transmitter port
4 Gaskets 11 Metal plate
5 Base 12 Outer cover
6 Concentric seals 13 L-shaped bracket
7 Canopy
2 4 7
8
59
6
3
1
4
10 12
11 13

5.Preparation for installation
6
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
5.1 Preparation of the sensor parts before installation
Since the communication of the sensors (depending on the family) to the control unit can take place
by wire, via wireless, it is advisable to firstly check all the components of the sensors and their possible
accessories before beginning the installation.
5.2 It is advisable to carry out:
•device configuration on a table;
•checking device operation
•the permanent fixing of each device;
•the preparation and carrying out of electrical connections.
In order to avoid errors, operating and installation problems, it is advisable to proceed as follows:
a) Place all the products with the package open on a table;
b) For the low-consumption sensor version for wireless models with universal circuit board housing,
insert and connect the radio transmitter, and connect it to the sensor
c) Power the sensors and program them
d) Test sensor operation;
e) Place (without fixing) the sensors in the planned points;
f) Place (without fixing) all the other devices at the planned points;
g) Check for each sensor that there is sufficient field for radio communication (for wireless versions);
h) Permanently fix the sensors.
Before proceeding with the installation, it is necessary to check the integrity of the product, the
adequacy of the model chosen and the suitability of the environment intended for installation:
• Check that all conditions of use fall within the "limits of use" and in the "Technical specifications of
the product".
• Check that the environment chosen for the installation is compatible with the total footprint of the
product.
• Check that the surface chosen for the installation of the product is sturdy so as to ensure stable
fixing and that it is adequately protected against possible impacts or the elements.

6.Placement and installation
7
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
6.1 Placement and installation height
Position the sensor considering the type of surrounding environment and the protection
distance for correct and effective operation.
Position it in such a way that there are no obstacles in its range of action (trees/plants or
objects that can swing or move with the wind or rain if installed outside).
Position the sensor so that sunlight does not hit it directly near the sensors.
SIDE VIEW
VIEW FROM ABOVE

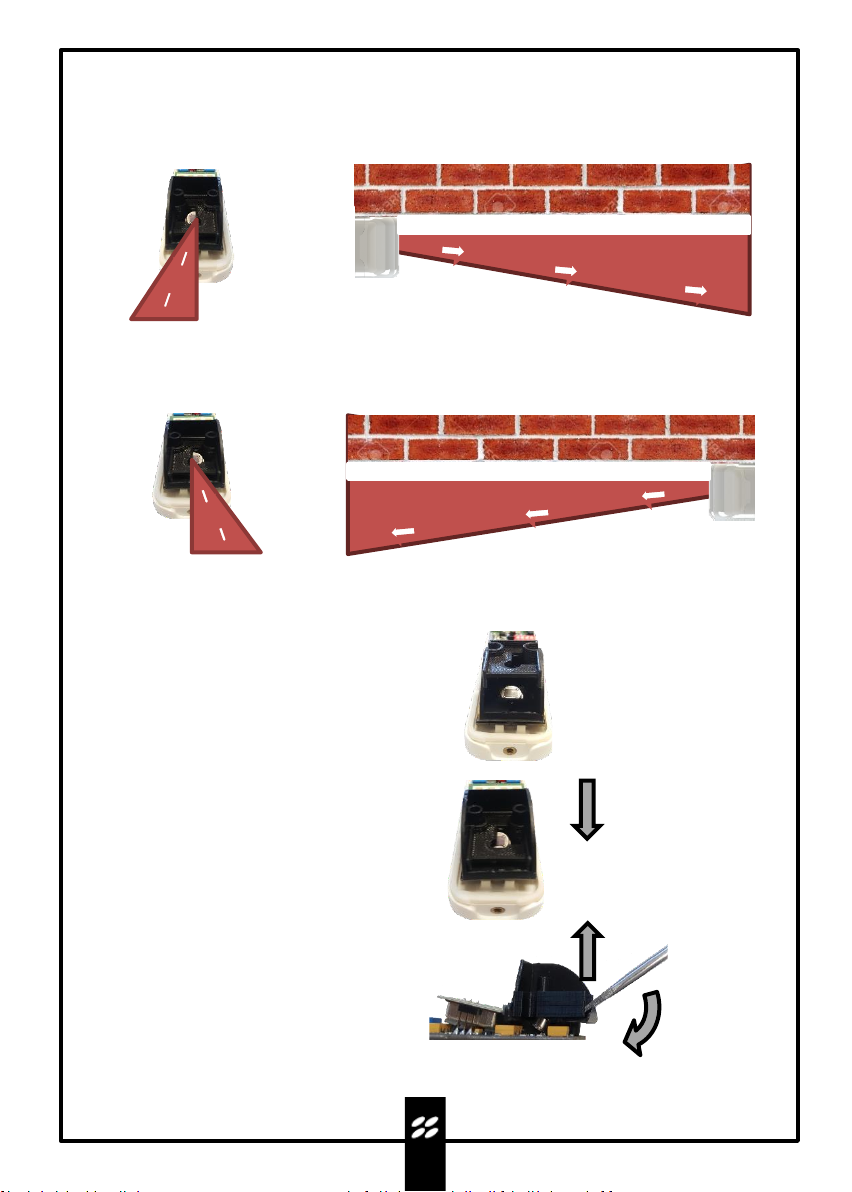

6.2 Anti-crawl
If mounted at a height of less than 3m, the system can also detect the areas underneath the NAT
sensor by suitably adjusting the sensitivity of the two technologies.This is thanks to the inclination
present on the microwave board and PIR which generate an anti-crawl zone.This solution allows you
to limit the detection area even without the use of a bracket.
N.B.:The detection zone can vary according to the installation height and the surrounding
environment
6.3 Pet Immunity
If mounted at a height between 2 and 3m, the sensor manages to identify a pet with a mass not
exceeding 10 kg that walks within the detection area.
10m
10m

8
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
6.4 Type of detection
The sensor is designed for detecting actual crossing of the curtain and not just approaching
it.The detection zone is based on the mass of a person of about 70 kg.The sensor could detect
objects of higher mass (such as cars, trucks, etc.) having a mass significantly higher than the
expected area.
6.5 Wrong installations

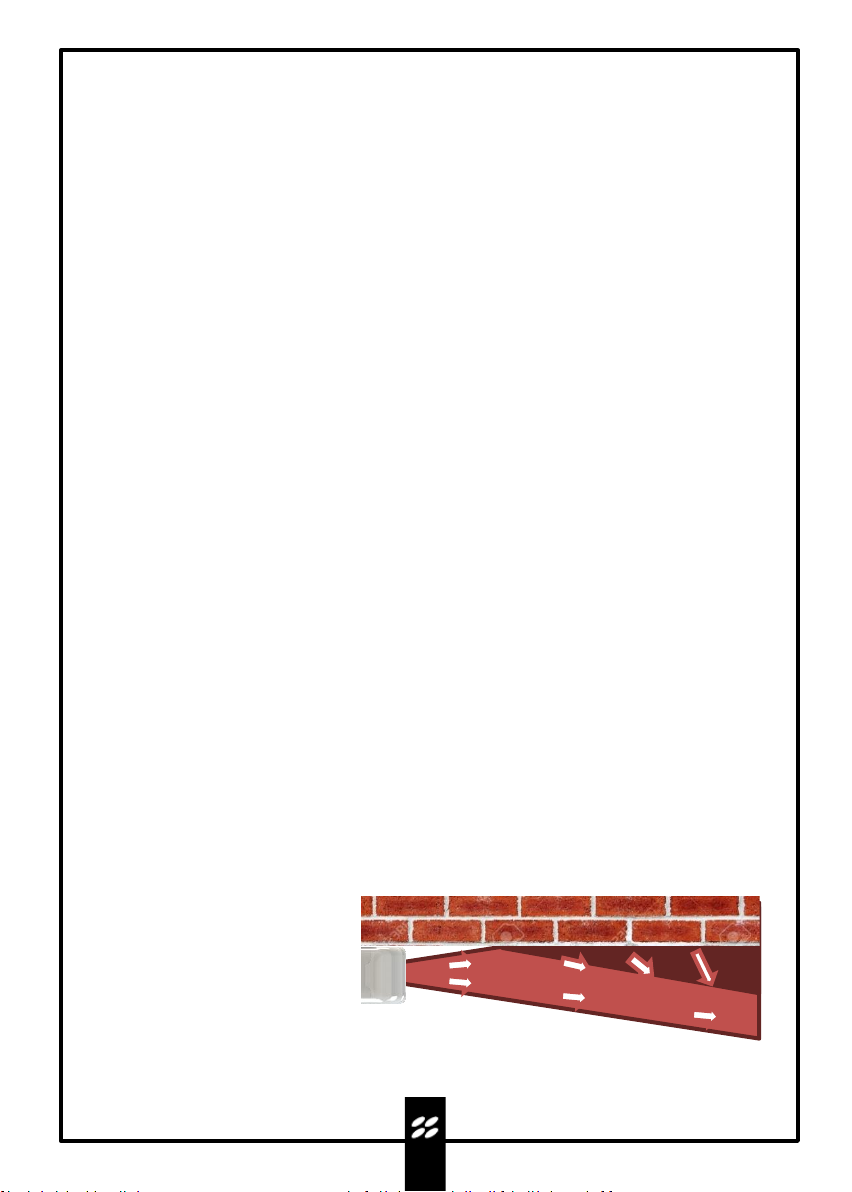

The sensor can detect objects such as cars and/or trucks beyond the detection area, therefore
avoid installing the sensor facing a vehicle passageway or use the bracket and tilt the sensor
downwards in order to reduce the field of view.Avoid the presence of plants, air conditioners
and mobile objects in the detection area
10m

9
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
In any case, it is necessary to take into consideration the specific beam diffusion of each model, to
avoid reflection of the beams caused by the ground or by adjacent objects.
WARNING:
Product warranty is invalid if there is any hole in the sensor or any component
7.Mounting

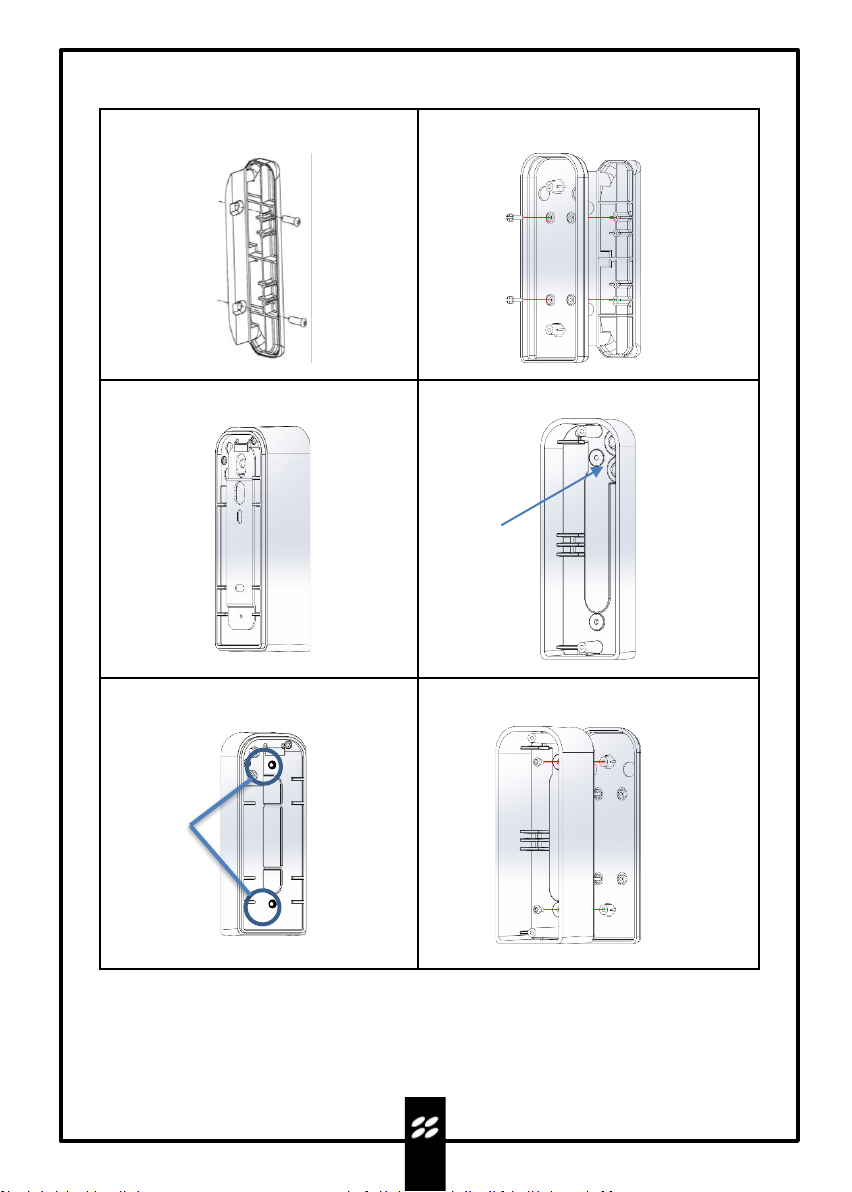

1.
Remove the metal plate from the
back of the transmitter holder
2.
Fasten the metal plate to the wall:
3.
Position the battery holder by
inserting the upper hook and tighten
the screw located at the bottom as
shown in the figure
4.
Check that the seals in the canopy are
inserted correctly

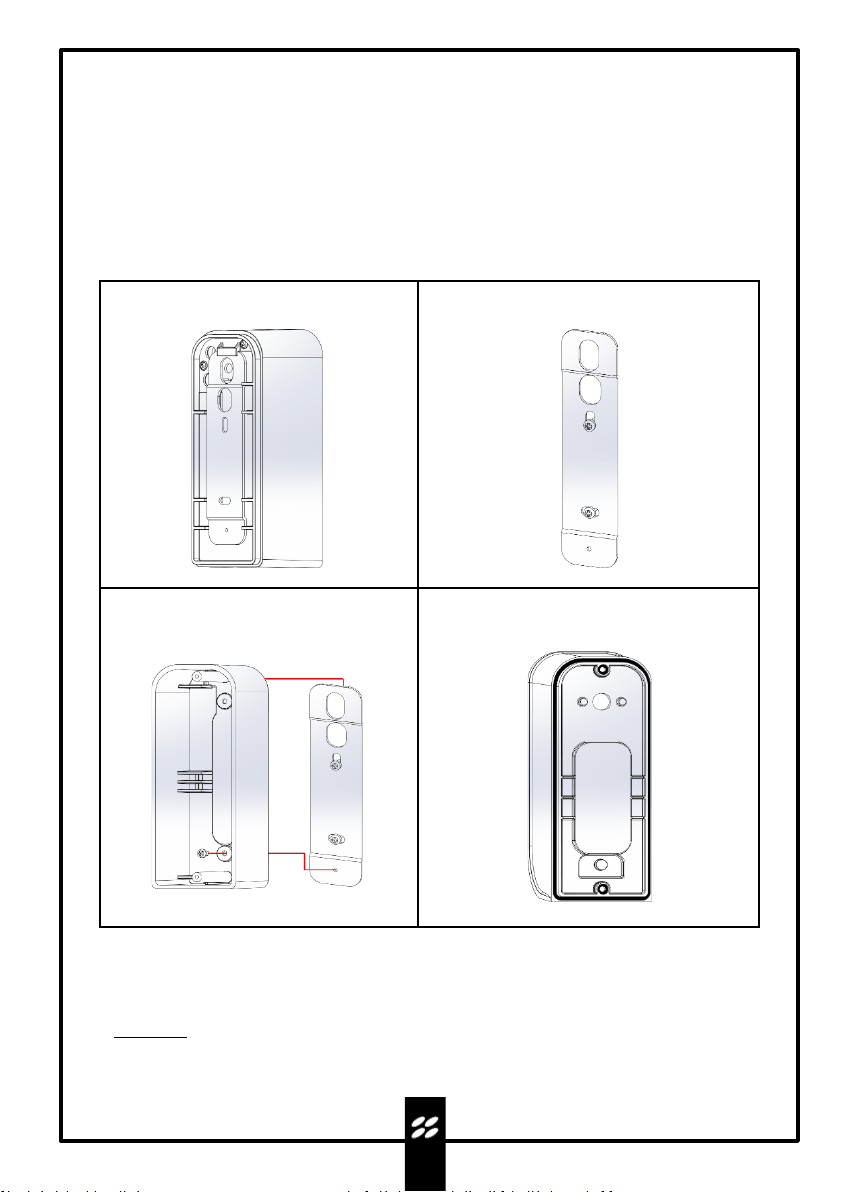

7.1 Direct wall mounting

10
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0

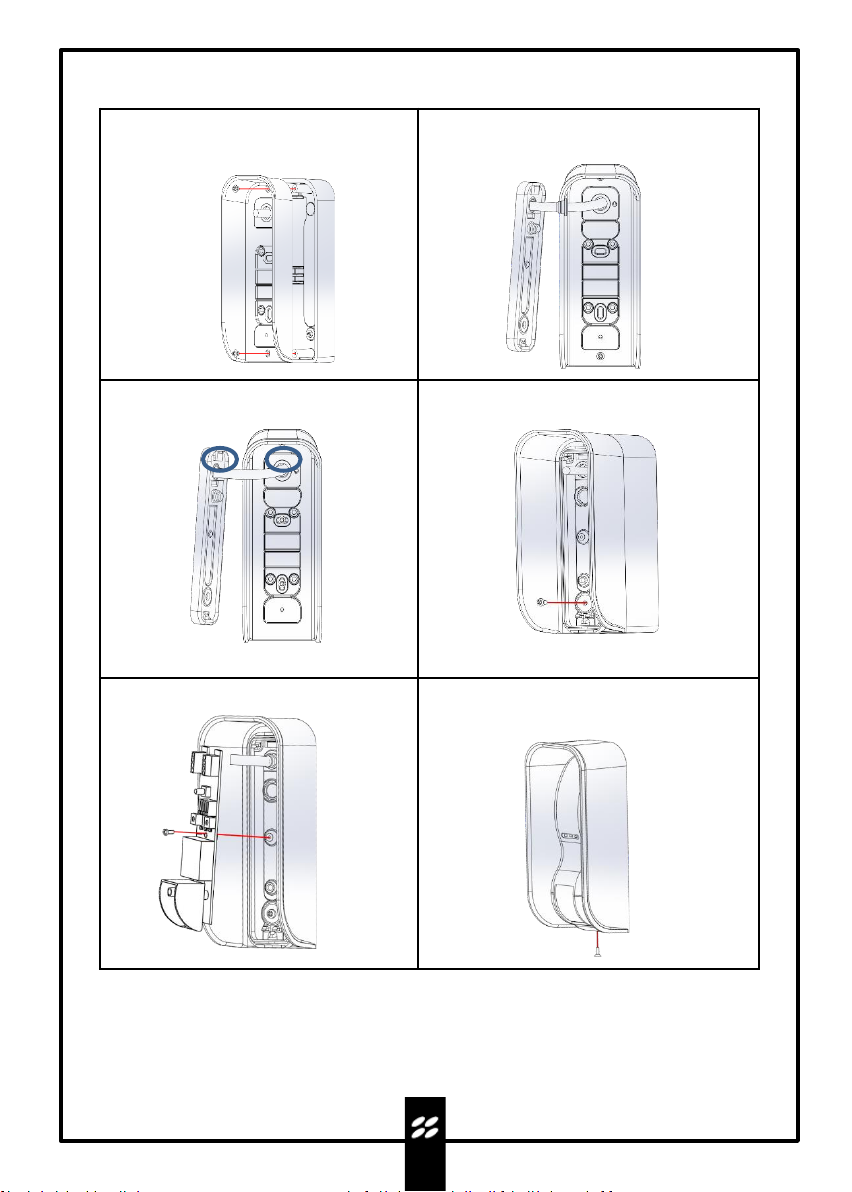

5.
Fasten the canopy to the transmitter
holder passing through the power
cables
6.
Make a hole in the concentric seal to allow
the passage of the cable and insert it into
the NAT base
7. Insert the hook of the Nat base in the
canopy compartment as shown
8. Secure the NAT base with the screw located
at the bottom
9.
Fix the Nat board to the base
10.
After performing the calibration, insert
the sensor cover and close everything
with the screw located under it

11
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0

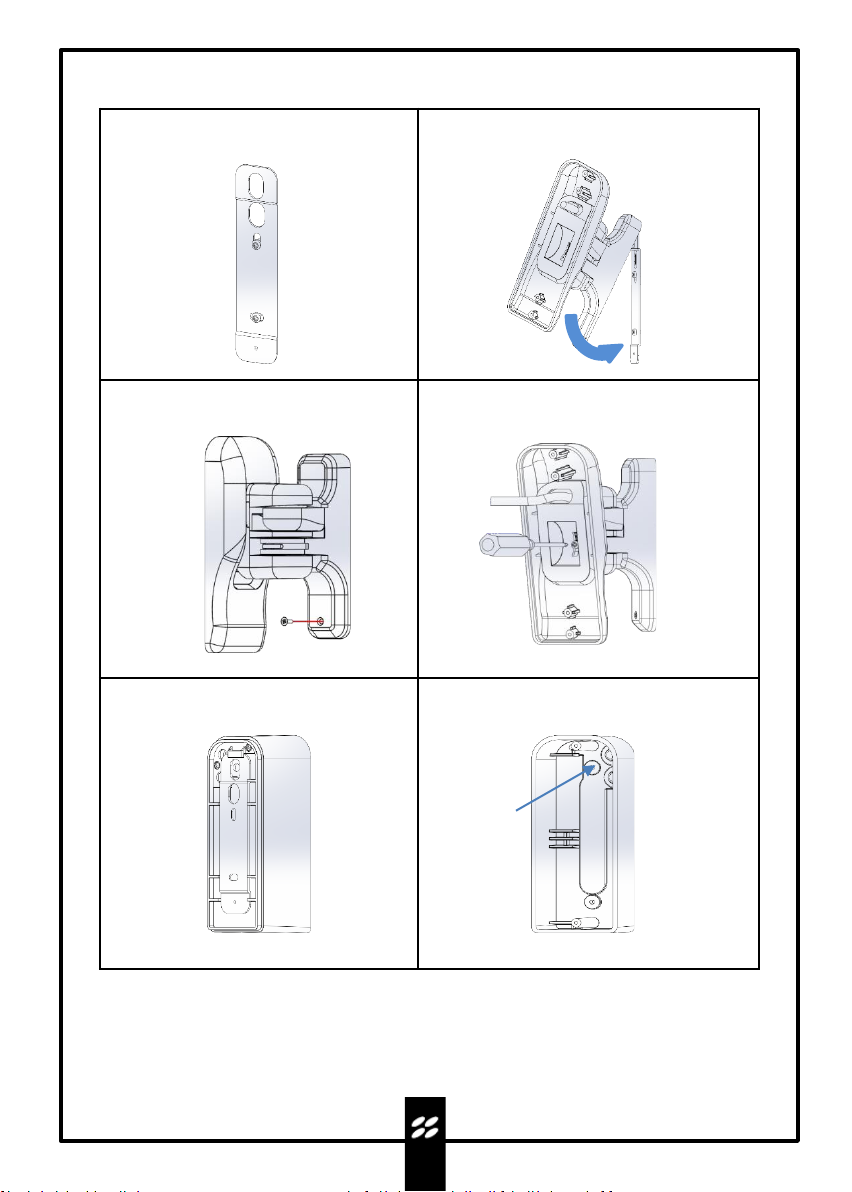

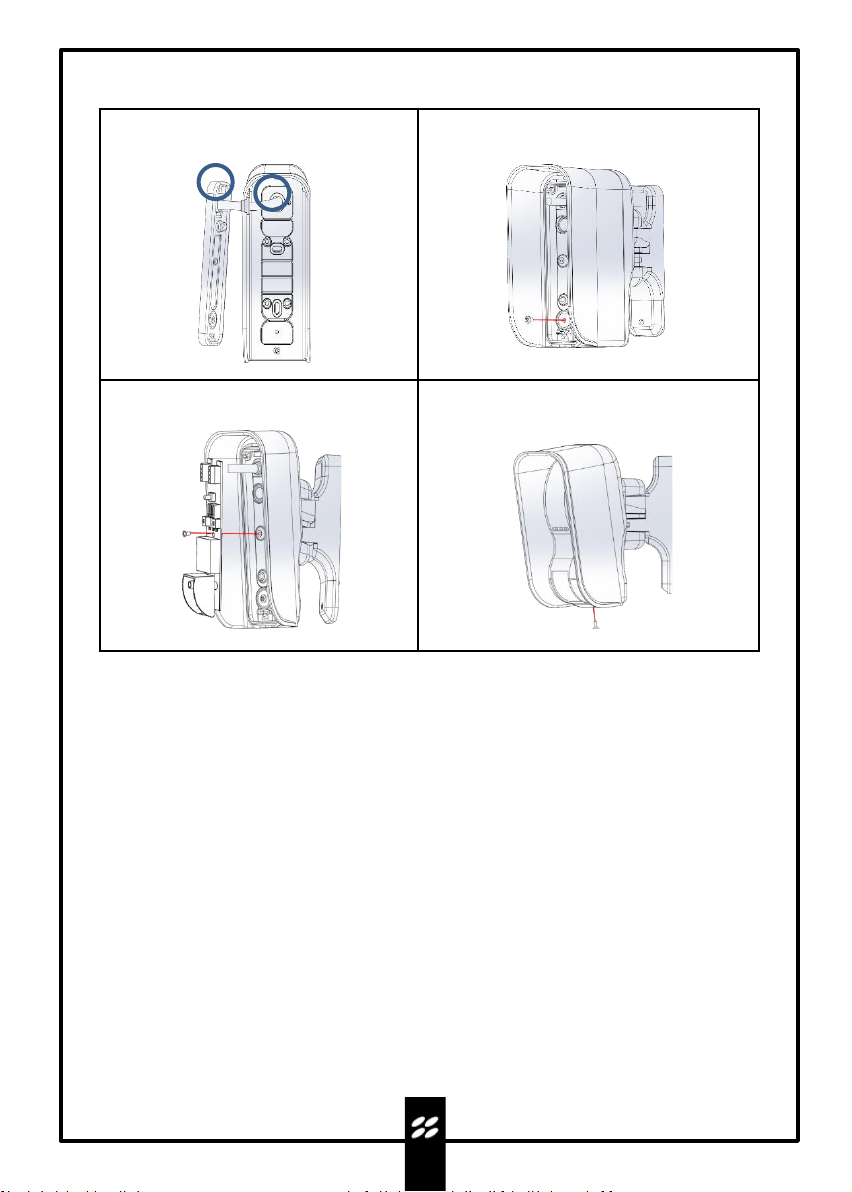

1.
Fasten the L-shaped plate to the wall
2.
Mount the plastic plate on the L-plate
3.
Remove the metal plate from the back
of the transmitter holder
4.
Drill the hole for the screw indicated in the
drawing
5.
Replace the metric screw with those
present in the bag and insert the seals
in the compartments as indicated
6.
Screw the transmitter holder to the plate
7.2 Mounting with L-shaped bracket
O-RING

12
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
7.
Check that the seals in the canopy are
inserted correctly
8. Fasten the canopy to the transmitter holder
passing through the power cables
9.
Make a hole in the seal to allow the
passage of the cable and insert it into
the NAT base.Insert the hook of the Nat
base in the canopy compartment as
shown
10. Secure the NAT base with the screw located
at the bottom
11.
Attach the Nat board to the base
12.
After performing the calibration, insert the
sensor cover and close everything with the
screw located under it

13
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
1.
Fasten the metal plate to the wall
2.
Position the bracket by inserting the upper
hook
3.
Tighten the screw located at the bottom
4.
Adjust the inclination (from 0° to -30°) and
the horizontal rotation (180°) and fix
everything with the central screw
5.
Remove the metal plate from the back
of the transmitter holder
6.
Drill the hole for the screw indicated in the
drawing
7.3 Mounting with NAT BR bracket - Accessory

14
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
7.
Replace the metric screw with those
present in the bag and insert the seals
in the compartments as indicated
8.
Drill the concentric seal and pass through
the tamper cable
9.
Fasten the transmitter holder to the
bracket
10.
Check that the canopy seals are inserted
correctly
9.
Fasten the canopy to the transmitter
holder passing through the power
cables
10.
Drill the concentric seal to allow the
passage of the cable and insert it into the
NAT base
O-RING

15
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
13.
Insert the hook of the NAT base in the
canopy compartment as shown
14. Secure the NAT base with the screw located
at the bottom
Attach the Nat board to the base
16.
After performing the calibration, insert the
sensor cover and close everything with the
screw located under it
15.

MW
8.Circuit board
16
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
1
INTERFACE CONNECTOR
2
CONFIGURATION DIP
3
LED
INDICATOR
4
TAMPER
5
24GHZ K
-BAND MICROWAVE
6
IR RANGE ADJUSTMENT TRIMMER
7
MW RANGE ADJUSTMENT TRIMMER
8
PIR
1
3
2
4 5
6
7
8
8.1 NAT WS Motherboard
8.2 NAT CW Interface board
Connect the battery power supply through a special connector and the interface connector to the NAT
WS board respecting the polarity.It is possible to power the 3.6V/3V radio transmitter using the same
power supply as the NAT WS.
1
BATTERY CONNECTOR
2
EXTERNAL AUXILIARY TAMPER
3
NAT WS BOARD CONNECTOR
4
RADIO TX POWER OUTPUT
5
ALARM OUTPUT
6
TAMPER OUTPUT
7
OUTPUT POWER CONFIGURATION
1
23
45 6
7
- +
3.6V
3.0V

17
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
DIP
1OFF Microwave always on, at the expense of slightly higher consumption, in
this mode it is possible to easily detect a person running.It is possible to
activate the anti-masking function also with microwave and the security
function
ON If DI1 is activated, the energy saving function is enabled.With this function
active the system enters low consumption mode, in particular the
microwave is activated as soon as the IR technology registers a pre-
alarm.In this mode the sensor consumes 0.1mA on and 1.5mA in
alarm.There is no standby time.If this function is not active, the sensor has
the microwave always on with a constant consumption independent of
the number of alarms of 0.3mA.In this case the maximum range is about
8m depending on the application.
2ON ANTI-MASK.When an object is placed in front of the sensor to mask it and
make it ineffective, the system activates the masking signal via the
dedicated output in series with the Tamper.
The anti-mask verifies the presence of an object in 20 seconds and signals
it via the dedicated anti-mask output.To activate the ANTI-MASK function
also of the microwave section, lower and raise dip 2 a second time.Once
this procedure has been carried out, the sensor will confirm the activation
of this function by flashing the BLUE LED.This function can only be used if
the Energy function is OFF.
N.B.If DIP 2 (anti-mask) and 4 (LED) are activated, when entering the
masking mode a blue-yellow LED flashes notifying the opening of the
ANTI-MASK contact.
WARNING:When DIP 2 is activated before leaving the system working, the
NAT sensor MUST be closed within 2 minutes.
3ON SECURITY.The sensor goes into alarm in AND, but also in OR counts
pulses.If one of the two technologies gives multiple alarms in 30
seconds.The system gives an alarm signal independently of the other
technology.
4ON Lighting of the LED indicators.However, the LEDs will turn off after 5
minutes to reduce battery consumption.
9.1 DIP functionality
Here are some examples for balancing on the terminal board
9.Component description

18
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
9.2 LED indicators
RED LED
Sensor in ALARM (operation in AND between the IR and MW)
BLUE LED
MW sensor in Alarm
YELLOW LED
PIR sensor in Alarm
FLASHING
BLUE
-
YELLOW simultaneous flashing:Masked sensor (if antimask function active
only)
9.3 Adjustment trimmer
Using the trimmer, adjust the range of the MW, carrying out crossing
tests.The BLUE LED signal will help to verify the passage detection in
different areas (e.g. 0m, 4m, 7m, 10m).
Cross-check coverage quality of the areas concerned, adjusting the PIR
part.
Using the trimmer, adjust the range of the PIR, carrying out crossing
tests.The YELLOW LED signal will help to verify the passage detection in
different areas (e.g. 0m, 4m, 7m, 10m).Cross-check coverage quality of
the areas concerned, adjusting the MW part.
N.B.:Carry out the tests with the cover closed
MW
PIR
N.B.::Trimmers will not necessarily have to be adjusted in the same way due to
the surrounding environment:e.g. in case of protection of a metal door, the MW
will be adjusted lower than the PIR due to the reflections given by the metal.

19
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
AND Operation
The sensor sends an alarm output signal only if both infrared signals have detected an intrusion signal
ANTI-MASK function
If enabled, the system detects within 20 seconds if even one of the two IR sensors is masked.
Thermal self-compensation
The sensor adjusts its sensitivity dynamically according to the ambient temperature
Anti-blindness
The sensor detects sudden changes in light readjusting its sensitivity
Pet Immunity for animals <10kg (with minimum installation height 2.1m) - MASS detection
The sensor performs an analysis of the detected mass in order to identify more precisely the presence
of people or animals
Self-diagnostics function
The system checks the functionality of the microwave and PIR system every 50sec.Malfunction of one
of the two detection devices is signalled by the constant flashing of the dedicated LED (BLUE for MW
and YELLOW for IR).In this condition, the system excludes the functioning of the NOT working
technology and the detection will continue to be present in OR mode.
Low energy consumption
The system has very low energy consumption which guarantees a battery life of about 2 years without
the use of standby times.In detail, system consumption is:340 uA with ENERGY OFF function regardless
of the alarm signal.Average battery life 2 years.
150 uA at rest and 1.5mA in alarm with ENERGY ON function.Average battery life 3 years with 3000
alarms per day.
10.Description of functions
11.PIR LIMITER
If the NAT sensor was used without
the PIR LIMITER there could be
reflections and false detections
depending on the type of material or
object present along the curtain (e.g.
hot metal doors, moving mosquito
nets, etc.).
It is possible to install the sensor on the wall without the need for brackets using the PIR LIMITER.
11.1 Application

20
NAT WS POLITEC | INSTALLATION MANUAL - VER.2.0
RIGHT SIDE MASKING OF THE SENSOR
Using the PIR LIMITER eliminates this disturbance zone
LEFT SIDE MASKING OF THE SENSOR
1.Insert the mask device on the side
according to the application.
11.2 PIR LIMITER mounting
2.Push the mask device all the way in.
3.The device can be removed by
levering with the screwdriver
underneath.
