Polyprint PreTreater Pro Instruction manual

1
WWW.POLYPRINTDTG.COM
QUICK
USER GUIDE

TABLE
OF CONTENTS
Basic PreTreater Pro functions p.01
Grid Edit p.02
Linear Edit p.04
Garment loading on drawer plate p.06
Start Single Step or Production mode spraying p.07
Single Step spraying p.07
Production Mode p.07
Liquid Installation p.08
Tank Filling Procedure p.10
Tank Replacement p.12
Tank Selection p.14
Pretreatment Benets p.15

Pretreatment on dark-colored and black
garments p.15
Polycoating on light-colored garments p.16
Pretreatment Heat Press Settings p.16
Maintenance Schedule p.17
Daily Liquid Check p.17
Daily Wake Up Procedure p.18
Daily Shutdown Procedure p.19
Monthly Maintenance p.21
Two Month Maintenance p.21
Long Inactivity Maintenance p.23
Transporting PreTreater Pro p.23
Moving PreTreater Pro to another location p.24

1
PRETREATER PRO
1. Select your preferences for the spray area and the liquid
amount per ml.
2. Load the garment on the drawer plate.
3. Start Single step or Production mode spraying procedure.
Basic PreTreater Pro functions
Pretreating procedure with PreTreater Pro
Select your preferences for the spray area
and the liquid amount per ml
Note:
Ensure that you have selected the pretreatment liquid you want to
use. You can check this, from the Home screen, on the Tanks page.
In case another pretreatment liquid is used, check under the topic:
Tank Selection on page 14 for instructions, how to switch between
liquids.
Fig.1: Edit spaying area.
On the Home screen, tap on Edit.
STEP 1

2
WWW.POLYPRINTDTG.COM
QUICK USER GUIDE
Select the direction you want the garment to have, on the drawer
plate. You can rotate it 180o, by pressing the icon.
STEP 1
Fig.3: Garment orientation.
Grid Edit:
Edit the spray area. There are two spraying selection modes. You
can use your preferred method, by switching between Grid Edit and
Linear Edit.
STEP 2
Fig.2: Spaying selection modes.
Tap on the Grid Edit button.

3
PRETREATER PRO
When nished, tap on the Conrm button.
The entire spray area (41x60cm / 16x23.6in) has been divided into
4 columns and 4 rows (4x4=16 boxes). Specically, select the box-
es in the Grid Box selection area that you want to enable.
Select the liquid spraying amount per ml, for the max spray area
(41x60cm / 16x23.6in), from the slide bar. Tap on the Calculate
button, to check the actual liquid amount sprayed on the selected
area.
STEP 2
STEP 3
Fig.4: Grid box.
Fig.5: Selecting spaying amount.

4
WWW.POLYPRINTDTG.COM
QUICK USER GUIDE
Tap on the Linear Edit button.
Select the nozzles you want to enable. You are able to choose from
1 up to all 4 nozzles. The nozzles spray, exactly as shown on the
screen, in the Nozzle Carriage Chamber.
e.g. If you select the second nozzle from the left on the screen, the
same nozzle will spray in the Nozzle Carriage Chamber.
STEP 2
Fig.7: Nozzle selection.
Linear Edit:
Select the direction you want the garment to have, on the drawer
plate. You can rotate it 180o, by pressing the icon.
STEP 1
Fig.6: Garment orientation.

5
PRETREATER PRO
Select the Spray Length by changing the value with the +/ - but-
tons.
Select the distance from the top, by changing the Neck Offset val-
ue with the +/ - buttons.
When nished, tap on the Conrm button.
Select the liquid spraying amount per ml, for the max spray area
(41x60cm / 16x23.6in), from the slide bar. Tap on the Calculate
button, to check the actual liquid amount sprayed on the selected
area.
On the Home screen, you can save your job preference, by holding
for 3 seconds on any of the ten custom job preset buttons.
STEP 3
STEP 4
Fig.9: Saving custom presets.
Fig.8: Linear edit spraying area.
Save custom presets.

6
WWW.POLYPRINTDTG.COM
QUICK USER GUIDE
Tip:
In humid environment, it is often benecial to pre-press the shirt (using
the protection paper as a barrier from the press) for 5 to 10 seconds
prior to applying the pretreatment. This removes some of the water
that is naturally trapped in the bers.
Open the drawer and place the garment on the plate, in the direction
of the preselected position, as in Step 1 on page 2and 4.
Place the garment on the platen. Make sure that the garment is at.
Carefully tuck in/ position, any excess textile, below the platen.
Close the drawer.
STEP 1
STEP 2
STEP 3
Fig.11: Closing the drawer.
Fig.10: Loading garment.
Garment loading on drawer plate

7
PRETREATER PRO
Start single step or production mode
spraying
Single Step Spraying:
Production Mode:
Production Mode allows you to start the spraying procedure, as
soon as, the drawer is closed, without pressing a button.
Activate the Production Mode on the Home screen to start the
automatic spraying function, once the drawer is closed.
To spray the garment, either press the Blue button on the front side
of the PreTreater Pro, or activate the Spray option on the Home
screen.
Fig.12: Single step spaying.
Fig.13: Enable production mode.
Tip:
If drawer is closed, when enabling the Production Mode, open and
close the drawer to start spraying procedure.

8
WWW.POLYPRINTDTG.COM
QUICK USER GUIDE
Once you have nished spraying your last garment, before closing
the drawer, deactivate the Production Mode on the Home screen.
When spraying nishes, open the drawer and take out the garment.
Fig.14: Disable production mode.
Tip:
• For best image quality, drying the pretreated garment in a t-shirt
press (using the Polyprint protection paper as a barrier from the
press) is preferred.
• Dry the pretreated garment in a T-shirt press, at 160oC, for 30
seconds, under high pressure (4-5bars) or with another drying
device. Using the press will matte down any fabric bers, as well
as, dry the pretreated garment, resulting in a smooth printing sur-
face, that will help increase image quality.
Open the Tank Access Cover to gain access to the Tank Storage
Compartment.
Liquid Installation
STEP 1
Fig.15: Tank Storage Comparment.

9
PRETREATER PRO
There are 4 empty tanks in the slots L1, L2, CL,and MT. You can
ll the empty tanks or directly use a new pretreatment tank in its
place.
STEP 2
Caution:
Shake the new tanks/bottles with the pretreatment well, before using
them inside the machine.
Tanks that you need to rell/replace in blue below.
STEP 3
OR
OR
OR
L1
L1
L1
L1
L2
L2
L2
L2
CL
CL
CL
CL
MT
MT
MT
MT
Option 1: Using 1 Pretreatment
Liquid (L1 or L2) and Distilled
water in the (CL) Tank.
Option 2: Using 2 of the same
type Pretreatment Liquids (L1
+L2) to double your capacity
and Distilled water in the (CL)
Tank.
Option 3: Using 2 different Pre-
treatment Liquids (L1 / L2) and
Distilled water in the (CL) Tank.

10
WWW.POLYPRINTDTG.COM
QUICK USER GUIDE
STEP 4
• Fill/Replace Tank L1 or/and L2 with the pretreatment liquid you
are going to use.
• In case of the usage of 2 pretreatment liquids, ll/replace both
Tanks L1 and L2 with the according pretreatment liquid.
• Fill the Tank CL with distilled water.
Take the Tank out of the slot.
Tank Filling Procedure
STEP 1
Note:
• You can use the Tank Access Cover as extra workspace.
Open the cap of the Tank.
STEP 2
Take the tubes out of the Tank.
STEP 3
Fig16: Removing tubes from tank.

11
PRETREATER PRO

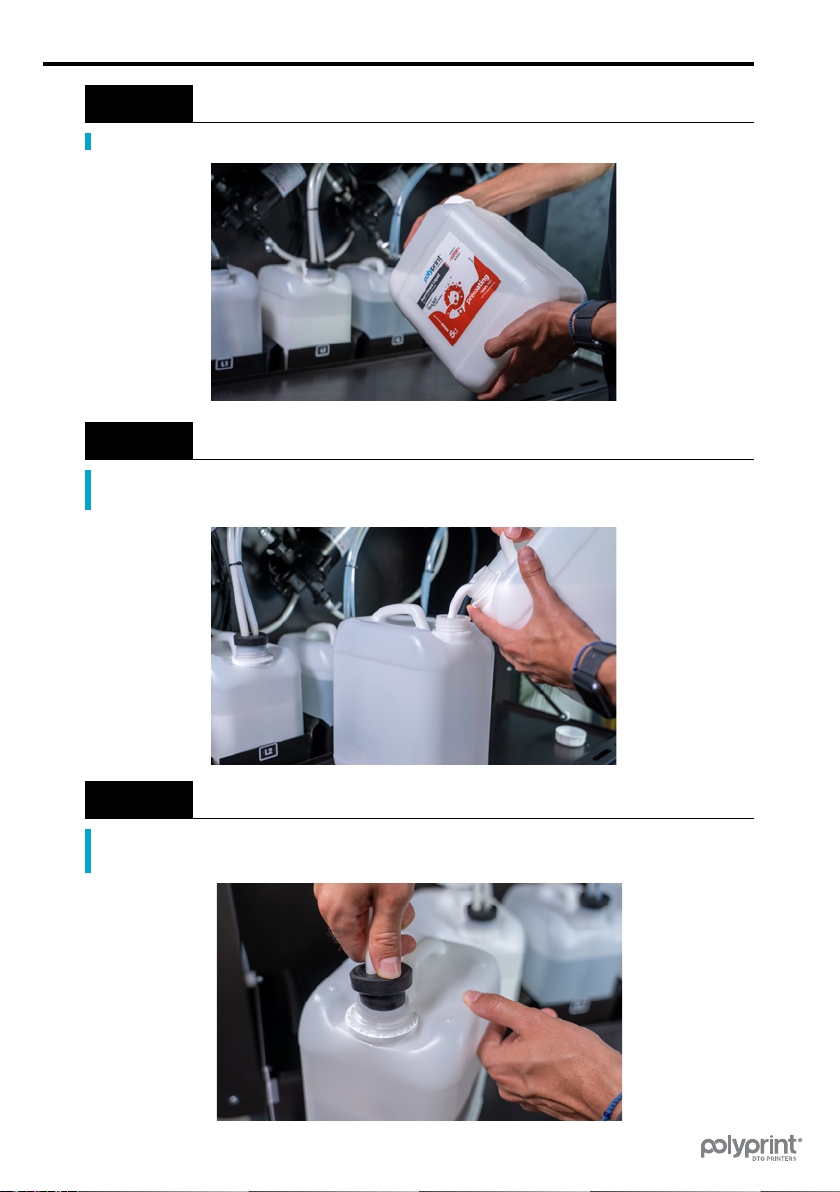

Shake the pretreatment bottles well, before lling the tanks.
STEP 4
Fig.17: Shaking Pretreatment bottles.
Fill the tank with the pretreatment liquid. Ensure that it’s with the
same pretreatment liquid type.
STEP 5
Fig.18: Filling the tank.
Put the tubes inside the tank and close the cap. Ensure they are in
place and properly sealed.
STEP 6
Fig.19: Sealing the tank.

12
WWW.POLYPRINTDTG.COM
QUICK USER GUIDE
Close the Tank Access Cover.
STEP 8
Put the tank back into the slot.
STEP 7
Caution:
Before closing the Tank Access Cover, ensure that all the tubes are
inside the tanks and that the caps are in place and properly sealed.
Tank Replacement
Take the Tank out of the slot.
Take the tubes out of the Tank.
STEP 1
STEP 3
Fig.20: Removing tubes from tank.
Note:
• You can use the Tank Access Cover for extra workspace.
Open the cap of the Tank.
STEP 2

13
PRETREATER PRO
Shake the pretreatment bottles well, before replacing the tanks.
STEP 4
Fig.21: Shaking Pretreatment bottles.
Put the new tank inside the slot.
STEP 6
Fig.23: Placing the tank into the slot.
Fig.22: Sealing the tank.
Put the tubes inside the new tank and close the cap. Ensure they
are in place and properly sealed.
STEP 5

14
WWW.POLYPRINTDTG.COM
QUICK USER GUIDE
Close the Tank Access Cover.
STEP 7
Caution:
Before closing the Tank Access Cover, ensure that all tubes are
inside the tanks and that the caps are in place and properly sealed.
Tank Selection
On the Home screen tap on the Menu button. Select Tanks.
Fig.24: Selecting the tanks page on the screen.
In this Tank Selection screen, you can check, which tank you have,
currently, selected.
If you wish to select a different tank to spray, tap on that tank you
want, and press Conrm. PreTreater Pro will automatically switch
to your preferred tank.
Note:
You can, also, tap on the CL Tank, to manually perform the shutdown
maintenance.
Fig.25: Selecting the preferred tank.

15
PRETREATER PRO
Caution:
Choosing CL will clean, only the basic line to the nozzles, and will not
bring the machine into a shipping state. For further instructions, check
the topic: Transporting PreTreater Pro on page 23.
Pretreatment Benets
Pretreatment on dark-colored and black
garments
A pretreatment machine is recommended, to ensure consistent
quality and to keep the environment clear from dust, fumes, gas,
mist, vapors, and spray that is present, while using a spray gun.
Equipment needed for proper pretreatment solution application:
• PreTreater Pro
• Heat press
• Polyprint Protection Paper
For dark garments, the application of a pretreatment layer is vital
for the colors to adhere to it, be visible and not soak into the fab-
ric. Apart from that, you can choose between different pretreatment
solutions, that each suit your needs.
Applying the right amount of pretreatment solution is necessary to
obtain bright colors with wash endurance.
Tip:
You can opt for a pretreatment solution, such as P5001, that leads to
superior print quality, by increasing the ink’s vibrancy and sharpness.
On the other hand, you can opt for a solution, like P5003, that enhanc-
es the wash endurance of your prints, alongside their quality.

16
WWW.POLYPRINTDTG.COM
QUICK USER GUIDE
Polycoating on light-colored garments
As far as white and light-colored garments go, pretreatment ap-
plication is not essential, as you can print directly on the garment
and have a really good print quality. Nonetheless, by the use of a
pre-coating solution, such as Polycoating, you can achieve excep-
tionally vivid prints and at the same time, boost the wash resistance
of your fabrics. Also, the Polycoating solution gives you the oppor-
tunity to print on tricky fabrics, such as polyester. Polyester is a syn-
thetic ber that is hydrophobic, meaning that it repels water-based
inks that are used in DTG. A pre-coating solution, such as Polycoat-
ing, stabilizes the ink on the surface of the garment and stops the
bleeding of inks through the polyester bers.
Pretreatment Heat Press Settings
To dry the pretreatment, use the following settings on the heat press
with pressure 4-5 bars.
Pretreatment Temperature Time
Poly-coating 160oC 30sec
DuPont 5003 160oC 30sec
DuPont 5001 160oC 30sec

17
PRETREATER PRO
Maintenance Schedule
Maintenance Schedule
Daily Liquid Check
• Check the Tanks for enough Pre-
treatment liquid and Water
• Empty the Maintanance Tank
Daily Wake Up
• Place the 4 nozzles on the Nozzle
Carriage
• Initiate PreTreater Pro
• Liquid Charge
Daily Shutdown
• Flush the main tube with distilled
water
• Remove the 4 nozzles from the
Nozzle Carriage
• Place the 4 nozzles in the ultrason-
ic device
Monthly Maintenance
• Check and clean the L1, L2 tank
lters
• Clean the Liquid Collecting Mat
Two Month Maintenance • Check and clean the Nozzle Filter
• Clean the Waste Collector
Long Inactivity-
Storage Condition
• Flush all the tubes with distilled
water
• Shutdown PreTreater Pro
• Remove the 4 nozzles from the
Nozzle Carriage
• Place the 4 nozzles in the ultrason-
ic device
• Clean the Waste Collector
• Empty all the Tanks
Daily Liquid Check
1. Open the Tank Storage Compartment Cover.
2. Check the liquid level in the L1, L2, CL tanks and if needed, fol-
low the instructions on page 08, to rell / replace them.
3. Empty the Maintanance tank.
