Ponovo PW466i Assembly Instructions

PW466i Hardware Instruction Manual
1
PONOVO POWER CO., LTD
No. 139 Jinghai Third Road, BDA, Beijing, China, 100176
Office
TEL. [phone]
E-Mail
[e-mail]
Website
www.relaytest.com / www.ponovo.com.cn
PW466i
HARDWARE INSTRUCTION MANUAL
VERSION: PW466i-AE-1.30
DATE : MAY 2020
This manual is the publisher of PONOVO POWER CO., LTD. To make any kind of copy of this
manual please contact PONOVO POWER CO. LTD in advance.
This manual represents the technical status for the moment of publishing. The product information,
description and specifications mentioned in the manual do not have any contact binding force and
PONOVO POWER CO., LTD remains the right to make modifications to the technical
specifications and configurations without prior notice. PONOVO POWER CO., LTD does not take
responsibility to the possible error/mistakes in this manual.

2
PW466i Hardware Instruction Manual
Contents
1. Preface ……………………… 3
2. Safety precaution …………. 4
3. Designed applications …… 5
3.1 Product features …………… 5
4. Operation preparation …… 6
4.1 Preparation …………………. 6
4.2 Connecting PC …………….. 6
5. General description ……… 7
5.1 Block diagram ……………… 7
5.2 DSP card …………………… 7
5.3 Front panel …………………. 8
5.4 Ethernet port…………………. 8
5.5 Pause button ………………… 9
5.6 LED indication ………………. 9
5.7 Rear panel…………………….. 10
5.8 GPS interface ………………….. 11
5.9 IP reset ………………………… 12
6. Hardware configuration …… 1 3
6.1 Current generators …………. 13
6.2 Current output configuration
in 3 current mode ……………. 13
6.3 Current in series connection in 3
current mode ………………… 15
6.4 Voltage generators ………….. 15
6.5 Connect two voltage generators in
series..………………………….... 15
7. Binary inputs and outputs …..16
7.1 General description …………. 16
7.2 Binary inputs …………..…….. 16
7.3 Polarity of binary inputs ……..…17
7.4 Binary configuration………….….17
7.5 Isolation of binary inputs …….. 17
7.4 Threshold for binary inputs ….. 17
7.5 Binary outputs ………………… 17
8. Getting ready for PC
Controlled operation ………… 18
8.1 General description …………… 18
8.2 Set IP address ……….……… 18
8.3 Steps for setting IP address
in PC …………………………... 18
9. PW466i-Related Products and
Accessories…………………… 21
9.1 PGPS02-GPS-based Synchronization
device …….………………………… …22
9.2 PIRIG-B Based Synchronization
device……………………………………22
9.3 PSS01 Circuit Breaker Simulator…23
9.4 PACB108 scanning head………….23
9.5 Standard Accessories...…………....24
9.5.1 Soft Bag for Test Lead……..….24
9.5.2 Transportation Case…….……..32
10. Troubleshooting ….……………33

3
PW466i Hardware Instruction Manual
1．Preface
This manual gives detailed introduction to
PW466i so that user can have the reasonable,
effective and safe operation of this test kit.
This manual mainly consists of the following
parts:
Equipment and functions:
This part describes the main hardware parts
and their functions.
Panel description
This part describes the interfaces on the
panels and their applications
Technical specifications
This part describes the technical specifications
Optional accessories
This part describes the optional accessories
which will be used for dedicated applications
At the test site user should also refer to other
safety and test regulations required by his
management authorities.
This test equipment must be operated by
professional test people and careful reading of
this manual is required before operating this
test equipment.
The complete test system consists of PW466i
test equipment (used for generating analog
test signals), PowerTest test software,
Computer which has installed PowerTest
software, Test Leads/cables, etc. This manual
gives only the description to the hardware part.
Please refer to PowerTest software user
manual or PowerTest online help for details of
the software.

4
PW466i Hardware Instruction Manual
2．Safety precaution
1. In case the power outlet for powering up the PW466i dose not have protective ground
customer must connect the ground socket of PW466i to the protective ground at the
test site
2. Please turn off the output before connecting/disconnecting the test object
3. The voltage output of over 36V is considered as dangerous and care must be taken
4. It’s not allowed to feed external voltage into the voltage/current output sockets
5. It’s not allowed to feed external current into the current/voltage output sockets
6. Disconnect the external circuit from the relay to avoid any influence to the test
7. Do not block the ventilation outlets
8. Avoid the equipment to be wet by rain
9. Do not switch-on and operate the equipment in the place having explosive gas or
water vapor
10. The 500V dangerous voltage can be in the equipment and please don’t remove the
cover by yourself
11. Please contact the manufacture for any maintenance
12. The guarantee will become invalid if PW466i is opened by the customer

5
PW466i Hardware Instruction Manual
3．Designed applications
PW466i can be used by power plants,
substations, and relay manufactures, etc, for
the following test applications.
1. Test protective relays
2. Test energy meters
Product features
1. Output sources
6×20A current sources in two groups
6×150V voltage sources
2. Binary inputs
8 binary inputs
3. Binary outputs
4 binary outputs
4. GPS interface
Can receive GPS pulse signal from
optional PGPS02
5. Synchronized control interface
Used for synchronizing several
PW466i for specialized test purpose

6
PW466i Hardware Instruction Manual
4．Operation preparation
4.1 Preparation
Be sure that the following preparation/system components are ready before operating the test
equipment:
PW466i test equipment
Main supply cable (delivered)
LAN control cable (delivered)
PC with PowerTest software properly installed
Test leads connected to the test object
4.2 Connecting PC
1. Connect the LAN cable between PC and PW466i
2. Connect the power cables for PC and PW466i
3. Connect PW466i ground socket to the protective ground
4. Power on the PC and PW466i
5. Run PowerTest software

7
PW466i Hardware Instruction Manual
5．General description
5.1 Block diagram
VOLTAGE CONTROL
DSP CARD
Aux DC generator
Analog record
(internal )
Voltage generator
(independent design)
Current generators
(independent design)
16 bit D/A
Power supply and control
To PGPS02 GPS Synchronization Device
(optional)
PW466i Universal Test System
Diagram
0-300V DC, 100W
0-20A
VA
IA
VB
VC 0-150V
3×40A
Voltage generator
(independent design)
IB
IC
Current generators
(independent design)
Ia
Ib
Ic
4×150V
I1
I2
I3
V1
V2
V3
V4
Power Supply
Control Signal
Binary output 1-4
(Relay)
Binary input 1-8
Synchronized control (optional)
LAN
interface
1
2
3
4
5
6
7
8
9
10
11
12
Va
Vb
Vc
VZ
5.2 DSP card
High performance DSP (digital signal processor) is used on the DSP card to ensure the accurate
and fast signal generation.
To get the satisfied accuracy and resolution the 32 bit D/A data converting technology is applied.

8
PW466i Hardware Instruction Manual
5.3 Front panel
1. Current Output 1 and 2 (A-C/a-c)
2. Voltage output A,B,C,Z
3. Binary input A-D
4. LED Indication
5. Earth socket
6. Pause Button
7. Communication Interface of Computer
(Ethernet)
8. Auxiliary DC Output
8
7
6
4
1 2 3 5
5.4 Ethernet port
The Ethernet port is used to connect to external PC via Ethernet control cable.
Please refer to “Getting ready for connecting to PC” for details

9
PW466i Hardware Instruction Manual
5.5 Pause button
The Pause button on the front panel is designed to cut the current/voltage outputs either for test
purpose or under emergency case.
‘Manual’ control mode
‘Auto’ control mode
Push ‘Pause’ button
cut the current/voltage
cut the current/voltage, PC
software will continue to run
Release ‘Pause’ button
current/voltage output will be
recovered from the point
where we push the Pause
button
current/voltage output will be
recovered from the software
execution point at the moment
we release the Pause button
5.6 LED Indication
The LED indication on the front panel gives information about the hardware working conditions
In normal working condition the status of LEDs will have the following indication in ‘Power on’ and
‘Testing process’ conditions
Power on
condition
All current/voltage channels
are having outputs
Power lamp
Lighted
Lighted
Online lamp
Not lighted
Lighted and flashing
PAUSE lamp
Not lighted (push to
light)
Not lighted（push to light）
Overheat lamp
Not lighted
Not lighted
Overload
lamp
V
Not lighted
Not lighted

10
PW466i Hardware Instruction Manual

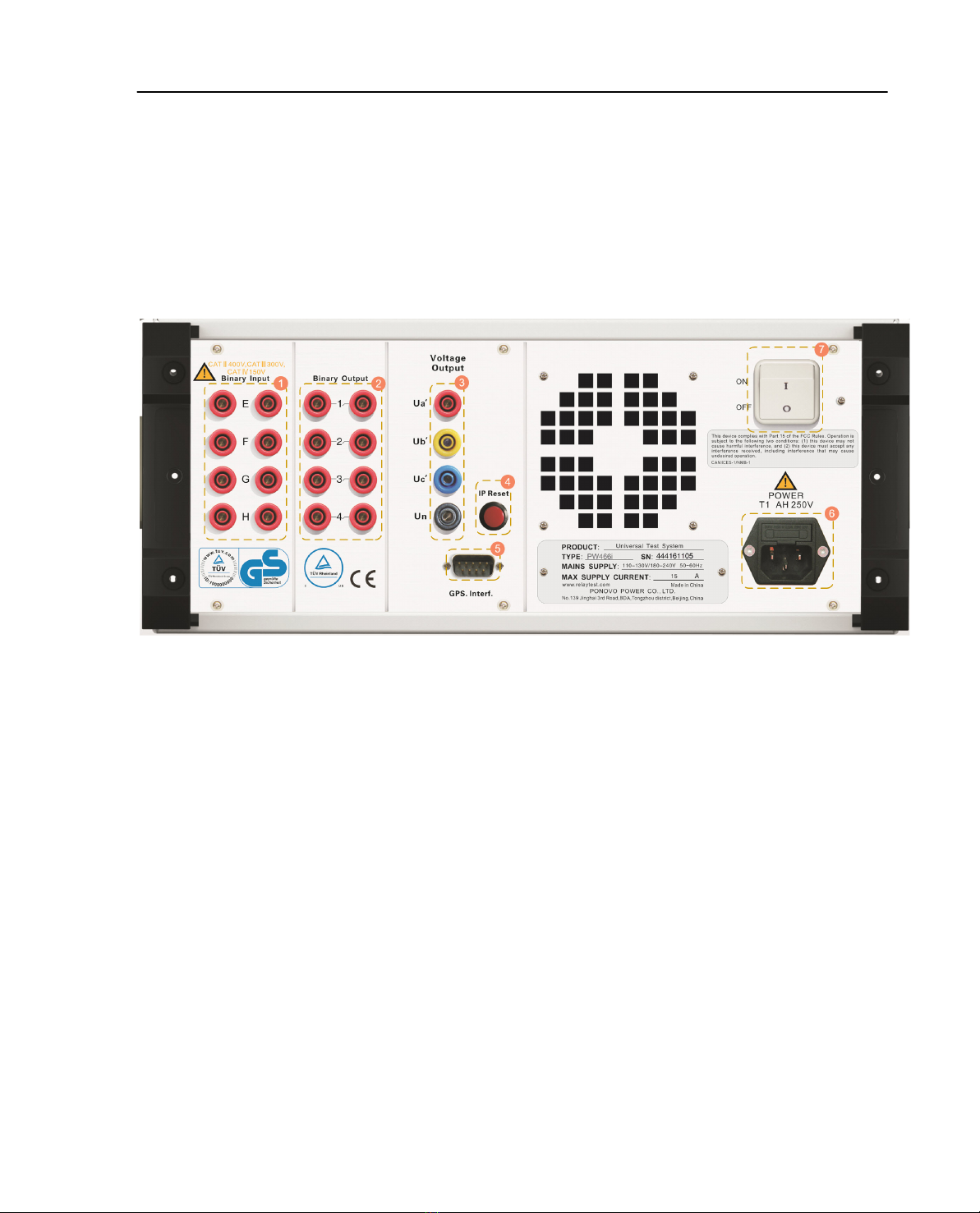

5.7 Rear panel
1. Binary input group 2
2. Binary output
3. Voltage output, Va, Vb,
Vc
4. IP Reset
5. GPS interface
6. Power supply
7. Power switch

11
PW466i Hardware Instruction Manual
Signal
Contact pin
Power
1
Ready
2
PPS
3
GND
5
GND
9
5.8 GPS interface
This interface is used to connect to our optional PGPS02 GPS-based synchronization device.
DB9 Chassis contact, male
----------------------------------------------
Note: PPS means Pulse Per Second
----------------------------------------------
One popular application of GPS-synchronized control is for end-to-end test for line protection relay
Please refer to PGPS02 user manual or 9.2 PGPS02-GPS-based Synchronization Device for
details.

12
PW466i Hardware Instruction Manual
5.9 IP reset
This reset button is used to restore the IP address of PW466i to the default factory setting.
Keep pressing this button
Switch on the power for PW466i
After this operation the IP address will be restored to the following settings.
IP address: 191.168.1.133
Subnet mask: 255.255.255.0
Note: The IP after reset is only valid for the current operation. If users need to fix the default IP,
please set it in “IP set” of PowerTest.

13
PW466i Hardware Instruction Manual
6．Hardware configuration
6.1 Current generators
PW466i has 6 current generators in two groups.
They can be configured as either 3 currents
mode or 6 current mode.
Test modules which requires 3 current mode
configuration
Basic

QuickTest (4V, 3I)
QuickTest (VL-L, 3V0)
QuickTest (Sequence)
QuickTest (Power)
QuickTest (Vf, If)
QuickTest (Z, I const)
QuickTest (Z, V const)
QuickTest (Z, Zs const)
Time
State Sequence
State sequence (4V, 3I)
Ramp(3I)
Harmonic
CB Operate
Non-electricity
Transient Playback (4V, 3I)
Protection
Distance(R-X)
Distance(Z-Phi)
Auto Reclosing
Differential(3I)
Time Inversed Current
Time Inversed Voltage
Frequency Relay
Voltage Relay
U,I,T Relay (AC)
U,I,T Relay (DC)
Advanced
Advanced Differential(3I)
Advanced TransPlay (4V, 3I)
R/X characteristic check
Synchronizer
Special
Energy Meter
High Burden Relay
Power Swing
Transducer
New modules
Loss of excitation
QuickTest(Harmonic)
Test modules which requires 6 current mode
configuration
Basic
QuickTest (4V,6I)
State sequence (4V, 6I)
Protection
Differential(6I)
Advanced
Advanced Differential(6I)
New modules
TransPlay (6V, 6I)
-------------------------------------
Notes: There are some changes in the
software modules classification; users are
suggested to visiting PONOVO website
www.relaytest.com / www.ponovo.com.cn for up-
to-date information.
-------------------------------------
6.2 Current output
configuration in 3 current mode
In three 3 current mode the 3 current
generators (IA, IB and IC) in first group will be
used.
In 3 current mode the output range and
power for IA, IB and IC will be doubled as
shown bellow.
Range:
3-phase ac (L-N) 3 × 0 … 40 A
1-phase ac (6L-N) 1 × 0 … 120 A

14
PW466i Hardware Instruction Manual
1-phase ac (L-L) 1 × 0 … 20 A
1-phase dc (L-N) 6 × 0 … ±20A
1-phase dc (3L-N) 1 × 0 … ±60 A
Power
3-phase ac (2L-N) 3 × 320 VA at 40A
1-phase ac (6L-N) 1 × 600 VA at 120A
1-phase ac (L-L) 1 × 450 VA at 30A
1-phase dc (L-N) 6 × 100 W at ±10A
1-phase dc (6L-N) 1 × 480 W at ±60A
-------------------------------------------
Notes: Limit parameters for
uninterrupted current output
-------------------------------------------
Single phase
output range
<10A
10A～
20A
20A～
30A
Output time
Continuous
output
>70s
>15s

15
PW466i Hardware Instruction Manual
6.3 Current in Series
Connection in 3 Current Mode
In 3 current mode the two current generators
can be connected in series to increase the
compliance voltage.
Example: IA and IB are connected in series
Example: Settings in QuickTest (4V, 3I) for IA
and IB in series connection
Set Ia and Ib with the same amplitude
Set Ia and Ib angel as 180 deg
Set Ia, Ib as the quantity to change
6.4 Voltage Generators
PW466i has 6 voltage generators.
----------------------------------------------
Notes: VZ will be used in 4V mode.
----------------------------------------------
6.5 Connect two voltage
generators in series
We can connect two voltage generators in
series to get higher voltage output range.
Example: VA and VB are connected in series
----------------------------------------------
Notes: The maximum voltage output will
become 300V in this case
----------------------------------------------

16
PW466i Hardware Instruction Manual
7．Binary inputs and outputs
7.1 General description
PW466i has 8 binary inputs in two groups.
The first group of 8 binary inputs (A, B, C, D)
are on the front panel.
The second group of 4 binary inputs (E, F, G,
H) are on the rear panel.
7.2 Binary Input

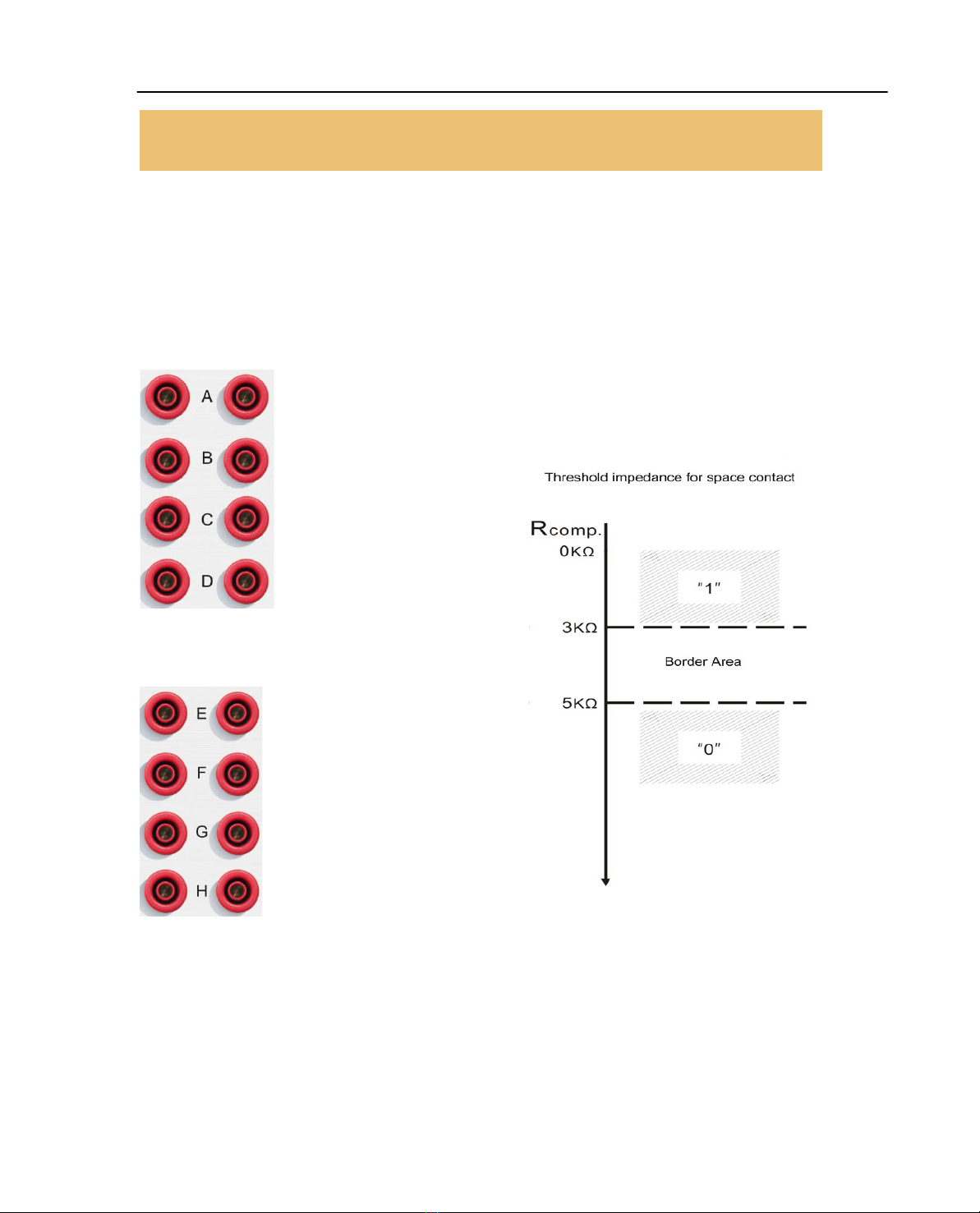

The device has 8 binary inputs. Electricity is
isolated in A-H. Space contact or active
contact (10V-250V) can be set by software.
The threshold impedance for space contact is
shown below. The threshold impedance for
active contact can be set by software in 10V-
250V.
When connecting active contact, the polarity
should be correct, red to positive, black to
negative, otherwise, false tripping will occur.
The polarity for A-H shows below figure.

17
PW466i Hardware Instruction Manual
7.3 Polarity of Binary Inputs
The polarity reference of the binary inputs are
shown below:
7.4 Binary configuration
The software interface for binary configuration
(A-H) shows below.
----------------------------------------------
Notes：Any end of binary input is prohibited
from connecting with ground.
----------------------------------------------
7.5 Isolation of the binary inputs
All 8 binary inputs are gavanically isolated
from each other.
7.6 Threshold for the binary
inputs
The threshold of 8 binary inputs can be
independently set from the range of 10-
250Vdc.
7.7 Binary outputs
PW466i has 4 binary
outputs.
The binary outputs 1-4 are
placed on the rear panel.
These 4 binary outputs are potential free relay
contact output.

18
PW666i Hardware Instruction Manual
8．Getting ready for PC Controlled
Operation
8.1 General description
The PW466i is to be controlled by the external
PC via the Ethernet control cable.
PowerTest test software must be properly
installed on the PC to control PW466i. The
installation description of PowerTest test
system can be found in PowerTest user
manual.
To connect the computer to PW466i a
10M/100M Ethernet Network Interface Card
(NIC) must be installed in the PC. The
computer without network card could use a
UBS NIC. The drive program of NIC also
should be installed.
The computer with mounted NIC should be
able to log on Internet properly.
8.2 Set IP address
The IP address of PW466i is internally fixed as
192.168.1.133 when dispatched from the
factory.
8.3 Steps for setting IP address
in PC
After the PowerTest is installed we need to
set the IP address for the computer.
The IP address must be set as 192.168.1.*
The first three section can not be changed and
the last section can be the number among
2~254 (except 133).
Steps for setting IP address for computer.
Step 1: Left click ‘Start/Control panel/Network
connection’ ( or right click the icon of “Network
Neighbour” and left click the ‘Properties’ of
drop menu) on the desktop of win2000 or
winXP

19
PW466i Hardware Instruction Manual
Step 2: Right click ‘Local connection’ icon
Step 3: Left click the ‘Properties’
Step 4: Click the ‘Properties’ button
----------------------------------------------
Note: the last section of IP address can be
any number between 2-254 (except 133)
----------------------------------------------
Step 5: Make the settings
Select ‘Use the following IP address
Set ‘IP address’ as 192.168.1.2
Set ‘Subnet mask’ as 255.255.255.0
Press ‘OK’ button to confirm the setting
Step 6: Make the settings
In ‘Local connection’ window make the
following selection
Then click the ‘OK’ button to complete the IP
setting.

20
PW466i Hardware Instruction Manual
Step 7: Check if IP is set properly
If IP address is properly set we will see on the
right bottom corner the following display
If we see the following display on the right
bottom corner then we need to make the
check as mentioned bellow
Check if control cable is connected
Check if PW466i is powered up
Check if IP address is set properly
