PoolRite Surechlor S3500 User manual

CHLORINE GENERATOR
operationoperationinstallationinstallation maintenancemaintenance
FOR FURTHER INFORMATION PLEASE REFER TO:
www.surechlor.com.au
operationoperationinstallationinstallation maintenancemaintenance
S3500 Cell
The S3500 cell must be installed horizontally (level) within 5 degrees, in the return to pool line. The
two plumbing inlets must point down.
S3500 Power Pack
The Power Pack must be mounted on a vertical wall or fence within 1.5 metres of the cell and at least 1 metre
above the ground. The Power Pack must also be in a position to allow its supply lead to be plugged into a 10 amp
240 volt power point.
Select a suitable place to attach the mounting bracket, at least 1 metre above the ground and clear from hazards.
Ensure that the location selected is well ventilated (allowing plenty of airflow behind the unit) and is not in direct
sunlight (If mounted in direct sunlight the LED indicators will be less visible). The suitable location must not be
attached to or on top of a source producing large amounts of heat (e.g. metal fence or shed wall).
Mount the bracket horizontally ensuring that the vent louvers above the screws are facing upwards. Carefully
hook the Power Pack onto the mounting bracket.
Connecting the Pool Pump
Raise the tinted Control Panel Cover on the front of the Power Pack and loosen the two retaining screws in the
bottom right hand corner and remove the cable entry cover by pulling downwards. Plug the pool pump into
the pump socket on the front of the unit. Refit the cable entry cover making sure all cables pass through the
tunnel behind it to ensure they do not interfere with the proper closing of the Control Panel Cover.
Tighten retaining screws.
Off-Peak Installations
This unit is suitable for off-peak tariff supply (but will require installation by a suitably qualified tradesman).
Heaters and other
equipment in the return
to pool line must be
installed before the cell
(i.e. Between the cell
and filter)
Remember:
The filter pump must be
plugged into the Power Pack.
When secure, plug the lead
into a suitable 240 volt power
point, but DO NOT SWITCH THE
UNIT ON
Connecting a pump load
greater than 1.5kW, or the use
of double adapters/stackable
plugs will void the warranty.
Standard
What Salt Concentration to Use
We recommend that your S3500 salt concentration be maintained at a level of between 5000 and 7000 ppm.

operationoperationinstallationinstallation maintenancemaintenance

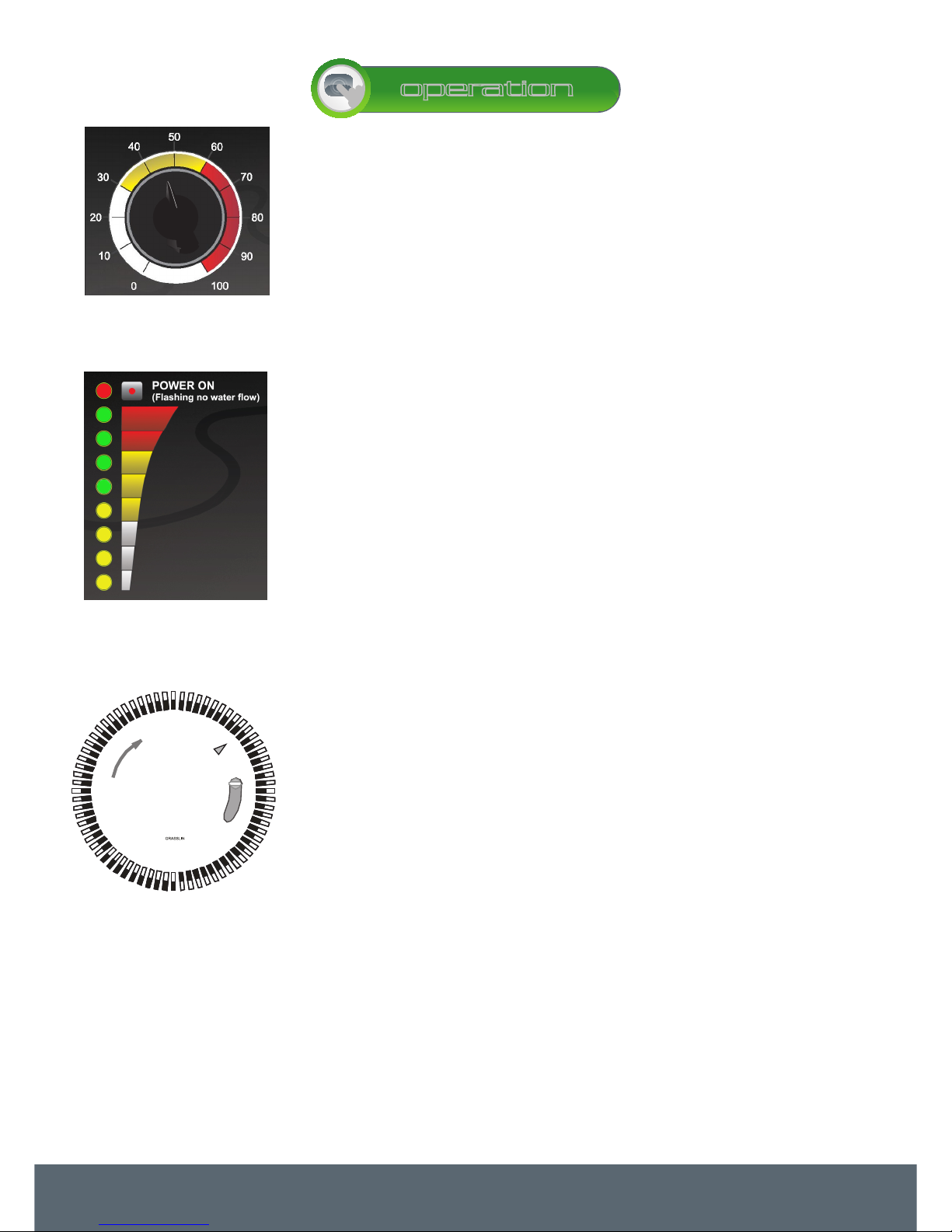

Chlorine Control
Because your S3500 Chlorinato r has been designed to operate over a range of salt levels, water
temperature, running time, etc, a Chlorine Control has been provided to compensate for these
variations. When first starting the unit and where maximum chlorine production is needed the
control knob should be rotated fully clockwise so the LED's are indicating maximum on the chlorine
output scale or as high as prevailing conditions will allow. To operate the filter pump only without the
cell, simply turn the Chlorine Control knob fully anti-clockwise.
LED Chlorine Output Monitor
The LED Chlorine Output Monitor has been provided to allow monitoring of the chlorine output
being produced by the cell.
Power/ No Flow
The top light is illuminated when power is applied to the Power Pack. It will also flash when
there is a problem with the water detection circuit (i.e. an empty cell).
Timer
For Manual Operation
Move the slide switch on the face of the timer to the position marked "ON". The pump and chlorinator
should now be operating (if the chlorine control is correctly adjusted)
To turn the pump and chlorinator off, move the slide switch to the "OFF" position.
For Automatic Operation
Move the slide switch on the face of the timer to the position marked "AUTO". The pump and
chlorinator should now operate when the next ON cycle is detected by the time switch (if the chlorine
control is correctly adjusted)
To manually turn the pump and chlorinator off, move the slide switch to the "OFF" position.
Setting the START and STOP Times
To Set the Clock Function
Rotate the dial in a clockwise direction only to align the present time of day with the indicator arrow on the
right hand side of the face of the timer, just above the slide switch
Slide the trip pins outwards on the timer face for morning and late afternoon operation as illustrated. We
recomend an initial operating period of 6 - 8 hours in Summer and 2 - 4 hours in Winter. This will vary
depending on the relitive size of your pool, filter and chlorinator
FOR FURTHER INFORMATION PLEASE REFER TO: www.surechlor.com.au
II
O
1
224
3
4
5
6
7
8
9
10
11 12 13 14 15
16
17
18
19
20
21
22
23

FOR FURTHER INFORMATION PLEASE REFER TO: www.surechlor.com.au
Chemical Balance Guide
Your S3500 chlorinator is designed to be used for swimming pool water, which needs to be balanced in
accordance with Langlier Saturation Index, with a pH level of 7.2 to 7.6 and maintains the recommended
levels of sanitizer. (i.e 2 - 3 ppm of free chlorine). Regular water analysis and advice on correct addition
of chemicals and/or products to achieve suitable water quality and balance by a reputable professional
pool shop will ensure bather health and comfort and extended equipment service life.
Maintenance Frequency
Initially, check your cell every week for deposits of scale on the electrodes. This will enable you to
determine the cleaning period. Your S3500 cell must be cleaned before scale builds up to the point
where the electrode gaps in the cell are bridged. If the cell operates with scale bridging the electrode
gaps it can be irreparably damaged and the electrodes may have to be replaced. This will aslo void your
warranty.
Cell Cleaning
Manual Procedure
1. Remove S3500 Power Pack plug from 240 volt power point.
2. Remove cell from plumbing.
3. Turn cell upside down (inlets facing upwards) and place on a level non-metallic surface in a well
ventilated area.
4. Prepare your cell cleaning solution by following the directions supplied by the chemial
manufacturer.
5. Carefully pour sufficient cleaning solution into the upturned cell so as to fully cover the metal
electrodes.
6. Allow to stand for 10 minutes then flush out with clean water.
7. If electrodes still show white deposits, repeat the above steps.
It is recommended that a warm water detergent solution be used to soak the electrodes at this
point if there is any evidence of body fats, oils or grease.
8. Refit the cell to plumbing line making sure both rubber “O” ring seals are in place.
9. Re-connect the Power Pack plug to 240 volt power point and switch on.
General Warnings
The Warranty will be void if the Power Pack is installed or operated:
•On, or less than 1 metre from the ground.
• Placedinalocationthatcanbefloodedbystormwaterorbyaccidentalimmersion.
• Wheretheairflowisobstructed,i.e.Withinapoorlyventilatedauxiliaryenclosure.
• Mountedcloseto,against,orontopofanauxillaryheatsource(e.gmetalfenceorshedwall)
• WiththeweatherproofControlPanelCoverpermanentlyopenorremovedifinstalledoutdoors
• Withapumpconnectedtothe240voltoutletsocketgreaterthan1.5Kwcontinuouscapacity
• Fromanelectricalsupplysocketwhichisnotratedtosupply10ampsat220–240volts50Hzandisnot
adequately protected by the correct size fuse or circuit breakers.
• Extensionleadsarenotrecommendedforusewiththisequipmentbecausetheyareunsafeinand
around the pool zone.
For extended equipment service life and peace of mind, Poolrite Chlorinator Systems Pty Ltd recommends that
your S3500 is serviced regularly on a six monthly basis by a reputable qualified pool professional.
operationoperationinstallationinstallation maintenancemaintenance
PLEASE NOTE:
Proof (i.e. hard copy) of regular water
analysis by a reputable professional
pool shop will be required as evidence
of suitable water quality and balance in
the event of a warranty claim.
HANDLING ACID:
Rubber gloves and protective
eyewear must be worn.
DO NOT put used acid solution
into the pool
If this system is fitted with a
backup battery and real time clock.
The time will not require resetting.
Under no circumstances should salt,
algaecides, chemicals and any other
product other than DE be added to the
pool via the skimmer box while in
operation
3
5

Customer Responsibility
Your “Before You Call For Service” Checklist
Before calling for service read the instructions in this Quick Start Guide carefully.
The following points are your responsibility:
• Powerpointnotturnedonorfaulty(checkwithanotherappliance)
• Timeswitchincorrectlyset
• Unitincorrectlyinstalled
•Pumpnotpluggedinto S3500Pump Outlet Socket
• Controlsincorrectlyset
• Poorwaterchemistry(saltlevel,pHetc.)
• Cellnotbeingcleaned(acidwash)properly.
• Poorwaterflow(checkfilterisclean/pumpoperating/skimmerfreeofobstructions)
• Unitbeingtamperedwithbyunauthorisedpersons.
Warranty Terms and Conditions
Your new Surechlor S3500 chlorinator is manufactured to the highest possible standards using the most up-to-date
technology. Accordingly the equipment carries the following Warranty, should a fault occur due to faulty
manufacturing or materials.
Important: In the event of a fault covered by warranty occuring, the purchaser must, in the first instance, contact
Poolrite Chlorinator Systems Pty. Ltd. or the closest authorised distributor. Poolrite Chlorinator Systems Pty Ltd
warrant the original purchaser of the Power Pack and Electrolytic Cell for a period of 24 months from the date of
purchase by the original owner, with the Cell also warranted for an additional 24 months pro-rata, should
examination disclose to its satisfaction that the Electrolytic Cell or Power Pack has failed due to faulty
manufacturing or materials.
The Warranty is Void if the following occurs:
• Operatingtheproductand/orcleaningthecellotherthaninaccordancewiththisQuick Start Guide
• Damagecausedfrommechanicalcleaning(eg.useofascrewdriverorothersharpimplement)
• Thesafetyflowdetector,powerterminalsand/orconnectionshavebeentamperedwith
• Cellpowerterminalshavebeensubmergedinacidsolutionwhilstcleaning
• Incorrectwaterchemistry(refertoChemical Balance Guide under Maintenance instructions)
•Saltlevelbelow3000ppmorabove7000ppm.Recommendedlevelisbetween 5000 and 7000ppm
• Thechlorinatorisinstalledonapoolsizewhichisnotrecommendedforitsmodel
• ThePowerPackhasbeenservicedbyapersonotherthanapersonauthorisedtodosobyPoolriteoritsagent
• Non-swimmingpoolgradesalthasbeenusedinthepool
• Metalbasedalgaecideshavebeenused • Highlevelsofmetallicionsinwater
• Insect/vermininfestation • ExcessiveCleaningand/orExessiveScaling
• Fuseisblown • Negligenceand/orActsofGod
This Warranty is applicable to workmanship and materials. Poolrite Chlorinator Systems Pty Ltd will repair or
replace at no charge, all parts returned freight paid, which display faulty workmanship or materials. Poolrite
Chlorinator Systems Pty Ltd accepts no responsibility for loss, damage or injury to persons or property arising from
Warranty failure of equipment, or installationofthatequipment.UnlesswiththeexpresspriorauthorityofPoolrite
Chlorinator Systems,anyrepairorreplacementshall be provided only by Poolrite Chlorinator Systems Pty Ltd or its
authorised distributors and this Warranty shall not extend to any expenditure otherwise incurred.
A service charge will be made
for service as a result of the
adjacent points
All Surechlor salt water
chlorinators have been fully
tested and approved by the
Queensland Electrical Safety
Office and have been issued
with an AS/NZS 3136 Certificate
of Approval.
Additionally the Power Pack is
rated as complying with IPX3as
per AS1939 and as such can be
legally installed within the
designated Pool Zone as
defined in Section 7 of AS/NZS
3000 wiring rules.
2/629 Toohey Rd SALISBURY QLD 4105 PH [phone] FAX [phone]
Manufactured by Poolrite Chlorinator Systems Pty Ltd ABN 97 165 100 854
Email: [e-mail] Web: www.poolritesystems.com
CHLORINATORS
If you requier a full manual please visit the download section of our website: www.poolritesystems.com
