Populas ACCELLA User manual

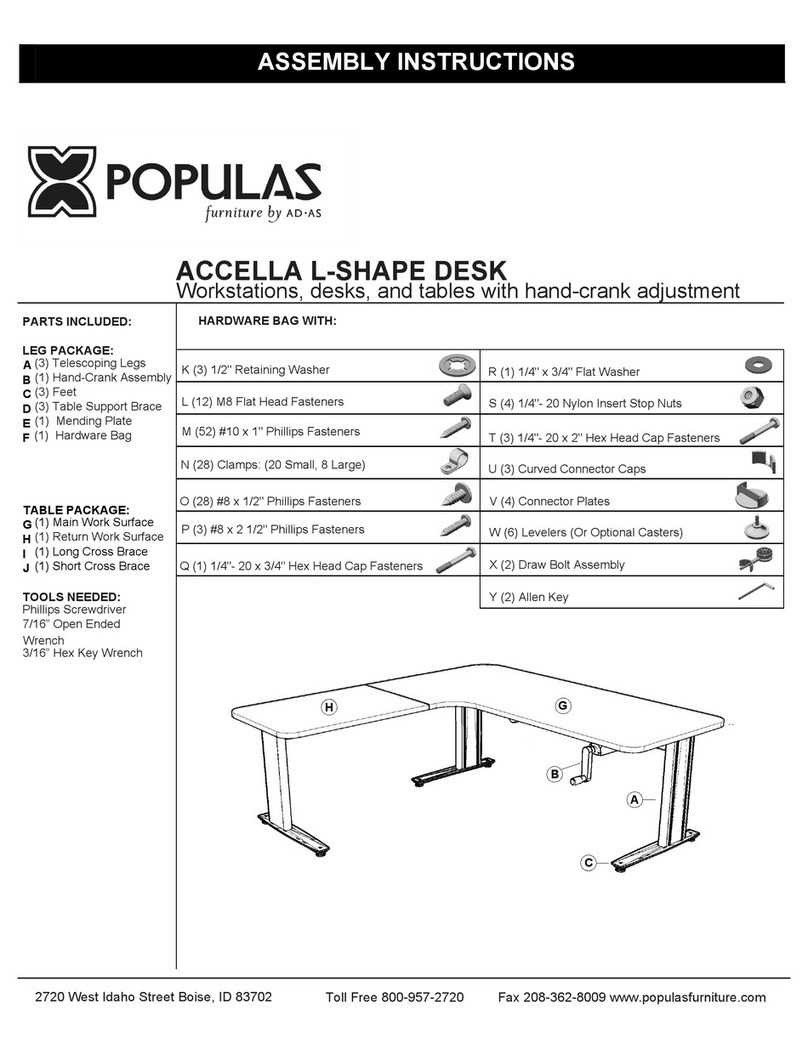

ASSEMBLY INSTRUCTIONS
PARTS INCLUDED:
LEG PACKAGE:
(2) Telescoping
Legs
B(1) Hand-crank
Assembly
C(2) Steel Feet
(2) Table Support
Braces
(1) Hardware Bag
TABLE PACKAGE:
E(1) Cross Brace
F(1) Table Top
TOOLS NEEDED:
Phillips Screwdriver
Pliers or
Snap Ring Pliers
7/16" Wrench
1/2" Socket Wrench
HARDWARE BAG WITH:
J (2) 1/2" Retaining Ring
(8) 5/16"-18 x 1" Hex Head Fasteners
(8) 5/16" Spring Washers
M (4) 1/4" x 1" Hex Head Lag Fasteners
N (4) 1/4" Spring Washer
O (4) #8 x 2-1/2" Phillips Fasteners
P(12) Hydraulic Hose Clamps
Q (12) #6 x 1/2" Phillips Fasteners
S (2) Curved Connector Cap
R (2) 1/4"-20 x 2" Hex Head Cap Fasteners
T (2) 1/4"- 20 Nylon Insert Stop Nut
U (2) Connector Plate
V (4) Levelers (Or Optional Casters)
A
D
K
L
ASSEMBLY INSTRUCTIONS
ACCELLA
Workstations, desks, and tables with hand-crank adjustment

Step 2: Piston Attachment
Insert hydraulic piston into center hole of Table
Support Brace (D) with piston top recessed inside
brace. Secure with 1/2" Retaining Ring (J), using pliers
to snap retaining ring into piston groove. Repeat for
second piston. Snap ring pliers and snap rings can be
used.
Step 3: Telescoping Leg Attachment
Insert piston foot into center of Telescoping Leg (A).
Piston hose port must route through "mouse hole" of
telescoping leg. Align telescoping leg with hose
port facing center. Attach using two 5/16"-18 x 1" Hex
Head Fasteners (K) and 5/16" Spring Washers (L). Tighten
using a 1/2" socket wrench.
Step 1: Preparation
Unpack and identify all parts. Place Table Top (F)
upside down on padded surface and identify
front edge.
Be careful not to damage the hydraulic hose
Snap ring pliers Snap rings
Keep hose routed through mouse hole to
avoid pinch points
TELESCOPING LEG
HAND-CRANK PISTON
HEX HEAD FASTENERS PISTON HOSE
MOUSE HOLE

Step 5: Hand-crank Assembly
Attachment
Align Hand-crank Assembly (B) to four guide holes.
Attach using four #8 x 2-1/2" Phillips Fasteners (O).
Step 6: Hose Attachment
Route hose through Hose Clamps (P) in pattern shown.
Attach using #6 x 1/2" Phillips Fasteners (Q).
Step 4: Table Support Brace
Attachment
Place Table Support Brace (D) and Hand-crank
Assembly (B) on underside of table. Locate three
guide holes for Hand-crank Assembly (B). Position
Telescoping Leg (A) with shorter hose (A, left)
closest to Hand-crank Assembly. Align Table Brace
(D) to guide holes and attach using four 1/4"
Spring Washers (N). Tighten using 7/16" Socket
Wrench.
Do not over-tighten or strip
Slotted groove on telescoping legs face in

Step 8: Feet Attachment
Attach Feet (C) to Telescoping Legs (A) using two
5/16"-18x1" Hex Head Fasteners (K) and 5/16"
Spring Washers (L) tighten using 1/2" socket wrench.
Attach Levelers (V) or optional casters to threaded
toe cap.
Step 9: Operation and Use
Pump handle pulls out and down to fold out
of the way. Gently turn table over and adjust
Levelers (V) if required. The Hand-crank raises and
lowers the table. Clean with soft cloth and mild
cleaners suitable for furniture.
Step 7: Cross Brace Attachment
Hardware is shipped attached. Insert Hex Head of
1/4"-20 x2" Fasteners (R) into rear slotted groove of
Telescoping Leg (A). Level Cross Brace (E) two inches
below top of telescoping leg. Tighten using 7/16"
wrench. Cover connector hardware with Connector
Cap (S).
REAR SLOTTED GROOVE
