Setting manual
Rev 2.3
Tension Indicator
PT-LM107D

CONTENTS
CONTENTS
Chapter 3 Setting
1. Basic Setting ························ 15
2. Setting of Connecting the External Device ············ 17
3. Other Setting ························ 18
4. Trouble shooting ······················· 20
Chapter 2 Before Using the Product
1. Exterior Dimension ······················ 4
2. Installation and Wiring ···················· 4
3. Description on the Front Panel ················· 7
4. Parameter Menu ······················· 9
5. Alarm List ·························· 10
6. Specifications of the Product ·················· 11
7. Operating Menu ······················· 12
Chapter 1 Features of the product and Precautions
04
15
03
Tension Indicator
PT-LM107D

PT-LM107D
3
PORA ELECTRIC MACHINERY CO.,LTD.
(Thoroughly read the followings before use)
Features of the product and Precautions
Precautions for Installation
- Maintain the right vertical and horizontal angles of the product for installation.
- Install the product in a place devoid of vibration, shock, high temperature or humidity, direct sunlight, much
dust,or air containing much salt or ions.
- Do not install the product within the vicinity of inflammable gases or steam or dust.
- Wire the product as provided in the following drawings and check if all cables are properly connected.
- Ensure the earthing terminal is correctly grounded.
- Ensure the product is detached from the power supply cables or the cables with much electrical noise.
Precautions for Use
- Unwarranted operation of the controller may cause the defects of the object materials.
- Pora shall NOT be responsible for any damages to the controller caused by such operations.
Warning
For the installation and wiring of the controller, completely isolate it from the external power
supply. Failure to do so may result in an electrical shock or damage to the controller.
Precaution
Check the surrounding environment. Do not install the controller where it can be exposed to
excessive dust, conductive dust, corrosive gases, high temperature or rainy wind. It also should
not be installed in the places susceptible to vibrations or shocks. Failure to do so may result in
damages to, or malfunctioning or lowered performance of the controller.
Warning
Use anti-explosive products where there are high risks of inflammation or explosion. Failure to
do so may result in a fire or explosion. Use the anti-explosive products suitable to the given
conditions.

Tension Indicator
4 PORA ELECTRIC MACHINERY CO.,LTD.
It is recommended to install it at a place with convenient use, easy
maintenance and repair.
1) Installation
Uses clamp screws to install it on the panel.
2. Installation and Wiring
Clamps and screws for
installation (supplied)
Allowable thickness : 5 mm
45 +0.6
0
92 +0.8
0
Cutting
Dimension
1. Exterior Dimension
Cutting Size
44
48
96
111
7147.5
91
92
45
Cutting
Dimension
Before Using the Product

PT-LM107D
5
PORA ELECTRIC MACHINERY CO.,LTD.
2) Wiring
(1) External Connection Diagram
(2) Terminal Array
4*(
-
/
;FSPTQBO
BEKVTUNFOU
;FSPTQBO
BEKVTUNFOU
'JMUFS
'JMUFS
'JMUFS
'JYFEGJMUFS
'JMUFS


















6QQFSMJNJUEFUFDUJPOTFUUJOH
&9
4*(
-FGU
5FOTJPO
%FUFDUPS
3JHIU
5FOTJPO
%FUFDUPS
34
$PNNVOJDBUJPO
Ⲽ015*0/
1PXFS
"$UP7
)[
3JHIU
-FGU
5PUBM
/
$PNNPO
7PMUBHF0VUQVU
$VSSFOU0VUQVU
%FUFDUJPOPG
UIF6QQFS-JNJU


LⳊ
&9
%UZQF(SPVOE
4*(
4*(
-PXFSMJNJUEFUFDUJPOTFUUJOH
"EKVTUNFOU
"EKVTUNFOU
"EKVTUNFOU
"EKVTUNFOU "EKVTUNFOU
"EKVTUNFOU
$PNNPO
%FUFDUJPOPG
UIF-PXFS-JNJU
$PNNPO
0VUQVU
GPS3FDPSEFS
_7'4
&YUFSOBM
5FOTJPO.FUFS
%$N"'4
5FOTJPO
4JHOBM
0VUQVU
%UZQF(SPVOE
#FMPXⱕ



59
39
(/%


-
/

'PS-FGU5FOTJPO%FUFDUPS4*(
0VUQVUGPS5FOTJPO%FUFDUPS&9
'PS3JHIU5FOTJPO%FUFDUPS4*(
4IJFMEGPS5FOTJPO%FUFDUPS
$VSSFOU0VUQVUGPS5FOTJPO4JHOBM0VUQVU
'PS&YUFSOBM5FOTJPO.FUFS
-F
GU5FOTJPO%FUFDUPSⲲT0VUQVUGPS3FDPSEFS
5PUBMPG5FOTJPO%FUFDUPS ⲲT -FGUBOE
3JHIU0VUQVUGPS3FDPSEFS
'PS34$PNNVOJDBUJPO39
4*('PS-FGU5FOTJPO%FUFDUPS
&90VUQVUGPS5FOTJPO%FUFDUPS
4*('PS3JHIU5FOTJPO%FUFDUPS
7PMUBHF0VUQVUGPS5FOTJPO4JHOBM0VUQVU
$PNNPO'PS7PMUBHF$VSSFOU0VUQVU
$PNNPO'PS&YUFSOBM5FOTJPO.FUFS3FDPSEFS
1PXFS
"$_7
)[
%UZQF(SPVOE#
FMPXⱕ
%FUFDUJPOPGUIF6QQ
FS-JNJU
%FUFDUJPOPGUIF-
PXFS-JNJU
$PNNPO
3JHIU5FOTJPO%FUFDUPSⲲT0VUQVUGPS3FDPSEFS
59'PS34$PNNVOJDBUJPO
(/%'PS34$PNNVOJDBUJPO





 
 
 
 

Tension Indicator
6 PORA ELECTRIC MACHINERY CO.,LTD.
(3) Connection of the Tension Detector
A tension detector of the TD model is a pickup type.
For a pickup type, connect as above.
Use of the Pickup-type Tension Detector








(SPVOE
-FGU
1JDLVQUZQF
5FOTJPO
%FUFDUPS
#MBDL&9
(SFFO4*(
3FE&9
8IJUF4*(
#MBDL4IJFME
(SFFO4*(
8IJUF4*(
3JHIU
1JDLVQUZQF
5FOTJPO
%FUFDUPS
A tension detector of the A, PA, AB, and B models is a
load cell type. For a load cell type, connect as above.
Use of the Load Cell-type Tension Detector
8IJUF&9
(SFFO4*(
3FE&9
#MVF4*(
#MBDL4IJFME
(SFFO4*(
#MVF4*(








(SPVOE
-FGU
-PBE$FMMUZQF
5FOTJPO
%FUFDUPS
3JHIU
-PBE$FMMUZQF
5FOTJPO
%FUFDUPS
Connection terminals of the pickup-type tension detector have different colors from ones of the load cell
type tension detector. Because there may be a risk of malfunctions and damages, be sure to connect
them after checking a type of the tension detector and its connection terminals above.
Caution : Check of connected terminals for each type of the tension detector
If a tension detector is used for only one side,
connect between [2] and [6], [1] and [5] terminals.
Use of only one side of a tension detector
&9
4*(
&9
4IJFME
4*(








-FGU
(SPVOE

PT-LM107D
7
PORA ELECTRIC MACHINERY CO.,LTD.
3. Description on the Front Panel
1. Power Indication LED
2. Tension Level Meter/Parameter
Indication LED
3. Minus Indication LED
4. Tension Display Window
5. Unit Indication LED
6. Output/Tension
Indication Selection LED
8. ‘UP’ Key
7. Setting Mode Indication LED
9. ‘AUTO ZERO’ Key
10. ‘ENTER’ Key
11. ‘DOWN’ Key
12. ‘SHIFT’ Key
13. ‘DISP’ Key
14. Tension Calibration Mode
Indication LED

Tension Indicator
8 PORA ELECTRIC MACHINERY CO.,LTD.
Button Description
1Power Indication LED Turns on when the power is applied.
2
Tension Level Meter/
Parameter Indication
LED
In the tension monitor mode, a level of tension is indicated in % unit, and in the parameter setting
mode, a parameter number is indicated.
3Minus Indication LED (Turns on when a tension/output/setting value is negative.)
4Tension Display Window Tension and output is indicated in the tension monitor mode.
A setting value is indicated in the tension calibration and parameter setting modes.
5Unit Indication LED
It is indicated the unit of values indicated on the tension display window.
6
Output/
Tension Indication
Selection LED
It is indicated a type of data indicated on the tension display window.
7Setting Mode
Indication LED
8‘UP’ Key Increases a parameter number or setting value.
9‘AUTO ZERO’ Key When pressing it lengthily for 3 seconds, executes the auto zero adjustment.
10 ‘ENTER’ Key Executes to confirm the setting parameter numbers or values.
11 ‘DOWN’ Key Decreases a parameter number or setting value.
12 ‘SHIFT’ Key By pressing it together with other keys, adjusts a parameter number or the number of setting
value’s digits.
13 ‘DISP’ Key Changes indication on the tension display window in the tension monitor mode.
14 Tension Calibration
Mode Indication LED
Indicates a setting condition of the tension calibration mode.
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
0 50 100
Pr. No.
Tension Level Indication
Current tension is indicated in % unit.
Parameter Number Indication
The corresponding number’s LED is turned on in the parameter mode.
OUTPUT LEFT TOTAL RIGHT
TENSION
Tension Indication of the
Right Tension Detector
Tension Indication of the
Left Tension Detector
Indication of Total
Tension Value
Tension Level Meter
Indication
TEN.
SET PARAM. SET
SET
Parameter Setting Menu Mode
Tension Setting Menu Mode
AUTO
SPAN DISP OFFSET DISP SPAN
Indicated Span
Setting Mode
Auto Span
Setting Mode
Indicated Tension Offset
Setting Mode
It is indicated when X10N is set in the parameter mode.
Basic Tension Value Indication Unit
Tension Level % Indication

PT-LM107D
9
PORA ELECTRIC MACHINERY CO.,LTD.
4. Parameter Menu
●
Auto span target tension can be changed only in the auto span control mode. And, if the tension full scale of Pr
No. 3 is changed, the auto span target tension would be updated for the total area of tension after changing.
● Indication offset/span (Pr No. 31~34) can be changed only in the tension calibration mode.
● The blanks are not set and indicated.
Pr NO. Item Shipping Condition Minimum Value Maximum Value Unit
00
01 Sensor Type L L = Load Cell Type, H = Pickup Type -
02 Tension Unit N 0 = N, 1 = ×10N -
03 Total Area of Tension 500 1 2000 N, ×10N
04 Decimal Point of Tension 1 1, 0.1, 0.01 -
05 Hold of Excessive Input Alarm Indication Holding 0 = Holding, 1 = No Holding -
06
07
08
09
10 Output Mode 0~10V 0~5V, 0~10V, 1~5V, 4~20mA
11 Output Bias 0.0 -100.0 100.0 %
12 Output Gain 100 50 200 %
13 Setting of the Lowest Detected Tension Value 0 0 2000 N, ×10N
14 Setting of the Highest Detected Tension Value 0 0 2000 N, ×10N
15 Meter Calibration 100 50 150 %
16
17
18
19
20 Tension Indication Filter 0.5 s 0.3 s 2.0 s (S)
21 Output Filter 0.5 s 0.0 s 2.0 s (S)
22 Recorder’s Output Filter 0.5 s 0.0 s 2.0 s (S)
23 External Tension Meter’s Output Filter 1.0 s 0.1 s 2.0 s (S)
24
25
26
27
28
29 System ROM Version Monitor *.** 0.00 9.99 -
30 Auto Span Target Tension Setting Monitor 500 1 2000 N, ×10N
31 Left Detector’s Indicated Offset Setting Monitor 0 -1000 1000 N, ×10N
32 Right Detector’s Indicated Offset Setting Monitor 0 -1000 1000 N, ×10N
33 Left Detector’s Indicated Span Setting Monitor 100.0 50.0 300.0 %
34 Right Detector’s Indicated Span Setting Monitor 100.0 50.0 300.0 %
35 Alarm History 0 Monitor
36 Alarm History 1 Monitor
37 Alarm History 2 Monitor
38 Alarm History 3 Monitor
39 Parameter Setting Range 0 0 2 -

Tension Indicator
10 PORA ELECTRIC MACHINERY CO.,LTD.
5. Alarm List
Up to recent 4 alarms are stored in the alarm history, and they are stored as Pr No. 35→36→37→38 in order
according to their occurred sequence (the latest alarm is 35, and the last alarm of no. 38 is deleted when a
new alarm is generated.)
When pressing any key in the alarm indication, it would return to the previous state.
AL 01 and AL 02 are not recorded in the alarm history of Pr No. 35~38.
1) Storing of Alarms (Item 35, 36, 37 and 38 of the Parameter Menu)
Excessive input alarm is indicated when too much load (above about 1.5 times of the rated load) is applied
to the tension detector, and if it is used under this condition, it may be a cause of the tension detector’s
damage. When the excessive input alarm is indicated no matter the item no. 05 (Pr No. 05) of the parameter
menu is set as [0] or [1], be sure to use after removing the cause of the excessive input alarm.
Caution : Check of the excessive input alarm
Alarm No. Alarm Information Details
AL 01 Excessive input
of the left detector
It is a monitor indication mode, which the input voltage of the left detector is
exceeded.
AL 02 Excessive input
of the right detector
It is a monitor indication mode, which the input voltage of the right detector is
exceeded.
AL 03 Excessive zero input
voltage range The input voltage range is exceeded when controlling the zero
AL 04 Unbalance of the zero
control voltage
Unbalance of the left and right detectors’ voltage is exceeded above 30% when
controlling the zero.
AL 05 Insufficient span load
of the left detector
The left detector’s input voltage is lacked to fail to control the span when controlling
the span.
AL 06 Insufficient span load
of the right detector
The right detector’s input voltage is lacked to fail to control the span when
controlling the span.
AL 07 Excessive span load
of the left detector The left detector’s input voltage is exceeded when controlling the span.
AL 08 Excessive span load
of the right detector The right detector’s input voltage is exceeded when controlling the span.
AL 09 Unbalance
of the span load
Unbalance of the left and right detectors’ sensed loads is exceeded above 30%
when controlling the span.

PT-LM107D
11
PORA ELECTRIC MACHINERY CO.,LTD.
6. Specifications of the Product
1) Operating Mode듶
Item Terminal Specification
Power
Input
L
AC100~240V (±10%) 50/60Hz, Power Consumption 20VAN
Output 3 EX + DC5V 100mA (max) for the tension detector
EX -
Input Tension
Detector
Left 1 SIG1 +
Input signal for the tension detector
When only one side of the tension detector is used, use it by connecting a
used terminal with a no-used one (refer to the wiring method in page 6.)
2 SIG1 -
Right 5 SIG2 +
SIG2 -
-7 Terminal for the shield ground.
Contact
Point
Output
Tension Detection
21 Highest Tension
Detection
Detection of the highest tension.
Make on above the setting value. Open Collector Output
Output Capacity:
DC50V/0.15A
20 Lowest Tension
Detection
Detection of the lowest tension.
Make on below the setting value.
Common
Analog
Output
Tension Signal
8 Voltage Output 0~5V, 0~10V, 1~5V / FS’s Converted Load Resistance: 1kΩ
9 Current Output 4~20mA/FS Load Resistance: 500kΩ
10 Common
Output for External
Tension Meter
11 + Use DC 1mA/FS (internal resistance: below 1.5kΩ)
12 -
Output for
Recorder
13 Left
Output load resistance for the recorder is more than 10kΩ.
Output voltage = 0~5V for total area of tension.
14 Right
15 Total
12 Common
Indication
Function
Tension Indication
Digital indication of 4 digits by a 7-segment LED.
Total area can be set within the range of 0.01~2000N.
Changes the unit indication of [N] and [×10N], indicates the level meter by 16 LEDs, and
changes indications of left, total, right.
Output Indication Indicates analog output by a 7-segment LED.
Setting Parameter
Indication Indication of an item No. by a LED and setting values by a 7-segment LED
LED Indication Indicates identified left, total, right output % of tension. Power indication
Indicates identified auto span, manual offset, and manual span control.
Communi-
cation
RS232
(※ Option
Function)
16 TX
Possible to transmit and receive18 GND
17 RX
Weight About 400g
2) Environmental Specifications듶
Operating Ambient
Temperature -10~60° C
Operating Ambient Humidity Below 35~85%RH (no subject to dew condensation)
Earthquake Resistance Compliance with JIS C0040, 10~55Hz 0.5mm (maximum 4.9m/s2) 2 hours for each X, Y, Z
direction
Shock Resistance Compliance with JIS C0040, 98m/s2, 3 times for each X, Y, Z direction
Power Noise Tolerance Use a noise simulator with noise voltage of 1000Vp-p, noise width of 1us, and frequency of
30~100Hz.
Withstand Voltage
AC 1500V for 1 minute: between all terminals/case, between power terminal/input·output
terminals
AC 500V for 1 minute: between open-collector’s output/ input·output terminals
(no-insulation between input terminal/output terminal)
Insulation Resistance More than 5MΩ at DC 500V mechanism - (between all terminals and a local terminal)

Tension Indicator
12 PORA ELECTRIC MACHINERY CO.,LTD.
7. Operating Menu

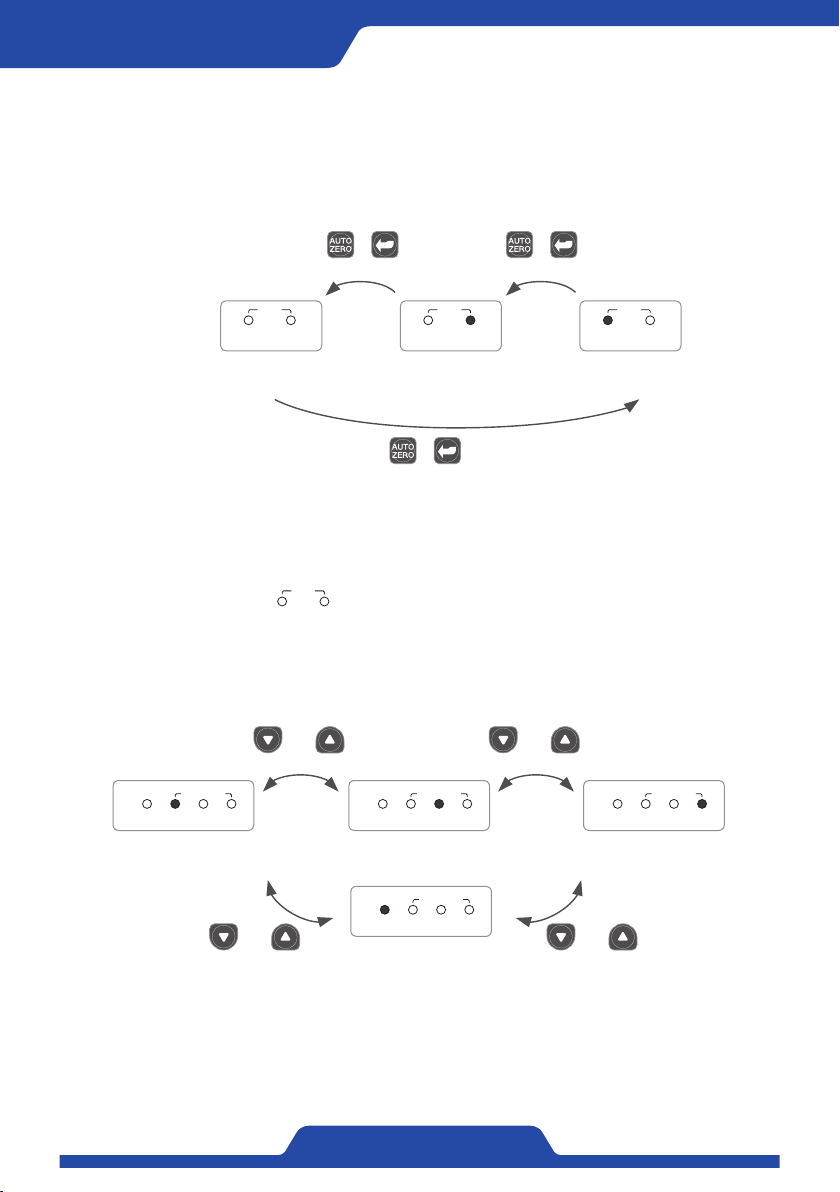

It changes the setting mode.
When pressing the [AUTO ZERO] and [ENTER] keys at the same time, the operating mode is changed
as below. ※ When pressing the [DISP] and [ENTER] keys at the same time, it is changed in the
opposite direction.
1) Operating of the Tension Monitor Mode
It is a basic mode to indicate the current tension.
(When pressing the DISP button in every condition, it is returned to this mode.)
A
UTO
SPAN
DISP
OFFSET
DISP
SPAN
SET
PA
RAM.
SET
TEN.
SET
Tension Monitor Mode
The tension monitor mode is a basic
state, and TEN, SET, PARAM SET LED
are all turned off.
When pressing the [▲] or [▼] key, the setting item is changed as below.
A
UTO
SPAN
DISP
OFFSET
DISP
SPAN
SET
PARAM.
SET
TEN.
SET
Press keys at same time.
Press keys at same time.
Press keys at same time.
A
UTO
SPAN
DISP
OFFSET
DISP
SPAN
SET
PARAM.
SET
TEN.
SET
A
UTO
SPAN
DISP
OFFSET
DISP
SPAN
SET
PARAM.
SET
TEN.
SET
The tension monitor mode is a basic mode,
and TEN, SET items and PARAM, SET items
are all turned off.
Tension Monitor Mode
Current tension is indicated.
Parameter Setting Mode
Parameter items are set.
Tension Calibration Mode
The tension detector is set.
+ +
+
POWEROUTPUTTOTALLEFT RIGHT
TENSION
POWEROUTPUTTOTALLEFT RIGHT
TENSION
POWEROUTPUTTOTALLEFT RIGHT
TENSION
POWEROUTPUTTOTALLEFT RIGHT
TENSION
or Press key.
or Press key. or Press key.
or Press key.
※ Check of Peak Tension Values
1) The peak value of tension is stored while power is on, so the stored peak tension value is indicated
when pressing the [SHIFT]+[▲] at the same time.
2) The stored peak tension value is cleared when turning off power, changing into a mode other than the
tension monitor mode, or pressing the [SHIFT]+[▼] keys.
LEFT Monitor Mode
Indicates a tension of the left
tension detector
TOTAL Monitor Mode
Indicates a total tension of the
left and right tension detectors
OUTPUT Monitor Mode
Indicates a tension signal
output as %.
RIGHT Monitor Mode
Indicates a tension of the right
tension detector

PT-LM107D
13
PORA ELECTRIC MACHINERY CO.,LTD.
2) Operating of the Parameter Setting Mode
It is a menu to set the parameter items.
When pressing the [▲] or [▼] key, the setting item is changed within 00~39 as below.
Indication of the
10' s Digit
Indication of the
1' s Digit
◀ Ex) When selecting the ‘No. 12’ item of the
parameter, two LEDs are turned on like this.
Current Setting Values of the Parameter
0
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
50
100
Example of selecting the item no. 11 Example of selecting the item no. 12 Example of selecting the item no. 13
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9 00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9 00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
(1) Change of the Parameter Setting Values
- Move to an item to be changed by pressing the [▲] or [▼] key.
- Indicate the current parameter’s setting value by pressing the [ENTER] button once.
- Enter the change mode of setting values by pressing the [ENTER] button once more.
(The setting value is flashed.)
- Change into the desired setting value by pressing the [▲] or [▼] key.
(※ When pressing the [SHIFT]+[▲] or [SHIFT]+[▼] keys at the same time, the number of digits waiting
for input is changed.))
- When pressing the [ENTER] key, the input value is stored.
- Press the [DISP] key to return to the ‘Tension Monitor Mode.’
※ Initialization of the Parameter Menu
- Press the [DISP] and [ENTER] keys at the same time to change into the parameter mode.
- If pressing the [SHIFT] and [ENTER] keys at the same time, the ‘inti’ is indicated on the tension display
window for 3 seconds.
- Press the [▲] and [ENTER] at the same time during indicating the ‘inti.’ (The ‘ - - - - ’ is indicated
when it is completed.)
or Press key. or Press key.

Tension Indicator
14 PORA ELECTRIC MACHINERY CO.,LTD.
3) Operating of the Tension Calibration Mode
In the tension calibration mode, an item can be changed by pressing the [▲] or [▼] key
as below.
It is a menu to calibrate a tension.
Change clockwise
Change counterclockwise
Change Order
(1) Change of the Tension Setting Values
- Press the [▲] or [▼] key to move to the desired item.
(※ If pressing the [SHIFT]+[▲] or [SHIFT]+[▼] keys together, the number of digits waiting for input is
changed.)
- When pressing the [ENTER], the input value is stored, and it is returned to the state of the selected
control item.
- After confirming the value, the control is executed when pressing the [ENTER] once more.
- Press the [DISP] key to return to the ‘Tension Monitor Mode.’
(2) Restart Function
- When power is turned on for the shipping condition, it starts from the ‘TOTAL’ tension monitor mode.
- When it is transferred to the parameter setting mode for the first time after turning power on, it starts from
the item no. 1 (Pr No. 01) of the parameter menu.
- When it is transferred to the tension calibration mode for the first time after turning power on, the auto
zero control is selected.
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
AUTO SPAN
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
DISPLAY SPAN RIGHT
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
DISPLAY OFFSET LEFT
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
DISPLAY SPAN LEFT
DISPLAY OFFSET LEFTAUTO ZERO
or Press key.
or Press key.
or Press key.
or Press key.
or Press key.
or Press key.

PT-LM107D
15
PORA ELECTRIC MACHINERY CO.,LTD.
Setting
After changing to the parameter mode by pressing the [DISP] and [ENTER] keys at the same time, use the [▲]
and [▼] keys to set the following items. (※ Refer to page 12 for entering parameters and detailed operation.)
1. Basic Setting
1) Basic Setting of the Parameter
An alarm code is indicated on the 7-segment when there is an abnormal condition. The warning indication is
cleared when pressing any key in the alarm state, and the ready state for controlling the auto zero is become
again. After solving the corresponding error by referring the alarm list in page 10, execute the auto zero control
again.
Error Alarm When Setting the Zero Point
(1) Change of the parameter setting values 
(item no. 01 of the parameter)
Set a type of the sensor.
L = Load cell type tension detector, H = Pickup type tension detector
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
(2) Setting of the tension indication unit 
(item no. 02 of the parameter)
Set a tension indication unit. (In general, set to 0.)
0 = N, 1 = X10N
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
(4) Setting of decimal points 
(item no. 04 of the parameter)
1 = No decimal point, 0.1 = One decimal place, 0.01 = two decimal places
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
2) Setting of the Zero Point
The zero point is set. The zero control is executed under the condition without a fabric.
After changing to the tension calibration mode by pressing the [DISP] and [ENTER] keys at the same time,
the tension is controlled to zero when pressing the [AUTO ZERO] for 3 seconds to become the auto zero.
A
UTO
SPAN
DISP
OFFSET
DISP
SPAN
SET
PA
RAM.
SET
TEN.
SET
Tension Monitor Mode Press it for 3 seconds.
Wrong connections of power terminals (be also careful of the order
that working loads use power,) contacts of the DC input and output
wires and the power wires, and short-circuits of output wires etc. may
be a cause of severe damages.
Caution : Check of the power input and wiring
(3) Setting of the sensor capacity
(item no. 03 of the parameter)
Enter a capacity of the tension detector to be used within a range of 0~2000.
For a tension detector with 200kg, enter 200 for convenience of checking.
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9

Tension Indicator
16 PORA ELECTRIC MACHINERY CO.,LTD.
After installing a pendulum as above,
Press the [DISP] and [ENTER] keys at the same time to change to the tension calibration mode.
When pressing the [▲] or [▼] key to move to the auto span item, and then pressing the [ENTER] key, the current
setting value is flashed, and the ready state is prepared for entering values.
Press the [▲] or [▼] key to set the desired tension value.
(※ If pressing the [SHIFT]+[▲] or [SHIFT]+[▼] keys together, the number of digits waiting for input is changed.)
When pressing the [ENTER] key after entering a value, the indicated setting value is changed from flickering to
lighting, and it is stored.
Before setting it, select a pendulum of 30~80% of the tension detector’s maximum capacity to hang it on the
roller as below.
Ex) For a tension detector with the maximum load of 100kg, a pendulum of 30~80kg is selected.
3) Setting of the Span Value
When there is an abnormal condition, an alarm code is indicated on the 7-segment. The indicated warning
condition is cleared when pressing any key in the alarm state, and the ready state to set a span value is prepared
again. After solving the corresponding error by referring to the alarm list in page 10, execute to set the span
value again.
Error Alarm when controlling the span value
It sets a span value.
5FOTJPOEFUFDUPS
.BUFSJBM
(VJEFSPMMFS
3PMMFSGPS
UFOTJPOEFUFDUJPO
5FOTJPO
-PBE
5FOTJPO
ⴘ1VUBQJF
DFPGXJSFUISPVHIUIFSPMMFS
QMBDJOHJUBUUIFD
FOUFSPGUIFSPMMFSBT
G
BSBTQPTTJCMF
ⴙ)BOHBXFJHIUXJUIBLOPXOMPBEPO
UIFSPMMFSUPPGUIFNBYJNVN
MPBEPGUIFEFUFDUPS
Sample installation
The tension detector employs two detecting rollers, with one located in either side, so as to successfully measure
even wide-bodied object materials which tend to slant to one side.
One tension detector suffices to properly measure the tension of the object materials that do not incline toward
one side.
For electric wires or ropes, a pulley is installed on one sensor to detect tension.

PT-LM107D
17
PORA ELECTRIC MACHINERY CO.,LTD.
For the case of connecting the external device and using the tension signal output, set the following items in the
parameter setting mode.
After changing into the parameter mode by pressing the [DISP] and [ENTER] keys at the same time, use the [▲]
and [▼] keys to set the following items.
(※ Refer to page 12 for entering the parameter and detailed operations.)
2. Setting of Connecting the External Device
1) Use of the Tension Signal Output
(2) Setting of the Output Bias 
(Item No. 11 of the Parameter)
Set the bias value to be added to the tension output signal.
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
(3) Setting of the Output Gain
(Item No. 12 of the Parameter)
Set the gain value to be multiplied to the output signal.
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
3) Use of the External Tension Meter
(1) Setting of the External Tension Meter’s Deviation 
(Item No. 15 of the Parameter)
When using the external tension meter, if its output value is different, use the [12] - [11] terminals to
calibrate it.
Initial setting value = 100%
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
2) Use of Detecting the Upper/Lower Limit
(2) Setting of a Function to Detect the Upper Limit for a Tension 
(Item No. 14 of the Parameter)
The output (between [21] - [19] terminals) is turned on if the tension becomes more than the setting
value.
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9
(1) Setting of the Output Range 
(Item No. 10 of the Parameter)
Set the output range to be used for the external device.
When setting a voltage: 0~5V, 0~10V, 1~5V (Use between [8] - [10] terminals)
When setting a current: 4~20mA (Use between [9] - [10] terminals)
F Vf-Vo
Fout = ( α× ―― + β) × ――――
Fs 100
α- Output Gain (Initial Setting Value = 100%)
β- Output Bias (Initial Setting Value = 0%)
Fout - Output Signal Value
Fs - Setting Value for the Full Tension Area
F - Current Tension Value
Vf - Output Setting Value for the Full Tension Area
Vo - Output Setting Value for the Zero Tension
Check whether it is correctly connected with the voltage and current
output terminals when using the voltage and current output, respectively.
* Do not use two terminals of the voltage and the current at the same time.
Caution : Check the terminals
(1) Setting of a Function to Detect the Lower Limit for a Tension 
(Item No. 13 of the Parameter)
The output (between [20] - [19] terminals) is turned on if the tension becomes less than the setting value.
00 10 20 30 40 50 0 1 2 3 4 5 6 7 8 9

Tension Indicator
18 PORA ELECTRIC MACHINERY CO.,LTD.
0VUQVU
7
PMUBHF
5FOTJPO
4FUUJOH7BMVFPGUIF0GGTFU
4FUUJOH7BMVFPGUIF0GGTFU

4FUUJOH7BMVFPGUIF0GGTFU

When controlling
an offset of the
left tension detector
When controlling
an offset of the
right tension detector
After completing to control the zero and the span, the following items are set in the tension calibration mode,
which can control a zero point or a slope of the indication for the tension signal output.
3. Other Setting
(1) Offset Control
Adds an offset to the left or right detector’s indicated value.
- In the tension calibration mode, press the [▲] or [▼] key, select one or the other of the ‘DISP OFFSET
LEFT’ (left detector,) ‘DISP OFFSET RIGHT’ (right detector,) press the [ENTER] key, and select an item (the
setting value is flashed.)
- Press the [▲] or [▼] key to change into the desired setting value.
- When pressing the [ENTER] key, the entered value is stored.
- Press the [DISP] key to return to the ‘Tension Monitor Mode.’
(2) Span Control
It multiplies the indicated value of the left or right detector by a coefficient.
- In the tension calibration mode, press the [▲] or [▼] key, select one or the other of the ‘DISP SPAN
LEFT’ (left detector,) ‘DISP SPAN RIGHT’ (right detector,) press the [ENTER] key, and select an item (the
setting value is flashed.)
- Press the [▲] or [▼] key to change into the desired setting value.
- When pressing the [ENTER] key, the entered value is stored.
- Press the [DISP] key to return to the ‘Tension Monitor Mode.’
1) Control of the Tension Signal Output Value
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
When controlling
a span of the
left tension detector
When controlling
a span of the
right tension detector
AUTO
SPAN
DISP
OFFSET
DISP
SPAN
OUTPUTTOTALLEFT RIGHT
TENSION
Sp
Indicated Tension F = ――― × Fo + Of (N)
100
Sp - - - Indicated Span (Initial Setting Value=100%)
Of - - - Indicated Offset (Initial Setting Value=ON)
Fo - - -
Tension Value Corresponding to the Tension Signal Output
4FUUJOH7BMVFPGUIF0GGTFUⱫ
4FUUJOH7BMVFPGUIF0GGTFU
Ⱬ
4FUUJOH7BMVFPGUIF0GGTFU
0VUQVU
7
PMUBHF
5FOTJPO
