PORT Post N20 User manual

Smart Lock Manual
Model: Post

Table of Contents
In the Box
4
Product Specications
Features
Installation Instructions
Programming Your Lock
Adding Fingerprint
Lock Records
Remote Wi Management
Using the Manual Key
Troubleshooting
3
5
7
8
11
14
16
17
18
19

In the Box
1. Front Panel
(1)
2. Back Panel (1) 3. Latch (1) 4. Manual Key (2)
5. Waterproof
Rubber Gasket (2)
6. Strike (1) 7. Strike Box (1)
9.Screw Stubs: 30.5x6mm for
door thickness 30mm-55mm
(1 1/8”-2 1/8”) 40.5x6mm for
door thickness 40mm-60mm
(1 1/2”-2 1/2”) (2)
9.) Mortise Screws
10x5mm (For
aluminum door) (4) 10) Mortise Screws
25x4mm (For wooden
door) (4)
8. Hexgonal Screw
M4x30mm (2)
411.) Allen Key (1)

Product Specications
Model Name N20
Material 304 Stainless Steel & Zinc Alloy
Lock Size Handle: 148x27mm (5 3/4” x 1”)
Base: 68mm (2 2/3”)
Unlocking Methods Fingerprint
Bluetooth
Gateway
Manual Key
Finishes Satin Stainless Steel (SSS)
Satin Black (SBL)
Door Types Metal
Wood
Working Voltage 6V/4 AAA Batteries
Door Thickness to Fit 1 1/8-2 1/2”
Data Capacity 200 sets of ngerprints
Fingerprint Sensor Semiconductor Sensor
Fingerprint False Reject Rate <0.01%
Fingerprint False Accept Rate <0.00003%
Battery Lifespan 3,000 Times of Locking & Unlocking
Operation
Working Temperature -13°F - 140°F
Working Humidity 20%-90%
5

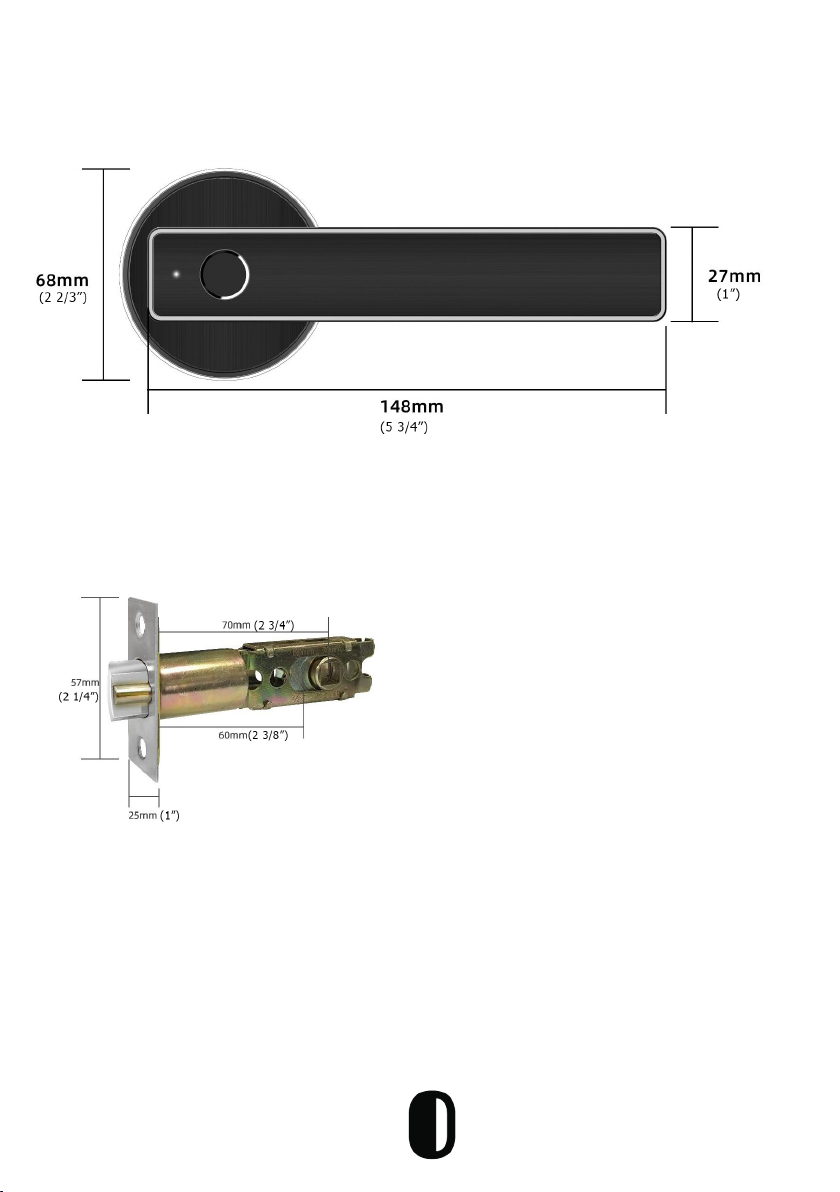

Lever Details
Latch Dimensions
6

Features
Lock/Unlock
•Unlock using Fingerprint, Bluetooth app (iOS and Android),
remotely using Wi or with the manual key
•Semiconductor ngerprint sensor (508dpi)
•Voice guided lock/unlock command
•Auto locking time setting option: After successfully
unlocking, the Port Smart Lock will re-lock after a period of
time (between 5 to 120 seconds). The owner sets this
function
Security
•Smart Freeze: After inputting wrong fingerprint 5 times the
entry lock will freeze for 30 seconds
•Activity Logs: Up to 500 operational records saving in the lock
•Tamper Alarm: The lock will sound if intruders try to pry the
lock from the door
•304 Stainless Steel & Zinc lever
•Easy switch from Passage mode and locking
•Universal Handle
•Emergency power supply through USB using a laptop or
battery pack. USB cable supplied but not battery pack
•Unlimited e-key generation capability
•Only the owner can authorize administrators
•Authorized administrator cannot authorize other
Other Features
**Additional features can be found during the programming process
7

Installation Instructions
1. Use the template enclosed to cut holes
for the door.
*It is important to follow the template
2. Adjust the latch to the desired backset
(2 3/8” or 2 3/4”)
3. Install the latch using the 25x4mm
screws for wood doors (Parts #10) and
10x5mm screws for aluminum doors
(Parts #9)
Install Latch
Install Exterior Panel
1. Install the 30.5x60mm for door
thickness of 1 1/8’’-2 1/8” and 40.5x6mm
for door thickness of 1 1/2”- 2 1/2” (Parts
#9) next to the spindle.
2. Set the front panel (Part #1) and along
with one of the waterproof rubber gaskets
(Part #5) on the exterior part of the door
3. Insert the preinstalled spindle into the
door, keeping the arrow on the spindle
facing the same direction of the latch.
8

Connect Interior and Exterior Panel & Wires
1. Set the back panel (Part #2) along with the second
waterproof rubber gasket (Part #5) on the door
2. Connect the wires from the
interior panel to the exterior panel (just plug and click)
3. Connect the front & back panel using the screws
Remove Battery Cover
1. Remove the battery cover
2. Install the two screws next to
where the batteries are placed
9

Install Batteries
1. Install (4) new AAA Batteries
into the battery chamber
2. Put the battery cover back
10
System Initialization
Reset button
Open the cover of the back panel handle. Long
press the “Reset” button for 5 seconds, and the
initialization is complete
