Positron Teleline 751109/15 Operating and installation instructions

Teleline™
8-card Shelf CCC model 751109/15
Description and Installation
925W751019-03E

Contents
Chapter 1 – General Information
1.1 Publication Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.2 About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.3 Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
FCC Part 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Related Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Positron Products and Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Positron Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Technical Customer Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Customer Training. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Repair Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.5 Teleline Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Limitation of Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cancellation and Rescheduling Charges . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 2 – Overview
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2.2 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2.3 Cable Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Chapter 3 – Installation
3.1 Installing the 8-card Shelf on a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
3.2 Shelf Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
To install the 8-card Shelf: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

8-card Shelf CCC model 751109/15
3.3 Ground Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
To connect the ground of the 8-card Shelf . . . . . . . . . . . . . . . . . . . . . . 26
Powering model 751313MC or 751318MC from an AC Source . . . . . . 29
3.4 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Station Side Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
To install the Station side cable connections: . . . . . . . . . . . . . . . . . . . . 32
CO Side Polyethylene Insulated Cable (PIC) Connection. . . . . . . . . . . 35
To connect the CO side cable using the PIC stub . . . . . . . . . . . . . . . . 35
3.5 Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
External Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
To power the shelf via the Station cable . . . . . . . . . . . . . . . . . . . . . . . . 38
To power the shelf via the power cable . . . . . . . . . . . . . . . . . . . . . . . . 40
3.6 Internal Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Internal Power Supplies Configurations . . . . . . . . . . . . . . . . . . . . . . . . 42
To install the power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.7 Power Alarm Contact Features and Specification . . . . . . . . . . . . . . . . . . 47
3.8 Temperature Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
To calculate the temperature inside the shelf . . . . . . . . . . . . . . . . . . . . 50
To lower the temperature inside the cabinet: . . . . . . . . . . . . . . . . . . . . 51
3.9 Card Insertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
To insert a card or cards into the shelf: . . . . . . . . . . . . . . . . . . . . . . . . 54
Appendix A – Acronyms
Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Chapter 1
General Information

6
8-card Shelf CCC model 751109/15
1.1 Publication Information
© 2014 Positron Inc.
Teleline 8-card Shelf CCC model 751109/15
Description and Installation Guide
Part number: 925W751019-03E
Publication date:
January 12, 2014
Published By
Positron Inc.
5101 Buchan Street, Suite 220
Montreal, Quebec, Canada
H4P 2R9
Telephone: US and Canada: 1-888-577-5254
International: 1-514-345-2220
www.PositronPower.com
Trademarks
Teleline is a trademark of Positron Inc.
Product names, other than Positron’s, mentioned herein may be trademarks and/or registered
trademarks of their respective companies
Confidentiality Notice
The information contained in this document is the property of Positron Inc. Except as specifically
authorized in writing by Positron Inc., the holder of this document: 1) shall keep all information
contained herein confidential and shall protect same in whole or in part from the disclosure and
dissemination to all third parties, and 2) shall use same for operating and maintenance purposes only.
Disclaimer Notice
Although Positron Inc. has made every effort to ensure the accuracy of the information contained
herein, this document is subject to change without notice.

7
About this Guide
1.2 About this Guide
This guide introduces you to the Teleline 8-card Shelf CCC model 751109/15. This
guide was designed to be read from beginning to end.
1.3 Compliance Information
1.3.1 FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
1.3.2 Product Safety
This equipment is compliant with CSA CAN/CSA-C22.2 No. 60950-1-07.
1.3.3 Related Documentation
For any other technical document relating this system installation or applications
cards and shelves, please refer to the Positron Web site:
www.PositronPower.com.
1.3.4 Positron Products and Services
Positron engineers and manufactures high voltage isolation products to protect
personnel and telecommunications circuits in high voltage areas that are
susceptible to the effects of Ground Potential Rise (GPR).

8
8-card Shelf CCC model 751109/15
Positron is the leader in isolation technology with its Teleline wireline products and
TeleLite optical fiber wireline isolation/protection product families. Positron
provides total flexibility in product configuration – from standalone units protecting
a single circuit to high-capacity, multi-shelf HVI preconfigured systems.
Positron also provides a wide range of consulting, analysis and training services
for communications companies and electrical utilities.
Full details and contact information are available at: www.PositronPower.com
1.4 Service and Support
1.4.1 Positron Contact Information
1.4.2 Technical Customer Support
Positron is committed to providing excellent ongoing technical support to its
customers. A team of specialists is always available for telephone consultations or
for on-site visits to assist in the maintenance and troubleshooting of Positron
equipment. For pricing information or assistance in the planning, configuration
and implementation of the installation of equipment, contact Technical Customer
Service.
General information: Positron Inc.
5101 Buchan Street, Suite 220
Montreal, Quebec, Canada
H4P 2R9
US and Canada: 1-888-577-5254
International: 1-514-345-2220
Fax: [phone]
E-mail: [e-mail]
Website: www.positronpower.com
Customer Service and
Repairs: US and Canada: 1-888-577-5254
International: 1-514-345-2220
E-mail: [e-mail]

9
Service and Support
1.4.3 Customer Training
Full customer training courses on High Voltage Interface (HVI) are also available.
For more information, contact Positron.
1.4.4 Repair Service
All warranty repairs are performed at no cost. Positron reserves the right to repair
or replace any equipment that has been found to be defective.
For information about out-of-warranty repairs, contact Positron’s Repair
Department. Due to the varied nature of repairs, no specific turnaround can be
guaranteed, but average turnaround time is 20 working days from date of receipt.
In emergency situations, special arrangements can be made. All repaired items
are warranted for a period of 90 days.
Before returning any items to Positron for repair, warranty repair or replacement,
call the Repair department to obtain a Return Material Authorization (RMA)
number. Parts returned without RMA numbers cannot be accepted. The RMA
number must always be clearly marked on all boxes, crates, and shipping
documents. Bulk repairs (more than five items) will require additional processing
time, so please take this into consideration when requesting an RMA number.
To accelerate the repair process, whenever possible, include a report detailing the
reason for return with the unit(s). Also, please include the name and phone
number of a person who can be contacted should our Repair department need
further information.
When packing items being returned for repair, please ensure they are properly
packed to avoid further damage. Plug-in cards should never be shipped while
installed in a shelf; this will cause damage that can extend the repair period.

10
8-card Shelf CCC model 751109/15
1.5 Teleline Warranty
Subject to the provisions of this paragraph, Positron warrants that the equipment
shall perform in accordance with Positron's specifications. The warranty remains
valid for five (5) years from the date of shipment. The warranty fully covers
workmanship, materials and labor. Positron shall, at its sole discretion, repair or
replace the problem unit.
Freight costs to ship defective equipment to Positron are borne by the Customer,
with return of replaced or repaired equipment to be at Positron's expense.
1.5.1 Limitation of Liability
Subject to anything to the contrary contained herein, Positron's sole obligation
and liability and the customer's sole remedy for Positron's negligence, breach of
warranty, breach of contract or for any other liability in any way connected with or
arising out of, the equipment or any services performed by Positron shall be as
follows:
QIn all situations involving performance or non-performance of the
equipment or any component thereof, the customer's sole remedy shall
be, at Positron's option, the repair or replacement of the equipment or
said component.
QFor any other claim in any other way related to the subject matter of any
order under, the customer shall be entitled to recover actual and direct
damages; provided that Positron's liability for damages for any cause
whatsoever, and regardless of the form of the action, whether in contract
or in tort (including negligence), shall be limited to the value of the order.
Positron shall not be obligated to repair or replace any item of the equipment
which has been repaired by others, abused or improperly handled, improperly
stored, altered or used with third party material or equipment, which material, or
equipment may be defective, of poor quality or incompatible with the equipment
supplied by Positron, and Positron shall not be obligated to repair or replace any
component of the equipment which has not been installed according to Positron
specifications.
IN NO EVENT SHALL POSITRON BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, SPECIAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY OR
SIMILAR OR ADDITIONAL DAMAGES INCURRED OR SUFFERED INCLUDING

11
Teleline Warranty
LOSS OF PROFITS, LOSS OF REVENUES, LOSS OF DATA, LOSS OF
BUSINESS INFORMATION, LOSS OF GOODWILL, LOSS OF EXPECTED
SAVINGS OR BUSINESS INTERRUPTION ARISING OUT OF OR IN
CONNECTION WITH THE EQUIPMENT, A PURCHASE ORDER, SUPPLIES,
MAINTENANCE SERVICES OR OTHER SERVICES FURNISHED
HEREUNDER, EVEN IF POSITRON HAS BEEN ADVISED OR IS AWARE OF
THE POSSIBILITY OF SUCH DAMAGES.
EXCEPT AS EXPRESSLY SET FORTH IN THIS AGREEMENT, POSITRON
DISCLAIMS ANY FURTHER CONDITIONS, REPRESENTATIONS OR
WARRANTIES, WHETHER WRITTEN OR ORAL, EXPRESSED OR IMPLIED,
INCLUDING THE CONDITIONS AND WARRANTIES OF MERCHANTABILITY,
MERCHANTABLE QUALITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE,
PERFORMANCE AND THOSE ARISING FROM STATUTE, TO THE EXTENT
PERMITTED BY LAW. POSITRON DOES NOT WARRANT THAT THE SYSTEM
WILL OPERATE WITHOUT INTERRUPTION OR THAT IT WILL BE ERROR
FREE.
1.5.2 Cancellation and Rescheduling Charges
Should the customer cancel, prior to shipment, any part of an order, the customer
agrees to pay to Positron cancellation charges, not as a penalty, which shall total
all expenses, including labor expenses, incurred by Positron prior to said
cancellation. Equipment that has been specially developed for the customer's
specific applications shall not be subject to cancellation. Cancellation or
rescheduling is not permissible after shipment of the System.

Chapter 2
Overview

14
8-card Shelf CCC model 751109/15
2.1 Introduction
The 8-card Shelf CCC model 751109/15, is used indoors or outdoors in a
controlled environment to accommodate eight service cards. The shelf is molded
from specially treated polyurethane, making it a lightweight, flame retardant
product of high dielectric strength. Its polyurethane body limits the possibility of
many kinds of infiltration while providing reliable isolation from external ground
potentials.
The shelf is equipped with the connectors for any of the plug-in cards from the
Teleline line of products. The shelf has a separate area to accommodate a Power
Supply Card model 751313MC (120 Vac/130 Vdc to -24 Vdc), 751318MC (120
Vac/130 Vdc to -48 Vdc), 751319MC (floating 48 Vdc to -48 Vdc) or 751316
(floating 48 Vdc to -24 Vdc), and a Battery Backup Card, model 751312 to provide
-24 Vdc uninterruptible power supply (UPS). If the Battery Backup is not used,
then two Power Supply Cards may be installed for redundancy or to have -24 Vdc
and -48 Vdc.
The shelf is shipped with a Station cable stub for connection to communications
equipment, a Polyethylene Insulated Cable (PIC) stub for connection to the
Central Office (CO) incoming cable, and a power cable.
The CCC (Color Coding Convention) designation represents the implementation
of the telecommunication industry’s conventional color coding of a Four-Wire
Equipment Termination Sequence for cable connections as shown in Table 2 on
page 18.
The shelf’s features include the following:
QThe Station and CO cables connect to the shelf via individual printed
circuit boards.
QEach of the eight card slots can accommodate two Tip and Ring pairs for
four-wire AC data applications, four-wire T1 applications, HDSL and
ADSL applications.
QThe Station and CO cables are pre-wired to male connectors for insertion
into the female receptacles mounted on the printed circuit boards inside
the shelf. Two power cables are provided with the shelf. One has a three-
prong plug and is used to supply 120Vac to the shelf when an internal
power supply card is used. The second does not have a plug and is used
when powering the shelf from a DC source (48Vdc or 130Vdc).

15
Introduction
QThe shelf has been successfully tested for the UL standard (94V0) for
flame retardance.
QThe unit is lightweight and easy to install. The weight of the shelf with the
motherboards is 12.2 kg (27 lbs).
QThe enclosure resists the infiltration of dust, mist, and water from
sprinklers.
QWhen equipped with a Plug-in Power Supply 751313MC (-24 Vdc),
751318MC (-48 Vdc), 751319MC (-48 Vdc) or 751316 (-24 Vdc), the shelf
can provide power to Station equipment through the Station cable.
QThe CO and Station backplanes of the shelf provide increased crosstalk
immunity, better impedance matching for high-speed circuits (135 Ω) and
better current-carrying capacity, for CSA/CAN 60950-1.
QAlarm on power failure when using a 751313MC, 751318MC or
751319MC power supply.

16
8-card Shelf CCC model 751109/15

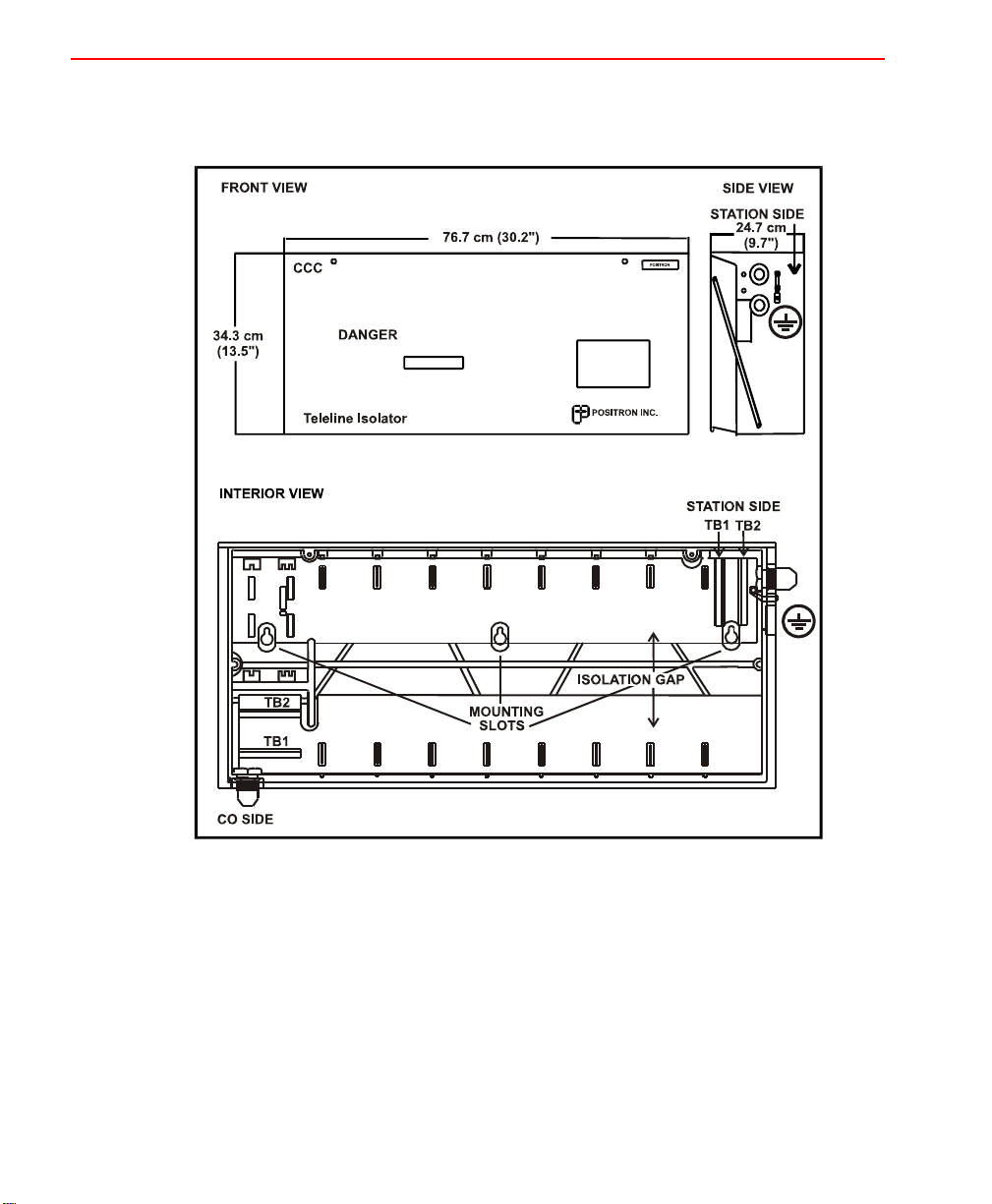

Figure 1: 8-card Shelf CCC model 751109/15

17
Physical Specifications
2.2 Physical Specifications
For a listing of the module’s physical specifications, refer to Table 1.
Table 1: Physical Specifications for 8-card Shelf CCC model 751109/15
2.3 Cable Options
The shelf is equipped with CO and Station color coded cable stubs.
Q3 meter (10’) CO and Station color coded cable stubs are provided with
the shelf. For a listing of the cable color coding for the CO and the Station
sides, refer to Table 2 on page 18.
QStation and CO cables also available in lengths of 6 meters (20’),
9meters (30’), 12 meters (40’) or 15 meters (50’). Contact Positron for
more information.
Parameter Specification
Height 34.3 cm (13.5”)
Width 76.7 cm (30.2”)
Depth 24.7 cm (9.7”)
Weight 12.2 kg (27.0 lbs)

18
8-card Shelf CCC model 751109/15
Table 2: Color Coding - CO and Station Cables
CO Cable Station Cable
Slot # Pair # Wire Color Label
Designation To
Connector Wire Color Label
Designation To
Connector
11
WHITE T1 TB1-17 WHITE/BLUE T1 TB1-18
BLUE R1 TB2-17 BLUE/WHITE R1 TB2-18
2WHITE TA TB1-2 WHITE/ORANGE TA TB1-3
ORANGE RA TB2-2 ORANGE/WHITE RA TB2-3
23
WHITE T2 TB1-16 WHITE/GREEN T2 TB1-17
GREEN R2 TB2-16 GREEN/WHITE R2 TB2-17
4WHITE TB TB1-3 WHITE/BROWN TB TB1-4
BROWN RB TB2-3 BROWN/WHITE RB TB2-4
35
WHITE T3 TB1-15 WHITE/SLATE T3 TB1-16
SLATE R3 TB2-15 SLATE/WHITE R3 TB2-16
6RED TC TB1-4 RED/BLUE TC TB1-5
BLUE RC TB2-4 BLUE/RED RC TB2-5
47
RED T4 TB1-14 RED/ORANGE T4 TB1-15
ORANGE R4 TB2-14 ORANGE/RED R4 TB2-15
8RED TD TB1-5 RED/GREEN TD TB1-6
GREEN RD TB2-5 GREEN/RED RD TB2-6
59
RED T5 TB1-13 RED/BROWN T5 TB1-14
BROWN R5 TB2-13 BROWN/RED R5 TB2-14
10 RED TE TB1-6 RED/SLATE TE TB1-7
SLATE RE TB2-6 SLATE/RED RE TB2-7
611
BLACK T6 TB1-12 BLACK/BLUE T6 TB1-13
BLUE R6 TB2-12 BLUE/BLACK R6 TB2-13
12 BLACK TF TB1-7 BLACK/ORANGE TF TB1-8
ORANGE RF TB2-7 ORANGE/BLACK RF TB2-8
713
BLACK T7 TB1-11 BLACK/GREEN T7 TB1-12
GREEN R7 TB2-11 GREEN/BLACK R7 TB2-12
14 BLACK TH TB1-8 BLACK/BROWN TH TB1-9
BROWN RH TB2-8 BROWN/BLACK RH TB2-9
815
BLACK T8 TB1-10 BLACK/SLATE T8 TB1-11
SLATE R8 TB2-10 SLATE/BLACK R8 TB2-11
16 YELLOW TJ TB1-9 YELLOW/BLUE TJ TB1-10
BLUE RJ TB2-9 BLUE/YELLOW RJ TB2-10
Continued. Continued...

19
Cable Options
Table 2 - Color Coding - CO and Station Cables (continued)
CO Cable Station Cable
Pair # Wire Color Label
Designation To
Connector Wire Color Label
Designation To
Connector
17 YELLOW YELLOW/ORANGE
ORANGE ORANGE/YELLOW
18 YELLOW YELLOW/GREEN GND TB1-2
GREEN GREEN/YELLOW GND TB1-2
19 YELLOW YELLOW/BROWN
BROWN BROWN/YELLOW
20 YELLOW YELLOW/SLATE -24 Vdc TB2-1
SLATE SLATE/YELLOW -24 Vdc TB2-1
21 VIOLET VIOLET/BLUE
BLUE BLUE/VIOLET
22 VIOLET VIOLET/ORANGE -48 Vdc TB2-2
ORANGE ORANGE/VIOLET -48 Vdc TB2-2
23 VIOLET VIOLET/GREEN
GREEN GREEN/VIOLET
24 VIOLET VIOLET/BROWN AUX PWR TB1-1
BROWN BROWN/VIOLET AUX PWR TB1-1
25 VIOLET RMT GND TB1-1 VIOLET/SLATE PWR ALRM 1 (NO) J18-1
SLATE RMT GND TB2-1 SLATE/VIOLET PWR ALRM 2 (NO) J18-2
