RA-6075
LCD ANNUNCIATOR INSTALLATION
7165-0328:0195S2930
Potter Electric Signal Company, LLC • St. Louis, MO • Cust Service: 866-956-1211 • Tech Support: 866-240-1870 • Canada: 888-882-1833 • www.pottersignal.com
Install in accordance with compatible re alarm panel.
Description
The RA-6075 is a LCD remote annunciator for the PFC-6075 and
PFC-6030 addressable re control panel. The RA-6075 communicates
using a RS-485 connection to the main panel providing common
indication of Alarms, Supervisory, Trouble and other system status and
control functions.
The RA-6075 features a 32 character, 16x2 LCD display with LED’s
for Power, Alarm, Supervisory, Trouble, and Silenced conditions.
It can be mounted on a single gang electrical box or a four square
electrical box. The annunciator is enclosed in a sheet metal enclosure
and has a Potter lock securing the keypad.

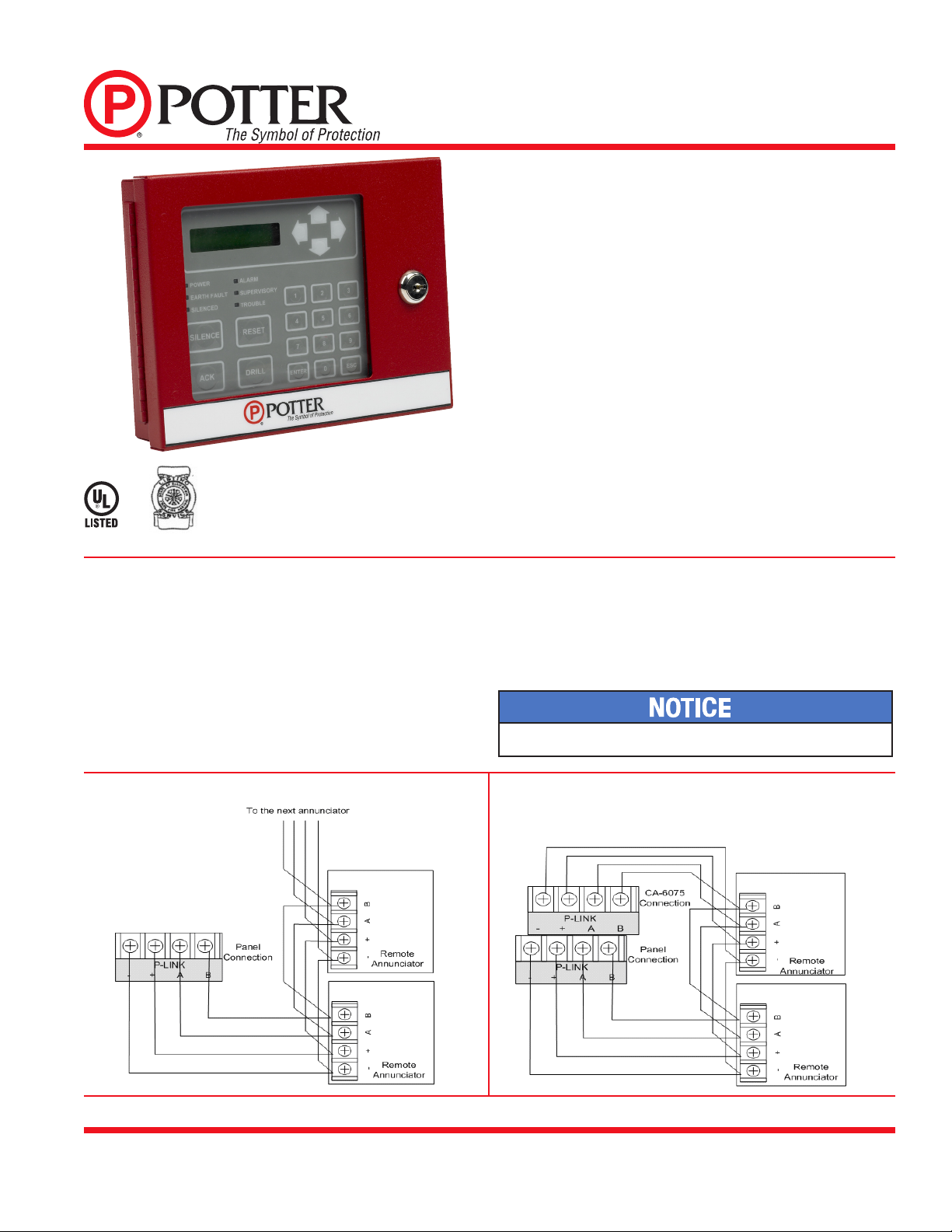

Figure 1: RA-6075 Class B Wiring Example Figure 2: RA-6075 Class A Wiring Example
Features
Standby Current 20 mA
Alarm Current 25 mA
Operating Temperature 0°C-49°C (32°F-120°F) 10%-93%
@ 30°C (86°F) non-condensing
humidity
Maximum Wire Length 6500 FT
Maximum Annunciators 31
Dimensions (WxHxD) 8” x 6-1/4” x 1-5/8” (Cabinet)
Wire Gauge 14 AWG-22 AWG
Display 2 lines x 16 characters
Product includes 5 year warranty
Installation
The RA-6075 is connected to the PFC-6075 using a four wire RS-485
connection. The connection is power limited and supervised. Up to
thirty-one (31) RA-6075 LCD annunciators can be connected using
Class B or Class A wiring. Class A wiring requires an optional Class A
Expander.

MFG. #5406077 - REV B-1
9/11
PRINTED IN USA PAGE 2 OF 2
RA-6075
LCD ANNUNCIATOR INSTALLATION
Address Settings
The RA-6075 address is set by dip switch S1 located on the back of the RA-6075. The address must be set in the range of 1 to 31 to be
recognized by the control panel.
Figure 3: RA-6075 Class A (back panel view)
Annunciator
Address
Dip Switch Settings
SW-1 SW-2 SW-3 SW-4 SW-5
1 On Off Off Off Off
2Off On Off Off Off
3 On On Off Off Off
4Off Off On Off Off
5 On Off On Off Off
6Off On On Off Off
7 On On On Off Off
8Off Off Off On Off
9 On Off Off On Off
10 Off On Off On Off
11 On On Off On Off
12 Off Off On On Off
13 On Off On On Off
14 Off On On On Off
15 On On On On Off
16 Off Off Off Off On
Annunciator
Address
Dip Switch Settings
SW-1 SW-2 SW-3 SW-4 SW-5
17 On Off Off Off On
18 Off On Off Off On
19 On On Off Off On
20 Off Off On Off On
21 On Off On Off On
22 Off On On Off On
23 On On On Off On
24 Off Off Off On On
25 On Off Off On On
26 Off On Off On On
27 On On Off On On
28 Off Off On On On
29 On Off On On On
30 Off On On On On
31 On On On On On
Dip Switch Settings
Refer to the table below for dip switch settings per Annunciator Address.
