1—Introduction
1.1—Overview of Battery Cabinets
Q-LS Battery Cabinets come in the following configurations:
oQ-LS (Standard) Battery Cabinets
oQ-LS-ST (Sliding-out locking Tray) Battery Cabinets
The quantity and individual specifications of attached Q-LS Battery Modules determine the amount of battery backup time
that a Q-LS system can provide.
The battery cabinet modules are available in both standard and sliding-tray configurations. Their dimensions are designed
to match the dimensions of the Q-LS cabinet(s) that they accompany.
1.1.1—Battery Size Configurations
Inside the front door of each battery cabinet, a label specifies the quantity and the ampere-hour (Ah) rating of the
batteries contained inside the cabinet.
1.1.1.1—Q-LSA Battery Module
The Q-LSA battery module is a single-wide cabinet containing (1) string of (29) SLA Batteries, 12V, 26Ah
distributed among (4) cabinet sections or sliding trays (depending on the option chosen). The batteries take up
the lower half of the cabinet, making the top half of the cabinet available for other uses. The battery cabinet has
(1) Battery Breaker. Available options for this module include:
•Q-LSA:The single battery string is contained in a standard battery cabinet without slide-out trays/
drawers. The battery string is distributed in (4) cabinet sections, totaling (29) 12V SLA Batteries,
connected in series.
•Q-LSA-ST:The single battery string is contained in a standard battery cabinet distributed within (4) slide-
out locking trays, totaling (29) 12V SLA Batteries, connected in series.
•Q-LSA-ST Rugged: The single battery string is contained in a ruggedized battery cabinet, which includes
Shock isolators at the top and base. As before, the battery string is distributed within (4) slide-out locking
trays, totaling (29) 12V SLA Batteries, connected in series.

2 |
1.1.1.2—Q-LSB Battery Module
The Q-LSB battery module is a single-wide cabinet containing (2) strings of (29) SLA Batteries, 12V, 26Ah,
distributed among (8) cabinet sections or slide-out locking trays (depending on the option chosen). The (2) Strings
are in parallel with each other. The battery cabinet has (2) Battery Breakers, one per string. Available options for
this module include:
•Q-LSB:(2) battery strings are distributed among (8) cabinet sections, totaling (58) 12V SLA Batteries.
Each string of (29) batteries is connected with the other in parallel. No slide-out trays in this option.
•Q-LSB-ST:(2) battery strings are contained in a standard cabinet distributed among (8) slide-out locking
trays, totaling (58) 12V SLA Batteries. Each string of (29) is connected with the other in parallel.
•Q-LSB-ST Rugged: (2) battery strings are contained in a ruggedized battery cabinet, which includes
Shock isolators at the top and base. As before, the battery strings are distributed within (8) slide-out
locking trays, totaling (58) 12V SLA Batteries. Each string of (29) is connected with the other in parallel.

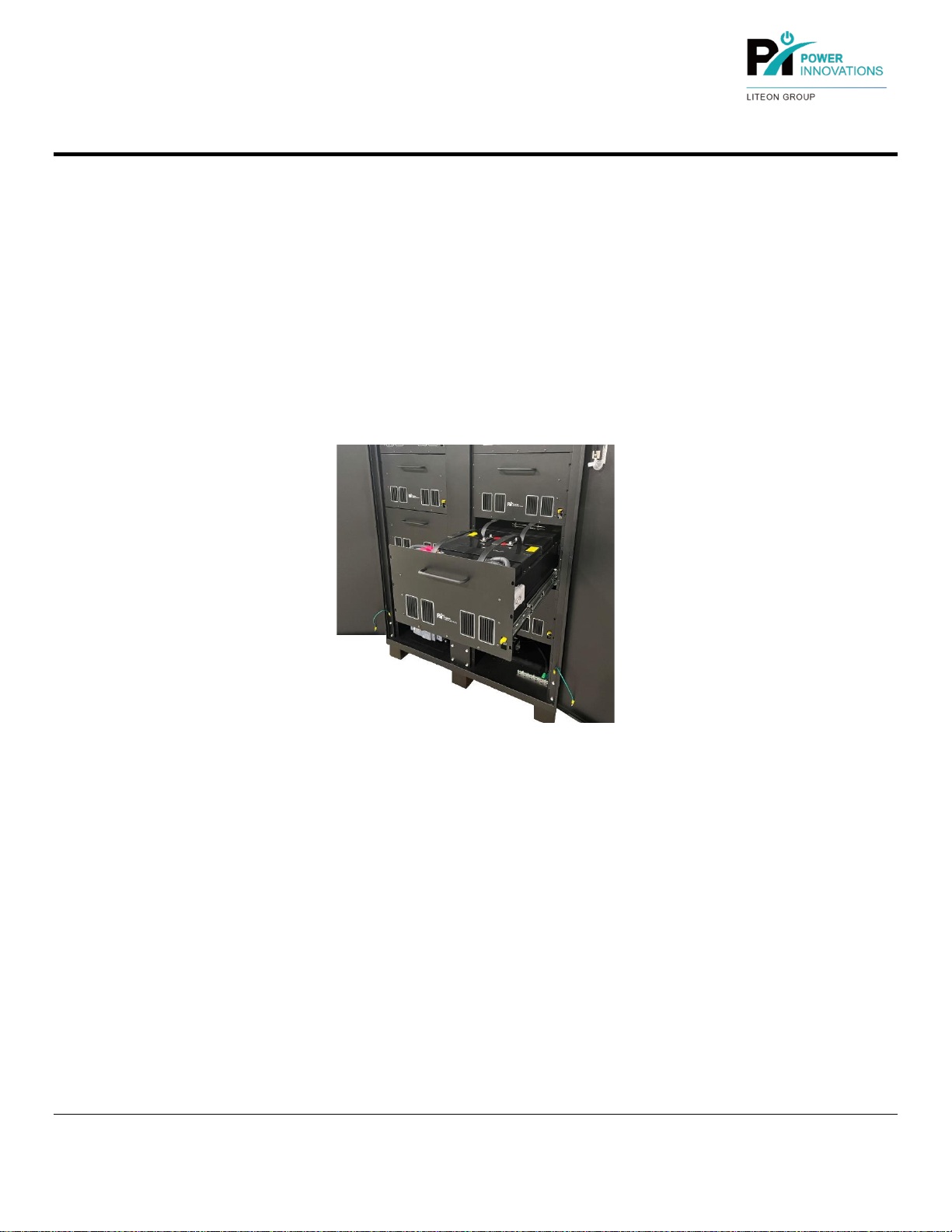

Figure 1—Q-LSA-ST / Q-LSB-ST Battery Module

MNL129-4.8 Revision 3/14/2023 | 3
1.1.1.3—Q-LSC/D Battery Modules
The Q-LSC/D battery module is a double-wide cabinet containing (1) string of (29) SLA Batteries, 12V, 100Ah,
distributed among (8) cabinet sections or slide-out locking trays (depending on the option chosen). The battery
cabinet has (1) Battery Breaker. Available options for this module include:
•Q-LSC/D:The battery string is contained in a standard double-wide cabinet. No slide-out locking trays
with this option.
•Q-LSC/D-ST:The battery string is contained in a standard double-wide cabinet, consisting of eight
locking slide-out locking trays.
•Q-LSC/D-ST Rugged: The battery string is contained in a standard double-wide cabinet, consisting of
eight locking slide-out locking trays. Shock isolators are added to the Top and base of the cabinet.
Figure 2—Q-LSC-ST or Q-LSD-ST Battery Module

4 |
1.1.1.4—Q-LSE Battery Module
The Q-LSC/D battery module is a custom double-wide cabinet containing (1) string of (29) SLA Batteries, 12V,
139Ah, distributed among (8) slide-out locking trays. The battery cabinet has (1) Battery Breaker. Due to the
weight of the larger batteries, the breaker and terminal blocks are located at the top front of the system. Available
options for this module include:
•Q-LSE:The battery string is contained in a customized double-wide cabinet.
•Q-LSE-ST:The battery string is contained in a customized double-wide cabinet, consisting of eight
locking slide-out trays.
•Q-LSE-ST Rugged: The battery string is contained in a custom double-wide cabinet, consisting of (8)
slide-out locking trays. Shock isolators are added to the Top and base of the cabinet.

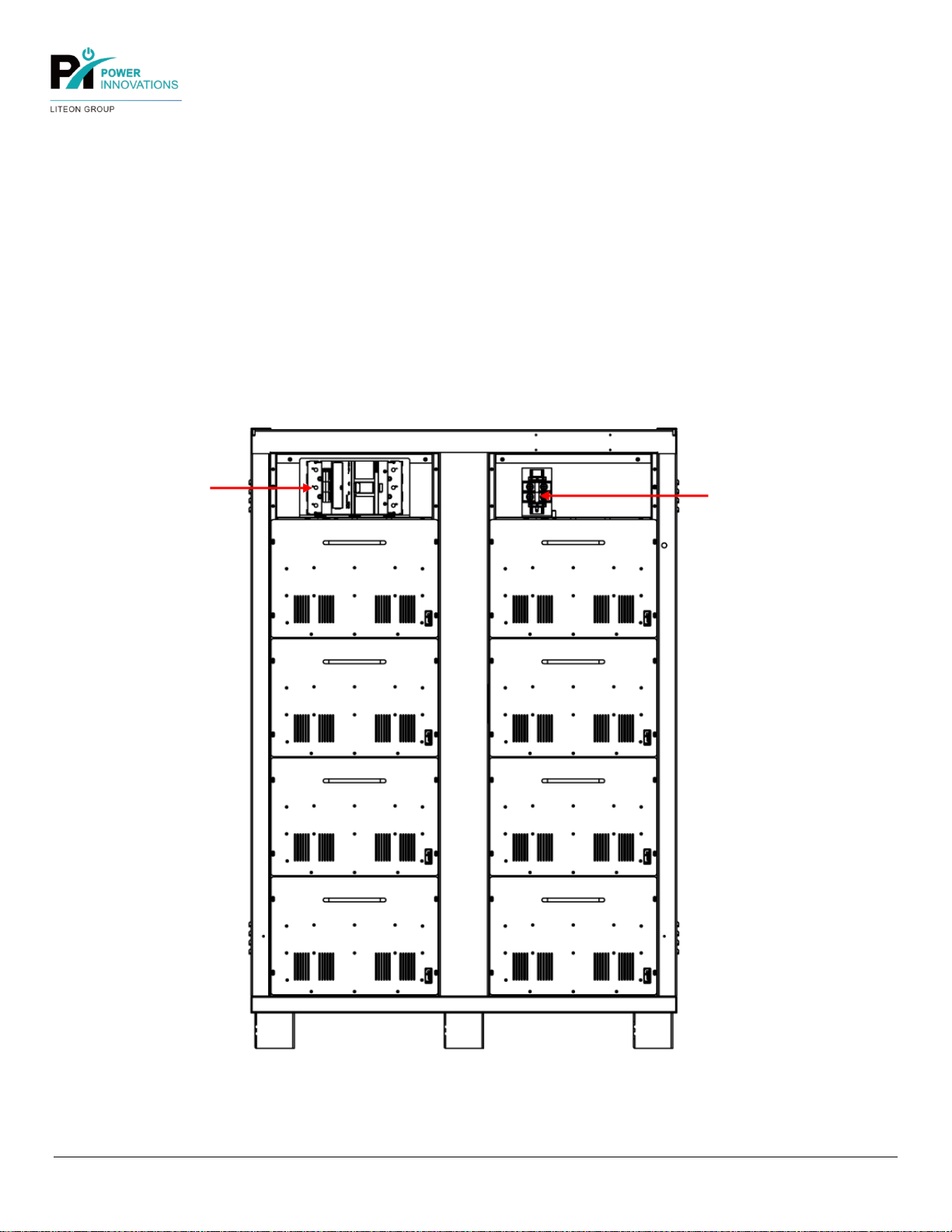

Figure 3—Q-LSE-ST Battery Module
Breaker
Terminal
Block

MNL129-4.8 Revision 3/14/2023 | 5
1.2—Using This Manual
This manual is intended to help with the process of safely receiving, unpacking, and installing Power Innovations
International, Inc.’s Q-LS Uninterruptible Power Quality™(UPQTM) systems. Refer to 2.1—Key Features to find an index
relating to the sections most helpful for correctly operating one particular feature on the Q-LS.
Read and understand this manual to make installing and operating the system as easy as possible.
1.3—Conventions Used in This Manual
1.3.1—Breaker Positions
Because some breakers on the front of the Q-LS Series share names with its subsystems or operation modes,
breakers and their positions will be identified using all caps. Additionally, the words ON and OFF are always
capitalized to stress which position is correct.
This convention exists to prevent the system components from becoming confused with names of breakers.
Skimming the words that are capitalized can also serve as a quick-reference method for learning the functions of
the breakers located on the front of the cabinet.
1.3.2—Cabinet vs. System
In this manual, the word cabinet refers to the actual Q-LS cabinet (or cabinets, for multi-cabinet systems). An
external battery cabinet (or cabinets, for more than one string of batteries) will be referred to as a battery cabinet
or battery unit.
The entire power quality system will be referred to as an Uninterruptible Power Quality (or UPQ) system, a Q-LS
or a Q-LS system. These terms do not refer to one cabinet or set of cabinets. They refer to the system and
everything that supplies power to it, including the battery cabinets, the cabinet that controls the system, and any
other cables or external controls.
1.3.3—Notes and Additional Advice
This manual will occasionally provide additional advice. When it is provided, this information will be enclosed by a
set of lines to separate it from the rest of the text, like this:
This advisory text is separated from the rest.
Some of the information can be very important, while other information may just be useful to know. To show the
importance of each piece of information, the following symbols are used:

6 |
ELECTRICAL WARNINGS
Denotes advice that, if not followed, could cause severe bodily harm due to electrical shock.
WARNINGS
Denotes advice that, if not followed, could cause severe bodily harm due to other types of
injury.
Cautionary Statements
These offer advice that, if not followed, may harm equipment or indirectly cause physical hazards.
These symbols will be listed in order of importance.
1.4—Safety Warnings and Cautionary Statements
This section provides important information that you will need to remember to safely operate your system. Read it
carefully.
This manual provides very little information about maintaining the batteries. Such information is provided in a separate
manual for Q-LS trained and certified service personnel.
For ease in reading warnings and cautions, they have been divided into four sections, Manual Use, Installation and
Maintenance, Safe Transport and Storage, and Operation and Batteries.
1.4.1—Manual Use
Read this manual carefully before operating or troubleshooting the Q-LS and follow all
operating instructions. Failure to do so may cause physical harm.
Obey all warnings within this manual. Failure to do so may void the system warranty.

MNL129-4.8 Revision 3/14/2023 | 7
1.4.2—Installation and Maintenance
All maintenance must be performed by a service technician who has completed a training and certification course
on the Q-LS system offered through Power Innovations. During that training course, a separate manual is
provided to the service technician to use while maintaining the unit.
The Q-LS system must incorporate an earth ground.
The Q-LS Battery Module contains high voltage power that is potentially dangerous if not
handled properly. All repairs should be performed only by those who have completed Power
Innovations’ service-level training course.
For the warranty to apply, wiring, and setup verification for the Q-LS system must be commissioned
by personnel who have completed Power Innovations’ Q-LS training and certification course.
This unit contains no interior parts that can be serviced without qualified personnel. If troubleshooting
processes specified in this manual fail to solve a problem, qualified personnel must service the unit.
For the Q-LS to operate properly, it should be periodically inspected and cleaned. This routine
inspection and cleaning should be completed every 90–180 days.
1.4.3—Safe Transport and Storage
To avoid accidental worker injury, place this system in an area with limited access and ensure
that all cables are placed carefully.
The battery should be stored in a temperature-controlled indoor environment that is clean,
dry, and free of flammable liquids and corrosive substances such as hazardous gases.
The Q-LS system should be transported carefully so that the units are not damaged. Avoid dropping a
unit, tipping it upside down, or any other rough handling.
If the Q-LS system will be stored for long periods of time, the battery (batteries) should be charged by
the Q-LS once every 90 days to maintain optimal battery life or placed on Battery Keepers (available
from Power Innovations) and connected to utility power.
1.4.4—Operation and Batteries
If your battery model includes the slide-out tray option, the battery unit MUST be installed on a
solid surface. It should be bolted securely to the floor, if at all possible. Doing so will prevent
the cabinet from tipping and causing injury.
Always ensure that ONLY ONE battery drawer is open at any given time. Opening more than
one drawer of the cabinet at a time will cause the cabinet to become unbalanced and tip.
Use 10.5—Troubleshooting Tables in the Q-LS 10–160 Installation and Operation Manual to handle
any unusual situation that arises while operating the Q-LS system.
Retain the load within the Q-LS system rating guidelines to ensure that it functions well.
DO NOT insert any object into any of the ventilation holes or any other cabinet openings.

8 |
This page intentionally left blank.

MNL129-4.8 Revision 3/14/2023 | 9
2—Battery Parts (Q-LS-ST)
2.1—Controlling the Battery
Sliding Battery Tray: The Sliding Tray Battery houses and protects individual batteries. Prior to sliding-out each of the
trays, the screws securing it to the cabinet need to be removed and the yellow locking lever push down. To close, the
reverse steps are required. The drawers slide out for ease of maintenance and service. When the drawers slide out, they
are automatically disengaged from the battery string.
The Q-LSA-ST houses four individual battery slide-out locking trays.
The Q-LSB-ST through Q-LSE-ST cabinets each house eight individua battery slide-out locking trays.
Locking Battery Tray: As briefly mentioned above, the battery trays are equipped with slide locks; the yellow lock levers
(at the lower right side of the tray) must be held down to unlock and open the battery tray.
Figure 4—Sliding Battery Tray in a Q-LSB-ST Cabinet

10 |
When fully opened, an open battery tray will lock itself open. To close the tray, hold the yellow lock lever down while
pushing in the tray.
WARNING
Sliding battery trays SHOULD NOT have more than one drawer open at a time, or the cabinet
may become unbalanced and fall forward.
A locking battery will not automatically lock all closed drawers when any one drawer is fully
opened.
Terminal Block: The terminal block is located behind the lower-right access panel and the right battery access door
(Q-LSC/D-ST) or the right-side panel (Q-LSA/B-ST) of the cabinet. The terminal block is used to connect the external
battery module to the Q-LS cabinet and to the optional battery charger.
Note: The terminal block for the Q-LSE-ST battery cabinet is located above the right-hand set of battery drawers
within the system.
For instructions on how to connect, see 5.2—Connecting Batteries.
Figure 5—Using the Tray Locks

MNL129-4.8 Revision 3/14/2023 | 11
Ground Bus Bar: The ground bus bar allows the cabinet or module to be grounded, helping to prevent electric shock.
Before using the Q-LS Battery Module, ensure that the module is properly grounded using this bus bar. The negative
battery terminal should not be grounded. For more information about battery grounding, see 5.1.2—Grounding.
Right Breaker: The right circuit breaker controls power input to the top (or right) four battery drawers.
Left Breaker: The left circuit breaker controls power input to the bottom (or left) four battery drawers.
ELECTRICAL WARNING
Even if the circuit breaker is OFF, the batteries are an independent power
source and remain charged. Batteries should not be handled unless absolutely
necessary.
Illuminated Logo: The right battery access door includes an illuminated Power Innovations logo. Power to illuminate the
logo is drawn from the main breaker to the door through a cable connected at the top of the door.
Figure 6—From left to right: Breaker, Terminal Block, Ground Bus Bar, and Sample Terminal Block Configuration
Figure 7—Grounding to the Ground Bus Bar

12 |
2.2—Additional Options
2.2.1—Battery Keeper (Charger)
If an optional Battery Keeper has been installed, it can be connected to the utility to continually charge the
batteries during storage.
2.3—Storing the Battery Module
The battery module is equipped with 12 V rechargeable batteries. These batteries offer up to five years of standby service
or more than 260 cycles at 100% discharge in cycle service. The batteries should be more than 75% capacity if they will
be stored for more than six months at ambient temperature (25 °C). If storing a battery module that is not connected to a
live Q-LS system for more than 90 days (three months), the batteries should be charged using the Battery Keeper to
prevent degradation.

MNL129-4.8 Revision 3/14/2023 | 13
3—Installation
3.1—Unpacking the System
The Q-LS Battery Module is packed in a specially designed carton to protect it from damage during shipping. To transport
or ship cabinets, use the original packaging.
When unpacking the battery, carefully remove all packaging materials from the module and ensure that all items are
received with the cabinets.
Please reference your purchase order for a list of items included.
Note
The Q-LS Internal Battery Module comes from the factory already installed in the cabinet.
3.1.1—System Contents
All accessories, options, and items included with the cabinet or module should be compared with the purchase
order and packaging receipt.
Included items will vary according to the order. Items often include, but may not be limited, to the following:
•Two standard 10-foot, 1/0 AWG cables (unless specified differently on the purchase order. one positive
with red ends, one negative with black ends)
•One 14-foot 6 AWG green wire (for grounding)
•Manual on CD (if batteries are not part of a Q-LS system order)
•Four 0.5-inch diameter anchoring screws (fastened to pallet and cabinet)
•Four Mounting brackets (screwed to pallet and cabinet)
3.1.2—Inspecting the System
The Q-LS Battery Module has passed detailed production and quality control procedures for all electrical and
mechanical characteristics before factory shipment. The system has also been packaged so it should arrive in
perfect condition.
When receiving the module, check the general condition and mechanical structure for physical damage that may
have occurred during shipment. If any physical damage is apparent have, the carrier must note the damage and
contact Power Innovations immediately (see Contacting Power Innovations at the back of this manual).

14 |
This page intentionally left blank.

MNL129-4.8 Revision 3/14/2023 | 15
4—Preparing the Site
This chapter will explain how the site should be prepared to handle the system. Before installing the battery module,
consider the following placement considerations:
4.1—Facility Readiness
Before installing battery cabinets, examine the installation site carefully. Wiring modifications and other changes may
need to be made in preparation for attaching the Q-LS to the battery.
4.1.1—Electrician or Electrical Engineer Approval
It is important that an electrician or electrical engineer examine the site before the battery cabinets are installed.
The electrician or electrical engineer should:
•Verify and approve the facility’s wiring.
•Complete any necessary wiring preparations.
•Ensure that wiring to the battery and Q-LS complies with all local electrical codes.
•Install breakers to protect feed and output lines of the Q-LS.
•Verify and approve input and output cable sizes.
•Ensure that the system is grounded before it is made operational.
•Ensure that all outputs are properly referenced to ground.
ELECTRICAL WARNING
An electrician should be consulted about any external wiring decisions related to the system.
Any facility wiring that may interact with the system should be approved by an electrician
before installation.
WARNING
Inadequate cable size or oversized breakers may cause fire or damage. Decisions about
electrical cable sizes should be approved by a qualified professional before the system is
operated.

16 |
4.1.2—Personnel Access
Because the batteries store large amounts of power, personnel using the cabinets should know how to use them
correctly. To ensure that no unauthorized individuals attempt to operate the system:
•The cabinets should be placed in a location where access is limited.
•Personnel who operate the cabinets should be proficient in normal and emergency operational
procedures.
•Before operating the batteries or Q-LS, new personnel should be trained in their operation.
•The cabinet doors have locks, which can be used to prevent access if the cabinets are placed in a ready
access area.
4.1.3—Site Considerations
Ensure that the placement of the Q-LS system complies with all local building codes.
Consider the following when choosing where
the system will be installed:
•Select a site which has a floor strong
enough to bear the weight of the
Q-LS Battery Module (Table 1) and its
associated Q-LS cabinets. (See
MNL120 –Q-LS 10-160 kVA or
MNL123 –Q-LS 180-550 kVA
manual, as applicable.)
•Install the system on a level surface.
•Install the system in a location where
the walls, ceilings, and floors are
constructed from non-combustible
materials.
Caution
Do not place cabinets on uneven or unstable surfaces, especially without anchoring them. If any
cabinet is placed on an unstable surface or anchored insufficiently, the cabinet could tip and
cause injury.
Table 1—Cabinet Weights in Pounds and Kilograms*
Cabinet Type
Battery Size
Weight
(lbs.)
Weight
(kg.)
Single-wide
QLSA
1082
491
Single-wide
QLSA-ST
1082
491
Single-wide
QLSB
2165
982
Single-wide
QLSB-ST
2165
982
Double-wide
QLSC
3175
1440
Double-wide
QLSC-ST
3175
1440
Double-wide
Q-LSD-ST
3300
1496
Double-wide
Q-LSE-ST
3590
1628
*All weights are approximate and may change based on any
requested customizations.
