Power One Aurora PVI-3.0-TL-OUTD Manual

SAVE THESE DOCUMENT IN A SAFE PLACE!
IMPORTANT SAFETY INSTRUCTIONS!
Thismanualcontainsimportant safetyinstructionthat mustbefollowedduringtheinstallationandstart-
upofthedevice.It’srecommendedtogivespecialattentiontotheinstallationinstructioninordertoreduce
the risks of electric shock and prevent damage to the device.
Thisdocumentcontainsproprietaryinformation ofPower-One,Inc. The contentsofthisdocumentor anypart
thereofshouldnotbereproducedordisclosedtoanythirdpartywhitoutPower-One’sexpresswrittenconsent.
Any changes /modication not approved by the responsible party could void the user authority to operate
the equipment.
BCM.00101.3 07-02-2013REV. 3.2
PHOTOVOLTAIC INVERTER
INSTALLATION AND CONFIGURATION MANUAL

EN - ENGLISH
Photovoltaic Inverters
1 - EN
INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
This document describes the installation and conguration procedure for Power-One Aurora Photovoltaic
Inverters.
The models this document refers to are shown in the table below.
SINGLE PHASE THREE PHASE
PVI-3.0-TL-OUTD PVI-8.0-TL-OUTD
PVI-3.0-TL-OUTD-S PVI-8.0-TL-OUTD-S
PVI-8.0-TL-OUTD-FS
PVI-3.6-TL-OUTD PVI-8.0-TL-OUTD-Q
PVI-3.6-TL-OUTD-S PVI-8.0-TL-OUTD-Q-S
PVI-8.0-TL-OUTD-Q-FS
PVI-4.2-TL-OUTD
PVI-4.2-TL-OUTD-S PVI-10.0-TL-OUTD
PVI-10.0-TL-OUTD-S
PVI-5000-TL-OUTD PVI-10.0-TL-OUTD-FS
PVI-5000-TL-OUTD-S
PVI-12.5-TL-OUTD
PVI-6000-TL-OUTD PVI-12.5-TL-OUTD-S
PVI-6000-TL-OUTD-S PVI-12.5-TL-OUTD-FS

INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
2 - EN
CONTENTS
1. USEFUL INFORMATION AND SAFETY REGULATIONS 3
1.1. Certication label and symbols used 4
2. PACKAGE CONTENTS INSPECTION 5
3. SELECTION OF INSTALLATION LOCATION 6
4. WALL MOUNTING 6
5. ELECTRICAL CONNECTIONS AC, DC SIDE AND PE CONNECTION 8
5.1. Selection of the AC grid connection cable 9
5.2. AC side connections 10
5.3. DC side connections 13
6. CONFIGURATION OF INPUT CHANNEL OPERATING MODE 15
6.1. Conguration of the input channels in parallel mode 16
7. SIGNALS TERMINAL BLOCKS 17
7.1. RS485 communication line connection 17
7.2. Using the alarm terminal block 18
8. PRECOMMISSIONING CHECKS 19
8.1. Electrical checks 19
8.2. Mechanical checks 20
9. USER INTERFACE AND USE OF THE DISPLAY 21
9.1. Status LEDs 21
9.2. Use of the display 22
10. COMMISSIONING 22
10.1. Selection of grid standard (“Nation”) 22
10.2. Connection to the grid 26
11. CONFIGURATION 27
11.1. Conguration of basic parameters 27
11.2. Advanced congurations from the“SERVICE” menu 28
12. STARTUP TROUBLESHOOTING 31
13. ROUTINE MAINTENANCE 34
14. SPECIAL MAINTENANCE 34
14.1. Replacing the input fuses 35
14.2. Replacing the internal battery 37
15. TROUBLESHOOTING HELP 38
15.1. System structure 39
APPENDIX
APIN-OUT of RJ12 / RJ45 connectors APP - 1
BRS485 cable specication APP - 2
CCable wiring diagram for RS485 line APP - 3
DRetaining clips for multicontact / weidmüller quick t connectors APP - 4
ETechnical data APP - 6

EN - ENGLISH
Photovoltaic Inverters
3 - EN
1. USEFUL INFORMATION AND SAFETY REGULATIONS
This manual contains important safety instructions which must be carefully followed during the installation
and commissioning of the device. It is advisable to pay particular attention to the paragraphs marked with
the symbol , this will reduce the risk of electric shock and prevent damage to the device.
All the operations described below must be carried out exclusively by qualied sta in compliance with
national and local safety regulations.
For all stages of installation, the instructions and warnings shown in the various chapters must be followed
step by step so as to avoid danger situations or the possibility of damaging the equipment. Every operation
that does not comply with these instructions will lead to the immediate loss of the warranty.
There can be live parts, uninsulated parts and hot surfaces while the inverter is working. Unauthorized
removal of the required protections, improper use, faulty installation or inappropriate operation and
tampering with the unit (e.g. adding extra holes) give rise to the risk of serious damage to persons and things
and lead to the immediate loss of the warranty.
The system must be connected to the mains distribution system only after the Body appointed to distribute
electricity has given its approval, as required by the national regulations in force.
Check the national regulations and local standards so that the electric installation diagram complies with
them.
Always respect the nominal voltage and current data when planning the system (see the technical data table
in Appendix E).

INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
4 - EN
1.1. Certication label and symbols used

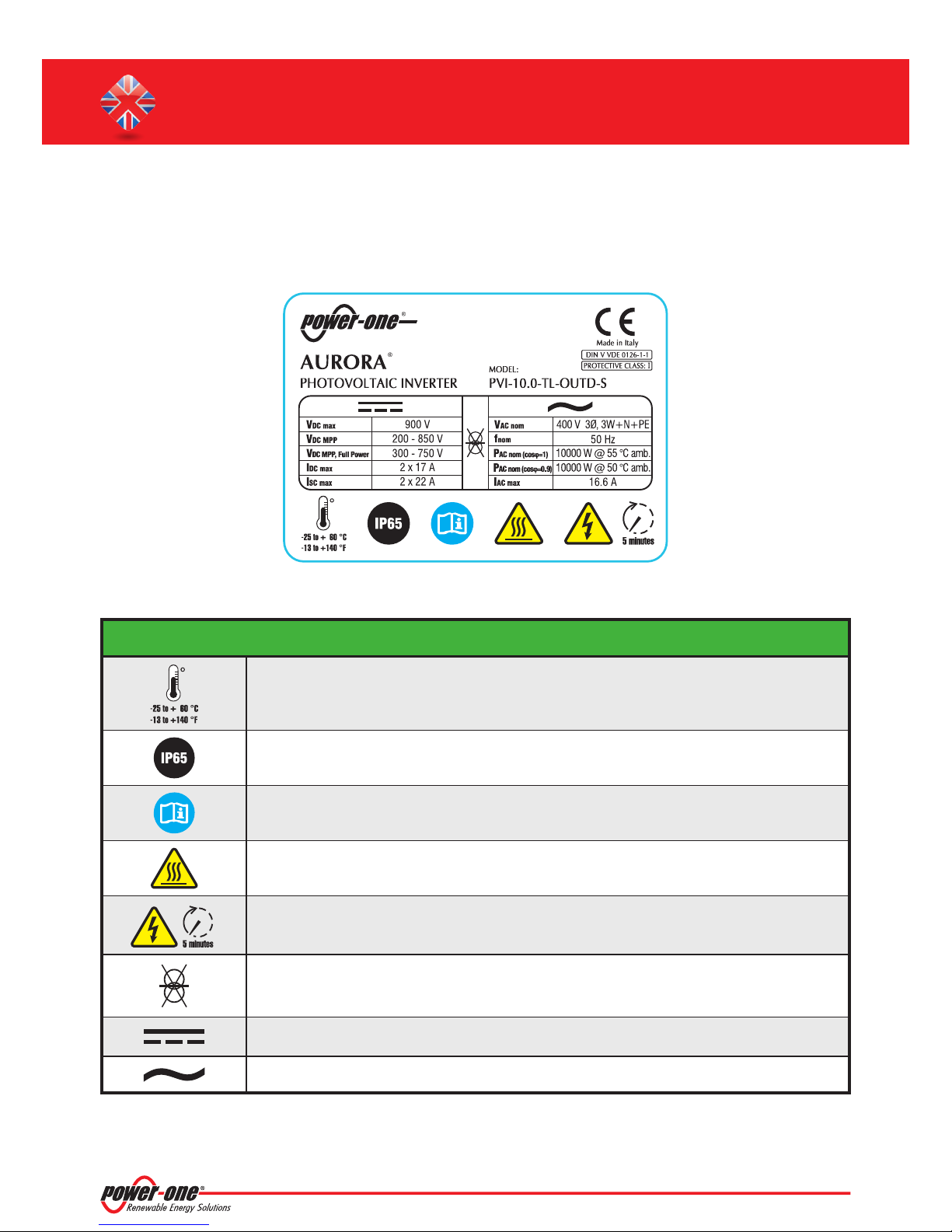

Shall a verication of the specications or of the main features of the purchased model be needed, it is
possible to check the certication label, as the one shown in the example below, on the right side of the
inverter.
The following table contains a description of the symbols used in the certication label.
MEANING OF THE SYMBOLS
Indicates the temperature range admissible for the operation of the inverter. Values are
expressed in Celsius and Fahrenheit degrees.
Indicates the environmental protection.
Indicates the need to look up the documentation provided with the inverter to obtain further
information.
Signals danger due to hot surfaces (risk of burns).
Signals danger due to electrical shock and indicates the time to allow after the inverter has been
turned o and disconnected to ensure safety in any installation operation.
Indicates that no isolation transformer is present between the DC input and the AC output of the
inverter (transformerless).
Indicates a direct current (DC).
Indicates an alternating current (AC).

EN - ENGLISH
Photovoltaic Inverters
5 - EN
2. PACKAGE CONTENTS INSPECTION
Check that the package contents comply with the following list:
•
PVI-xx-TL-OUTD-yy Inverter [1 piece]
•
Wall mounting bracket [1 piece]
•
Installation Manual [1 piece]
•
CD with communication SW and documentation in electronic format [1 piece]
•
Kit consisting of:
PVI-3.0-TL-OUTD
PVI-3.6-TL-OUTD PVI-4.2-TL-OUTD PVI-5000-TL-OUTD PVI-6000-TL-OUTD
PVI-8.0-TL-OUTD
PVI-10.0-TL-OUTD
PVI-12.5-TL-OUTD
Screw 6.3x70 2 2 3 5
Dowel SX10 2 2 3 5
WAGO at head angled screwdriver / / 1 /
M20 cable gland 1 1 1 1
M25 cable gland 1 1 / /
M32 cable gland / / 1 /
M40 cable gland / / / 1
M25 cable gland nut 1 1 / /
M32 cable gland nut / / 1 /
M40 cable gland nut / / / 1
70 mm black cable / / 2 /
Red AWG10 cable with insulated female fastons 1 1 1 /
Black AWG10 cable with insulated female fastons 1 1 1 /
Black AWG12 cable with insulated female fastons / / / 2
36A3M20 type gasket 1 1 1 1
TGM58 cylinder 1 1 1 1
T20 TORX wrench 1 1 1 1
M6x10 screw 1 1 1 /
D.18 washer 3 3 4 5
Perforated screw for front panel lead sealing / / 2 /
Signal terminal board counterparts 2 2 / *
Positive-input connector counterparts 2 3 4 **
Negative-input connector counterparts 2 3 4 **
*3-way terminal board counterparts (ALARM): 2 pieces; 8-way terminal board counterparts (signals): 2 pieces.
** For PVI-8.0/10.0/12.5-TL-OUTD-S models: 4 pieces; for PVI-8.0/10.0/12.5-TL-OUTD and PVI-8.0/10.0/12.5-TL-OUTD-FS models: 6 pieces.

INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
6 - EN
3. SELECTION OF INSTALLATION LOCATION
The installation location of the AURORA inverter must be chosen taking in account the followings:
•
Choose a location sheltered from direct sunlight or other sources of heat.
•
Choose a well ventilated place so as to allow good circulation of air around the unit; avoid places where
air cannot circulate freely around the unit.
•
Choose a place with sucient space around the unit to permit easy installation and removal of the
object from the mounting surfaces.
•
If more than one unit is installed, avoid placing one unit above the other so as to prevent overheating
of the unit installed above through the heat given o by the one below. Some examples of multi-
inverter installations are shown in the picture below.
150mm150mm
150mm
200mm
ARRANGEMENTS OF UNITS MINIMUM CLEARANCES AROUND THE UNIT
4. WALL MOUNTING
The AURORA inverter should be mounted vertically, with a maximum inclination from the vertical of 5°. Any
largerinclination fromthe vertical could reducethepowerconversion capabilitywith a consequentreduction
in energy harvesting.
To correctly wall mount the inverter, follow the following procedure:
•
Drill Ø 10 mm holes to a depth of 75 mm in line with the support bracket’s xing holes (det. [A]).
•
Secure the inverter’s support bracket using the SX10 dowels and 6.3x70 screws provided. The inverter’s spring
hook (det. [B]) must be positioned at the top; the xing PEM M6 (det. [C]) must be positioned at the bottom.
•
Hook the inverter to the bracket spring (det. [B]) by the screw holes in the bracket on the back of the
inverter (det. [D]). Secure the lower part of the inverter to the PEM M6 on the bracket (det. [C]) using
the M6x10 screw, the D.18 washer and the slot in the inverter’s lower ange (det. [E]).
Note:In the PVI-8.0/10.0/12.5-TL-OUTD models the support bracket only permits the upper part of the inverter to be secured
through the procedure previously described; to secure the lower part of the inverter, in the absence of the PEM M6, you must
make additional holes in line with the slot in the inverter’s lower ange (det. [E]), and then use the SX10 dowels and 6.3x70
screws to secure the part to the wall.

EN - ENGLISH
Photovoltaic Inverters
7 - EN

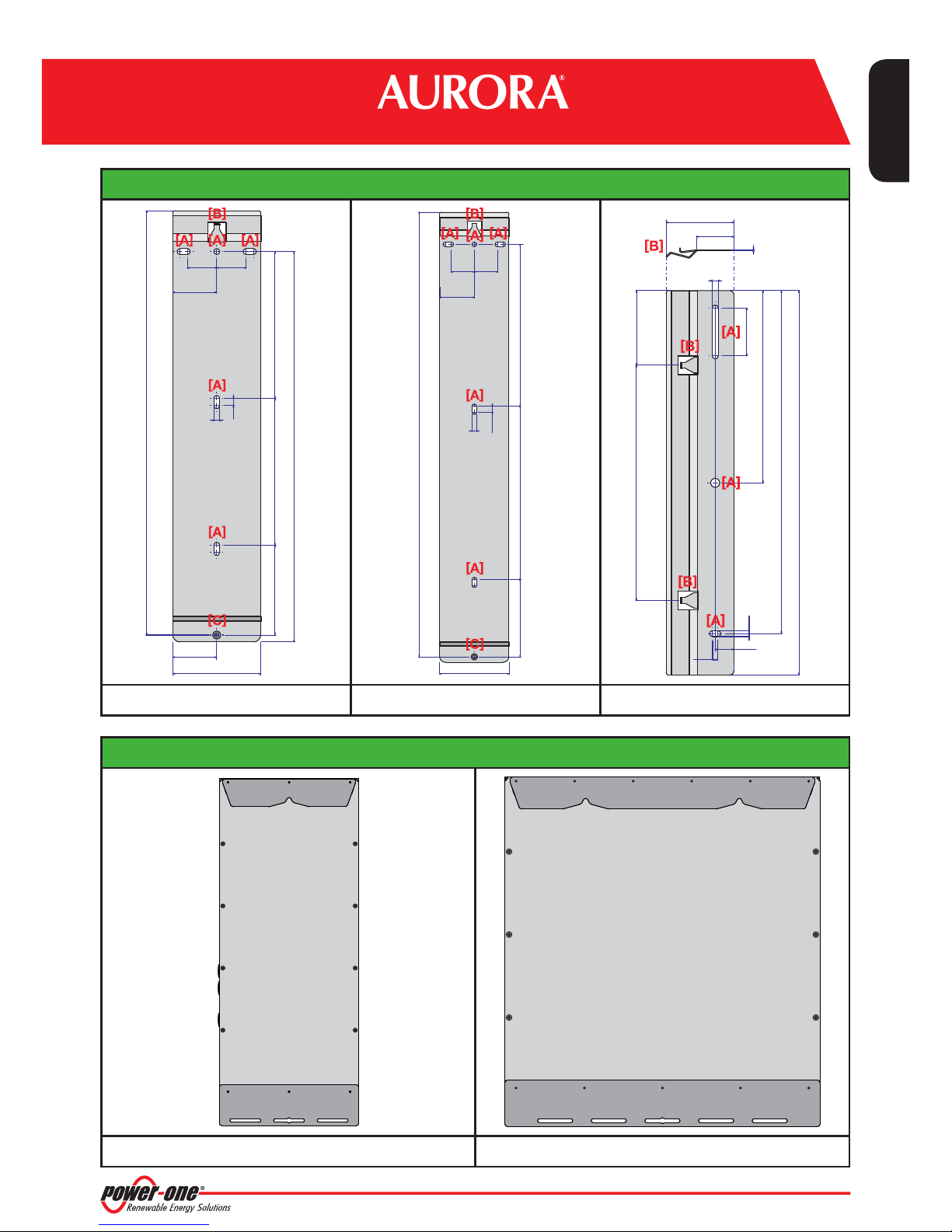

INVERTER WALL MOUNTING BRACKETS
200.0
532.0
200.0 122.5
10.0
8.0
40.0
40.0
120.0
60.0
578.0
60.0
280.5 300.0 134.0
8.0
10.0
40.040.0
120.0
60.0
770.0
50.0
515.0
90.5
1.5
64.0
100.0 315.0
257.5
459.5
25.0
7.0
8.0
8.0
PVI3.0/3.6/4.2TLOUTD PVI5000/6000TLOUTD PVI8.0/10.0/12.5TLOUTD
REAR OF THE INVERTER
[D]
[E]
[D] [D]
[E]
PVI3.0/3.6/4.2/5000/6000TLOUTD PVI8.0/10.0/12.5TLOUTD

INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
8 - EN
5. ELECTRICAL CONNECTIONS AC, DC SIDE AND PE CONNECTION
Warning! The inverters to which this document relates to are WITHOUT ISOLATION TRANSFORMER
(transformer-less). This type involves the use of insulated photovoltaic panels (IEC61730 Class A Rating) and
theneed to maintain thephotovoltaic generatoroating withrespecttoearth: nopole of thegenerator must
be connected to earth.
Warning! Aurora inverters should be earthed (PE) via the terminal with the protective earth label ,
using a cable with an appropriate cross-section of the conductor for the maximum ground fault current that
the generating system might experience. Any damage caused to an inverter which is not earthed via the
appropriate terminal is not covered by the warranty.
Warning! Unauthorized removal of necessary protections, improper installation or tampering with the unit
(for example, the creation of additional holes, changes not covered in the guide below), cause the risk of
serious personal injury and / or property and entails the immediate loss of warranty.
Warning! Aurora inverters cannot be powered by unlimited sources of current, e.g. batteries. Powering the
device with this type of energy source can cause irreparable damage to the unit, with consequent invalidity
of the warranty conditions.
Warning! Aurora inverters are supplied with an internal protection system able to detect any ground fault occurring
on the DC side of the equipment or inside the inverter. This protection system, designed to disconnect the inverter in
the event of an accidental indirect contact or a breach of the insulation, is not capable of protecting the inverter from
a dead short of one of the poles of the solar array when the equipment is connected to the AC grid (such an event could
damage the inverter and such damage is not covered by the warranty); further, this protection system is not capable of
protecting the AC line to which the inverter is connected, for which you are recommended to install an automatic circuit
breaker which will cut out in the event of a leakage on that line. The following table shows the characteristics of such a
device that would be required for the various inverter models. The ratings (nominal current) for the switches reported
in the table below are given as approximate values: the selection of the device to be used must be based on installation
choices, such as any possible deratings due to the operative temperature of the switch.
Automatic circuit breaker
characteristics
Inverter Model
PVI-3.0-TL-OUTD PVI-3.6-TL-OUTD PVI-4.2-TL-OUTD PVI-5000-TL-OUTD PVI-6000-TL-OUTD PVI-8.0-TL-OUTD PVI-10.0-TL-OUTD PVI-12.5-TL-OUTD
Type AUTOMATIC CIRCUIT BREAKER WITH MAGNOTHERMIC-DIFFERENTIAL PROTECTION
Rated Voltage 230Vac 400Vac
Rated Current 20 A 20 A 25 A 32 A 40 A 16 A 20 A 25 A
Magnetic Protection
Characteristics B/C
Dierential Protection
Type A/AC
Dierential Sensitivity 300mA
Number of Poles 2 3/4

EN - ENGLISH
Photovoltaic Inverters
9 - EN
5.1. Selection of the AC grid connection cable
The AC grid connection cable must be selected based on the criteria below.
•
Cable type:
The choice of the type of cable for the connection to the AC grid depends on the type of inverter to be installed
(single-phase or three-phase) and on the protective earth (PE) wiring; this may be integrated in a single sheath
with the conduction line (phase or phases + neutral) or it can be on a separate wiring.
For the three-phase models the wiring choice also depends on the selected conguration type for the AC
grid connection (delta or star): in case of delta congurations (pure three-phase) the neutral conductor is not
required.
Inverter type / conguration Cable type
Single-phase inverter Three-way cable (L+N+PE) or
Two-way cable (L+N) and PE cable
Three-phase inverter with delta
grid connection
Four-way cable (R+S+T+PE) or
Three-way cable (R+S+T) and PE cable
Three-phase inverter with star
grid connection
Five-way cable (R+S+T+N+PE) or
Four-way cable (R+S+T+N) and PE cable
•
Cross-section of the internal conductor:
The cross-section of the AC line conductor must be sized in order to prevent unwanted disconnections of
the inverter from the grid due to high impedance of the line that connects the inverter to the power supply
point; in fact, if the impedance is too high, it causes an increase in the AC voltage (seen by the inverter) that,
on reaching the limit set by the regulations of the country of installation, causes the inverter to switch o.
The following table reports the minimum and maximum cross-sections of the internal conductor of each
individual AC cable for each inverter model.
Inverter model
PVI-3.0-TL-OUTD PVI-3.6-TL-OUTD PVI-4.2-TL-OUTD PVI-5000-TL-OUTD PVI-6000-TL-OUTD PVI-8.0-TL-OUTD PVI-10.0-TL-OUTD PVI-12.5-TL-OUTD
Minimum cross-section 4 mm26 mm26 mm210 mm210 mm26 mm26 mm26 mm2
Maximum cross-section 16 mm216 mm216 mm210 mm210 mm216 mm216 mm216 mm2
•
External diameter:
To ensure environmental protection for the inverter, the external diameter of the line wiring (and of the PE wiring,
if any) must not exceed the mounting range prescribed for the cable glands provided with the inverter.
Cable gland Mounting range
M20 7 - 13 mm
M25 10 - 17 mm
M32 13 - 21 mm
M40 19 - 28 mm

INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
10 - EN
5.2. AC side connections
Warning! Before performing any of the operations described below, ensure the AC line downstream the
inverter has been correctly disconnected.
•
Remove the inverter’s front panel by unscrewing the screws on the
panel with the Torx T20 wrench provided.
•
Remove the protective lm located on the hole to be used for the AC cables (det. [F]).
LOWER PART OF THE INVERTER
SINGLEPHASE INVERTER THREEPHASE INVERTER
•
Insert the M25/M32/M40 cable gland in the hole and secure it using the special M25/M32/M40 lock nut.
Note:If you are using a yellow-green protective earth (PE) cable which is separate from the grid connection cable, pass it
through the provided M20 cable gland inserted in one of the additional holes (det. [G]).
Warning! To ensure environmental protection IP65 it is necessary to x the cable gland(s) to the inverter
chassis observing the minimum tightening torque requirements indicated below.
Cable gland Tightening torque (min.)
M20 7,0 Nm
M25 7,5 Nm
M32 8,0 Nm
M40 8,0 Nm
[F] [G]
[G][F]

EN - ENGLISH
Photovoltaic Inverters
11 - EN
•
Insert the AC grid and PE connection cables into the inverter, passing them through the previously
mounted cable glands.
•
Strip back the AC grid and PE connection cables: 10 mm for PVI-3.0/3.6/4.2/8.0/10.0/12.5-TL-OUTD
models, 12-13 mm for PVI-5000/6000-TL-OUTD models.
•
Connect the protective earth (yellow-green) cable to the contact labelled with the symbol on the
terminal block (det. [H]).
•
Connect the neutral cable (normally blue) to the terminal labelled with the letter N.
Note:In the PVI-8.0/10.0/12.5-TL-OUTD models the connection of
neutral conductor (N) is optional and depends on the system
in which the inverter is installed. If the AC Grid to which the
inverter is connected includes single-phase devices or inverters
which could create an imbalance in the three-phase system, you
are recommended to use a star conguration (three-phase +N).
However, where the circuit only includes 3ph inverters you are
recommendedtouseadeltaconguration(neutralnotconnected).
In this case, the “3ph MOD” switch must be set to the Δ symbol
(det. [I]).
[I]
•
Single-phase inverter: Connect the phase cable to the terminal labelled with the letter L.
Three-phase inverter: Connect the phase cables to the terminals labelled with the letters R, Sand T.
AC TERMINAL BLOCK
[H]
[H] [H]
PVI3.0/3.6/4.2TLOUTD PVI5000/6000TLOUTD PVI8.0/10.0/12.5TLOUTD
Warning! Models PVI-3.0/3.6/4.2/8.0/10.0/12.5-TL-OUTD require the AC cables to be tightened on the
terminal block with a minimum torque of 1.5 Nm.

INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
12 - EN
Note:In the PVI-5000/6000-TL-OUTD models, a WAGO screwdriver allowing the terminal block’s contacts to be opened is
provided in the special kit. The procedure for opening the contacts and tightening cables is as follows:
1) Insert the screwdriver in slot with the
screwdriver facing downwards; lightly
press the screwdriver from the top to the
bottom; insert the screwdriver until the
clamp opens.
2) Insert the cable in the clamp.
3) Remove the screwdriver.
Warning! Any damage to an inverter caused by wrong grid cable connections on the AC terminal block is not
covered by the warranty.
Note:In the PVI-3.0/3.6/4.2/8.0/10.0/12.5-TL-OUTD models there is
a metal turret (det. [L]) which, by means of the special bracket
and perforated screw (det. [M]), allows the contacts to be
closed with the related lead sealing.
[L]
[M]
•
Tighten the cable gland making sure that it grips the surface of the cable so that the seal is ensured and
hence the level of environmental protection.

EN - ENGLISH
Photovoltaic Inverters
13 - EN
5.3. DC side connections
•
Check the polarity of each couple of cables that must be connected to the inverter input: mark the
cable corresponding to the positive pole so as to be able to distinguish it from the one corresponding
to the negative pole. In the case of several strings, observe the correspondence between the negative
and positive of each string.
•
Check the open circuit voltage of each pair of cables which must be connected in input to the inverter:
the value must in no case exceed the maximum input voltage of the inverter.
Warning! Voltage values which exceed the permitted levels may irreparably damage the unit. Any
consequential damage to the inverter is not covered by the warranty.
Warning! The maximum allowed current for each input connector is 20 A; for models equipped with input
fuses (sux “-FS”) this limit is set by the fuse current rating. Higher values may cause damage to the internal
fuses or to the fuses equipped on the unit.
Warning! The exposure to sunlight of photovoltaic panels generates dangerous voltages to the ends of the
cables of the PV generator. Before connecting cables from the PV generator to the DC input of the inverter you
MUST disconnect any external DC line or make the dimming of solar panels.
•
Crimp the Multicontact/Weidmüller MC4/WM4 quick t connector counterparts to the string cables or
to the cables wired to the string disconnect switches (external), paying attention to the voltage polarity
and to the connector / terminal, following the procedure below:

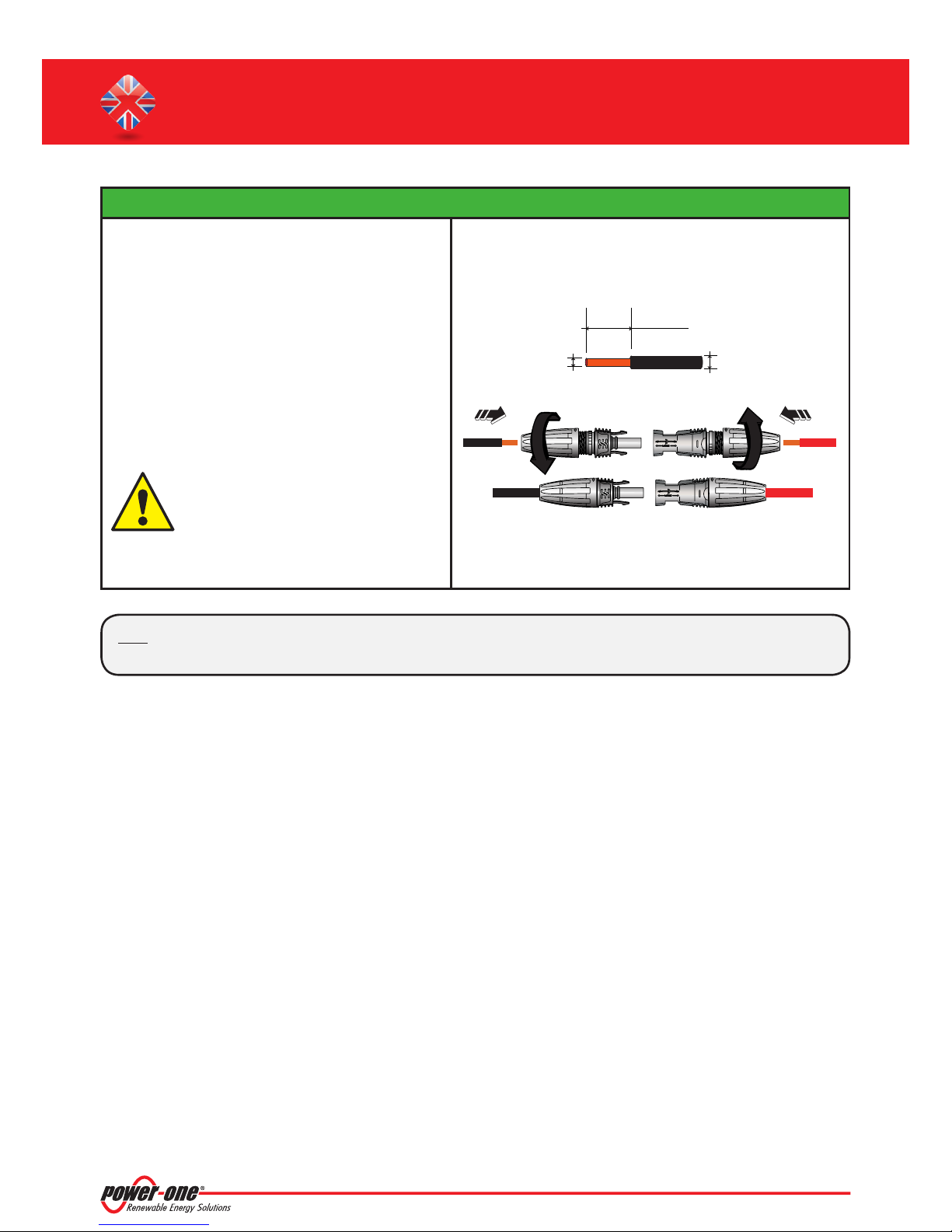

MOUNTING PROCEDURE FOR MULTICONTACT QUICK FIT CONNECTORS
•
Strip back the cable to which the connector
will be applied (after verifying it complies
with the connector limitations).
•
Apply the terminal to the conductor using
the special tweezers.
•
Fit the cable with the terminal inside the
connector until it snaps, indicating that
the terminal is securely tted inside the
connector.
•
Firmly tighten the cable gland in order
to prevent humidity inltration in the
connector, which may lead to increased
ground leakage.
Warning! Tightening the cable gland
is of crucial importance. Humidity
inltrations cause increased ground
leakage and may give rise to low
insulation resistance alarms signalled by
the inverter.
12 mm
4 - 6 mm25.5 - 9 mm

INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
14 - EN
MOUNTING PROCEDURE FOR WEIDMÜLLER QUICK FIT CONNECTORS
•
Strip back the cable to which the connector
will be applied (after verifying it complies
with the connector limitations).
•
Insert the cable in the connector until a
locking “click” is heard.
•
Fully tighten the knurled ring nut to prevent
humidity inltrations in the connector which
cause increased ground leakage.
Warning! Tightening the knurled ring
nut is of crucial importance. Humidity
inltrations cause increased ground
leakage and may give rise to low
insulation resistance alarms signalled by
the inverter.
15 mm
4 - 6 mm25.5 - 7.5 mm
Note:In countries that require compliance with the UTE-15-712-1 standard, supplementary retaining clips must be mounted on
the quick t connectors to avoid accidental disconnection. Refer to Appendix D for further information.
•
Ensure that the integrated switch (versions –S and –FS) is in the OFF position or that the external
switches are open.
•
Connect the connectors that you previously crimped to the input connectors in the lower part of the
inverter, paying attention to the polarity.

EN - ENGLISH
Photovoltaic Inverters
15 - EN
6. CONFIGURATION OF INPUT CHANNEL OPERATING MODE
The two input channels can be congured in two modes: independent mode and parallel mode.
The selection of the conguration of the input channels depends on the photovoltaic generator features and
on the power and current limitations of the inverter, as well as design choices and installation needs. Refer to
the system design documentation for information on the selection of the conguration of the inverter input
channels.
Warning! For the two channels to be used in independent mode, it is a NECESSARY condition that the
photovoltaic generator connected to each input has a maximum current and power below the channel’s
current and power limit.
Warning! For the two channels to be used in parallel mode, it is RECOMMENDED that the photovoltaic
generator connected to the two inputs has strings with the same number of modules in series and that all the
modules have the same installation conditions (inclination / orientation).
Refer to the technical data table in Appendix E to nd out the current and power limits of each input channel
for the various inverter models.
Warning! If the string’s current or power is above the current or power limit of the input channel to which it is
connected,thetwoinput channels MUST be congured in parallel.Thisconditionalsoconcernsthecasewhere
the photovoltaic generator comprises only one string with power above the inverter’s single input channel
power limit.
Note: The inverters are pre-set in the factory with INDEPENDENT input channels.
Warning! If the conditions shown above are not met, consult the photovoltaic system’s designer immediately.

INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
16 - EN
6.1. Conguration of the input channels in parallel mode
In case the input channels have to be used in parallel mode, follow the procedure below:
•
Remove the front panel of the inverter.
•
Using the AWG10/12 cables with insulated female fastons, connect the positive terminal of input 1 to a
positive terminal of input 2 (det. [N]). Repeat the connection for the negative terminals (det. [O]).
[O] [N] [O] [N]
PVI3.0/3.6/4.2TLOUTD PVI5000/6000TLOUTD
[O] [N]
PVI8.0/10.0/12.5TLOUTD
•

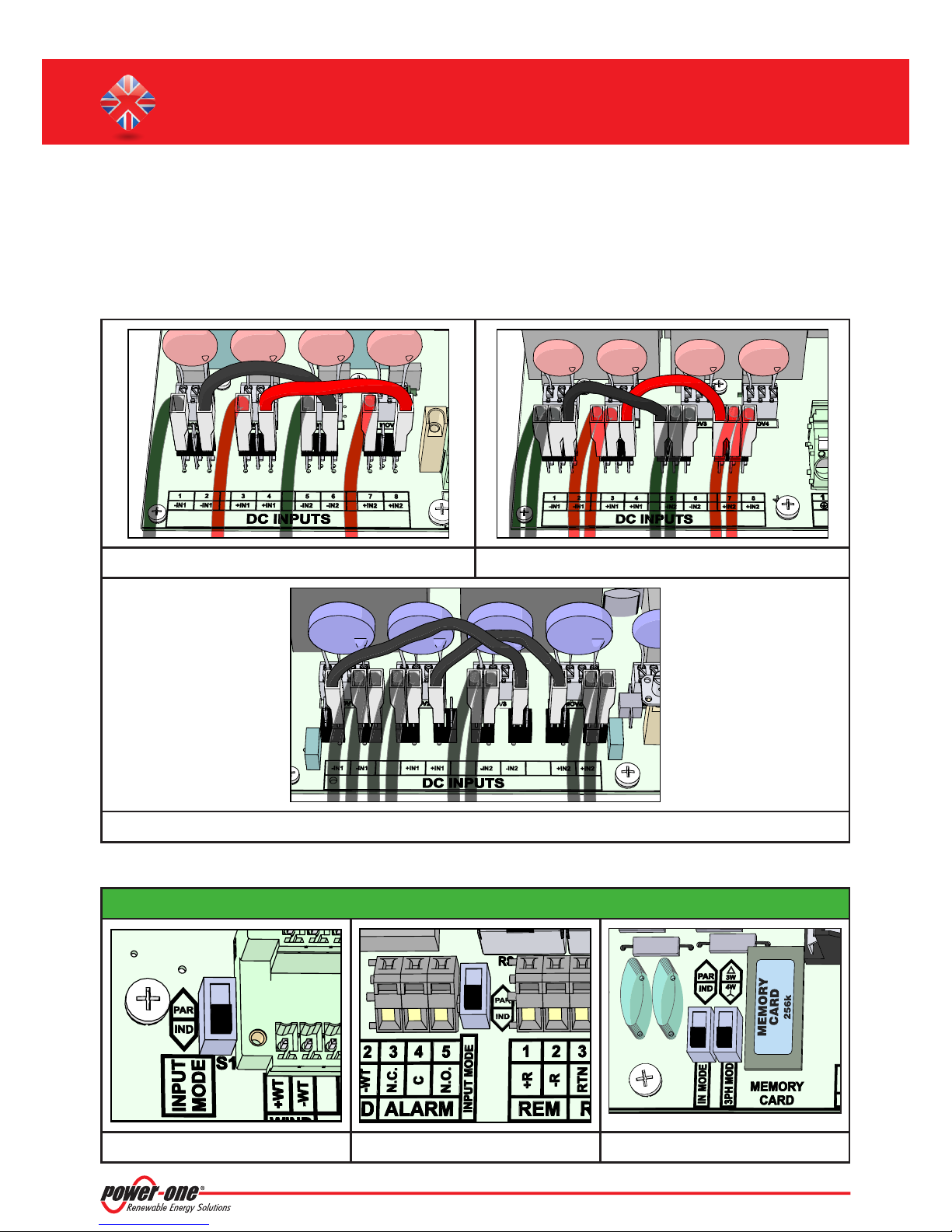

Act on the dip-switch identied by the INPUT MODE printing and put in on the PAR position (det. [P]).
CONFIGURATION DIPSWITCH FOR INPUT CHANNEL OPERATION MODE
[P]
[P]
[P]
PVI3.0/3.6/4.2TLOUTD PVI5000/6000TLOUTD PVI8.0/10.0/12.5TLOUTD

EN - ENGLISH
Photovoltaic Inverters
17 - EN
7. SIGNALS TERMINAL BLOCKS
7.1. RS485 communication line connection
The RS485 communication port is the inverter’s communication port. AURORA uses a HALF-DUPLEX RS485
communication line made up of two transmission reception lines (+T/R and –T/R) and a reference communication
line (RTN): all three lines must be wired in a daisy-chain (“in-out”). It is advisable to use a twisted-pair screened
cable for the communication line: the screen must be earthed at only one point (typically near the monitoring
system) and continuity inside each element of the chain must be given to the screen. Refer to Appendix C.
The chain connection can be made without distinction by using the connector couples (one for in and one
for out – det. [Q]) or the terminal block (det. [R] or det. [S]). The connectors are identied by the printing
“RS485(A)”and“RS485(B)”: use of connector“A”as in and“B”as out is not compulsory (both connectors can be
used as in or out). Refer to Appendix A for the PIN-OUT of the RJ12 and RJ45 connectors.
The last inverter in the daisy chain must be “terminated” or the 120 Ohm communication line termination
resistance must be activated by switching the dip-switch (det. [T]).

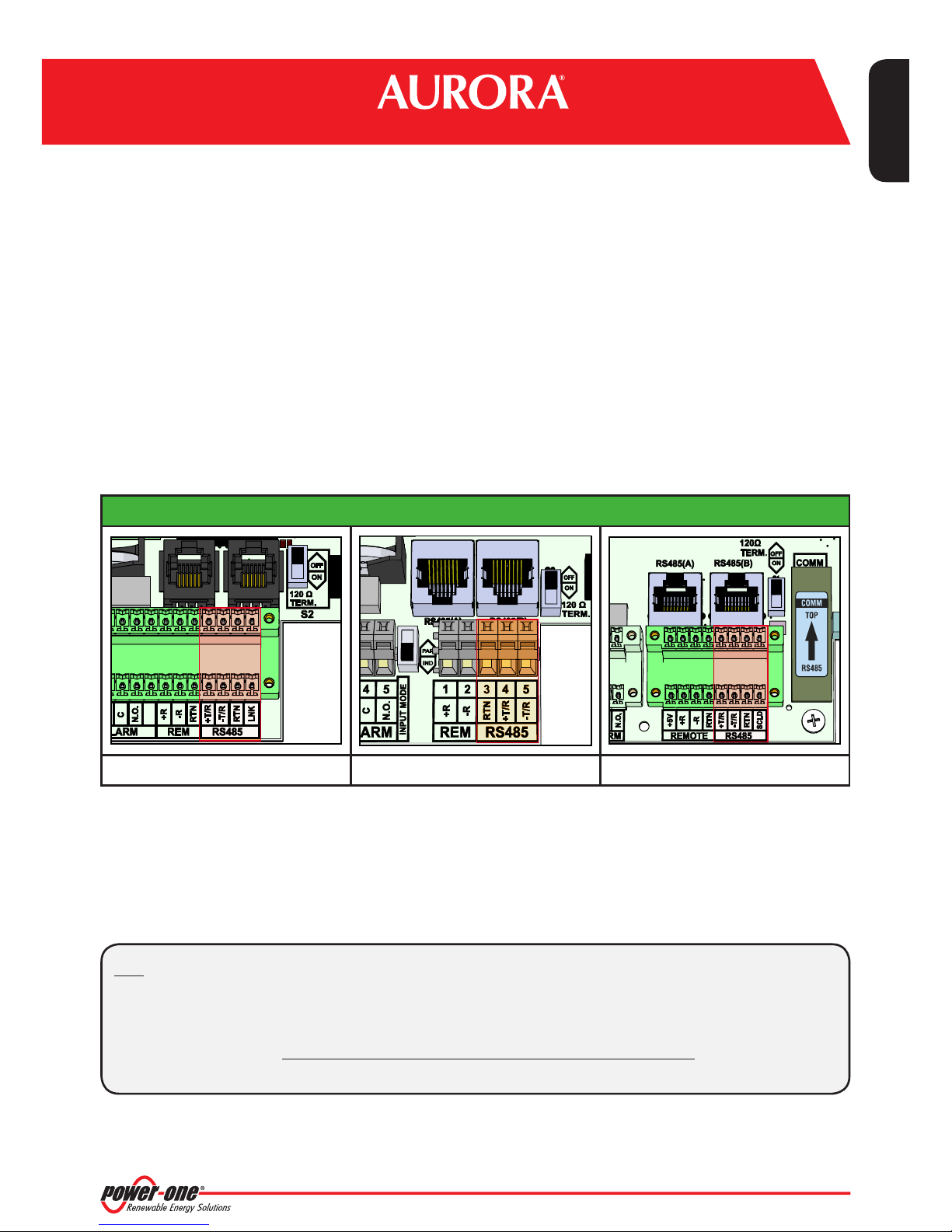

COMMUNICATION LINE TERMINATION SWITCH AND RS485 CONNECTORS
[S]
[Q] [T] [Q]
[R]
[T]
[S]
[Q] [T]
PVI3.0/3.6/4.2TLOUTD PVI5000/6000TLOUTD PVI8.0/10.0/12.5TLOUTD
The PVI-3.0/3.6/4.2/8.0/10.0/12.5-TL-OUTD models are equipped with a two-level terminal block allowing
one level to be used for line-in connection and the other for line-out connection. The terminal block is also
equipped with the LNK terminal for the PVI-3.0/3.6/4.2-TL-OUTD models and SCLD for the PVI-8.0/10.0/12.5-
TL-OUTD models allowing continuity to be given to the cable screen.
On the other hand the PVI-5000/6000-TL-OUTD models are equipped with a one-way terminal block (det. [R])
and therefore it is necessary to couple the line-in and line-out leads in the same clamp.
Note:Models PVI-3.0/3.6/4.2/5000/6000-TL-OUTD are equipped with a USB communication port, mounted on the right hand
side of the inverter. The USB communication port is a service port. This port exists for diagnostic use and the internal
controller’s rmware upgrade and is limited to service sta. Although drivers have been released (compatible with
Windows XP and Windows 7, for which no upgrades are envisaged) which permit this port to be also used for monitoring
(not recommended), the primary use remains strictly tied to debugging and updating the system. Power-One recommends
the use of the RS485 port for the continuous monitoring of system data.
With regard to the communication interface, the use of the dedicated Power-One PVI-RS485_RS232 or PVI-
USB-RS485_232 type converter is strongly recommended in order to prevent compatibility problems that can
sometimes be encountered with the standard models on the market.

INSTALLATION AND CONFIGURATION MANUAL
FOR AURORA PHOTOVOLTAIC INVERTERS
18 - EN
7.2. Using the alarm terminal block

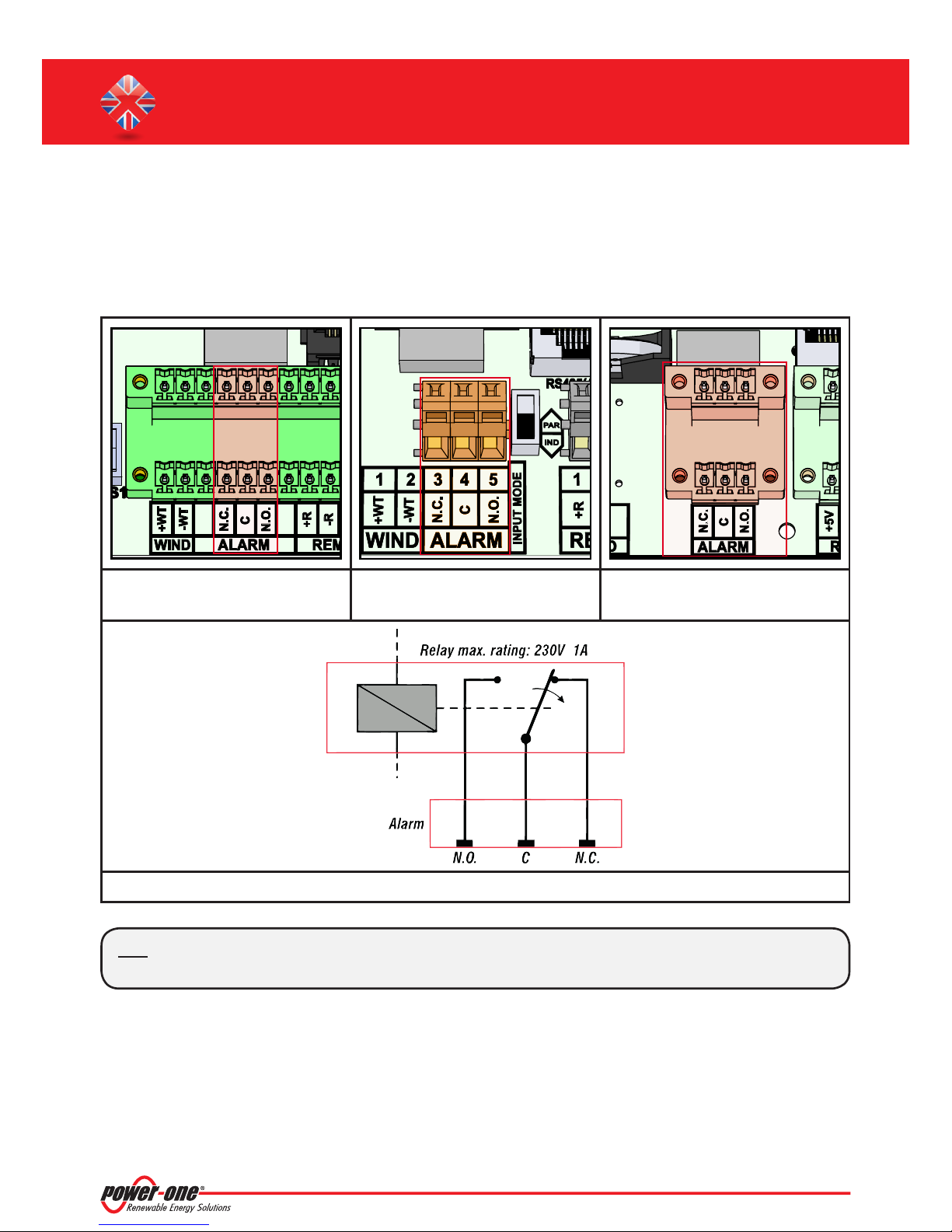

The alarm terminal block makes the contacts of a relay available to indicate congurable alarm conditions.
The alarm contact is available under normally open (N.O.) or normally closed (N.C.) operation compared to
the common terminal (C). The maximum rating for voltage / current that the relay can support is 230V / 1A.
“ALARM” TERMINAL BLOCK IN
PVI3.0/3.6/4.2TLOUTD
“ALARM” TERMINAL BLOCK IN
PVI5000/6000TLOUTD
“ALARM” TERMINAL BLOCK IN
PVI8.0/10.0/12.5TLOUTD
FUNCTIONAL DIAGRAM FOR THE ALARM CONTACT
Note: The ALARM contact can be used only with systems that ensure a safety isolating additional at least
(supplementary insulation in relation to the DC input voltage).
