Power One AURORA Setup guide

AURORA
Photovoltaic Inverters
INSTALLATION AND OPERATOR’S
MANUAL
Model number: PVI-2000-OUTD-AU Rev. 1.0
®

Installation and operator’s manual Page 2 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
REVISION TABLE
Document
Revision Author Date 9Change description
1.0 Gianluca
Pieralli 27/10/2008 9First release of the document
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS
POWER-ONE: Reproduction and disclosure, even partially, of the contents of this
manual are strictly forbidden without prior authorization of Power-
One.

Installation and operator’s manual Page 3 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important safety and operational instructions that must be
accurately understood and followed during the installation and maintenance of the
equipment.
To reduce the risk of electrical shock hazards, and to make sure the equipment is
safely installed and commissioned, special safety symbols are used in this manual to
highlight potential safety risks and important safety information. The symbols are:
WARNING: the paragraphs highlighted by this symbol contain processes
and instructions that must be absolutely understood and followed to avoid
potential danger to people.
NOTE: the paragraphs highlighted by this symbol contain processes and
instructions that must be rigorously understood and followed to avoid
potential damage to the equipment and negative results.
The equipment is provided with several labels, some of them with a yellow
background, which are related to safety issues.
Make sure to read the labels and fully understand them before installing the
equipment.
The labels use the following symbols:
Equipment grounding conductor (Main grounding protective earth,
PE)
Alternate Current (Ac) value
Direct Current (Dc) value
Phase
Grounding (Earth)

Installation and operator’s manual Page 4 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
USEFUL INFORMATION ON SAFETY STANDARDS
FOREWORD
¾The installation of AURORA must be performed in full compliance with national
and local standards and regulations.
¾AURORA has no internal user serviceable parts other than fuses.
For any maintenance or repair please contact the nearest authorized repair centre.
Please contact your reseller if you need to know the nearest authorised repair
centre.
¾Read and understand all the instructions contained in this manual and become
familiar with the safety symbols in the relevant paragraphs before you install and
commission the equipment.
¾The connection to the distribution grid must be done only after receiving approval
from the distribution utility as required by national and state interconnection
regulations, and can be done only by qualified personnel.
¾Cover the photovoltaic panels with dark opaque sheets before they are connected
to avoid any chance of high voltages appearing at the connecting wire
terminations.

Installation and operator’s manual Page 5 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
GENERAL
During inverter operation, some internal parts can be energised, in some cases, internal
parts can move or rotate and some surfaces can be hot.
Unauthorised removal of the necessary protections, improper use, incorrect installation
or incorrect operation may lead to serious damage to people and objects.
All transport, installation and start-up, as well as maintenance operations, shall be
carried out by skilled and trained personnel (all national regulations on accidents
prevention and electrical safety shall be complied with!!!).
Only qualified and trained people have skills for the assembling, start-up and operation
of the product, as well as the necessary requirements and qualifications to perform
such operations.
INSTALLATION
All equipment shall be installed according to the instructions and specifications
mentioned in the corresponding documents.
In particular, during transport and handling, parts shall not be bent and/or the
insulation distances shall not be changed. There should be no contact between
electronic parts and connection terminals.
Electrical parts must not be mechanically damaged or destroyed (potential health risk).
ELECTRICAL CONNECTION
The Aurora inverter should be installed incompliance with all prevailing local and
national regulations
Electrical connections shall be carried out in accordance with the applicable
regulations, such as conductor sizing, over-current protection devices and grounding
connection.

Installation and operator’s manual Page 6 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
OPERATION
Systems with inverters shall be installed in accordance with applicable electrical safety
and personnel safety requirements. After the inverter has been disconnected from the
both input power and output power connections allow the internal capacitors to
discharge before working on the equipment
Comply with all corresponding marks and symbols present on each device. During
operation, make sure that all covers and doors are closed.
MAINTENANCE AND SERVICE
Comply with manufacturer’s recommendations.
SAVE ALL DOCUMENTS IN A SAFE PLACE!

Installation and operator’s manual Page 7 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
PVI-2000-OUTD-AU
This document applies to the above-mentioned inverters, only
Fig.1 Product label
The identification plate present on the inverter includes the following data:
1) Manufacturer Part Number
2) Model Number
3) Serial Number
4) Production Week/Year

Installation and operator’s manual Page 8 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
CONTENTS:
1FOREWARD ...............................................................................10
1.1 PHOTOVOLTAIC ENERGY...............................................10
2SYSTEM DESCRIPTION..........................................................11
2.1 MAIN ELEMENTS OF A PV SYSTEM:“STRINGS AND
ARRAYS”.........................................................................................12
2.2 DATA TRANSMISSION AND CHECK ..........................................14
2.3 AURORA TECHNICAL DESCRIPTION.....................................14
2.4 PROTECTIVE DEVICES.............................................................16
2.4.1 Anti-Islanding................................................................16
2.4.2 Panel Ground Fault.......................................................16
2.4.3 Further Protective Devices............................................17
3INSTALLATION ........................................................................18
3.1 PACKAGE INSPECTION ............................................................18
3.2 PACKAGE CHECK LIST............................................................19
3.3 CHOOSING INSTALLATION LOCATION .....................................20
3.4 WALL MOUNTING ..................................................................21
3.5 PRELIMINARIES TO ELECTRICAL CONNECTIONS .....................24
3.6 ELECTRICAL CONNECTIONS....................................................27
3.7 ACCESS TO THE TERMINAL BLOCKS BY REMOVING THE RIGHT
SIDE PANEL.........................................................................................29
4START-UP...................................................................................30
5MONITORING AND DATA TRANSMISSION......................31
5.1 USER INTERFACE MODE.........................................................31
5.2 AVAILABLE DATA ..................................................................33
5.2.1 Real time data................................................................33
5.2.2 Internally Logged Data .................................................34
5.3 LED INDICATORS...................................................................35
5.4 MESSAGES AND ERROR CODES...............................................40

Installation and operator’s manual Page 9 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
5.5 LCD DISPLAY.........................................................................43
6DATA CHECK AND COMMUNICATION.............................49
6.1 RS-485 SERIAL LINK...............................................................49
6.2 ADDRESS SELECTION ..............................................................52
6.3 BAUD RATE SETTING ..............................................................53
6.4 MEASUREMENT ACCURACY....................................................55
7TROUBLESHOOTING..............................................................56
8TECHNICAL FEATURES.........................................................58
8.1 INPUT VALUES........................................................................58
8.2 OUTPUT VALUES ....................................................................61
8.3 GRID PROTECTION CHARACTERISTICS.....................................62
8.4 GENERAL CHARACTERISTICS ..................................................62
8.5 POWER DERATING ..................................................................63

Installation and operator’s manual Page 10 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
1FOREWARD
This document contains a technical description of the AURORA photovoltaic inverter
so as to provide the installer and user all the necessary information about installation,
operation and use of AURORA.
1.1 PHOTOVOLTAIC ENERGY
Industrialised countries (greater energy consumers) have been experimenting with
energy-saving methods and reducing pollutant levels. This may be possible through a
shrewd and rational consumption of well-known resources, and also by looking for
new forms of clean and in exhaustible energy.
Renewable sources of energy are fundamental to solving this problem. Under these
circumstances, solar energy exploitation to generate electrical (photovoltaic) energy is
becoming more and more important worldwide.
Photovoltaic energy is, in any case, of great advantage to the environment because the
radiated energy we receive from the sun is transformed directly into electrical energy
without any combustion process and without producing any pollution.

Installation and operator’s manual Page 11 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
2SYSTEM DESCRIPTION
AURORA is an inverter that exports energy to the electrical power distribution grid.
Photovoltaic panels transform the solar radiation into electrical energy in the form of
direct (Dc) current (through a photovoltaic field, also known as PV generator); In
order to utilise this energy and feed it back to the distribution grid, this energy shall be
turned into alternating (Ac) current. AURORA does this conversion, also known as Dc
to Ac inversion, in a very efficient way, without using rotating parts but only static
power electronic devices.
When used in parallel with the grid, the alternate current generated by the inverter is
directly fed to the domestic distribution circuit, which in turn is also connected to the
public power distribution grid.
The solar energy system can thus feed power to all the connected devices, such as
lighting devices, household appliances, etc.
If the energy generated by the photovoltaic system is not enough, the energy necessary
to ensure the standard operation of the connected devices is drawn from the public
power distribution grid. If the energy produced exceeds that used, the difference is
directly fed to the grid, thus becoming available to other users.
According to national and local standards and regulations the produced energy can be
sold to the grid or credited to the user for future consumption.

Installation and operator’s manual Page 12 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
2.1 Main Elements of a PV System: “STRINGS and ARRAYS”
The so-called “string” technology has been developed in order to reduce the
installation costs of a photovoltaic system as much as possible. These costs are mainly
related to the wiring operations on the Dc side of the inverter and the consequent
distribution on the Ac side.
A photovoltaic PANEL is composed of many photovoltaic cells assembled on the
same mount. A STRING is composed of a certain number of panels electrically
connected in series. An ARRAY is composed of one or more strings connected in
parallel.
Larger photovoltaic systems can be composed of a certain number of arrays, connected
to one or more AURORA inverters. By maximizing the number of panels in series per
string, the cost and complexity of the system wiring can be reduced.
9
PV Panel
PV String
PV Array
PV Cell
+
+
_
_
+
_
9Fig.2 Array Composition
Array voltage value shall be within an acceptable range for the inverter. Please refer to
the technical data for the AURORA for details on the Dc operating voltage range.

Installation and operator’s manual Page 13 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
WARNING: String voltage shall not exceed 600 Vdc for any reason, to prevent any
damage to the equipment
NOTE: The minimum required input voltage for start the initial grid connection
sequence is 200Vdc.
When Aurora is connected, it will export energy on the grid since the input range will
remain between 90Vdc and 580Vdc.
The total current of an array must also be within the capability limits of the inverter.
The 2000W model of AURORA is capable of handling a single array and the
maximum input current can be 10Adc.
In case the photovoltaic system exceeds the capabilities of a single AURORA inverter,
additional inverters can be added to the system, each connected to a suitable section of
the photovoltaic field on the Dc side, and to the grid on the Ac side.
Each AURORA inverter will work independently from the others and will push to the
grid the maximum power available from its own section of the photovoltaic panels.
The actual decisions on the way the photovoltaic system is structured and wired
depend on a number of factors and considerations, such as type and model of panels,
available area, location, energy targets, as well as on good design practices.
Power-One provides a system configuration tool on its website (www.power-one.com)
that can assist in modelling the system.

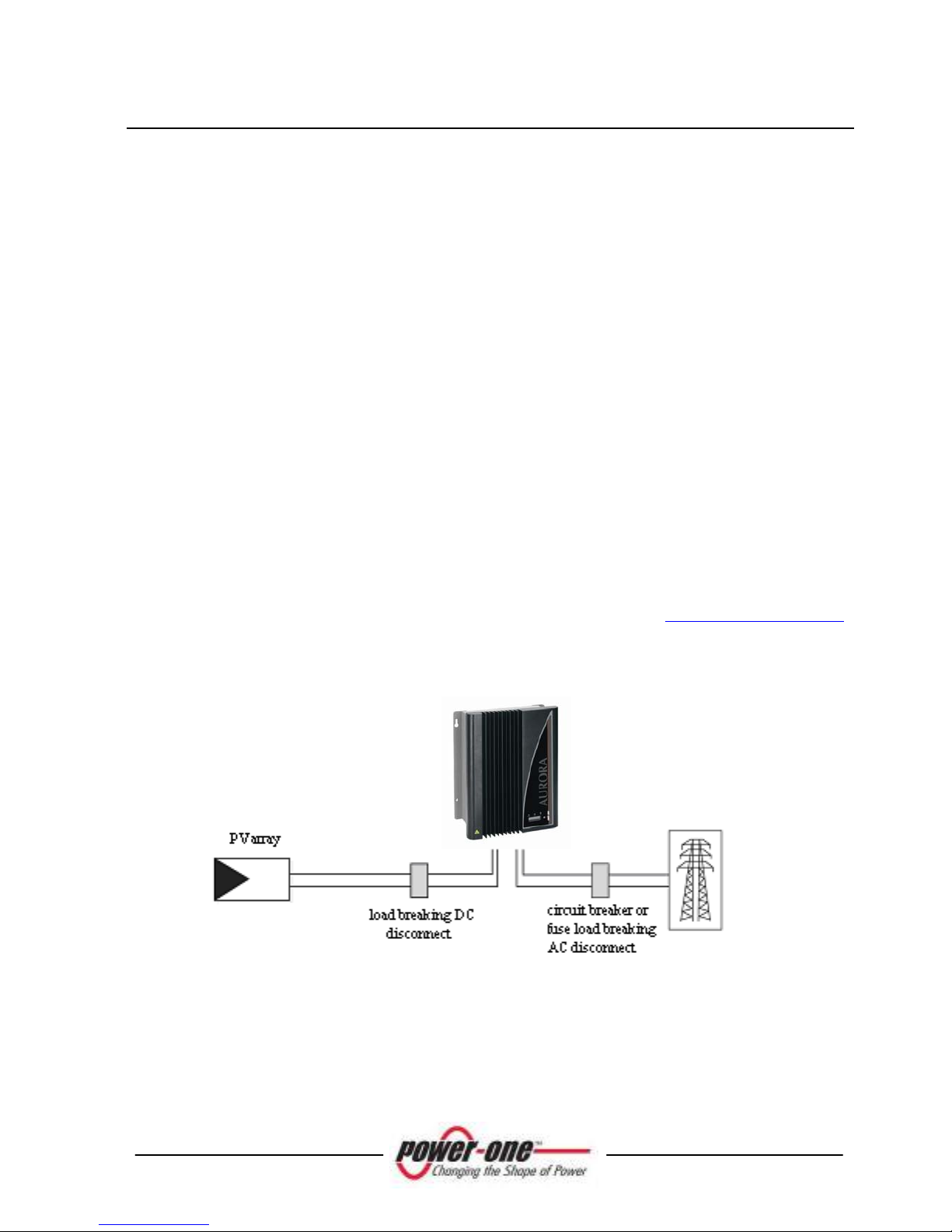

Fig.3 Simplified diagram of a photovoltaic system

Installation and operator’s manual Page 14 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
2.2 Data transmission and check
In case multiple inverters are used, they can be monitored remotely by using an
advanced communication system based on the RS485 serial interface or on the Power
Line Modem (PLM) technology. For further information, refer to the corresponding
sections of this manual.
2.3 AURORA Technical Description
Figure 4 shows the AURORA block diagram. The main blocks are given by the input
Dc-Dc converters (also known as “booster”) and the output inverter. Both the Dc-Dc
converters and the output inverter work at high switching frequency to minimize size
and weight.
This model of AURORA is transformer-less, that means that there is no galvanic
isolation between input and output. This allows an increase in the inverter efficiency.
AURORA, on the other hand, is equipped with all the protection needed to operate
safely and to comply with existing safety regulations even without an isolation
transformer, as described in the paragraph regarding protective devices.

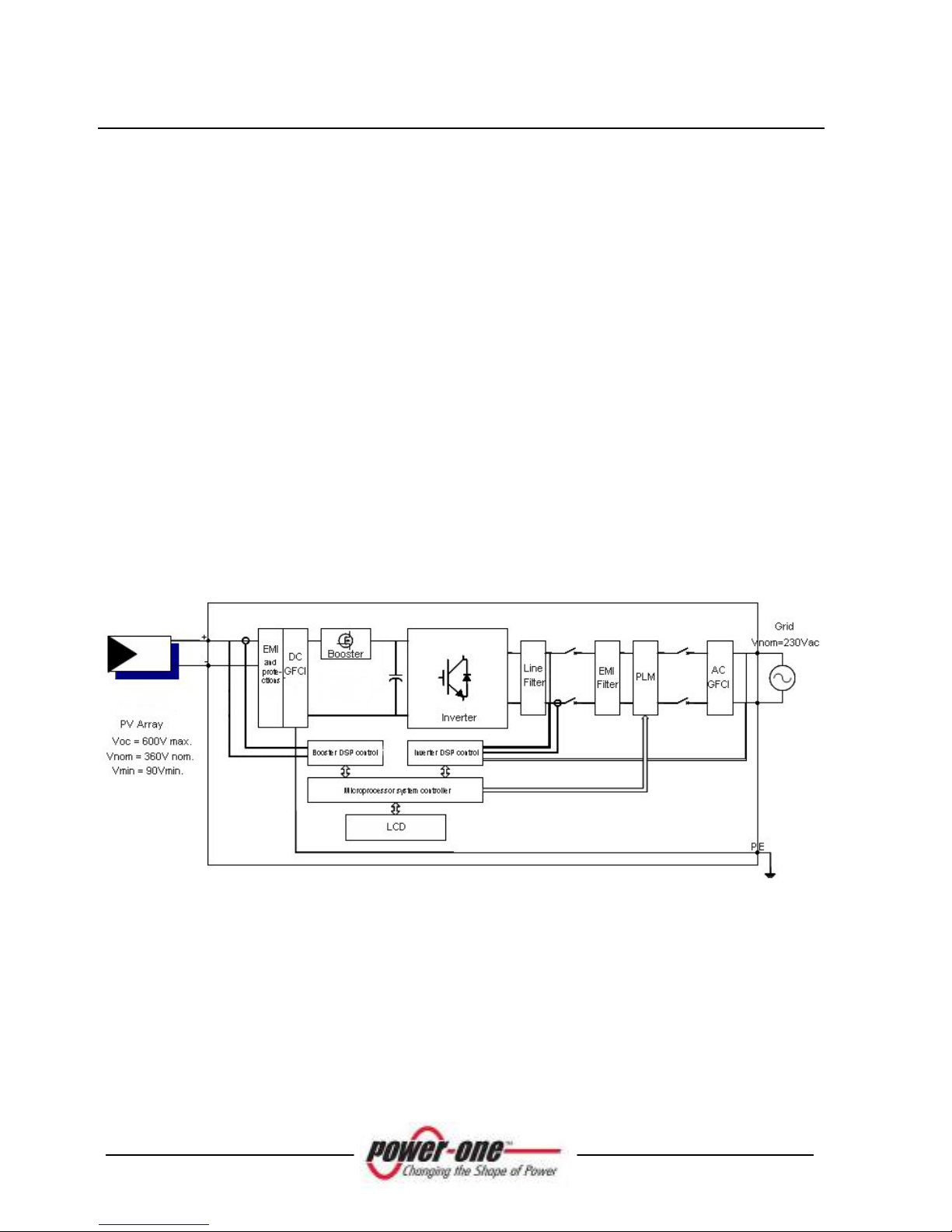

Fig.4 AURORA block diagram

Installation and operator’s manual Page 15 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
The block diagram shows the model AURORA PVI-2000-OUTD.
Thanks to its high efficiency and its widely dimensioned thermal dissipation system,
this inverter guarantees maximum power operation over a wide ambient temperature
range.
The inverter is controlled by two independent Digital Signal Processors (DSP) and a
central microprocessor.
The connection to the electrical grid is, therefore, controlled by two independent
computers, in compliance with electrical standards, power system standards and safety
standards.
the AURORA operative system communicates with the relative components to carry
out data analysis.
All this guarantees an optimal operation of the whole system and a very high
performance in every insulation and load situation, always in compliance with the
relative standards and regulations.

Installation and operator’s manual Page 16 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
2.4 Protective devices
2.4.1 Anti-Islanding
The Aurora inverter will automatically disconnect from the utility grid when the utility
grid is out of range or when the inverter shuts down due to a fault condition, in order
to guarantee protection for persons operating on the utility grid, in compliance with the
national standards.
AURORA PVI-2000-OUTD is equipped with an advanced Anti-Islanding protection
certified according to the following standards:
•AS4777.3-2005
2.4.2 Panel Ground Fault
This version of Aurora is designed for connection to floating Photovoltaic arrays only,
with the positive and negative terminals from the panels are not connected to the
Ground (the metallic support of the panel instead shall be connected to safety Ground
in accordance with existing electrical safety regulations). An advanced ground fault
protection circuit continuously monitors the ground connection and shuts down
AURORA in case a ground fault is detected and indicates the ground fault condition
by means of a red LED on the front panel. A terminal for the equipment grounding
conductor is provided in the AURORA inverter. For further information, please see
section 3.5.3.

Installation and operator’s manual Page 17 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
2.4.3 Further Protective Devices
AURORA is equipped with additional protections to guarantee safe operation under all
circumstances. The protections include:
¾Continuous monitoring of the grid voltage to ensure the frequency and
voltage values are within the proper operational limits;
¾Control of the internal temperatures to automatically limit power when
needed to make sure the unit does not overheat (heat-sink temperature
<=70°C [158°F]).
The many AURORA control devices determine a redundant structure to
guarantee safe operating use.

Installation and operator’s manual Page 18 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
3INSTALLATION
WARNING: The electrical installation of AURORA must be made in
accordance with the local and national electrical standards and regulations.
WARNING: The connection of AURORA to the electrical distribution grid
must be performed only after receiving authorization from the utility that
operates the grid.
3.1 Package inspection
NOTE: The distributor presented your AURORA to the delivering carrier
securely packed and in perfect conditions. Upon acceptance of the package
from the distributor, the delivering carrier assumes responsibility for its safe
arrival to you. Despite of the attention paid by carrier in handling it,
sometimes the package and its contents might be damaged.
Please, carry out the following checks:
¾Examine the shipping box for any visible damage: punctures, dents or any other
signs of possible internal damage;
¾Describe any damage or shortage on the receiving documents and have the
carrier sign their full name;
¾Open the shipping box and inspect the contents for internal damage. While
unpacking, be careful not to discard any equipment, parts or manuals. If any
damage is detected, call the delivering carrier to determine the appropriate action.
They may require an inspection. Save all shipping material for the inspector to
see!

Installation and operator’s manual Page 19 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
If the inspection reveals damage to the inverter call your retailer, or authorized
distributor. They will determine if the equipment should be returned for repair. They
will also provide instructions on how to get the equipment repaired;
¾It is your responsibility to file a claim with the delivery carrier. Failure to
properly file a claim for shipping damages may void warranty service for any
physical damages later reported for repair;
¾Save AURORA original packaging, as it will have to be used in case the
equipment has to be shipped out for repairs.
3.2 Package Check List
Description Quantity (No.)
AURORA Photovoltaic Inverter 1
Bag containing a wall fixing kit
composed of 4 stainless steel
screws, 4 blocks and a TX20
tap wrench, and a connector
kit, composed of 1 signal wire
gland, a double-hole seal, 1
positive Multicontact connector
cap and 1 negative connector
cap, 1 Binder connector
counterpart.
1
Installation drawing 1
Copy of this manual 1
Certificate of warranty 1
CD-Rom with communication
software 1

Installation and operator’s manual Page 20 of 65
PVI-2000-OUTD-AU Rev.: 1.0)
3.3 Choosing installation location
The location for the installation of AURORA should be selected in accordance to the
following recommendations:
¾AURORA should be placed at a suitable height from the ground to allow easy
reading of the front display.
¾Leave enough room around the unit to allow easy installation and maintenance
(Fig 5).
¾Choose a location sheltered from sun radiation and able to provide some
ventilation.
¾The screw and tabs for wall mounting need to be chosen according to the wall
construction material (stone, full bricks, holed bricks, etc).
WARNING: The metal surface in the back of AURORA could reach high
operating temperatures (up to 70°C). Avoid contact of the surface with
materials that are flammable or sensitive to high temperature (wallpaper,
fabrics, wood, etc.)
Fig.5 Installation location
500mm
(
18”
)
500mm
(
18”
)
>100mm
(
4”
)
>300mm
(12”)
