Powrmatic Radiant PTDS 09 Series User guide

Page 1 of 32
INSTALLATION, SERVICING AND OPERATING INSTRUCTIONS
Before installation, check that the local distribution conditions, nature of gas and pressure, and adjustment of appliance
are compatible.
INDEX
Section Title Page
1. Technical Data 2 - 4
2. Un-Packing 5 - 6
2.1 PTDS09/12/15 PTDS25 5
2.2 PTDS 30/35/40/45 6
3. Installation 7 - 11
3.1 Suspension 7
3.2 Gas Supply 8
3.3 Electrical Supply 8 - 9
3.4 Ventilation 10 - 11
4. Assembly 12 - 24

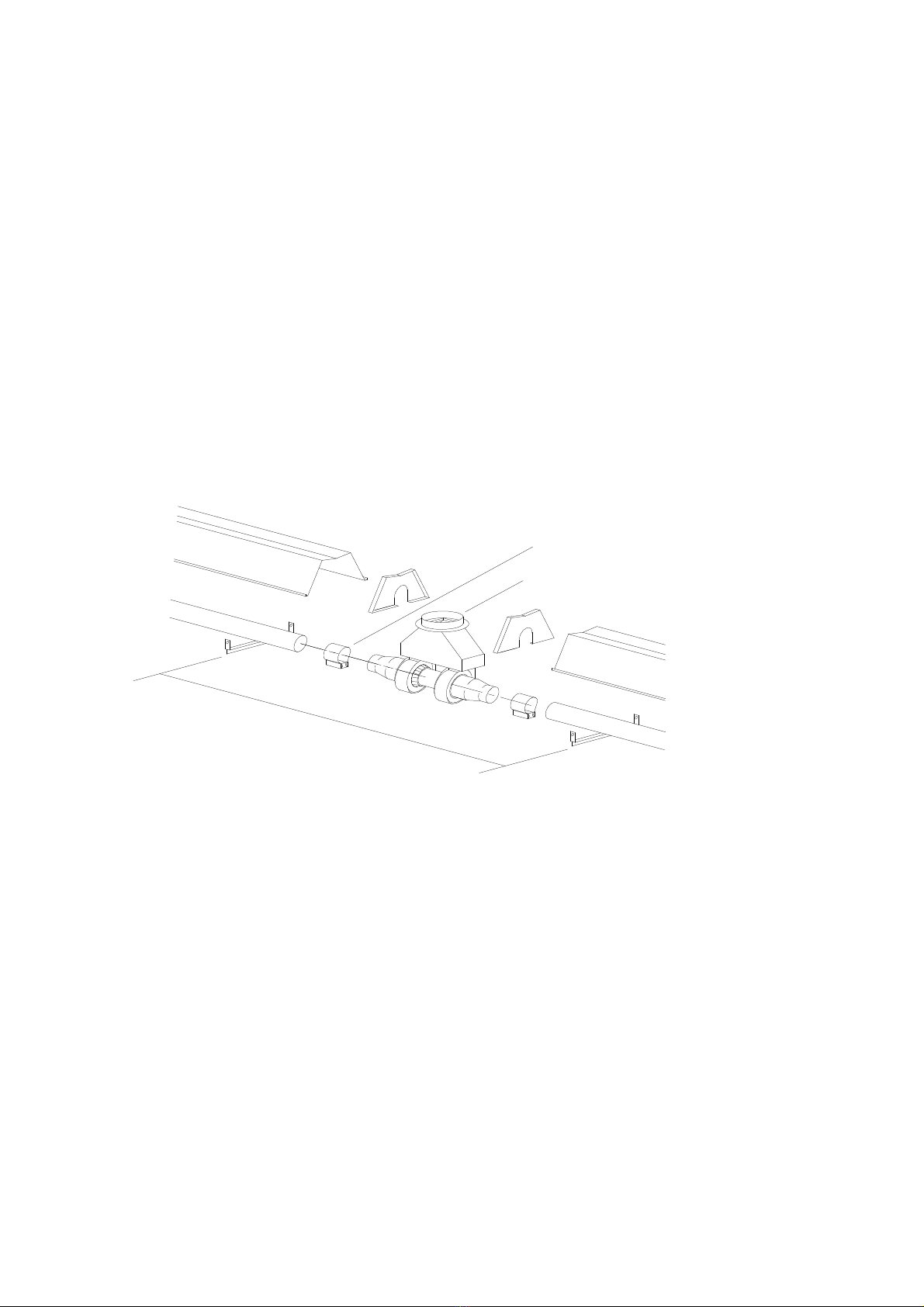

4.1 PTDS09/12/15 12 - 14
4.2 PTDS25 15 - 17
4.3 PTDS30/35 18 - 20
4.4 PTDS40/45 21 - 24
5. Commissioning 24 - 26
5.1 Ignition 24
5.2 Shut Down 24
5.3 Checking Gas Pressure 25 - 26
5.4 Flame Supervision 26
5.5 Air Proving Switch 26
6. Servicing 26 - 28
6.1 Duplex Fan 27
6.2 Control Box 27
6.2.3 Ignition Electrodes 27
6.2.4 Burner 27
6.2.5 Electrical Wiring 27
6.2.6 Air Inlet/Baffle Plate 27 - 28
6.2.7 Door Seal 28
6.3 Reflector 28
6.4 Flue Pipes 28
6.5 Re-assembly and Commissioning 28
6.6 Auxiliary Controls 28
7. Replacing Components 28 - 30
7.1 Duplex Fan 28
7.2 Electrodes 29
7.3 Ignition Control 29
7.4 Air Proving Switch 29
7.5 Burner Assembly 29
7.6 Injector 29
7.7 Pre-injector 29
7.8 Twin Solenoid Control Valve 30
7.9 Neon Indicators 30
7.10 Replacement Parts List 30
8. Conversion Instructions 30 - 31
8.1 Conversion from Natural Gas to LPG 30
8.2 Conversion from LPG to Natural Gas 31
9. Operating Instructions 31

Page 2 of 32
INSTALLATION, SERVICING & OPERATING INSTRUCTIONS
1. TECHNICAL DATA
Table 1
MODEL PTDS 09 (N) PTDS 09 (L)
Heat Input 18.0kW Hs 16.22kW Hi
Appliance Type B22
Appliance Category II2H3+
Adjusted for 2H G20 20mbar 3+ G30/G31 29/37mbar
Setting Pressure 12.5mbar None
Injector Ø2.4mm x 2 Ø1.45mm x 2
Pre-injector None None
Electrical Supply 230V~50Hz 125W
Fuse Externally 3A
Dimensions 15.506m x 0.34m
Weight 60Kg
Gas Connection R - ½
Flue Size Ø150 (6") Note: Ø125 (5") allowable
Table 2
MODEL PTDS 12 (N) PTDS 12 (L)
Heat Input 22.8 kW Hs 20.54 kW Hi
Appliance Type B22
Appliance Category II2H3+
Adjusted for 2H G20 20mbar 3+ G30/G31 29/37mbar
Setting Pressure 12.5mbar None
Injector No. 36 x 2 Ø1.65mm x 2
Pre-injector None None
Electrical Supply 230V~50Hz 125W
Fuse Externally 3A
Dimensions 15.506m x 0.34m
Weight 60Kg
Gas Connection R - ½
Flue Size Ø150 (6") Note: Ø125 (5") allowable
Table 3
MODEL PTDS 15 (N) PTDS 15 (L)
Heat Input 30.0 kW Hs 27.03 kW Hi
Appliance Type B22
Appliance Category II2H3+
Adjusted for 2H G20 20mbar 3+ G30/G31 29/37mbar
Setting Pressure 12.5mbar None
Injector No. 31 x 2 Ø1.9mm x 2
Pre-injector None None
Electrical Supply 230V~50Hz 125W
Fuse Externally 3A
Dimensions 15.506m x 0.34m
Weight 60Kg
Gas Connection R - ½
Flue Size Ø150 (6") Note: Ø125 (5") allowable

Page 3 of 32
Table 4
MODEL PTDS 25 (N) PTDS 25 (L)
Heat Input 46.0 kW Hs 41.44 kW Hi
Appliance Type B22
Appliance Category II2H3+
Adjusted for 2H G20 20mbar 3+ G30/G31 29/37mbar
Setting Pressure 12.5mbar None
Injector Ø3.8mm X 2 Ø2.3mm X 2
Pre-injector None None
Electrical Supply 230V~50Hz 125W
Fuse Externally 3A
Dimensions 20.078m X 0.34m
Weight 92Kg
Gas Connection R - ½
Flue Size Ø150 (6")
Table 5
MODEL PTDS30 (N) PTDS30 (L)
Heat Input 58.4kW Hs 52.6kW Hi
Appliance Type B22
Appliance Category II2H3+
Adjusted for 2H G20 20mbar 3+ G30/G31 29/37mbar
Setting Pressure 12.5mbar None
Injector No. 19 x 2 Ø2.6mm x 2
Pre-injector None None
Electrical Supply 230V~50Hz 125W
Fuse Externally 3A
Dimensions 19.858m x 0.34m
Weight 124Kg
Gas Connection R - ½
Flue Size Ø150 (6")
Table 6
MODEL PTDS 35 (N) PTDS 35 (L)
Heat Input 69.0kW Hs 62.16kW Hi
Appliance Type B22
Appliance Category II2H3+
Adjusted for 2H G20 20mbar 3+ G30/G31 29/37mbar
Setting Pressure 12.5mbar None
Injector No. 15 x 2 No. 35 x 2
Pre-injector None None
Electrical Supply 230V~50Hz 125W
Fuse Externally 3A
Dimensions 19.858m x 0.34m
Weight 124Kg
Gas Connection R - ½
Flue Size Ø150 (6")

Page 4 of 32
Table 7
MODEL PTDS40 (N) PTDS40 (L)
Heat Input 84.4kW Hs 76.04kW Hi
Appliance Type B22
Appliance Category II2H3+
Adjusted for 2H G20 20mbar 3+ G30/G31 29/37mbar
Setting Pressure 12.5mbar None
Injector Ø5.0mm x 2 Ø3.2mm x 2
Pre-injector None None
Electrical Supply 230V~50Hz 125W
Fuse Externally 3A
Dimensions 25.948m x 0.34m
Weight 158Kg
Gas Connection R - ½
Flue Size Ø150 (6")
Table 8
MODEL PTDS 45 (N) PTDS 45 (L)
Heat Input 94.0kW Hs 84.7kW Hi
Appliance Type B22
Appliance Category II2H3+
Adjusted for 2H G20 20mbar 3+ G30/G31 29/37mbar
Setting Pressure 12.5mbar None
Injector Ø5.4mm x 2 Ø3.3mmx 2
Pre-injector None None
Electrical Supply 230V~50Hz 125W
Fuse Externally 3A
Dimensions 25.948m x 0.34m
Weight 158Kg
Gas Connection R - ½
Flue Size Ø150 (6")

Page 5 of 32
2. UN-PACKING
2.1 PTDS09/12/15
PTDS25
The appliances are supplied as follows:-
Table 9
MODEL REF PTDS09/12/15 PTDS25
Carton (containing the following)
Control Box Assembly
Duplex Fan assembly
Hanger Brackets
Torctite Coupling
Fastenings Pack
Radiant Tube (Ø76.2 x 4572)
Reflector Panel (1511 long)
Reflector Panel (3035 long)
Reflector End Panel
1
2
3
4
5
6
7
8
3
2
1
6
4
1
2
2
2
4
3
2
1
8
6
1
4
-
6
4
PTDS 09/12/15
Fig 1
PTDS25
Fig 2
3
5
1
4
8
6
7
2
2
3
1
4
8
7
5

Page 6 of 32
2.2 PTDS30/35/40/45
The appliances are supplied as follows:-
Table 10
MODEL REF PTDS30/35 PTDS40/45
Carton (containing the following)
Control Box Assembly
Duplex Fan Assembly
Hanger Brackets
Torctite Coupling
Fastenings Pack
Radiant Tube (Ø101.6 x 4572)
Radiant Tube (Ø101.6 x 3048)
Radiant Tube Assy (turbulator)
Reflector Panel (3035 long)
Reflector End Panel
1
2
3
4
5
6
7
8
9
3
2
1
8
6
1
2
-
2
6
4
3
2
1
10
8
1
2
2
2
8
4
PTDS30/35
Fig 3 PTDS40/45
Fig 4
9
8
2
7
3
5
4
1
4
67
3
1
9
8
5
2

Page 7 of 32
3. INSTALLATION
Not withstanding their limited scope, the appliance should be installed in accordance with the relevant
provisions of any National Gas Safety (Installation and Use) Regulations. Due account should also be
taken of any obligations arising from any National Health and Safety at Work Regulations, National and
Local Building Regulations and National Electrical Wiring Regulations. The appliance must be installed,
and where necessary, converted for use on other gases, by a qualified installer.
3.1 Suspension
3.1.1 The appliance should be located with respect to building construction and other equipment to permit
access to the appliance for servicing etc.
3.1.2 For suspending the appliance it is recommended that suitable protected welded chain (Ø3mm x 65 links
per m) or Ø8mm min mild steel drop rods and suitable brackets are used. Attach the chains or drop rods
to the hanger brackets where shown (see section 4). Providing at least Ø5mm closed link hooks are used
chains may be attached directly to the hanger brackets.
3.1.3 The appliances may be mounted horizontally or at a recommended angle of 300maximum to the horizontal
as shown below.
Fig. 5
3.1.4 Minimum clearance from combustibles:-
Fig 6
Horizontal Mounting
Neon Lights
Latch
Neon Lights
Angle Mounting
(recommended to 30°)
30°
Latch
END END
ABOVE (CEILING) ABOVE (CEILING)
BELOW BELOW
SIDE SIDE FRONT
REAR

Page 8 of 32
Table 11
MODEL SIDE ABOVE BELOW END FRONT REAR
PTDS 09/12/15 450 450 1220 450 575 305
PTDS25 510mm 450mm 1220mm 510mm 610mm 305mm
PTDS30/35/40/45 760mm 610mm 2285mm 610mm 760mm 380mm
3.2 Gas Supply
3.2.1 Natural Gas - G20 at 20mbar supply pressure (appliance cat 2H)
Maximum supply pressure (Pmax) 25mbar
Minimum supply pressure (Pmin) 17mbar
Setting pressure 12.5mbar
Gas connection R - ½
3.2.1.1 Installation pipes should be fitted in accordance with National and Local Regulations. Pipes of a smaller
size than the heater connection (R - ½) should not be used and the pipe work must be designed to
achieve a gas supply pressure between the maximum and minimum values stated above, measured at
the appliance inlet pressure test point.
A union service cock MUST be fitted as close as practicable upstream of the heater to enable the gas train
to be removed for maintenance or repair.
It is essential to provide a flexible metallic hose, which must conform, to national or Local Regulations, to
connect the appliance to the gas supply. Minimum size to be ½" (12.7mm) bore.
3.2.2 LPG - G30/G31 at 29/37mbar supply pressure (appliance cat. 3+).
Maximum supply pressure (Pmax): G30 - 35mbar
G31 - 45mbar
Minimum supply pressure (Pmin): G30 - 20mbar
G31 - 25mbar
Note:- for appliance cat 3+ the governor is not operational
Gas connections: R - ½
3.2.2.1 The appliance should be connected to a permanent piped supply of LPG with pipes of adequate size to
achieve a gas supply pressure between the maximum and minimum valves stated above, measured at
the appliance inlet pressure test point.
3.2.3 The complete installation MUST be tested for soundness in accordance with National or Local
Regulations.
3.3 Electrical Supply
WARNING: THIS APPLIANCE MUST BE EARTHED
3.3.1 The electrical wiring to each heater must be installed in accordance with the latest or current National
Regulations and any Local Regulations which apply.
Electrical supply 230V~50Hz 125W
Current rating 0.55
Fuse externally 3A
