PR electronics 2222 User manual

PERFORMANCE
MADE
SMARTER
Product manual
2222
Switchmode power supply
TEMPERATURE | I.S. INTERFACES | COMMUNICATION INTERFACES | MULTIFUNCTIONAL | ISOLATION | DISPLAY
No. 2222V104-UK
From serial no.: 191087001

6 Product Pillars
to meet your every need
With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six
product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial
and factory automation. All our products comply with or surpass the highest industry standards, ensuring reliability in even
the harshest of environments and have a 5-year warranty for greater peace of mind.
Individually outstanding, unrivalled in combination
Our range of temperature transmitters and sensors provides the highest level of signal integrity from the
measurement point to your control system. You can convert industrial process temperature signals to analog, bus or
digital communications using a highly reliable point-to-point solution with a fast response time, automatic self-
calibration, sensor error detection, low drift, and top EMC performance in any environment.
Our unique range of single devices covering multiple applications is easily deployable as your site standard. Having
one variant that applies to a broad range of applications can reduce your installation time and training, and greatly
simplify spare parts management at your facilities. Our devices are designed for long-term signal accuracy, low
power consumption, immunity to electrical noise and simple programming.
We provide inexpensive, easy-to-use, future-ready communication interfaces that can access your PR installed base
of products. All the interfaces are detachable, have a built-in display for readout of process values and diagnostics,
and can be configured via push-buttons. Product specific functionality includes communication via Modbus and
Bluetooth and remote access using our PR Process Supervisor (PPS) application, available for iOS and Android.
Our display range is characterized by its flexibility and stability. The devices meet nearly every demand for display
readout of process signals and have universal input and power supply capabilities. They provide a real-time
measurement of your process value no matter the industry and are engineered to provide a user-friendly and reliable
relay of information, even in demanding environments.
We deliver the safest signals by validating our products against the toughest safety standards. Through our
commitment to innovation, we have made pioneering achievements in developing I.S. interfaces with SIL 2 Full
Assessment that are both efficient and cost-effective. Our comprehensive range of analog and digital intrinsically
safe isolation barriers offers multifunctional inputs and outputs, making PR an easy-to-implement site standard.
Our backplanes further simplify large installations and provide seamless integration to standard DCS systems.
Our compact, fast, high-quality 6 mm isolators are based on microprocessor technology to provide exceptional
performance and EMC-immunity for dedicated applications at a very low total cost of ownership. They can be
stacked both vertically and horizontally with no air gap separation between units required.

2222V104-UK 3
Switchmode power supply
2222
Table of contents
Warning ................................................................................................ 4
Symbol identification .................................................................................... 4
Safety instructions ...................................................................................... 5
How to dismantle system 2200 .......................................................................... 6
Application ............................................................................................. 7
Technical characteristics ................................................................................. 7
Mounting ............................................................................................... 7
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Output ................................................................................................. 7
Electrical specifications .................................................................................. 8
Order ................................................................................................... 9
Block diagram ........................................................................................... 9
Document history ....................................................................................... 10

4 2222V104-UK
HAZARD-
OUS
VOLTAGE
INSTAL-
LATION
GENERAL
Warning
This device is designed for connection to hazardous electric voltages.
Ignoring this warning can result in severe personal injury or mechanical damage.
To avoid the risk of electric shock and fire, the safety instructions of this manual must be observed and
the guidelines followed.
The specifications must not be exceeded, and the device must only be applied as described in the
following.
Prior to the commissioning of the device, this manual must be examined carefully.
Only qualified personnel (technicians) should install this device.
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired.
Warning
Until the device is fixed, do not connect hazardous voltages to the device.
The following operations should only be carried out on a disconnected device and under ESD-safe
conditions:
General mounting, wire connection and disconnection.
Troubleshooting the device.
Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only.
Warning
To keep the safety distances, devices with two built-in relays must not be connected to both hazardous
and non-hazardous voltages on the same device’s relay contacts.
SYSTEM 2200 must be mounted in socket type S3B Releco (order no 7023).
Symbol identification
Triangle with an exclamation mark: Read the manual before installation and commissioning of the
device in order to avoid incidents that could lead to personal injury or mechanical damage. Warning /
demand. Potentially lethal situations.
The CE mark proves the compliance of the device with the essential requirements of the directives.
The UKCA mark proves the compliance of the device with the essential requirements of the statutory
requirements.
The double insulation symbol shows that the device is protected by double or reinforced insulation.

2222V104-UK 5
Safety instructions
Definitions
Hazardous voltages have been defined as the ranges: 75 to 1500 Volt DC, and 50 to 1000 Volt AC.
Technicians are qualified persons educated or trained to mount, operate, and also trouble-shoot technically correct and in
accordance with safety regulations.
Operators, being familiar with the contents of this manual, adjust and operate the knobs or potentiometers during normal
operation.
Receipt and unpacking
Unpack the device without damaging it and check whether the device type corresponds to the one ordered. The packing
should always follow the device until this has been permanently mounted.
Environment
Avoid direct sun light, dust, high temperatures, mechanical vibrations and shock, and rain and heavy moisture. If necessary,
heating in excess of the stated limits for ambient temperatures should be avoided by way of ventilation.
The device must be installed in pollution degree 2 or better.
The device is designed to be safe up to an altitude of 2 000 m.
The device is designed for indoor use.
Mounting
Only technicians, who are familiar with the technical terms, warnings, and instructions in the manual and who are able to
follow these, should connect the device. Should there be any doubt as to the correct handling of the device, please contact
your local distributor or, alternatively,
PR electronics A/S
www.prelectronics.com
Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire
cross section, protective fuse, and location.
Descriptions of input / output and supply connections are shown in the block diagram and side label.
The following apply to fixed hazardous voltages-connected devices:
The max. size of the protective fuse is 10 A and, together with a power switch, it should be easily accessible and close to
the device. The power switch should be marked with a label telling it will switch off the voltage to the device.
Year of manufacture can be taken from the first two digits in the serial number.
Calibration and adjustment
During calibration and adjustment, the measuring and connection of external voltages must be carried out according to the
specifications of this manual. The technician must use tools and instruments that are safe to use.
Normal operation
Operators are only allowed to adjust and operate devices that are safely fixed in panels, etc., thus avoiding the danger of
personal injury and damage. This means there is no electrical shock hazard, and the device is easily accessible.
Cleaning
When disconnected, the device may be cleaned with a cloth moistened with distilled water.
Liability
To the extent the instructions in this manual are not strictly observed, the customer cannot advance a demand against PR
electronics A/S that would otherwise exist according to the concluded sales agreement.

6 2222V104-UK
How to dismantle system 2200
Picture 1:
The back panel of the module is detached from the housing by way of a
screwdriver.
Picture 2:
After this, the back panel can be pulled out together with the PCB, but
please notice the position of the PCB as there is a number of different
positions in the house. Do not pull the wires unnecessarily, instead pull the
PCB.
Switches and jumpers can now be moved.
When assembling the back plate and housing, please make sure no wires are
stuck.

2222V104-UK 7
Switchmode power supply 2222
• 230 or 115 VAC primary voltage
• 24 VDC output voltage
• Double isolation by 3.75 kVAC
• 48 Watt output power, short circuit-protected
• Thermal protection against overload
• DIN rail mounting on a standard 11-pole relay socket
Application
• General 24 VDC supply for equipment that requires a stabilised DC voltage.
• Separation of circuits in safety installations according to the PELV/SELV norm.
• Two units can be connected in series to achieve a plus / minus supply or a higher output voltage.
• The small mechanical dimensions of the switchmode power supply allow for a high DC output power, even in narrow
spaces.
Technical characteristics
• The power supply is based on primary switchmode technology to achieve a high efficiency.
• Galvanic isolation between the primary and the secondary voltage is achieved through the double-isolated safety
transformer. A thermal fuse protects the input circuit when the internal temperature exceeds 100°C.
• A 1 A fuse on the input protects the switchmode power supply against a short overload.
• The DC output is protected against a short circuit by an electronic current limiter that activates at an output current of
2.5 A.
• A green LED on the front of the module indicates an active primary voltage.
Mounting
• To achieve maximum cooling of the module, mounting in a vertical position at a distance of minimum 10 mm between
neighbouring units is recommended.
Input
• AC power supply according to the specifications.
Output
• DC voltage of 24 V. An internally mounted potentiometer allows for a ±5% adjustment of the output voltage.

8 2222V104-UK
Electrical specifications
Environmental conditions
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20 to +60°C
Relative air humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 95% RH (non-cond.)
Protection degree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP30
Mechanical specifications
Dimensions (HxWxD) (D is excl. pins) . . . . . . . . . . . . . . . . . . . . . . . . 80.5 x 35.5 x 84.5 mm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210 g
Common specifications
Max. consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 VA
Eciency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 80%
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 A T / 250 VAC
Thermal overload protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100°C
Isolation test / operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.75 kVAC / 250 VAC
PELV/SELV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IEC 61140
Power derating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1% / °C amb. (T amb. > 40°C)
Transient stability (10% - max. load) . . . . . . . . . . . . . . . . . . . . . . . . < 500 mV
Temperature coecient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.05%/°C
Eect of supply voltage change (±10%). . . . . . . . . . . . . . . . . . . . . . < 1%
EMC immunity influence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < ±0.5%
Electrical specifications - INPUT
Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207...253 VAC
102.4...132.2 VAC
Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50...60 Hz
Electrical specifications - OUTPUT
Output voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 VDC
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5%
Output power (max.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 W
Output current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 A / 24 VDC
Load stability (0 - max. load) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1.5% / A
Electronic current limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nom. 2.5 A
Output ripple . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 40 mVRMS (100 kHz)
Observed authority requirements
EMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/30/EU & UK SI 2016/1091
LVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/35/EU & UK SI 2016/1101
RoHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2011/65/EU & UK SI 2012/3032
EAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TR-CU 020/2011

2222V104-UK 9
Order

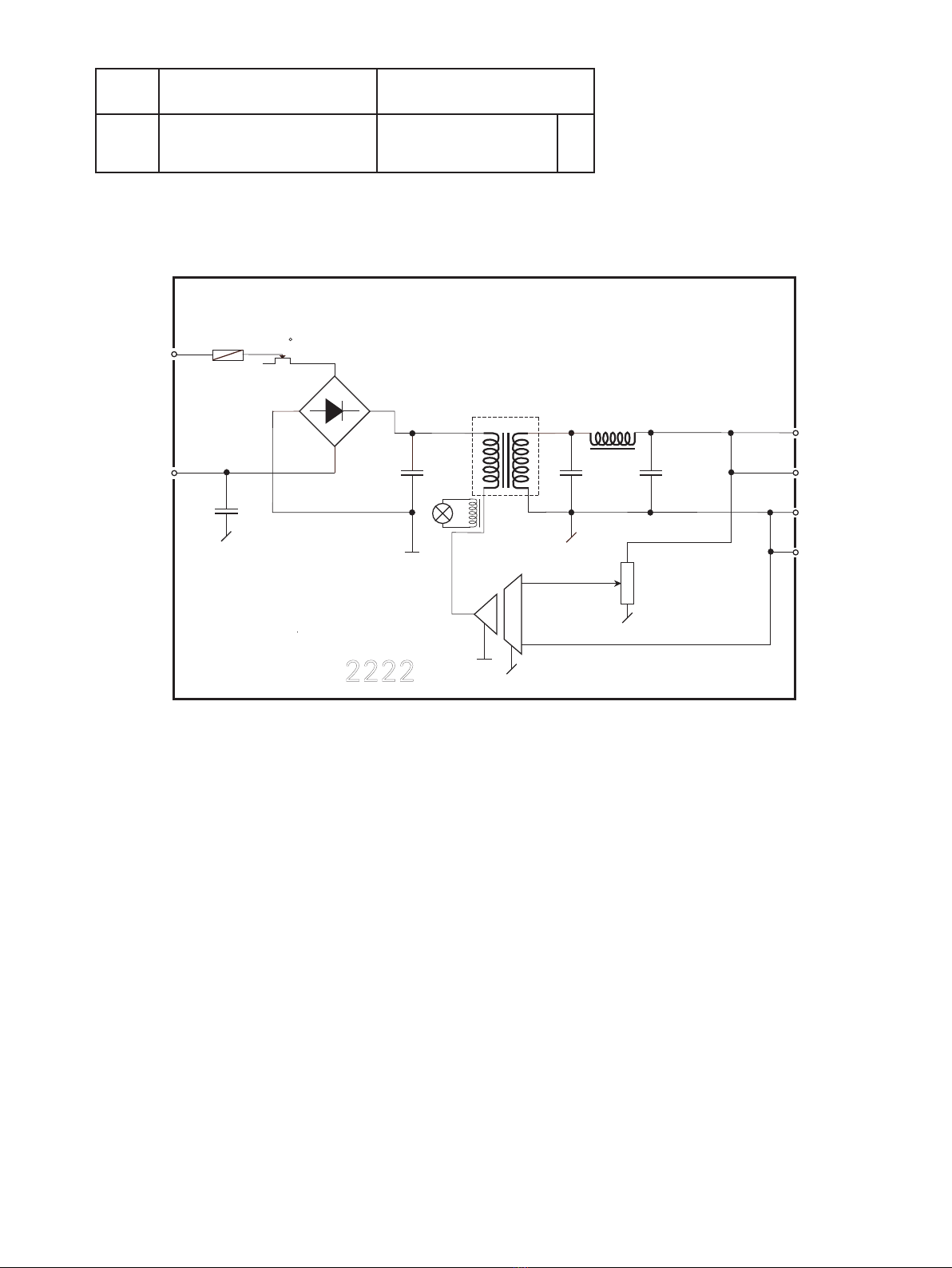

Block diagram
Type Input Output
2222 115 VAC
230 VAC
: A
: B
24 VDC : 1
2,2 nF
2222
9
8
10
11
2
6
C
100
1 AT
V  5%
Output +
Output gnd.
Supply P
Supply N

10 2222V104-UK
Document history
The following list provides notes concerning revisions of this document.
Rev. ID Date Notes
104 2232 UKCA added.

We are near you,
all over the world
All our devices are backed by expert service and a 5-year
warranty. With each product you purchase, you receive
personal technical support and guidance, day-to-day
delivery, repair without charge within the warranty period
and easily accessible documentation.
We are headquartered in Denmark, and have offices and
authorized partners the world over. We are a local
business with a global reach. This means that we are
always nearby and know your local markets well.
We are committed to your satisfaction and provide
PERFORMANCE MADE SMARTER all around the world.
For more information on our warranty program, or to
meet with a sales representative in your region, visit
prelectronics.com.
Our trusted red boxes are supported wherever you are

PR electronics is the leading technology company specialized in making industrial process
control safer, more reliable and more efficient. Since 1974, we have been dedicated to
perfecting our core competence of innovating high precision technology with low power
consumption. This dedication continues to set new standards for products communicating,
monitoring and connecting our customers’ process measurement points to their process
control systems.
Our innovative, patented technologies are derived from our extensive R&D facilities and
from having a great understanding of our customers’ needs and processes. We are guided
by principles of simplicity, focus, courage and excellence, enabling some of the world’s
greatest companies to achieve PERFORMANCE MADE SMARTER.
Benefit today from
PERFORMANCE MADE SMARTER
www.prelectronics.com
