PR Lighting OMEGA User manual

1
OMEGA
PR-8132
This product manual contains important information about the safe installation and use of this product. Please
read and follow these instructions carefully before installing and using the product and keep this manual in a
safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2
INDEX
1. SAFETY AND WARNINGS
2. INSTUCTIONS
●CLEANING AND MAINTENANCE
●LUBRICATION
●TROUBLESHOOTING
3. APPEARANCE
4. INSTALLATION
●POWER CONNECTIONS
●DMX CONTROL CONNECTION
●DMX TERMINATOR
5. SETUP AND CONFIGURATION
●FRONT PANEL OPERATION
●DMX START ADDRESS
●DMX WIRELSESS CONTROL
●STAND-ALONE MODE
●MASTER/SLAVE MODE
6.OPERATION MENU
7. DMX PROTOCOL

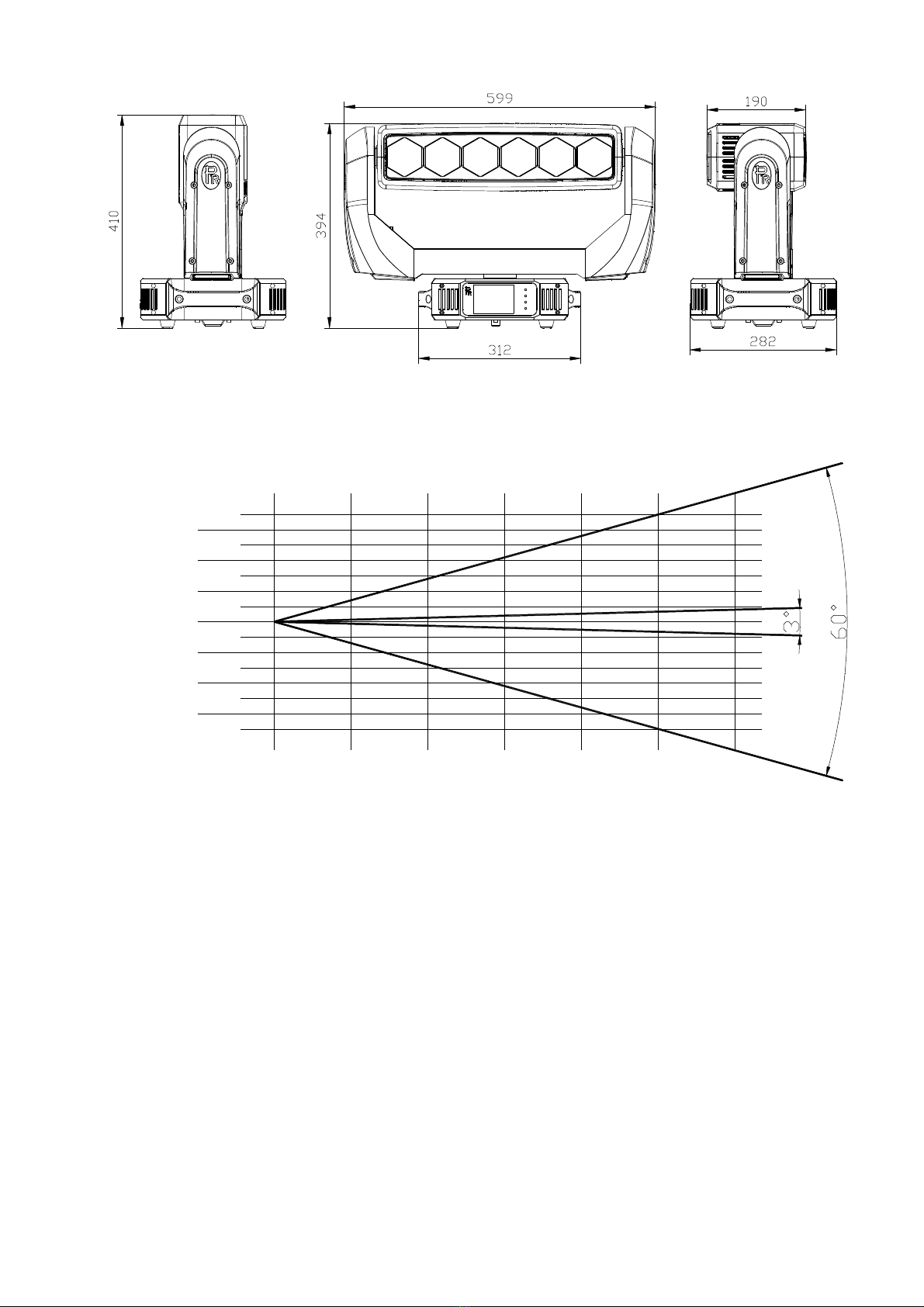

8.TECHNICAL DATA
9.CIRCUIT DIAGRAM AND PCB CONNECTIONS
●CIRCUIT DIAGRAM

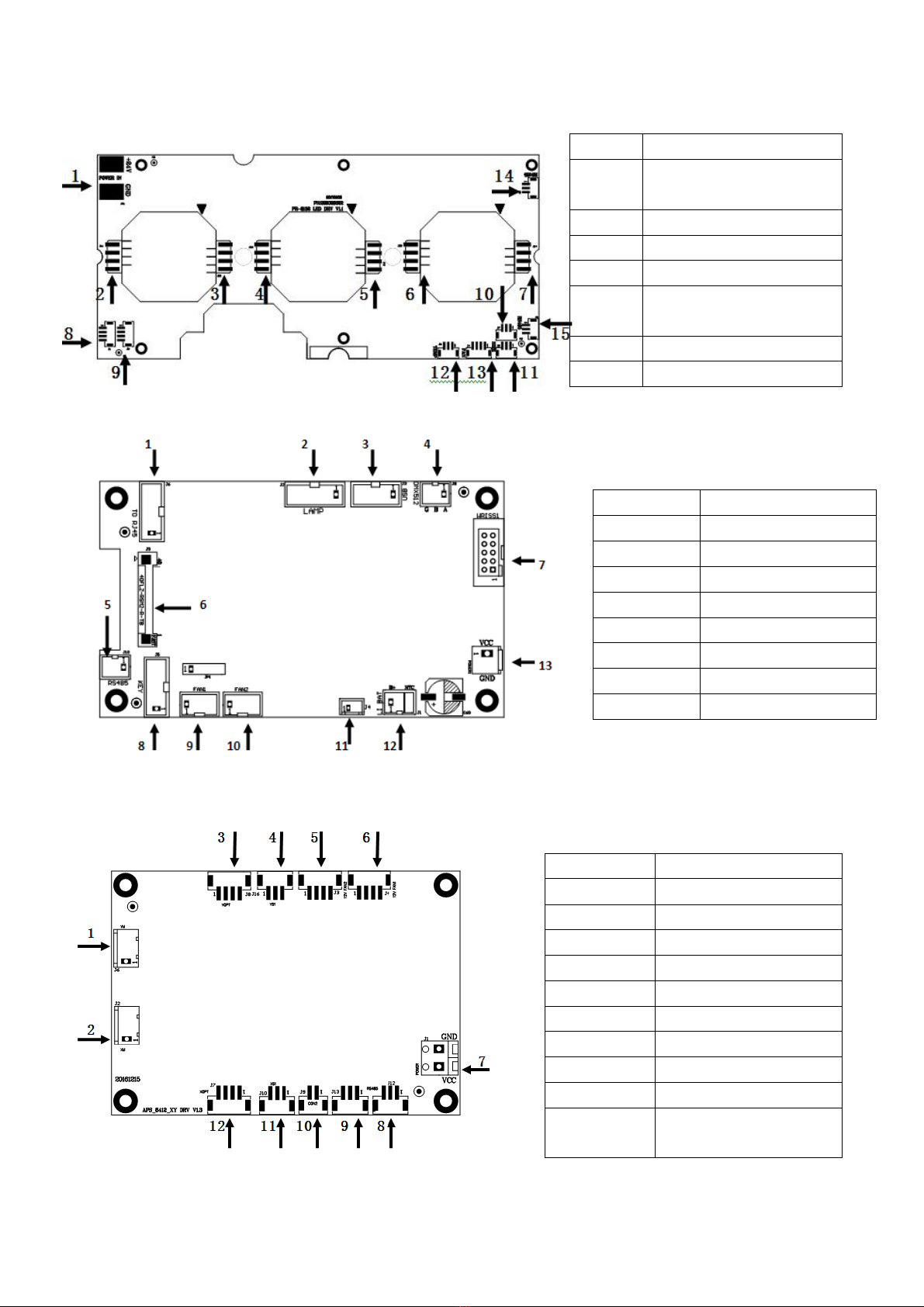

●PCB CONNECTIONS
10.COMPONENT ORDER CODES
3
4
4
4
5
5
6
6
7
7
8
8
8
8
9
9
9
11
13
16
16
17
18
ACCESSORIES
The following items are supplied with the projector and please check:
Name Quantity Unit Remark
G clamps 2 Pcs
XLR cable 1 Pc with plug and socket
Safety cord 1 Pc
This manual 1 Pc
Power cord 1 Pc
Wireless receiver module 1 Set
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change
without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the
course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any
consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are
in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and
do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.
Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date
but the light source is not within the warranty
Any future technical change in the user manual won’t be with any notice.

3
1. SAFETY AND WARNINGS
NOTE
Before a projector’s installation, power-on, operation and maintenance, please carefully read
the safety information hereinafter!

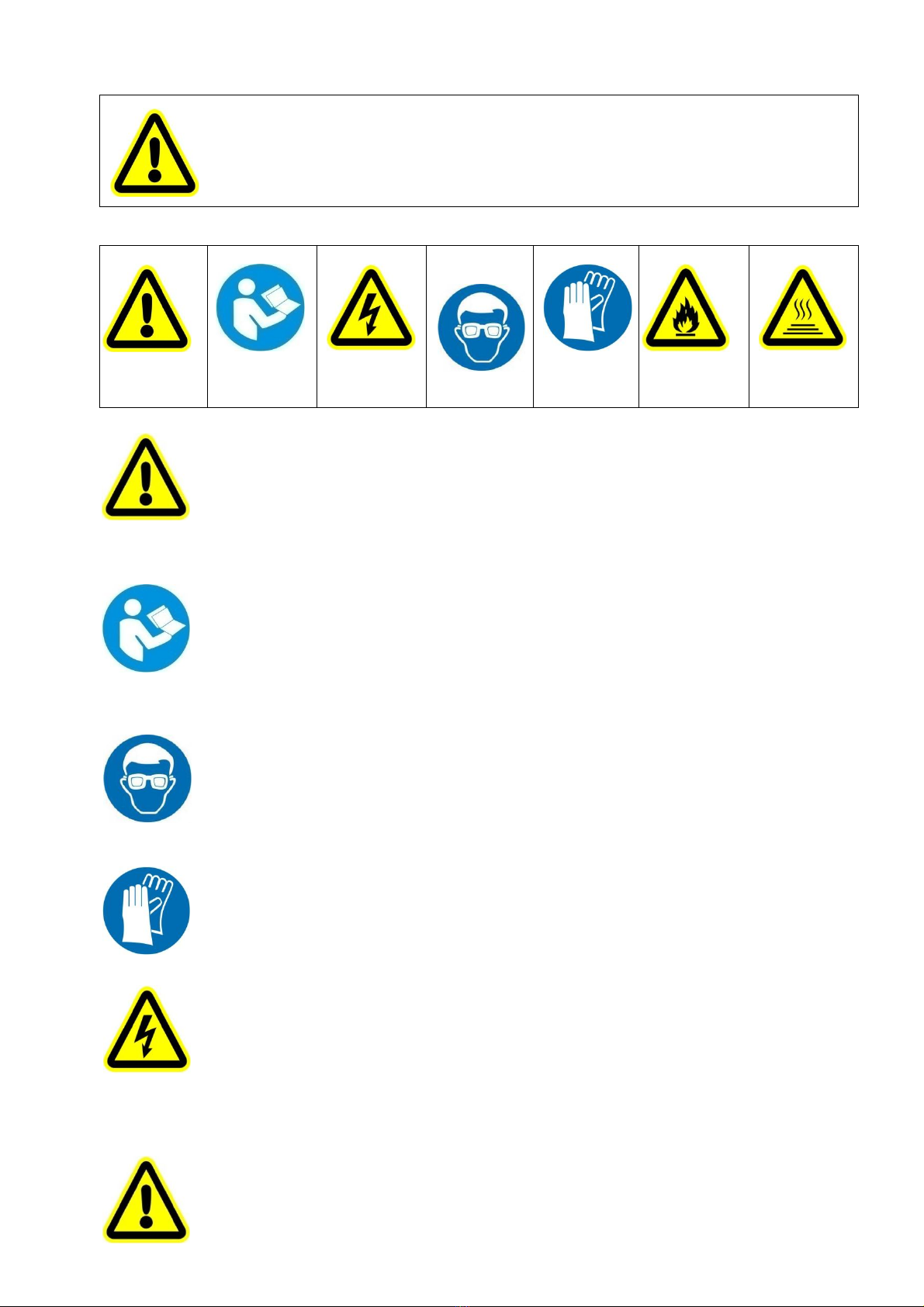

The following safety signs are used in the user manual.
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
High
Temperature
● When unpacking , check if there is transportation damage before using the projector. Should there be any
damage caused by transportation, consult your dealer and do not use it.
●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector as
he/she likes
●Please be noted that the damage caused by changing the projector at will is not warranted.
● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.
● The projector is for indoor use only, IP20.
● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not
allow contact with water or any other liquids.
●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while being
operated
●The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operation must strictly follow the procedures in the manual
●No repairable parts in the projector and do not open covers for maintenance by yourself.
●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
●Do not connect this device to any type of dimmer pack
●After lamp switched on, the minimum distance between the projector and illuminated surface is 5m
●If the lamp, lens and screen protective cover of the a lighting fixture have obvious damage, i.e.,to the
extent that it hurts the performance like cracking or deformation. Please stop use it and replace them with
the original parts, otherwise its performace will be compromised.
●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a projector
while covers(housing)are off
●Keep the lamp clean and do not touch it with bare hands.
●While operating it, wear protective items.
●Any electrical connection must be carried out by a qualified person .
●Before installation, please confirm the voltage supplied matches what is required for the projector
●Each projector must be properly earthed and installed as per related electrical standards.
●Do not use power cord with its insulator damaged and connect the power cord with other cables.
●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully or by
pulling the power cable.
●All power cords must conform to related safety and regulations
●While being operated, the projector should not be under rains or in humidity.
●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other
electrical parts’ life will be shortened .
●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord

4
supplied through the safety cord holes for safety support.
●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from power
mains.
●After running for 30minutes, the temperature of the housing of the projector is 45 .After stable operation , its ℃
temperature is 60 .℃
●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not mean
the projector has some defects.
●Do not mount the projector directly on inflammable surface.
●Do not project the beam straightly on combustible items and the minimum distance between the projector
and illuminated items is 5m.
●A projector should be installed with good ventilation and the minimum distance between the projector and
walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.
2. INSTRUCTIONS
●CLEANING AND MAINTENANCE
If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the
projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the
projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved, restart
the projector.
The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to
ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens need to be cleaned periodically to optimize
light output.
Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning
work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean
and do not touch optical parts with bare hands.
●Before any maintenance and cleaning, please ensure the project is off the power
●Only qualified person is allowed to do maintenance
●During maintenance and before maintenance, the projector must be off power.
●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via
front lens whether it runs or not
●Do not use alcohol or other organic solvent to clean the housing to avoid damage.
●Do not use any solvent with chemical elements to clean color filters or hot mirror.
●LUBRICATION （Only suitable for projectors with zoom lens）
To ensure smooth movement ZOOM lens, it’s advised 2 sliding bars for ZOOM lens be lubricated every 2 months. High quality
and high temperature lubricant/grease is advised.

5
●TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on
 Check the fuse on the power socket.
 Check the power cord.
 Check if the power supply is damaged or not connected well. A
professional technician is needed for the repairing.
 Check if the control board is connected well. A professional technician is
needed for the repairing.
The projector can be turned on, but the LED is
not bright and doesn’t respond to the controller
 Check if the LED driver board is connected well. A professional
technician is needed for the repairing.
The projector can be turned on but doesn’t
respond to the controller
 Make sure that the fixture’s start address is right
 Replace or repair the XLR signal cable.
Beam appears dim, Low in brightness
 Check if the fans work well and if dust blocks the fans and their shield
screen.
 Check if the internal optical system is clean or not.
The project image appears to have a halo  Carefully clean the lamp, optical lenses and other components.
Heavily Defective Beam  Check if lens are in good condition(not cracked)
 Clean dust or grease on the lens.

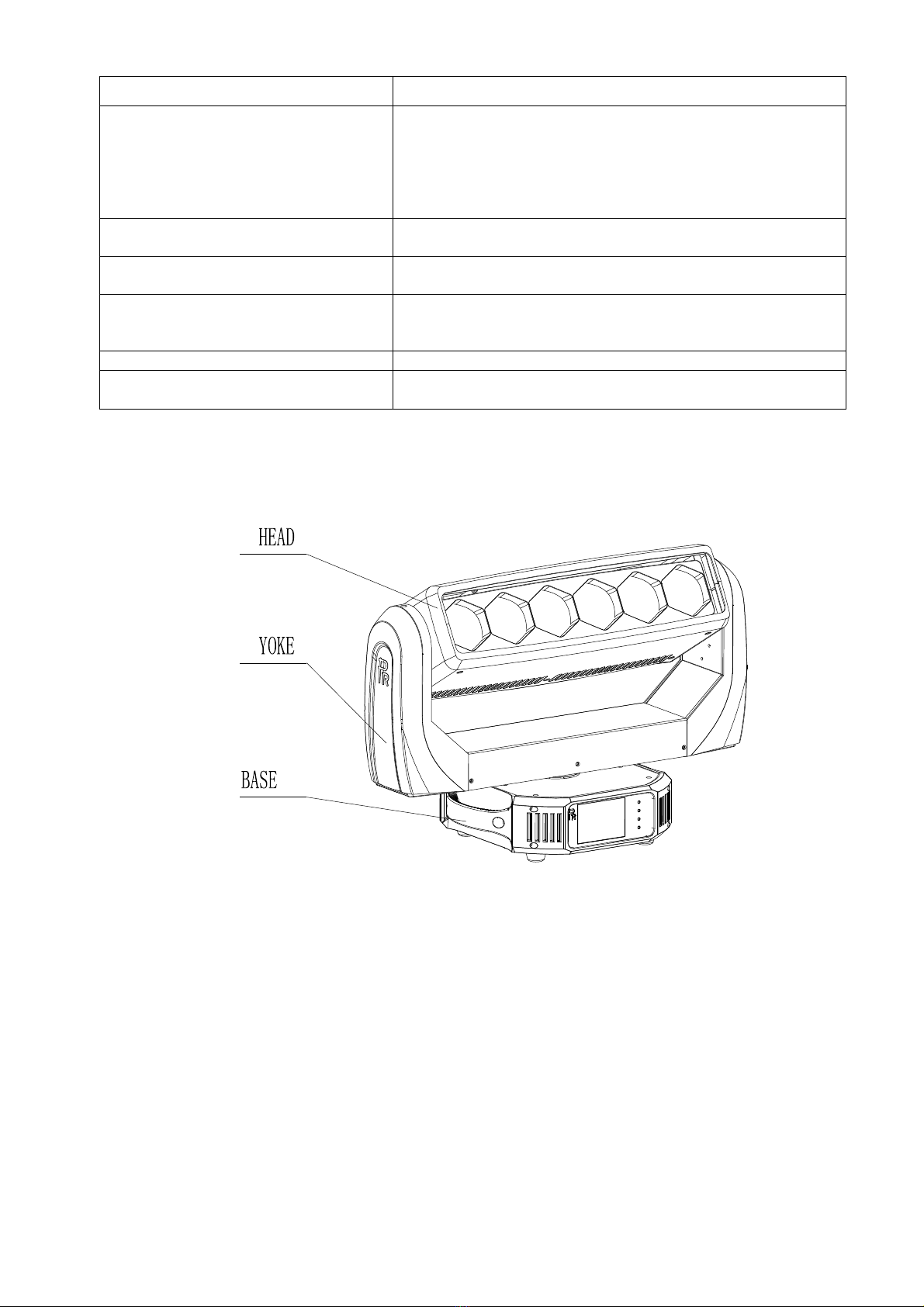

3. APPEARANCE

6
4. INSTALLATION
Take 2clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to the
clamp. Hang the fixture on the steel truss and fasten the retainers attached to the clamp. Always ensure that the location that you are going
to mount the unit is secure and is strong enough to support the weight of the unit (See the WARNING as shown above) To pass
SAFETY CORD through the SAFETY HOLE on the back cover of the base of the fixture for safety! Always ensure that the unit
is firmly anchored to avoid vibration and slipping whilst functioning.
WARNING:
●The projector MUST be lifted or carried by the HANDLES instead of clamps.
●.For safety the safety cord should afford 10 times the Projector’s weight.
● POWER CONNECTION
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projector be connected with power separately so that they may be individually switched on and off.
●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
accordance with the standards concerned.
●If any questions about the electrical installation, do not continue but consult a qualified electrician.

7
4●DMX CONTROL CONNECTION
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each
wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector)
or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol
DMX512 (1990).
Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second fixture’s
DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX terminator as
shown in the figure below.
●DMX TERMINATOR
In the Controller mode, at the last projector in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into
the output socket on the last projector in the chain. The connections are illustrated below.
DMX TERMINATOR
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2

8
5. SETUP AND CONFIGURATION
●FRONT PANEL OPERATION
Projector configuration can be set conveniently via push buttons and color touch screen.
To browse through or change the projector ’s settings, touch the white area of the touch screen or press ENTER button for more than
3s(Only powered by the battery, pressing the ENTER button will turn on the display) , then the screen will display the projector ’s
function menus. Each main menu has its sub-menus. And each menu stands for special function. For the details, please see the
following:
1. To set or browse through the functions via the icon interface, push the buttons on the left and right or touch the icon with the
desired function.
2. While at 2nd,3rd and 4th level of menus, the left key is for ESCAPE, but the right key won’t work, and ENTER key is used for
confirmation. Press ENTER key to save the changes or enter into the sub menus. Press UP or DOWN keys to change the
numbers(minus or plus). Or touch the option needed for change.
Press the left key or touch the X icon on top-right to go back to the upper level menu. If no action, the system will automatically go
back to initial display status.
Shortcut keys: with the graphic display, its top shows the projector ’s name . There are 3 shortcut keys to change between Chinese
and English languages, invert the display and go back to the upper level menu.
● DMX START ADDRESS
If many projector s are controlled by the controller, each projector should be set with a start address to receive signals sent by the
controller and respond to it. The projector have 3 DMX modes. There are short mode, standard mode and extended mode. For example
standard mode has 31channels, so set the No. 1 Projector ’s address 001, No. 2 Projector ’s address 032, No. 3 Projector ’s address 063
and so on.
Switch on the Projector . Press ENTER key more than 3 seconds to unlock panel.
Select DMX Address icon and press ENTER key or touch the icon directly on the display and select DMX address at the 2nd level menu
for the address setting.
Press UP or DOWN keys or touch <<、>> displayed for the DMX address desired.
Press ENTER key to confirm.
Press the left key to go back to the upper level menu.
●DMX WIRELESS CONTROL (If the projector has the function)
The projector has wireless control function with wireless receiver module and antenna for remote control.
The setup of it is below:
1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN
2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the front
FUNC
UP
DOWN
ENTER

9
panel will be on, meaning wireless control function is activated.
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press
“Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .
●STAND-ALONE MODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.
●MASTER/SLAVE MODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first projector ’s DMX output to the second projector ’s DMX input using XLR-XLR control cable and then connect the
second projector ’s DMX output to the third projector ’s DMX input, and so on until all projector are connected in this way. Eventually
connect the last projector ’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.
6. OPERATION MENU
1
st
level menu
2
nd
level menu
3
rd
level menu
4
th
level menu
DMX Settings
DMX Address 000 - 512
DMX Mode
Standard
Extended
Short
Loss of DMX Black Out
Hold Last
View DMX Values
Reset
Pan/Tilt Reset
Head Reset
ALL Reset
Config Settings
Master Slave Master
Slave
Display Mode On Always
Off After Delay
Display Dimming 001 - 010
Display Invert Normal
Inverted
Language Setup English
Chinese
Calibrate
DMX Signal
XLR First
XLR Only
Wireless Only
Wireless First
DMX TERMINATOR

10
Wireless To XLR
Un-Link Wireless
Factory Setting
PRM Transmit
Clean Progra
Option Settings
Pan DMX Invert OFF
ON
Tilt DMX Invert OFF
ON
Pan Tilt Swap OFF
ON
Offset
(Motor and Color
calibration)
(Input code 128)
Pan Offset -127 ~ 127
Tilt Offset -127 ~ 127
Zoom Offset -127 ~ 127
Red Offset 128-255
Green Offset 128-255
Blue Offset 128-255
Time Clean (Input Code 088)
Defaults Motor and Color not
going back default
Information
Total Hours
Temperature
Display Board
LED 1
LED 2
Pan and Tilt
Software Version
Display Board
Pan and Tilt
Driver Board 1
Driver Board 2
Electronic SN
Status Inform.
Pan Ecnoder
Pan Sensor
Pan Over Temp
Pan Fault
Tilt Encoder
Tilt Sensor
Tilt Over Temp
Tilt Fault
ZOOM Sensor
LED1 Temperat.
LED2 Temperat.
Test Modes
Auto Test
Manual Test
Shutter 000-255
Dimmer 000-255
LED1
(LED1 Macro) 000-255
LED2
(LED2 Macro) 000-255
LED3
(LED3 Macro) 000-255
LED4
(LED4 Macro) 000-255
LED5
(LED5 Macro) 000-255

11
LED6
(LED6 Macro) 000-255
ZOOM 000-255
Pan 000-255
Tilt 000-255
XY Sp
(Pan & Tilt Speed) 000-255
X Run
(Pan continual rotation) 000-255
Y Run
(Tilt continual rotation) 000-255
Operation Mode
DMX Mode
User Memory
Preset Memory
Static Scene1-16
Shutter 000-255
Dimmer 000-255
LED1
(LED1 Macro) 000-255
LED2
(LED2 Macro) 000-255
LED3
(LED3 Macro) 000-255
LED4
(LED4 Macro) 000-255
LED5
(LED5 Macro) 000-255
LED6
(LED6 Macro) 000-255
ZOOM 000-255
Pan 000-255
Tilt 000-255
XY Sp
(Pan & Tilt Speed) 000-255
X Run
(Pan continual rotation) 000-255
Y Run
(Tilt continual rotation) 000-255
KeepT
(Running time for each scene) 000-255(0- 20S)
7. DMX PROTOCOL
Short27 Standard 31 Extended 51 function DMX
Value Description
1 1
1
Strobe
000-007 No
008-127 Strobe from slow to fast
128-135 No
136-177 Fast closing and slow opening
178-185 No
186-227 Fast opening and slow closing
228-235 No
236-249 Random Strobe (For any lamp on any fixture)
250-255 No
2 2 2 Dimmer 000-255 Linear Dimmer from dark to bright

12
3 3 3
Color
Temperature
000 No
001-255 Linear CT change from low to high(2700-10000K)
4 4 4 Color Macro 000-007 No
008- 255 Fading Rainbow from slow to fast
5 5 5 Colors
000 No
001-255 255 colors
6 6 6 Area 1 Red 000-255 Linear change from dark to bright
7 7 7 Area 1 Green 000-255 Linear change from dark to bright
8 8 8 Area 1 Blue 000-255 Linear change from dark to bright
9 9 9 Area 1 White 000-255 Linear change from dark to bright
6 6 10 Area 2 Red 000-255 Linear change from dark to bright
7 7 11 Area 2 Green 000-255 Linear change from dark to bright
8 8 12 Area 2 Blue 000-255 Linear change from dark to bright
9 9 13 Area 2 White 000-255 Linear change from dark to bright
6 6 14 Area 3 Red 000-255 Linear change from dark to bright
7 7 15 Area 3 Green 000-255 Linear change from dark to bright
8 8 16 Area 3 Blue 000-255 Linear change from dark to bright
9 9 17 Area3 White 000-255 Linear change from dark to bright
6 6 18 Area 4 Red 000-255 Linear change from dark to bright
7 7 19 Area 4 Green 000-255 Linear change from dark to bright
8 8 20 Area 4 Blue 000-255 Linear change from dark to bright
9 9 21 Area4 White 000-255 Linear change from dark to bright
6 6 22 Area 5 Red 000-255 Linear change from dark to bright
7 7 23 Area 5 Green 000-255 Linear change from dark to bright
8 8 24 Area5 Blue 000-255 Linear change from dark to bright
9 9 25 Area5 White 000-255 Linear change from dark to bright
6 6 26 Area 6 Red 000-255 Linear change from dark to bright
7 7 27 Area 6 Green 000-255 Linear change from dark to bright
8 8 28 Area 6 Blue 000-255 Linear change from dark to bright
9 9 29 Area 6 White 000-255 Linear change from dark to bright
10 10 30 Zoom Lens 000-255 Linear Focus
11 31 Zoom Fine 000-255 Focus in 16 bit
11 12 32 Pan 000-255 Pan 0-540 degrees
13 33 Pan in 16 bit 000-255 Pan in 16 bit
12 14 34 Tilt 000-255 Tilt 0-270 degrees
15 35 Tilt in 16 bit 000-255 Tilt in 16 bit
16 36 Pan and Tilt Speed
000-255 Pan & Tilt speed from fast to slow
13 17 37 Continual Pan
000 Stop
001-127 Pan anti-clockwise rotation from slow to fast
128-255 Pan clockwise rotation from slow to fast
14 18 38 Continual Tilt
000 Stop
001-127 Pan clockwise rotation from slow to fast
128-255 Pan anti-clockwise rotation from slow to fast
15 19 39 Macros
000-007 NO
008-255 30 Macros(If it works, color dimmer from LED1to

13
LED6 won’t work, but dimmer for all still works.
16 20 40
Macro: Color1
Dimmer 000-255 Linear adjustment from dark to bright
17 21 41
Macro: Color2
Dimmer 000-255 Linear adjustment from dark to bright
18 22 42
Macro: Speed
adjustment 000-255 From slow to fast
19 23 43
Macro Color 1:
Red Dimmer 000-255 Linear adjustment from dark to bright
20 24 44
Macro Color 1:
Green Dimmer 000-255 Linear adjustment from dark to bright
21 25 45
Macro Color
1:Blue Dimmer 000-255 Linear adjustment from dark to bright
22 26 46
Macro Color 1:
White Dimmer 000-255 Linear adjustment from dark to bright
23 27 47
Macro Color
2 :Red Dimmer 000-255 Linear adjustment from dark to bright
24 28 48
Macro Color 2:
Green Dimmer 000-255 Linear adjustment from dark to bright
25 29 49
Macro
Color2 :Blue
Dimmer
000-255 Linear adjustment from dark to bright
26 30 50
Macro Color 2:
White Dimmer 000-255 Linear adjustment from dark to bright
27 31 51 Control Function
000-139 Reserved
140-149 Pan and Tilt Reset(Stay for 3S)
150-179 Reserved
180-189 Head Reset (Stay for 3S)
190-199 Reserved
200-209 All Reset(Stay for 3S)
210-255 Reserved
Note: Can the Color Temperature Channel work only after the corresponding color channel is in use.
8. TECHNICAL DATA
ELECTRICAL PARAMETER
Input Voltages : 100V~240V AC，50/60Hz
Rated Power : 500W@230V
MAX. Current: 4.5A
Power Factor：PF >0.9
LIGHT SOURCE
LED: OSRAMS: 60W RGBW LED(SMT), Four in One
Power: 60W,6pcs
Color temperature: Linear change from 2700K to 10000K

14
Rated life 50000hrs
COLORS
Linear RGBW ,color mixing with unlimited colors, macros
DIMMER
0-100% linearly adjustable
STROBE:
Electronic strobe:0-25 F.P.S.( Pulse Strobe Macro)
OTHER EFFECTS:
Rainbow, Wash, Beam, multiple macros
ROTATION
Pan 0-540 degrees+ continual rotation, Tilt 0-270 degrees + continual rotation, auto-positioning
BEAM ANGLE
Beam angle(1/2 peak) θ1/2: Linear Focus 3°～ 60°
CONTROL:
International Standard DMX512 signal, 5 pin DMX512 interfaces
27channels in short mode, 31channels in standard mode, and51 channels in extended mode.
Master/slave mode
Stand-alone mode, Preset mode, Self test mode, Single Scene mode
DMX wireless receiver, Optional DMX512 wireless transmitter
OTHER FUNCTIONS:
Pixel Control, each color of RGBW of a LED lamp controllable .
Color touch screen and its brightness adjustable
Wireless Control(Optional)
Pan and Tilt Speed adjustable and Pan and Tilt can be inverted
Firmware upgraded via DMX interface and XLR cable,
Over temperature protection
Total hours, DMX channel number, software versions are displayed and display inversion
HOUSING:
High temperature ABS, IP20
WEIGHT:
Net weight: 14.2Kg
Gross weight: 65.2Kg in flight case(2pc/case) and accessories
17.6Kg in carton(1pc/ctn) and accessories
AMBIENT TEMPERATURE
Maximum ambient temperature: 45 °C

15
SIZES:
LIGHT OUTPUT :
5m
6m
5m
6m 7m
4m
2m
4m
2m
0m 1m
1m
3m
3m
7m
0 5 10 15 20 25 30
0.30 0.59 0.89 1.18 1.48 1.77
0.0
20290 7420 3410 1881 1211 8550
635 181 95 55 38 240
5.45 10.90 16.35 21.80 27.25 32.70
0.0
Distance (m)
Illuminance 3°(lux)
Diameter3°(m)
Illuminance 60°(lux)
Diameter60°(m)

16
9. CIRCUIT DIAGRAM AND PCB CONNECTIONS
●CIRCUIT DIAGRAM

17
●PCB CONNECTIONS
1。 LED Driver Control Board of PR-8132
.
4
2. Main board of PR-8132
3. Pan & Tilt Board of PR-8132
NO Name
1 Soldering location for power
input
2-7 LED driver output
8，9 Focus motor output
10，11 Focus sensor interface
12 LED lamp board thermal
sensor
13 24vfan interface
14，15 485 signal interface
NO Name
1,2,3 Reserved
4 DMX512 signal input
5 485 signal output
6 TFT screen interface
7 Reserved
8 Key interface
9，10，11，12 Reserved
13 Power Input
NO Name
1 Pan output
2 Tilt output
3 Tilt Optical coupler interface
4 Tilt Sensor
5，6 Reserved
7 Power Input
8，9 485 signal
10 Reserved
11 Pan Sensor
12 Pan Optical coupler
interface

18
10. COMPONENT ORDER CODES
NO. NAME CODE NO. QTY. REMARK
1 STEPPER MOTOR 030040233 2
2 STEPPER MOTOR 030040260 2 14HA4212-105NE
3 THE SUPPORT FOR MIXING ROD
OF PR-8132 060400028 6
4 LENS IN THE SHAPE OF
HEXAGON OF PR-8128 071100120 6 φ78.5×24mm PMMA
5 FROST FILTER FOR MIXING ROD
OF PR-8128 080090119 6 φ15×1mm GLASS
6 MIXING ROD OF PR-8128 080090120 6 45mm GLASS, MAXIMUM
TEMPERATURE 650 DEGREES
7 POWER SUPPLY 192010208 1 100-240VAC/24V 25A 600W
8 PR-8132 LED DRIVER BOARD 1 230060688 1
9 PR-8132 LED DRIVER BOARD 2 230060723 1
10 PR-8132 MAIN BOARD 230060697 1
11 PR-8132 PAN &TILT BOARD 230060698 1
12 PR-8132 LED LAMP BOARD 230060700 6
13 BELTS 290151437 1 627-3M-8
14 BELTS 290151322 1 531-3M-9

19
18668 Hwy 16 N
Helotes, TX 78023 USA
Toll Free: 866-460-MEGA
[email protected]
P/N: 320020525Version: 20180601
