PR Lighting PR-8129 User manual

1
GALAXY
PR-8129
This product manual contains important information about the safe installation and useof this product. Please
read and follow these instructions carefully before installing and using the product and keep this manual in a
safeplaceforfuturereference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2
INDEX
1. SAFETYANDWARNINGS
2. INSTRUCTIONS
3.APPEARANCE
4.INSTALLATION
5. SETUPANDCONFIGURATION
6.OPERATIONMENU
7. DMXPROTOCOL
8 SIGNSONTHETOUCHSCREEN
9ERRORMESSAGES
10.TECHNICALDATA

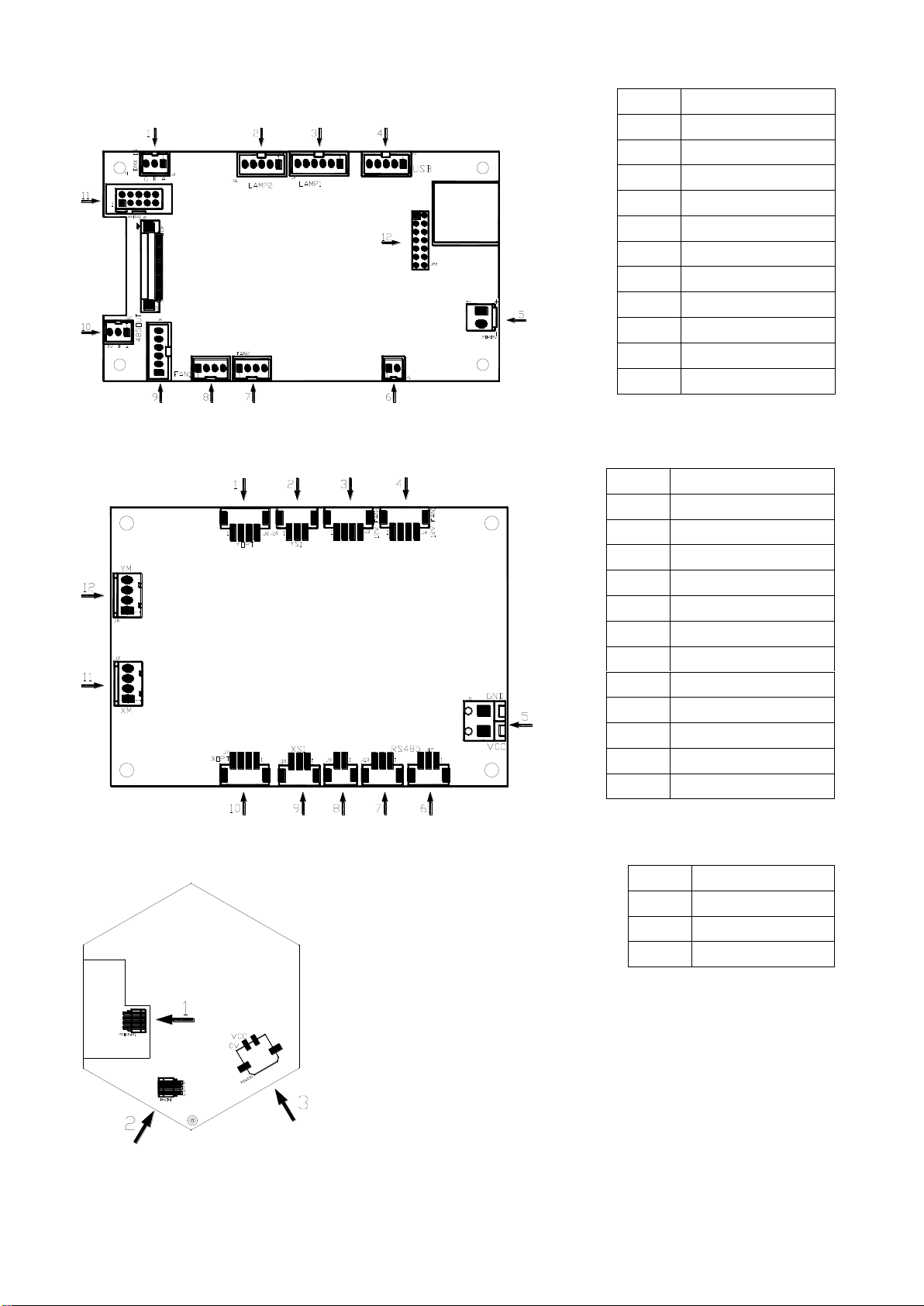

11.CIRCUITDIAGRAMANDPCBCONNECTIONS
12.COMPONENTORDERCODES
3
4
5
5
7
9
15
15
15
19
21
ACCESSORIES
The followingitems are supplied withtheprojectorandplease check:
Name
Quantity
Unit
Remark
Clamp
2
Pc
SafetyCord
1
Pc
User manual
1
Pc
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to
change without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change
specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the
information herein, or any consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit
are in good condition before installation and use. Should there be any damage caused by transportation, consult your
dealer and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or
dealer.
Note: Forthe products made by GuangzhouPRlightingLtd,thewarranty for the whole product is one year starting fromthedelivery date
butthelightsourceisnotwithinthewarranty.
Any future technical change in the user manual won’t be with any notice.

3
1. SAFETYANDWARNINGS
NOTE
Before a projector’s installation, power-on, operation and maintenance, please carefully read
thesafety informationhereinafter!

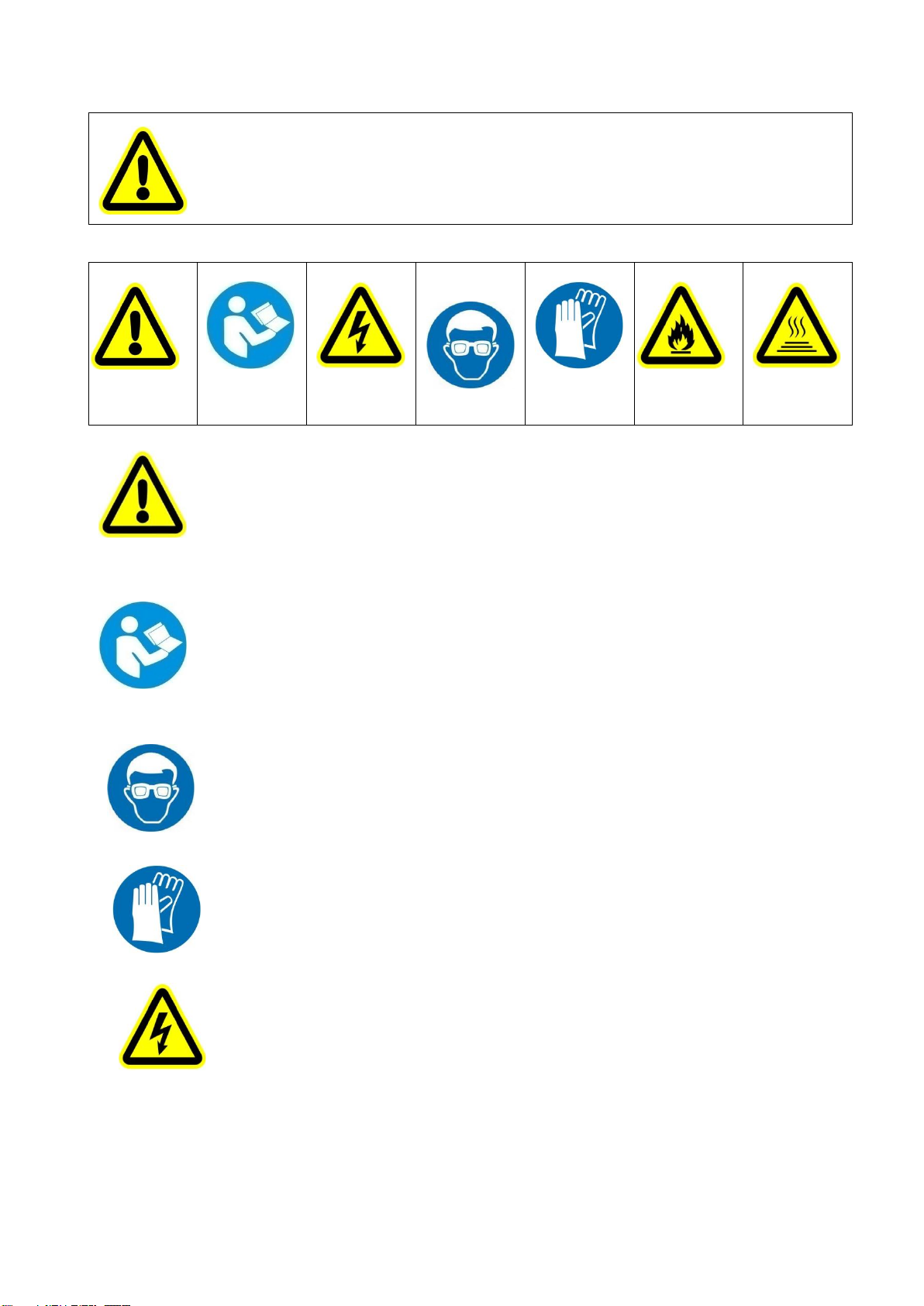

Thefollowingsafetysignsareusedintheusermanual.
Warning
User
Manual
Electrical
shock
Goggles
Protective
Gloves
Flames
High
Temperature
● Whenunpacking , check if there istransportation damage before using the projector. Should there be any
damagecausedbytransportation,consultyourdealeranddonotuseit.
●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector
ashe/shelikes
●Pleasebe notedthatthedamage caused by changingthe projectoratwill isnot warranted.
● Do nothesitate to contact thedealer or the manufacturerif anyquestionsor advice.
● Theprojector isforindoor useonly,IP20.
● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not
allowcontactwithwater oranyotherliquids.
●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while
being operated
●The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operationmuststrictlyfollowtheproceduresinthemanual
●Norepairablepartsintheprojector and do not opencoversfor maintenancebyyourself.
●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
●Do notconnectthis device to any typeofdimmerpack
●After lamp switched on, the minimumdistance between theprojectorand illuminated surface is 10m
●lens andotheropticalpartsshallbereplacedimmediatelyiftheyhavedeformedor beendamaged,otherwisethe
lightoutput willbecompromised.
●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a
projectorwhilecovers(housing)areoff
●Keepthelampcleananddonottouchitwithbarehands.
●Whileoperatingit, wearprotective items.
●Anyelectricalconnectionmustbecarriedoutbyaqualifiedperson.
●Before installation,pleaseconfirmthevoltage supplied matcheswhatisrequired for the projector
●Eachprojector mustbeproperlyearthedand installedasperrelated electricalstandards.
●Do not use power cord with itsinsulatordamaged and connectthepowercord withother cables.
●If the projector is not used or under cleaning,, please hold the plug and unplugit. Do not unplug it forcefully
or bypullingthepowercable.
●Allpowercords mustconformto relatedsafetyandregulations
●While beingoperated,theprojector shouldnotbeunderrainsor inhumidity.
●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other
electrical parts’ life will be shortened .

4
●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety
cord suppliedthroughthesafetycord holesforsafetysupport.
●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from
power mains.
●Afterrunningfor30minutes,thetemperatureofthehousingoftheprojectoris55℃.After stableoperation,
itstemperatureis70℃.
●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not
meantheprojector hassomedefects.
●Donotmounttheprojectordirectlyoninflammablesurface.
●Do not project the beam straightly oncombustible items and the minimum distance between the projector
andilluminateditemsis5m.
●Aprojector should be installed with good ventilationand the minimum distance betweenthe projector and
walsis50cm.Atthesametime,pleaseensurethefansandair inletsandoutletsare workable.
2. INSTRUCTIONS
●CLEANINGANDMAINTENANCE
If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the
projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the
projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,
restarttheprojector.
The accumulationof oil, smoke and dust on the lens will compromise thelight output. Cleaning a projector is very necessary to
ensure areliable use ofit. Cooling fans need to be cleaned every 15days.Internal lens, reflector and hot mirrorneed to be cleaned
periodicallytooptimizelightoutput.
Cleaning frequencyis to be decided by operations and its environment. Use soft cloth and normal detergent for glass forcleaning
work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean
and do not touchopticalpartswithbare hands.
●Beforeany maintenanceandcleaning,please ensuretheprojectisoffthepower
●Onlyqualified personisallowedtodomaintenance
●Duringmaintenance and beforemaintenance,theprojector mustbeoff power.
●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via
frontlenswhetheritrunsornot
●Do not use alcoholor otherorganic solvent tocleanthe housing toavoid damage.
●Donotuseanysolventwithchemicalelementsto clean color filtersorhotmirror.
●TROUBLESHOOTING
PROBLEM
ACTION
The projector doesn’t switch on
Checkthepower cordconnection
Power Switch fails or is not connected well, call a professional
technicianforrepairingandchecking
Control board is not connected normally, call a professional technician
forrepairingandchecking,
Theprojectcanbe turned on, butthe LEDlamps
can’t be on
LED lamp board is not connected well, calla professional technician for
repairing and checking
TheLEDlamps canbeon,butnotcontrolled
byDMX
CheckDMXStartAddress
CheckifXLRcablefailsornot
Thebrightnessdecreasesobviously
Ambient temperature is too hot which makes the projector too hot,
pleasetake appropriateventilationmeasures

5
3. APPEARANCE
4. INSTALLATION
●RIGGING
While transportation of the fixture, please lock both Pan and Tilt well; Before the use of the fixture, please unlock both. It’s forbidden
to run the fixture while it’s locked.
Take 2clamp and 1 the safety cord out from the package and mount 1 clamp on the BOTTOM of fixture with 2 retainers attached to
theclamp.Hang the fixtureonthesteeltrussandfastentheretainersattached totheclamp. Always ensurethat the locationthatyouare
going tomounttheunit is secureandisstrongenoughtosupporttheweightoftheunit(SeetheWARNINGasshown above) Topass
SAFETY CORD through the SAFETYHOLE on the back cover of the base of the fixture for safety! Always ensure that the
unitisfirmly anchoredtoavoidvibrationand slipping whilstfunctioning.

6
WARNING:
●Theprojector MUSTbelifted orcarriedbytheHANDLESinsteadofclamps.
●.For safety the safety cord should afford 10 times the Projector’s weight.
●POWERCONNECTION
Connectthepower cordasfollows:
L(live)=brown
E(earth) =yellow/green
N(neutral)=blue
Before power connection, please ensure the power supplied mustmatch what the nameplate says. It is recommended that each
projectorbe connected withpowerseparatelyso that theymay be individuallyswitchedonandoff.
Note: If projectors are connected in series, please connect POWERIN port of the 1st projector with the Power Mains, then
connectitsPOWEROUTwithPOWERINof the 2nd projector,and soontillallfixturesare connected.Ifthevoltagesupplied
is 200V-240V, the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores
ofthe wiresforthePowerin/outcablesmustbeequalor biggerthan2.5mm2.
●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
accordancewiththestandardsconcerned.
●Ifanyquestionsaboutthe electricalinstallation,donot continuebutconsulta qualifiedelectrician.
●DMXCONTROLCONNECTION
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon5 pin (which are included with the
projector)or5pinXLRplugsandsockets.TheXLR'sareconnected asshowninthefigureabove.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol
DMX512(1990).
Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second
fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX
terminator asshowninthefigurebelow.

7
●DMXTERMINATOR
In the Controller mode, at the last projector in the chain, the DMX output has to be connected witha DMX terminator. This prevents
electrical noisefromdisturbingandcorruptingtheDMXcontrol signals.
The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is then plugged
intotheoutput socket onthelastprojector inthechain.Theconnectionsare illustratedbelow.
5. SETUPANDCONFIGURATION
●FRONTPANELOPERATION
Projectorconfigurationcanbesetconvenientlyviapushbuttonandthetouchscreen.
Launchtheprojector andpressbutton ENTER formore than3secondsto unlockthepanel, thedisplay willshowthe functionmenu of
the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the
“OPERATION MENU” section.
Pressbutton UP or DOWN ifyouwanttobrowsethroughthevariousSetupOptions.
Pressbutton ENTER tosave yoursettingsorenterthesubmenu.
Pressbutton UP or DOWN tochangevalues(plusorminus)
Pressbutton FUNC, itwillreturntotheuppermenu.Ifbutton FUNC notpressed,thedefault willshow displaystatusautomatically.
●DMXSTARTADDRESS
If many projector s are controlled by the controller, each projector should be set with a start address to receive signals sent by the
controller and respond to it. The projector have 3 DMX modes. There are short mode, standard mode and extended mode. For
example standard mode has 30channels, so set the No. 1 Projector ’s address 001, No. 2 Projector ’s address 031, No. 3 Projector ’s
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain. PIN 3
PIN 2
FUNC
UP
DOWN
ENTER

8
address061 and soon.
Launchtheprojector. Pressbutton ENTER morethan2secondstounlockpanel.
Pressbutton ENTER todisplayDMXaddress;
Pressbutton UP and DOWN,youcanset the address;
Pressbutton ENTER toconfirm;afterpowered on next time,thedefault willbelastvaluesaved
Pressbutton FUNC, itwillreturntotheuppermenu
●DMXWIRELESSCONTROL(Optional)
Theprojector hastheoptionalwirelesscontrol function.With wirelessreceiver moduleandantenna,itcanachieveremotecontrol.
Thesetupofitisbelow:
1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN
2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the
front panel willbe on, meaningwireless control functionis activated.
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,
Press “Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .
●STAND-ALONEMODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.
●MASTER/SLAVEMODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first projector ’s DMX output to the second projector ’s DMX input using XLR-XLR control cable and then connect the
secondprojector’s DMX output to the third projector ’s DMX input, and so on until all projector are connected in this way. Eventually
connectthelastprojector ’s DMX output to a DMXterminator. Set 1st projector as the master and others are Slaves.
Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can
be setaccordingly.
AfterPoweredon,thegroup willruninMaster/SlaveMode

9
6. OPERATIONMENU
1stLEVEL
2ndLEVEL
3rdLEVEL
4thLEVEL
5thLEVEL
Address
DMX Address
1-486（Short mode）
1-482（Standardmode）
1-410（Extended ）
IP Address
Default IPAddress
2.X.X.X/10.X.X.X
CustomIPAddress
X.X.X.X
SubNetMask
X.X.X.X
ArtNetUniverse
0-255
Reset
Total Reset
ReallyReset?
Confirm/Cancle
Pan&TiltReset
ReallyReset?
Confirm/Cancle
ColourSystemReset
ReallyReset?
Confirm/Cancle
ConfigSettings
DMXChannelMode
ShortMode
StandardMode
ExtendedMode
ViewSelectedMode
Strobe
………..
Signal Select
XLROnly
XLRFirst
WirelessOnly
WirelessFirst
WirelessIn/XLROut
ArtNetOnly
ArtNetIn/XLROut
LossofDMX
Normaltimeout
Hold LastValue
DisplayConfig
DisplayMode
OffAfterDelay
OnAlways
DisplayInvert
InvertOFF
InvertON
InvertAuto
LanguageSetting
English
Chinese
TemperatureUnit
CelsiusDegree
FahrenheitDegree
Un-LinkWireless
ReallyUn-Link?
Confirm/Cancle
Defaults
RestoreDefaults?
Confirm/Cancle
Option Settings
Pan/TiltSettings
PanDMXInvert
OFF/ ON
TiltDMXInvert
OFF/ ON
PanTilt Swap
OFF/ ON
XYFeedback
OFF/ ON
Pan/TiltMode
speed/Time
InvertSettings
LensInvert
OFF/ ON
FocusInvert
OFF/ ON
DimmerSettings
Gamma Curve
Gamma 2.0/2.2/2.4/2.6
LEDRefreshRate
0/15000/20000/25000Hz
DimmerSpeed
Fast/Medium/SlowSpeed

10
FanSettings
Standard/Theatre
Defaults
RestoreDefaults?
Confirm/Cancle
Information
ViewDMXValues
LampHours
Reset Lamp Hours
Total Hours
Temperature
DisplayBoardXX℃/F
PanTiltBoardXX℃/F
Driver Board XX℃/F
LEDBoard1XX℃/F
LEDBoard2XX℃/F
LEDBoard3XX℃/F
LEDBoard4XX℃/F
LEDBoard5XX℃/F
LEDBoard6XX℃/F
LEDBoard7XX℃/F
SoftwareVersion
DisplayBoard
System=XXX
Boot =XXX
PanBoard
System=XXX
Boot =XXX
Driver Board
System=XXX
Boot =XXX
LEDBoard1
System=XXX
Boot =XXX
LEDBoard2
System=XXX
Boot =XXX
LEDBoard3
System=XXX
Boot =XXX
LEDBoard4
System=XXX
Boot =XXX
LEDBoard5
System=XXX
Boot =XXX
LEDBoard6
System=XXX
Boot =XXX
LEDBoard7
System=XXX
Boot =XXX
ElectronicSN
ElectronicSN=
************
RDMDeviceLabel
RDMDeviceLabel
ANSIE1.20RDM
VersionX.X
FanStatus
HeadFan
Service
ManualEffectControl
StrobeXXX
DimmerXXX
…
FactoryTest
…
Operation
Mode
DMXMode
ChangeOperationMode?
Confirm/Cancle
MasterMode
PresetMemory
ChangeOperationMode?
Confirm/Cancle
UserMemory 1
ChangeOperationMode?
UserMemory 2
ChangeOperationMode?

11
Stand-AloneMode
PresetMemory
ChangeOperationMode?
UserMemory 1
ChangeOperationMode?
UserMemory 2
ChangeOperationMode?
StaticScene
ChangeOperationMode?
User
Memories
Edit UserMemory
Edit UserMemory1
/
Edit UserMemory2
SceneXX
（1~200Scenes）
StrobeXXX
DimmerXXX
…
DelayTimeXXX
DelayUnit
LinkTo StepXXX
Edit StaticScene
XXX
StrobeXXX
XXX
DimmerXXX
…
Init UserMemory
ResetUserMemory 1
ResetUserMemory?
InputPassword123
ResetUserMemory 2
ResetUserMemory?
InputPassword123
Reset StaticScene
Reset StaticScene?
InputPassword123
7. DMXPROTOCOL
Short8
Standard16
Extended16
FUNCTION
DMX
Value
Descriptions
1
1
1
Strobe
000-007
No
008-127
PulseStrobefromslowtofast
128-135
No
136-177
Fastcloseslowopen
178-185
No
186-227
Fastopenslowclose
228-235
No
236-249
Strobeatrandom(projectorand
LED lampatrandom)
250-255
No
2
2
2
Dimmer
000-255
Lineardimming0%-100%
3
3
3
Color
temperature
000
No
001-255
Linearcolortemperaturechange
（2700 –10000K）
4
4
4
Colormacros
000-007
No
008-255
Rainboweffectfromslowtofast
（Fade）
5
5
5
Colors
000
No
001-255
255colors
6
6
6
Area1red
000-255
Linearchange(0%-100%)
7
7
7
Area1green
000-255
Linearchange(0%-100%)
8
8
8
Area1blue
000-255
Linearchange(0%-100%)
9
9
9
Area1white
000-255
Linearchange(0%-100%)
6
6
10
Area2red
000-255
Linearchange(0%-100%)
7
7
11
Area2green
000-255
Linearchange(0%-100%)
8
8
12
Area2blue
000-255
Linearchange(0%-100%)
9
9
13
Area2white
000-255
Linearchange(0%-100%)

12
6
6
14
Area3red
000-255
Linearchange(0%-100%)
7
7
15
Area3green
000-255
Linearchange(0%-100%)
8
8
16
Area3blue
000-255
Linearchange(0%-100%)
9
9
17
Area3white
000-255
Linearchange(0%-100%)
6
6
18
Area4red
000-255
Linearchange(0%-100%)
7
7
19
Area4green
000-255
Linearchange(0%-100%)
8
8
20
Area4blue
000-255
Linearchange(0%-100%)
9
9
21
Area4white
000-255
Linearchange(0%-100%)
6
6
22
Area5red
000-255
Linearchange(0%-100%)
7
7
23
Area5green
000-255
Linearchange(0%-100%)
8
8
24
Area5blue
000-255
Linearchange(0%-100%)
9
9
25
Area5white
000-255
Linearchange(0%-100%)
6
6
26
Area6red
000-255
Linearchange(0%-100%)
7
7
27
Area6green
000-255
Linearchange(0%-100%)
8
8
28
Area6blue
000-255
Linearchange(0%-100%)
9
9
29
Area6white
000-255
Linearchange(0%-100%)
6
6
30
Area7red
000-255
Linearchange(0%-100%)
7
7
31
Area7green
000-255
Linearchange(0%-100%)
8
8
32
Area7blue
000-255
Linearchange(0%-100%)
9
9
33
Area7white
000-255
Linearchange(0%-100%)
6
6
34
Area8red
000-255
Linearchange(0%-100%)
7
7
35
Area8green
000-255
Linearchange(0%-100%)
8
8
36
Area8blue
000-255
Linearchange(0%-100%)
9
9
37
Area8white
000-255
Linearchange(0%-100%)
6
6
38
Area9red
000-255
Linearchange(0%-100%)
7
7
39
Area9green
000-255
Linearchange(0%-100%)
8
8
40
Area9blue
000-255
Linearchange(0%-100%)
9
9
41
Area9white
000-255
Linearchange(0%-100%)
6
6
42
Area10 red
000-255
Linearchange(0%-100%)
7
7
43
Area10green
000-255
Linearchange(0%-100%)
8
8
44
Area10 blue
000-255
Linearchange(0%-100%)
9
9
45
Area10 white
000-255
Linearchange(0%-100%)
6
6
46
Area11red
000-255
Linearchange(0%-100%)
7
7
47
Area11green
000-255
Linearchange(0%-100%)
8
8
48
Area11blue
000-255
Linearchange(0%-100%)
9
9
49
Area11white
000-255
Linearchange(0%-100%)
6
6
50
Area12 red
000-255
Linearchange(0%-100%)
7
7
51
Area12green
000-255
Linearchange(0%-100%)
8
8
52
Area12 blue
000-255
Linearchange(0%-100%)
9
9
53
Area12 white
000-255
Linearchange(0%-100%)
6
6
54
Area13 red
000-255
Linearchange(0%-100%)
7
7
55
Area13green
000-255
Linearchange(0%-100%)
8
8
56
Area13 blue
000-255
Linearchange(0%-100%)
9
9
57
Area13 white
000-255
Linearchange(0%-100%)

13
6
6
58
Area14 red
000-255
Linearchange(0%-100%)
7
7
59
Area14green
000-255
Linearchange(0%-100%)
8
8
60
Area14 blue
000-255
Linearchange(0%-100%)
9
9
61
Area14 white
000-255
Linearchange(0%-100%)
6
6
62
Area15 red
000-255
Linearchange(0%-100%)
7
7
63
Area15green
000-255
Linearchange(0%-100%)
8
8
64
Area15 blue
000-255
Linearchange(0%-100%)
9
9
65
Area15 white
000-255
Linearchange(0%-100%)
6
6
66
Area16 red
000-255
Linearchange(0%-100%)
7
7
67
Area16green
000-255
Linearchange(0%-100%)
8
8
68
Area16 blue
000-255
Linearchange(0%-100%)
9
9
69
Area16 white
000-255
Linearchange(0%-100%)
6
6
70
Area17 red
000-255
Linearchange(0%-100%)
7
7
71
Area17green
000-255
Linearchange(0%-100%)
8
8
72
Area17 blue
000-255
Linearchange(0%-100%)
9
9
73
Area17white
000-255
Linearchange(0%-100%)
6
6
74
Area18 red
000-255
Linearchange(0%-100%)
7
7
75
Area18green
000-255
Linearchange(0%-100%)
8
8
76
Area18 blue
000-255
Linearchange(0%-100%)
9
9
77
Area18 white
000-255
Linearchange(0%-100%)
6
6
78
Area19 red
000-255
Linearchange(0%-100%)
7
7
79
Area19green
000-255
Linearchange(0%-100%)
8
8
80
Area19 blue
000-255
Linearchange(0%-100%)
9
9
81
Area19 white
000-255
Linearchange(0%-100%)
10
10
82
Continuous
motor
000
Stop
001-127
Clockwiserotationfromslow to
fast
128-255
Anti-clockwise rotationfrom
slow tofast
11
11
83
Focus
000-255
Linearfocus
12
84
Finefocus
000-255
Focusin16bit
12
13
85
Pan
000-255
0-540 degrees
14
86
Finepan
000-255
Panin16 bit
13
15
87
Tilt
000-255
0-270 degrees
16
88
Finetilt
000-255
Tiltin16bit
17
89
Pan&tilt
speed
000-255
Pan&tiltspeedfromfast toslow
14
18
90
Macros
000-007
No
008-255
17 macros
Ifnobackcolorsandforecolors,
themacrosrunondefaultcolors；
Ifbackcolorsandforecolorsare
inuse, macrosrunoncustomized
colors。（ Forecolorsandback
colorsaredescribedinthe
followingchannels）

14
If theeffectworks, thedimmerfor
areas1-6 doesn’t work. But the
totaldimmerstillworks.
15
19
91
Macro
Fore Color
Dimmer
000-255
Dimming
(Forcustomized macros)
16
20
92
Macro
BackColor
Dimmer
000-255
Dimming
（ForCustomizedmacros ）
17
21
93
Macro
Speeds
000-255
Fromslow tofast
18
22
94
Macro
RedFore
Color
000-255
Backcolorlinearchanges
19
23
95
Macro
GreenFore
Color
000-255
Backcolorlinearchanges
20
24
96
Macro
BlueFore
Color
000-255
Backcolorlinearchanges
21
25
97
Macro
WhiteFore
Color
000-255
Backcolorlinearchanges
22
26
98
Macro
RedBack
Color
000-255
Backcolorlinearchanges
23
27
99
Macro
GreenBack
Color
000-255
Backcolorlinearchanges
24
28
100
Macro
BlueBack
Color
000-255
Backcolorlinearchanges
25
29
101
Macro
WhiteBack
Color
000-255
Backcolorlinearchanges
26
30
102
Control
000-139
Reserved
140-149
Pan&tiltreset(Stay3secondsto
reset)
150-179
Reset
180-189
Head motorreset(Stay3seconds
to reset)
190-199
Reserved
200-209
Totalreset(Stay3secondstoreset)
210-255
Reserved
NOTE:Animationchannelsarebeforecolortemperature,colormacro andcoloreffectchannelsinpriority,

15
8. SIGNSONTHETOUCHSCREEN
ConfigSettings
Option Settings
Chinese/English
Information
Error messages
Service
Address
OperationMode
Reset
UserMemories
9. ERRORMESSAGES
Thesystemcandetectsome errorsduringthereset,if displayed,touch to view theerror.
Theerror messagesareasfollows:
Name
Type
Correction
Pan
Timeout/magnetSensor/Encoder
Checkifwiring,positioning partsand motorsarenormal
Tilt
Timeout/magnetSensor/Encoder
Checkif wiring,positioning parts and motors arenormal
Focus
Timeout
Checkif wiring,positioning parts and motors are normal
EffectWheel
Timeout
Checkif wiring,positioning parts and motors arenormal
Pan Board
Error
Checksignalwire
TiltBoard
Error
Checksignalwire
DriverBoard1
Error
Checksignalwire
FanBoard
Error
Checksignalwire
FanError
Error
Checkifallfansarenormal
TimeIC
Error
10.TECHNICALDATA
ELECTRIC PARAMETERS
Input voltage100V~240VAC,50/60Hz
Inputpower1400W@230V
Currentatmaximum15.0A
PowerfactorPF>0.9
LIGHTSOURCE
LED: OSRAMS:60WRGBWLED,Fourin One
Power: 60W,19pcs
Colortemperature: Linearchangefrom2700Kto10000K
Rated life 50000hrs

16
COLORS
LinearRGBW,color mixingwithunlimitedcolors,macros
DIMMER
0-100%linearlyadjustable
STROBE:
Electronic strobe:0-25F.P.S.( PulseStrobeMacro)
OTHER EFFECTS:
Rainbow, Wash, Beam,Profile, EffectModes(Kaleidoscope,Swirl), multiple macros
ROTATION
Pan0-540 degrees,Tilt0-210degreeswithauto-positioning ,Bi-directional and continual rotation for the front lenspanel
BEAMANGLE
Beamangle(1/2peak)θ1/2: Linear Zoom3.3°～60°
CONTROL:
International StandardDMX512signal,5pinDMX512interfaces
26channelsinshort mode, 30channels instandard mode,and102 channelsinextended mode.
Master/slavemode
Stand-alone mode,Presetmode,Selftestmode,staticScenemode
OTHERFUNCTIONS:
PixelControl
Bi-directionalandcontinualrotationofthefrontlenspanel
Colortouchscreenanditsbrightnessadjustable
WirelessControl(Optional)
PanandTiltSpeedadjustableand PanandTilt canbeinverted
Firmwareupgraded viaDMXinterfaceandXLRcable,
Over temperatureprotection
Totalhours,DMXchannelnumber,softwareversionsaredisplayedanddisplayinversion
HOUSING:
Hightemperatureengineering-plastic,IP20
WEIGHT:
30Kg
AMBIENTTEMPERATURE
Maximumambienttemperature: 40°C

17

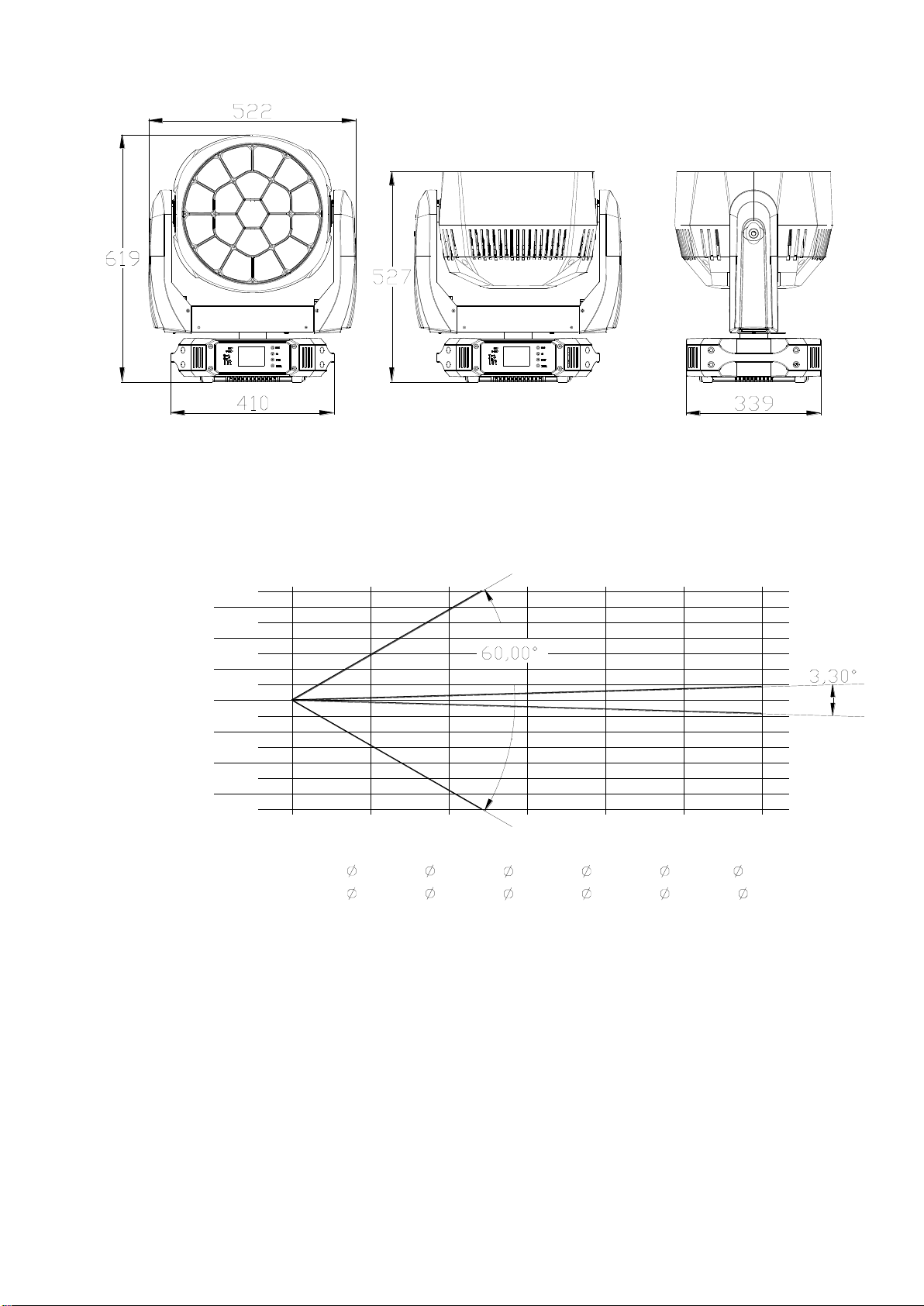

SIZES:
LIGHTOUTPUT:
3.3°DIAMETER (m) 0.12 0.24 0.36 0.48 0.60 0.72
472413 118103 52490 29526 18897 131230
0
3.3 °lux
DISTANCE (m)
2m
2m
0m 1m
1m
3m
3m
0246810 12
4m 5m
6m 7m
2m 3m
2m 3m
60°DIAMETER (m) 1.99 3.99 5.98 7.97 9.96 11.96
0
6666 1667 741 417 267 1850
60 °lux

18
LEDLAMPDISTRIBUTION
1. LED lampdistributionfromarea 1to area19
2. Theprojector aboveisatinitialstatusafterreset.
DIALSWITCH
Theoperationsofthedialswitcharedescribed hereinafter:
1.灯珠区域分布从区域1～19.
2.此图为灯具复位初始状态.
⑥
①
②
③
④⑤
③
④
⑤
⑥
①
②
LED LAMP area：1～6
Dial bit：1～6
Initial status of dial switch

19
11.CIRCUITDIAGRAMANDPCBCONNECTIONS
●CIRCUITDIAGRAM

20
●PCBCONNECTIONS
● Masterboard
● Pan/Tiltboard
● LEDlampboard1
No
Name
1
DMX512 signal input
2
Reserved
3
Reserved
4
Reserved
5
Powerinput
6
Reserved
7
Fan
8
Fan
9
Key
10
485signalinput
11
Wirelesssignal
No
Name
1
Tiltopticalsensor
2
Tilt magnetsensor
3
Reserved
4
Reserved
5
Powerinput
6
485 signaloutput
7
485 signalinput
8
Reserved
9
Panopticalsensor
10
Pan magnetsensor
11
Panmotor
12
Tiltmotor
No
Name
1
Programinput
2
DMXinput
3
Power
