Pr lighting Xr580 User manual

XR580 BEAM

PR-2554

The user manual contains important information about the safe installation and use of a projector. Please read

and followtheseinstructions carefullyandkeepthemanual inasafeplacefor future reference.

PR LIGHTING LTD.

http://www.pr-lighting.com

INDEX

1. SAFETYANDWARNINGS

2. INSTRUCTIONS

●CLEANINGAND MAINTENANCE

●LUBRICATION

●TROUBLESHOOTING

3.APPEARANCE

4.INSTALLATION

●RIGGING

●POWERCONNECTIONS

●DMXCONTROLCONNECTIONS

●DMXTERMINATOR

●ALIGNMENT/INSTALLATION/REPLACEMENTOFALAMP

●GOBO/COLORFILTERREPLACEMENT

5.SETUPANDCONFIGURATION

●FRONTPANELOPERATION

●DMXSTARTADDRESS

●DMXWIRELESSCONTROL

●STAND-ALONEMODE

●MASTER/SLAVEMODE

6.OPERATIONMENU

7.DMXPROTOCOL

8.LOGOS

9.ERROR MESSAGES

10.TECHNICALDATA

11.CIRCUITDIAGRAMANDPCB CONNECTIONS

●CIRCUITDIAGRAM

●PCB CONNECTIONS

12.COMPONENTORDERCODES

ACCESSORIES

The followingitems aresuppliedwiththeprojector and pleasecheck:

Name

Quantity

Unit

Remark

Gclamps

Pcs

XLRconnector

Set

Male andfemale

Safetycord

User manual

Ω clamps

Pcs

Optional

Please note that as part of our ongoing commitment to continuous product development, specifications are

subject to change without notice. Whilst every care is taken in the preparation of the manual we reserve the

right to change specifications in the course of product improvement. The publishers cannot be held responsible

for the accuracy of the information herein, or any consequence arising from them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and /

or the unit are in good condition before installation and use. Should there be any damage caused by

transportation, consult your dealer and do not use the unit. Any damage caused by improper use will not be

assumed by the manufacturer and / or dealer.

Note: Forthe products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from

thedelivery date butthelight sourceisnotwithinthewarranty.

1. SAFETYANDWARNINGS

NOTE

Before a projector’s installation, power-on, operation and maintenance, please carefully read

the safety informationhereinafter!

Thefollowingsafetysignsareusedintheusermanual.

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

High

Temperature

● When unpacking , check if there istransportation damage before using the projector. Should there be any

damagecausedbytransportation,consultyourdealeranddonotuse it.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector

ashe/shelikes.

●Please be notedthat thedamagecaused by changingtheprojectoratwillisnotwarranted.

●Do not hesitate to contact the dealeror the manufacturer if anyquestions or advice.

● Theprojectorisfor indooruseonly,IP20.

● Use onlyindry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not

allowcontactwithwateroranyother liquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

being operated.

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operationmust strictlyfollowtheproceduresinthe manual.

●Norepairablepartsintheprojectorand do notopencoversformaintenance byyourself.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned..

●Donotconnectthisdevice to anytypeofdimmerpack.

●After lamp switchedon, theminimumdistancebetweentheprojectorand illuminatedsurfaceis18m.

●lensandotheropticalpartsshallbereplacedimmediatelyiftheyhavedeformedorbeendamaged,otherwisethe

lightoutputwillbecompromised.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projectorwhilecovers(housing)areoff.

●Keepthelampcleananddo nottouchit withbarehands.

●While operatingit, wearprotectiveitems.

●Anyelectricalconnectionmustbecarriedoutbyaqualified person.

●Beforeinstallation,pleaseconfirm the voltage supplied matcheswhatisrequired forthe projector.

●Eachprojector mustbeproperlyearthedand installedasper related electricalstandards.

●Donotusepower cord withitsinsulatordamagedand connectthe powercord withother cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully

orbypullingthepower cable.

●Allpowercordsmustconformto related safetyandregulations.

●Whilebeingoperated,theprojector shouldnotbeunderrainsor inhumidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electricalparts’ life will beshortened .

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety

cord suppliedthroughthesafetycord holesfor safetysupport.

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

powermains.

●After runningfor30minutes, thetemperatureofthehousingoftheprojectoris45℃.After stableoperation,

itstemperature is90℃.

●Whilethelamp is strickenforthefirsttime, therewillbesmoke andstrangesmell.It’s normal and does not

mean theprojectorhas somedefects.

●Donotmounttheprojectordirectlyoninflammable surface.

●Donotproject thebeamstraightlyoncombustibleitems andthe minimumdistancebetweenthe projector

and illuminateditemsis18m.

●Aprojector should be installed with good ventilation and the minimum distance between the projector and

wallsis50cm.Atthesametime,pleaseensure thefansand airinletsand outletsareworkable.

2. INSTRUCTIONS

●CLEANINGANDMAINTENANCE

If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the

projector has over-temperature protective device. Ifthe temperature is too high, the protective device will be triggered to shut the

projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,

restartthe projector.

The accumulation of oil, smoke and dust onthe lens will compromise the light output. Cleaning a projector is very necessary to

ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflectorand hot mirror need to be cleaned

periodicallytooptimize lightoutput.

Cleaning frequencyis to be decided byoperations and its environment. Use soft cloth and normaldetergent for glass for cleaning

work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean

and do not touchoptical partswith bare hands.

●Beforeanymaintenanceand cleaning,please ensuretheprojectisoffthepower.

●Onlyqualifiedpersonis allowedto domaintenance.

●Duringmaintenanceandbefore maintenance, theprojector mustbeoffpower.

●To avoid sunlight or other light penetrating into the head via the front lens,resulting in

high temperature interally causing damages to the projector. Before power-off, please

use Tilt channel to move the head and make it facing downward.

●Donot usealcoholorother organicsolventto cleanthe housingto avoiddamage.

●Donotuseanysolvent withchemicalelementsto cleancolor filtersor hotmirror.

●LUBRICATION

To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 2 sliding bars for zoom and

focuslensbelubricatedevery2 months.Highqualityand hightemperaturelubricant/greaseisadvised..

●TROUBLESHOOTING

PROBLEM

ACTION

The projector doesn’t switch on

Checkthefuseonthepowersocket.

Checkthe lamp.

The lamp ison but the projector doesn’t respond

to thecontroller

Makesurethatthe fixture’s start address is right

Replaceorrepair theXLRsignalcable.

The projector functionsintermittently

Makesurethefanisworkingwellorfansandtheirshieldsarenotblocked

Beamappears dim, Lowinbrightness

Makesurethe lamp is withinitslifespan

Removedustorgrease fromthe lenses.

The projectimageappearstohavea halo

Carefullycleanthe lamp,opticallensesandothercomponents.

HeavilyDefectiveBeam

Checkif lensareingoodcondition(notcracked)

Cleandustor greaseonthelens.

3. APPEARANCE

1.FrontLens

2.Lens Cover

3.HeadCover

4.ArmCover

5.Tilt Lock

6.LampChamberCover

7.BaseHandle

While transportation, the head should be locked-Tilt Lock and Pan Lock should be at locking positions.

Beforetheuse of theprojector,unlockboth.

RearPaneloftheBase

1. PowerSwitch

2. FuseHolder

3. PowerSocket

4. 5-PinXLRSocket(Female)

5. 5-PinXLRSocket(Male)

6. EthernetSocket

7. Wireless Antenna(Only for projector

requestedforwirelesscontrol)

FrontPanel oftheBase

1.TouchScreen

2. Escape/LeftKey

3.Up key

4. Down Key

5. RightKey

Touch Screen

Escape/Left Key

Up key

Down Key

Right Key

4. INSTALLATION

●RIGGING

Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a

projectorwithpowerwhileitislocked.

Take 2 clamps and thesafety cord outfrom the package and mount 2 clampsonthe underside offixture with 2 retainersattached

to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the

underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the

projectorisfirmlyanchoredto avoidvibrationand slippingwhilstfunctioning. Always ensurethatthe structure thatyouare going

to mountthe projectorto issecureandstrongenoughtosupporttheweightofaXR1000 Framing.

WARNING:

●Theprojector MUSTbe liftedorcarried by theHANDLESinsteadofclamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

●POWERCONNECTION

Connectthepower cordasfollows:

L(live)=brown

E(earth) =yellow/green

N(neutral)=blue

Before power connection, please ensure the power supplied mustmatch what the nameplate says. It is recommended that each

projectorbeconnectedwithpowerseparatelysothattheymaybeindividuallyswitchedonand off.

●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in

accordance withthe standardsconcerned.

●If anyquestionsabout theelectrical installation,donotcontinuebutconsulta qualifiedelectrician.

Clamp

Control

Panel

Safety cord

Handle

Warning

Please run the safety cord

through the two safety

cord holes to ensure

safety safety cord holes

●DMXCONTROLCONNECTION:

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with

each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the

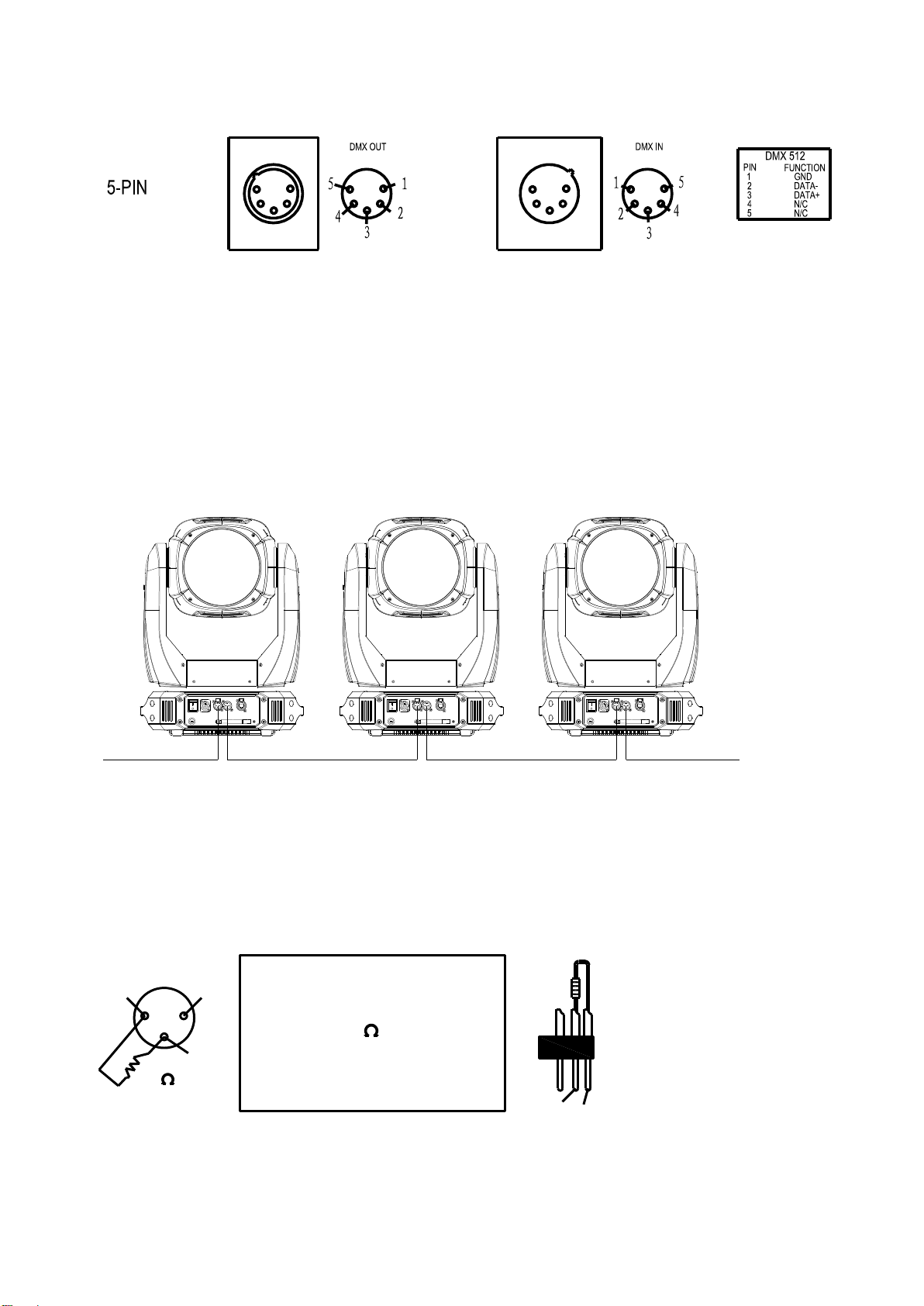

projector)or5pinXLRplugsand sockets.TheXLR'sareconnectedasshown inthefigureabove.

Note: care should be taken to ensure that none of the pins touch the metallic bodyof the plug or each other. XLR plugs and sockets

mustn’t be connected inanywayother thanmentionedintheabovefigure.The XR330BWSacceptsdigitalcontrol signalsinprotocol

DMX512(1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second

fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX

terminatorasshowninthe figurebelow.

●DMXTERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents

electrical noisefromdisturbingandcorruptingtheDMXcontrolsignals.

The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is then plugged

into theoutput socketonthe lastprojector inthe chain.The connectionsare illustratedbelow.

Input Output Input Output Input Output DMX

terminator

DMX

controller

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor

across pins 2 and 3 in an XLR plug

and insert into the DMX out socket

on the last unit in the chain. PIN 3

PIN 2

● ALIGNMENT/INSTALLATION/REPLACEMENTOFALAMP

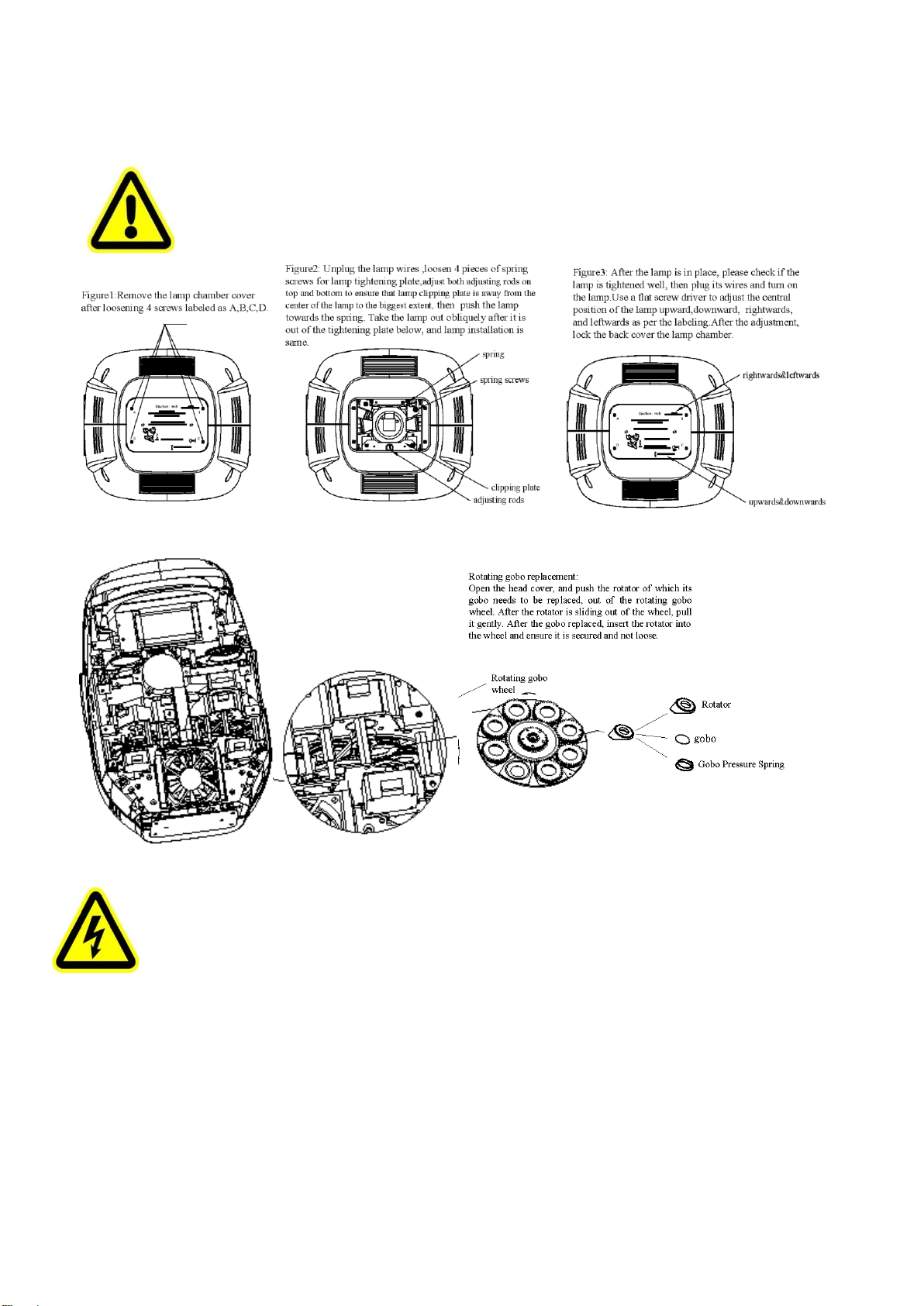

Lock the yoke before fitting/replacingthe lamp. Just as Shown by Figure 1, after Opening the cover at the rear of the projector by

loosening8 fastfitscrews, youcanopen thehead.Toadjustthelamp asper Figure2.Take out the lampasper the figure3.

Before lamp installation, tightenits power wireswell. Lamp in andout areoppositeorders

●Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to

impairthebeamoutput.While lamp’s installation, do not damage themetalwire around theburner.

●Please read"Instructions"enclosed withthe lamp

●Do operate the projector while adjusting the lamp

●GOBOREPLACEMENT

DANGER!

Before replacement ofgobos, theprojectormustbe offthepower.

5. SETUPANDCONFIGURATION

●FRONTPANELOPERATION

Theprojector configurationcanbesetconvenientlyviapushbuttonsandcolortouchscreen.

To browse through or change the projector ’s settings, touch the white area of the touch screen or press OK button for more than

3s(Only powered by the battery, pressing the OK button) to unlock the screen , then press ►key to enter the projector ’s function

menus. Each main menu has its sub-menus. And each menu stands for special function. For the details, please see the following 6th

point ”Operation Menu”.:

1. At the page to set the fixture’s functions, press ◄,►,▲,▼keysor theirrespective iconstoselectthefunctions desired.

2. While at 2nd,3rd and 4th level of menus, the◄key is for ESCAPE, but ►key won’t work, and OK key is used for ENTER.

Press OK key to save the changes or enter into the sub menus. Press ▲or ▼keys to change the numbers(minus or plus).

Or touchthe optionneeded forchange.

Shortcut keys: After the Function Menu is entered into, there are all options for the functions on the top of the screen. On the

rightthereare4 shortcutkeys like ←,→Lamp ControlandEnglish/Chinese.

●DMXSTARTADDRESS

Eachprojector must be givena DMXstart address so that the correctprojectorrespondsto the correct control signals. This DMX start

address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the

controller. The projector has 3DMX modes. There are standard mode ,short mode and extended mode. For example standard mode

has 26 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 027, No. 3 projector’s address 053,No. 4

projector’s address 079,and soon.

Switch on the Projector . Press OK key more than 3 seconds to unlockpanel, then press ►key to enter into the fixture’s operation

menus.

Select DMX Address icon and press OK key or touch the icon directly on the display and select DMX address at the 2nd level menu

for theaddresssetting.

Press▲or ▼keysortouch<、>displayed fortheDMXaddressdesired.

PressOKkeytoconfirm.

Pressthe◄keytogo back tothe upperlevelmenu.

●DMXWIRELESSCONTROL

Theprojector haswirelesscontrol function with wirelessreceivermoduleand antenna forremotecontrol.

Thesetupofitisbelow:

1. Press OK for more than 3s to unlock the control panel, then press ►key to enter into the operation menu and select

“Config Settings”.

2. Select “Wireless First” or “Wireless Only” from the menu of “Signal Select”.

Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,

Press “Enter” for the menu of Un-link Wireless under the upper levelmenu of Config Settigns ,thenthe fixture is unlinked

withthewirelesstransmitter.

●STAND-ALONEMODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the

projector will run in Stand-Alone mode automatically.

DMX address can be set at any number within 512.

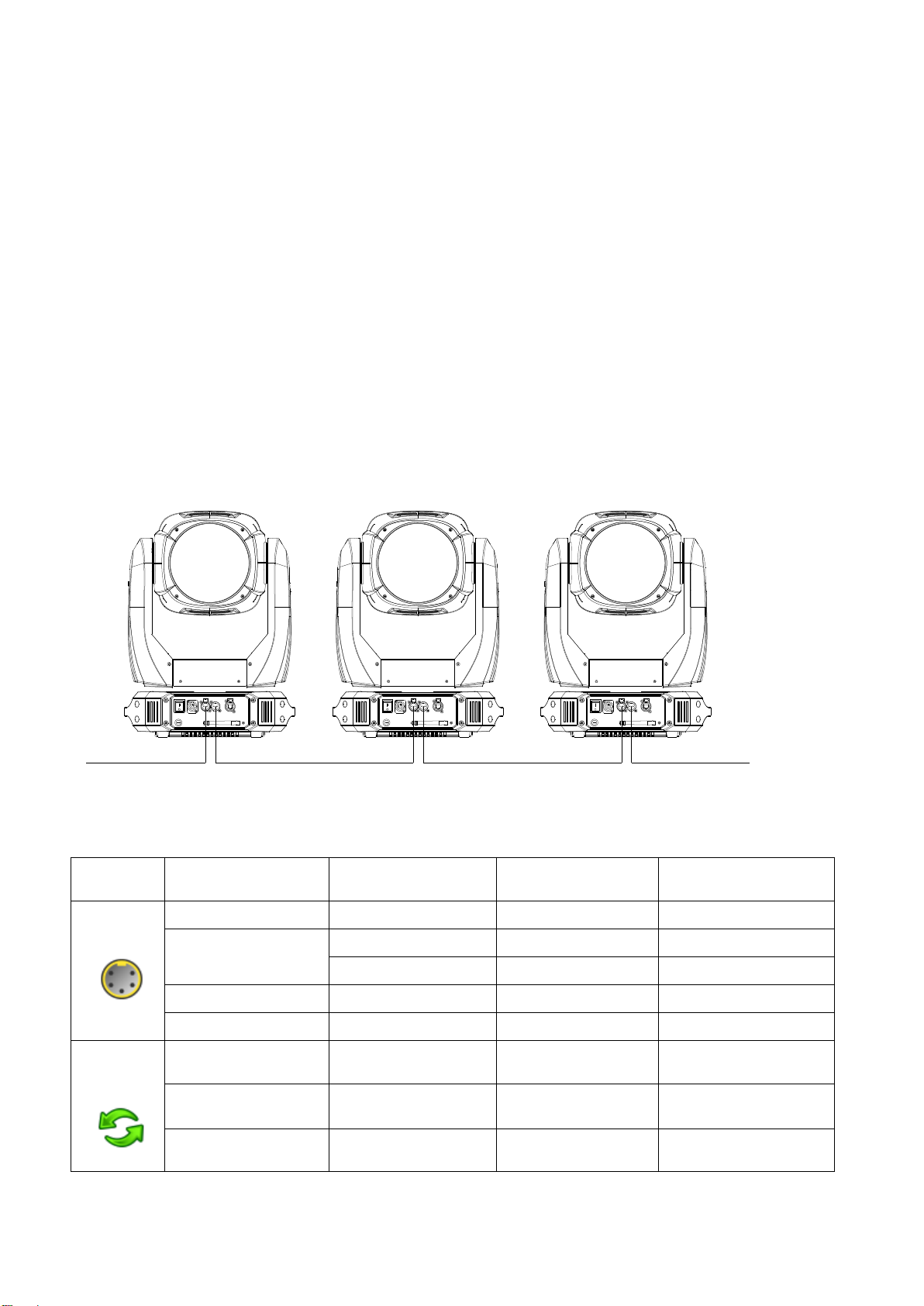

●MASTER/SLAVEMODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,

connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second

fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the

last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start AddressesofallSlavesare001;Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can

besetaccordingly.

AfterPoweredon,the group willrun in Master/SlaveMode

6. OPERATION MENU

1st LEVEL

2ndLEVEL

3rdLEVEL

4thLEVEL

5thLEVEL

Address

DMXAddress

1-486

IP Address

DefaultIPAddress

CustomIP Address

SubnetMask

Artnet Universe

Reset

TotalReset

ReallyReset?

ConfirmorCancel

Pan&TiltReset

ReallyReset?

ConfirmorCancel

ColourSystemReset

ReallyReset?

ConfirmorCancel

Input Output Input Output Input Output DMX

terminator

DMX

controller

Slave Slave

Master

GoboReset

ReallyReset?

ConfirmorCancel

Dimmer/Shutterreset

ReallyReset?

ConfirmorCancel

Fo. Fr.Pr.Reset

ReallyReset?

ConfirmorCancel

ConfigSettings

DMXChannelMode

ShortMode

Standard Mode

ExtendedMode

ViewSelected Mode

LampControl

OFF/ON

On By Power On

OFF/ON

ControlByDMX

OFF/ON

EcoPower

OFF/ON

SignalSelect

XLROnly

XLRFirst

WirelessOnly

WirelessFirst

WirelessIn/XLR Out

LossofDMX

Normaltimeout

Hold LastValue

DisplayConfig

DisplayMode

OffAfterDelay

OnAlways

DisplayInvert

InvertOFF

InvertON

InvertAuto

LanguageSetting

English\Chinese

TemperatureUnit

CelsiusDegree

Fahrenheit Degree

Un-Link Wireless

ReallyUn-Link?

ConfirmorCancel

FactoryDefaults

RestoreDefaults?

ConfirmorCancel

Option Settings

Pan/TiltSettings

PanDMXInvert

OFF/ON

TiltDMX Invert

OFF/ON

PanTiltSwap

OFF/ON

XYFeedback

OFF/ON

Pan/Tilt mode

Speed/Time

InvertSettings

DimmerInvert

OFF/ON

CYM Invert

OFF/ON

Information

ViewDMX Values

Channel Value

Strobe XXX

Dimmer XXX

DimmerFine XXX

CYM Macro XXX

Cyan XXX

Yellow XXX

Magenta XXX

CTO XXX

ColorWheel XXX

ColorWheel Fine XXX

Fixed Gobo WheelXXX

Rot.Gobo Wheel XXX

Rot.GoboRotationXXX

Rot.GoboRotationF. XXX

Prism1 XXX

Prism1 Rotation XXX

Prism2 XXX

Prism2 Rotation XXX

Focus XXX

Focus Fine XXX

Pan XXX

PanFine XXX

Tilt XXX

TiltFine XXX

Pan/TiltSpeed&TimeXXX

Power/Special Fun.XXX

LampHours

XXX H

ResetLampHours

TotalHours

××××H

Temperature

DisplayBoard=×××C

Pan&Tiltboard=×××C

DriverBoard1=×××C

DriverBoard2=×××C

DriverBoard3=×××C

FanDriverBoard=XXXC

HeadSensor=×××C

SoftwareVersion

PCB Sys Boot

DisplayBoard xxx xxx

Pan&Tiltboard xxx xxx

DriverBoard1 xxx xxx

DriverBoard2 xxx xxx

DriverBoard3 xxx xxx

FanDriverBoard=XXXC

ElectronicSN

XXXXXX

RDM DeviceLabel

XR580 Beam

ANSIE1.20RDM

FanStatus

Fan Speed Status

LampFan1 xxx on/off

LampFan2 xxx on/off

Lamp TFan xxx on/off

LampRFan xxx on/off

Head Fan1 xxx on/off

HeadFan2 xxxon/off

CYM Fanxxx on/off

GoboFan xxx on/off

BasicFan xxx on/off

FanError

Fan Count

LampFan1 xxx

LampFan2 xxx

LampTFan xxx

LampRFan2 xxx

HeadFan1 xxx

HeadFan2 xxx

CYM Fanxxx

GoboFan xxx

BasicFan xxx

AccelerationSensor

X Axis: XXX

YAxis: XXX

ZAxis: XXX

Position:XXX

Service

Manual EffectControl

StrobeXXX

DimmerXXX

DimmerFineXXX

CYM Macro XXX

CyanXXX

CyanFineXXX

YellowXXX

YellowFine XXX

MagentaXXX

MagentaFineXXX

CTO XXX

CTOFineXXX

ColorWheel XXX

ColorWheel Fine XXX

FixedGoboWheel XXX

Rot.GoboWheel XXX

Rot.GoboRotation XXX

Rot.GoboRotationF. XXX

Prism1 XXX

Prism1 RotationXXX

Prism2XXX

Prism2 RotationXXX

FocusXXX

FocusFineXXX

PanXXX

PanFineXXX

TiltXXX

TiltFineXXX

Pan& TiltSpeed&Time

XXX

FactoryMode

…

Operation

Mode

DMXMode

ChangeOperationMode?

ConfirmorCancel

Master Mode

Preset Memory

ChangeOperationMode?

ConfirmorCancel

UserMemory1

ChangeOperationMode?

ConfirmorCancel

UserMemory2

ChangeOperationMode?

ConfirmorCancel

Stand-AloneMode

Preset Memory

ChangeOperationMode?

ConfirmorCancel

UserMemory1

ChangeOperationMode?

ConfirmorCancel

UserMemory2

ChangeOperationMode?

ConfirmorCancel

StaticScene

ChangeOperationMode?

ConfirmorCancel

DiffFrost

User

Memories

EditUserMemory

EditUserMemory1

EditUserMemory2

（1~200Scenes）

SceneXX

（1~200Scenes）

StrobeXXX

DimmerXXX

DimmerFineXXX

CYM Macro XXX

CyanXXX

CyanFineXXX

YellowXXX

YellowFine XXX

MagentaXXX

MagentaFineXXX

CTO XXX

CTOFineXXX

ColorWheelXXX

ColorWheelFineXXX

FixedGoboWheel XXX

Rot.GoboWheelXXX

Rot.GoboRotation XXX

Rot.Gobo RotationF.XXX

Prism1 XXX

Prism1 RotationXXX

Prism2XXX

Prism2 RotationXXX

FocusXXX

FocusFineXXX

PanXXX

PanFineXXX

TiltXXX

TiltFineXXX

Pan& TiltSpeed&Time

XXX

FadeTimeXXX

HoldTimeXXX

DelayUnitXXX

LinktoStep XXX

EditStaticScene

StrobeXXX

DimmerXXX

DimmerFineXXX

CYM Macro XXX

CyanXXX

CyanFineXXX

YellowXXX

YellowFine XXX

MagentaXXX

MagentaFineXXX

CTO XXX

CTOFineXXX

ColorWheel XXX

ColorWheel Fine XXX

FixedGoboWheel XXX

Rot.GoboWheel XXX

Rot.GoboRotation XXX

Rot.GoboRotationF. XXX

Prism1 XXX

Prism1 RotationXXX

Prism2XXX

Prism2 RotationXXX

FocusXXX

FocusFineXXX

PanXXX

PanFineXXX

TiltXXX

TiltFineXXX

Pan& TiltSpeed&TimeXXX

Fade TimeXXX

HoldTime XXX

DelayUnitXXX

LinktoStep XXX

Init User Memory

ResetUserMemory1

ResetUserMemory?

ConfirmorCancel

ResetUserMemory2

ResetUserMemory?

ConfirmorCancel

ResetStatic Scene

ResetStatic Scene?

ConfirmorCancel

7. DMXPROTOCOL

Short

mode

Standard

mode

Extended

Mode

FUNCTION

DMX

DESCRIPTION

Strobe

000-010

011-025

Open

026-225

Strobespeedfromslowto fast

226-246

Randomstrobefromslowtofast

247-255

Open

Dimmer

000-035

036-255

Lineardimming（0-100%）

Dimmer Fine

000-255

Dimmer in16bit

CYMMacro

000-016

White

017-035

Yellow+ Magenta=Red

036-054

Yellow

055-073

Yellow+Cyan=Green

074-092

Cyan

093-111

Cyan+Magenta=purple

112-128

Magenta

129-255

CYMcolormixingfromslowto fast

Cyan

000-255

Cyan(linear0~100%)

CyanFine

000-255

Cyan in16Bit

Yellow

000-255

Yellow(linear 0~100%)

YellowFine

000-255

Yellowin16Bit

Magenta

000-255

Magenta(linear0~100%)

Magenta Fine

000-255

Magenta in16Bit

CTO

000-005

006-024

Diffuser

025-255

LinearCTO

CTO Fine

000-255

CTOin16bit

ColorWheel

000-063

Indexing(0-360degrees)

064-068

Color1(Red)

069-073

Color2(LightGreen)

074-078

Color3(Blue)

079-083

Color4(Cyan)

084-088

Color5(Yellow)

089-093

Color6(Magenta)

094-098

Color7(Orange)

099-103

Color8(Green)

104-108

Color9(DeepBlue)

109-113

Color10(UV)

114-118

Color11(LightYellow)

119-123

Color12(CTO)

124-127

White

128-191

Rotation,Clockwisefromslowtofast

192-255

Rotation,Anti-clockwisefromfasttoslow

ColorWheelFine

0000-255

ColorWheelin16Bit

Fixed Gobo

Wheel

0-8

White

9-15

Gobo1

16-22

Gobo2

23-29

Gobo3

30-36

Gobo4

37-43

Gobo5

44-50

Gobo6

51-57

Gobo7

58-64

Gobo8

65-71

Gobo9

72-78

Gobo10

79-85

Gobo11

86-92

Gobo12

93-99

Gobo13

100-106

Gobo14

107-113

Gobo15

114-120

Gobo16

121-127

Gobo17

128-155

Clockwiserotation fromslowtofast

156-183

AntiClockwiserotationfromslowto fast

184-187

Shakeeffect1 fromslowto fast

188-191

Shakeeffect 2fromslowto fast

192-195

Shakeeffect3 fromslowto fast

196-199

Shakeeffect 4fromslowto fast

200-203

Shakeeffect5 fromslowto fast

204-207

Shakeeffect 6fromslowto fast

208-211

Shakeeffect7 fromslowto fast

212-215

Shakeeffect 8fromslowto fast

216-219

Shakeeffect 9fromslowto fast

220-223

Shakeeffect10fromslowtofast

224-227

Shakeeffect11fromslowtofast

228-231

Shakeeffect12fromslowtofast

232-235

Shakeeffect 3fromslowto fast

236-239

Shakeeffect14 fromslowtofast

240-243

Shakeeffect15fromslowtofast

244-247

Shakeeffect16fromslowtofast

248-251

Shakeeffect17fromslowtofast

252-255

Shakeeffect18fromslowtofast

RotatingGobo

Wheell

000-015

White

016-031

Gobo1

032-047

Gobo2

048-063

Gobo3

064-079

Gobo4

080-095

Gobo5

096-111

Gobo6

112-127

Gobo7

128-156

Rotation （clockwiseFromslowtoFast）

157-185

Reverse Rotation（anti-clockwise From slow to

Fast）

186-195

ShakeofGobo 1fromslowto fast

196-205

ShakeofGobo 2fromslowtofast

206-215

ShakeofGobo 3fromslowtofast

216-225

ShakeofGobo 4fromslowtofast

226-235

ShakeofGobo 5fromslowtofast

236-245

ShakeofGobo 6fromslowtofast

246-255

ShakeofGobo 7fromslowtofast

Gobo Rotation

000-128

GoboIndexing(0~540degrees)

129-188

Rotation （ClockwiseFromslowto Fast）

189-195

Stop

196-255

Rotation （Anti-ClockwiseFromslowtoFast）

Gobo Rotation

Fine

000-255

GoboRotationin16Bit

Prism1

000-016

Open

017-127

Prism1

128-255

Prism2

Prism1 Rotation

000-128

PrismIndexing

129-191

Rotation(Clockwisefromslow tofast)

192

Stop

193-255

Rotation(Anti-Clockwisefromslowtofast)

Prism2

000-016

White

017-127

Prism3

128-255

Frostin

Prism2 Rotation

000-128

Prism2 Indexing

129-191

Rotation(Clockwisefromslow tofast)

192

Stop

193-255

Rotation(Anti-Clockwisefromslowtofast)

Focus

000-255

LinearFocus

Focus Fine

000-255

Focus in 16 bitprecision

Pan

000-255

Pan(0°~540°)

PanFine

000-255

Panin16bit

Tilt

000-255

Tilt(0°~270°)

Tilt Fine

000-255

Tiltin16bit

Pan&Tilt Speeds

000-255

Pan&Tilt Speed fromFast to Slow

Control

000-019

Reserved

Keep in the DMX range for more than 5S to activate the following

functions. Ifpower-off,the followingareinvalid.

020-024

Graphic DisplayOn

025-029

Graphic DisplayOff

030-034

Reserved

035-039

Lamp ECOPower

040-044

Lamp FullPower

045-089

Reserved

090-094

Pan&Tilt SpeedMode

095-099

Pan&TiltTimeMode

100-129

Reserved

130-139

Lamp On

140-149

Pan&Tilt Reset

150-159

ColorSystemReset

160-169

GoboWheelReset

170-179

Dimmer/ShutterReset

180-189

Zoom/Frost/Focus/PrismReset

190-199

Reserved

200-209

TotalReset

210-229

Reserved

230-239

Lamp Off

240-255

Reserved

1. The projector can’t be turned on within 1 minute after the lamp-off.

2.Fanerrorcancauselamp-off.

8.Logos

Lamp Control

OptionSettings

Chinese/English

Information

ErrorMessages

Service

Address

Operation Mode

Reset

UserMemories

Config Settings

9.Error messages

Thesystemcandetectsome errorsduringthereset,if displayed,touch to viewthe error.

Theerrormessagesareasfollows:

Name

Type

Correction

Pan

Timeout/magnetSensor/Encoder
