Precision Digital Corporation PROVU PD6400 User manual

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel [phone] • Fax [phone]
www.predig.com
•1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
•(1) High Voltage and (1) High Current Input
•Multiplication for Apparent Power Calculation
•0-300 VAC or VDC Voltage Input
•0-5 AAC or ADC Current Input
•Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
•2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options
•Free PC-Based, On-Board, MeterView Pro USB Programming Software
•No Assembly Required
•Optional SunBright Display Models for Outdoor Applications
•Operating Temperature Range: -40 to 65°C (-40 to 149°F)
•UL & C-UL Listed. E160849; 508 Industrial Control Equipment
•Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
•Programmable Display, Function Keys & Digital Input
•External 4-Relay, Dual 4-20 mA Outputs & Digital I/O Expansion Modules
•RS-232 & RS-485 Serial Communication Options with Modbus RTU
•Password Protection
•Wide Assortment of NEMA 4X Enclosures for up to Ten Meters

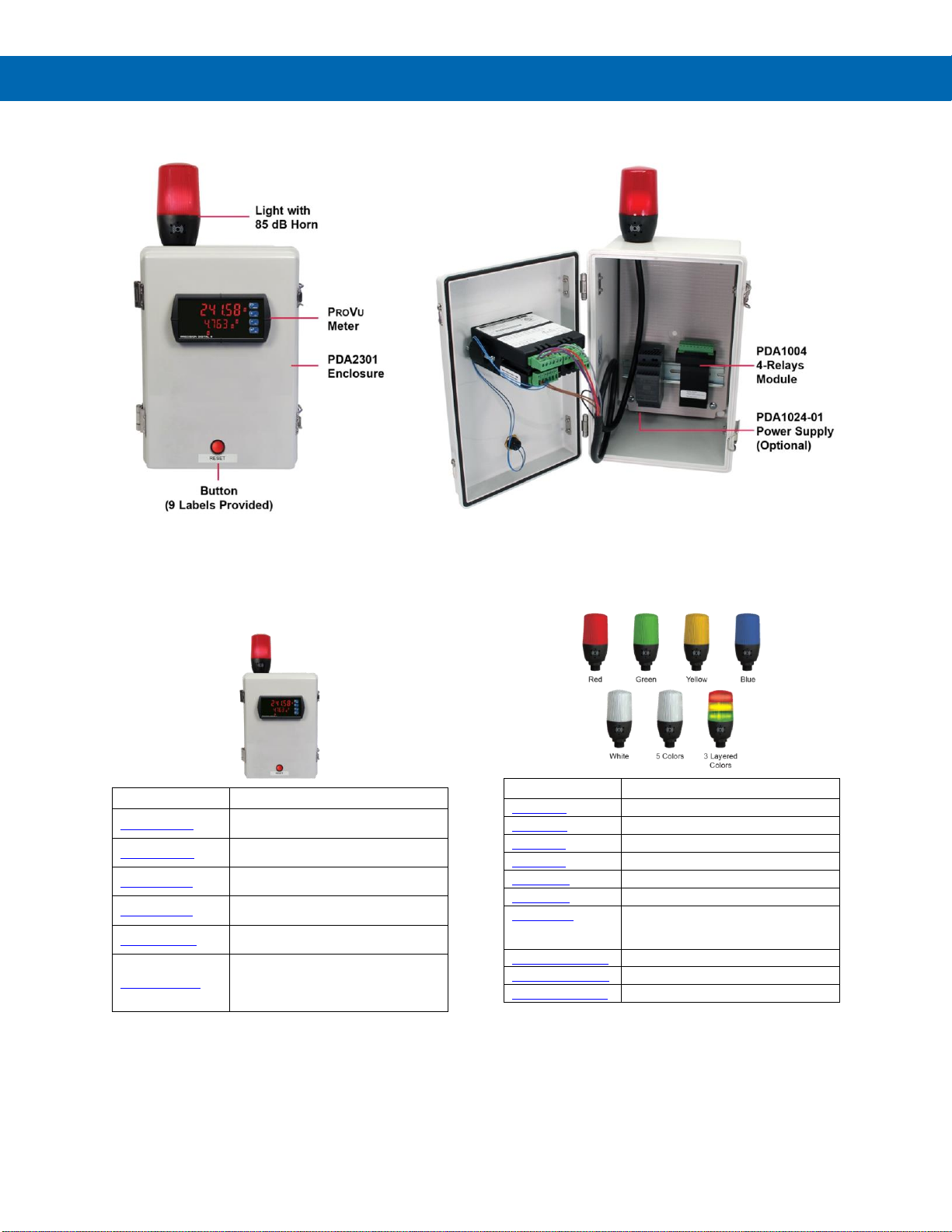

•Light / Horn & Reset Button Accessory
•Split Core AC Current Transformers Up to 1000 A AC Available
•Control Station Accessory for Remote Operation
•3-Year Warranty
MeterView Pro
USB Install

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
2
Disclaimer
The information contained in this document is
subject to change without notice. Precision Digital
makes no representations or warranties with
respect to the contents hereof and specifically
disclaims any implied warranties of
merchantability or fitness for a particular purpose.
See Warranty Information and Terms &
Conditions on www.predig.com for complete
details.
•Read complete instructions prior to installation
and operation of the meter.
•Risk of electric shock or personal injury.
•This product is not recommended for life support
applications or applications where malfunctioning
could result in personal injury or property loss.
Anyone using this product for such applications
does so at his/her own risk. Precision Digital
Corporation shall not be held liable for damages
resulting from such improper use.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Limited Warranty
Precision Digital Corporation warrants this
product against defects in material or
workmanship for the specified period under
“Specifications” from the date of shipment from
the factory. Precision Digital’s liability under this
limited warranty shall not exceed the purchase
value, repair, or replacement of the defective unit.
See Warranty Information and Terms &
Conditions on www.predig.com for complete
details.
Registered Trademarks
All trademarks mentioned in this document are
the property of their respective owners.
© 2021 Precision Digital Corporation.
All rights reserved.

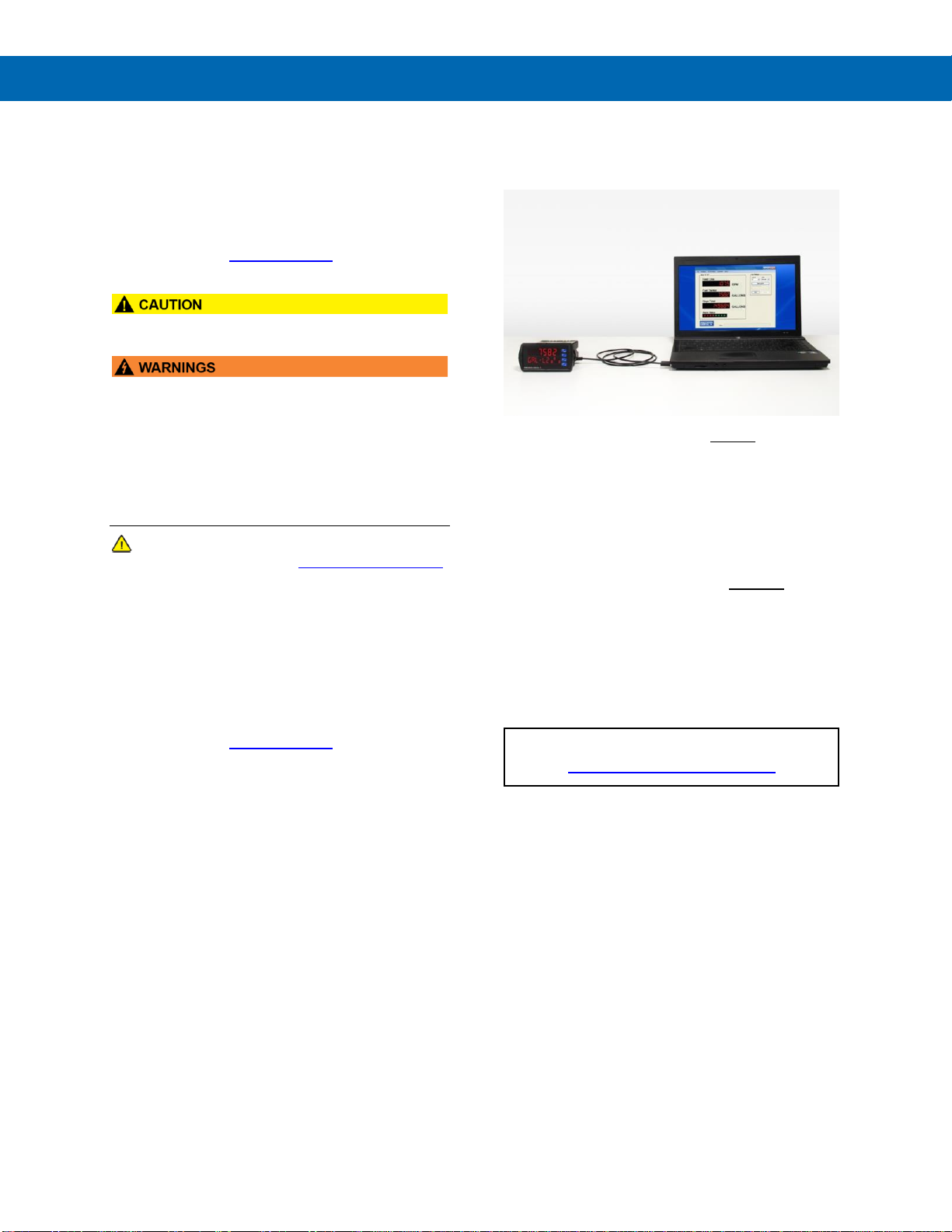

FREE MeterView Pro
Programming Software
The meter can be powered from the Micro USB connection.
When using the Micro USB connection, DO NOT apply AC or DC
power to the meter.
The easiest and quickest way to program your PROVU
meter is to use the FREE MeterView Pro
programming software. This software is loaded into
the meter and connects and installs directly to your
PC with a USB cable. We recommend that the first
thing you do after taking the meter out of the box is
connect the PROVUto your PC with the provided USB
cable –do not use a different cable. DO NOT apply
AC or DC power to the meter while your PC is
connected to the meter as it will disrupt the USB
connection. You don’t even have to apply an input
signal.
MeterView Pro programming software is intuitive, and
most customers can get their meter programmed as
they like without even looking in the manual.
Watch MeterView Pro Software Video at
www.predig.com/meterviewpro
In addition to programming, the software may be used
for:
•Monitoring
•Datalogging using your PC
•Generating and saving programming files for
later use
Once your meter is programmed the way you want it,
you can wire it up for your application per the
instructions in this manual and install it. If you find that
you need to make adjustments to the programming
after the meter is installed, you can use the front
panel buttons and the instructions in this manual to do
so.

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
3
Table of Contents
Introduction..........................................................................................................6
Ordering Information...........................................................................................6
Specifications.......................................................................................................8
General.............................................................................................................8
Voltage and Current Inputs ............................................................................9
Relays...............................................................................................................9
Isolated 4-20 mA Transmitter Output ..........................................................10
USB Connection............................................................................................10
On-Board Digital Input (F4)...........................................................................10
Modbus®RTU Serial Communications........................................................10
MeterView Pro................................................................................................10
Compliance Information....................................................................................11
Safety..............................................................................................................11
Electromagnetic Compatibility.....................................................................11
Safety Information .............................................................................................11
Installation..........................................................................................................11
Unpacking......................................................................................................11
Panel Mounting Instructions ........................................................................12
Mounting Dimensions..................................................................................12
Installation Overview.....................................................................................13
MeterView Pro Software................................................................................13
MeterView Pro Installation...........................................................................13
Connections...................................................................................................14
Connectors Labeling ...................................................................................14
Power Connections.....................................................................................15
Signal Connections .....................................................................................15
Modbus RTU Serial Communications.........................................................16
Relay Connections......................................................................................16
Switching Inductive Loads...........................................................................17
F4 Digital Input Connections.......................................................................17
4-20 mA Output Connections......................................................................17
Analog Output Transmitter Power Supply...................................................17
External Relay, Analog Output, & Digital I/O Connections..........................18
Remote Operation of Meter.........................................................................18
Interlock Relay Feature...............................................................................18
Setup and Programming...................................................................................19
Front Panel Buttons and Status LED Indicators ........................................19
Display Functions & Messages....................................................................20
Main Menu......................................................................................................21
Setting Numeric Values ................................................................................22
Setting Up the Meter (setup)........................................................................22
Setting the Decimal Point (dEc pt).............................................................22
Setting the Input Calibration (InCal)...........................................................23
Setting the Display Parameter & Intensity (dsplay) ...................................25
Display Intensity (d-Inty)...........................................................................25
Setting the Input Units or Custom Tags (units).........................................26
Setting the Relay Operation (relay)............................................................26
Setting the Relay Assignment (asSign)......................................................27
Setting the Relay Action..............................................................................27
Programming Set and Reset Points............................................................27
Setting Fail-Safe Operation.........................................................................27
Programming Time Delay............................................................................27
Relay and Alarm Operation Diagrams.........................................................28
HighAlarmOperation (Set >Reset)..............................................................28
Low Alarm Operation (Set < Reset)............................................................28
High Alarm with Fail-Safe Operation (Set > Reset).....................................28
Low Alarm with Fail-Safe Operation (Set < Reset) .....................................29
Time Delay Operation .................................................................................29

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
4
Relay Operation Details................................................................................30
Overview .....................................................................................................30
Relays Auto Initialization.............................................................................30
Fail-Safe Operation.....................................................................................30
Front Panel LEDs........................................................................................30
Latching and Non-Latching Relay Operation ..............................................30
Non-Latching Relay (Auto) .........................................................................31
Non-Latching Relay with Manual Reset (A-nman).......................................31
Latching Relay (LatcH)...............................................................................31
Latching Relay with Clear (Lt-Clr)............................................................31
Acknowledging Relays................................................................................32
Pump Alternation Control Applications (Altern) ........................................32
Setting Up the Interlock Relay (Force On) Feature.....................................32
Scaling the 4-20 mA Analog Output (Aout).................................................33
Reset Menu (reset).......................................................................................33
Manual Control Menu (Contrl).....................................................................33
Setting Up the Password (pass)...................................................................34
Protecting or Locking the Meter ..................................................................34
Making Changes to a Password Protected Meter.......................................34
Disabling Password Protection....................................................................34
Advanced Features Menu.............................................................................35
Advanced Features Menu & Display Messages..........................................35
Noise Filter (filter)...................................................................................36
Noise Filter Bypass (bypass)......................................................................36
Rounding Feature (round)..........................................................................36
Modbus RTU Serial Communications (serial)..........................................37
Select Menu (SElect).................................................................................37
Multi-Point Linearization (Linear)...............................................................37
Math Function (nmath)................................................................................38
Math Constants (Const)..............................................................................38
Low-Value Cutoff (CutofF) .........................................................................38
Analog Output Programming (AoutPr) .......................................................38
Programmable Function Keys User Menu (user).......................................39
Internal Calibration (ICAL)...........................................................................40
Meter Operation .................................................................................................41
Front Panel Buttons Operation....................................................................41
Function Keys Operation..............................................................................41
F4 Operation ..................................................................................................41
Maximum/Minimum Readings......................................................................41
Troubleshooting.................................................................................................42
Diagnostics Menu (diag) ..............................................................................42
Testing the Display LEDs............................................................................42
Determining Software Version.....................................................................42
Reset Meter to Factory Defaults...................................................................42
Factory Defaults & User Settings................................................................43
Troubleshooting Tips....................................................................................45
EU Declaration of Conformity...........................................................................46

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
5
Table of Figures
Figure 1. 1/8 DIN Panel Cutout Dimensions....................................................12
Figure 2. Panel Mounting Details .....................................................................12
Figure 3. Meter Dimensions - Side View..........................................................12
Figure 4. Meter Dimensions - Top View...........................................................12

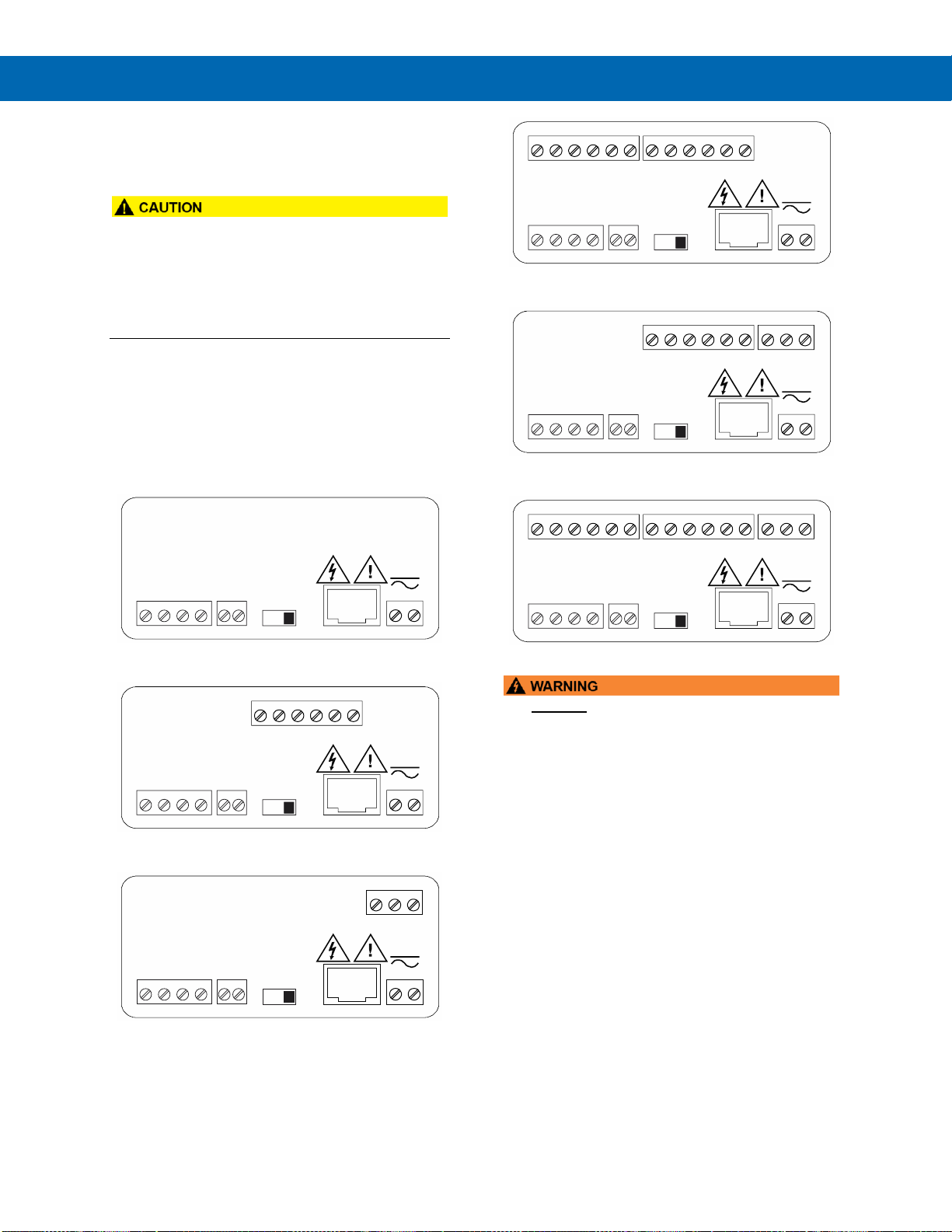

Figure 5. PD6400-##0 Connectors Label .........................................................14
Figure 6. PD6400-##2 Connectors Label .........................................................14
Figure 7. PD6400-##3 Connectors Label .........................................................14
Figure 8. PD6400-##4 Connectors Label .........................................................14
Figure 9. PD6400-##5 Connectors Label .........................................................14
Figure 10. PD6400-##7 Connectors Label .......................................................14
Figure 11. Power Connections .........................................................................15

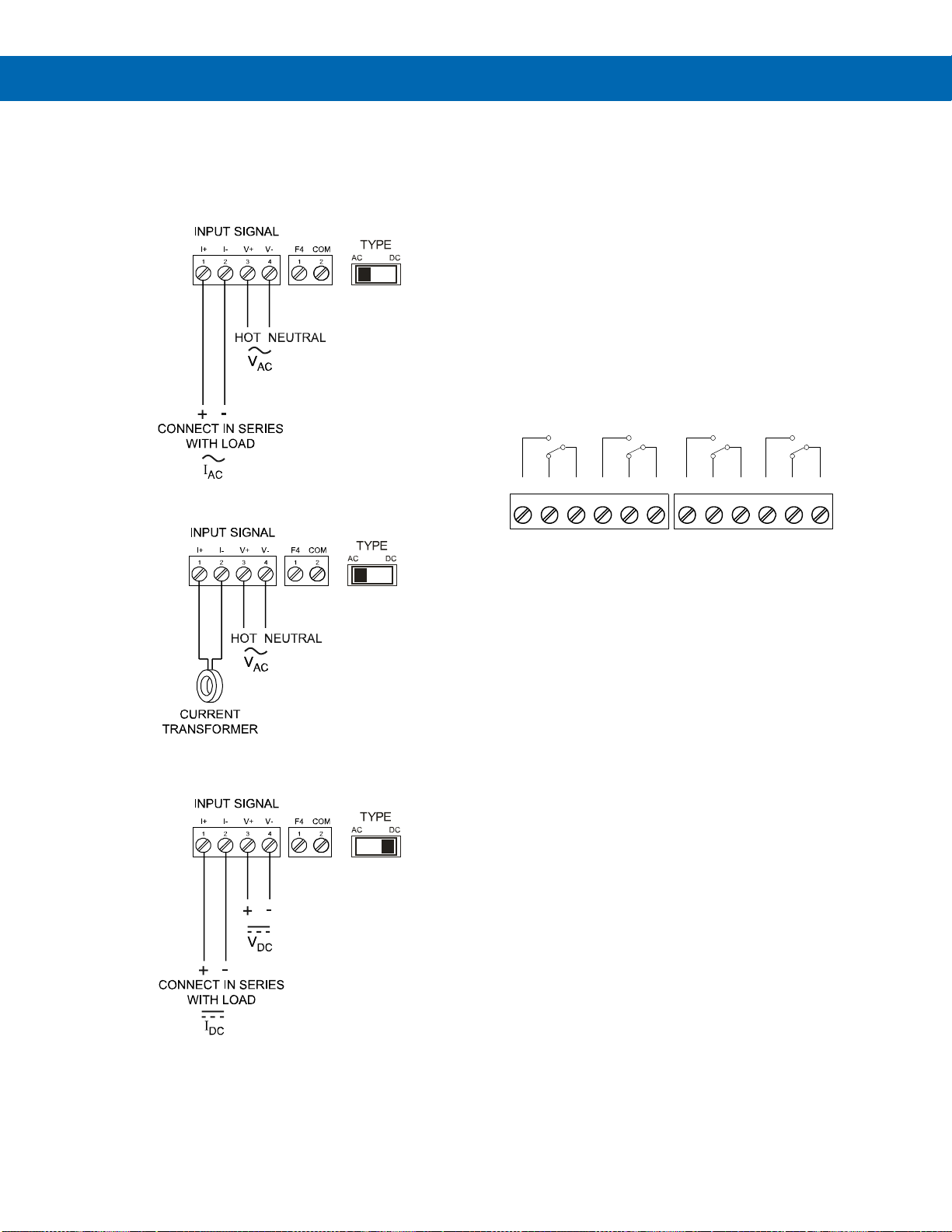

Figure 12. AC Voltage Input Connection.........................................................15
Figure 13. DC Voltage Input Connections.......................................................15
Figure 14. AC Current Connections.................................................................15
Figure 15. AC Current Transformer Connections...........................................15
Figure 16. DC Current Connections.................................................................15
Figure 17. AC Current and Voltage Connections............................................16
Figure 18. AC Current Transformer and Voltage Connections .....................16
Figure 19. DC Current and Voltage Connections............................................16
Figure 20. Relay Connections...........................................................................16
Figure 21. AC and DC Loads Protection..........................................................17
Figure 22. Low Voltage DC Loads Protection.................................................17
Figure 23. F4 Digital Input Connections..........................................................17
Figure 24. 4-20 mA Output Connections .........................................................17
Figure 25. Analog Output Supply Powering Other Devices...........................17
Figure 26. External Relays Module Connections............................................18
Figure 27. Digital I/O Module Connections......................................................18
Figure 28. Dual 4-20 mA Output Module Connections...................................18
Figure 29. Meter to Control Station Connection.............................................18
Figure 30. Interlock Connections.....................................................................18

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
6
Introduction
The PROVUPD6400 is a multipurpose, easy-to-use
high voltage and high current input meter ideal for
measuring direct voltage and current or the output
from voltage shunts and current transformers. It has
one 0-300 VAC or VDC voltage input and one
0-5 AAC or ADC current input. The meter may be
used with a single voltage or current input, or to
measure both simultaneously. A math channel P
calculates apparent power as the product of the
voltage and current inputs.
The PD6400 candisplayvoltage,current, and apparent
power. The dual line displaycandisplay any two
parameterssimultaneously or can alternatebetween any
parameters as well as their programmable units and
tags. Its superluminous LED digits make it easily
readable in smoke, dust, fog, and, with the optional
SunBright display, even in direct sunlight.
A fully loaded PD6400 meter has the following: four
SPDT relays, 4-20 mA output, and a 24 VDC power
supply. The PD6400 capabilities may be enhanced by
adding the following external expansion modules: four
SPST relays; creating an eight-relay meter, two digital
I/O modules with four inputs and four outputs each,
serial communication adapters for use with MeterView
Pro or Modbus RTU, and a dual 4-20 mA expansion
module; for a total of three 4-20 mA analog outputs.

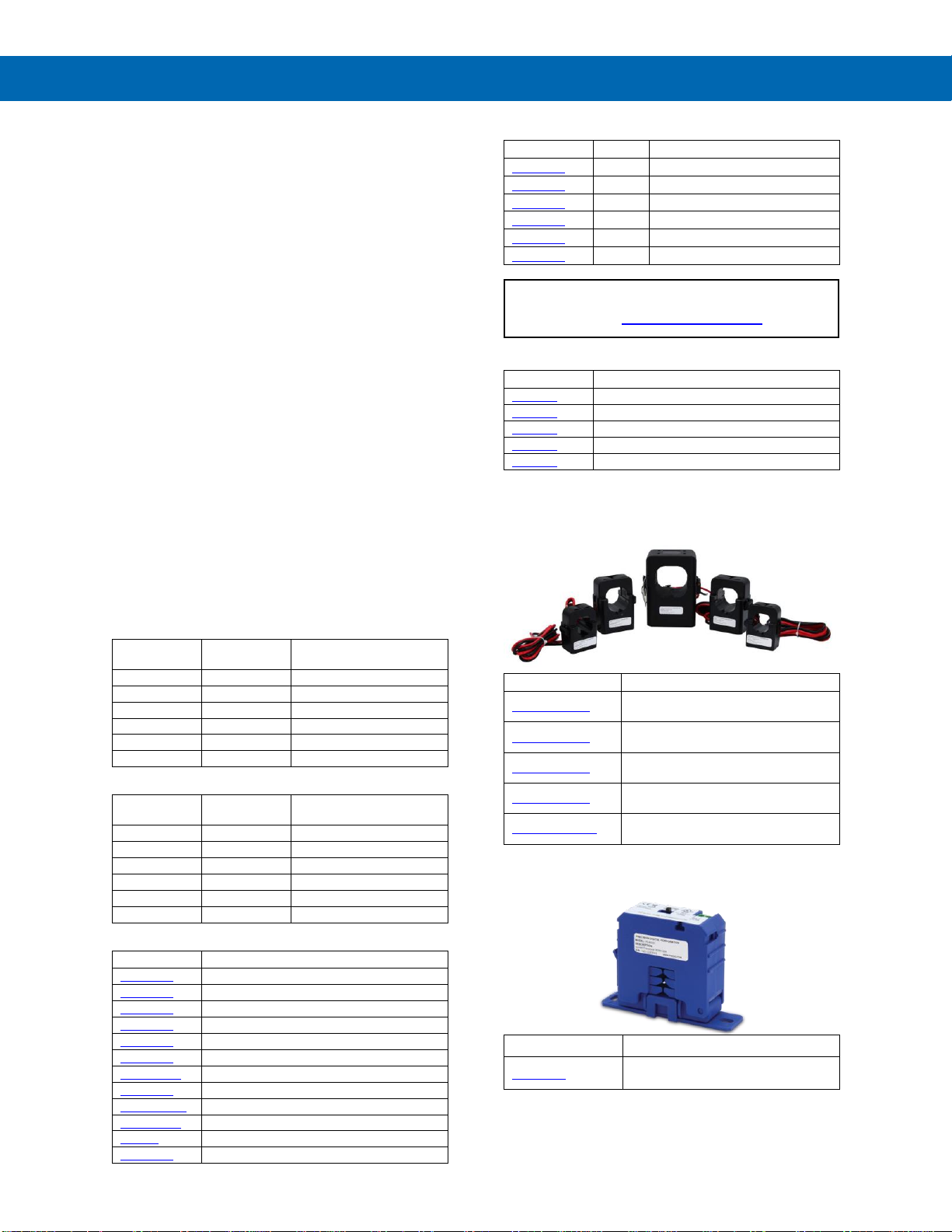

Ordering Information
Standard Models
85-265 VAC
Model
12-24 VDC
Model
Options Installed
PD6400-6R0
PD6400-7R0
No options
PD6400-6R2
PD6400-7R2
2 relays
PD6400-6R3
PD6400-7R3
4-20 mA output
PD6400-6R4
PD6400-7R4
4 relays
PD6400-6R5
PD6400-7R5
2 relays & 4-20 mA output
PD6400-6R7
PD6400-7R7
4 relays & 4-20 mA output
SunBright Display Models
85-265 VAC
Model
12-24 VDC
Model
Options Installed
PD6400-6H0
PD6400-7H0
No options
PD6400-6H2
PD6400-7H2
2 relays
PD6400-6H3
PD6400-7H3
4-20 mA output
PD6400-6H4
PD6400-7H4
4 relays
PD6400-6H5
PD6400-7H5
2 relays & 4-20 mA output
PD6400-6H7
PD6400-7H7
4 relays & 4-20 mA output
Accessories
Model
Description
PDA1002
DIN rail mounting kit for two devices
PDA1004
4 SPST (Form A) relays module
PDA1011
Dual isolated analog output
PDA1044
4 digital inputs & 4 digital outputs module
PDA1232
RS-232 serial adapter
PDA1485
RS-485 serial adapter
PDA7485-I
RS-232 to RS-485 isolated converter
PDA8008
USB Adapter
PDA8232-N
USB to RS-232 non-isolated converter
PDA8485-I
USB to RS-485 isolated converter
PD659
Signal isolators, splitters, & conditioners
PDX6901
Snubber: 0.01 μF/470 Ω, 250 VAC
Enclosures
Series
Meters
Material
PDA2300
1-10
Plastic NEMA 4X
PDA2500
1-6
Plastic NEMA 4X
PDA2600
1-6
Stainless Steel NEMA 4X
PDA2700
1-6
Painted Steel NEMA 4
PDA2800
1-2
Plastic NEMA 4X
PDA3400
1-3
Plastic NEMA 4X
Need help selecting the right enclosure?
Go to www.predig.com/esu
Replacement Option Cards
Model
Options Installed
PD1102
2 relays
PD1103
4-20 mA output
PD1104
4 relays
PD1105
2 relays & 4-20 mAoutput
PD1107
4 relays & 4-20 mA output
PDA6405 Split Core AC Current
Transformers
Model
Description
PDA6405-100
100 AAC Current Transformer with
0-5 AAC Output
PDA6405-200
200 AAC Current Transformer with
0-5 AAC Output
PDA6405-400
400 AAC Current Transformer with
0-5 AAC Output
PDA6405-600
600 AAC Current Transformer with
0-5 AAC Output
PDA6405-1000
1000 AAC Current Transformer with
0-5 AAC Output
PDA6420 Split Core AC Current
Transducer
Model
Description
PDA6420
Input: 30/60/120 AAC;
Output: 4-20 mA
Note: The PDA6420 may be useful for customers that want
to convert their AC Current reading to a 4-20 mA signal and
display it on a meter that accepts a 4-20 mA input.

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
7
Light / Horn Accessories
PROVUMeter Shown in a PDA2301 Enclosure with MOD-LHRB1 Red Light / Horn and Button.
Meter & Enclosure Sold Separately. Assembly Required.
MOD-LH
Model
Description
MOD-LHRB1
Red Light / Horn and Button with
Holes Drilled in Enclosure(1)
MOD-LHGB1
Green Light / Horn and Button with
Holes Drilled in Enclosure(1)
MOD-LHYB1
Yellow Light / Horn and Button with
Holes Drilled in Enclosure(1)
MOD-LHBB1
Blue Light / Horn and Button with
Holes Drilled in Enclosure(1)
MOD-LHWB1
White Light / Horn and Button with
Holes Drilled in Enclosure(1)
MOD-LH5CB1
Light / Horn with User Choice of
Red, Green, Yellow, Blue or White
Light, Button, and Holes Drilled in
Enclosure(1)
Note:
1. This MOD supplies the Light / Horn and Button. The enclosure
comes pre-drilled with holes for Light / Horn and Button and the
user performs the installation and wiring. Meter and enclosure are
sold separately. The Light / Horn hole is in the back left corner of
the enclosure and the Button is centered on the cover of the
enclosure below the meter about an inch off thebottom of the
cover except on the PDA3400 series where it is mounted on the
side of the enclosure.
PDA-LH & PDA-BUTTON
Model
Description
PDA-LHR
Red Light / Horn
PDA-LHG
Green Light / Horn
PDA-LHY
Yellow Light / Horn
PDA-LHB
Blue Light / Horn
PDA-LHW
White Light / Horn
PDA-LHW
White Light / Horn
PDA-LH5C
Light / Horn with User Choice of
Red, Green, Yellow, Blue or White
Light
PDA-BUTTON1R
Red Button
PDA-BUTTON1G
Green Button
PDA-BUTTON1B
Blue Button

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
8
Specifications
Except where noted all specifications apply to
operation at +25°C.
General
Display
Line 1: 0.60" (15 mm) high, red LEDs
Line 2: 0.46" (12 mm) high, red LEDs
6 digits each (-99999 to 999999), with lead
zero blanking
Display
Intensity
Eight user selectable intensity levels.
Default is six.
Display
Update Rate
5/second (200 ms)
Overrange
Display flashes 999999
Underrange
Display flashes -99999
Display
Assignment
Display Line 1:
Channels A (Ch-A, current), V (Ch-V,
voltage), or P (Ch-P, apparent power);
toggle between (Ch-A & Ch-V, Ch-A & Ch-
P, Ch-V & Ch-P, and Ch-A, Ch-V, & Ch-P);
set points; max and/or min values for Ch-A,
Ch-V, or Ch-P; CH-A and units; Ch-V and
units; Ch-P and units, Modbus input, and
more.
Display line 2:
Same as Display Line 1; plus units, tag or
turned off.
Programming
Methods
Four front panel buttons, digital inputs, PC
and MeterView Pro software, or Modbus
registers.
Noise Filter
Programmable from 2 to 199
(0 will disable filter)
Filter Bypass
Programmable from 0.1 to 99.9% of
calibrated span
Recalibration
All ranges are calibrated at the factory.
Recalibration is recommended at least
every 12 months.
Max/Min
Display
Max/min readings reached by each
displayed input type are stored until reset
by the user or until power to the meter is
cycled.
Rounding
Select 1, 2, 5, 10, 20, 50, or 100
(e.g. rounding = 10, value = 123.45,
display = 123.50).
Password
Three programmable passwords restrict
modification of programmed settings.
Pass 1: Allows use of function keys and
digital inputs
Pass 2: Allows use of function keys, digital
inputs and editing set/reset points
Pass 3: Restricts all programming, function
keys, and digital inputs.
Non-Volatile
Memory
All programmed settings are stored in non-
volatile memory for a minimum of ten years
if power is lost.
Power
Options
85-265VAC50/60Hz;90-265VDC,20Wmax;
12-24 VDC, 12-24 VAC, 15 W max.
Powered over USB for configuration only.
Fuse
Required external fuse: UL Recognized, 5
A max, slow blow; up to 6 meters may
share one 5 A fuse
Isolation
500 V AC/DC potential allowed between
voltage and current input channels.
Channels isolated by 3 MΩimpedance
4 kV input/output-to-power line
500 V input-to-output or output-to-P+ supply
Overvoltage
Category
Installation Overvoltage Category II:
Local level with smaller transient
overvoltages than Installation Overvoltage
Category III.
Environmental
Operating temperature range:
-40 to 65°C (-40 to 149°F)
Storage temperature range:
-40 to 85°C (-40 to 185°F)
Relative humidity:
0 to 90% non-condensing
Connections
Removable screw terminal blocks accept
12 to 22 AWG wire, RJ45 for external
relays, digital I/O, and serial communication
adapters.
Enclosure
1/8 DIN, high impact plastic, UL 94V-0,
color: black
Front Panel
NEMA 4X, IP65
Mounting
1/8 DIN panel cutout required:
3.622" x 1.772" (92 mm x 45 mm)
Two panel mounting bracket assemblies
are provided.
Tightening
Torque
Screw terminal connectors: 5 lb-in (0.56
Nm)
Overall
Dimensions
4.68" x 2.45" x 5.64"
(119 mm x 62 mm x 143 mm)
(W x H x D)
Weight
9.5 oz (269 g)
Warranty
3 years parts & labor. See Warranty
Information and Terms & Conditions on
www.predig.com for complete details.

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
9
Voltage and Current Inputs
High Voltage
Input
One high voltage input(Channel V) 0-300VDC
or VAC; Switch Selectable, Modbus PV
(Slave)
High Current
Input
One high current input (Channel A)
0-5 AAC or ADC; Switch Selectable,
Modbus PV (Slave)
Channels
Channel A, Channel V, Channel P (Math
Channel for Apparent Power)
AC/DC
Selection
Switch selectable for AC or DC inputs.
Channels A and V share AC/DC selection.
Apparent
Power Math
Apparent power P calculated as
P = ((A * V) + C) * F
Programmable
Constants
Constant C (Adder): -99.999 to 999.999,
default: 0.000
Constant F (Factor): 0.001 to 999.999,
default: 1.000
Accuracy
ADC: 0.03% Full Scale ±1 count,
AAC: 0.1% Full Scale ±1 count,
VDC: 0.05% Full Scale ±1 count,
VAC: 0.15% Full Scale ±1 count
Temperature
Drift
0.005% of calibrated span/C max from
-40 to 65C ambient
Multi-Point
Linearization
2 to 32 points for Channel A and V
Low-Value
Cutoff
0.1 to 999,999 (0 disables cutoff function).
Point below at which the display always
shows zero. Independent for Channel A
and V.
Decimal Point
Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd
Calibration
Range
Input
Channel
Input Range
Minimum Span
Input 1 & Input 2
A
± 0-5 ADC
0-5 AAC
± 0.005 ADC
0.010 AAC
V
± 0-300 VDC
0-300 VAC
± 0.1 VDC
0.3 VAC
An error message will appear if the input 1
and input 2 signals are too close together.
Input
Impedance
Voltage Input: Greater than 3 M
Current Input: 50 - 100 
Input
Overload
Voltage input protected up to 500 VDC
Current input protected up to 10 A by a
10A/300V fast acting non-resettable fuse
Fuse is NOT resettable after a fault; unit
must be factory reconditioned.
F4 Digital
Input
Contacts
3.3 VDC on contact. Connect normally
open contacts across F4 to COM.
F4 Digital
Input
Logic Levels
Logic High: 3 to 5 VDC
Logic Low: 0 to 1.25 VDC
Relays
Rating
2 or 4 SPDT (Form C) internal and/or
4 SPST (Form A) external; rated 3 A
@ 30 VDC and 125/250 VAC resistive
load; 1/14 HP (≈50 W) @ 125/250 VAC for
inductive loads
Noise
Suppression
Noise suppression is recommended for
each relay contact switching inductive
loads; see Switching Inductive Loads on
page 16 for details.
Relay
Assignment
Each relay independently assigned to
Ch-A, Ch-V, CH-P, or Modbus
Deadband
0-100% of span, user programmable
High or Low
Alarm
User may program any alarm for high or
low trip point. Unused alarm LEDs and
relays may be disabled (turn off).
Relay
Operation
•Automatic (non-latching) and/or
manual reset
•Latching (requires manual
acknowledge) with or without clear
•Pump alternation control (2-8 relays)
•Sampling (based on set point and time)
•Off (disable unused relays and enable
Interlock feature)
•Manual on/off control mode
Relay Reset
User selectable via front panel button, F4
terminal at back of meter, external contact
closure on digital inputs, or through serial
communications.
1. Automatic reset only (non-latching),
when the input passes the reset point.
2. Automatic + manual reset at any time
(non-latching)
3. Manual reset only, at any time
(latching)
4. Manual reset only after alarm condition
has cleared (L)
Note: Front panel button, F4 terminal at
back of meter or digital input may be
assigned to acknowledge relays
programmed for manual reset.
Time Delay
0 to 999.9 seconds, on & off relay time
delays. Programmable and independent for
each relay
Fail-Safe
Operation
Programmable and independent for each
relay.
Note: Relay coil is energized in non-alarm
condition. In case of power failure, relay will
go to alarm state.
Break
Condition
Operation
Relay condition when sensor break
detected. Programmable independently for
each relay as On, Off, or Ignore (maintain
last condition).
Auto
Initialization
When power is applied to the meter, relays
will reflect the state of the input to the
meter.
Additional
Relays
An external module, model PDA1004, is
available to add 4 SPST 3 A relays to the
meter.

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
10
Isolated 4-20 mA Transmitter
Output
Output
Source
Process channel A, V, or P, max or min for
channel A, V, or highest or lowest max or
min of A and V, set points 1-8, Modbus
input, or manual control mode
Scaling
Range
1.000 to 23.000 mA for any display range
Calibration
Factory calibrated:
4.000 to 20.000 = 4-20 mA output
Analog Out
Programming
23.000 mA maximum for all parameters:
Overrange, underrange, max, min, and
break
Accuracy
± 0.1% of span ± 0.004 mA
Temperature
Drift
0.4 µA/C max from 0 to 65C ambient,
0.8 µA/C max from -40 to 0C ambient
Note: Analog output drift is separate from
input drift.
Isolated
Transmitter
Power Supply
TerminalsI+&R:24VDC10%@ 40mA.
May be used to power the 4-20 mA output
or other devices.
All modelsrated@ 40 mA max.
External Loop
Power Supply
35 VDC maximum
Output Loop
Resistance
Power supply
Minimum
Maximum
24 VDC
10 
700 
35 VDC
(external)
100 
1200 
Additional
4-20 mA
Outputs
The PD659-1MA-2MA can split the optional
4-20 mA output into two isolated 4-20 mA
outputs
0-10 VDC
Output
The PD659-1MA-1V can convert the
optional 4-20 mA output to a 0-10 VDC
output
USB Connection
Function
Programming only
Compatibility
USB 2.0 Standard, Compliant
Connector Type
Micro-B receptacle
Cable
USB A Male to Micro-B Cable
Driver
Microsoft®Windows®XP/Vista/7/8/10
Power
USB port provides power to the meter.
DO NOT apply AC or DC power to the
meter while the USB port is in use.
On-Board Digital Input (F4)
Function
Remote operation of front-panel buttons,
acknowledge/reset relays, reset max/min
values. See Function Keys & Digital I/O
Available Settings on page 39 for a
complete list of capabilities.
Contacts
3.3 VDC on contact. Connect normally
open contacts across F4 to COM
Logic Levels
Logic High: 3 to 5 VDC
Logic Low: 0 to 1.25 VDC
Additional I/O
Up to 2 external modules, model PDA1044
with 4 digital inputs and 4 digital outputs
each can be added.
Modbus®RTU Serial
Communications
Slave Id
1 –247 (Meter address)
Baud Rate
300 –19,200 bps
Transmit
Time Delay
Programmable between 0 and 199 ms
Data
8 bit (1 start bit, 1 or 2 stop bits)
Parity
Even, Odd, or None with 1 or 2 stop bits
Byte-To-Byte
Timeout
0.01 –2.54 second
Turn Around
Delay
Less than 2 ms (fixed)
Note: Refer to the PROVUModbus Register Tables located
at www.predig.com for details.
MeterView Pro
Availability
Download directly from meter or from
www.predig.com/download_software
System
Requirements
Microsoft®Windows®XP/Vista/7/8/10
Communications
USB 2.0 (for programming only)
(Standard USB A to Micro USB B)
RS-232 adapter, RS-485 adapter and
RS-485 to USB converter
(programming, monitoring, and data
logging)
Configuration
Configure meters one at a time
Power
USB port provides power to the meter.
DO NOT apply AC or DC power to the
meter while the USB port is in use.

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
11
Compliance Information
Safety
UL & C-UL Listed
USA & Canada
UL 508 Industrial Control Equipment
UL File Number
E160849
Front Panel
UL Type 4X, NEMA 4X, IP65; panel
gasket provided
Low Voltage
Directive
EN 61010-1:2010
Safety requirements for measurement,
control, and laboratory use
Electromagnetic Compatibility
Emissions
EN 55022:2010
Class A ITE emissions requirements
Radiated
Emissions
Class A
AC Mains
Conducted
Emissions
Class A
Immunity
EN 61326-1:2013
Measurement, control, and laboratory
equipment
EN 61000-6-2:2005
EMC heavy industrial generic immunity
standard
RFI - Amplitude
Modulated
80 -1000 MHz 10 V/m 80% AM (1 kHz)
1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)
2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)
Electrical Fast
Transients
±2kV AC mains, ±1kV other
Electrostatic
Discharge
±4kV contact, ±8kV air
RFI -
Conducted
10V, 0.15-80 MHz, 1kHz 80% AM
AC Surge
±2kV Common, ±1kV Differential
Surge
1KV (CM)
Power-
Frequency
Magnetic Field
30 A/m 70%V for 0.5 period
Voltage Dips
40%V for 5 & 50 periods
70%V for 25 periods
Voltage
Interruptions
<5%V for 250 periods
Note:
Testing was conducted on meters installed through the
covers of grounded metal enclosures with cable shields
grounded at the point of entry representing installations
designed to optimize EMC performance.
Safety Information
•Read complete instructions prior to installation
and operation of the meter.
•Risk of electric shock or personal injury.
•Hazardous voltages exist within enclosure.
Installation and service should be performed only
by trained service personnel.
Installation
There is no need to remove the meter from its
case to complete the installation, wiring, and
setup of the meter for most applications.
Unpacking
Remove the meter from box. Inspect the
packaging and contents for damage. Report
damages, if any, to the carrier.
If any part is missing or the meter malfunctions,
please contact your supplier or the factory for
assistance.

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
12
Panel Mounting Instructions
•Prepare a standard 1/8 DIN panel cutout -
3.622" x 1.772" (92 mm x 45 mm). Refer to
Figure 1. 1/8 DIN Panel Cutout Dimensions
below for more details.
•Clearance: allow at least 6.0" (152 mm) behind
the panel for wiring.
•Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to
maintain Type 4X rating: 0.06" (1.5 mm) steel
panel, 0.16" (4.1 mm) plastic panel.
•Remove the two mounting brackets provided with
the meter (back-off the two screws so that there is
¼" (6.4 mm) or less through the bracket. Slide the
bracket toward the front of the case and remove).
•Insert meter into the panel cutout.
•Install mounting brackets and tighten the screws
against the panel. To achieve a proper seal,
tighten the mounting bracket screws evenly until
meter is snug to the panel along its short side.
DO NOT OVER TIGHTEN, as the rear of the
panel may be damaged.
Figure 1. 1/8 DIN Panel Cutout Dimensions
DO NOT apply AC or DC power to the meter when using the
Micro USB connection.
Figure 2. Panel Mounting Details
Mounting Dimensions
Figure 3. Meter Dimensions - Side View
Figure 4. Meter Dimensions - Top View
NO NC NC C NO C
NO NC NC C NO C+ -R
3.622" (92 mm)
1.772"
(45mm)
Panel Cutout
to DIN 43700
Square Corners to 0.060"
(1.5mm) Max Radius
A
B
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
-0.000 (-0.0mm)

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
13
Installation Overview
We recommend the following sequence for getting the
meter into service:
1. DO NOT apply AC or DC power to the meter.
2. Connect the meter to the PC with the USB cable
provided. DO NOT use a different USB cable.
3. If MeterView Pro (MVPro) is already installed in
your computer, then the program will launch
automatically in most systems. If the program
does not start automatically, double-click on the
MVPro icon.
4. If MVPro is not installed, follow the instructions
provided below.
5. Use MVPro to configure the meter for your
application.
6. Disconnect the USB cable from the meter.
7. Apply power and signal and check operation of
the meter.
8. Install the meter and put into service.
9. Make any programming adjustments using the
front panel buttons.
MeterView Pro Software
The easiest and quickest way to program your PROVU
meter is to use the FREE MeterView Pro
programming software. This software is loaded into
the meter and connects and installs directly to your
PC with the USB cable provided. DO NOT use a
different USB cable. We recommend that the first
thing you do after taking the meter out of the box is
connect the PROVUto your PC with the provided USB
cable. DO NOT apply AC or DC power to the meter
while your PC is connected to the meter as it will
disrupt the USB connection. It is not necessary to
apply an input signal.
MeterView Pro programming software is intuitive, and
most customers can get their meter programmed as
they like without even looking in the manual.
Watch Meterview Pro Software Video at
www.predig.com/meterviewpro

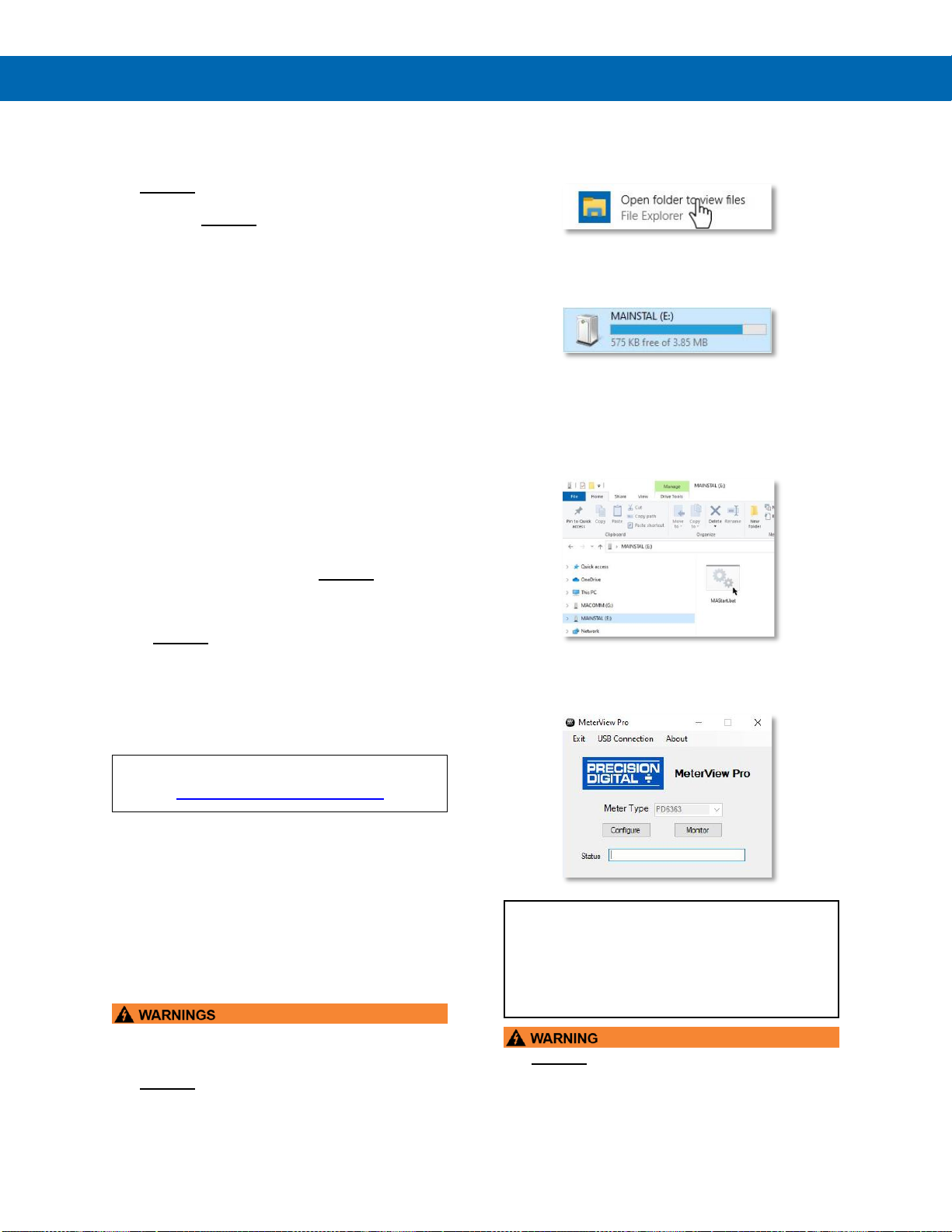

MeterView Pro Installation
1. Connect one end of the provided USB cable
to the meter and the other end to the
computer. The computer will automatically
install the driver software it needs to talk to
the meter. Follow the on-screen instructions
and allow sufficient time for the process to
complete. This can take a few minutes. If the
process is interrupted, then it could leave the
system in an unstable condition.
•Only one meter may be connected at a time.
Attaching multiple meters will cause a conflict
with the meter software.
•DO NOT apply AC or DC power to the meter
when using the Micro USB connection.
2. Once the driver is installed, an AutoPlay
dialog should appear for the drive
“MAINSTAL.” Click “Open folder to view
files.”
If the computer does not display an AutoPlay
dialog for the drive “MAINSTAL,” you should
open My Computer and double-click on the
drive labeled “MAINSTAL.”
3. Double-click on the file named “MAStart.”
The program will open a few windows and
install two programs on your computer.
Simply follow the on-screen instructions until
you see one of the dialogs below. If you
receive a “User Account Control” warning,
click “Yes.”
4. If there is an update available, click the
“Update” button to install the new version.
Otherwise, click “Configure” to begin
programming your meter.
Note: If you decide to update your MeterView Pro
software, once the installation has completed, you
will be asked if you want to update the setup files
located on the meter itself. This way, you will
always have the most current version on the meter
for future installs.
•DO NOT unplug the meter while the new
installation files are being written to it. The meter
will display uwrite during the process and you
will receive an on-screen notification once the
process is complete.

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
14
Connections
All connections are made to removable screw
terminal connectors located at the rear of the
meter.
•Use copper wire with 60°C or 60/75°C insulation
for all line voltage connections. Observe all safety
regulations. Electrical wiring should be performed
in accordance with all applicable national, state,
and local codes to prevent damage to the meter
and ensure personnel safety.
Connectors Labeling
The connectors’ label, affixed to the meter, shows the
location of all connectors available with requested
configuration.
Note: ## on the following figures refers to power and
display options. (Example: PD6400-6H5)
Figure 5. PD6400-##0 Connectors Label
Figure 6. PD6400-##2 Connectors Label
Figure 7. PD6400-##3 Connectors Label
Figure 8. PD6400-##4 Connectors Label
Figure 9. PD6400-##5 Connectors Label
Figure 10. PD6400-##7 Connectors Label
•DO NOT connect any equipment other than
Precision Digital’s expansion modules, cables, or
meters to the RJ45 M LINK connector. Otherwise
damage will occur to the equipment and the
meter.
POWER
+-
M-LINK
123 4 5 6 7 8
21
SIGNAL TYPE
V+ V- F4 COM
214321
I+ I- AC DC
POWER
+-
M-LINK
CNONO NC NC C
RELAY2 RELAY1
4365 21
123 4 5 6 7 8
21
SIGNAL TYPE
V+ V- F4 COM
214321
I+ I- AC DC
R I- I+
MA OUT
1
32
POWER
+-
M-LINK
123 4 5 6 7 8
21
SIGNAL TYPE
V+ V- F4 COM
214321
I+ I- AC DC
SOURCE: I- to R
SINK: I- to I+
POWER
+-
M-LINK
CNONO NC NC C
RELAY4 RELAY3
4365 2 1
CNONO NC NC C
RELAY2 RELAY1
4365 21
123 4 5 6 7 8
21
SIGNAL TYPE
V+ V- F4 COM
214321
I+ I- AC DC
SOURCE: I- to R
SINK: I- to I+
R
I- I+
MA OUT
1
32
POWER
+-
M-LINK
CNONO NC NC C
RELAY2 RELAY1
4365 21
123 4 5 6 7 8
21
SIGNAL TYPE
V+ V- F4 COM
214321
I+ I- AC DC
SOURCE: I- to R
SINK: I- to I+
R
I- I+
MA OUT
1
32
POWER
+-
M-LINK
CNONO NC NC C
RELAY4 RELAY3
4365 2 1
CNONO NC NC C
RELAY2 RELAY1
4365 21
123 4 5 6 7 8
21
SIGNAL TYPE
V+ V- F4 COM
214321
I+ I- AC DC

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
15
Power Connections
Power connections are made to a two-terminal
connector labeled POWER. The meter will operate
regardless of DC polarity connection. The + and -
symbols are only a suggested wiring convention. There
are separate models for low voltage and high voltage
power. See Ordering Information on page 6for
details.
Figure 11. Power Connections
Signal Connections
Signal connections are made to a four-terminal
connector labeled SIGNAL. The I+ and I- terminals
are used for Channel A (CH-A) as the current input
terminals. The V+ and V- terminals are used for
Channel V (CH-V) as the voltage input terminals.
In addition to the signal connections, the switch
labeled TYPE must be set to AC (alternating current)
or DC (direct current) to accept the corresponding
type of voltage and current signals.
Voltage Input
The following figures show examples of connecting the
meter for a voltage input. Note that in addition to the
connections, the AC/DC type switch much also be set.

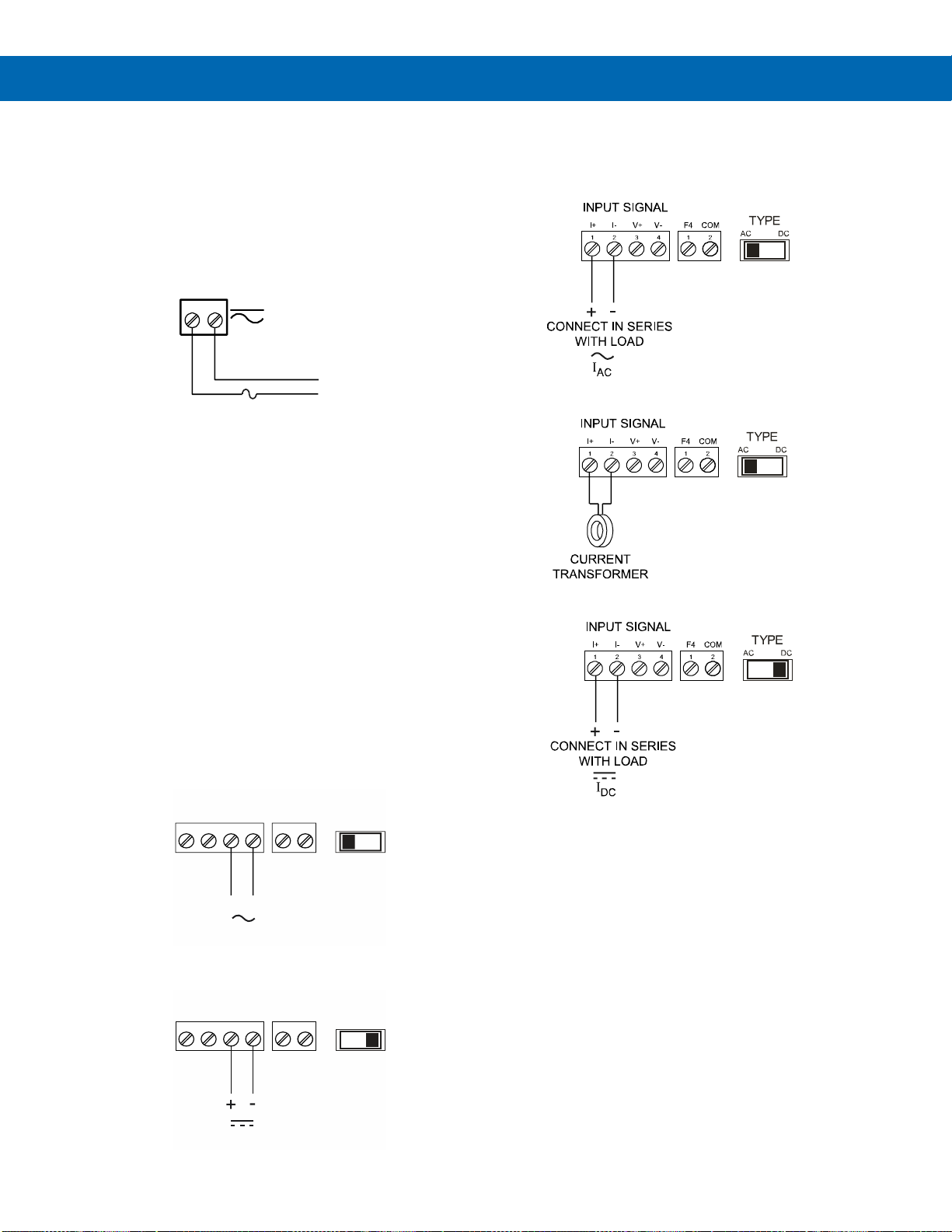

Figure 12. AC Voltage Input Connection
Figure 13. DC Voltage Input Connections
Current Input
The following figures show examples of connecting the
meter for a current input. Note that in addition to the
connections, the AC/DC type switch much also be set.
Figure 14. AC Current Connections
Figure 15. AC Current Transformer Connections
Figure 16. DC Current Connections
AC or DC
POWER
Required External Fuse:
5 A max, 250 V Slow Blow
POWER
+-
HOT NEUTRAL
INPUT SIGNAL
I- V+I+ V-
3412
COMF4
12
TYPE
AC DC
V
AC
INPUT SIGNAL
I- V+I+ V-
3412
COMF4
12
TYPE
AC DC
V
DC

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
16
Current and Voltage Input
The following figures show examples of connecting the
meter for both current and voltage input. Note that in
addition to the connections, the AC/DC type switch
much also be set.
Figure 17. AC Current and Voltage Connections
Figure 18. AC Current Transformer and Voltage
Connections
Figure 19. DC Current and Voltage Connections
Modbus RTU Serial
Communications
Serial communications connection is made to an
RJ45 connector labeled M-LINK. For interfacing to the
PROVU, use the PDA1232 for RS-232 or the PDA1485
for RS-485. The same port is used for interfacing with
all expansion modules (e.g. external relays, digital
I/O).
Relay Connections
Relay connections are made to two six-terminal
connectors labeled RELAY1 –RELAY4. Each relay’s
C terminal is common only to the normally open (NO)
and normally closed (NC) contacts of the
corresponding relay. The relays’ C terminals should
not be confused with the COM (common) terminal of
the INPUT SIGNAL connector.
Figure 20. Relay Connections
CNONO NC NC C
RELAY4 RELAY3
4 36 5 2 1
CNONO NC NC C
RELAY2 RELAY1
4 36 5 2 1

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
17
Switching Inductive Loads
The use of suppressors (snubbers) is strongly
recommended when switching inductive loads to
prevent disrupting the microprocessor’s operation.
The suppressors also prolong the life of the relay
contacts. Suppression can be obtained with resistor-
capacitor (RC) networks assembled by the user or
purchased as complete assemblies. Refer to the
following circuits for RC network assembly and
installation:

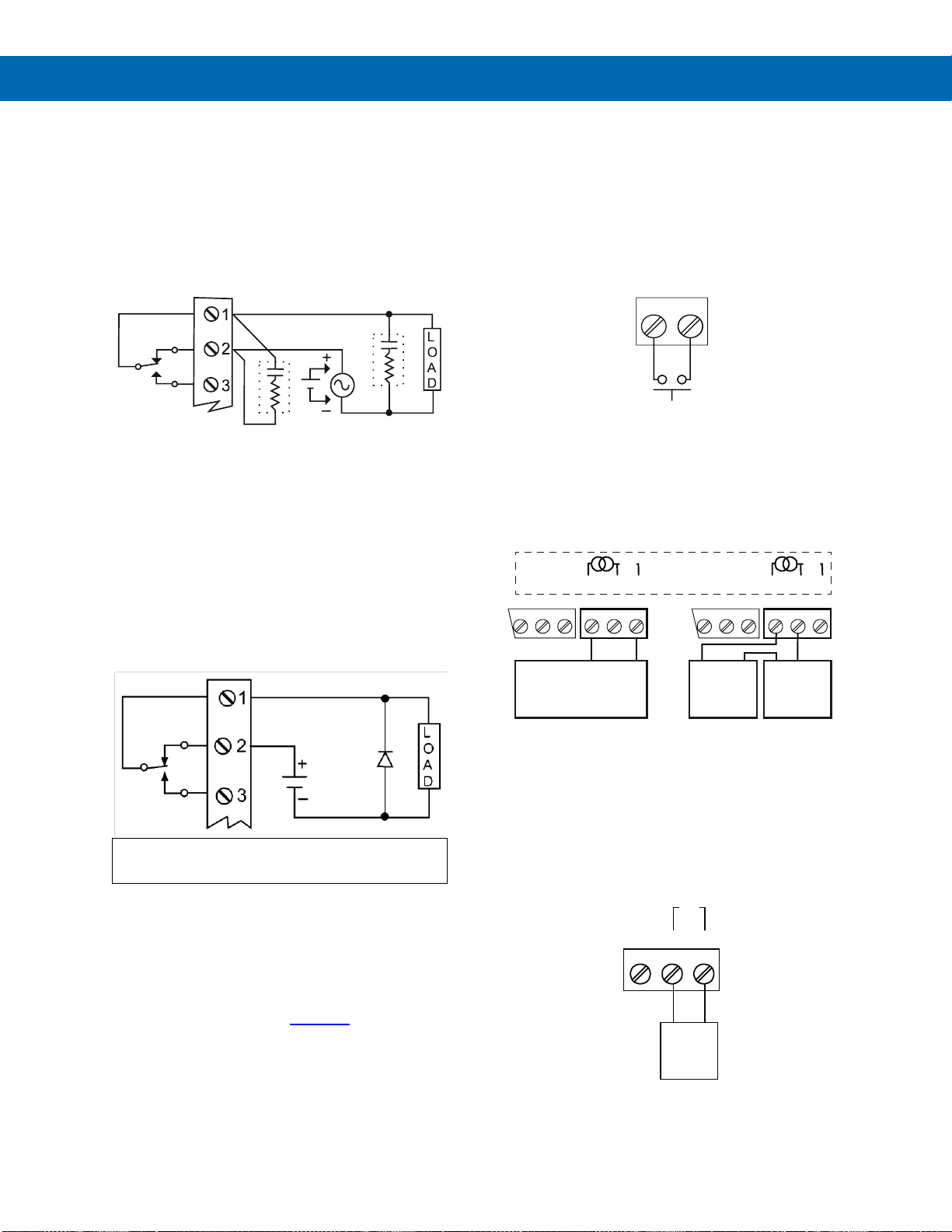

Figure 21. AC and DC Loads Protection
Choose R and C as follows:
R: 0.5 to 1 Ωfor each volt across the contacts
C: 0.5 to 1 µF for each amp through closed contacts
Notes:
1. Use capacitors rated for 250 VAC.
2. RC networks may affect load release time of
solenoid loads. Check to confirm proper
operation.
3. Install the RC network at the meter's relay screw
terminals. An RC network may also be installed
across the load. Experiment for best results.
Use a diode with a reverse breakdown voltage two to three
times the circuit voltage and forward current at least as large
as the load current.
Figure 22. Low Voltage DC Loads Protection
RC Networks Available from
Precision Digital
RC networks are available from Precision Digital and
should be applied to each relay contact switching an
inductive load. Part number: PDX6901.
Note: Relays are de-rated to 1/14th HP (50 watts)
with an inductive load.
F4 Digital Input Connections
A digital input, F4, is standard on the meter. This
digital input should be connected with a normally
open contact across F4 and COM, or with an active
low signal applied to F4. It can be used for remote
operation of front-panel buttons, to acknowledge/reset
relays, or to reset max/min values. See Function Keys
& Digital I/O Available Settings on page 39 for a
complete list of capabilities.
Figure 23. F4 Digital Input Connections
4-20 mA Output Connections
Connections for the 4-20 mA transmitter output are
made to the connector terminals labeled MA OUT.
The 4-20 mA output may be powered internally or
from an external power supply.
Figure 24. 4-20 mA Output Connections
Analog Output Transmitter Power
Supply
The internal 24 VDC power supply powering the
analog output may be used to power other devices, if
the analog output is not used. The I+ terminal is the
+24 V and the R terminal is the return.
Figure 25. Analog Output Supply Powering Other
Devices
C
R
C
R
COMF4
12
4-20 mA Input
Remote Display, PLC,
Chart Recorder, Etc.
-
+
RI- I+ 132
RELAY1 mA OUT
24 V
12-35 VDC
Power
Supply
+
4-20 mA
Input Meter
-+
RI- I+ 132
RELAY1
321
-
24 V
mA OUT
Internal Power Supply
and Analog Output
321
Active Output Loop Passive Output Loop
RI- I+
132
24 VDC
Powered
Device
24 V
+-

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
18

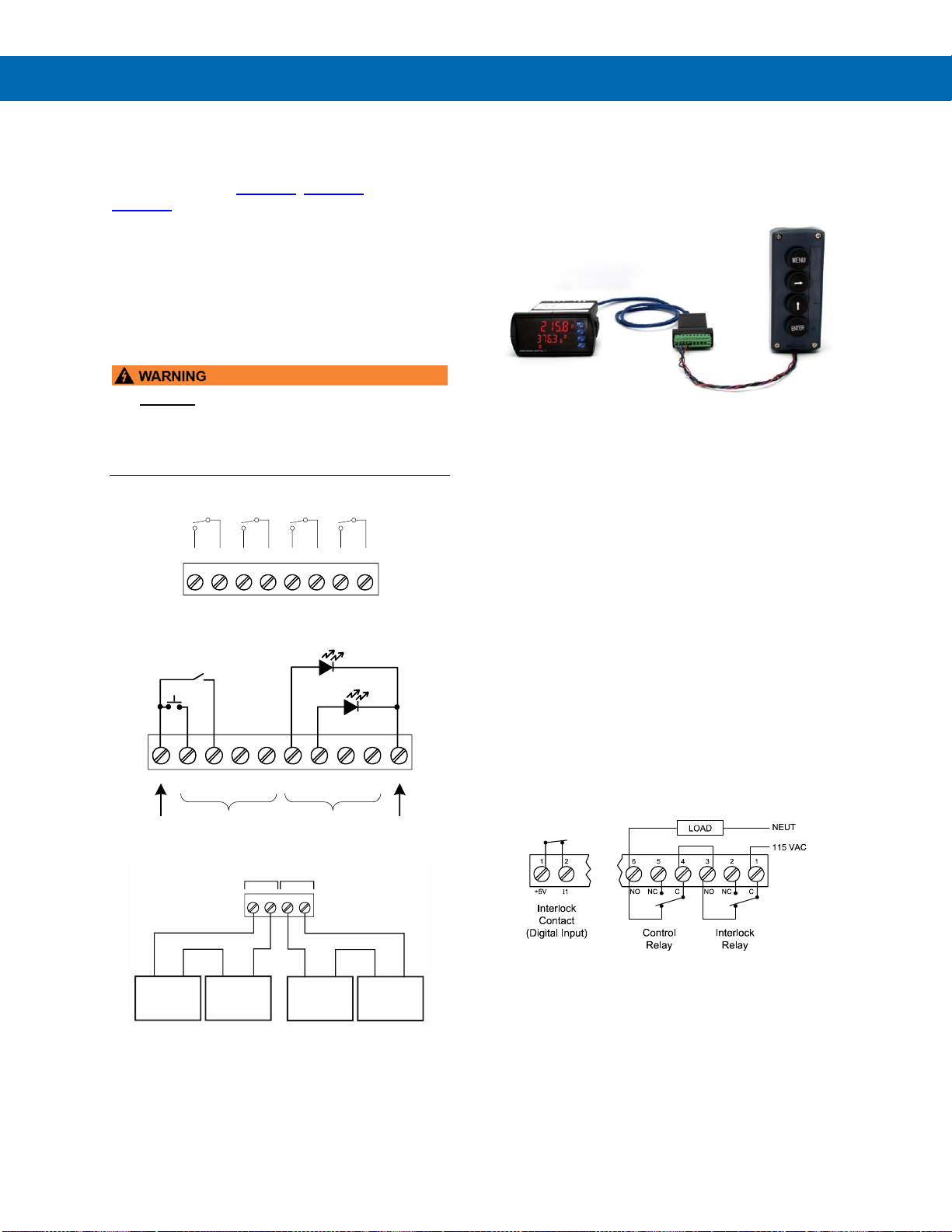

External Relay, Analog Output, &
Digital I/O Connections
The relay, dual analog output, and digital I/O
expansion modules PDA1004, PDA1011, and
PDA1044 are connected to the meter using a CAT5
cable provided with each module. The two RJ45
connectors on the expansion modules are identical
and interchangeable; they are used to connect
additional modules to the system.
Note: The jumper located between the RJ45
connectors of the PDA1044 must be removed
on the second digital I/O module in order for the
system to recognize it as module #2.
•DO NOT connect or disconnect the expansion
modules with the power on! More detailed
instructions are provided with each optional
expansion module.
Figure 26. External Relays Module Connections
Figure 27. Digital I/O Module Connections
Figure 28. Dual 4-20 mA Output Module
Connections
Remote Operation of Meter
The meter can be operated via the front panel push
buttons or a remote control station using the
PDA1044 Digital I/O module as illustrated in Figure
29. Meter to Control Station Connection.
Figure 29. Meter to Control Station Connection
Interlock Relay Feature
As the name implies, the interlock relay feature
reassigns one, or more, alarm/control relays for use
as interlock relay(s). Interlock contact(s) are wired to
digital input(s) and activate the interlock relay. This
feature is enabled by configuring the relay, and the
corresponding digital input(s), see Setting Up the
Interlock Relay (Force On) Feature on page 32.
In the example below, an Interlock Contact switch is
connected to a digital input, which will be used to
force on (energize) the Interlock Relay. The Interlock
Relay and the Control Relay are connected in series
with the load.
•When the Interlock Contact is closed (safe), the
Interlock Relay energizes, allowing power to flow
to the Control Relay; the corresponding front
panel LED is on.
•When the Interlock Contact is open, the
corresponding front panel LED flashes (locked
out), the Interlock Relay is de-energized,
preventing power from flowing to the Control
Relay and the load.
Figure 30. Interlock Connections
1 2
RLY5 RLY6 RLY7 RLY8
3 4 5 6 7 8
NO CNO CNO CNO C
1 2 3 4 5 6
+5 I1 I2 I3 I4 O1
7 8
O2 O3
910
O4 G
DI 1-4 DO 1-4
5 VDC GND
+-
-+- +
2314
Out 3Out 2
+-
+-
+-
4-20 mA
Input
Meter 2
4-20 mA
Input
Meter 3
12-35 VDC
Power
Supply 2
12-35 VDC
Power
Supply 3

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
19
Setup and Programming
There is no need to recalibrate the meter
when first received from the factory.
The meter is factory calibrated prior to
shipment for milliamps and volts with calibration
equipment that is certified to NIST standards.
Overview
The only switch to set on the meter is the AC/DC
switch located at the back of the instrument next to
the screw terminal connectors. See Current and
Voltage Input on page 16 for further details.
Setup and programming is done using Meterview Pro
or through the front panel buttons.
After power and input signal connections have been
completed and verified, apply power to the meter.

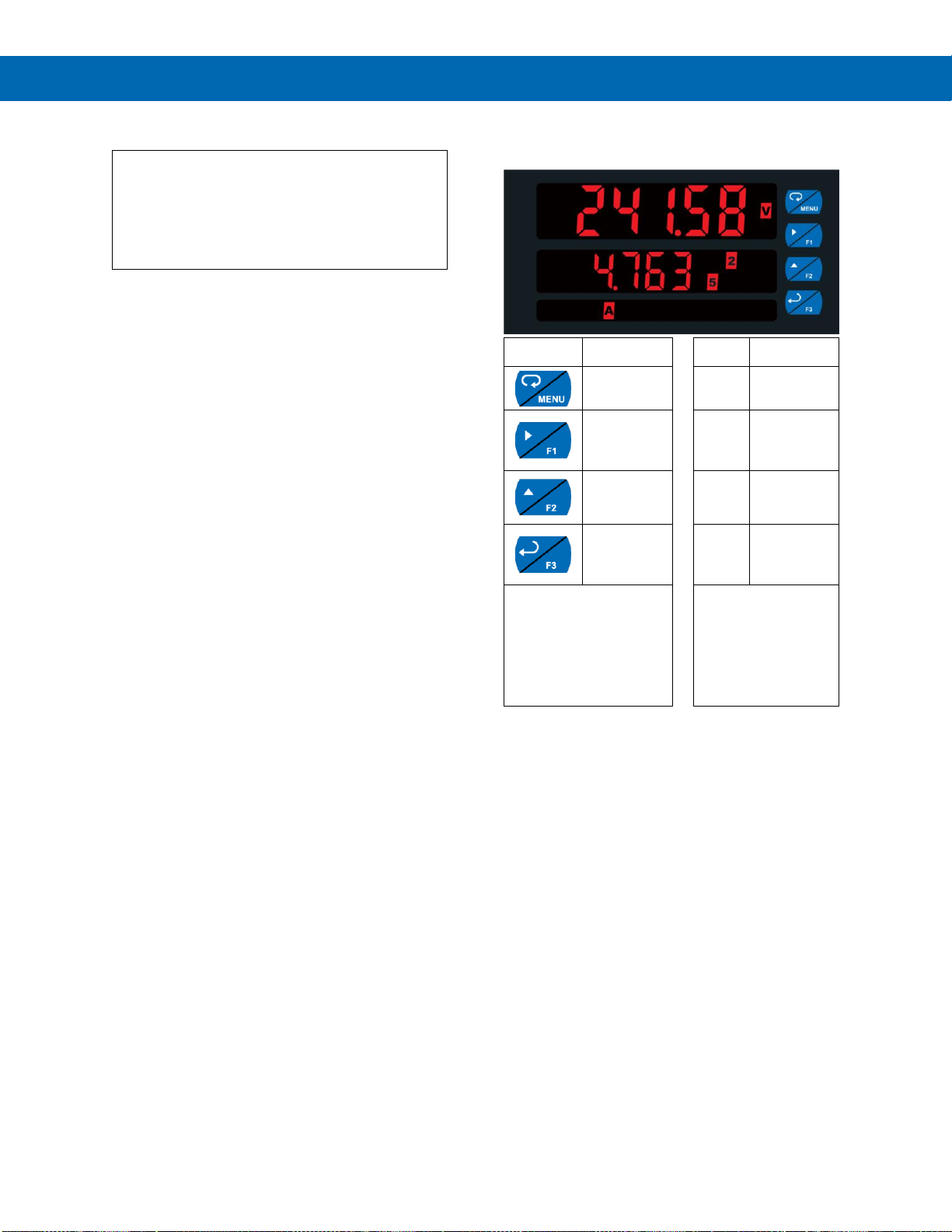

Front Panel Buttons and Status
LED Indicators
Button
Symbol
Description
LED
Status
Menu
1-8
Alarm 1-8
indicator
Right
arrow/F1
1-8
M
Flashing:
Relay in
manual
control mode
Up arrow/F2
A
V
P
Channel
displayed
Enter/F3
1-8
Flashing:
Relay
interlock
switch open
Note:
F4 is a digital input. Alarms
5-8 are enabled when relay
expansion module is
installed.
Note:
LEDs for relays in
manual mode flash
with the “M” LED every
10 seconds. “M”
flashing by itself
indicates Aout –
manual control is used.
•Press the Menu button to enter or exit the
Programming Mode at any time.
•Press the Right arrow button to move to the next
digit during digit or decimal point programming.
•Press or hold the Up arrow button to scroll
through the menus, decimal point, or to
increment the value of a digit.
•Press the Enter button to access a menu or to
accept a setting.
•Press and hold the Menu button for three
seconds to access the advanced features of the
meter.

PROVU™PD6400 High Voltage & High Current Meter
Instruction Manual
20
Display Functions & Messages
The meter displays various functions and messages
during setup, programming, and operation. The
following table shows the main menu functions and
messages in the order they appear in the menu.
Display Functions & Messages
Display
Parameter
Action/Setting
Description
setup
Setup
Enter Setup menu
units
Unit
Select the display
units/tags
Ch-A*
Unit
Set unit or tag for channel
A (*or V or P)
Dec pt
Decimal
point
Set decimal point
Ch-A*
Decimal
point
Set decimal point for
channel A (*or V or P)
InCAL
Input
calibration
Enter the Input Calibration
menu
Ch-A*
Input A
Set input type for channel
A (*or V)
SCAL A
Scale A
Enter the Scale menu for
channel A
Inp 1
Input 1
Scale input 1 signal or
program input 1 value
Dis 1
Display 1
Program display 1 value
Inp 2
Input 2
Scale input 2 signal or
program input 2 value (up
to 32 points)
Dis 2
Display 2
Program display 2 value
(up to 32 points)
Error
Error
Error, scaling not
successful, check signal or
programmed value
Cal A
Calibrate A
Enter the Calibration menu
for channel A
Inp 1
Input 1
Calibrate input 1 signal or
program input 1 value
Dis 1
Display 1
Program display 1 value
Inp 2
Input 2
Calibrate input 2 signal or
program input 2 value (up
to 32 points)
Dis 2
Display 2
Program display 2 value
(up to 32 points)
Error
Error
Error, calibration not
successful, check signal or
programmed value
dsplay
Display
Enter the Display menu
Line 1
Line 1
Assign the upper display
parameter
Line 2
Line 2
Assign the lower display
parameter
D Ch-A
Display Ch-
A
Assign display to channel
A
D Ch-V
Display Ch-
V
Assign display to channel
V
D Ch-P
Display Ch-
P
Assign display to channel
P (P=A*V)
D AV
Display AV
Alternate display of
channel A & V
D Ap
Display AP
Alternate display of
channel A & P
Display Functions & Messages
Display
Parameter
Action/Setting
Description
D Vp
Display VP
Alternate display of
channel V & P
D AVp
Display AVP
Alternate display of
channel A, V, & P
D set1*
Display set
1*
Displays relay 1 (*through
8) set point.
D Hi-A
Display high
A
Display high value of
channel A
D Lo-A
Display low
A
Display low value of
channel A
D HL-A
Display
hi/low A
Alternate between high/low
value of channel A
D Hi-V
Display high
V
Display high value of
channel V
D Lo-V
Display low
V
Display low value of
channel V
D HL-V
Display
high/low V
Alternate between high/low
value of channel V
D Hi-p
Display high
P
Display high value of
channel P
D Lo-p
Display low
P
Display low value of
channel P
D HL-p
Display
high/low P
Alternate between high/low
value of channel P
D a-u
Display A
and
units/tags
Alternate display of
channel A and the unit/tag
D V-u
Display V
and
units/tags
Alternate display of
channel V and the unit/tag
D p-u
Display P
and
units/tags
Alternate display of
channel P and the unit/tag
nm bus
Display
Modbus
Display Modbus input
register
D off*
Display off
Display blank display (*line
2 only)
D unit*
Display unit
Display line 1 channel units
(*line 2 only)
d-Inty
Display
intensity
Set display intensity level
from 1 to 8
RELaY
Relay
Enter the Relay menu
Assign
Assignment
Assign relays to channels
or Modbus
Asign1*
Assign 1*
Relay 1 (*through 8)
assignment
Ch-A*
Channel A*
Assign relay to channel A
(*or V or P)
nm bus
Modbus
Assign relay to Modbus
register
RLY 1*
Relay 1*
Relay 1 (*through 8) setup
Act 1*
Action 1*
Set relay 1 (*through 8)
action
Auto
Automatic
Set relay for automatic
reset
A-nman
Auto-manual
Set relay for auto or
manual reset any time
LatCH
Latching
Set relay for latching
operation
