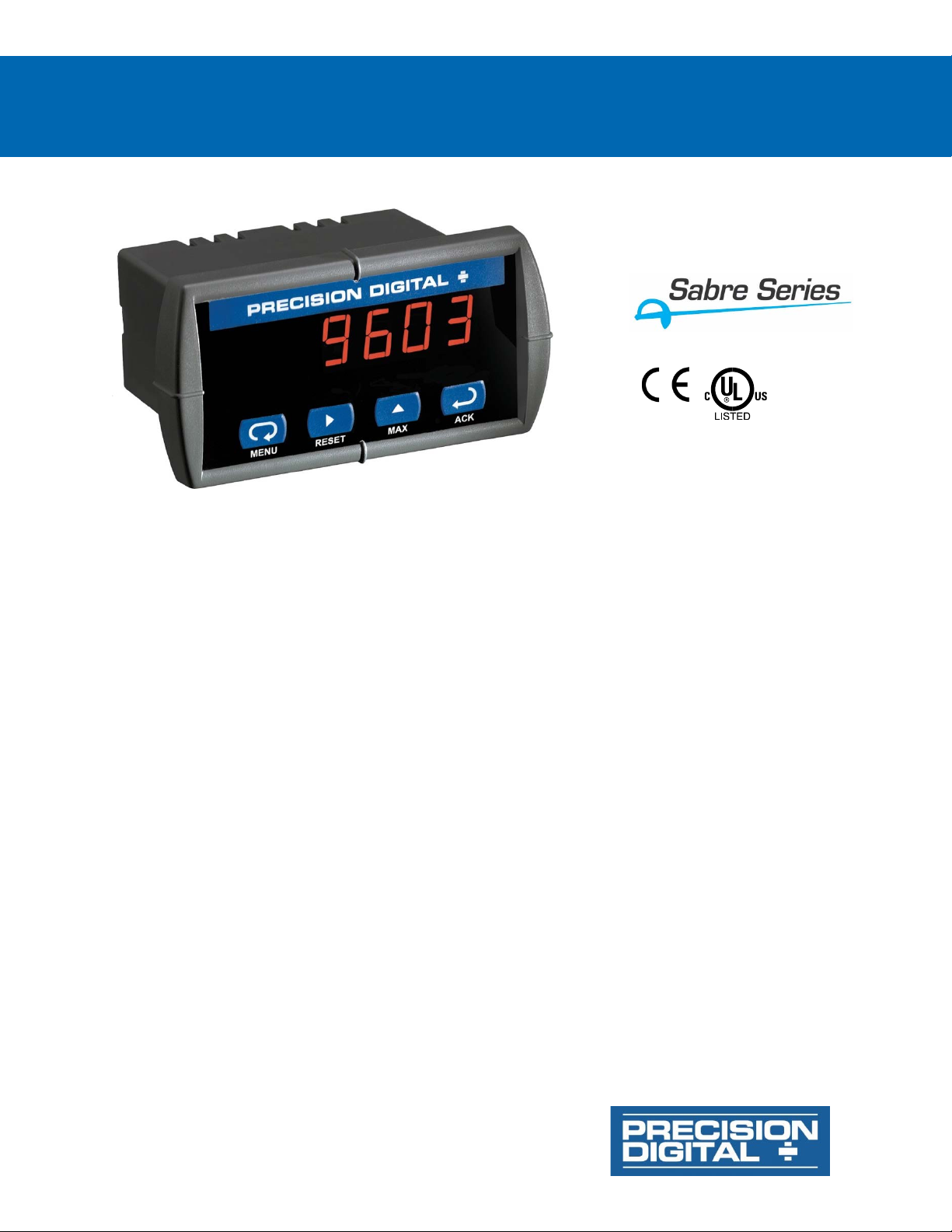

Precision Digital Corporation Sabre P PD603 User manual

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel [phone] • Fax [phone]
www.predig.com
• 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
• 0-20, 4-20 mA, 0-5, 1-5, 0-10, ±10 V Inputs
• 4-Digit Display, 0.56" (14.2 mm)
• Shallow Depth Case Extends Only 3.6" (91 mm) Behind Panel
• Isolated 24 VDC @ 200 mA Transmitter Power Supply Option
• No Assembly Required
• Operating Temperature Range: 0 to 65°C (32 to 150°F)
• UL & C-UL Listed. E160849; 508 Industrial Control Equipment
• Input Power Options: 85-265 VAC or 12-36 VDC
• Max/Min Display
• Easy Front Panel Programming; No Jumpers, Switches or Solder Pads
• 1-Year Warranty

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
2
Disclaimer
The information contained in this document is
subject to change without notice. Precision Digital
makes no representations or warranties with
respect to the contents hereof, and specifically
disclaims any implied warranties of merchantability
or fitness for a particular purpose. See Warranty
Information and Terms & Conditions on
www.predig.com for complete details.
CAUTION: Read complete
instructions prior to
installation and operation of
the meter.
WARNING: Risk of
electric shock or
personal injury.
WARNINGS
• Cancer and Reproductive Harm
www.P65Warnings.ca.gov. For California Proposition
65 details please visit our website www.predig.com
© 2020 Precision Digital Corporation.
All rights reserved.
www.predig.com
INTRODUCTION
The Sabre P model PD603 is an easy to use 1/8 DIN
digital panel meter that has all the important features
customers want in a process input meter. These
features include field selectable 0-20 mA, 4-20 mA,
0-5 V, 1-5 V, or ±10 V inputs, NEMA 4X front panel,
UL and C-UL Listing for 508 Industrial Control
Equipment, and optional 24 VDC power supply for the
transmitter. The meter is easily programmed and
scaled with its four front panel buttons and simple
menu structure.
ORDERING INFORMATION
85-265 VAC**
Model
12-36 VDC**
Model
Description
PD603-6R0-0*
PD603-7R0-0
Process Meter
PD603-6R0-1*
Process Meter with
24 V transmitter
supply
** All models may be powered from AC or DC, see Specifications for details.
* Quick Shipment Program product, typically shipped within 2 working days.
Note: Factory orders for Sabre products require a five (5) piece
minimum of any combination of Sabre (PD603 & PD743) products. For
instance, an order of three (3) PD603-6R0-0 and two (2) PD743-7R0-0
qualifies. For information on individual unit sales, please contact your
local distributor.
Accessories
Model
Description
PD9501
Multi-Function Calibrator
PD9502
Low-Cost Signal Generator
PDA1024-01
24 VDC Transmitter Power Supply
for DIN Rail
PDA6420
Split Core AC Current Transducer
30/60/120 AAC: 4-20 mA
NEMA 4 & NEMA 4X Enclosures
Model
# of
Meters
Description
Mounting
PDA2300
1 – 10
Plastic NEMA 4X
Enclosure
Through Door
PDA2500
1 - 6
Plastic NEMA 4X
Enclosure
Through Door
PDA2600
1 - 6
Stainless Steel
NEMA 4X
Enclosure
Through Door
PDA2700
1 - 6
Steel NEMA 4
Enclosure
Through Door
PDA2801
1
Plastic NEMA 4X
Enclosure
Through Cover
PDA3400
1 - 2
Plastic NEMA 4X
Enclosure
Behind Clear
Window
!

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
3
Table of Contents
INTRODUCTION --------------------------------------- 2
ORDERING INFORMATION ------------------------ 2
SPECIFICATIONS ------------------------------------- 4
General ------------------------------------------------------- 4
Process Input ---------------------------------------------- 4
COMPLIANCE INFORMATION -------------------- 5
Safety --------------------------------------------------------- 5
Electromagnetic Compatibility ----------------------- 5
SAFETY INFORMATION ----------------------------- 5
INSTALLATION ---------------------------------------- 6
Unpacking --------------------------------------------------- 6
Panel Mounting -------------------------------------------- 6
MOUNTING DIMENSIONS -------------------------- 6
Connections ------------------------------------------------ 7
Connector Labeling ------------------------------------ 7
Power Connections ------------------------------------ 7
Signal Connections ------------------------------------ 7
SETUP AND PROGRAMMING --------------------- 8
Front Panel Buttons and Status LED Indicators
------------------------------------------------------------------ 8
Display Functions and Messages ------------------- 8
Main Menu -------------------------------------------------- 9
Setting Numeric Values -------------------------------- 9
Setting Up the Meter (
!"#$
) --------------------------- 9
Setting the Input Signal (%&'#) ---------------------- 9
Setting the Decimal Point ((")*') ------------------- 9
Programming the Meter (
'+,-
) --------------------- 10

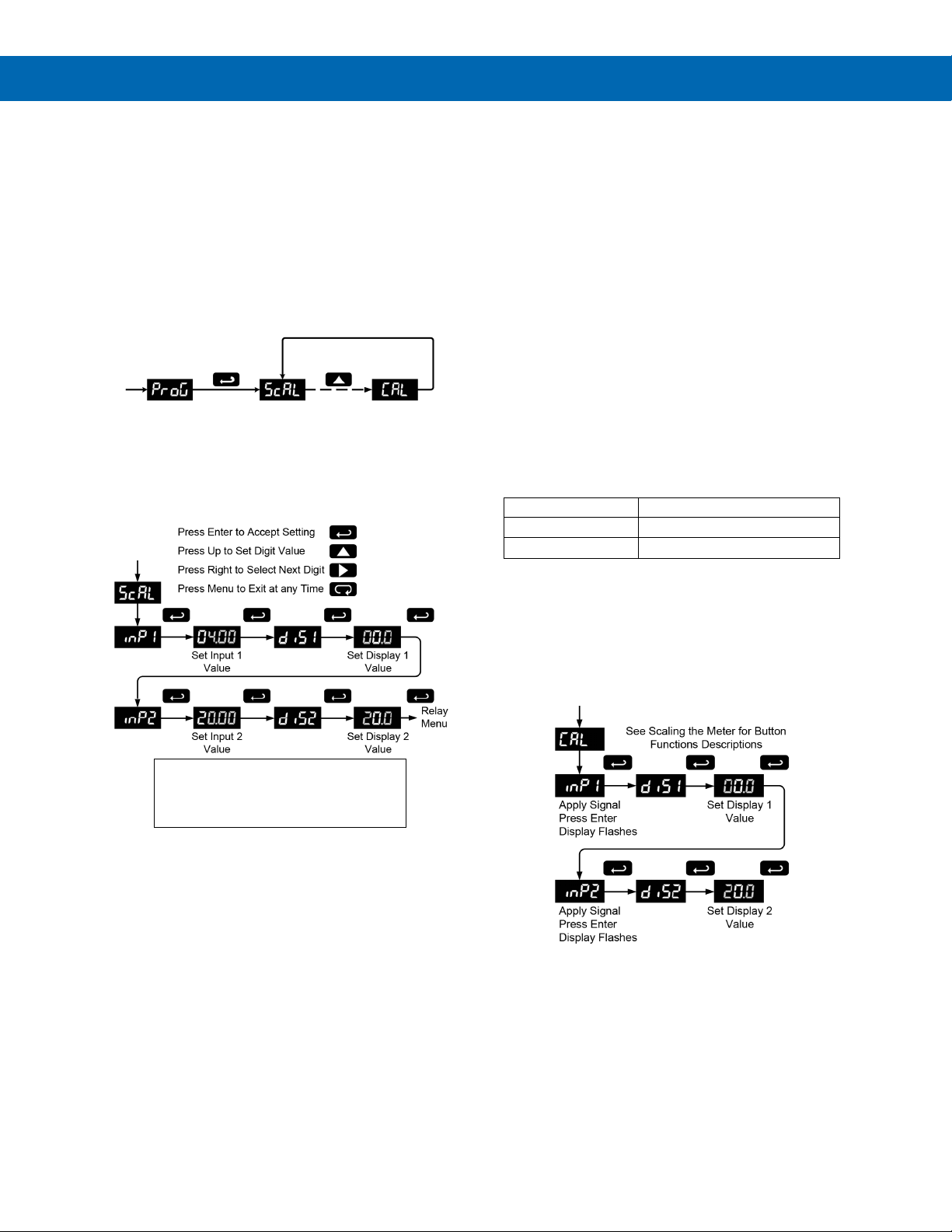

Scaling the Meter (.)/0) --------------------------- 10
Calibrating the Meter (123) ------------------------- 10

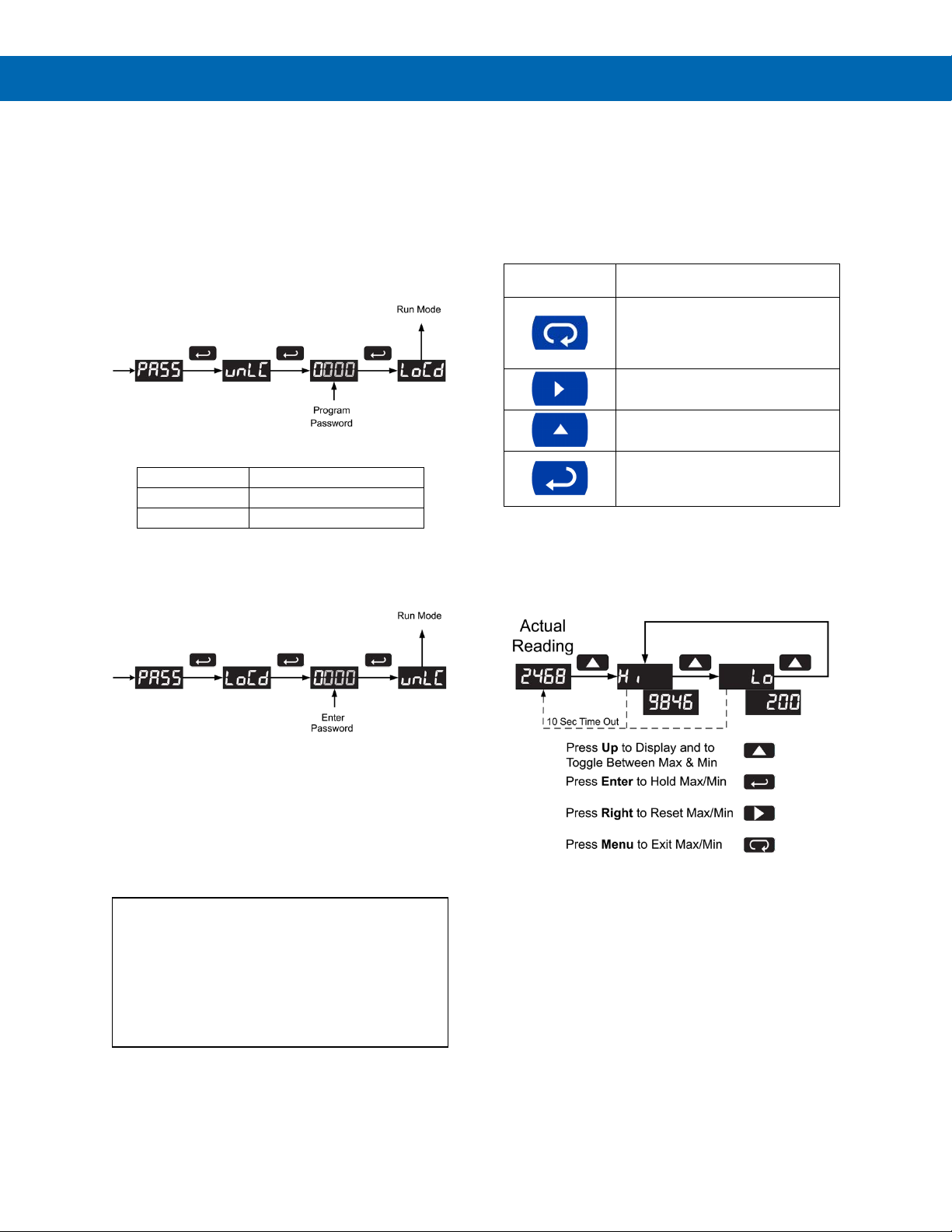

Setting Up the Password (
'2!!
) ------------------- 11
Locking the Meter ------------------------------------ 11
Unlocking the Meter ---------------------------------- 11
OPERATION ------------------------------------------- 11
Front Panel Buttons Operation -------------------- 11
Maximum/Minimum Readings ---------------------- 11
TROUBLESHOOTING ------------------------------ 12
Troubleshooting Tips --------------------------------- 12
QUICK USER INTERFACE REFERENCE
GUIDE --------------------------------------------------- 12
EU DECLARATION OF CONFORMITY -------- 13
Table of Figures
Figure 1. Panel Cutout and Mounting .................... 6
Figure 8. Meter Dimensions - Side View ................ 6
Figure 9. Case Dimensions - Top View .................. 6
Figure 2. Connector Labeling - No Options .......... 7
Figure 3. Connector Labeling - Meter with 24 V
Supply ............................................................... 7
Figure 4. Power Connections ................................. 7
Figure 5. Transmitter Powered by External Supply
or Self-Powered ............................................... 7
Figure 6. Transmitters Powered by Internal Supply
(Optional) .......................................................... 7
Figure 7. Voltage Input Connections ..................... 7

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
4
SPECIFICATIONS
Except where noted all specifications apply to
operation at +25°C.
General
DISPLAY
0.56" (14 mm) high, red LED
Four digits (-1999 to 9999), automatic
lead zero blanking.
DISPLAY
UPDATE RATE
5/second
OVERRANGE
Display flashes 9999
UNDERRANGE
Display flashes -1999
PROGRAMMING
METHODS
Four front panel buttons
RECALIBRATION
All ranges are calibrated at the factory.
Recalibration is recommended at least
every 12 months.
MAX/MIN
DISPLAY
Max/min readings reached by the
process are stored until reset by the
user or until power to the meter is
turned off.
PASSWORD
Programmable password restricts
modification of programmed settings.
NON-VOLATILE
MEMORY
All programmed settings are stored in
non-volatile memory for a minimum of
ten years if power is lost.
POWER
OPTIONS
85-265 VAC, 50/60 Hz; 90-265 VDC,
20 W max
or 12-36 VDC, 12-24 VAC, 6 W max
FUSE
Required fuse: UL Recognized, 5 A
max, slow blow
Up to 6 meters may share one 5 A fuse
ISOLATED
TRANSMITTER
POWER SUPPLY
P+, P- terminals: 24 VDC ± 10%
@ 200 mA max
NORMAL MODE
REJECTION
64 dB at 50/60 Hz
ISOLATION
4 kV input-to-power line
500 V input-to-24 V supply
OVERVOLTAGE
CATEGORY
Installation Overvoltage Category II:
Local level with smaller transient
overvoltages than Installation
Overvoltage Category III.
ENVIRONMENTAL
Operating temperature range:
0 to 65°C (32 to 150°F)
Storage temperature range:
-40 to 85°C (-40 to 185°F)
Relative humidity:
0 to 90% non-condensing
CONNECTIONS
Removable screw terminal blocks
accept 12 to 22 AWG wire, RJ11 for
factory use only.
ENCLOSURE
1/8 DIN, high impact plastic, UL 94V-0,
color: gray
MOUNTING
1/8 DIN panel cutout required. Two
panel mounting bracket assemblies
provided
TIGHTENING
TORQUE
Screw terminal connectors: 5 lb-in
(0.56 Nm)
OVERALL
DIMENSIONS
2.45" x 4.68" x 4.19"
(62 mm x 119 mm x 106 mm)
(H x W x D)
WEIGHT
8.5 oz (241 g)
WARRANTY
1 year parts & labor. See Warranty
Information and Terms & Conditions on
www.predig.com for complete details.
Process Input
INPUTS
Field selectable:
0-20 mA, 4-20 mA
0-5 V, 1-5 V, 0-10 V, or ±10 V
ACCURACY
±0.05% FS ±1 count
FUNCTION
Linear
TEMPERATURE
DRIFT
50 PPM/°C from 0 to 65°C ambient
DECIMAL POINT
Up to three decimal places:
(*(((, ((*((, (((*(, or ((((
Programmed via front panel buttons
CALIBRATION
RANGE
An Error message will appear if input 1
and input 2 signals are too close
together.
Input
Range
Minimum Span
Input 1 & Input 2
4-20 mA
0.40 mA
±10 V
0.20 V
INPUT
IMPEDANCE
Voltage ranges: greater than 1 MW
Current ranges: 50 - 100 W
(depending on resettable fuse impedance)
INPUT
OVERLOAD
Current input protected by resettable
fuse. Fuse resets automatically after
fault is removed.

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
5
COMPLIANCE INFORMATION
Safety
UL LISTED
USA and Canada
UL 508 Industrial Control Equipment
UL FILE NUMBER
E160849
FRONT PANEL
UL Type 4X, NEMA 4X, IP65; panel
gasket provided
LOW VOLTAGE
DIRECTIVE
EN 61010-1:2010
Safety requirements for measurement,
control, and laboratory use
Electromagnetic Compatibility
EMISSIONS
EN 55011:2009+Al:2010
Group 1 Class A ISM emissions
requirements
Radiated
Emissions
Class A
AC Mains
Conducted
Emissions
Class A
IMMUNITY
EN 61326-1:2013
Measurement, control, and laboratory
equipment
EN 61000-6-2:2005
EMC heavy industrial generic immunity
standard
RFI -
Amplitude
Modulated
80 -1000 MHz 10 V/m 80% AM (1 kHz)
1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)
2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)
Electrical
Fast
Transients
±2kV AC mains, ±1kV other
Electrostatic
Discharge
±4kV contact, ±8kV air
RFI -
Conducted
10V, 0.15-80 MHz, 1kHz 80% AM
AC Surge
±2kV Common, ±1kV Differential
Surge
1KV (CM)
Power-
Frequency
Magnetic
Field
30 A/m 70%V for 0.5 period
Voltage Dips
40%V for 5 & 50 periods
70%V for 25 periods
Voltage
Interruptions
<5%V for 250 periods
Note:
Testing was conducted on PD603 meters installed
through the covers of grounded metal enclosures
with cable shields grounded at the point of entry
representing installations designed to optimize
EMC performance.
SAFETY INFORMATION
CAUTION: Read
complete instructions
prior to installation
and operation of the
meter.
WARNING: Risk of
electric shock.
WARNING
Hazardous voltages exist within enclosure.
Installation and service should be performed only
by trained service personnel.
!

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
6
INSTALLATION
There is no need to remove the meter from its case to
complete the installation, wiring, and setup of the
meter.
Unpacking
Remove the meter from box. Inspect the packaging
and contents for damage. Report damages, if any, to
the carrier.
If any part is missing or the meter malfunctions,
please contact your supplier or the factory for
assistance.
Panel Mounting
• Prepare a standard 1/8 DIN panel cutout –
3.622" x 1.772" (92 mm x 45 mm). Refer to
Mounting Dimensions on page 6 for more details.
• Clearance: allow at least 4" (102 mm) behind the
panel for wiring.
• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to
maintain Type 4X rating: 0.06" (1.5 mm) steel
panel, 0.16" (4.1 mm) plastic panel.
• Remove the two mounting brackets provided with
the meter (back-off the two screws so that there is
¼" (6.4 mm) or less through the bracket. Slide the
bracket toward the front of the case and remove).
• Insert meter into the panel cutout.
• Install mounting brackets and tighten the screws
against the panel. To achieve a proper seal,
tighten the mounting bracket screws evenly until
meter is snug to the panel along its short side.
DO NOT OVER TIGHTEN, as the rear of the
panel may be damaged.
Figure 1. Panel Cutout and Mounting
MOUNTING DIMENSIONS
Figure 2. Meter Dimensions - Side View
Figure 3. Case Dimensions - Top View
1.76"
(45mm)
0.59"
(15mm)
3.2"
(81mm)
2.45"
(62mm)
3.6"
(91mm)

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
7
Connections
All connections are made to removable screw
terminal connectors located at the rear of the meter.
Use copper wire with 60°C or 60/75°C insulation
for all line voltage connections. Observe all safety
regulations. Electrical wiring should be performed
in accordance with all applicable national, state,
and local codes to prevent damage to the meter
and ensure personnel safety.
Connector Labeling
The connectors label, affixed to the meter, shows the
location of the connectors available with requested
configuration.
Figure 4. Connector Labeling - No Options
Figure 5. Connector Labeling - Meter with 24 V
Supply
Power Connections
Power connections are made to a two-terminal
connector labeled POWER on Figure 4. The meter will
operate regardless of DC polarity connection. The +
and - symbols are only a suggested wiring convention.
Figure 6. Power Connections
Signal Connections
Signal connections are made to a five-terminal
connector labeled SIGNAL on Figure 4. The COM
(common) terminal is the return for all types of input
signals.
Current and Voltage Connections
The following figures show examples for current and
voltage connections.
There are no switches or jumpers to set up for current
and voltage inputs. Setup and programming is
performed through the front panel buttons.
Figure 7. Transmitter Powered by External Supply
or Self-Powered
Figure 8. Transmitters Powered by Internal Supply
(Optional)
The current input is protected against current
overload by a resettable fuse. The display may or
may not show a fault condition depending on the
nature of the overload.
The fuse limits the current to a safe level when it
detects a fault condition, and automatically resets
itself when the fault condition is removed.
Figure 9. Voltage Input Connections
The meter is capable of accepting any voltage from
-10 VDC to +10 VDC.
12
AC or DC
POWER
Required External Fuse:
5 A max, Slow Blow
POWER CONNECTOR
+ -
COMmA+
21 3 54
V+ X
X
External
Power
Supply
2-Wire
4-20 mA
Transmitter
- + + -
SIGNAL CONNECTOR
COM
SIGNAL CONNECTOR
mA+
21 3 54
V+ X
X
2-Wire 4-20 mA
Self-Powered
Transmitter
-+
COM
SIGNAL CONNECTOR
mA+
21 3 54
V+ X
X
2-Wire
4-20 mA
Transmitter
- +
P+ P-
2 1
24V OUT
COM
SIGNAL CONNECTOR
mA+
21 3 54
V+ X
X
3-Wire
4-20 mA
Transmitter
Signal
+
2 1
24V OUT
-
P+ P-
SIGNAL CONNECTOR
21 3 54
Voltage
Signal
+ -
COMmA+V+ XX COM
SIGNAL CONNECTOR
mA+
21 3 54
V+ XX
3-Wire
Voltage
Transducer
Signal +
2 1
24V OUT
-
P+ P-

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
8
SETUP AND PROGRAMMING
Overview
There are no jumpers involved in the setup process of
the meter. The switch, located between the SIGNAL
and the RJ11 connectors is not used with the PD603
model. Setup and programming is done through the
front panel buttons.
After power and signal connections have been
completed and verified, apply power to the meter.
For Quick User Interface Reference Guide
go to page 12
Front Panel Buttons and Status LED
Indicators
Button
Symbol
Description
Menu
Right arrow/Reset
Up arrow/Max
Enter/Ack
• Press the Menu button to enter or exit the
Programming Mode at any time.
• Press the Right arrow button to move to the next
digit during digit programming.
• Press the Up arrow button to scroll through the
menus, decimal point, or to increment the value
of a digit.
• Press the Enter/Ack button to access a menu or
to accept a setting.
Display Functions and Messages
The meter displays various functions and messages
during setup/programming and operation. The
following table shows the displayed functions and
messages with their action/setting description.
Display
Parameter
Action/Setting
!"#$4
Setup
Enter Setup menu
%&'#4
Input
Enter Input menu
56784
4-20 mA
Set meter for 4-20 mA input
86984
0-10 VDC
Set meter for ±10 VDC input
(")*'4
Decimal
point
Set decimal point for process
inputs
'+,-4
Program
Enter the Program menu
!)234
Scale
Enter the Scale menu
1234
Calibrate
Enter the Calibrate menu
%&'94
Input 1
Calibrate input 1 signal or
program input 1 value
(%!94
Display 1
Program display 1 value
%&'74
Input 2
Calibrate input 2 signal or
program input 2 value
(%!74
Display 2
Program display 2 value
"++4
Error
Error, calibration not
successful, check signal
'2!!4
Password
Enter the Password menu
$&314
Unlocked
Program password to lock
meter
3,1(4
Locked
Enter password to unlock
meter
::::4
69:::4
Flashing
display
Overrange condition
Underrange condition

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
9
Main Menu
The main menu consists of the following functions:
Setup and Password.
• Press Menu button to enter Programming Mode
then press Up arrow button to scroll main menu.
• Press Menu, at any time, to exit and return to
Run Mode. Changes made to settings prior to
pressing Enter/Ack are not saved.
• Changes to the settings are saved to memory
only after pressing Enter/Ack.
• The display moves to the next menu every time a
setting is accepted by pressing Enter/Ack.
Setting Numeric Values
The numeric values are set using the Right and Up
arrow buttons. Press Right arrow to select next digit
and Up arrow to increment digit value.
The digit being changed is displayed brighter than the
rest.
Press the Enter/Ack button, at any time, to accept a
setting or Menu button to exit without saving changes.
The decimal point is set using the Up arrow button in
the Setup-decimal point menu.
Setting Up the Meter (
!"#$
)
The Setup menu is used to select:
1. Input signal the meter will accept
2. Decimal point position
3. Program
Press the Enter/Ack button to access any menu or
press Up arrow button to scroll through choices.
Press the Menu button to exit at any time.
Setting the Input Signal (
%&'#
)
Enter the Input menu to set up the meter to display
current (4-20) or voltage (0-10) inputs.
The voltage input is capable of accepting any signal
from -10 to +10 VDC. Select voltage input to accept 0-
5, 1-5, 0-10, or ±10 VDC signals.
The current input is capable of accepting any signal
from -20 to 20 mA. Select current input to accept 0-20
or 4-20 mA signals.
Setting the Decimal Point (
(")*'
)
Decimal point may be set with up to three decimal
places or with no decimal point at all.
Pressing the Up arrow moves the decimal point one
place to the right until no decimal point is displayed,
then it moves to the leftmost position.

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
10
Programming the Meter (
'+,-
)
The meter may either be scaled (.)/0) without
applying an input or calibrated (123) by applying an
input. The meter comes factory calibrated to NIST
standards, so for initial setup, it is recommended to
use the (.)/0) function.
The Program menu contains the Scale (.)/0) and the
Calibrate (123) menus.
Process inputs may be scaled or calibrated to any
display within the range of the meter.
Scaling the Meter (
.)/0
)
The process inputs (4-20 mA and ±10 VDC) can be
scaled to display the process in engineering units.
A signal source is not needed to scale the meter;
simply program the inputs and corresponding display
values.
For instructions on how to program
numeric values see Setting Numeric
Values, page 9.
Error Message (
;++
)
An error message indicates that the calibration or
scaling process was not successful.
After the error message is displayed, the meter
reverts to input 1, allowing the appropriate input
signals to be applied.
The error message might be caused by any of the
following conditions:
1. Input signal is not connected to the proper
terminals or it is connected backwards.
2. Wrong signal selection in Setup menu.
3. Minimum input span requirements not
maintained.
4. Input 1 signal inadvertently applied to calibrate
input 2.
Minimum Input Span
The minimum input span is the minimum difference
between input 1 and input 2 signals required to complete
the calibration or scaling of the meter.
Input range
Input 1 & input 2 span
4-20 mA
0.40 mA
±10 VDC
0.20 VDC
Calibrating the Meter (
123
)
The meter can be calibrated to display the process in
engineering units by applying the appropriate input
signals and following the calibration procedure.
The use of a calibrated signal source is required to
calibrate the meter.

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
11
Setting Up the Password (
'2!!
)
The Password menu is used to program a four-digit
password to prevent unauthorized changes to the
programmed parameter settings.
Locking the Meter
Enter the Password menu and program a four-digit
password.
For instructions on how to program numeric values
see Setting Numeric Values, page 9.
Record the password for future reference. If
appropriate, it may be recorded in the space provided.
Model:
Serial Number:
Password:
__ __ __ __
Unlocking the Meter
If the meter is password protected, the correct
password must be entered in order to make changes
to the parameter settings.
Entering the correct four-digit number sets the
password to 0000, disabling the protection.
Changes to the programmed parameter settings are
allowed only with the password set to 0000.
If the password entered is incorrect, the meter
displays 0,1( (Locked) for about two seconds, then it
returns to Run Mode. To try again, press Enter/Ack
while the Locked message is displayed.
Forgot the Password?
The password may be disabled by the following
procedure:
1. Note display reading prior to pressing the Menu
button. Ignore decimal point and sign.
2. Access the Password menu, add 2 to the noted
reading and enter that number as the password
(e.g. display reading = -1.23, password = 0125).
OPERATION
For process inputs, the meter is capable of accepting
positive and negative signals and displaying these
signals in engineering units from -1999 to 9999 (e.g. a
signal from -10 to +10 VDC could be displayed as -1000
to 1000).
Front Panel Buttons Operation
Button
Symbol
Description
Press to enter or exit
Programming Mode, view
settings, or exit Max/Min
readings
Press to reset Max/Min readings
Press to display Max/Min
readings alternately
Press to display Max/Min reading
indefinitely while displaying
Max/Min
Maximum/Minimum Readings
The main function of the front panel buttons during
operation is to display the maximum and minimum
readings reached by the process.
1. Press Up arrow/Max button to display maximum
reading since the last reset/power-up.
2. Press Up arrow/Max again to display the
minimum reading since the last reset/power-up.
3. Press Enter/Ack to hold Max/Min display
reading, the meter will continue to track new
Max/Min readings.
4. If Enter/Ack is not pressed, the Max/Min display
reading will time out after ten seconds and the
meter will return to display the actual reading.
5. Press Right arrow/Reset button to reset Max/Min
while reading is being displayed. Max/Min display
readings are reset to actual
reading.

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
12
TROUBLESHOOTING
The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to
refer to this section of the manual.
Troubleshooting Tips
Symptom
Check/Action
No display at all
Check power at power connector
Not able to change setup or programming, 0,1( is displayed
Meter is locked, enter correct four-digit password to unlock
Meter displays error message during calibration (err)
Check:
1. Signal connections
2. Input selected in Setup menu
3. Minimum input span requirements
Meter displays
• ::::4 4
• 69:::4
Check:
1. Input selected in Setup menu
2. Corresponding signal at Signal connector
Display alternates between
1. <% and a number
2. 0, and a number
Press Menu to exit Max/Min display readings.
If the display locks up or the meter does not respond at all
Cycle the power to restart the microprocessor.
Other symptoms not described above
Call Technical Support for
assistance.
QUICK USER INTERFACE REFERENCE GUIDE

EU DECLARATION OF CONFORMITY
Issued in accordance with ISO/IEC 17050-1:2004.
We,
Precision Digital Corporation
233 South Street
Hopkinton, MA 01748 USA
as the manufacturer, declare under our sole responsibility that the product(s),
Model PD603 Sabre Process Meter
to which this declaration relates, is in conformity with the European Union Directives shown below:
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS Directive
This conformity is based on compliance with the application of harmonized or applicable technical
standards and, when applicable or required, a European Union notified body certification.
Standards:
EN 55011:1998
EN 61000-6-2:2001
EN 61010-1:1995
EN 61326:2006
The standards EN 55011:1998, EN 61000-6-2:2001, EN 61010-1:1995, and EN 61326:2006 are no
longer harmonized. The requirements of these standards have been checked against the harmonized
standards EN 55011:2009+A1:2010, EN 61000-6-2:2005, EN 61010-1:2010, and EN 61326:2013 and
there were no major technical changes affecting the latest technical knowledge for the products listed
above.
Product Markings:
Signed for and on behalf of Precision Digital Corporation:
Name: Jeffrey Peters
Company: Precision Digital Corporation
Title: President
Date: 04/20/2016
Document No: DoC PD603 {042016}

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel [phone] • Fax [phone]
www.predig.com
LIM603_F
SFT031 Ver 3.2 & up
02/20
Contact Precision Digital
Technical Support
Call: [phone] or [phone]
Fax: [phone]
Email: [e-mail]
Sales Support
Call: [phone] or [phone]
Fax: [phone]
Email: [e-mail]
Place Orders
Email: [e-mail]
For the latest version of this manual please visit
www.predig.com
