Preen AFV-P Series User manual

AFV-P Series
High Performance Programmable AC Power Supply
User Manual
AC Power Corp. (Preen)
V 1.08EN
The information in this document is subject to change without notice.
© AC Power Corp. (Preen). All rights reserved

Legal Notices
The information in this product manual is subject to change without notice.
AC Power Corp. makes no warranty of any kind with regard to this user manual, in-
cluding, but not limited to, the implied warranties of merchantability and fitness for
a particular purpose. AC Power Corp. shall not be held liable for errors contained
herein or direct, indirect, special, incidental or consequential damages in connection
with the furnishing, performance, or use of this material.
Copyright Notices. Copyright 2019 AC Power Corp. (Preen), all rights reserved. Re-
production, adaptation, or translation of this document without prior written per-
mission is prohibited, except as allowed under the copyright laws.

Warranty
Preen’s AFV-P series is warranted against defects in material and workmanship for a
period of two year after date of shipment. Preen agrees to repair or replace any as-
sembly or component found to be defective, under normal use during this period.
Preen’s obligation under this warranty is limited solely to repairing any such product
which in sole Preen’s opinion proves to be defective within the scope of the warran-
ty when returned to the factory or to an authorized service center. Transportation to
the factory or service center is to be prepaid by the purchaser. Shipment should not
be made without prior authorization by Preen.
This warranty does not apply to any products repaired or altered by persons not au-
thorized by Preen, or not in accordance with instructions furnished by Preen. If the
product is defective as a result of misuse, improper repair, or abnormal conditions or
operations, repairs will be billed at cost.
Preen assumes no responsibility for its product being used in a hazardous or dan-
gerous manner either alone or in conjunction with other equipment. High voltage
used in some products may be dangerous if misused. Special disclaimers apply to
these products. Preen assumes no liability for secondary charges or consequential
damages and in any event, Preen’s liability for breach of warranty under any con-
tract or otherwise, shall not exceed the purchase price of the specific product
shipped and against which a claim is made.
Any recommendations made by Preen for use of its products are based upon tests
believed to be reliable, but Preen makes no warranty of the results to be obtained.
This warranty is in lieu of all other warranties, expressed or implied, and no repre-
sentative or person is authorized to represent or assume for Preen any liability in
connection with the sale of our products other than set forth herein.
AC Power Corp. (Preen)
USA
192 Technology Dr., Suite S, Irvine, CA 92618
TEL [phone]
Taipei
3F No. 200 Gangqian Road, Neihu Dist., Taipei 114, Taiwan
TEL [phone] FAX [phone]

SAFETY SUMMARY
The following general safety precautions must be observed during all phases of op-
eration, service, and repair of this product. Failure to comply with these precautions
or specific WARNINGS given elsewhere in this manual will violate safety standards of
design, manufacture, and intended use of the product.
Preen assumes no liability for the customer‘s failure to comply with these require-
ments.
1) BEFORE APPLYING POWER
Verify that the product is set to match with the power line input.
2) PROTECTIVE GROUNDING
Make sure to connect the product to the protective ground to prevent an elec-
tric shock before turning on the power.
3) NECESSITY OF PROTECTIVE GROUNDING
Never cut off the internal or external protective grounding wire, or disconnect
the wiring of protective grounding terminal. Doing so will cause a potential
shock hazard that may bring injury to a person.
4) DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE
Do not operate the product in the presence of flammable gases or fumes.
5) DO NOT REMOVE THE COVER OF THE PRODUCT
Personnel who operate the product must not remove the cover of the product.
Component replacement and internal adjustment can be done only by qualified
service personnel.
WARNING
LETHAL VOLTAGES. The product can supply 440V peak at its output. DEATH on
contact may result if either the output terminals or the output circuits connected
to the output are touched when the product output is on.

Table of Contents
1 GENERAL INFORMATION ......................................1
1.1 Introduction 1
1.2 Key Features 2
1.3 Specifications 3
1.4 Exterior 5
1.5 Name of Parts 6
2 INSTALLATION.......................................................9
2.1 Inspection 9
2.2 User Preparation 9
2.2.1 Notice for installation..................................................10
2.3 Input Connection 11
2.4 Output Connection 12
2.4.1 Notices for DC output of AFV-P Series..........................13
2.5 Remote Sense Connection 14
2.6 Power-on Procedures 15
2.7 Product Handle Installation 16
2.8 Interface Card Installation 16
2.8.1 RS232/RS485 9-Pin D-Type Connector..........................17
2.8.2 PLC Remote In & Out Connector ..................................17
2.8.3 Analog Control Interface Card (Optional) .....................18
3 LOCAL OPERATION..............................................22
3.1 General 22
3.2 Operation via the Touch Screen and the Rotary Knob 22
3.3 MAIN Page 24
3.3.1 Output Voltage Range .................................................26
3.4 MENU Page 27

3.5 SETTINGS Page 28
3.5.1 TESTING Subpage (ADVANCED Mode)..........................28
3.5.2 TESTING Subpage (BASIC Mode) ..................................40
3.5.3 SYSTEM Subpage .........................................................48
3.6 COMMUNICATION Page 54
3.6.1 ETHERNET Subpage .....................................................54
3.6.2 GENERAL Subpage.......................................................56
3.6.3 GENERAL Subpage with GPIB interface (optional).........57
3.6.4 ANALOG Subpage (Optional) .......................................58
3.7 RESULTS Page 60
3.8 WAVE Page 61
3.9 METER Page 63
3.10 INFORMATION Page 65
3.11 Protection 66
4 BASIC MODE: MEMORY FEATURE .......................68
4.1 Setting Page of MEMORY Feature 69
4.2 Output Page of MEMORY Feature 72
5 ADVANCED MODE: PROGRAMMABLE FEATURES...74
5.1 General 74
5.2 STEP Feature 77
5.3 RAMP Feature 87
5.4 TRANSIENT Feature 89
5.5 TRIAC Simulation Function 92
6 CALIBRATION......................................................94
6.1 HI-Range Voltage 310V 97
6.2 LO-Range Voltage 155V 98
6.3 HI-Range Voltage 60V 99

6.4 LO-Range Voltage 60V 100
6.5 HI-Range RMS Current 101
6.6 LO-Range RMS Current 102
6.7 Peak Current 103
6.8 Output Socket Current (Specialize for AFV-P-5000) 105
7 REMOTE OPERATION ........................................107
7.1 General 107
7.2 Remote Control Software: General Mode 108
7.3 Remote Control Software: Program Mode 111
7.4 Remote Control Software: Additional Features 113
8 THEORY OF OPERATION....................................115
9 MAINTENANCE .................................................116
9.1 Notice for maintenance 116

AFV-P Series High Performance Programmable AC Power Supply
1
1General Information
1.1 Introduction
Preen’s AFV-P series is a programmable AC power supply with DC output and preci-
sion measurements. This compact power supply comes in four power levels, 600VA,
1250VA, 2500VA and 5000VA, which provides stable output voltage and output fre-
quency with low distortion. The PWM design of power stage allows for full
volt-ampere into loads. The front panel has both touch screen and rotary knob for
setting the product output, which provide an easy operation and measurement
reading display. Remote control for the product can be accomplished selectively via
RS232, RS485, Ethernet, USB or GPIB.
The following figures show the V/I curve according to the AC & DC output of the
product, which can be applied to any product model and any output voltage range of
the product.
Figure 1.1 V/I curve for the AC output of the product
NOTICE
If the Power Factor (PF) corresponding to the AC output is less than 0.65, 100%
output current can be achieved under 0%-100% output voltage, which can be ap-
plied to any product model and any output voltage range of the product.

AFV-P Series High Performance Programmable AC Power Supply
2

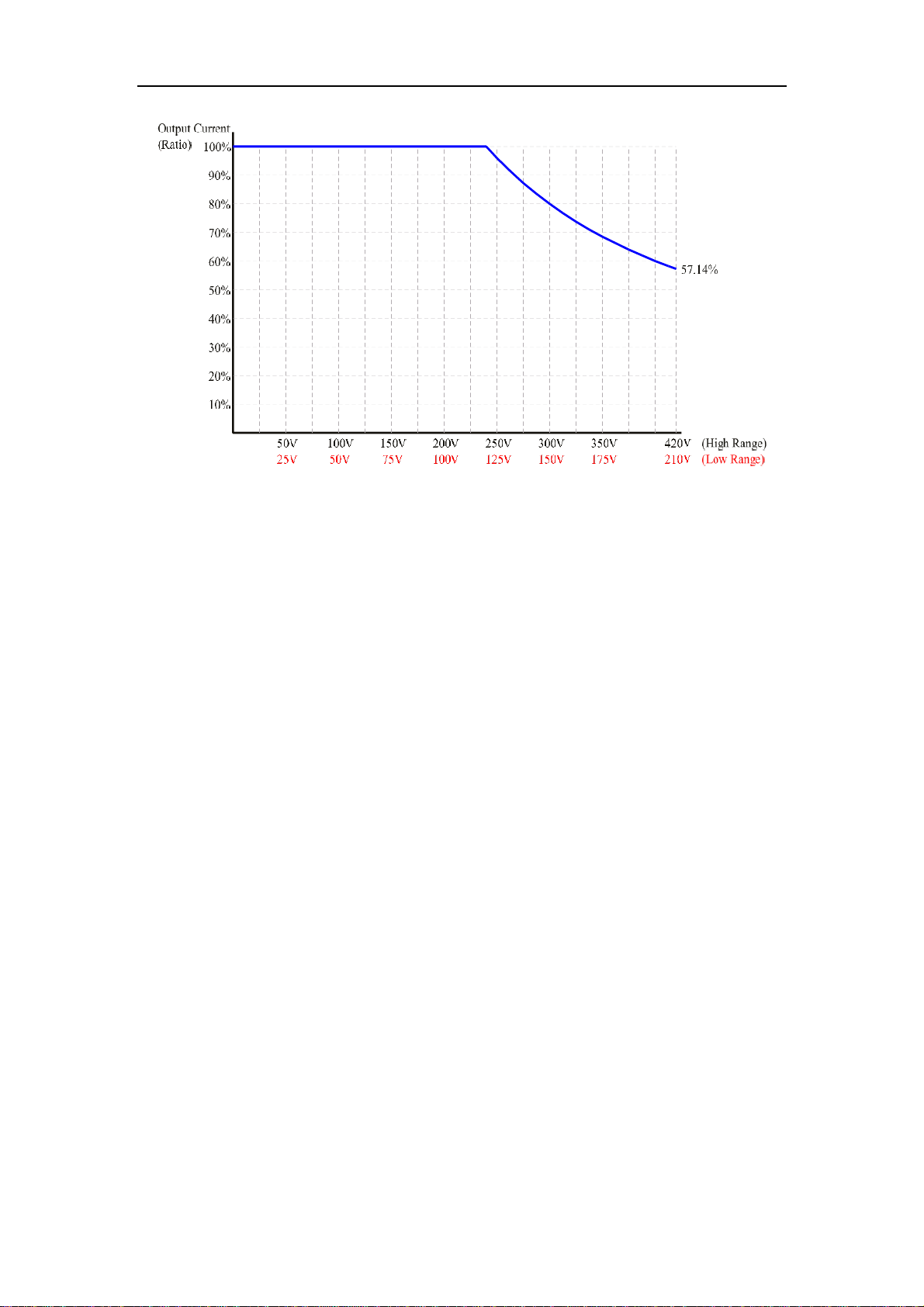

Figure 1.2 V/I curve for the DC output of the product
1.2 Key Features
A. Configuration
1. Local operation via the touch screen and the rotary knob on the front panel.
2. Remote control via RS232, RS485, Ethernet, USB or GPIB.
3. Protection for OVP, LVP, OCP, OPP, OTP, RCP, Fan Fail and AMP Fail.
4. Temperature-controlled fan speed.
B. Input / Output
1. Selective output voltage range with full scale 310V/Auto.
2. Universal input voltage range 98~132VAC/196~264VAC.
3. Wide output voltage from 0 to 310VAC & output frequency from 15 to 1000Hz.
4. Measurement readings of V, I, P, VA, VAR, F, Ipk, CF and PF.
5. Output of Synchronized signal.

AFV-P Series High Performance Programmable AC Power Supply
3
1.3 Specifications
Technical specifications of product are listed below. All specifications have been
tested according to Preen’s standard test procedures.
Model
AFV-P-600
AFV-P-1250
AFV-P-2500
AFV-P-5000
AC Input
Phase
Single
Input Voltage Range
98-132Vac/196-264Vac
196-264Vac (opt.175-235Vac)
Input Frequency
47~63Hz (opt. 400HZ)
Max. Current
10A
20A
20A
40A
AC Output
Power (VA)
600VA
1250VA
2500VA
5000VA
Power (W)
500W
1000W
2000W
4000W
Phase
1ϕ /2 Wire + G
Voltage Range
0-155V / 0-310V ,user selectable (opt. 0-320V or 0-620V)
Voltage Resolution
0.1V
Frequency
A: 15-1000Hz, B: 40-500Hz
Frequency accuracy
0.2%
Frequency
Resolution
0.1Hz, at 15-100Hz; 1Hz, at 100-1000Hz
Max. Current (RMS)
5A/2.5A
10A/5A
20A/10A
40A/20A
Max. Current (Peak)
22.5A/11.3A
45A/22.5A
90A/45A
180A/90A
Total Harmonic
Distortion (THD)
0.3%, at 40-100Hz; 0.5%, at 101-500Hz; 0.8%, at 501-1000Hz
(Resistive Load)
Line Regulation
0.1V
Load Regulation
0.07% F.S (Resistive Load)
Response Time
300s
Crest Factor
3
Inrush Current
4.5 times of max. output current(R.M.S)
DC Output
Power
300W
600W
1250W
2500W
Voltage Range
0-210V/0-420V
Max. Current
2.5A/1.25A
5A/2.5A
10A/5A
20A/10A
Ripple & Noise (RMS)
0.15%
0.24%
Measurement
Voltage Range
0-420V
Voltage Accuracy
(0.2% of Reading + 5 Counts)

AFV-P Series High Performance Programmable AC Power Supply
4
Voltage Resolution
0.1V
Frequency Range
15-1000Hz
Frequency Accuracy
0.1Hz at 40-500Hz;
0.2Hz at 501-1000Hz
Frequency Resolution
0.1Hz
Current Range
Hi: 1-12A/
Lo: 0.005-1.2A
Hi: 2-24A/
Lo: 0.005-2.4A
Hi: 0.05-48A
Current Accuracy
(1% of Reading + 5 Counts), at 40-500Hz;
(1% of Reading + 10 Counts), at 501-1000Hz
Current Resolution
Hi: 0.01A / Lo: 0.001A
Hi: 0.01A
Peak Current Range
0-45A
0-90A
0-180A
Peak Current Accuracy
(1% of Reading + 5 Counts), at 40-500Hz;
(1% of Reading + 10 Counts), at 501-1000Hz
(1% of Reading
+ 5 Counts)
Peak Current Resolution
0.1A
Power Range
Hi: 100-1200W/
Lo: 0-120W
Hi: 200-2400W/
Lo: 0-240W
Hi: 0-4800W
Power Accuracy
(2% of Reading + 10 Counts), at 40-500Hz;
(2% of Reading + 15 Counts), at 501-1000Hz
Power Resolution
Hi: 1W/Lo: 0.1W
Hi: 1W
General
Efficiency
77% at Max. Power
80% at Max. Power
Protection
OVP, UVP, OCP, LVP, OPP, OTP, RCP, Fan Fail and AMP Fail
Remote Interface
Standard: RS232/RS485/Ethernet/USB/PLC Remote In & Out;
Option: GPIB/Analog Control
Over Current Foldback
(OC-FOLD)
When the OC-FOLD mode is enabled, the criteria to activate/deactivate the OC-FOLD
mode is the set value of the max. output current. The response time from exceeding
the up limit to falling back to the up limit is 1.4S.
Synchronized Signal
ON, Event for Voltage or Frequency Change (Output signal 5V, BNC type)
Memories
50 Memory Sets & 1200 Steps (24 Steps/Memory Set)
Operating Temperature
0-40C
Dimensions(H×W×D)
88 x 442 x 495mm
88 x 442 x 650mm
176 × 442 × 665mm
3.5 x 17.4 x 19.5inch
3.5 x17.4 x25.6inch
6.9 x 17.4 x 26.2inch
Weight
16kg
20kg
31.3kg
61.5kg
35.3lbs
44.1lbs
69lbs
135.6lbs
All specifications are subject to change without notice
Table 1.1 Technical specifications

AFV-P Series High Performance Programmable AC Power Supply
5
1.4 Exterior
Product exterior of the AFV-P series are given as follows,
(a) Front-side view of the AFV-P series.
(b) Right-side view of the AFV-P series.
Figure 1.3 Product exterior of the AFV-P series
Figure 1.4 Product exterior of the AFV-P series in axis-side view

AFV-P Series High Performance Programmable AC Power Supply
6
1.5 Name of Parts
A. Front Panel

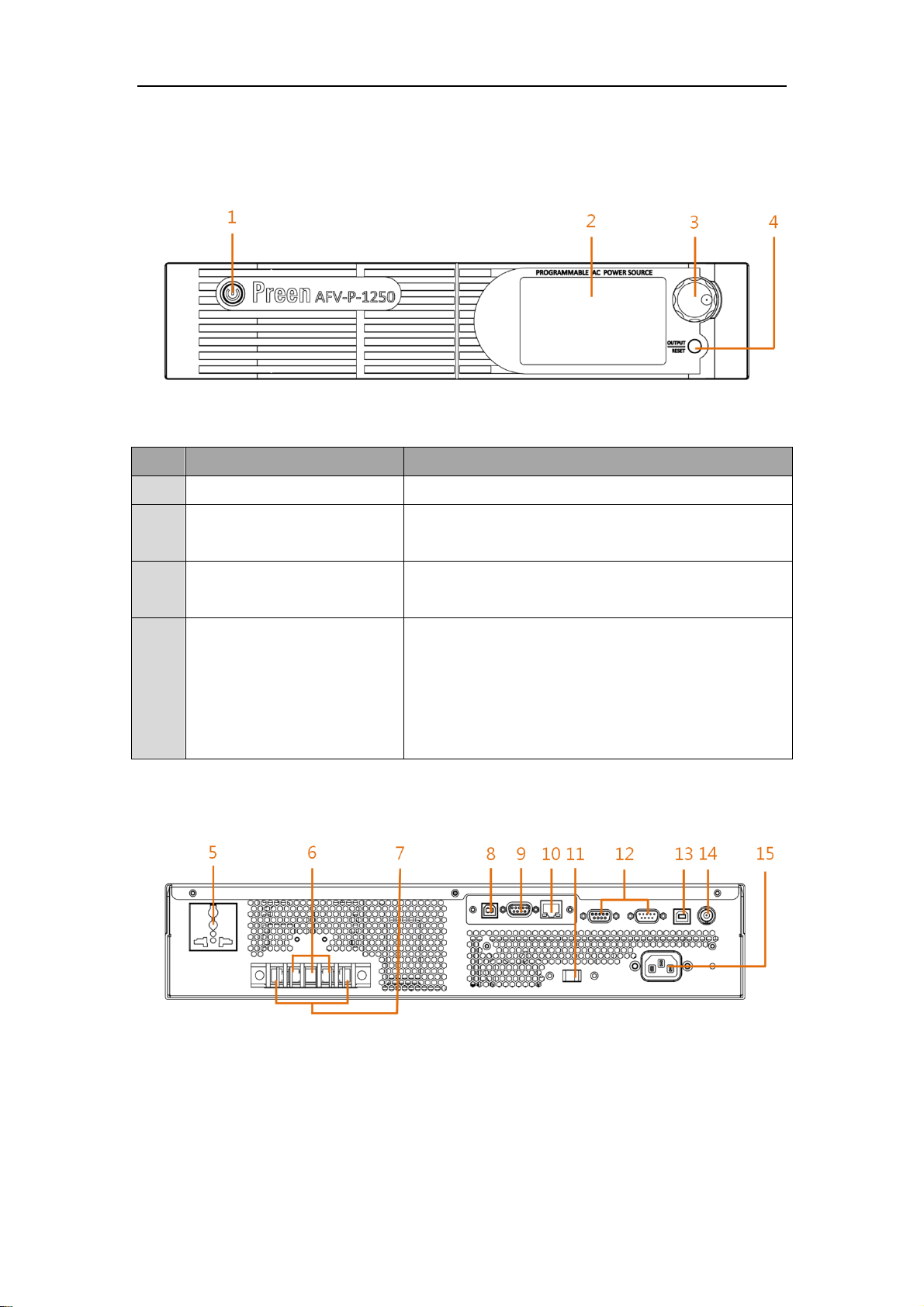

Figure 1.5 Front panel
Item
Name
Description
1
Power Switch
Press this switch to turn on/ turn off the product.
2
Touch Screen
Input programming data or options by manipulating the
touch screen to the desired one.
3
Rotary Knob
Input programming data or options by turning the rotary
knob to the desired one.
4
Output & Reset Button
Press this button to enable/disable the product output.
⚫When the output is stopped, short press ＜2 seconds
to restart output.
⚫When the output is stopped, long press ≧2 seconds
to clear the display.
B. Rear Panel
Figure 1.6 Rear panel (for the product model of AFV-P-600)

AFV-P Series High Performance Programmable AC Power Supply
7
Figure 1.7 Rear panel (for the product models of AFV-P-1250)

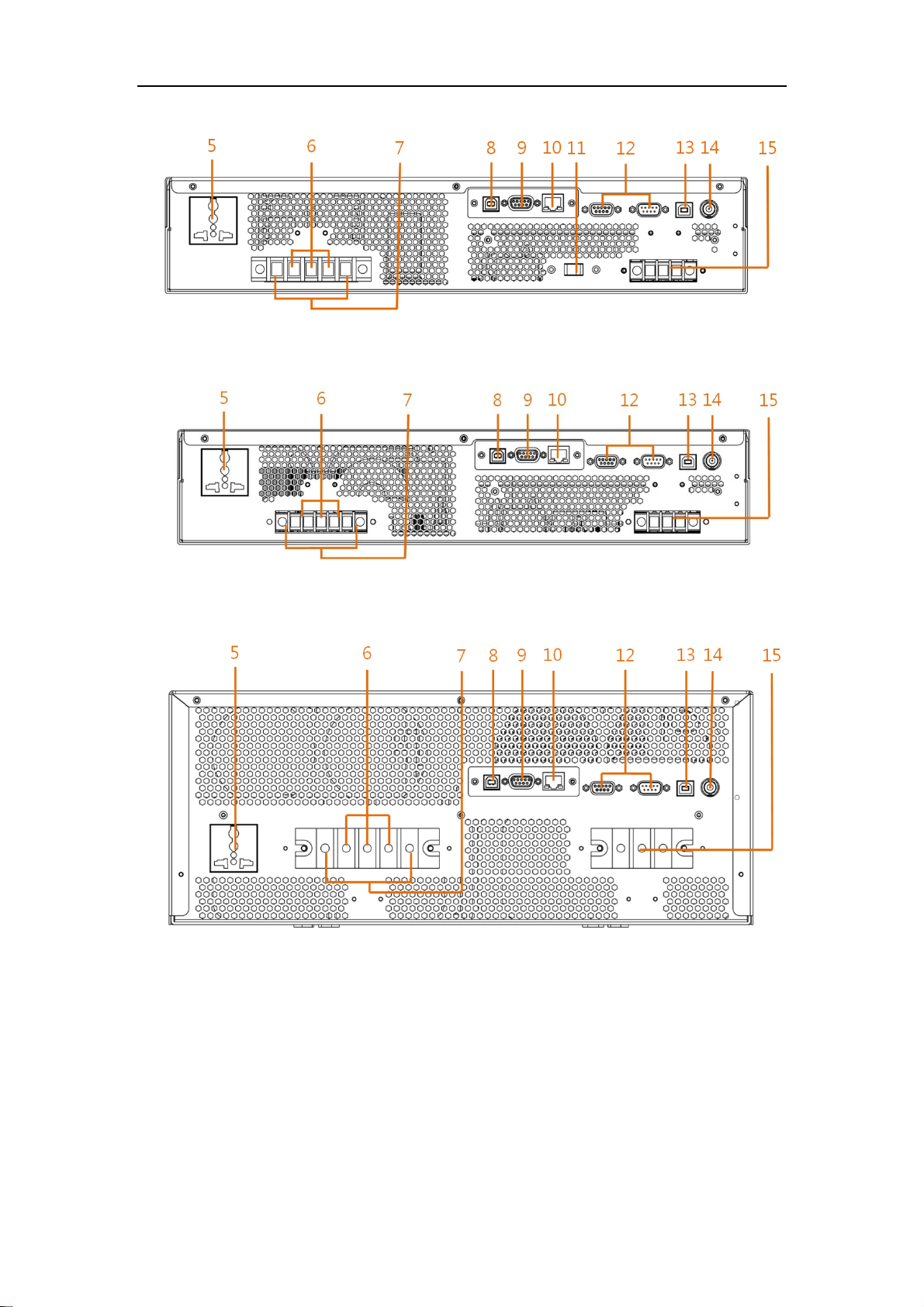

Figure 1.8 Rear panel (for the product models of AFV-P-2500)
Figure 1.9 Rear panel (for the product model of AFV-P-5000)

AFV-P Series High Performance Programmable AC Power Supply
8
Item
Name
Description
5
AC Output Socket
This socket is used to output AC power to the load.
6
Output Terminals
These terminals can output AC & DC power to the load.
7
Remote Sense Connector
This connector senses directly at the terminals of the load to
compensate any voltage drop on the connecting cable.
NOTICE: Make sure to connect the terminal “SL” of the remote
sense connector to the terminal “L” of the load, and connect
the terminal “SN” of the remote sense connector to the ter-
minal “N” of the load. Notice that reverse polarity is not al-
lowed.
8
USB Interface
This interface is used for remote control via the USB cable.
9
RS232/RS485 Interface
This interface is used for remote control via the RS232/RS485
cable
10
Ethernet Interface
This interface is used for remote control via the Ethernet ca-
ble.
11
Input Voltage Selector
Verify this selector is switching to the position (either 115V or
230V) matching the input voltage.
NOTICE: This selector is specialized for the product models of
AFV-P-600 and AFV-P-1250.
12
PLC Remote In & Out
These interfaces are used for remote control via the PLC pro-
gramming cable.
13
USB Interface
The interface is used for firmware update via the USB cable.
14
Synchronized Signal I/O
This I/O is used to output synchronized signal via the BNC ca-
ble.
15
Input Terminals
(AC Inlet)
These terminals are used to connect the product with the
power line input.
NOTICE: These terminals are replaced by the AC inlet for the
product model of AFV-P-600.

AFV-P Series High Performance Programmable AC Power Supply
9
2Installation
2.1 Inspection
After unpacking the product, please inspect any damage that may have occurred
during the shipment. Save all packing materials in case the product has to be re-
turned one day.
If any damage is found, please file a claim with the carrier immediately. Do not return
the product to the factory without obtaining the prior Return Merchandise Authori-
zation (RMA) acceptance from Preen.
2.2 User Preparation
Be sure the device is connected to the power line input that meets the specification.
The device must be installed in an air-circulated area, so that the fans built-in are
able to ventilate the heat generated by components properly. The ambient temper-
ature should be controlled within 40C.

AFV-P Series High Performance Programmable AC Power Supply
10
2.2.1 Notice for installation
1. The device must be installed on horizontal grounds, and should be located near
the load so that the connection is as short as possible.
2. Leave sufficient space around the device for ventilation and maintenance (refer
to Figure 2.1). Do not block the cooling fan opening in case of internal tempera-
ture getting too high and having bad impact on product life.
3. The device should be located in proper ventilation, the ambient temperature
and humidity should not be high. Stay away from liquid, flammable gases, cor-
rosive substance, heat sources or direct sunlight. Keep the opening free from
dust.
4. The operating environment should be free from dust, volatile organic com-
pounds, high salinity or corrosive substance.
5. Do not operate the device outdoor.
6. Use correct cable selection and a proper power distribution to ensure the safety
of the device and the users.
Figure 2.1 The required space for the device.

AFV-P Series High Performance Programmable AC Power Supply
11
2.3 Input Connection
The input terminals are located on the rear panel of the product (see Figure 2.2). The
input power cord must be rated at least for 85C. The input power cord must have
rated current which is greater than or equal to the maximum input rated current of
the product.
See Figure 2.2 and do the following procedures step by step:
1. Remove the safety cover from the rare panel of the product.
2. Screw the power cord to the input terminals of the product as follows,
2.1 green or yellow wire to the terminal “G” of the input terminals;
2.2 white or blue wire to the terminal “N” of the input terminals; and
2.3 black or brown wire to the terminal “L” of the input terminals.
3. Slip the safety cover over the input terminals, and secure the cover with two
screws.
WARNING
Protective Grounding. To protect users, the wire connected to terminal “G” (that
is GND) must be connected to the earth ground. Under no circumstances shall
this product operated without an adequate protective grounding connection.
Installation of the power cord to the product must be done by a professional and in
accordance with local electrical codes.
Figure 2.2 Input terminals

AFV-P Series High Performance Programmable AC Power Supply
12
2.4 Output Connection
The output terminals are located on the rear panel of the product (see Figure 2.3).
The terminals “N” and “L” of the output terminals are connected to the load. To
match the safety requirements, the safety cover for the output terminals must be
fastened. The wires to the load must be sufficiently large gauges, so they will not
overheat while carrying the output current.
Figure 2.3 Output terminals
Figure 2.4 Output terminals to the load
NOTICE
When output voltage contains DC composition, Terminal “L” of the output ter-
minals indicates the “+” terminal; terminal “N” of the output terminals indi-
cates the “-” terminal.

AFV-P Series High Performance Programmable AC Power Supply
13
2.4.1 Notices for DC output of AFV-P Series
1. A typical DC supply could have better ripple and noise performance than the DC
output of AFV-P series, mainly because as an AC power supply, AFV-P series
doesn't equip with high-capacity filter capacitors. To add a high-capacity filter
capacitor, for instance 50uF, ensure to connect a diode at the DC output ter-
minal in serial first, and then connect the high-capacity capacitor in parallel.
Do not directly connect the high-capacity capacitor in parallel. Doing so could
cause output unstable and trigger the product protection.
2. A typical AC power supply will shut down the output if the output current were
to exceed the rated value. AFV-P series could still maintain the output current
when exceeding the set value of maximum current by enabling the over current
foldback(OC-FOLD) mode.
The response time for OC-FOLD mode is 1.4S, while for a typical DC supply op-
erating constant current (CC) mode the response time is at the millisecond (ms)
level.
