Preen AFV+ Series User manual

AFV+Series
High Power Programmable AC Power Supply
User Manual
AC Power Corp. (Preen)
V 1.3EN
The information in this document is subject to change without notice.
Copyright 2020 AC Power Corp. (Preen). All rights reserved.

Legal Notices
The information in this product manual is subject to change without notice.
AC Power Corp. makes no warranty of any kind with regard to this user manual,
including, but not limited to, the implied warranties of merchantability and fitness
for a particular purpose. AC Power Corp. shall not be held liable for errors contained
herein or direct, indirect, special, incidental or consequential damages in connection
with the furnishing, performance, or use of this material.
Copyright Notices. Copyright 2020 AC Power Corp. (Preen), all rights reserved.
Reproduction, adaptation, or translation of this document without prior written
permission is prohibited, except as allowed under the copyright laws.

Warranty
Preen’s AFV+series High Power Programmable AC Power Supply is warranted against
defects in material and workmanship for a period of one (1) year after date of
shipment. Preen agrees to repair or replace any assembly or component found to be
defective, under normal use during this period. Preen’s obligation under this
warranty is limited solely to repairing any such product which in sole Preen’s opinion
proves to be defective within the scope of the warranty when returned to the factory
or to an authorized service center. Transportation to the factory or service center is
to be prepaid by the purchaser. Shipment should not be made without prior
authorization by Preen.
This warranty does not apply to any products repaired or altered by persons not
authorized by Preen, or not in accordance with instructions furnished by Preen. If the
product is defective as a result of misuse, improper repair, or abnormal conditions or
operations, repairs will be billed at cost.
Preen assumes no responsibility for its product being used in a hazardous or
dangerous manner either alone or in conjunction with other equipment. High voltage
used in some products may be dangerous if misused. Special disclaimers apply to
these products. Preen assumes no liability for secondary charges or consequential
damages and in any event, Preen’s liability for breach of warranty under any contract
or otherwise, shall not exceed the purchase price of the specific product shipped and
against which a claim is made.
Any recommendations made by Preen for use of its products are based upon tests
believed to be reliable, but Preen makes no warranty of the results to be obtained.
This warranty is in lieu of all other warranties, expressed or implied, and no
representative or person is authorized to represent or assume for Preen any liability
in connection with the sale of our products other than set forth herein.
AC Power Corp. (Preen)
USA
192 Technology Dr., Suite S, Irvine, CA 92618
TEL [phone]
Taipei
3F No. 200 Gangqian Road, Neihu Dist., Taipei 114, Taiwan
TEL [phone] FAX [phone]
www.preenpower.com

SAFETY SUMMARY
Danger
Dangerous high voltages exist inside this machine. Do not open any covers of this
machine unless authorized and done by trained technicians. Otherwise, electrical
shock to persons may happen.
In case the machine needs to be moved or re-wired, all electricity to the machine
must be disconnected and removed. After electricity is removed, please wait for at
least 20 minutes before touching any live parts of this machine or electrical shock
may occur: the electrical charges on the bulky capacitors inside the machine need
some time to be fully discharged.
For optimal safety protection to the users, this machine must have solid
connections to the earth. Do not use this machine if it is not grounded.
In case of fire, use an extinguisher with powder chemicals instead of liquid agents.
Electrical shock may occur if liquid extinguishing products are used.
Any foreign objects and/or liquid are strictly prohibited from entering to the inside
of this machine.
Caution
Storage and operating environment have a certain degree of influence on the life
and reliability of this product. Therefore, avoid placing and/or operating this
machine in environments with the following:
(a) Having extreme ambient temperature or humidity that exceeds the allowable limit
stated in the specification, temperature: 0℃-45℃, humidity: 0-90%.
(b) Having direct sunlight exposure, or being near a heat source.
(c) Places that tend to be vibrated or hit by other objects.
(d) Having heavy dust, heavy salt, corrosive chemicals or inflammable chemicals in the
air.
Please keep air ventilation inlets and outlets clear and clean. Obstruction on the
inlet or outlet will have significant negative impact on the machine’s quality and
reliability.
If the machine will not be used for a long time, please store it in a dry and clean
environment with temperature in the range of -40℃-+70℃.
This machine is composed of many delicate and precision devices. Please do not
open any covers of this machine unless authorized and done by trained technicians.
Warranty is voided if the quality seal is broken.

1-2
The following general safety precautions must be observed during all phases of
operation, service, and repair of this equipment. Failure to comply with these
precautions or specific WARNINGS given elsewhere in this manual will violate safety
standards of design, manufacture, and intended use of the equipment.
Preen assumes no liability for the customer‘s failure to comply with these
requirements.
1) BEFORE APPLYING POWER
Verify that the equipment is set to match with the power line input.
2) PROTECTIVE GROUNDING
Make sure to connect the equipment to the protective ground to prevent an
electric shock before turning on the power.
3) NECESSITY OF PROTECTIVE GROUNDING
Never cut off the internal or external protective grounding wire, or disconnect
the wiring of protective grounding terminal. Doing so will cause a potential
shock hazard that may bring injury to a person.
4) DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE
Do not operate the equipment in the presence of flammable gases or fumes.

5) DO NOT REMOVE THE COVER OF THE EQUIPMENT
Hazardous voltages may be present when the covers are removed. Component
replacement and internal adjustment can be done only by qualified service
personnel.
Caution
LETHAL VOLTAGES. The equipment can supply 310V at its output. DEATH on
contact may result if either the output terminals or the circuits connected to the
output are touched when the power is applied.

1 General information 1-1
1.1 Introduction 1-1
1.2 Key Features 1-2
1.3 Specification 1-4
1.4 Exterior 1-10
1.5 Name of Parts 1-13
2 Installation 2-16
2.1 Unpacking and Check 2-16
2.2 User Preparation 2-16
2.2.1 Notice for Installation 2-16
2.2.2 RS-232/RS-485/RS-422 Interface Connection 2-17
2.3 Input & Output Wiring 2-18
2.3.1 Input Rated Value 2-18
2.3.2 Input & Output Wiring Diagram 2-19
2.3.3 Input & Output Wire Selection 2-25
2.4 Input Connection 2-29
2.5 Output Connection 2-30
2.6 Remote Sensing Connection (Optional) 2-31
2.7 Power-on Procedure 2-33
3 Local Operation 3-34
3.1 Introduction 3-34
3.2 Touch Screen Operation 3-34
3.3 MAIN Page 3-35
3.3.1 Output Voltage Setting 3-37
3.3.2 Output Frequency Setting 3-38
3.3.3 Output Current High Limit Setting 3-39
3.4 Function Page 3-40

1-2
3.5 Setting Page 3-41
3.5.1 TEST Subpage 3-41
3.5.2 SYSTEM Page 3-50
3.6 PGM Page 3-58
3.6.1 RAMP Setting 3-59
3.6.2 STEP Setting 3-62
3.7 Communication Page 3-65
3.7.1 RS-485 Setting Page 3-66
3.7.2 RS-232 / GPIB Setting Page 3-67
3.7.3 RS-422 Setting Page 3-68
3.7.4 Ethernet Setting Page (Optional) 3-69
3.8 Meter Page 3-72
3.9 Event Page 3-75
3.10 Product Information 3-76
3.11 Error Log 3-77
4 Preen Program 4-80
4.1 Introduction 4-80
4.2 Control Software: GENERAL Mode 4-83
4.3 Control Software: STEP Mode 4-85
4.4 Control software: RAMP mode 4-87
5 MODBUS RTU Command Format 5-89
5.1 Write Register Command Format 5-89
5.1.1 Write Single Register Command Format 5-89
5.1.2 Write Single Register Correct Answer Format 5-89
5.1.3 Write Multiple Registers Command Format 5-90
5.1.4 Write Multiple Registers Correct Answer Format 5-90
5.2 Read Register Command Format 5-91
5.2.1 Read Register Command Format 5-91

1-3
5.2.2 Read Register Successfully Answer Format 5-91
5.2.3 Communication Fail Answer Format 5-92
5.3 Register Address Table 5-93
5.3.1 Write Register Addresses 5-93
5.3.2 Read Registere Addresses 5-95
5.4 CRC Checksum Calculation 5-97
5.5 Communication Example 5-100
5.5.1 Switch Remote/Local 5-100
5.5.2 Switch High/Low Level 5-100
5.5.3 Read Equipment Information 5-100
5.5.4 General Mode 5-100
5.5.5 Step Mode 5-101
5.5.6 Gradual Mode 5-101
5.5.7 Output Status 5-101
5.5.8 Stop 5-101
5.5.9 Reset 5-101
5.5.10 Limit Current Setting 5-102
5.5.11 Phase Angle Control Setting (Optional) 5-102
5.6 System Error Code Description 5-102
5.6.1 System Error Code 5-102
6 SCPI Command 6-104
6.1 *RST 6-104
6.2 SYST Command 6-104
6.2.1 SYST:REMote 6-104
6.2.2 SYST:LOCal 6-104
6.2.3 SYST:ERRor? 6-104
6.2.4 SYST:INFO? 6-104
6.2.5 SYST:FUNC? 6-105
6.3 Three-Phase SOUR Command 6-105
6.3.1 SOUR:VOLT:RANGe 6-105

1-4
6.3.2 SOUR:VOLT 6-106
6.3.3 SOUR:FREQ 6-106
6.3.4 SOUR:STEP:VOLT 6-106
6.3.5 SOUR:STEP:FREQ 6-107
6.3.6 SOUR:STEP:TIME 6-107
6.3.7 SOUR:STEP:PCYC 6-107
6.3.8 SOUR:STEP:LOAD 6-108
6.3.9 SOUR:GRAD:VOLT 6-108
6.3.10 SOUR:GRAD:FREQ 6-108
6.3.11 SOUR:GRAD:TIME 6-108
6.3.12 SOUR:GRAD:PCYC 6-109
6.3.13 SOUR:GRAD:LOAD 6-109
6.3.14 SOUR:SOFT:VOLT 6-109
6.3.15 SOUR:SOFT:FREQ 6-109
6.3.16 SOUR:SOFT:TIME 6-110
6.4 FUNC Command 6-110
6.5 INST Command 6-110
6.5.1 INST:COUPling 6-110
6.5.2 INST:PHASe 6-111
6.6 OUTPut Command 6-111
6.6.1 OUTPut 6-111
6.6.2 OUTPut? 6-111
6.7 MEASurement Command 6-111
6.7.1 MEAS:MODE 6-111
6.7.2 MEAS:ALL? 6-112
6.7.3 MEAS:VOLT? 6-112
6.7.4 MEAS:CURR? 6-112
6.7.5 MEAS:FREQ? 6-112
6.7.6 MEAS:POWer? 6-113
6.7.7 MEAS:POWer:APParent? 6-113
6.7.8 MEAS:POWer:PFACtor? 6-113

1-5
6.7.9 MEAS:PCYCle? 6-113
6.8 LIMit Command 6-114
6.8.1 LIMit:FREQ:LOW? 6-114
6.8.2 LIMit:FREQ:HIGH? 6-114
6.8.3 LIMit:VOLT:LOW? 6-114
6.8.4 LIMit:VOLT:HIGH? 6-114
6.8.5 LIMit:POWer? 6-114
6.8.6 LIMit:CURR 6-115
6.8.7 LIMit:POWer 6-115
6.9 COMM Command 6-115
6.9.1 COMM:ERR? 6-115
6.10 Communication Example 6-116
6.10.1 Remote Control 6-116
6.10.2 Read Device Information 6-116
6.10.3 Phase Angle Control 6-116
6.10.4 General Mode 6-117
6.10.5 Step Mode 6-117
6.10.6 Gradual Mode 6-118
6.10.7 Three-Phase Independent Output Mode 6-118
6.10.8 Read Measurement Data 6-119
6.10.9 Limit Current Settings 6-119
6.11 System Error Code Description 6-119
6.11.1 System Error Code 6-119
7 Calibration 7-121
7.1 Voltage Calibration 7-122
7.2 Current Calibration 7-123
7.3 Power Calibration 7-124
8 Maintenance 8-125

1-6
8.1 Notice for Maintenance 8-125

1-1
1General information
1.1 Introduction
The AFV+series is a high power programmable AC power source utilizing advanced
PWM technology to deliver power with THD ≤0.5% and up to 2000kVA. The output
frequency are 45~500Hz (type A) and 45-120Hz (type B) with accuracy of ± 0.02%,
and user can select 300-840Hz (type C) option to expand the frequency. The AFV+
series is ideal to simulate different region’s voltage and frequency conditions, and
can cover applications for renewable energy, EV charger, motor, medical equipment,
and EMC laboratory.
The AFV+series features STEP and RAMP programmable functions to easily simulate
single or continuous output changes. Three phase independent adjustment, optional
remote sensing and optional phase angle adjustment all provide convenient control
to simulate different kinds of line disturbance. These features are ideal for test
applications of R&D design verification, quality assurance and production checks. For
remote control, the AFV+series has standard RS-232/RS-422/RS-485 interface card
and optional GPIB and Ethernet interfaces for easy setup and programming.

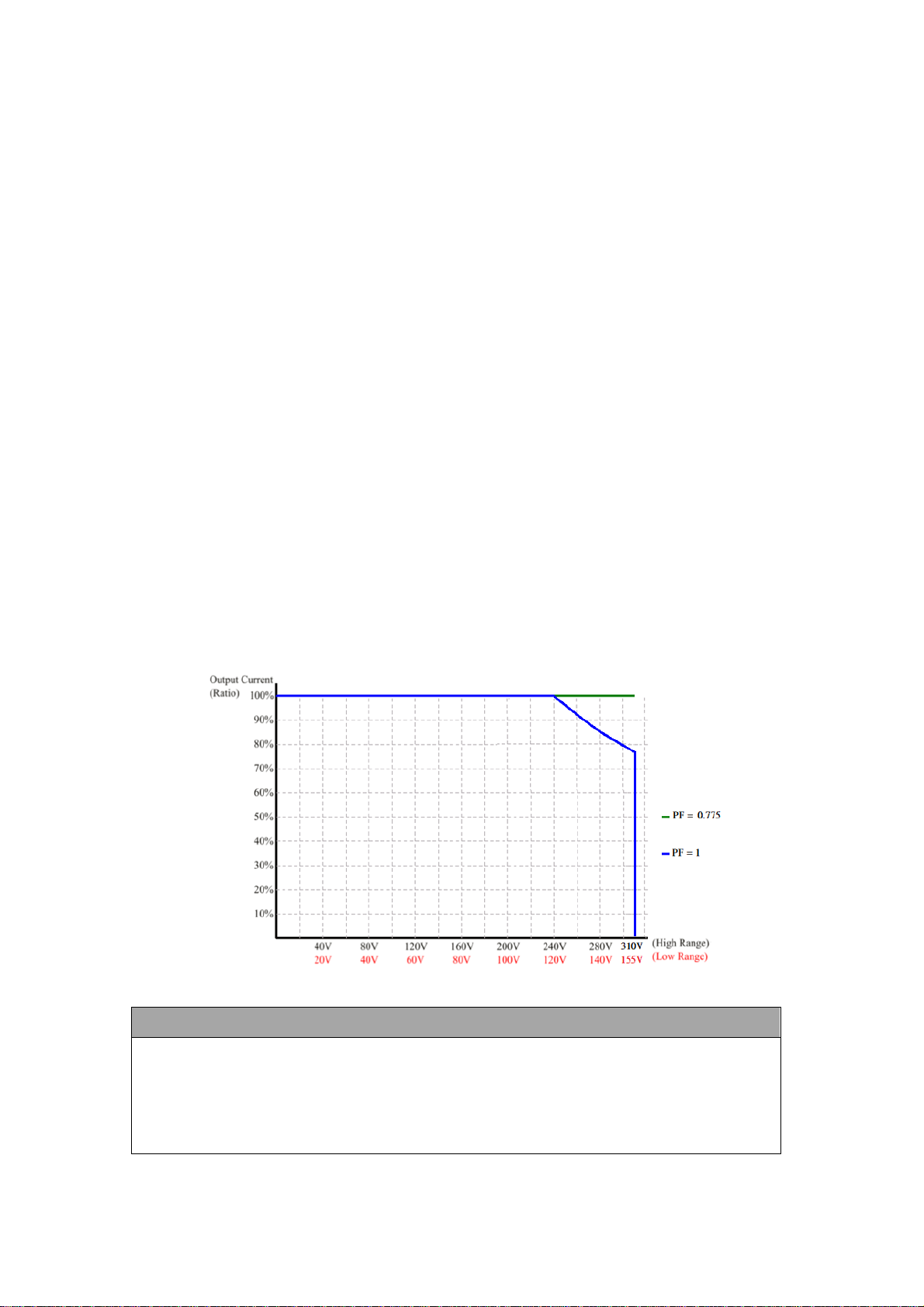

Figure 1.1 V/I characteristic curve for the AFV+series
NOTICE
If the Power Factor (PF) corresponding to the AC output is less than 0.775, 100%
output current can be achieved under 0%-100% output voltage, which can be
applied to any AFV+Series product model and any output voltage range of the
product.

AFV+Series High Power Programmable AC Power Supply
1-2
1.2 Key Features
A. Configuration
1. Local operation via the touch screen on the front panel.
2. Remote control via RS-485/RS-422/RS-232 or optional Ethernet/GPIB.
3. Protection for OVP, OCP, OPP, OTP and Vin LVP.
B. Input / Output
1. Selective output voltage range with high range 0-310V or low range 0-155V.
2. Input voltage is 380V±15% and customized input voltage is available.
3. Output voltage 0-310VAC
4. Output frequency A version: 45-500Hz, B version: 45-120Hz and optional C
version: 300-840Hz.
5. Precise Meter Measurement
Single phase output: V/F/I/VA/W/PF
Three phase output: V(L-N) /I(L-N)/P(L-N)/VA/W/PF/Σof three phases (for
three-phase balanced only)
6. Output frequency 45-120Hz characteristic chart
Figure 1.2 Output voltage and current characteristic chart

AFV+Series High Power Programmable AC Power Supply
1-3
7. Output frequency 45-500Hz characteristic chart
Figure 1.3 Output load / frequency curve
Figure 1.4 Output time / frequency curve
NOTICE
When choosing AFV+series output frequency 45-500 Hz, the output power will be
influenced as the information above (Figure 1.2 &1.3). We would suggest the users
to select the ideal model base on their needs or higher output power, in order to
avoid the limitations.

AFV+Series High Power Programmable AC Power Supply
1-4
1.3 Specification
Technical specifications of product are listed below. All specifications have been
tested according to Preen’s standard test procedures.
Model
AFV-PLUS
-31010
AFV-PLUS
-31015
AFV-PLUS
-31020
AFV-PLUS
-31030
AFV-PLUS
-31045
AFV-PLUS
-31060
AFV-PLUS
-31075
AFV-PLUS
-31100
AFV-PLUS
-31120
AFV-PLUS
-31150
INPUT
Phase
3Ø / 3 Wire+ G
Voltage *1
380V±15%
Frequency
47 - 63Hz
Max. Current *2
18.8A
28.1A
37.5A
56.3A
84.4A
112.5A
140.7A
198.6A
238.3A
297.9A
Power Factor
≥0.9（Max. Power）
≥0.9（Max. Power）
OUTPUT
Power (VA)
10kVA
15kVA
20kVA
30kVA
45kVA
60kVA
75kVA
100kVA
120kVA
150kVA
Phase
1Ø / 2 Wire+ G
Voltage
Ranges
Low(V)
0V~155.0V（L-N）
High(V)
0V~310.0V（L-N）
Voltage Resolution
0.1V
Voltage Accuracy
0.5% F.S.+4 counts
Frequency Range *3
Type A: 45~500Hz, Type B: 45-120Hz, Type C: 300-840Hz
Frequency
Resolution
0.1Hz
Frequency Accuracy
±0.02% F.S.
Max.
Current
(RMS)
Low(A)
83.3A
125A
166.7A
250A
375A
500A
625A
833.3A
1000A
1250A
High(A)
41.7A
62.5A
83.3A
125A
187.5A
250A
312.5A
416.7A
500A
625A
Line Regulation
< 0.5%
Load Regulation
≦0.5% (Resistive Load)
Total Harmonic
Distortion(THD) *4
≦0.5% (Resistive Load)
Response Time
≦1ms
Crest Factor
≥3
MEASUREMENT
Voltage Range
0V~310.0V
Voltage Resolution
0.1V
Voltage Accuracy
0.5% F.S. +4 counts
Frequency Range
45.0~500.0Hz
Frequency
Resolution
0.01Hz
Frequency Accuracy
±0.02% F.S.

AFV+Series High Power Programmable AC Power Supply
1-5
Current Range (RMS)
0-83.3A
0-125A
0-166.7A
0-250A
0-375A
0-500A
0-625A
0-833.3A
0-1000A
0-1250A
Current
Resolution(RMS)
0.1A
Current Accuracy
(RMS)
0.5% F.S.+4 counts
Power Range
0-10kW
0-15kW
0-20kW
0-30kW
0-45kW
0-60kW
0-75kW
0-100kW
0-120kW
0-150kW
Power Resolution
0.1kW
Power Accuracy
1% F.S.+6 counts
GENERAL
Efficiency
≥90% at Max. Power
≥85% at Max. Power
HMI
Touch Screen, 7" Color TFT LCD
Program Mode
STEP : 24 sets / 255 cycles. (Volt./Freq./Time)
RAMP : 12 sets / 255 cycles. (Volt./Freq./Time)
Soft Start
Setting : Rated Volt. / Rated Freq. / Start Volt. / Start Freq. / Delay Time / Ramp Time
Protection
Input : Input N.F.B, Over Voltage, Under Voltage,
Output : Over Voltage, Over Current, Reverse Current, Over Temperature
and machine will display the error code and give a warning sound.
Remote Interface
Standard : RS-232/RS-422/RS-485 Option : GPIB, Ethernet
Operational
Temperature
0℃~45℃
Humidity
0~90% ( Non condensing )
Altitude
< 1,500m
Dimensions (H x W x
D)
1045 * 628
* 840mm
(including
wheel)
1440 * 628 * 840 mm (including
wheel)
1645 * 828 * 840
mm((including wheel)
1900 * 1178 * 1200 mm
Weight
230kg
280kg
320kg
450kg
580kg
670kg
710kg
980kg
1135kg
1415kg
*1 Please contact for other voltage specification.
*2 The rated input voltage is 380V。
*3 For type A(45-500Hz) and output power 20kVA and over models, the output power will be influenced by the
frequency characteristic curve.
*4 Low : 90 - 140V or High 180 - 280V 。
*All specification are subject to change without notice.
Table 1.1 Technical Specifications (single-phase model/10kVA~150KVA)

AFV+Series High Power Programmable AC Power Supply
1-6
Model
AFV-PLUS
-33010
AFV-PLUS
-33015
AFV-PLUS
-33020
AFV-PLUS
-33030
AFV-PLUS
-33045
AFV-PLUS
-33060
AFV-PLUS
-33075
AFV-PLUS
-33100
AFV-PLUS
-33120
INPUT
Phase
3Ø / 3 Wire + G
Voltage *1
380V±15%
Frequency
47 - 63Hz
Max. Current *2
18.8A
28.1A
37.5A
56.3A
84.4A
112.5A
140.7A
198.6A
238.3A
Power Factor
≥0.9（Max. Power）
OUTPUT
Power (VA)
Power
(VA)
15kVA
20kVA
30kVA
45kVA
60kVA
75kVA
100kVA
120kVA
Phase
Phase
Voltage
Ranges
Low(V)
0V~155.0V（L-N）
High(V)
0V~310.0V（L-N）
Voltage Resolution
0.1V
Voltage Accuracy
0.5% F.S.+4 counts
Frequency Range*3
Type A: 45~500Hz, Type B: 45-120Hz, Type C: 300-840Hz
Frequency
Resolution
0.1Hz
Frequency Accuracy
±0.02% F.S.
Max.
Current
(RMS)
Low(A)
27.8A
41.7A
55.6A
83.3A
125A
166.7A
208.3A
277.8A
333.3A
High(A)
13.9A
20.8A
27.8A
41.7A
62.5A
83.3A
104.2A
138.9A
166.7A
Line Regulation
< 0.5%
Load Regulation
≦0.5% (Resistive Load)
Total Harmonic
Distortion(THD) *4
≦0.5% (Resistive Load)
Response Time
≦1ms
Crest Factor
≥3
MEASUREMENT
Voltage Range
0V~310.0V
Voltage Resolution
0.1V
Voltage Accuracy
0.5% F.S.+4 counts
Frequency Range
45.0-500.0Hz
Frequency
Resolution
0.01Hz
Frequency Accuracy
±0.02% F.S.
Current Range (RMS)
0 - 27.8A
0 - 41.7A
0 - 55.6A
0 - 83.3A
0 - 125A
0 -
166.7A
0 - 208.3A
0 - 277.8A
0 - 333.3A
Current
Resolution(RMS)
0.1A
Current Accuracy
(RMS)
0.5% F.S.+4 counts
Power Range
0 - 10kW
0 - 15kW
0 - 20kW
0 - 30kW
0 - 45kW
0 - 60kW
0 - 75kW
0 - 100kW
0 - 120kW

AFV+Series High Power Programmable AC Power Supply
1-7
Power Resolution
0.1kW
Power Accuracy
1% F.S.+6 counts
GENERAL
Efficiency
≥90% at Max. Power
≥85% at Max. Power
HMI
Touch Screen, 7" Color TFT LCD
Program Mode
STEP : 24 sets / 255 cycles. (Volt./Freq./Time)
RAMP : 12 sets / 255 cycles. (Volt./Freq./Time)
Soft Start
Setting : Rated Volt. / Rated Freq. / Start Volt. / Start Freq. / Delay Time / Ramp Time
Three Phase
Independent
Adjustment
U-N/V-N/W-N, Adjustment 0-310V
Protection
Input : Input N.F.B, Over Voltage, Under Voltage,
Output : Over Voltage, Over Current, Reverse Current, Over Temperature
and machine will display the error code and give a warning sound.
Remote Interface
Standard : RS-232/RS-422/RS-485 Option : GPIB, Ethernet
Operational
Temperature
0℃~45℃
Humidity
0~90% ( Non condensing )
Altitude
< 1,500m
Dimensions (H x W x
D)
1045 *
628 * 840
mm
(including
wheel)
1440 * 628 * 840 mm
(including wheel)
1645 * 828 * 840
mm
(including wheel)
1900 * 1178 * 1200 mm
Weight
280kg
305kg
360kg
400kg
560kg
670kg
960kg
1170kg
1450kg
*1 Please contact for other voltage specification.
*2 The rated input voltage is 380V.
*3 For type A (45-500Hz) and output power 20kVA and over models, the output power will be
influenced by the frequency characteristic curve.
*4 Low : 90 - 140V or High 180 - 280V.
*5 For dimensions and weight of 300kVA and over models, please contact us to confirm.
for AFV+series over 300kVA, please contact us for details
* All specification are subject to change without notice.
Table 1.2 Technical Specifications (three-phase model /10kVA~120kVA)

AFV+Series High Power Programmable AC Power Supply
1-8
Model
AFV
PLUS-
33150
AFV
PLUS-
33200
AFV
PLUS-
33300
AFV
PLUS-
33400
AFV
PLUS-
33500
AFV
PLUS-
33600
AFV
PLUS-
33800
AFV
PLUS-
331000
AFV
PLUS-
331200
AFV
PLUS-
331500
AFV
PLUS-
332000
INPUT
Phase
3Ø / 3 Wire + G
Voltage *1
380V±15%
Frequency
47 - 63Hz
Max. Current *2
297.9A
397.2A
629.1A
838.8A
1048.5A
1258.3A
1677.7A
2097.1A
2516.5A
3145.6A
4194.2A
Power Factor
≥0.9（Max. Power）
OUTPUT
Power (VA)
150kVA
200kVA
300kVA
400kVA
500kVA
600kVA
800kVA
1000kVA
1200kVA
1500kVA
2000kVA
Phase
3Ø / 4 Wire + G
Voltage
Ranges
Low(V)
0V~155.0V（L-N）
High(V)
0V~310.0V（L-N）
Voltage Resolution
0.1V
Voltage Accuracy
0.5% F.S.+4 counts
Frequency
Range*3
Type A: 45~500Hz, Type B: 45-120Hz, Type C: 300-840Hz
Frequency
Resolution
0.1Hz
Frequency
Accuracy
±0.02% F.S.
Max.
Current
(RMS)
Low(A)
416.7A
555.6A
833.3A
1111.1A
1388.9A
1666.7A
2222.2A
2777.8A
3333.3A
4166.7A
5555.6A
High(A)
208.3A
277.8A
416.7A
555.6A
694.4A
833.3A
1111.1A
1388.9A
1666.7A
2083.3A
2777.8A
Line Regulation
< 0.5%
Load Regulation
≦0.5% (Resistive Load)
Total Harmonic
Distortion(THD) *4
≦0.5% (Resistive Load)
Response Time
≦1ms
Crest Factor
≥3
MEASUREMENT
Voltage Range
0V~300.0V
Voltage Resolution
0.1V
Voltage Accuracy
0.5% F.S.+4 counts
Frequency Range
45.0-500.0Hz
