Prem-I-Air ACS16E User manual

M
MO OB BI IL LE E A AI IR R C CO ON ND DI IT TI IO ON NE ER R
I
IN NS ST TR RU UC CT TI IO ON N M MA AN NU UA AL L
M
MO OD DE EL L A AC CS S1 16 6E E
IMPORTANT
Please read these instructions carefully before use.

Page 2
C
Co on nt te en nt ts s
Important safety instructions
BS Plug Wiring Instruction
Technical Specification
Energy Saving Advice
Component Layout
Control Panel Operation
Use Of Control Panel
Control of Airflow Direction
Disconnecting The Refrigerant Line
Mounting The Outdoor Unit
Installing The Carbon Filters
Maintenance
End Of Season Storage
Troubleshooting
Service & Warranty

Page 3
I
Im mp po or rt ta an nt t S Sa af fe et ty y I In ns st tr ru uc ct ti io on ns s
1. Transport & store the unit in an upright position only. Leave it in
an upright position for at least 3 hours before first use.
2. Always place the unit on an even, level surface.
3. An opening in a window or wall is required to accommodate the
exhaust hose to expel the hot air.
4. Make sure the unit is connected to an earthed power supply of the
correct rating. (Refer to the rating label located at the back of the
unit).
5. The unit will cool when the room temperature is between
18°C~32°C depending on the thermostat setting.
6. Operate this unit in an ambient temperature of 32°C or lower.
7. Do not operate the unit with a damaged power cord or plug, after
it malfunctions, has been dropped or damaged. If the power cord
is damaged it must be replaced by the manufacturer or a qualified
service engineer to avoid a hazard.
8. DO NOT use this unit for functions other than those described in
this instruction manual.
9. DO NOT tilt the unit.
10. DO NOT cover or obstruct the appliance’s inlet and outlet grilles.
11. Your air conditioner has been designed to be used only in the
home, office and similar conditions and should not be used for
any other purpose.
12. Never unplug the air conditioner while it is working, this could
damage the electronic circuits.
13. DO NOT use the appliance in a wet room, such as a bathroom or
laundry room to avoid the risk of shock.
14. DO NOT sit or place articles on the appliance.
15. DO NOT use the appliance with wet or damp hands.
16. DO NOT let chemical substances come into contact with the
appliance.
17. DO NOT use the appliance in the presence of inflammable
substances or vapours such as alcohol, insecticides, petrol, etc.
18. DO NOT use the plug to start and stop the appliance.
19. ALWAYS use the control panel to start and stop the unit.
20. ALWAYS keep an air path of at least 50cm from walls, furniture or
curtains.
21. ALWAYS turn off the appliance when it is not in use and remove
the mains plug from the socket outlet.

Page 4
22. ALWAYS turn the unit off and remove the mains plug before
cleaning, carrying out maintenance or moving location.
23. Avoid the use of adapter plugs, multiple sockets and /or extension
leads. If their use is necessary, ensure they conform to current
safety standards.
24. Do not pull the electrical cable or place it near a source of heat:
always unroll it completely to avoid dangerous overheating. If the
supply cord becomes damaged, the service agent or a similarly
qualified person must replace it, in order to avoid a hazard.
25. The filter must be used with the product at all times, when
removing it for clearing always turn the unit off and unplug the
mains plug from the socket.
For those who are not aware of the danger that might occur from
the usage of an electrical appliance, they should use the product
under guidance and supervision.
T
TH HE E M MA AN NU UF FA AC CT TU UR RE ER R D DI IS SC CL LA AI IM MS S A AN NY Y
R
RE ES SP PO ON NS SI IB BI IL LI IT TY Y I IF F T TH
HE E A AB BO OV VE E I IN NS ST TR RU UC CT TI IO ON NS S
A
AR RE E N NO OT T F FO OL LL LO OW WE ED D. .

Page 5
B
BS S P Pl lu ug g W Wi ir ri in ng g
Wiring Instructions: Should it be necessary to change the plug
please note the wires in the mains lead are coloured in accordance
with the following code: BLUE - NEUTRAL
BROWN - LIVE
GREEN AND YELLOW - EARTH
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
1. The BLUE wire is the NEUTRAL and must be connected to the
terminal which is marked with the letter Nor coloured BLACK.
2. The BROWN wire is the LIVE and must be connected to the terminal
which is marked with the letter Lor coloured RED.
3. The GREEN/YELLOW is the EARTH and must be connected to the
terminal which is marked with the letter Eor or coloured GREEN
OR GREEN/YELLOW.
4. Always ensure that the cord grip is positioned and fastened correctly.
If a 13A (BS 1363) fused plug is used it must be fitted with a 13A fuse. If in
doubt consult a qualified electrician.

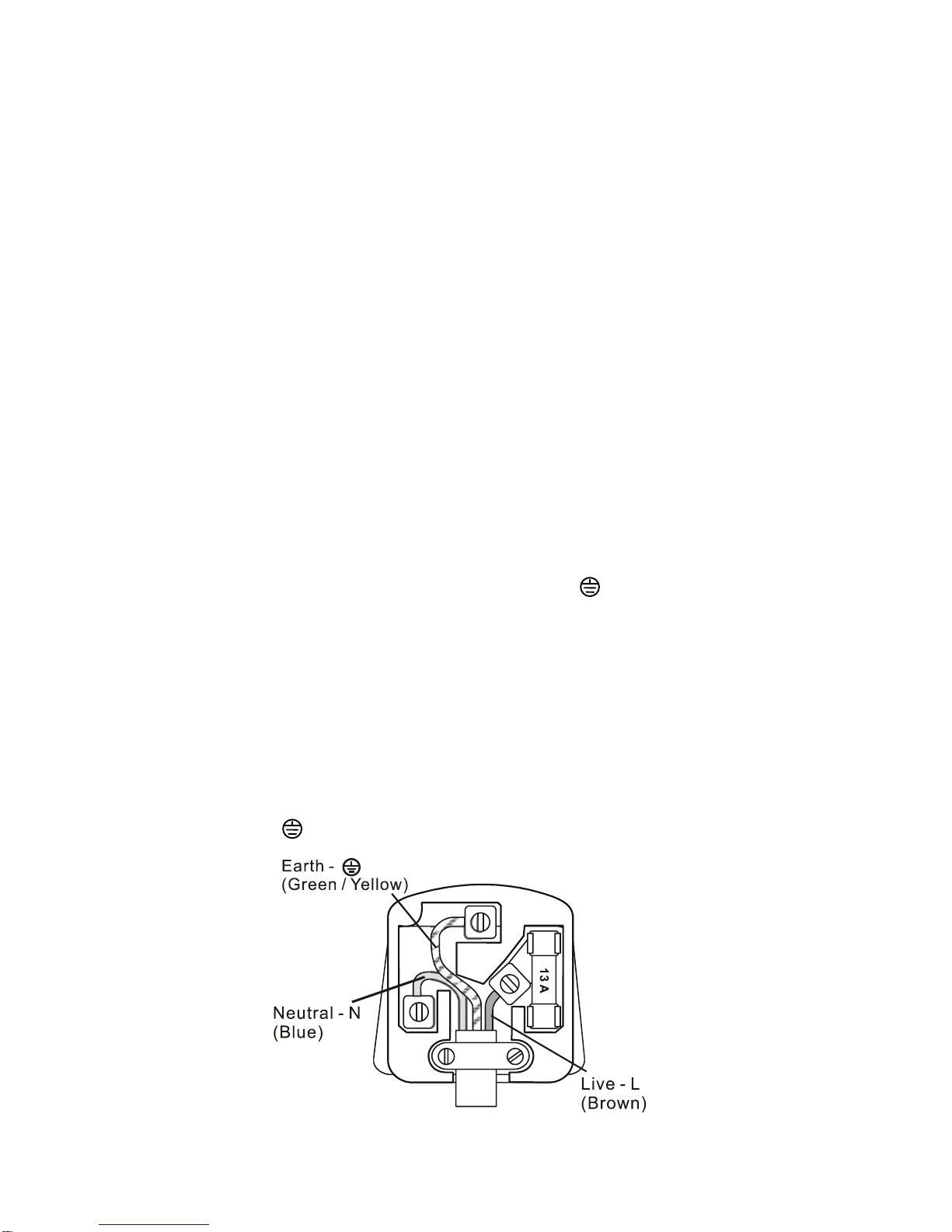

Wiring for a 13 Amp Plug (BS1363)
Please note. The Earth Terminal is marked with the letter Eor
Earth Symbol

Page 6
T
Te ec ch hn ni ic ca al l S Sp pe ec ci if fi ic ca at ti io on n
Model no. ACS16E
Power supply 220-240V/ 50Hz / 1 phase
Cooling capacity 16000BTU/hr, 4039Kcal/hr,
4689watts
Heating capacity 16000BTU/hr, 4039Kcal/hr, 4689watts
Power / Ampere consumption for
cooling 1750W/ 7.5A
Power / Ampere consumption for
heating 1280W/ 5.8A
Max. airflow volume (indoor unit) 750 m3/h
Humidity removal capacity 53L/day
Compressor Rotary
Refrigerant R-407C
Refrigerant load* 1.25Kg
Fan speed 3
Timer 1 ~ 12 hours
Working temperature Indoor unit: 18 ~ 32oC
Outdoor unit: 21 ~ 43oC
Indoor unit 35 kg
Net weight Outdoor unit 13 kg
Indoor unit 360 x 590 x 757 mm
Size Outdoor unit 500 x 310 x 525 mm
Length of connection tube 3 m
Recommended room size 28m2
* For models with heat function only.
Measuring condition for above is:
Cooling – Indoor: RT27oC, RH60%
Outdoor: RT35oC, RH50%
Heating - Indoor: RT20oC, RH60%
Outdoor: RT7oC, RH85%

Page 7
E
En ne er rg gy y S Sa av vi in ng g A Ad dv vi ic ce e
1. Do not locate the air conditioner where furniture or
other objects can obstruct the airflow.
2. Keep blinds/curtains closed during the warmest part
of the day.
3. Close the fireplace damper, floor and/or wall grilles, so
cool air does not escape through the chimney or
ductwork.
4. Keep the filters clean.
5. Avoid opening doors frequently.
6. Each person present in a room provides between 100
& 150Watts of heat, consequently, the more people
there are in the room, the less effective the unit will be
in cooling.
7. Set the unit to maximum cooling and high-speed
ventilation for the initial start up and then adjust the
unit to a comfortable setting.

C
Co om mp po on ne en nt t L La ay yo ou ut t
1. Cool air outlet
2. Control panel
3. Connection tube
4. Handle
5. Casters
6. Outdoor unit handle
7. Exhaust air outlet
Page 8
14. Active Carbon filter
15. Outdoor unit mounting bracket
16. Spanners
17. Remote control
18. Bag containing screws & washers
9. Cable storage
10. Power cable
compartment
11. Power cable
12. Filter
13. Filter

C
Co on nt tr ro ol l P Pa an ne el l F Fu un nc ct ti io on ns s
1. Auto mode indicator 2. Cooling mode indicator
3. Fan mode indicator 4. Heating mode indicator*
5. Low fan speed indicator 6. Medium fan speed indicator
7. High fan speed indicator 8. Timer operation indicator
9. Room temperature indicator 10. Water FULL indicator
11. Set temperature indicator 12. Sleep function indicator
13. UV & ion indicator* 14. UV & Ion selector*
15. Sleep function selector 16. Temperature UP selector
17. Temperature DOWN selector 18. LCD read out
19. Power ON/OFF 20. Timer
21. Fan speed selector 22. Mode selector
* For models fitted with these functions only
Page 9

Page 10
U
Us se e o of f C Co on nt tr ro ol l P Pa an ne el l
All function below can be carried out using the infrared remote
control
Turning ON/OFF
1. Press the ON/OFF button and the unit will start automatically. If the
ambient temperature is: -
 higher than 23oC, the unit will work in cooling mode.
 higher than 20oC but below or equal to 23oC, the unit will work in
fan only mode.
 below 20oC, the unit will work in heating function (This is for
cooling & heating models only).
2. Indicator LED’s of the functions in progress come on at the same time.
NOTE The display window shows the ambient room temperature from
0oC to 50oC
3. To turn the unit off, press ON/OFF button again.
Setting Mode / Functions
Press MODE button to select required working mode: Automatic, Cooling,
Fan or Heating, (Heating is only available for heating & cooling models.)
The indicator LED of your selected mode illuminates.
Setting temperature
1. Press the 'Temperature up' or 'Temperature down' button to regulate
the temperature you require.
2. The display window will show the temperature you set as you press
'Temperature up' or 'Temperature down' button. Otherwise, it will
always show the ambient temperature.
3. The pre-setting temperature of this machine is: 24oC for cooling, 20oC
for heating.

Page 11
Setting ventilation speed
1. Press SPEED button to choose the fan speed you require (high,
medium or low). The indicator of high or low ventilation will illuminate at
the same time.
If the unit is in AUTO mode, it will choose the fan speed automatically
according to the ambient temperature (the related indicators will illuminate),
at this time the speed switch is invalid.
Setting timer
1. Press the TIMER button to set the operating hours you require (1 to 24
hours, the timer indicator will illuminate). When the set time has been
reached, the machine will turn off automatically. The display window
will show the hour(s) you set as you press the TIMER button. If the
timer button is not pressed, the unit will work continuously.
By pressing the timer but without turning on the other functions, you can
PRE-SET the time for the machine to work. For example, if you press the
timer to '2', the unit will work automatically after 2 hours.
Sleep function
1. By pressing the SLEEP button, the set temperature will increase 1oC at
the 1st hour, another 1oC at the second hour and then remains at that
temperature.
2. Re-press the SLEEP button, the setting temperature will return to the
pre-selected one.
The unit will shut down automatically after the SLEEP function runs for 12
hours.

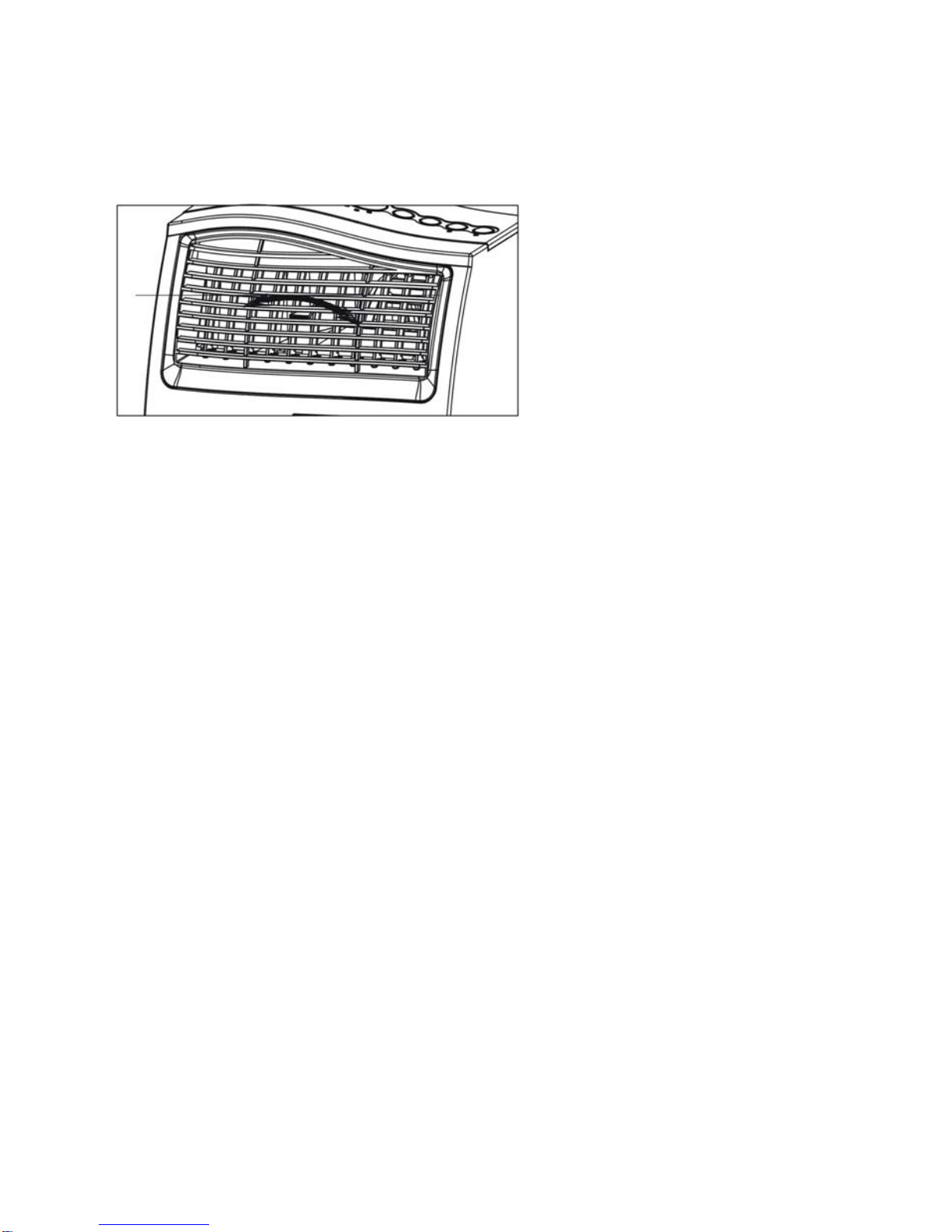

Control of Airflow Direction
Turn the roller in the horizontal direction to control the airflow distribution.
Page 12

Page 13
D
Di is sc co on nn ne ec ct ti in ng g T Th he e R Re ef fr ri ig ge er ra an nt t L Li in ne e

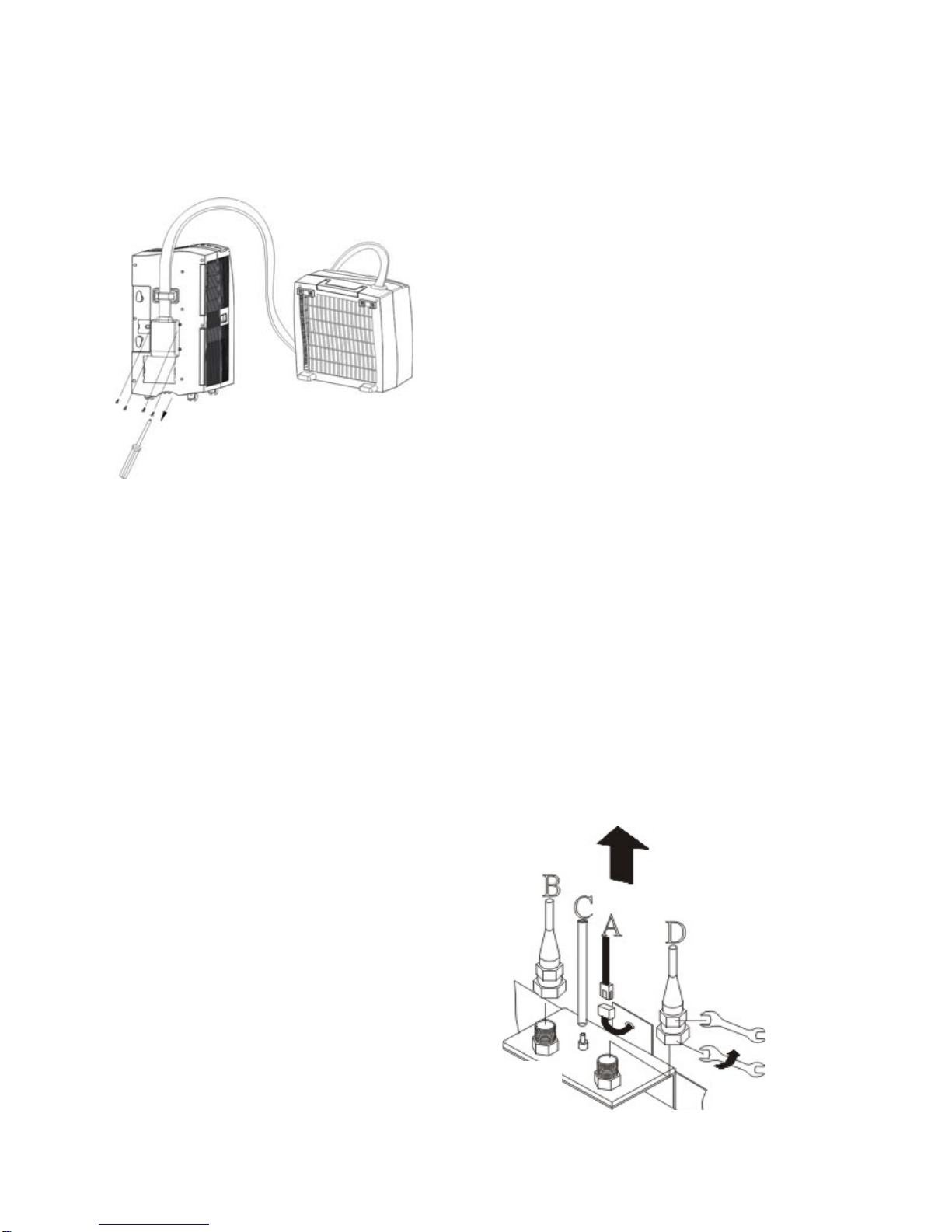

If you need to disconnect the indoo
r
unit from the outdoor unit (to place i
t
in a more suitable position), please
follow the steps below:
1. Open the tube connection bo
x
situated at the back of the indoo
r
unit. (FIG.9)
2. Disconnect the drain tube.
(FIG.10)
3. Disconnect the electrical cable.
(FIG.10)
4. Disconnect the refrigerant tubes
using the spanners provided
(fig.10). The terminals are fitted
with automatic closing valves to
prevent the large amounts of gas
from leaking. During this
operation, takes extreme care
not to break the refrigeran
t
tubes.
5. Cap the terminals with
provided caps to protect them
from dust. (FIG. 11)
6. Mount the outdoor unit on the
bracket as previous described.
7. Pass the connecting tube
through the hole in the wall i
f
present
(at least DIA. 50mm)
8. Remove the protection cap (I
f
you have capped them
previously. Reconnect the
refrigerant tubes; drain tube
and the electrical cable in
opposite steps. (FIG. 12)
Close the connection box o
f
the indoor unit. (FIG. 13)
Fig. 10
A. Electrical cable
B. Refrigerant tube
C. Drain tube
D. Refrigerant tube
Fig. 9

Page 14
D
Di is sc co on nn ne ec ct ti in ng g T Th he e R Re ef fr ri ig ge er ra an nt t l li in ne e
c
co on nt ti in nu ue ed d
Fig. 13
Fig. 11 Fig. 12
M
Mo ou un nt ti in ng g T Th he e O Ou ut td do oo or r U Un ni it t
Firmly screw the bracket to
the wall. The maximum
height from the floor to the
outdoor unit should be no
more than 1.5m
Locate the outdoor uni
t
bracket onto the wall-
mounted bracket.

Installing The Carbon Filters
1. Remove the filter frame
from the unit.
2. Separate the filter
frames.
3. Remove the active
carbon filter from its
plastic bag.
4. Insert the active carbon
filter into the filter frame.
5. Fix the filter by
reassembling the filter
frames.
6. Re-fit the filter frame
inside the unit.
Repeat this process for the
second Filter, stages 7-12
Page 15

Page 16
M
Ma ai in nt te en na an nc ce e
Drainage (outdoor unit)
This unit is equipped with
automatic drainage function. The
condensed water will be
discharged from the hole placed
at the bottom of the outdoor unit.
Do not locate the unit above
doorways.
You may also connect the
discharge hole with a water tube
(Diameter 12.5 mm) to channel
the water to a proper place.
Make sure the water will always
drain away freely.

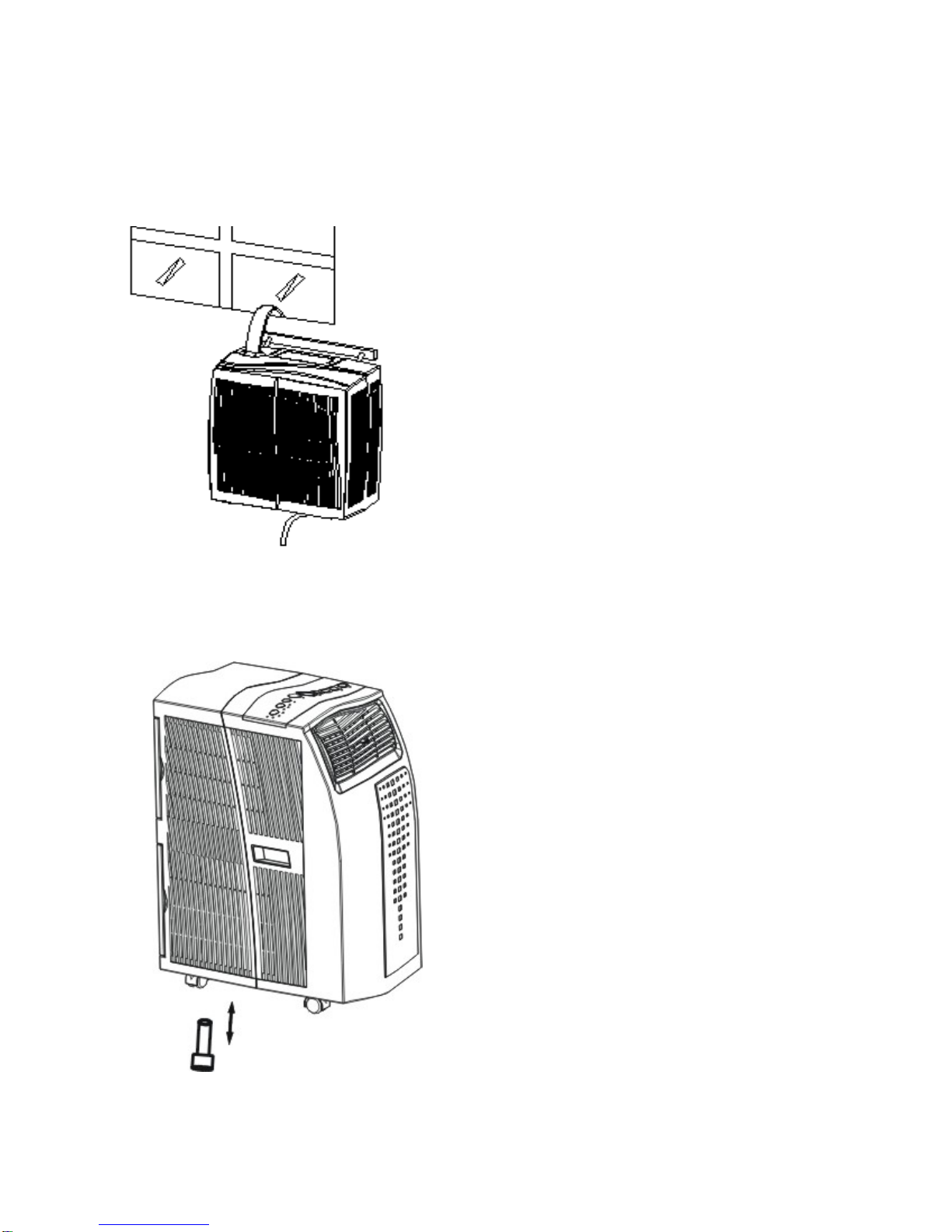

Drainage (indoor unit)
Please note. All condensed water
must be drained prior to relocation or
storage. Although the water has been
drained some water may still remain
inside. To drain the remaining water
please: -
1. Switch off & unplug the appliance
2. Lean the unit and remove the
rubber plug on the underside of the
unit.
(For safety reasons, this is a two-
person operation).

Page 17
E
En nd d O Of f S Se ea as so on n S St to or ra ag ge e
Drain any water in the unit before
operating the unit on ventilation only mode
for a few hours, to thoroughly dry the
inside.
Clean or replace the filters.
Unplug and store the power cord as
shown.
Replace in the original carton or cover for
storage.
Cleaning
Always switch off the appliance & remove the plug from the power
outlet socket before cleaning.
To maximize the efficiency of the air conditioner clean regularly.
Cleaning the Cabinet
Use a soft, damp cloth with a mild detergent to wipe the body clean.
Never use aggressive chemicals, petrol, detergents, chemically treated
cloths or harsh cleaning solutions – these may cause permanent
discolouration or damage to the external surface.
Cleaning the filters
Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt
from the filters and then rinse thoroughly under running water (no hotter
than 40oC).

Page 18
T
Tr ro ou ub bl le es sh ho oo ot ti in ng g
The air conditioner does not
run
 Is the air conditioner plugged in?
 Is there a power failure?
 Is the room temperature below
the set temperature?
The machine seems to do
little
 Is there direct sunlight?
(Close curtain & blinds.)
 Are too many windows or doors
open?
 Are there too many people in the
room?
 Is there equipment in the room
producing lots of heat?
The machine seems to do
nothing.
 Is the filter dirty / contaminated?
 Is the air intake or output
obstructed?
 Is the room temperature below
your selected temperature?
Too noisy
 Is the machine positioned
unevenly so as to create
vibration?
 Is the floor underneath the
machine uneven?
The compressor doesn’t run.
 It is possible the overheat
protection of the compressor is
on. Just wait for the temperature
to drop.

Page 19
S
Se er rv vi ic ce e W Wa ar rr ra an nt ty y
Do not operate the unit with a damaged cord or plug, after the unit
malfunctions, has been dropped or damaged.
For your convenience, record the complete model number and product
name (located on the Product Identification Plate), the date you purchased
the product, and attach your purchase receipt as proof of purchase.
To ensure your product is covered by warranty, the complete faulty product
together with your purchase receipt should be returned to your retailer.
ONE (1) YEAR LIMITED WARRANTY
Save This Warranty Information
EHS (International) Ltd. Guarantees this product free from defects in
materials and workmanship for a period of one (1) year.
Should this unit be operated under conditions other than those
recommended, at voltages other than the voltage indicated on the unit,
or any attempts made to service or modify the unit, will render this
WARRANTY VOID. The product you buy may sometimes differ
slightly from illustration. This warranty is in addition to, and does not
affect, your statutory rights.
Should you have a problem with this product, please call our Help
Desk on: [phone].
This product has been manufactured to comply with EEC Directives
73/23/EEC and 89/336/EEC
EHS, Manchester, M17 1RN, UK
