Prem-I-Air TC-N9KM User manual

Mobile Air Conditioner
Instruction Manual
Model TC-N9KM
Please read and retain these
instructions for future reference

SPECIFICATION
Model no. TC-N9KM
Cooling capacity 8500 BTU
2490 W
Power/Ampere consumption for
cooling* 830W/ 3.7A
Air volume (max. speed)
Humidity removal capacity 1.2 L/hr
Power supply 220-240V~, 50Hz
Compressor Rotary
Refrigerant R410a
Fan speed 2
Timer Mechanical switch 1 – 8 hours
Working temperature Cooling 18 - 32ºC
Net Weight 30 kg
Dimension 400 x 377 x 750mm (WxDxH)
PLEASE NOTE:
The data marked with '*' may vary for technical reason, for actual data please refer to the rating label
placed at the back of the unit.
Please note: Due to continuous research and development the specifications are subject to change without
notice.
350 m3/h

BEFORE USE
Important Safety Instructions
1. Transport & store the unit in an upright position only. Leave it in an upright position for at least 3 hours before
first use.
2. Always place the unit on an even, level surface.
3. An opening in a window or wall is required to accommodate the exhaust hose to expel the hot air.
4. Make sure the unit is connected to an earthed power supply of the correct rating. (Refer to the rating label
located at the back of the unit).
5. The unit will cool when the room temperature is between 18°C~32°C depending on the thermostat setting.
6. DO NOT use this unit for functions other than those described in this instruction manual.
7. DO NOT tilt the unit.
8. DO NOT cover or obstruct the appliance’s inlet and outlet grilles.
9. Your air conditioner has been designed to be used only in the home, office and similar conditions and should
not be used for any other purpose.
10. This unit is for indoor use only.
11. Never unplug the air conditioner while it is working, this could damage the electronic circuits.
12. DO NOT use the appliance in a wet room, such as a bathroom or laundry room to avoid the risk of electrical
shocks.
13. Do not bend or crush the warm air exhaust hose.
14. DO NOT sit or place articles on the appliance.
15. DO NOT use the appliance with wet or damp hands.
16. DO NOT let chemical substances come into contact with the appliance.
17. DO NOT use the appliance in the presence of flammable substances or vapours such as alcohol, insecticides,
petrol, etc.
18. DO NOT use the plug to start and stop the appliance. ALWAYS use the intended control panel to start and stop
the unit.
19. ALWAYS turn off the appliance when it is not in use and remove the mains plug from the socket outlet.
20. ALWAYS turn the unit off and remove the mains plug before cleaning, carrying out maintenance or moving
location.
21. Avoid the use of adapter plugs, multiple sockets and /or extension leads. If their use is necessary, ensure they
conform to current safety standards.
22. Do not pull the electrical cable or place it near a source of heat: always unroll it completely to avoid dangerous
overheating. If the power cord becomes damaged, the service agent or a similarly qualified person must
replace it, in order to avoid a hazard.
23. The filter must be used with the product at all times, when removing it for clearing always turn the unit off and
unplug the mains plug from the socket.
24. Do not operate the unit with a damaged power cord or plug, after it malfunctions, has been dropped or
damaged. If the power cord is damaged it must be replaced by the manufacturer or a qualified service engineer
to avoid a hazard.
25. Closely supervise any children and pets when unit is in use

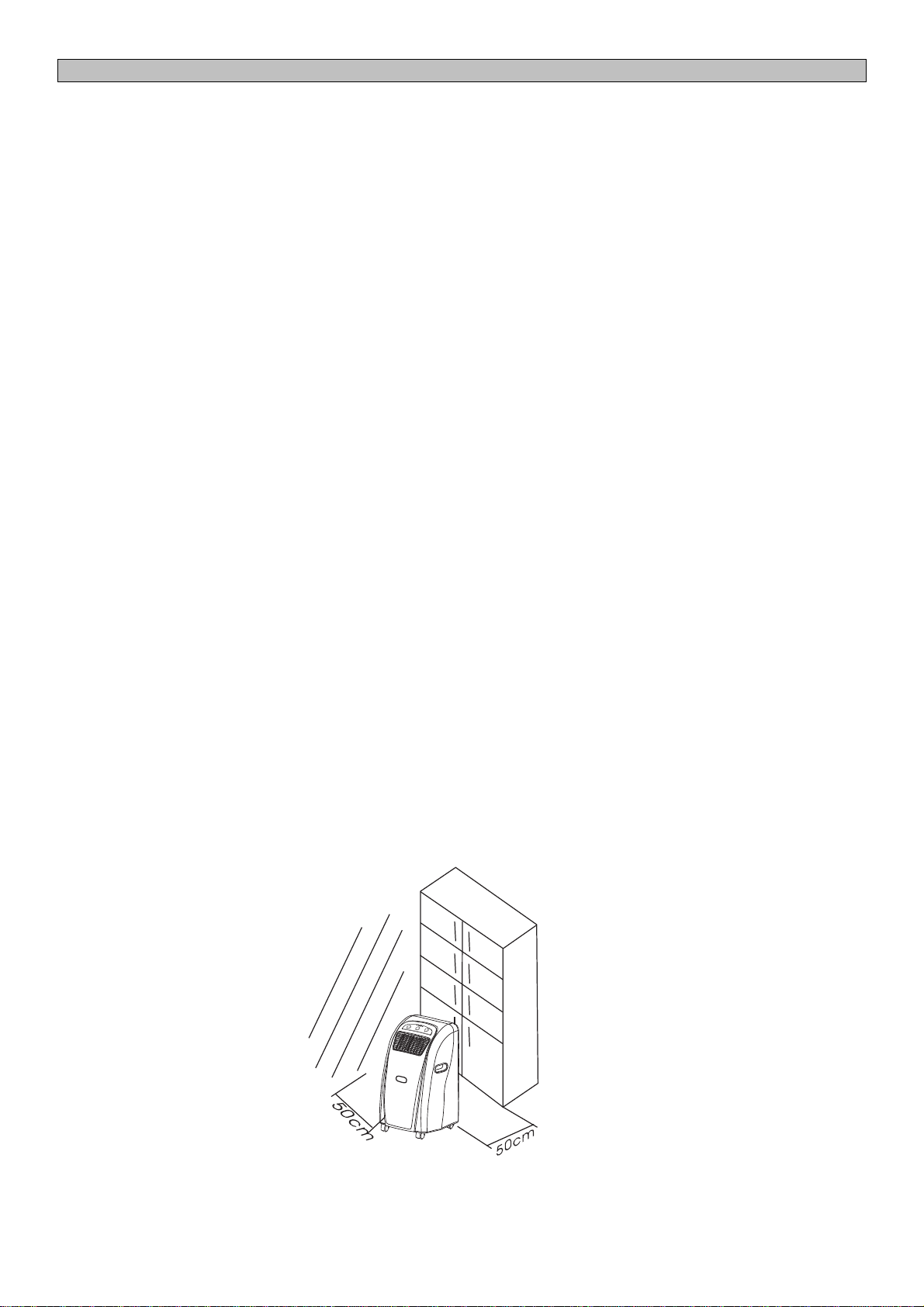

26. Only use in the upright position on a flat level surface and at least 50cm from any objects.

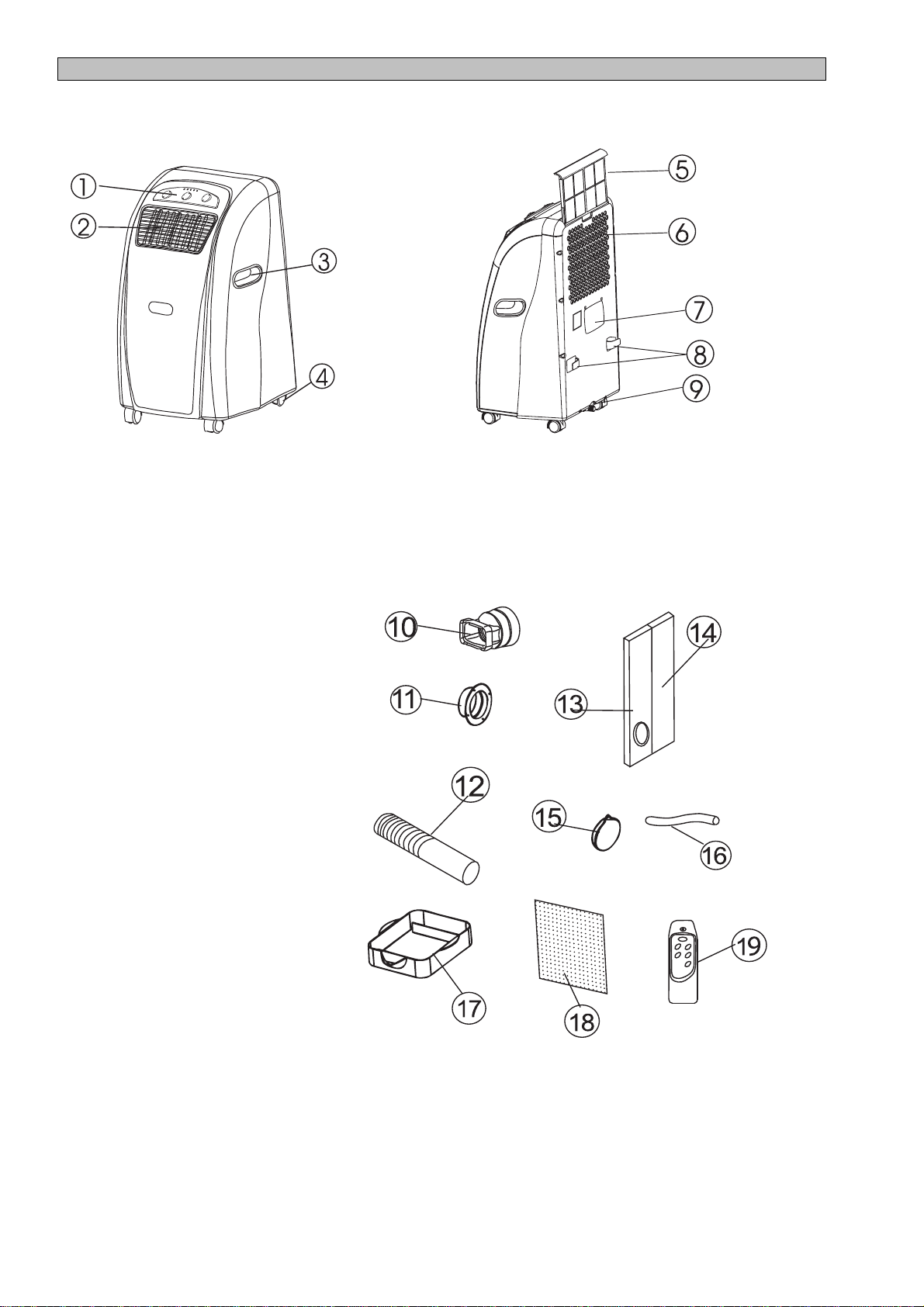

WALL

Front Back
1. Control Panel
2. Air outlet
3. Carry handle
4. Caster
5. Air filter
6. Air inlet
7. Exhaust air outlet
8. Cord storage
9. Water stopper / drainage point
Accessories
10. Indoor adaptor - for insertion
over hose and into back
of the air
conditioner.
11. Outdoor adaptor - for insertion
over hose and into foam strip (or
into hole in the wall/window).
12. Exhaust hose
13. Foam strip - for filling the open
window space and with hole for
connection to exhaust hose.
14. Foam strip - for filling the open
window space
15. Round cap for filling the hole in
wall/window.
16. Drain tube for continuous
drainage
17. Water tray
18. Active carbon filter
19. Remote control (for electronic
model only)
PARTS

• Place the foam window strips against the window. Mark and cut them to size if necessary.
• Feed exhaust hose through the foam strip and insert strip into window gaps as shown. Slide window across
so that foam is held securely. This technique may also be used for sash windows. Note: Please take care
to maintain protection against intruders
2. Using the adaptor
• Cut a 130mm diameter hole in the wall or window, using the appropriate tools and safety equipment.
• Feed exhaust hose through the window or wall and attach the outdoor adaptor from the outside as shown.
• When not in use, cover the hole with the cap (15. on accessories list) provided.
Foam strips

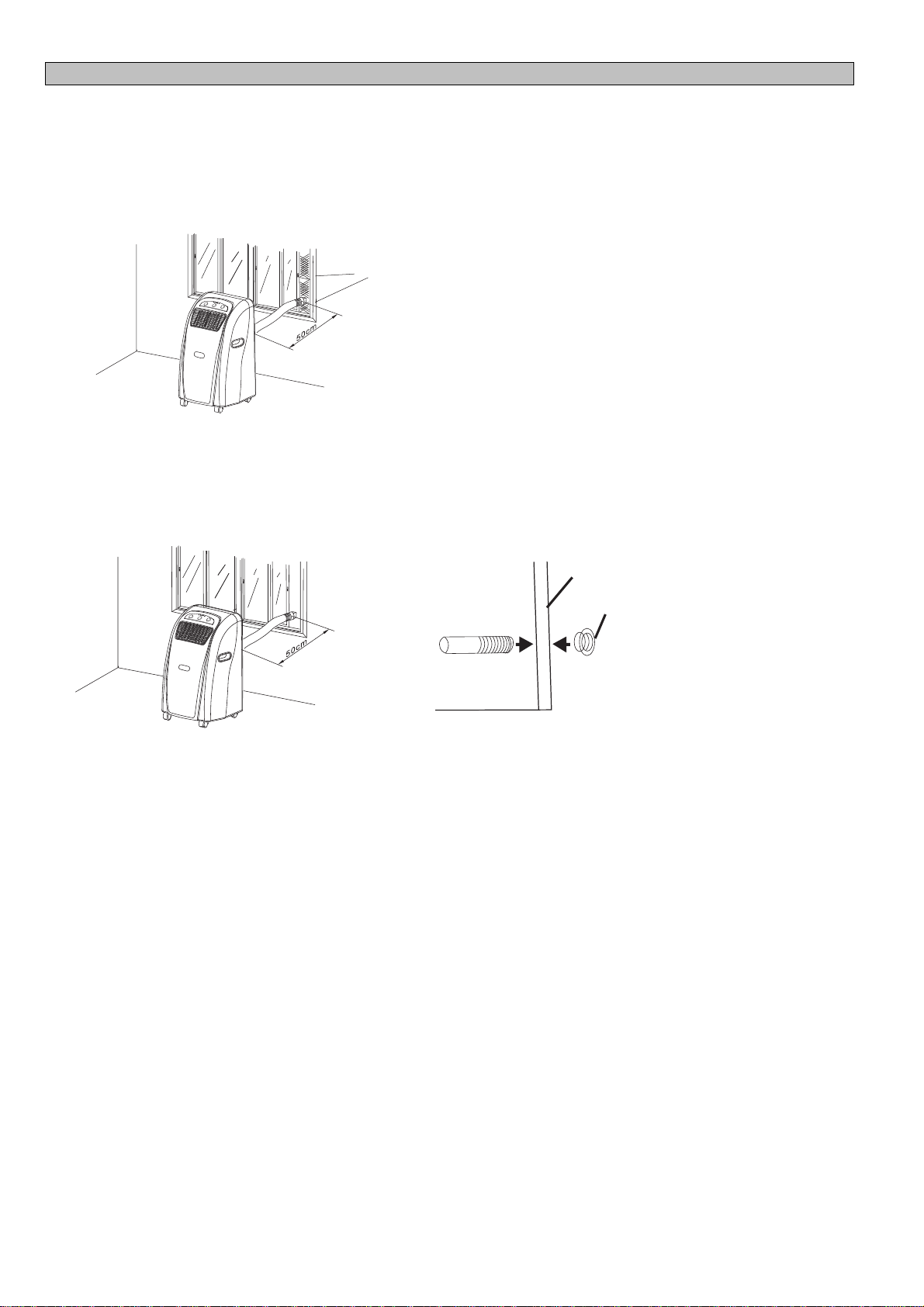

INSTALLATION
Installation of the exhaust pipe
The unit is a portable air conditioner, which can be moved from room to room.
1. Using the foam strips
• These are not suitable for hinged window systems
Wall or window
Outdoor adapter

Installing the exhaust hose
• Use only the hose provided and clip exhaust hose and unit adaptor to the back of the air
conditioner.
• Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up
causing the unit to overheat and shut down.
• The hose may be extended from 300mm to 1500mm, but for maximum efficiency use the shortest
length possible.
WARNING!
Do not replace or extend the hose as this could cause the unit to malfunction.

Installation of the carbon filter
1. Remove the filter frame from the
unit.
2. Separate the filter fixer from the
filter frame.
3. Remove the active carbon filter
from its plastic bag.
4. Insert the active carbon filter into
the filter frame.
5. Fix the filter by reassembling the
fixer onto the filter frame.
6. Re-fit the filter frame inside the
unit.

Setting Temperature
Turn the THERMOSTAT clockwise to adjust to the temperature required.
Set Timer
Set the TIMER to the desired operating time (1 to 8 hours). When the unit finishes the set time it
will automatically switch off.
Regulating air flow direction
Turn the roller on the air vent to control the
air flow direction of the vertical louvres. Move the air vent directly to adjust the air flow direction of the horizontal louvres.
NOTE
1. To prolong the life of the unit please wait at least 3 minutes before restarting the unit after it has been
switched off.
2. The cooling system will switch off if the ambient temperature is lower than the set temperature. As the
ambient temperature rises above the set temperature the cooling function will re-start.
OPERATING INSTRUCTIONS
For Maximum Efficiency
• Close doors and windows.
• Keep curtains and blinds closed during the sunniest part of the day.
• Regularly clean filters.
• Once room has reached the desired conditions, reduce temperature and ventilation settings.
Cooling only model
1. Power indicator light
2. Fan operating indicator light
3. Cooling operating indicator light
4. 'Full water' indicator light
5. Thermostat
6. Speed switch with options for - LOW FAN,
HIGH FAN, LOW COOL, HIGH COOL
7. Timer (1-8 hours) as well as ON/OFF
switch
Turning ON/OFF
Set TIMER to ON for continuous operation (the unit will operate as long as it is not turned off).
Power indicator light will illuminate
To turn off the unit, turn the TIMER to the OFF position.
Setting function / ventilation speed
Cooling only models
Turn the speed switch to select required setting:
LOW FAN, HIGH FAN, LOW COOL, HIGH COOL
SPEED
High Cool
Low Cool
Low Fan
High Fan

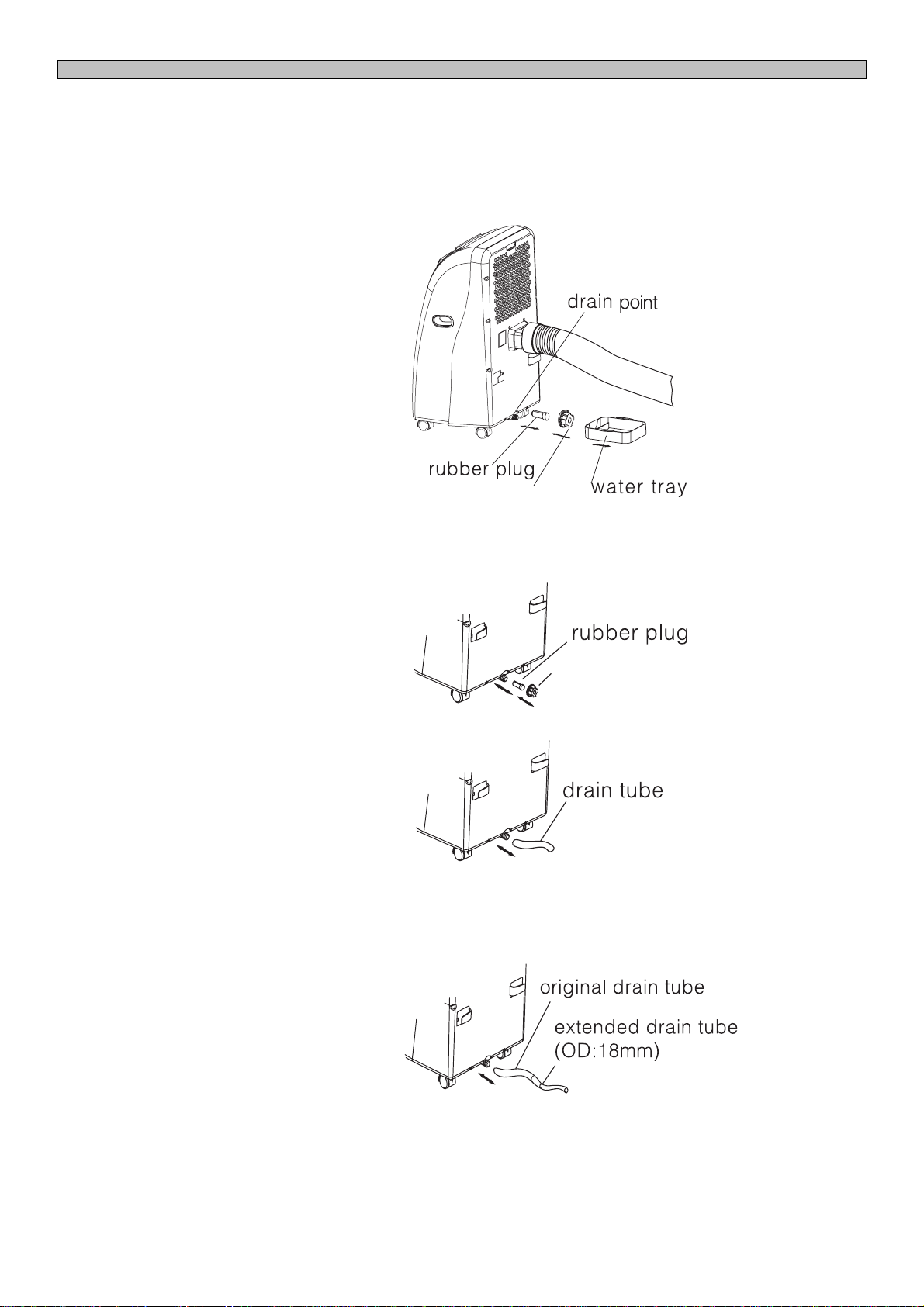

DRAINAGE
During the process of cooling, some water will be extracted from the air into the unit. If the reservoir is full:
On the mechanical model the compressor will stop. The fan will continue to circulate the air. The ‘FULL WATER’
indicator will illuminate to remind you.
To re-start the unit empty the collected water in one the following ways:
1. Turn off the air conditioner and avoid
moving it when full.
2. Position the water tray underneath the drain
hole.
3. the drain hole and allow the water to drain
out.
4. When the water tray is almost full, replace
the rubber plug in the drain hole and empty
the water tray.
5. Repeat until the unit is emptied.
6. Replace the rubber plug and tighten the
7. Switch on the unit - the comp light should
not be flashing.
If you wish to operate the unit without the need to empty the water tank, please:
•
and retain for future use.
• Connect the drain tube supplied to the
water outlet as shown and locate the
other end into a drain.
• The drain tube may be extended by
adding an extension tube and using a
suitable connector, (not supplied by the
manufacturer).
Please note
1. The drain must be at or below the
outlet level.
2.
Flashing comp / ‘full water’ indicator will
not function in this mode of drainage.
3. If you want to extend the water tube,
you can connect it with another tube
(OD: 18mm)
with drain cap
with drain cap firmly.
Remove the with drain cap & rubber plug from
Remove the with drain cap and rubber plug
with drain cap

MAINTENANCE
Always switch off and unplug the air conditioner from the mains before cleaning.
To maximize the efficiency of the air conditioner clean regularly.
Cleaning the housing
Use a soft, damp cloth to wipe the body clean.
Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions.
These could all damage the unit casing.
Cleaning the filter
Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the filters and then rinse thoroughly
under running water (no hotter than 40°C). Dry thoroughly before replacing. Never operate the unit without the
filters.
End of season storage
• Drain any water in the unit before completely
operating the unit on ventilation only mode for
a few hours, to thoroughly dry the inside.
• Clean or change the filter

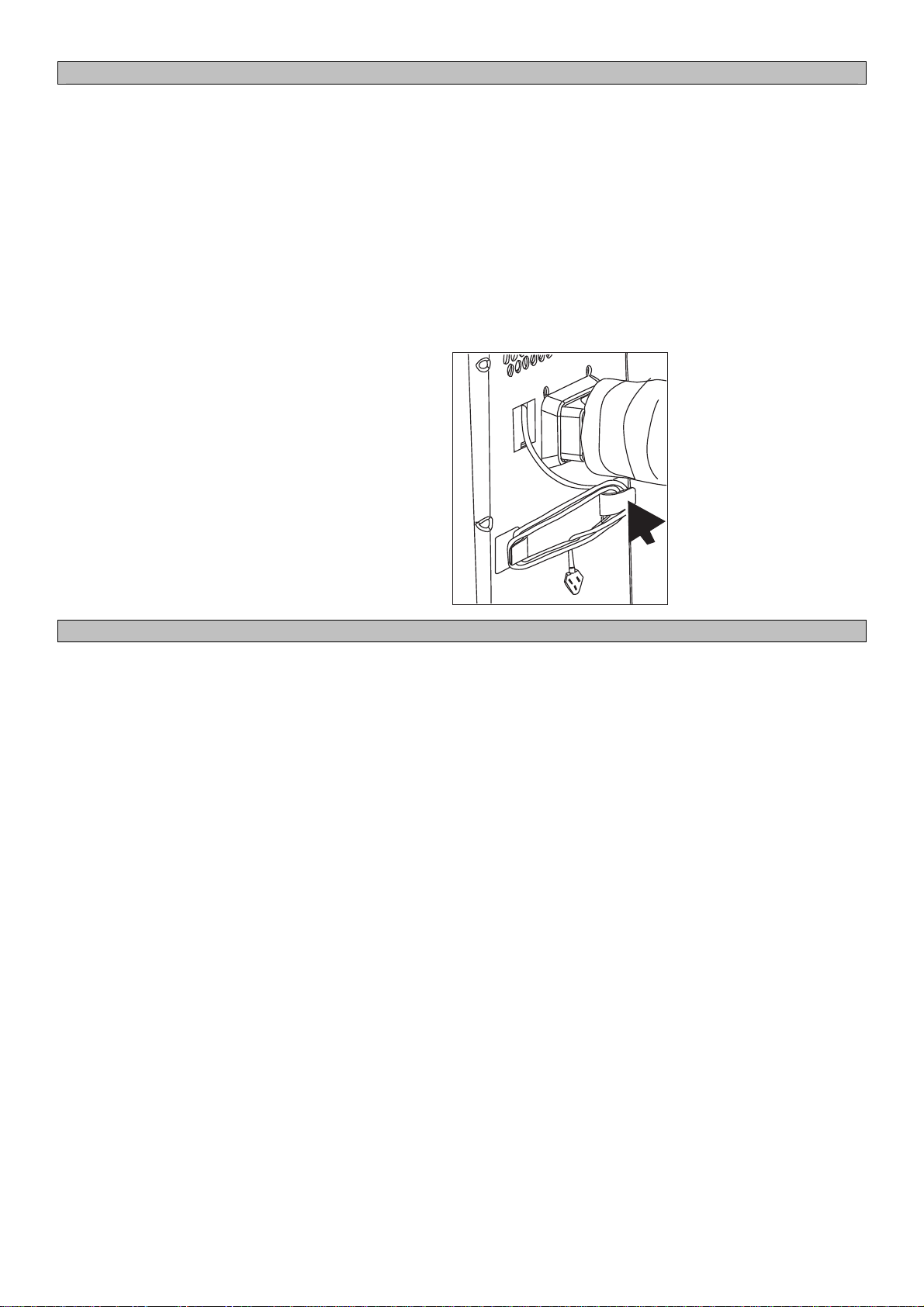

• Unplug and store the power cord as shown
• Replace in the original carton or cover for
storage.
Trouble Shooting
The air conditioner does not run.  Is the air conditioner plugged in?
 Is there a power failure?
 Is the ‘Full Water’ indicator flashing?
 Is the room temperature below the set
temperature?
The machine seems to have little
cooling effect.  Is there direct sunshine? (Please close the curtains
or blinds.)
 Are too many windows or doors open?
 Are there too many people in the room?
 Is there something in the room producing lots of
heat?
The machine is not cooling.  Is the filter dusty, contaminated?
 Is the air intake or output blocked up?
 Is the room temperature below your selected
temperature?
Too noisy  Is the machine positioned unevenly, thus creating
vibration?
 Is the floor underneath the machine uneven?
The compressor doesn’t run.  It is possible the overheat protector for the
compressor is in operation. Wait for the
compressor to cool down.
*Never try to repair or dismantle the unit yourself

BS PLUG WIRING
Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are
coloured in accordance with the following code :
BLUE - NEUTRAL
BROWN - LIVE
GREEN AND YELLOW - EARTH
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
1. The BLUE wire is the NEUTRAL and must be connected to the terminal which is marked with the letter Nor
coloured BLACK.
2. The BROWN wire is the LIVE and must be connected to the terminal which is marked with the letter Lor
coloured RED.
3. The GREEN/YELLOW is the EARTH and must be connected to the terminal which is marked with the letter E
or or coloured GREEN OR GREEN/YELLOW.
4. Always ensure that the cord grip is positioned and fastened correctly.
If a 13A (BS 1363) fused plug is used it must be fitted with a 13A (BS 1362) fuse. If in doubt consult a qualified
electrician.
Wiring for a 13 Amp Plug (BS 1363)
Please note. The Earth Terminal is marked with the letter Eor Earth Symbol .

SERVICE & WARRANTY
• Do not operate the unit with a damaged cord or plug, after the unit malfunctions, has been
dropped or damaged.
• For your convenience, record the complete model number and product name
(located on the Product Identification Plate), the date you purchased the product, and attach
your purchase receipt as proof of purchase.
• To ensure your product is covered by warranty, the complete faulty product
together with your purchase receipt should be returned to your retailer.
This product has been manufactured to comply with EEC Directives 73/23/EEC and 89/336/EEC
EHS, Manchester, M17 1RN
ONE (1) YEAR LIMITED WARRANTY
Save This Warranty Information
EHS (International) Ltd. Guarantees this product free from defects in materials and
workmanship for a period of one (1) year.
Should this unit be operated under conditions other than those recommended, at
voltages other than the
voltage indicated on the unit, or any attempts made to service
or modify the unit, will render this WARRANTY VOID. The product you buy may
sometimes differ slightly from illustration.
This warranty is in addition to, and does not
affect, your statutory rights.
Should you have a problem with this product, please call our Help Desk on:
[phone]
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
