• Read Instructions fully before commencing installation.
• Clean Tonneau Cover with a mild detergent and water solution
• Do not use abrasive cleaners or solvents
• Refer to manufactures instructions applicable to power drill.
• Protect Tub floor against scratches during installation process.

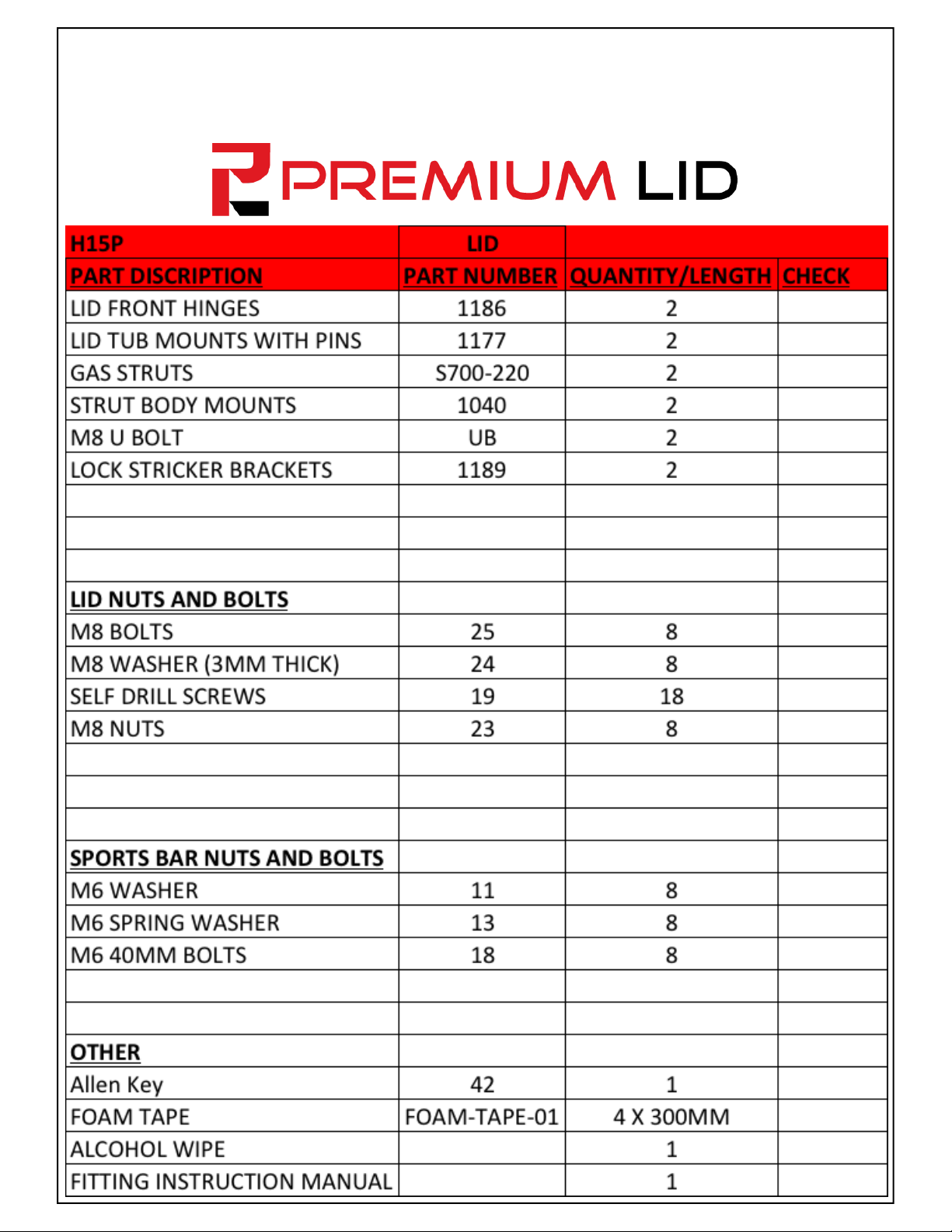

Check contents of kit before commencing fitment and report any discrepancies
Fitting Instructions Part Number H15
Toyota Hilux A-DECK Dual Cab 2015+
To suit Sports Bars
If lubrication of the locks or hinges is required use only Graphite Powder. DO NOT use any other
lubricants or oils.
• Do not stand/sit or rest heavy objects on Tonneau Cover
• Humans or animals are not to be under the closed Tonneau at any given time
• Securely lock tonneau Cover before operating vehicle
• Tonneau Cover is not dust or water tight
• Do not carry open volatile chemicals with Tonneau Cover installed
• If contact with volatile chemicals occur, clean Tonneau with mild detergent and water solution
Tools Required
Maintenance
Care Instructions
IMPORTANT

Page 3 of 14
H15P

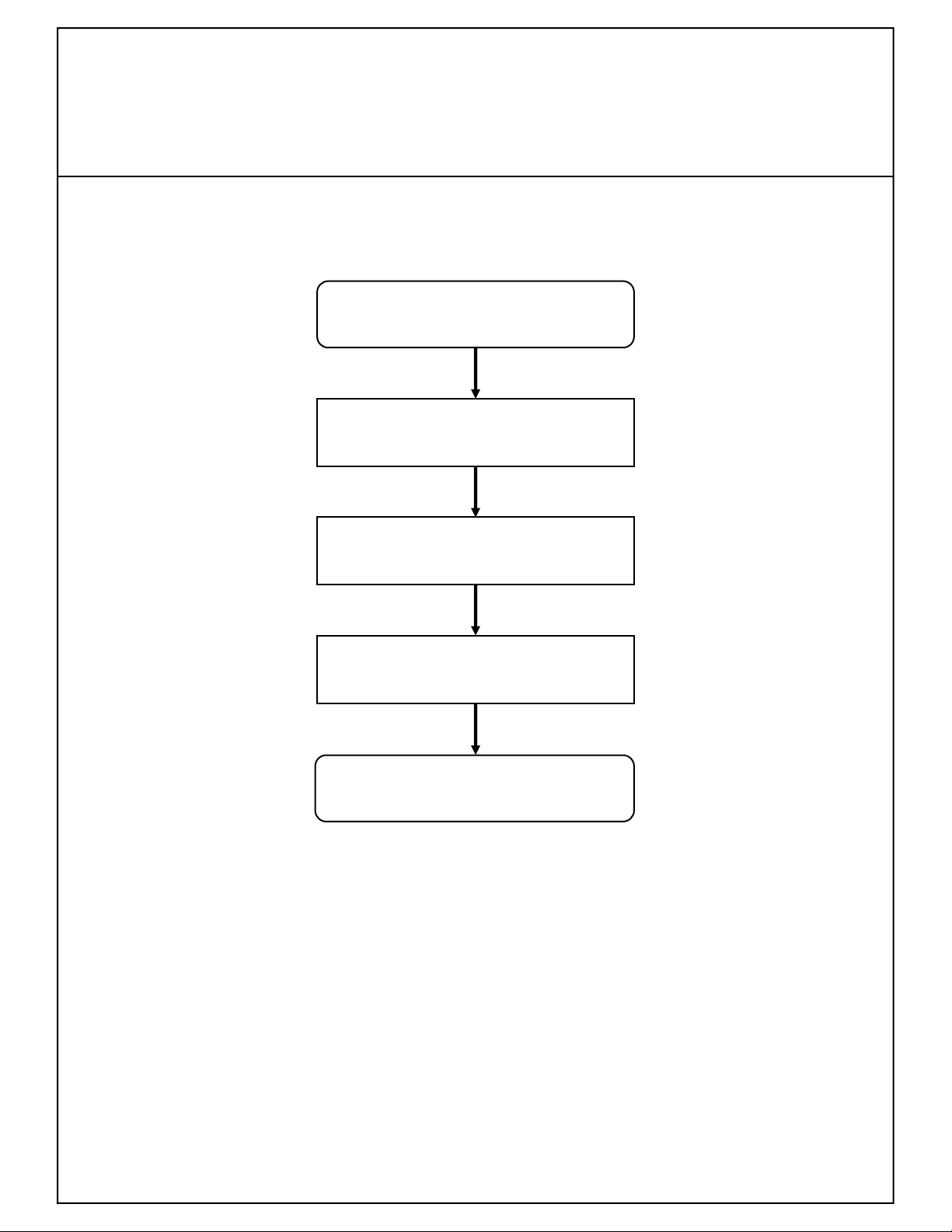

Installation Steps Flow Chart
START
SPORTS BAR REMOVAL
TUB PREP FOR LID INSTALL
LID INSTALL AND ADJUSTMENT
FINISH

Page 4 of 14
H15P
Thoroughly clean installation areas.
Important:
Instructions are for Utes with an UNDER-RAIL tubliner. If you have an OVER-RAIL tubliner you must trim the
top off.
Find centre and
mark position.
Note: Two people are required to complete the installation.
Pull the Stop Lamp wiring Loom from the hole in the front left hand corner of the vehicle tub, where the front left hand
side foot is located and disconnect the Connector. Remove the Sports Bar and retain all the hardware.

Page 5 of 14
H15P

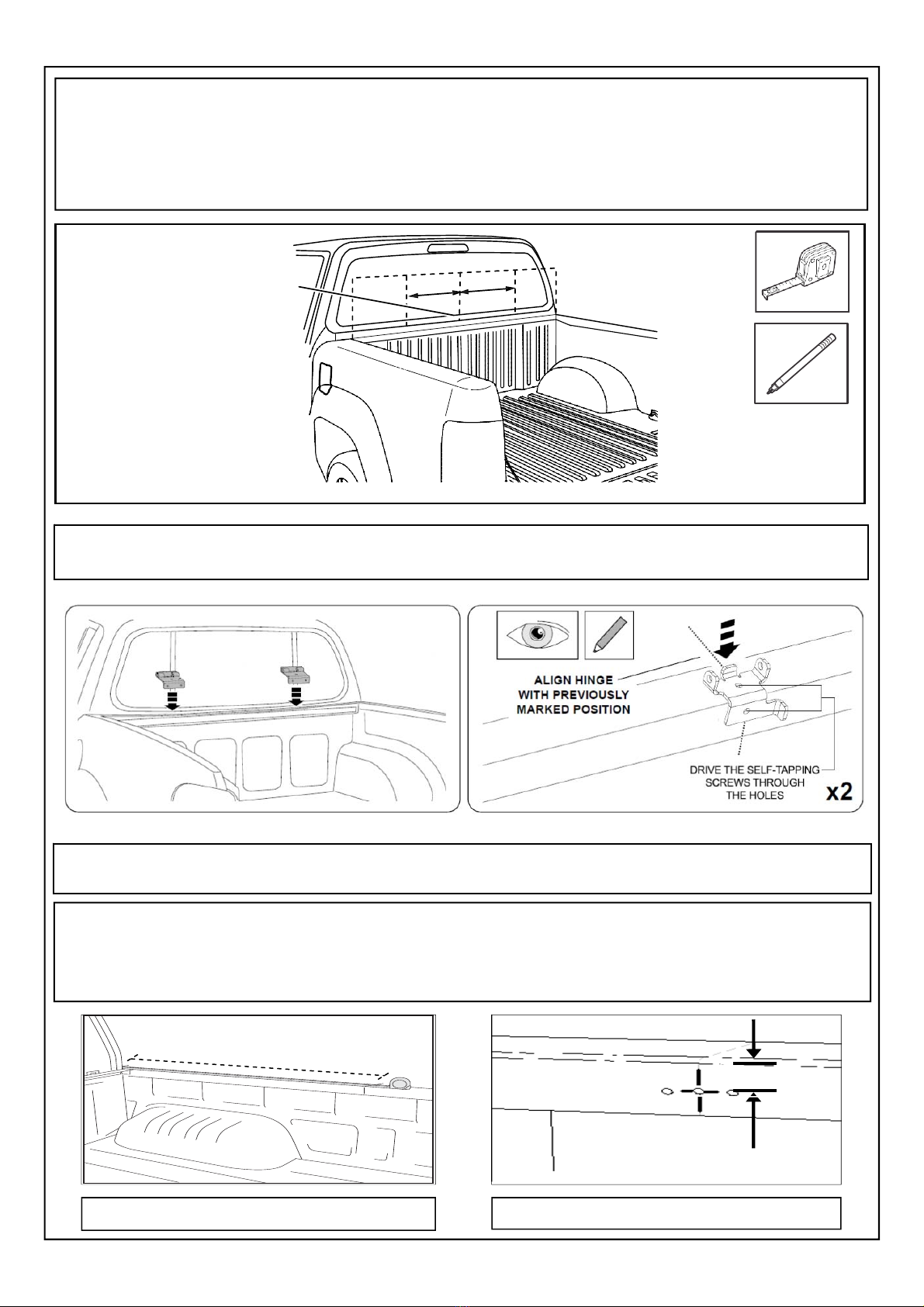

Hinge mounts:
Align the hinge mounts along front of tray, ensuring the hinges are properly positioned from centre of tub 460 mm
to centre of hinge mount either side along the inside of the front of tub. Attach the hinges using self-drilling screws
(supplied) through holes pre-drilled into the hinges. Apply clear or black silicone to any gaps and between the hing-
es and the vehicle to prevent water entry.
Measure and mark the positions as indicated above from the centre of the bed for placement of the bottom hinges.
WARNING: RECHECK DIMENSIONS TO ENSURE CORRECT MEASURENT
Drive the self-tapping screws through the holes in the top and the base of the hinge plate into the tub. Tighten to
3Nm.
Gas Struts:
Measure from the front rail inside of tub, measure along top edge of tray 920 mm (windscreen end)
then down 20mm and mark the screws position for the gas strut bracket. Position the gas strut bracket
accordingly, mark two mounting holes and centre. Refer to Fig. 1 and Fig. 2
920 mm
Fig.1 - Gas strut bracket location
20 mm
Fig.2 - Gas strut bracket location
Measure distance
from centre on both
sides and mark.
460 mm 460 mm

Page 6 of 14
H15P
Using a 2 mm diameter drill bit set to 5 mm drill stop. Drill two pilot holes. Attach small gas strut bracket using self
drilling screws provided. Repeat process on other side of tray. Refer to Fig. 2 and Fig.3
Fig.3 - Gas strut bracket fitment
Attach small shaft end of gas strut onto gas strut brackets, by clicking them in place.
Refer to Fig.4 with regard to gas strut orientation.
Fig.4 - Gas strut orientation

Page 7 of 14
H15P

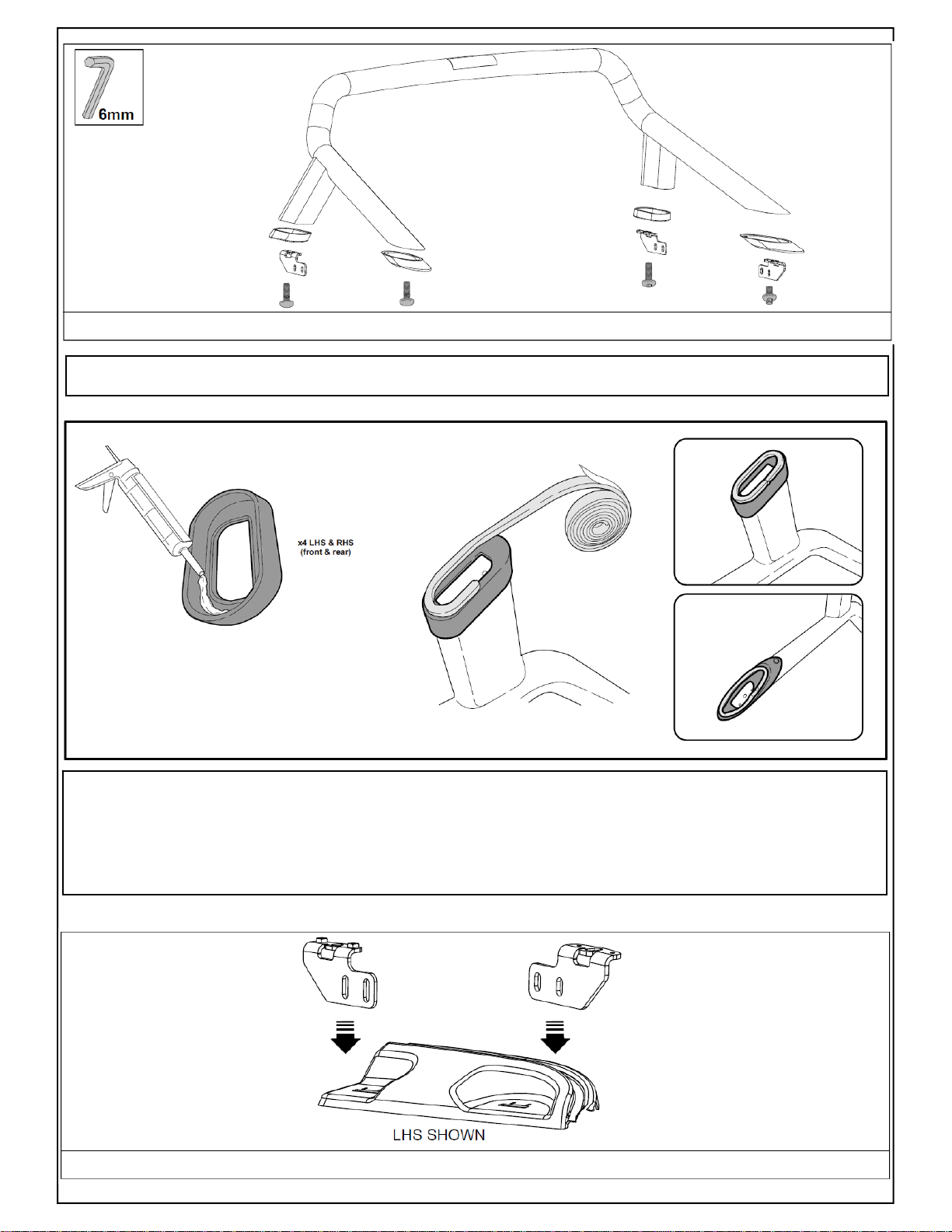

Remove the front and rear brackets and foot cups from the sports bars. Retain all the hardware.
Ensure the inside of the foot caps is clean. Apply a 6mm bead of not acetic silicon (not supplied) around the inside
surface of the foot cups.
Remove tape liner from foam gasket and apply to base of foot cups as shown and cut to size from gasket tape roll.
Ensure LH and RH gaskets match up with the foot cup cut-out. Re-attach foot cups to the sports bar feet to ensure
silicon seals foot cups. Ensure silicon does not protrude above the foot cups. Repeat for all 4 legs.
Fit the Sports Bar brackets into the infill panels as shown.

Page 8 of 14
H15P
Flip the sports bar over and place on a piece of cardboard to avoid damage. Fit the infill panel to the sports bar, se-
cure the sports bar foot brackets loosely using previously removed hardware. LHS shown above, repeat for RHS
Secure the LHS infill panel against the sports bar feet, using the supplied bolts and large M6 washers. Do not tighten
fully in order to allow infill panel alignment on the tub. NOTE: Washers are used per bolt. Repeat for RHS infill panel.
Two people are required for this step. Carefully position the sports bar assembly on the vehicle. Re-attach legs of
sports bar with previously removed hardware. Ensure that the sports bar and infill panels are sitting down firmly on the
top of the tub bed rails. Pull down on the sports bar to compress the foam seal on the foot cups and tighten all sports
bar attachment bolts to torque setting 20Nm into the tub. Torque sports bar foot bracket vertical bolts to 40Nm, then
tighten sports bar to infill panel shoulder bolts to 6Nm. Repeat for the other side of the vehicle.

Page 9 of 14
H15P
Attach lid hinges to tub hinges
by aligning and pushing pin
through.
Click pin down into hinge
locking tab
Important:
Ensure tongues are fully inserted into the hinge slots with hinge pin securely in place.
Fit the lid and adjust so it is even on
both sides and forward as far as
possible while staying level.
Note: When gas struts are fitted, lid
will be pulled back slightly.
When lid is aligned correctly,
secure the catch hinge to the
lid using 4 M8 Thick
Washers and M8 Bolts

Page 10 of 14
H15P

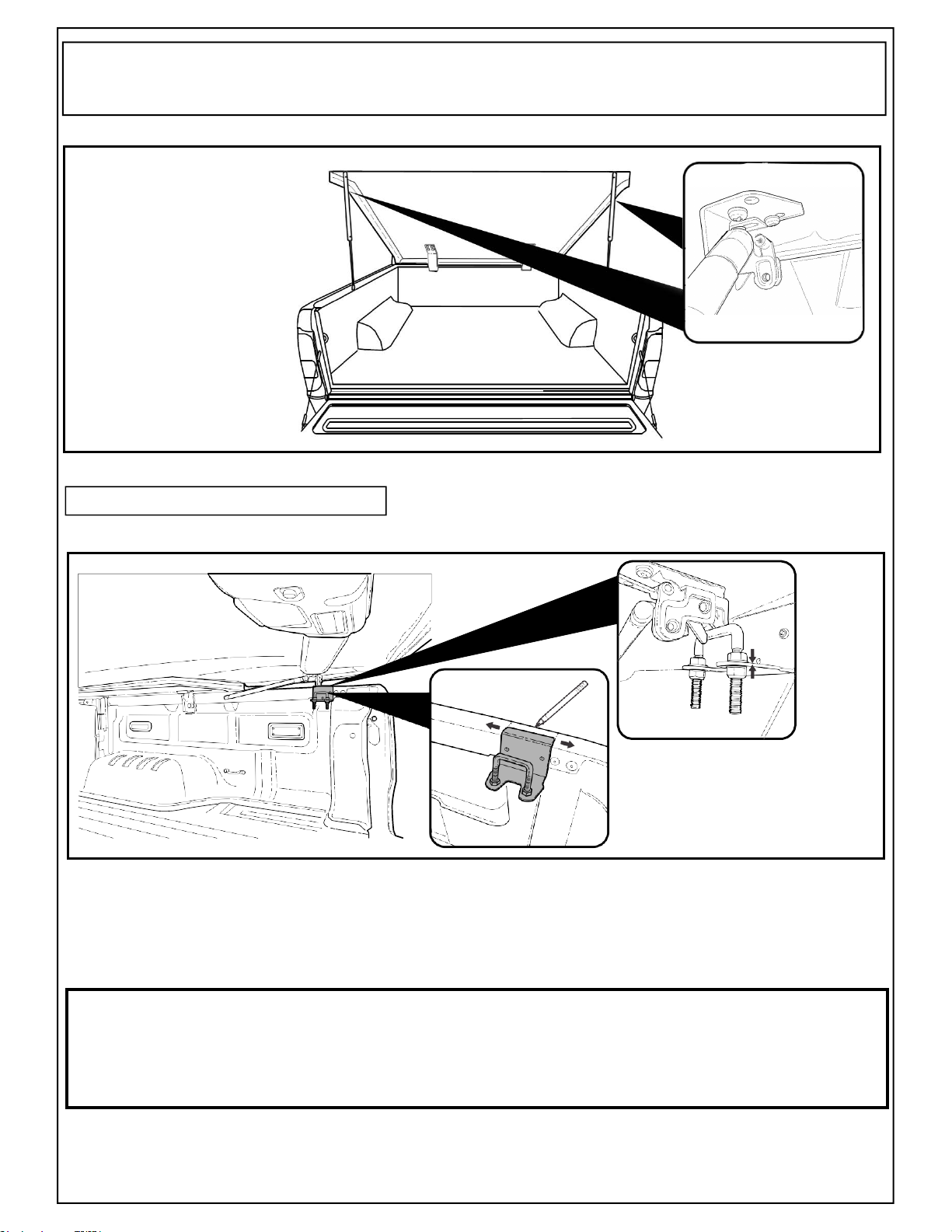

Fig. 9 - Attach gas strut
With the Hard Tonneau Cover opened, attach the cylinder end of each gas strut onto the mounting brackets
attached to the Hard Tonneau Cover by clicking into place
Refer to Fig. 9
Attach the gas struts between
the lid and the mounting brackets.
Important:
If you have purchased a Central Locking Ute Lid please ignore the next page concerning Lock Bracket
Installation and Lock Bracket adjustment.
Lower lid to close position.

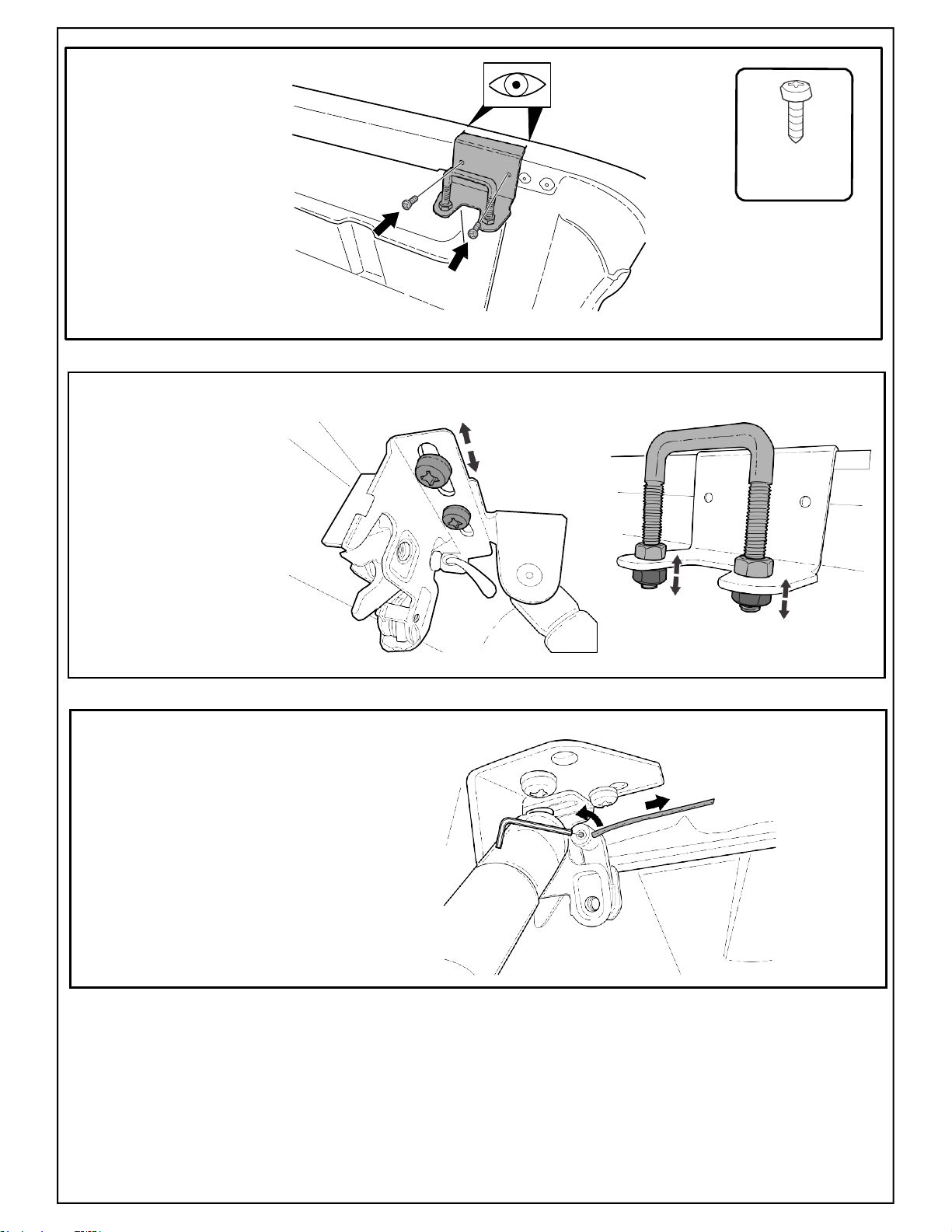

Align catch on lid with centre
of latch bar and mark position
of latch on bracket. Repeat
for the opposite side.

Page 11 of 14
H15P
Loosen 2 screws and slide
catch to align correctly with
latch bar. Tighten screws to
secure in place.
Adjust nuts on latch bar to
alter height of bar to suit.
Repeat for the opposite
side.
Fasten latch bracket
in place with self-tapping
screws.
Repeat for the opposite
side. Self Tapping
Screws
Use an Allen key to loosen the hex key
screw on the catch and tension cable
so it is tight but doesn’t move the catch
at all, then re-tighten the hex key screw.

Page 12 of 14
X40

Page 13 of 14
H15P
FIGURE 1

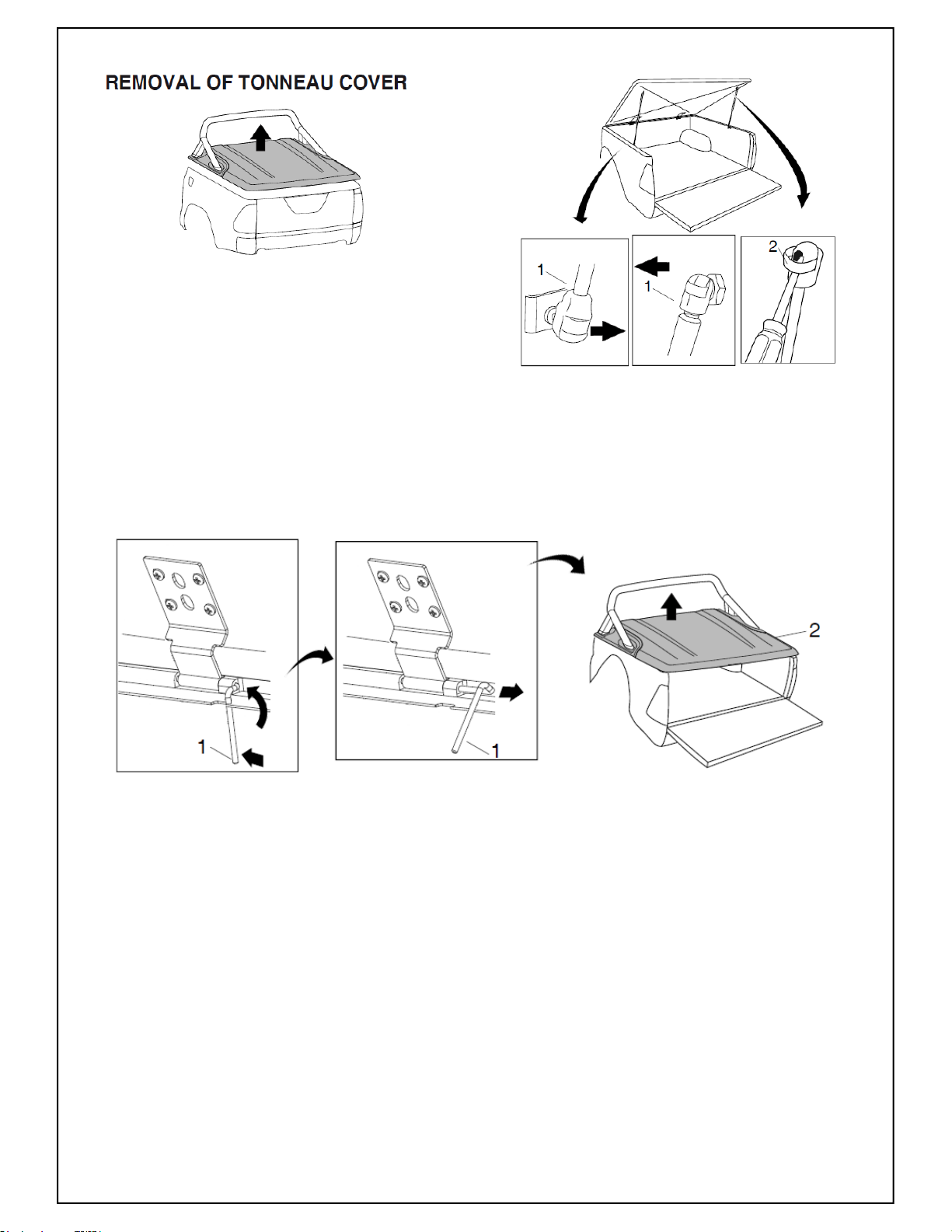

1. Open tonneau cover. Disconnect harness at front
Header bar. Detach gas strut (1) by inserting a small
screwdriver and adjusting the spring clip (2) on the
gas strut(1). Refer to figure 2.
NOTE: Do not remove the spring clip, only a small
amount of levering is required to detach. FIGURE 2
NOTE: 2 people are required to lift and re-
move the tonneau cover from the vehicle.
2. Remove hinge pins (1) and remove tonneau cover (2).
Refer to figure 3.

Page 14 of 14
H15P

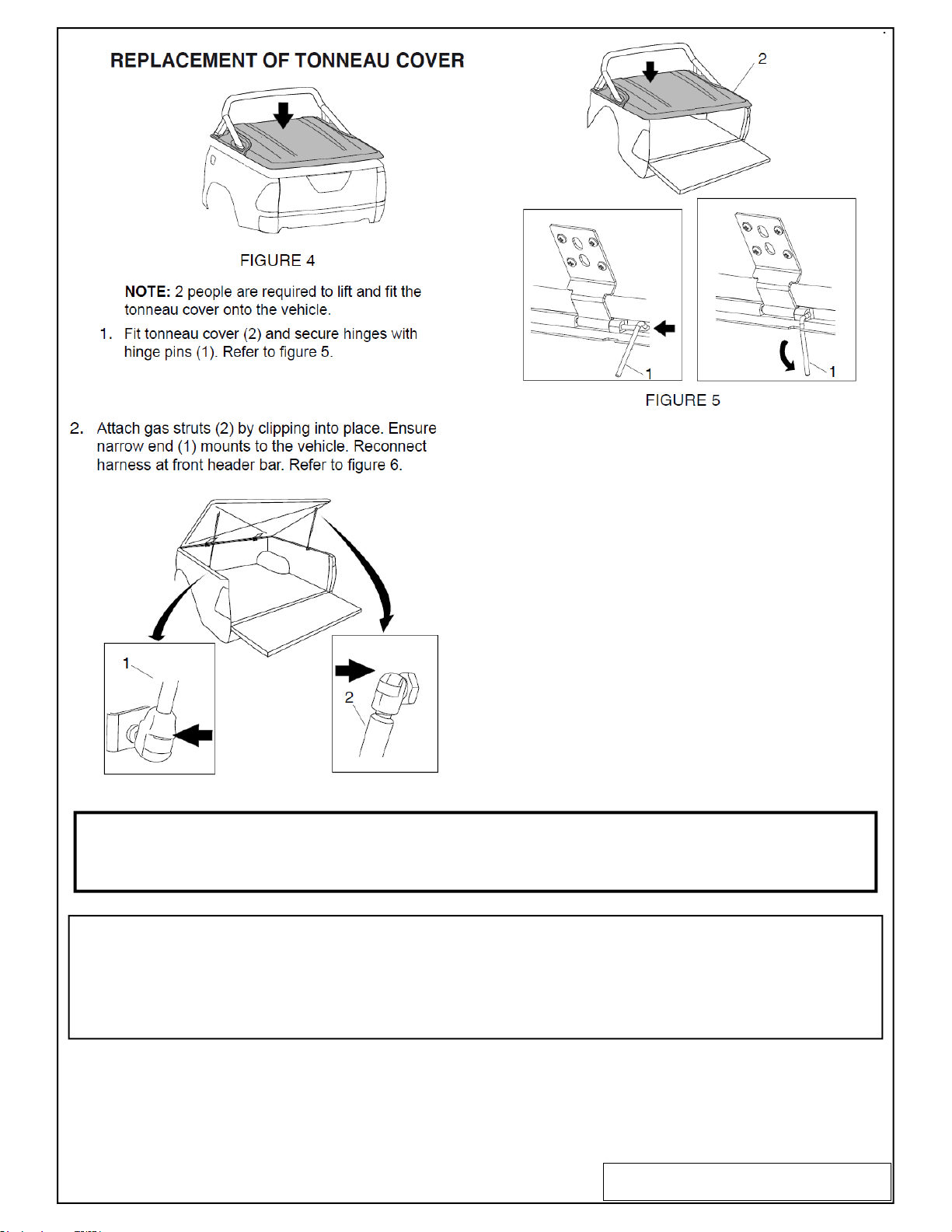

NOTE: Please ensure Lid is kept lock at all times when not being used, for both Safety and Longevity.
Paint care instructions:
Your new painted Hard Tonneau Cover has been covered with a plastic film to protect the paint from damage. It will
require cleaning and possibly light polishing after the protective film has been removed. Use polish as per new paint
on a new vehicle. Wash Hard Tonneau Cover using water and normal carwash detergent and polish with an automo-
tive polish.
Having trouble? Call your Supplier.
