Havis DS-TAB-300 Series User manual

Owner’s Manual
Havis IP Rated Docking Station & Tablet Cases
For Dell Latitude 7030/7230 Rugged Extreme Tablet
DS-TAB-300 Series
DS-TAB-301
DS-TAB-302
DS-TAB-300^TA-100-SERIES_OMN_11-23
Havis, Inc.
75 Jacksonville Road
Warminster, PA 18974
TA-100 Series
TA-101
TA-102 (Not Shown)

Before Beginning
Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the
DS-TAB-300 Series Docking Stations and TA-100 Series Tablet Accessories.
For questions regarding the set-up of your DS-TAB-300 Series Docking Station or TA-100 Series Tablet Accessories,
please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.
Tablet TA-100 Tablet
Accessory
DS-TAB-301 Docking Station
(External Power)
DS-TAB-302 Docking Station
(Internal Power)
Dell Latitude 7230 Rugged Extreme
Tablet TA-101 PKG-DELL-1001 PKG-DELL-1002
Dell Latitude 7030 Rugged Extreme
Tablet TA-102 PKG-DELL-1201 PKG-DELL-1202
Product Compatibility
•NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.
•DO NOT USE THE COMPUTER WHILE DRIVING.
•NE JAMAIS PLACER OU MONTER LA STATION D'ACCUEIL DIRECTEMENT DANS LA ZONE DE DÉPLOIEMENT DES COUSSINS GONFLABLES
D'UN VÉHICULE.
•NE PAS UTILISER L'ORDINATEUR EN CONDUISANT.
•READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
•DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE, STEAM, DUST, ETC. ARE PRESENT
•DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certified, automotive grade, Dell/Havis approved power
supply with a 19.5 V power output, such as the LPS-185, or an appropriate isolated power supply such as the LPS-186 or LPS-187. Failure to
comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.
•LISEZ ATTENTIVEMENT TOUTES LES INSTRUCTIONS AVANT DE PROCÉDER À L'INSTALLATION.
•NE PAS ENTREPOSER, INSTALLER OU UTILISER LA STATION D'ACCUEIL DANS UN ENDROIT OÙ L'EAU, L'HUMIDITE, LA VAPEUR, LA POUSSIERE,
ETC. SONT PRÉSENTS.
•NE PAS CONNECTER DIRECTEMENT A LA SOURCE DE TENSION DU VEHICULE : Ce produit requiert un source de courant certifié, de qualité
automobile et approuvé par Dell/Havis, pour une puissance de sortie de 19.5 V, comme le LPS-185, ou une alimentation isolée appropriée
comme le LPS-186 ou le LPS-187. Le non-respect de ces exigences entraînera des dommages au produit qui ne seront PAS réparables et ne
seront PAS couverts par la garantie.
•DO NOT CONNECT THE TABLET TO MULTIPLE POWER SUPPLIES. PRIOR TO DOCKING THE TABLET INTO THE DOCKING STATION, ENSURE
THAT THERE IS NO POWER CABLE ATTACHED TO THE TABLET.

DS-TAB-300 Series
(TA-100 Series Specifications vary by model)
Specifications
Precautions
•If a malfunction occurs, immediately unplug the Power Supply and remove the tablet
•Use only the specified Power Cable with this Docking Station
•Do not connect cables into ports other than what they are specified for
•Do not leave the Docking Station in a high temperature environment (greater than 85°C, 185°F) for
a long period of time
•Do not dock Tablet Case if Docking Connector Pins are bent or damaged
EC DECLARATION OF CONFORMITY in accordance with EN 50498
Manufacturers Name: Havis, Inc.
Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA
Declares under our sole responsibility that the product:
Product name: Havis Docking Station For X Tablets, where ‘X’ denotes tablets listed in product compatibility matrix.
Model: DS-TAB-30X, where ‘X’ may be any alphanumeric character and which describes product options.
May be followed by any alphanumeric characters which describe product options.
Product Options: This declaration covers all options of the above product which bear the CE Marking.
Is in conformity with the following standards or other normative documents:
Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) -
2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles
Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
Supplementary Information:
The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8, and 6.9. This product requires the
use of a recommended e-Marked automotive power supply when used within vehicles.
Warminster, PA, USA September 20, 2018 Bruce Jonik, Director of Engineering , Havis, Inc.
FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-TAB-10X not expressly
approved by Havis, Inc. could void the user's authority to operate this equipment.
Docking
Station
Information
Configuration Description Power Options Dock Voltage
Requirement
DS-TAB-301 Standard Electronics External Power Supply 19.5 VDC IN NOM
DS-TAB-302 Standard Electronics with Internal Power
Supply DS-DA-339 Power Cable 12 VDC IN NOM
(9-36 VDC-in)
Dimensions 9.58” (24.3 cm) H x 8.43” (21.41 cm) W x 2.34” (5.94 cm) D
Weight 1.83 lbs. (0.83 kg)
Operating
Environment -30° C to 55° C (-22° F to 131° F)
Storage
Environment -40° C to 85° C (-40° F to 185° F)
Ingress Rating IP65

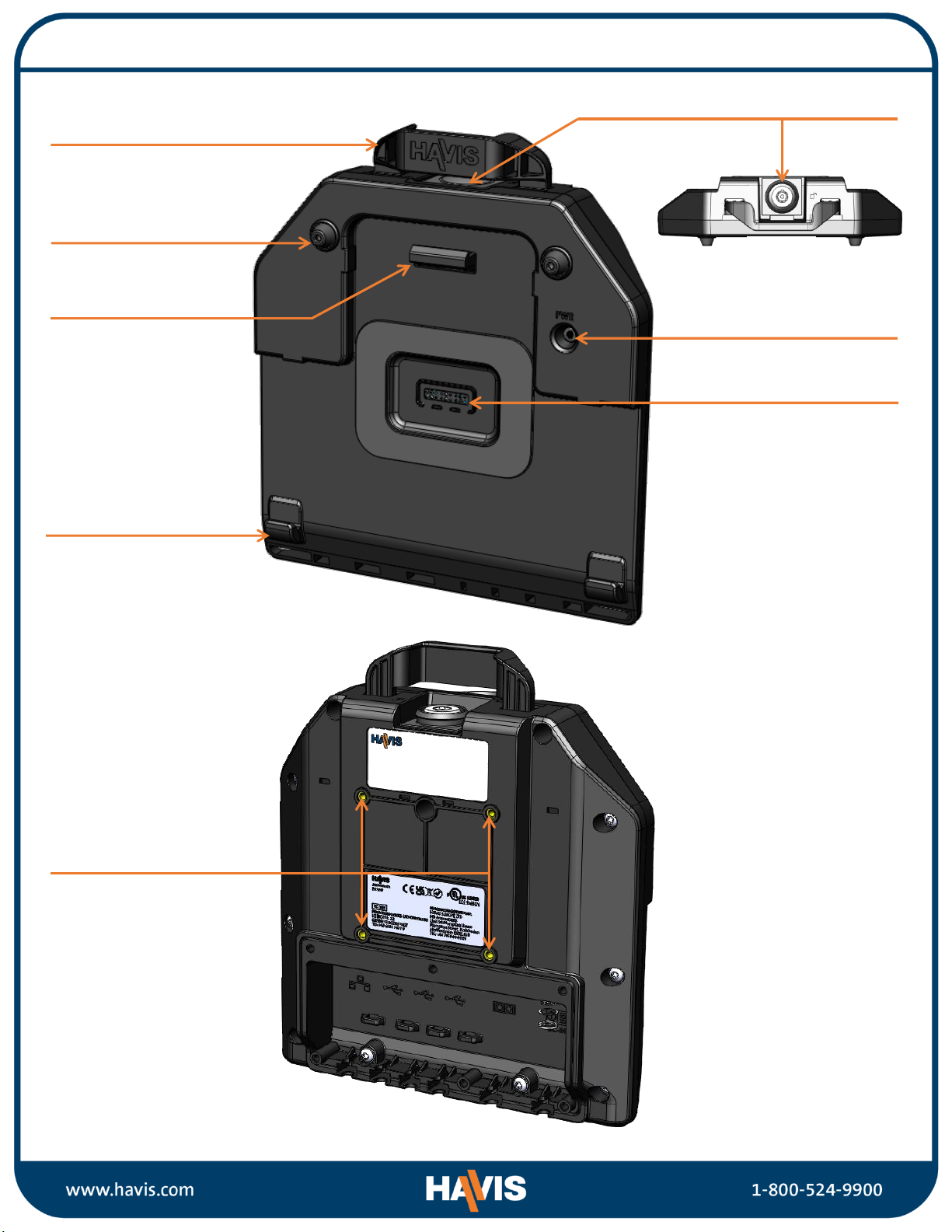

Parts Included (DS-TAB-300 Series)
Docking Station
Front Hooks
Release Handle
Barrel Lock & Lock Cover
Bumpers
Docking Connector
LED Power Indicator
Latch Hook
Mounting Holes (x4)
(VESA 75mm Hole Pattern)

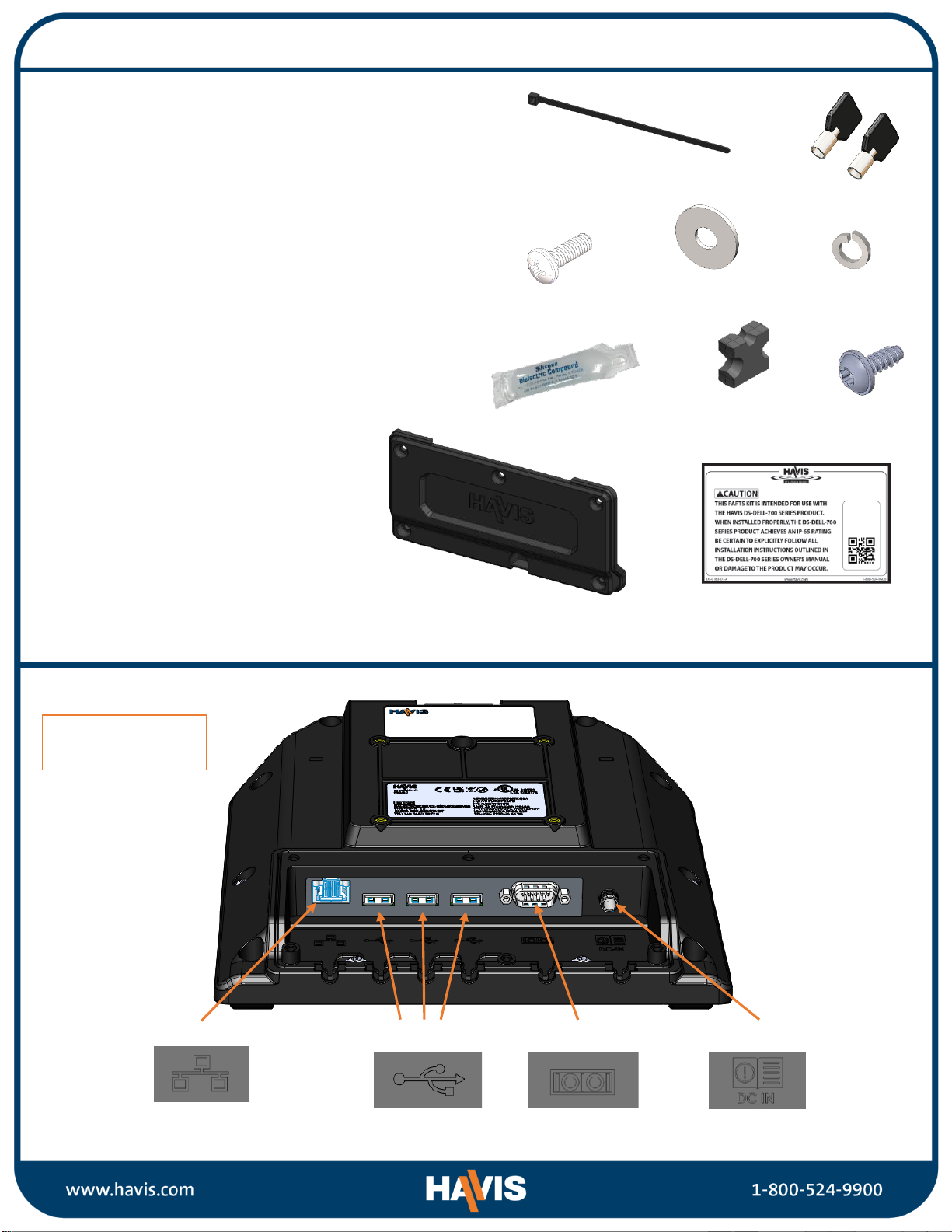

Parts Included (DS-TAB-300 Series) (continued)
Hardware Kit (30-012847)
This Hardware Kit includes:
1. Zip Ties (x5)
2. Keys (x2)
3. M4 x 0.7 x 12mm Long Screws (x5)
4. Flat Washers, M4 (x5)
5. Lock Washers, M4 (x5)
6. Grease Pack (x1)
7. Sealing Element (x12)
8. M4 Thread Forming Screw (x7)
9. IP65 Cable Cover
10. Caution Card
Tools required for installation:
• #2 Phillips
• T20 Torx
jk
m
l
Port Replication Capability (DS-TAB-300 Series)
Downward Facing Ports
USB 2.0 (x3) Power Input
n
DS-TAB-301: External Power
DS-TAB-302: Internal Power
Ethernet RJ45 *Serial





•PXE feature is not supported.
•Wake-On-LAN (WOL) feature is not supported from S4/S5 states.

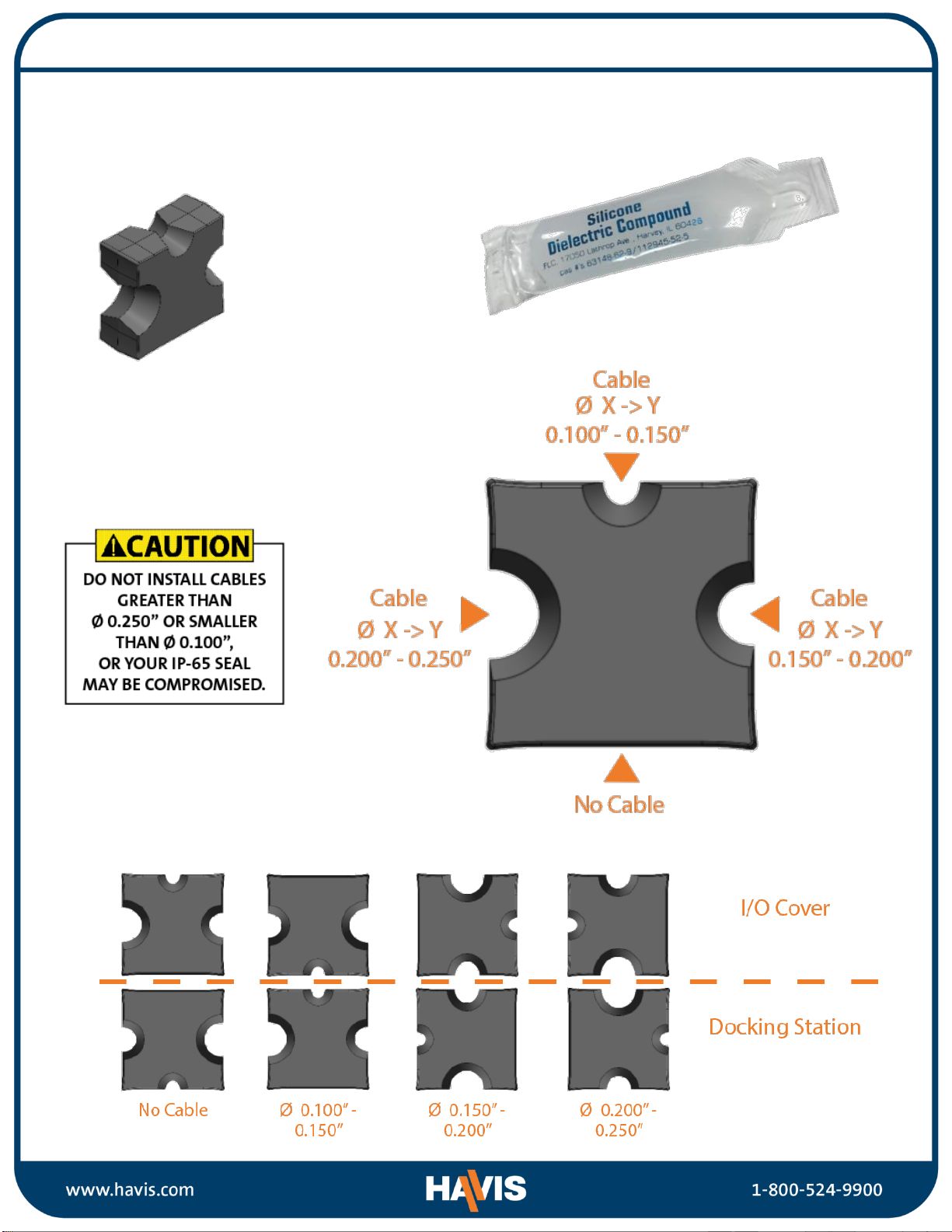

IP-65 Cable Installation
Grease Pack
Sealing Element
(12 required for installation)

IP-65 Cable Installation
1) Identify the number of peripherals to be connected and measure respective cable diameters.
2) Using Sealing Element sizing from Page 6, choose appropriate orientation and apply a small amount
of provided Silicone Grease to the opposite side perimeter of the Sealing Element and insert into
corresponding housing receptacle on the Docking Station, greased end first. Repeat for all Cable
Channels. Sealing Elements are shown in blue for clarity.
NOTE: If no cable present, insert Sealing Elements as indicated on Page 6.
3) Plug peripherals into Docking Station’s available ports.
4) Position cables in the closest Cable Channel being careful not to cross cables and route as straight as
possible.
Apply Silicone
Grease all around

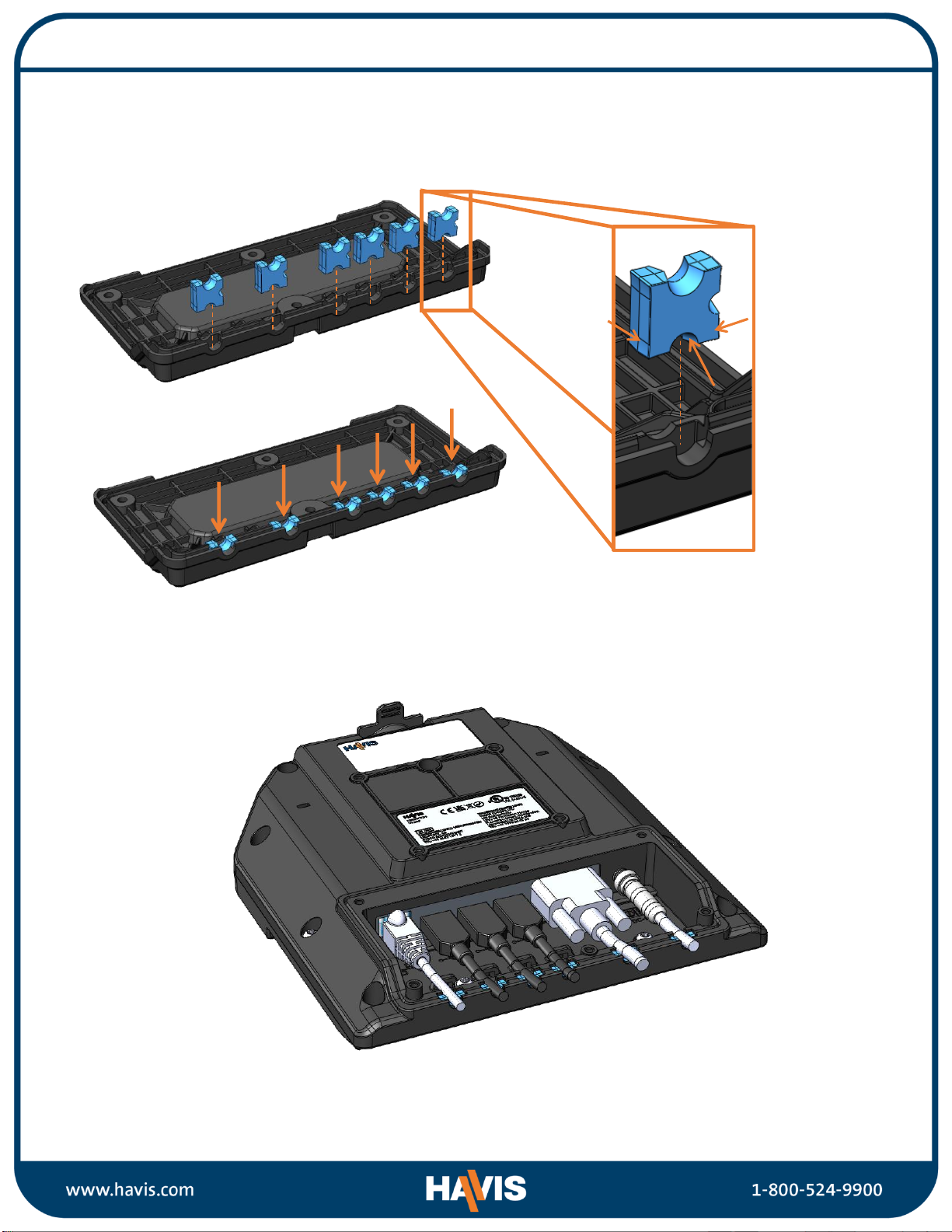

IP-65 Cable Installation
1) Using the same Sealing Element orientation, insert a second Sealing Element into the I/O Cover at the
same Cable Channel position. Repeat for all Cable Channels.
2) Before installing I/O Cover to Docking Station, ensure all Sealing Elements are fully seated and cables
are aligned with Sealing Elements as shown.
Apply Silicone
Grease all around

1) Secure I/O Cover to Docking Station, being careful not to pinch cables. Use a T20 Torx bit (Not
Included) and Thread Forming Screws. Torque to 8 –10 in-lbs (0.9 –1.1 Nm).
Note: In order for the solution to meet its IP-65 rating, IP-65 Cable Sealing Installation (see pages 6 - 8)
must be completed prior to securing the I/O Cover to the Docking Station.
2) Create a service loop with cables to ensure that no tension is on the connectors and to enable
intended motion.
3) Tie off cables onto a stationary part of the mounting system or vehicle.
Cable Management (DS-TAB-300 Series)
Collect cables to secure to the
mounting system or vehicle.
(Note: mounting system not included)
Thread Forming Screw
Zip Tie

There are two different power supply options for the DS-TAB-300 Series Docking Station. Below are diagrams
showing the power input set up for each specific configuration of the dock.
Power Input Configuration
Internal Power Supply Configurations
DS-TAB-302
External Power Supply Configurations
DS-TAB-301
*** For clarity, all input/output power cables are shown shorter than their actual lengths
Power input cable
fastens directly to the
docking station
This end plugs into
vehicle power source
LPS-185 Power Supply
shown. See sheet 15 for
additional power options
DS-DA-339 power cable
fastens directly to the
docking station
This end plugs into
vehicle power source
DO NOT CONNECT ANY ADDITIONAL POWER SUPPLY
TO THE TABLET WHEN IT IS DOCKED. MULTIPLE POWER
SUPPLIES WILL CAUSE DAMAGE TO THE TABLET

1) Align Docking Station mounting holes with the hole pattern on mounting device. Using the
four (4) M4 0.7 x 12mm Pan Head Screws (Hardware Kit Item 3), four (4) Washers, M4
(Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the
Docking Station to device. Torque screws to 15 in-lbs (1.7Nm) ±10%
A) Havis Desktop Stand installation (sold separately, Part # DS-DA-218).
Installation (DS-TAB-300 Series)
Forklift Mounting Device
(Part ID: C-MH-1001 shown, not included)
Washer, M4
M4 x 0.7 x 12mm
Pan Head Screws
Lock Washer, M4
Desktop Stand
(not included)
B) In-Vehicle mounting system installation (not included).
Washer, M4
M4 x 0.7 x 12mm
Pan Head Screws
Lock Washer, M4

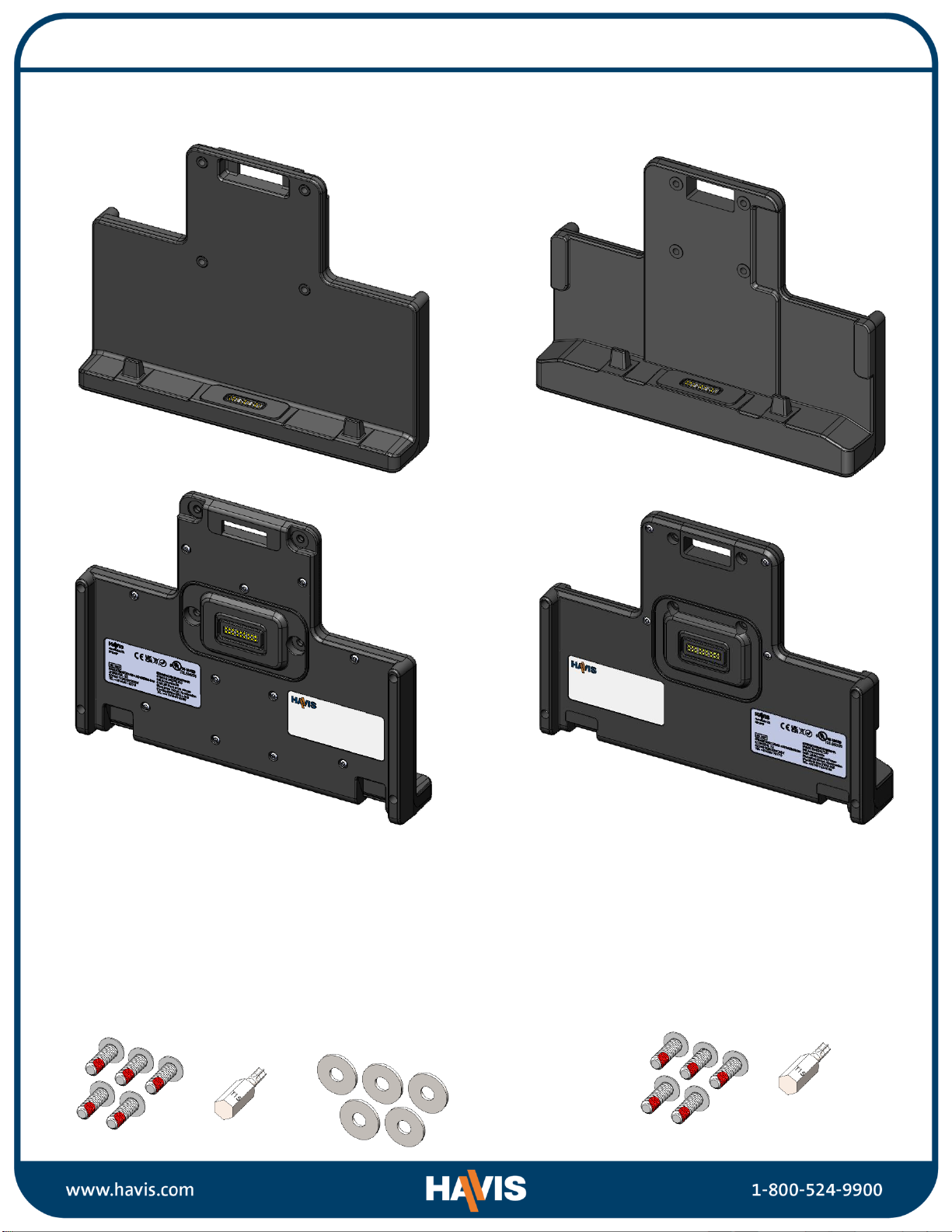

Parts Included (TA-100 Series)
TA-101
Hardware Kit (30-013102)
1. M4 , 12mm Long Tamper Resistant
Machine Screw (x5)
2. T15 Pin-In-Torx Drive (x1)
3. M4 Washer (x5)
jkl
TA-102
Hardware Kit (30-013758)
1. M4 , 12mm Long Tamper Resistant
Machine Screw (x5)
2. T15 Pin-In-Torx Drive (x1)
jk

Parts Included (TA-100 Series)
Tablet Accessory (TA-101 Shown)
Tablet Locator Posts
Tablet Docking Connector
Mounting
Hole Pattern
Latch Plate
Floating
Docking Connector
DS-TAB-300 Hook Locators

Tablet Accessory Installation (TA-100 Series)
⚠CAUTION
DO NOT FORCE TABLET ONTO TABLET ACCESSORY. IF THERE IS RESISTANCE, MAKE SURE THE
TABLET’S ALIGNMENT SOCKETS ALIGNS WITH THE TABLET ACCESSORY’S ALIGNMENT POSTS.
1. Hold the tablet in landscape orientation with the bottom angled towards the docking
station. Lower the tablet into the docking station.
Docking station
alignment sockets Tablet alignment
sockets

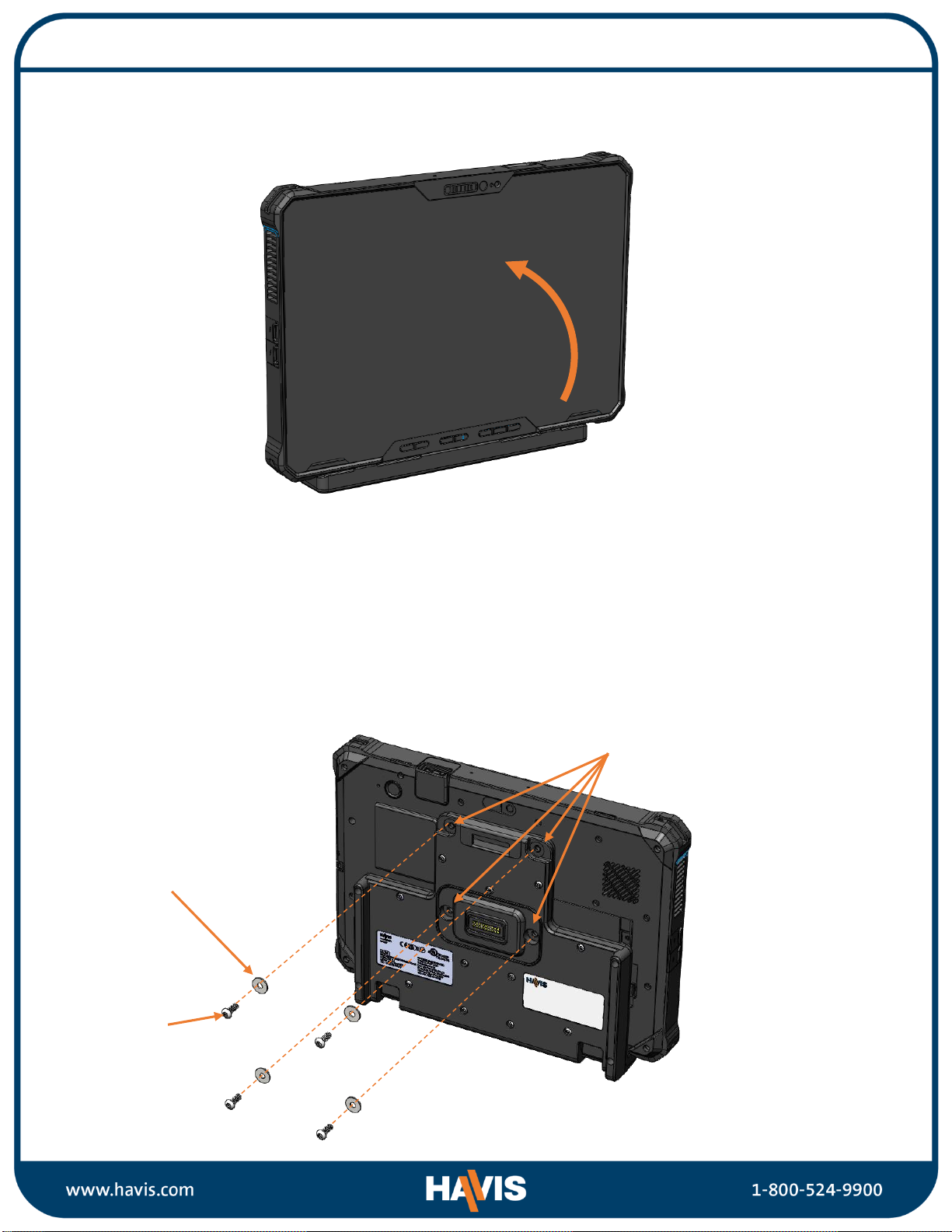

Tablet Accessory Installation (TA-100 Series)
2. Pivot the top of the tablet into the docking station.
3. While lightly applying downward pressure to the tablet, attach the tablet using:
• (x4) M4 x 12mm security Torx screws (Hardware Kit Item #1)
• (x1) T15 security Torx bit (Hardware Kit Item #2)
• (x4) Flat Washers (Hardware Kit Item #3) Included in TA-101 ONLY*
Torque screws to 12 –15 in-lbs (1.4 –1.7 Nm).
M4 x 12mm
security Torx
screw
Flat washer
(TA-101 only)
Tablet attachment points

Operation - Docking
1) Ensure the Docking Station is unlocked.
2) Hold Tablet Accessory with bottom angled toward Docking Station. Lower Tablet Accessory
onto the Docking Station so the Alignment Pockets on the Tablet Accessory align with the
Front Hooks on the Docking Station.
DO NOT FORCE TABLET ACCESSORY ONTO DOCKING STATION. IF THERE IS
RESISTANCE, CHECK ALIGNMENT OF ACCESSORY ON DOCKING STATION.
NOTE: Ensure a proper connection by aligning the Tablet Case’s
Alignment Pockets with the Docking Station’s Front Hooks
Alignment Sockets on the bottom piece
of the TA-100 Series Tablet Accessory
Front Hooks engaging with
Tablet Accessory.
Front Hooks on the
DS-TAB-300 Series Docking Station

Operation –Docking (continued)
3) Pivot Tablet Accessory into the Docking Station until the Docking Station’s Latch Hook engages
with the Latch Hook Recess on the Tablet Accessory Case. A click will be heard when docked
correctly.
4) For theft deterrence, secure Tablet Accessory by locking Docking Station with supplied key
(Hardware Kit Item 2).
5) Lock Cover provides IP65 protection. To ensure ingress protection, close Lock Cover tab and
press down (see image below) to ensure tight seal.
Latch Hook engages with Tablet
Accessory Latch Plate

1) If previously locked, unlock Docking Station using the supplied key.
2) While holding Tablet Accessory with one hand, Pull the Release Handle on the top of Docking
Station.
3) While pulling the Release Handle grab the Tablet Accessory, rock the top forward and carefully
lift out of Docking Station, top end first.
Operation - Undocking

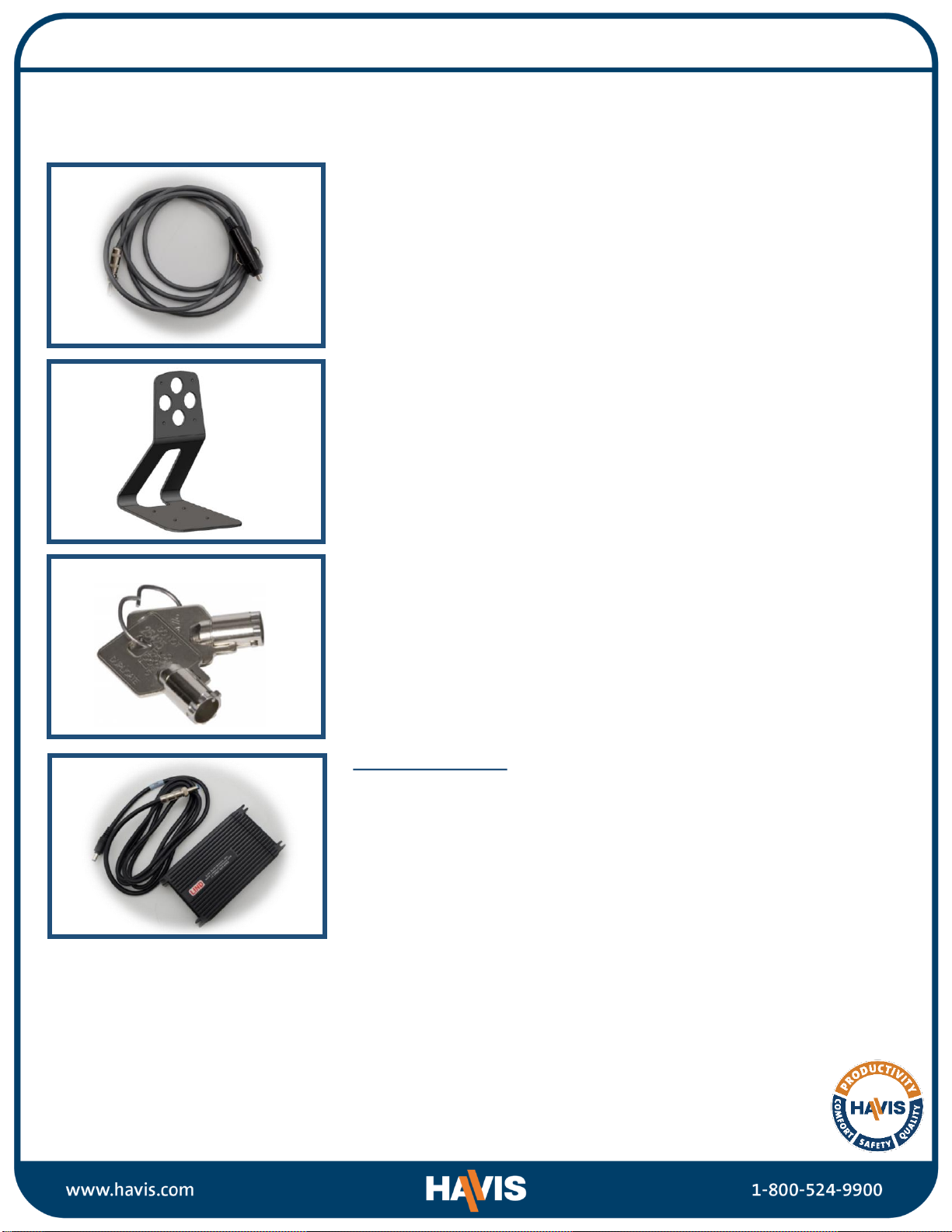

Related Products
Havis offers a wide variety of accessory products specifically for use with your Docking Station.
For more information or to order, please visit www.havis.com.
DS-DA-339
Power Cable
Power cable for DS-TAB-302
DS-DA-218
Desktop Stand
Durable stand for mounting the DS-TAB-300 Series Docking
Station on the production shop floor.
DS-DA-504
Replacement Keys
Set of (2) replacement keys for DS-TAB-300 Series Docking
Stations
Power Supplies (for DS-TAB-301)
LPS-185
Power Supply w/Cigarette Input Cable
LPS-186
Isolated Power Supply w/Hardwired Input Cable (12-32VDC)
LPS-187
Isolated Power Supply w/Hardwired Input Cable (20-60VDC)
LPS-181
AC Power Supply w/Hardwired Output Cable
LPS-188
Isolated Power Supply w/Hardwired Input Cable (70-110VDC)
