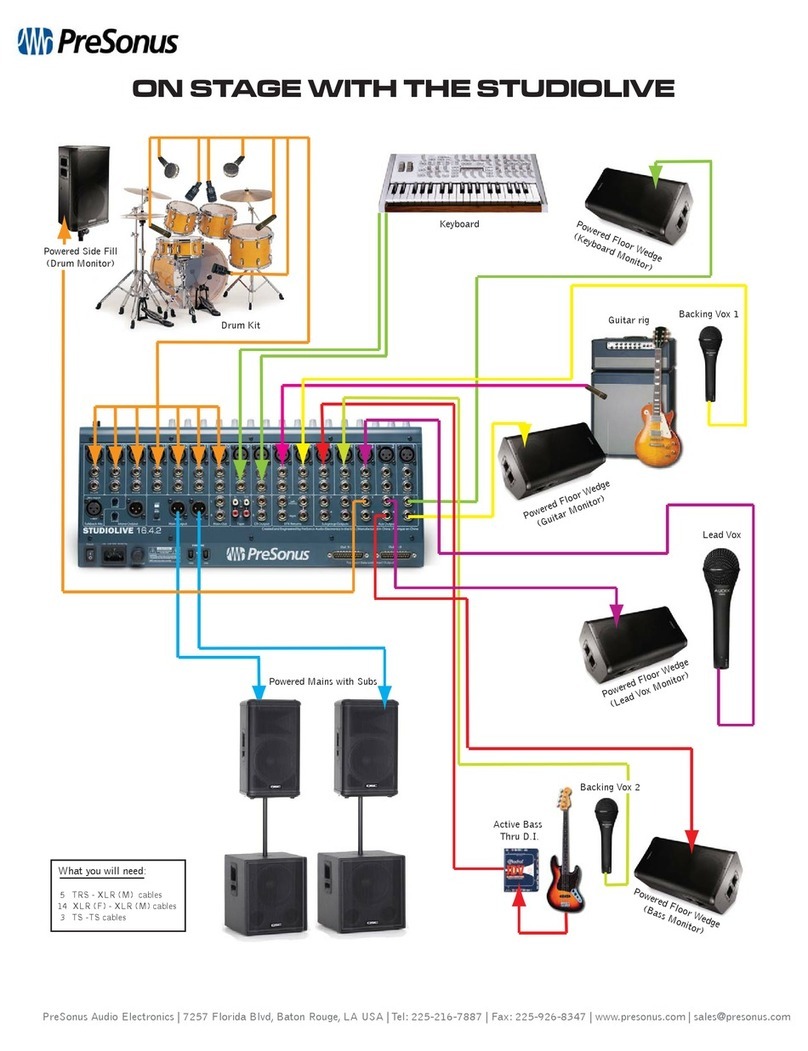

PRESONUS HP60 - DIAGRAM User manual

Drum Kit
Keyboard
Guitar rig
Lead Vox
Active Bass
Thru D.I.
Click Track
Pre-recorded backing vox
Sampled drum beats (L)
Sampled drum beats (R)
What you will need:
10 XLR (M) - XLR (F) cables
2 TS - TS cables
6 TRS - TRS cables
2 XLR (F) - TRS
5 Headphone Extension Cables
Rhythm Monitor Mix
Mix B
Rhythm Monitor Mix
Mix B
Keyboard Monitor Mix
Mix A
Rhythm Monitor Mix
Mix B
Headphone Extension Cable
Headphone Extension Cable
Headphone Extension Cable
Headphone Extension Cable
XLR (F) - XLR (M) x 7
XLR (F) - XLR (M)
XLR (F) - XLR (M)
XLR (F) - XLR (M)
TRS - TRS
XLR (F) - TRS x 2
TRS - TRS x 2 TRS - TRS x 2
TRS - TRS x 2
Headphone Extension Cable
2
16-7887
|
Fax: [phone]
|
www.presonus.com
|
[email protected]
m
IN THE STUDIO WITH THE STUDIOLIVE
This diagram features an HP60 receiving two different mixes
from Aux 1&2 and Aux 3&4 as well as a third monitor
mix being sent to an HP4. Channels 1-3 on the StudioLive
are switched to Firewire Playback so that a
Click Track, Prerecorded vocal track, and a
stereo track of sampled drum beats can be
included in each musician’s monitor mix.
While this diagram shows the control room
monitors connected to the Main Outputs, it
should be noted that this is only one way of
connecting them. You can also use a pair of
subgroup outputs or the Control Room
Monitor outputs. Each has benefits and
deficits. We suggest you experiment
with the best set-up for your personal
mix style.
