1
Overview
Studio 24c
1
1Overview 概述
1.1 Introduction 介绍
1.2 What is in the Box 都包括什么？
1.1 Introduction
Owner’s Manual
Thank you for purchasing a PreSonus® Studio 24c audio interface. PreSonus
Audio Electronics, Inc., has designed the Studio 24c utilizing high-grade
componentsto ensureoptimum performance that will last a lifetime. Loaded
with high-headroom, Class A microphone preamplifiers; robust metering, high-
definition 24-bit, 192 kHz conversion;and more,the Studio 24c breaksnew
boundariesformusicperformanceandproduction.Allyouneedisacomputer
with a USB-C or USB-A (2.0 or 3.0) connection, a few microphones and cables,
poweredspeakers, and your instruments, and you are ready to record!
Wesuggest that you use this manual to familiarize yourself with the
features, applications, and correct connection procedures for your
Studio 24c audio interface beforetrying to connect itto your computer.
This will help you avoid problems during installation and setup.
Throughout this manual you will find Power User Tips that
can quickly make youa Studio 24c interface expert.
感谢您购买PreSonus®Studio 24c音频接口。
PreSonus Audio Electronics, Inc.设计了Studio 24c，
使用高档的组件，以确保最佳的性能，将持续一生。
配备高净空，A级麦克风前置放大器;鲁棒计量，高清
晰度24位，192khz转换;此外，Studio 24c还打破了
了音乐表演和制作的新界限。您所需要的就是一台带
有USB-C 或USB-A(2.0或3.0)连接您的计算机，麦克
风和电缆，电源扬声器，以及乐器，这样您就可以开
始录制了!
我们建议您在尝试将Studio 24c音频接口连接到计算
机之前，先使用本手册熟悉其功能、应用程序和正确
的连接程序。这将帮助您避免安装和设置过程中的问
题。
在本手册中，您将发现超级用户提示，可以迅速使您
成为Studio 24c界面专家。
Your Studio 24c package contains 您的Studio 24c中包括:
• Studio 24c 24-bit, 192 kHz audio interface Studio 24c 24-bit, 192 kHz音频接口
• Quick StartGuide 快速入门
•
1M USB-C to C Cable 1M USB-C to C 电缆
Studio 2|4 24-Bit 192 k Hz Studio 2|4 USB - Int erfaz de USB-
C Audio Interface Audio USB-C a 24 Bits / 192 kHz
CongratulationsonchoosingPreSonus.Younowowna
Felicitacionespory graciaspor elegirPreSonus.Ahorausted
state-of-the-art,USB-Cinterfacef eaturingour renowned
musicenvironment. micrófono—y el entorno
creativomusicalque
proporcionaStudioOne
Artist.
Get ting St arte d
Co m e n z a n d o
Packa ge C on ten t s
• Studio2|4AudioInterface
Contenid odel pa q uet e
• USBA-Ccable •Studio2|4
Interfazdeaudio
• USB-C cable •CableUSBA-
C
• ThisHook-Up Guide
•CableUSB-C
• SafetyInstructions
•Estaguíadeconexiones
• Instrucciones
deseguridad
Down lo ad s
• Studio2|4
softwaredrivers for Windows
Desca rgas
• StudioOne
ArtistDAW andr esources(approximately2 GB) •Driversde
Studio2|4 para Windows
• Studio2|4Owner’sManualPDF
•DawStudioOneArtisty recursos(aproximadamente2 GB)
• Manualde
usuarioenformato PDFpara
suStudio2|4
Before operating your Studio
2|4,youmust regist ero nline AntesdeoperarsuStudio2|4,
forsoftwaredownloads,
primerodeberegistrarse
Owner’sManual, and onlineparadescargarel

1
Overview
Studio 24c
2
•
1MUSB-CtoACable 1M USB-C to A 电缆
•
PreSonus Health Safety and Compliance Guide
安全健康、合规指南
PowerUserTip: AllcompanionsoftwareanddriversforyourPreSonusStudio 24c
are available for download from your My PreSonus user account.
Please visit
http://my. presonus.com and register your Studio 24c to receive downloads and
licenses.
高级用户提示 :PreSonus Studio 24c的所有配套软件和驱动程序都可以从
My PreSonus用户帐户中下载。请访问 http://my.presonus.com并注册您
的Studio 24c以获得下载和授权。

3
1
Overview
Studio 24c
1.3 Companion PreSonus Products
Owner’s Manual
1.3 Companion PreSonus Products 配套产品
Thanks for choosing PreSonus! As a solutions company, we believe the best way to
takecareofourcustomers(that’syou)istoensurethatyouhavethebestpossible
experiencefromthebeginningofyoursignalchaintotheend.Toachievethisgoal,
we’ve prioritized seamless integration throughout every designphase of these
products from dayone.Theresultis systemsthat communicatewith each other
asintended—straightoutofthebox—withoutexcessiveconfigurationhassles.
We’re here for you. Find out more at www.presonus.com.
感谢您选择 PreSonus ！我们相信，Studio 24c 作为一个解决方案，确保
我们的客户(也就是您)从开始到结束都有最好的体验。为了实现这一目
标，我们从第一天起就在这些产品的每个设计阶段优先考虑无缝集成。其
结果是系统可以按照预期的方式相互通信——直接开箱即用，无需过多的
配置。更多信息请访问 www.presonus.com。

4
2
Hookup
Studio 24c
2Hookup 联机
2.1 Front-Panel Connections
Owner’s Manual
2.1 Front-Panel Connections 前面板的连接

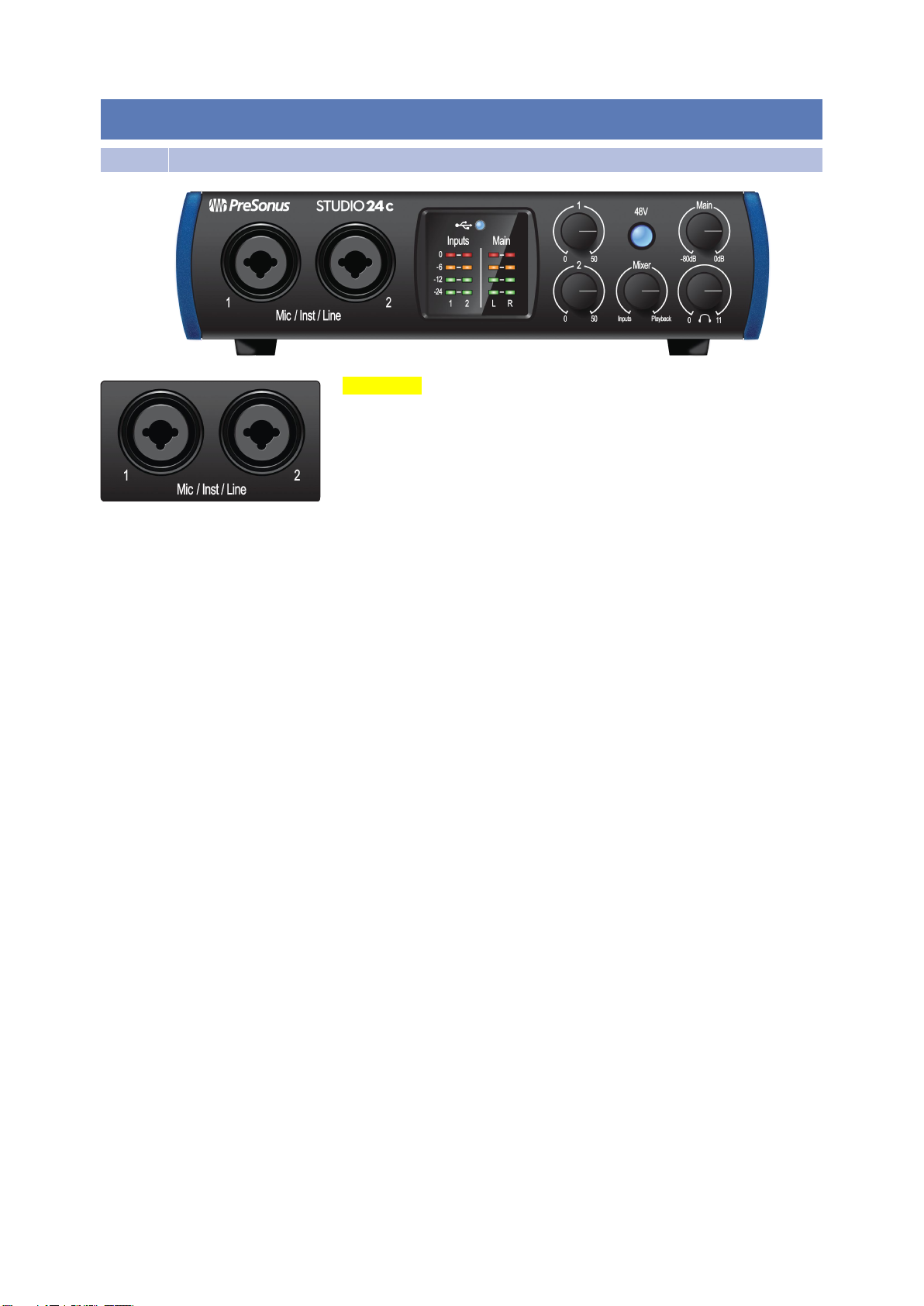

Microphone Inputs. Your Studio 24c interface is equipped with high-
quality microphone preamplifiers for use with all types of microphones. The
Studio 24c features XMAX-L solid-state microphone preamps that are
optimized for bus powering.
麦克风输入。您的Studio 24c接口配备了高质量的麦克风前置放大器，
可用于所有类型的麦克风。Studio 24c配备了XMAX-L固态麦克风前置
放大器，为总线供电进行了优化。
Both input channels onyour Studio 24c interface are
equipped with combo jacks. This convenient connector
acceptseither a ¼-inch or an XLR connector.
你的Studio 24c界面上的两个输入通道都配备了连击插孔。
这种方便的连接器可以接受1 / 4英寸或XLR连接器。
Instrument / Line-Level Inputs. The ¼-inch connectors on Channels
1 and 2 can be used with passive instruments (guitar,bass, etc.)
or line-level devices (synthesizers, signal processors, etc.).
仪器/线级输入。通道1和2上的¼英寸连接器可用于被动乐器(吉他、贝司等)
或线级器件(合成器、信号处理器等)。
Please note:
As with any audio input device, plugging in a microphone or an instrument,
or turning phantom power on or off, will create a momentary spike in the audio output.
Because of this, we highly recommend that you turn down the channel trim before
changing connections or turning phantom power on or off. This simple step will add
years to life of your audio equipment.
请注意 : 与任何音频输入设备一样，插入麦克风或仪器，或打开或关闭
虚拟电源，都会在音频输出中产生瞬时峰值。因此，我们强烈建议您在
更改连接或打开或关闭幻像电源之前，先调低通道修剪。这个简单的步
骤将延长您的音频设备的寿命。

5
2
Hookup
Studio 24c
48 Volt Phantom Power. The Studio 24c provides 48V phantom power for the
microphoneinputs.Pressingthe48Vbuttonswitchesphantompoweronandofffor
all microphone inputs; the button will illuminate in blue when phantom power is
available on the microphone preamplifiers.
48伏特Phantom电源。Studio 24c为麦克风输入提供48V幻像电源。按下48V按
钮，为所有麦克风输入开关幻像电源;当麦克风前置放大器上有幻像电源时，按
钮将显示蓝色。
WARNING: Phantom power is only required for condenser microphones and
can severelydamage some dynamic mics, especially ribbon mics.Therefore,
switch phantom poweroff when it is not required.Consultthe user documentation
that came with your microphone before engaging phantom power.
警告:幻影功率只需要电容麦克风，并可能严重损坏一些动态麦克风，特别是带
状麦克风。因此，请在不需要时关闭虚拟电源开关。在使用幻影电源之前，请
参阅麦克风附带的用户文档。
XLR connector wiring for phantom power 幻影电源 XLR 连接器接线 :
Pin 1 = GND Pin 2 = +48V Pin 3 = +48V
InputMeters.These LED metersshow the input level of the analog inputs onyour
Studio 24c. The red Clip LED will illuminatewhen your input signal reaches -0.5 dBFS.
At this level,the signalwill begin to overloadthe analog-to-digital convertersand
exhibit signs of clipping.Usethe gain controlsto keep the signalbelow this level.
输入Meters。这些LED表显示Studio 24c上模拟输入的输入电平。当你的输入信
号达到-0.5 dBFS时，红色夹子LED会亮。在这个水平上，信号将开始使模数转
换器过载，并显示限幅迹象。使用增益控制来保持信号低于这个水平。
Output Meters. These meters display the signal level received from the first two
driver returns (Main Left/Right). These meters have the same range as the input
meters and display the signallevel before the main output level control.
输出Meters。这些仪表显示从前两个司机返回的信号水平(主左/右)。这些仪
表具有与输入仪表相同的量程，并在主输出电平控制前显示信号电平。
Sync LED. This light indicates if your Studio 24c is in sync with your computer. When
no sync is available, this light will flash red.
LED同步。这盏灯指示你的 Studio 24c 是否与你的电脑同步。当没有同步可
用时，该灯将闪烁红色。

6
2
Hookup
Studio 24c
2.2 Back Panel Connections
Owner’s Manual
InputGainControl.Theseknobsprovide50dBofvariablegain(0to+50dBfor
microphones, -15 to 35 dB for line/instrument).
输入增益控制。这些旋钮提供50分贝的可变增益(0到+50分贝的麦克风，-
15到35分贝的线路/仪器)。
Mixer. TheMixer knob allows you to blend your input signals with the playback
streamsfromyourcomputersothatyoucanmonitoryour inputsignalswithout any
latency (delay). If the knob is positioned at 12 o’clock, the input signal and the
playback streamwill be equally balanced.Turningthe knob to the left willincrease
the level of the input signalrelative to the playback stream; turning to the right will
increase the level of the playback stream relative to the input signal as illustrated
below:
Mixer。混频器旋钮允许您混合您的输入信号与回放流从您的计算机，以便您
可以监控您的输入信号没有任何延迟(延迟)。如果旋钮定位在12点，输入信号
和回放流将是均衡的。将旋钮向左转动，将增加输入信号相对于回放流的电平;
向右转将增加播放流相对于输入信号的电平，如下图所示:
Inputs Mixer Playback
Inputs Playback
Headphone Level. This knob controls the level of the rear panel headphone output.
Headphone Level。这个旋钮控制后面板耳机输出的电平。
Main.The main knob controls the output level forthe main left/right outputs on the
back of your Studio 24c and has a range of -80 dB to 0 dB.This controlprovides
attenuation only.
Main。主旋钮控制输出电平的主要左/右输出在你的Studio 24c的背
面，有-80分贝到0分贝的范围。此控制只提供衰减。
Inputs Playback
Playback Inputs

7
2
Hookup
Studio 24c
2.2 Back Panel Connections 后面板的连接
Headphone Output. The rear-panelheadphone output mirrors the same streams as
the Main left/right outputs.
耳机输出。后面板耳机输出镜像相同的流作为主要的左/右输出
MainOuts.These arethe Main outputs forthe Studio 24c. The output
level of the Main outputs is controlled by the Main level controlon the
frontof the unit. Playbackstreams1 and 2 areroutedto these outputs.
主要输出。这些是Studio 24c的主要输出。主输出电平由机组前
端的主电平控制器控制。回放流1和2被路由到这些输出。

8
2
Hookup
Studio 24c

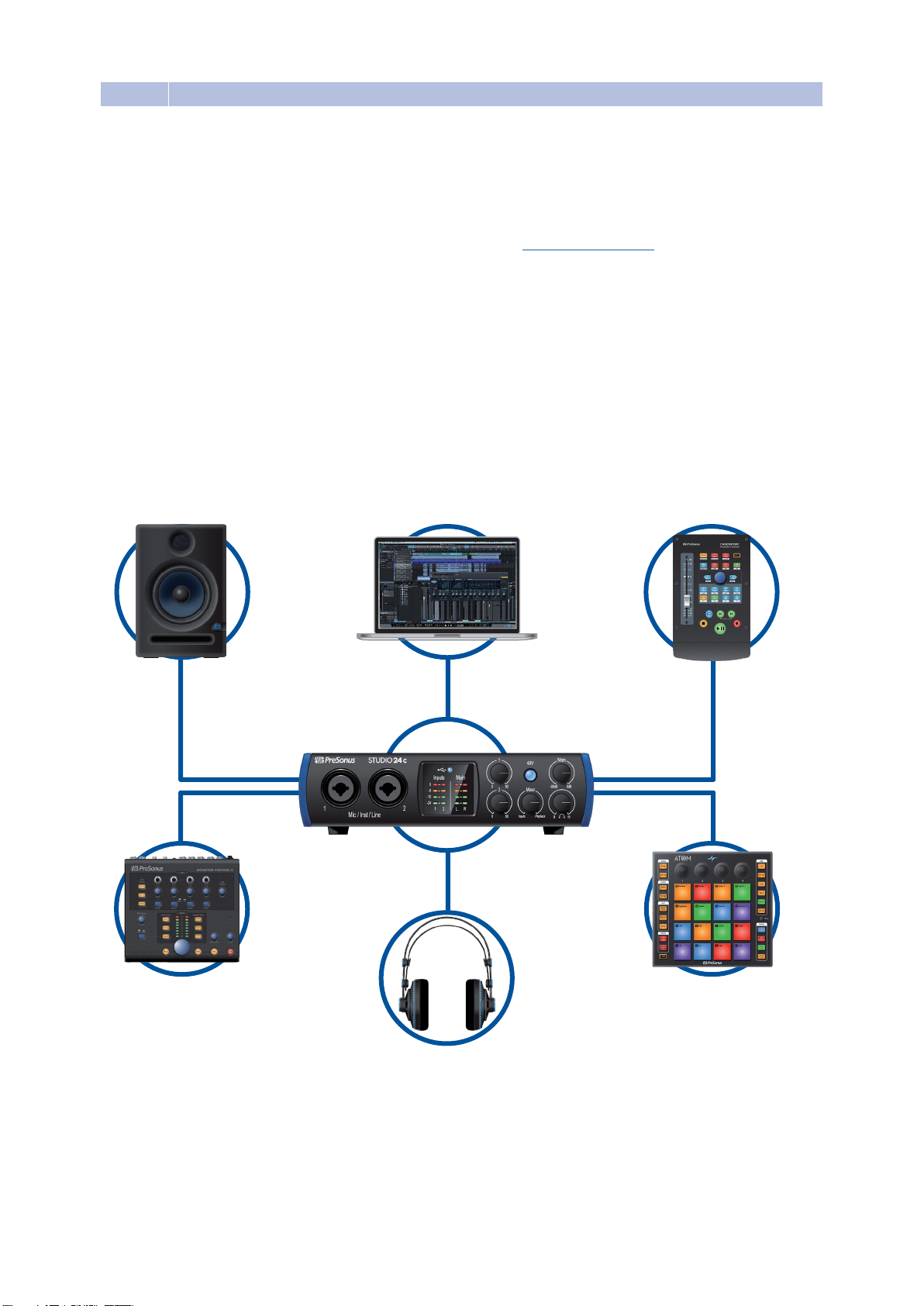

2.3 Connection Diagram
连接图
Owner’s Manual
MIDI I/O. This is the MIDI input and output connections.
MIDI stands for“Musical Instrument Digital Interface.”However, MIDI can
beusedformanythingsotherthaninstrumentsandsequencing. The
MIDI inputs and outputs allow connection to a variety of MIDI-
equippedhardware,suchaskeyboardcontrollers,andcanbeused to
send and receiveMIDI Machine Control and MIDI TimeCode.
MIDI I / O。这是MIDI输入和输出连接。
MIDI代表“乐器数字接口”。然而，MIDI可以用于乐器和排序之外的许多事
情。MIDI输入和输出允许连接到各种MIDI设备硬件，如键盘控制器，并可
用于发送和接收MIDI机器控制和MIDI时间代码。
Note: MIDI does not carry audio signals but is frequently used to trigger or control
an audio source, such as a virtual instrument or hardware synthesizer. Youshould
ensure that MIDI data is correctlysent and received by the appropriate hardwareor
software.Youmay also need to route hardwaresound sources’ audio to the inputs of
yourStudio-seriesinterface.PleaseconsulttheUser’sManual ofyourMIDIdevicesfor
help with MIDI setup and usage.
注意 :MIDI 不携带音频信号，但经常用于触发或控制音频源，如虚拟
仪器或硬件合成器。您应该确保 MIDI 数据被适当的硬件或软件正确地
发送和接收。您可能还需要将硬件声源的音频路由到您的 studio 系列界
面的输入。请查阅您的 MIDI 设备的用户手册，以获得有关 MIDI 设置和
使用的帮助。
USB-CPort.UsethisporttoconnectyourStudio24ctoyourcomputer.Whilethe
Studio 24c connects using USB-C, it is fully compatiblewith USB 2.0 and 3.0
connections.Use the USB-C to A cable that came with your Studio 24c if your
computer has a USB-A connection ratherthan a USB-C connection.
Please note: The Studio 24c is backward compatible with USB 2.0 and USB 3.0 speed
connections. USB 1.1 is not supported .
USB-C端口。使用此端口将Studio 24c连接到计算机。虽然Studio 24c使
用USB-C连接，但它完全兼容USB 2.0和3.0连接。如果你的电脑是USB-A
连接而不是USB-C连接，使用Studio 24c附带的USB-C到A的电缆。
请注意 :Studio 24c 向后兼容 USB 2.0 和 USB 3.0 高速连接。 USB 1.1 不支持。

9
2
Hookup
Studio 24c
2.3 Connection Diagram 连接图

10
3
3.1
Connecting to a Computer
InstallationforWindows
Studio 24c
Owner’sManual
3Connecting to a Computer 连接计算机
Before connecting your Studio 24c to a computer, please visit
www.presonus.com to verify the latest system requirements.
Note: The speedofyourprocessor,amountofRAM, and capacity,size,and speedofyour
hard drives will greatly affect the overallperformance of your recordingsystem. A faster
processor and more RAM can reduce signal latency (delay) and improve overall
performance.
The Universal Control installers for macOS and Windows are available from your
My PreSonususer account.TheWindowsinstaller also includes the WindowsASIO
driver.NodriverinstallationisnecessaryformacOS.Tobegin,youmustfirstvisit
http://my.presonus.com,create or log intoyour user account,and register your
Studio 24c. Once registered, all software downloads will be available from within your
My PreSonus user account including Studio One Artist and the Studio Magic bundle.
在将Studio 24c连接到计算机之前，请访问www.presonus.com验证最新的系统要求。
注意 : 您的处理器的速度、RAM的数量、容量、大小和硬盘驱动器的速度将极大地影响
您的录音系统的整体性能。更快的处理器和更多的RAM可以减少信号延迟并提高整体
性能。
macOS和Windows 的通用控制安装程序可以从您的 My PreSonus用户帐户获得。
Windows 安装程序还包括Windows ASIO驱动程序。macOS不需要安装驱动程序。首
先，您必须访问 http://my.presonus.com，创建或登录到您的用户帐户，并注册您的
Studio 24c。一旦注册，所有的软件下载都可以在你的My PreSonus用户帐户中下载，
包括Studio One Artist和Studio Magic包。
3.1 Installation for Windows Windows 系统安装
Download the Universal Control installer from your My PreSonus account.
ConnectyourStudio24ctoanavailableUSB-CorUSB-A(2.0or3.0)port
andlaunchtheinstaller.Theinstallerwilltakeyouthrougheachstepofthe
installation process.This application will install the ASIO and WDM drivers,
as well as Universal Control.Please read each message carefully.
It is recommended that you quit all applications before you start the installation.
The Universal Control installer will take you through each step
of the installation process.Please read each message carefully
so that you do not connect your Studio 24c too soon.
Power User Tip: It is recommendedthat you temporarilydisable or turn off any anti-
virus programs you have running to prevent installation issues.
从您的 My PreSonus帐户下载通用控制安装程序。将 Studio 24c连接到可用的 USB-
C或USB-A(2.0或3.0)端口，然后启动安装程序。安装程序将带您完成安装过程的每
个步骤。这个应用程序将安装ASIO和WDM驱动程序，以及通用控制。请仔细阅读
每条信息。
建议您在开始安装之前退出所有应用程序。
通用控制安装程序将带您完成安装过程的每个步骤。请仔细阅读每条信息，以免您
过早地连接到Studio 24c。
高级用户提示 : 建议您暂时禁用或关闭正在运行的任何反病毒程序，以
防止安装问题

11
3
3.1
Connecting to a Computer
InstallationforWindows
Studio 24c
Owner’sManual
3.1.1 Universal Control (Windows)
Universal Control is a powerful hardware-management application for all PreSonus
interface products. It allows you to view any PreSonus interface product connected
to your computer or your computer’s network.
Universal Control 是一个强大的硬件管理应用程序的所有PreSonus接口产品。
它允许您查看任何PreSonus接口产品连接到您的计算机或您的计算机的网
络。
When Universal Control is launched, you will see the Launch window.
From this window,you can manage all the ASIO driver settings.
Sample Rate. Changes the sample rate.
Youcansetthesamplerateto44.1,48,88.2,96,176.4,or192kHz.Ahigher
sampleratewillincreasethe fidelityoftherecordingbutwillincreasethefile
sizeandtheamountofsystemresourcesnecessaryto processtheaudio.
当通用控件启动时，您将看到启动窗口。从这个窗口，您可以管理所有
的ASIO驱动程序设置。
采样率。更改采样率。
可以设置采样率为44.1、48、88.2、96、176.4或192 kHz。较高的采样
率将提高录音的保真度，但将增加文件大小和处理音频所需的系统资源
数量。

12
3
3.1
Connecting to a Computer
InstallationforWindows
Studio 24c
Owner’sManual
Block Size. Sets the buffer size.
Fromthismenu,youcan setthebuffersize.Loweringthebuffersizewill
lowerlatency;however,thiswillalsoincrease performancedemands
on your computer.In general, you will want to set the buffer size as
lowasyoursystemcansafelysupport.Ifyoubegintohearpops,clicks,
or distortion in your audio path, try raising the buffer size.
Loopback (Windowsonly). The Studio 24c ASIO driver provides
two loopback streams to recordaudio from one application
to another. See Section 3.1.2 for more information.
Block Size。设置缓冲区大小。
从这个菜单中，您可以设置缓冲区大小。降低缓冲区大小将降低延迟;然
而，这也会增加性能需求
在您的计算机上。通常，您将希望将缓冲区大小设置为系统能够安全支
持的最小值。如果您开始听到弹出，点击，或失真在您的音频路径，尝
试提高缓冲区大小。
回送 (Windows)。Studio 24c ASIO驱动程序提供了两个环回流来记录来
自一个应用程序的音频
到另一个地方。更多信息请参见3.1.2节。

13
3
3.1
Connecting to a Computer
InstallationforWindows
Studio 24c
Owner’sManual
File Menu. Manages devices connected to Universal Control.
• Show All Devices. Launches all control windows for all
supported devices connected to your computer.
• Close All Devices. Closes all open control windows.
• Sign Out. Signs out of your My PreSonus user account.
•
Check for Updates... Connects to your My PreSonususer
account to check for updates for Universal Control.
•
Transfers.Displays recent downloads from your my PreSonus user account.
• About Universal Control. Displays version and build date information.
• Quit. Quits the Universal Control application and all hardware control windows.
Settings Menu. Provide customization options to
personalize your Universal Control experience.
• Always on Top. Keeps the Universal Control Launch window on
top whether it is the currently active application or not.
•
Run at Startup. Launches Universal Control
automaticallywhen your computerboots.
• Preferences. Sets language and appearance options (see below).
• Rescan Network. Scans the network and local transport bus
(USB or FireWire)forall supported PreSonus products.
• Language. Sets the language (English, French, German,
Korean, Simplified Chinese, or Spanish).
文件菜单。管理连接到通用控件的设备。
•显示所有设备。为连接到计算机的所有受支持设备启动所有控制窗口。
•关闭所有设备。关闭所有打开的控件窗口。
•迹象。退出你的My PreSonus用户帐户。
•检查更新……连接到您的My PreSonus用户帐户，以检查通用控件的更
新。
•转移。显示您的PreSonus用户帐户最近的下载。
•关于通用控制。显示版本和生成日期信息。
•停止。退出通用控制应用程序和所有硬件控制窗口
设置菜单。提供定制选项，以个性化您的通用控制体验。
•总在最上面。将通用控件启动窗口保持在最上方，无论它是否是当前活
动的应用程序。
•在启动运行。启动通用控制自动时，您的计算机启动。
•偏好。设置语言和外观选项(见下面)。

14
3
3.1
Connecting to a Computer
InstallationforWindows
Studio 24c
Owner’sManual
Media Player
Web Browser
Etc.
•重新扫描网络。扫描所有受支持的PreSonus产品的网络和本地传输总
线(USB或FireWire)。
•语言。设置语言 (英语、法语、德语、韩语、简体中文或西班牙语)。
3.1.2 Loopback Recording 回环录制 (Windows only 仅适用于 Windows 操作系统)
TheWindowsdriversforthe Studio 24c provides two virtual streams
that allow you to recordthe output of one audio application in another
application. Loopbackcan be useful in a variety of situations:
• RecordingtheaudiofromavideogameorYouTube
video for a podcast or livestream.
• Recording a vocal in real time over a karaoke track
played from a web browser or media player.
Studio 24c的Windows驱动程序提供了两个虚拟流，允许您在另一个应
用程序中记录一个音频应用程序的输出。环回在各种情况下都很有用:
• 从视频游戏或YouTube视频中为播客或直播录制音频。
• 通过网络浏览器或媒体播放器实时录制卡拉ok音轨中的声音。
PowerUserTip:
BecausetheStudio24cisaclasscompliantCoreAudiodevice,these
virtual streams are not available in macOS. However,there are severalthird-party
applications that provide this functionality in macOS.
高级用户提示 :因为Studio 24c是一个类兼容的核心音频设备，这些虚拟流
在macOS中是不可用的。但是，在macOS中有几个第三方应用程序提供了
这个功能。
From Universal Control, you can enable or disable Loopback and pick
the streams on which the loopback audio will be recorded.
When Loopback is enabled and “Merge Loopback with 1/2” is selected,
the audio from another application will be recorded with the audio
sourceconnected to analog inputs 1 and 2 on your Studio 24c.
从 Universal Control中 ，您可以启用或禁用环回和挑选流上的环回
音频将被录制。
当启用环回并选择“合并环回1/2”时，将从另一个应用程序的音频
与音频源连接到模拟输入1和2在Studio 24c上录制。

15
3
3.1
Connecting to a Computer
InstallationforWindows
Studio 24c
Owner’sManual
Media Player
Web Browser
Etc.
When Loopback is enabled and “Dedicated Loopback Inputs” is selected, the audio
from another application will be recordedon the last pair of driver inputs (3/4).
PowerUserTip: When using either option, you will need to select Outputs 1 and 2 in the
audio application your want to record. Make sure to select Outputs 3 and 4 in the audio
application in which your recording to avoid a feedback loop.
当环回启用和“专用环回输入”被选择时，来自另一个应用程序的音
频将被记录在最后一对驱动输入(3/4)。
高级用户提示 :当使用任一选项时，您将需要在您想要录制的音频
应用程序中选择Outputs 1和Outputs 2。确保在录音的音频应用程
序中选择Outputs 3和Outputs 4，以避免出现反馈循环。

16
3
Connecting to a Computer
Studio 24c
3.2 InstallationformacOS
Owner’s Manual
3.2 Installation formacOS 安装macOS系统
YourStudio 24c is a class-compliant CoreAudiodevicein macOS. No driver
installation is necessary. Installing Universal Control for your Studio 24c is optional.
你的Studio 24c是macOS中兼容类的核心音频设备。不需要安装驱动程序。为
Studio 24c安装通用控件是可选的。
3.3 Using the Studio 24c with Popular Audio Applications 使用Studio 24c流行音频应用
程序
Completesetup instructionsforStudioOneArtistand abrieftutorial onitsfeatures
canbefoundinSection4ofthismanual.However,youcanuseyourStudio24cwith
anyaudio-recordingapplicationthatsupportsCoreAudioorASIO.Pleaseconsult
the documentation that came with your audio application forspecific instructions
on howto select the Studio 24c driveras the audio-device driver for your software.
Below are basic driver-setup instructions for a few popular audio applications.
Studio One Artist 的完整设置说明和关于其功能的简短教程可以在本手册的第4节
中找到。然而，您可以将studio24c与任何支持Core Audio或ASIO的录音应用程序
一起使用。请参阅音频应用程序附带的文档，了解如何选择Studio 24c驱动程序
作为软件的音频设备驱动程序的具体说明。
下面是一些流行的音频应用程序的基本驱动程序设置说明。
Steinberg Cubase 4+
1. Launch Cubase.
2. Go to Devices | Device Setup.
3. Select“VST Audio System”from the Devices column in the Device Setup.
4. Select your Studio 24c from the ASIO Driver dropdown list.
5. Click“Switch”to begin using the Studio-series Driver.
6. Once you have successfully changed the driver, go to Devices |
VST Connections to enable your input and output buses.
1.Cubase发射。
2.进入“设备|设备设置”。
3.在“设备设置”的“设备”栏中选择“VST音频系统”。
4.从ASIO Driver下拉列表中选择你的Studio 24c。
5.点击“开关”开始使用studio系列驱动程序。
6.成功更改驱动程序后，转到Devices | VST Connections以启用输入和输出总线。

17
3
Connecting to a Computer
Studio 24c
Ableton Live 5+
1. Launch AbletonLive.
2. Go to Options | Preferences | Audio.
3. Choose Driver Type: ASIO | Audio Device: ASIO Studio 24c
4. Go to Input Config : Enable and select the desired Input channels.
5. Go to Output Config : Enable and select the desired Output channels.
6. YoumaynowselectyourStudio24cinputsand
outputs for each track created in Live.
1.发射易宝生活。
2.转到选项|首选项|音频。
3.选择驱动类型:ASIO |音频设备:ASIO Studio 24c
4.转到输入配置:启用并选择所需的输入通道。
5.转到输出配置:启用并选择所需的输出通道。
6.您现在可以为Live中创建的每个音轨选择您的Studio 24c输入和输出。
Apple Logic Pro/Express 7+:
1. Launch LogicPro/Express.
2. Go to Logic | Preferences | Audio.
3. Click on the Devices Tab.
4. On the Core Audio tab, check Enabled.
5. Select your Studio 24c from the device menu.
6. Youwill be asked if you’d like to relaunch Logic. Click“try (re)launch.”
7. Your Studio 24c features custom I/O labels for faster work flow. To enable
these labels for use in Logic,go to Options | Audio | I/O Labels.
8. The second column in the pop-up window will be named
“Provided by Driver.”Activate each of these labels for your
Studio 24c. When you are done, close this window.
9. You are now ready to use your Studio 24c.
1.启动逻辑Pro /表达。
2.转到逻辑|首选项|音频。
3.单击设备选项卡。
4.在“核心音频”选项卡上，选中“已启用”。
5.从设备菜单中选择Studio 24c。
6.你会被问到是否想重新启动Logic。点击“尝试(重新)发射。”
7.您的Studio 24c具有定制I/O标签，以更快的工作流程。要在“逻辑”中启用这些标签，请进入“选项|音频| I/O标签”。
8.弹出窗口中的第二列将命名为“由驱动程序提供”。激活Studio 24c的每个标签。完成后，关闭此窗口。
9.现在可以使用Studio 24c了。

18
3
Connecting to a Computer
Studio 24c
3.3 UsingtheStudio24cwithPopularAudioApplications
Owner’s Manual
Avid Pro Tools 9+
Cakewalk Sonar 6+
1. Launch ProTools.
2. Got to Setup | Hardware and select your Studio 24c
from the Peripherals list. Click OK.
3. Go to Setup | Playback Engine and select your Studio 24c
from the menu at the top of the window. Click OK.
1.推出支持工具。
2.安装|硬件，从外围设备列表中选择你的Studio 24c。单击OK。
3.进入设置|播放引擎，从窗口顶部的菜单中选择你的Studio 24c。单击OK。
1. Launch Sonar.
2. Go to Options | Audio... and click on the Advanced tab.
3. Change the Driver Mode to“ASIO.”
4. Click the “OK”button.
5. Restart Sonar.
6. Go to Options | Audio... and click on the Drivers tab.
7. Highlight all input and output drivers beginning
with your Studio-series product name.
8. Go to Options | Audio... and click on the General tab.
9. Set the PlaybackTiming Master to “Studio 24c ... DAWOut 1.”
10. Set the RecordingTiming Master to“Studio 24c ... DAW Out 2.”
1.声纳发射。
2.转到选项|音频…然后点击高级选项卡。
3.将驱动模式改为 “ASIO”。
4.点击“确定”按钮。
5.重启声纳。
6.转到选项|音频…然后点击Drivers选项卡。
7.突出显示所有以 studio 系列产品名称开头的输入和输出驱动程序。
8.转到选项|音频…然后单击“常规”选项卡。
9.设置回放计时大师 “Studio 24c…DAW OUT 1。”
10.设置录音计时大师为 “Studio 24c…”DAW OUT2。”
