en
Original instructions
Content
Mounting instruction ..............................................3
Operational signage ...............................................3
Symbols used in this manual........................................4
General safety .....................................................5
Product label......................................................6
Versions ..........................................................7
Intended use ......................................................9
Intended user profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operating environment........................................9
Operating instructions ........................................... 10
All support arms................................................. 10
Height adjustable support arms .............................. 10
Sideways adjustable support arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Height and sideways adjustable support arms ................. 11
Dismounting from wall track ................................. 12
Mounting on wall track ...................................... 12
Dismounting from vertical track.............................. 13
Mounting on vertical track ................................... 13
Cleaning........................................................ 14
To remove limescale......................................... 14
Maintenance.................................................... 15
Trouble-shooting ................................................ 15
Technical data................................................... 15

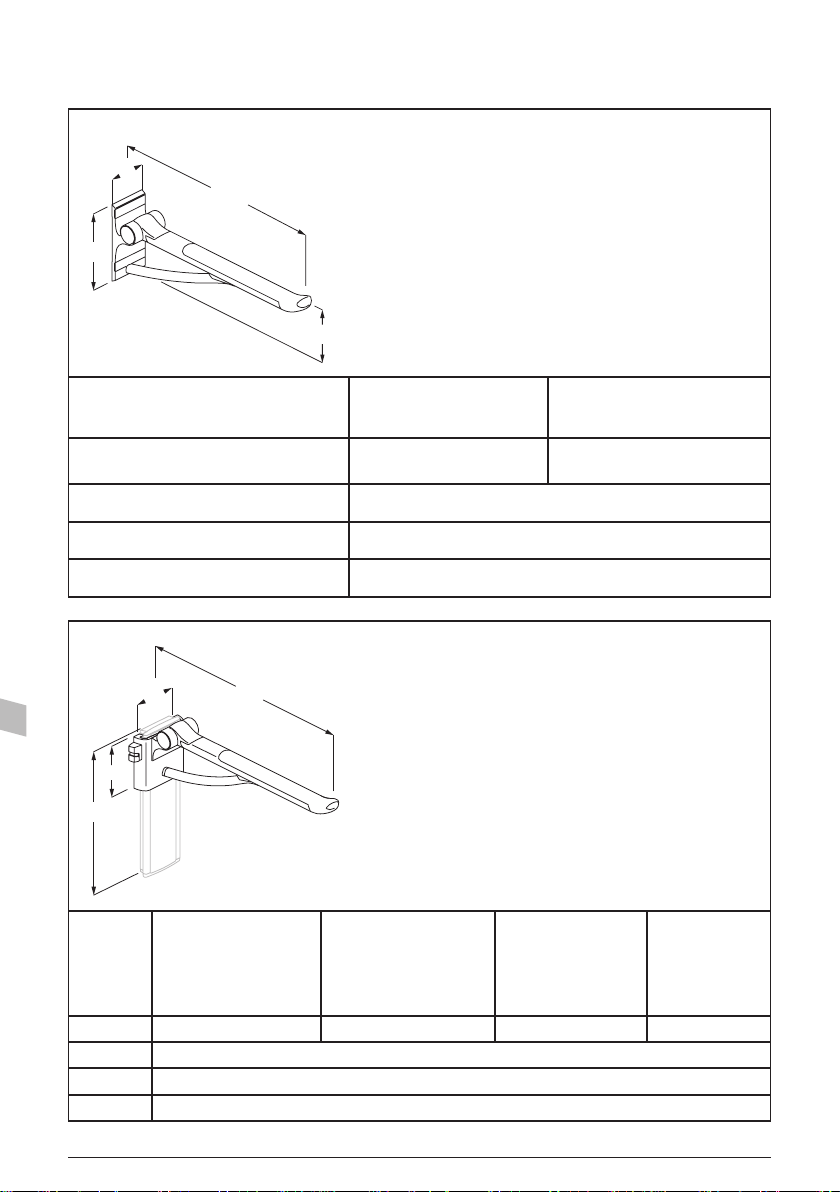

Dimensions, mm ................................................ 16
Dimensions, inches ............................................. 18
Product weights ................................................. 20
Disposal and recycling ........................................... 21
Mounting instruction
A mounting instruction is included with the product. It can also
be downloaded from www.pressalitcare.com.
Operational signage
An operational signage can be downloaded from
www.pressalitcare.com.

4
en
Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
!CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates important information about handling and use of
the product.
NOTICE
NOTICE is used to address practices not related to personal safety.
Hand injury warning.

5
en
!CAUTION
• Please comply with these instructions to avoid the product becoming
damaged or destroyed.
• Do not perform repairs, disassembly, or assembly operations,
extensions, re-adjustments or modifications to this product. These
must be carried out by Pressalit or by persons authorized by Pressalit
only.
• Never allow children to operate this product unless under supervision.
The product is not intended for play.
• Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
General safety
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our Assembly instruction.
• Pressalit Care cannot be held liable if the product is used in any
way which differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.

6
en

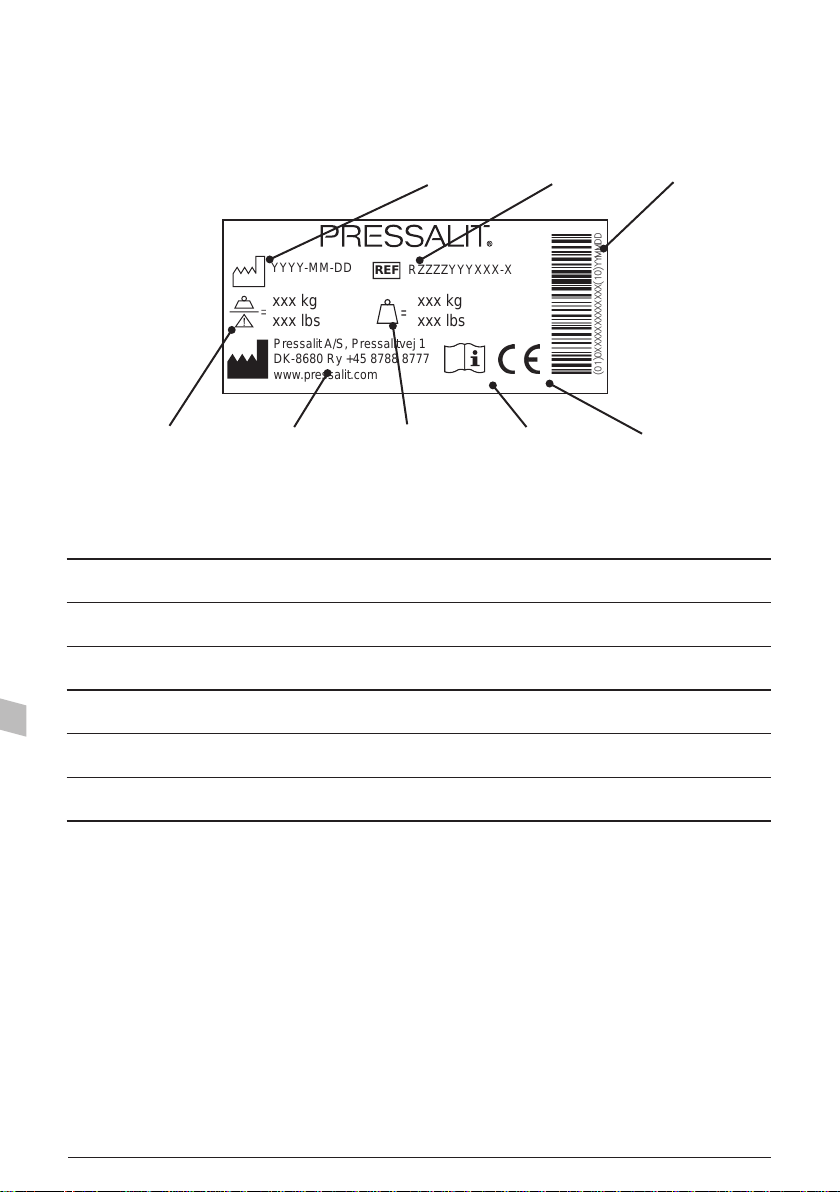

①Production date
②Article number
③GS1-128 barcode
④Maximum rated load
⑤Name and address of manufacturer
⑥Product weight
⑦Consult manual for use
⑧
This product is CE-marked in accordance with the European
Medical Device Directive 93/42/EEC, including amendments
incorporated in Directive 2007/47/EEC. A declaration of conformity
can be found at www.pressalitcare.com
Pressalit A/S, Pressalitvej 1
DK-8680 Ry [phone]
www.pressalit.com
REF
xxx kg
xxx lbs
xxx kg
xxx lbs
YYYY-MM-DD RZZZZYYYXXX-X
(01)0XXXXXXXXXXXXX(10)YYMMDD
①②③
④⑤⑥⑦⑧
Product label

7
en
Versions

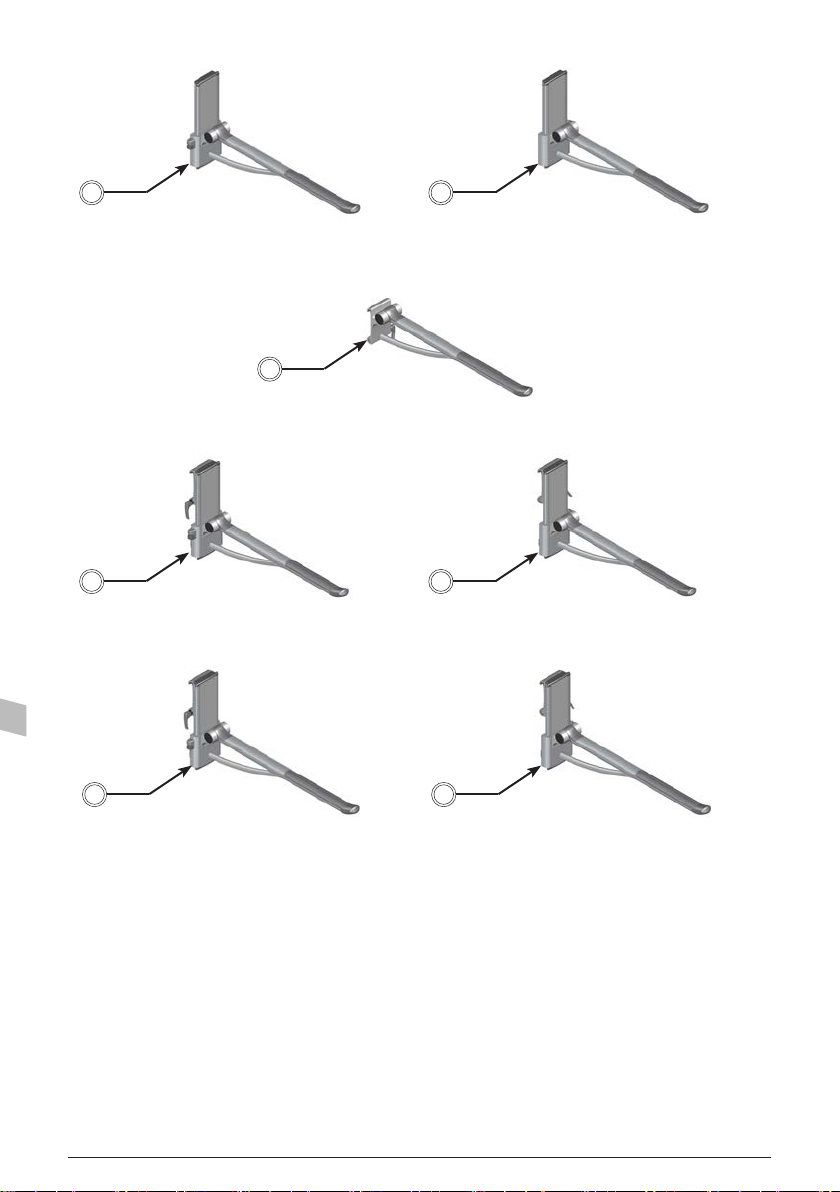

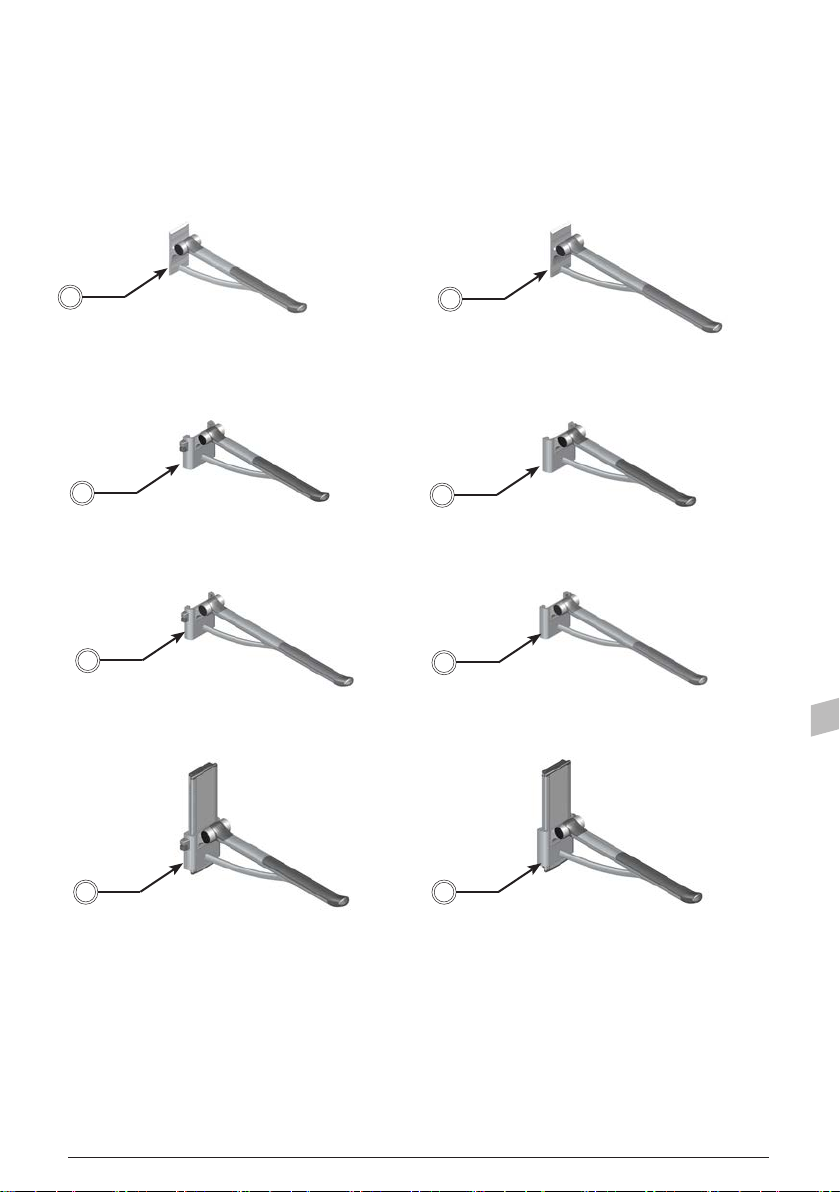

Product label placement ①.
R3070/RF070 R3085/RF085
R3117/RF117 R3127/RF127
R3107/RF107 R3108/RF108
R3165/RF165 R3170/RF170
1
1
1
1
11
1 1

8
en
R3175/RF175 R3185/RF185
R3285
R3565/RF565 R3570/RF570
R3575/RF575 R3585/RF585
1
1
1
1
11
1

9
en
Intended use
The support arm is used as support for a person when he or she sits down or
gets up from a toilet.
Intended user profile
The product can be used by all - adults, children, young and old.
Operating environment
For indoor use in a wet environment, such as a bathroom or wash room,
in private homes, nursing homes and hospitals. For institutional use, the
expected life time is 10 years.
Life cycle test performed according to ISO 17966:2016.
NOTICE
If the product is installed in an atmosphere heavy in salt or chloride, the
warranty will be reduced from the normal 5 years to 1 year.
Salt and chloride have a corrosive effect on the products components and
will cause a decrease in the life expectancy of the product. The damaging
effects can, however, be reduced if the product is showered with tap water
on a daily basis.
!CAUTION
The surface of the product may become hot and / or cold if exposed to
external sources of heat or cold (eg sunlight or frost).

10
en
Operating instructions
All support arms

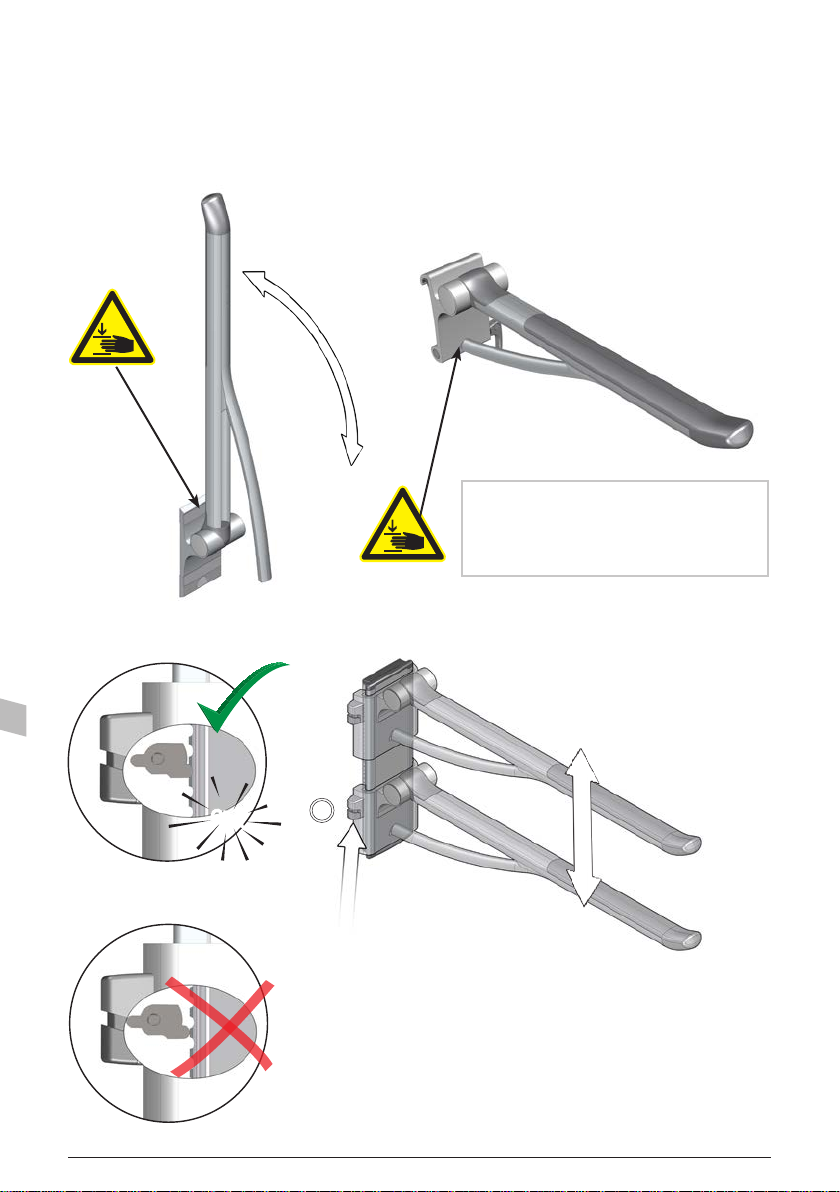

Fold the support arm fully down. Fold it back up when
not in use. You can hear a click when the support arm
is correctly folded up.
Height adjustable support arms
Take care to avoid injury to
hands when in the vicinity
of closing moveable parts.
1
To adjust upwards, pull the product upwards.
To adjust downwards, pinch the locking button ①
and hold it closed while moving support arm down.
Release the locking button to secure the support
arm in place. Make sure that the locking button pin
is engaged in the notch.
Click

11
en

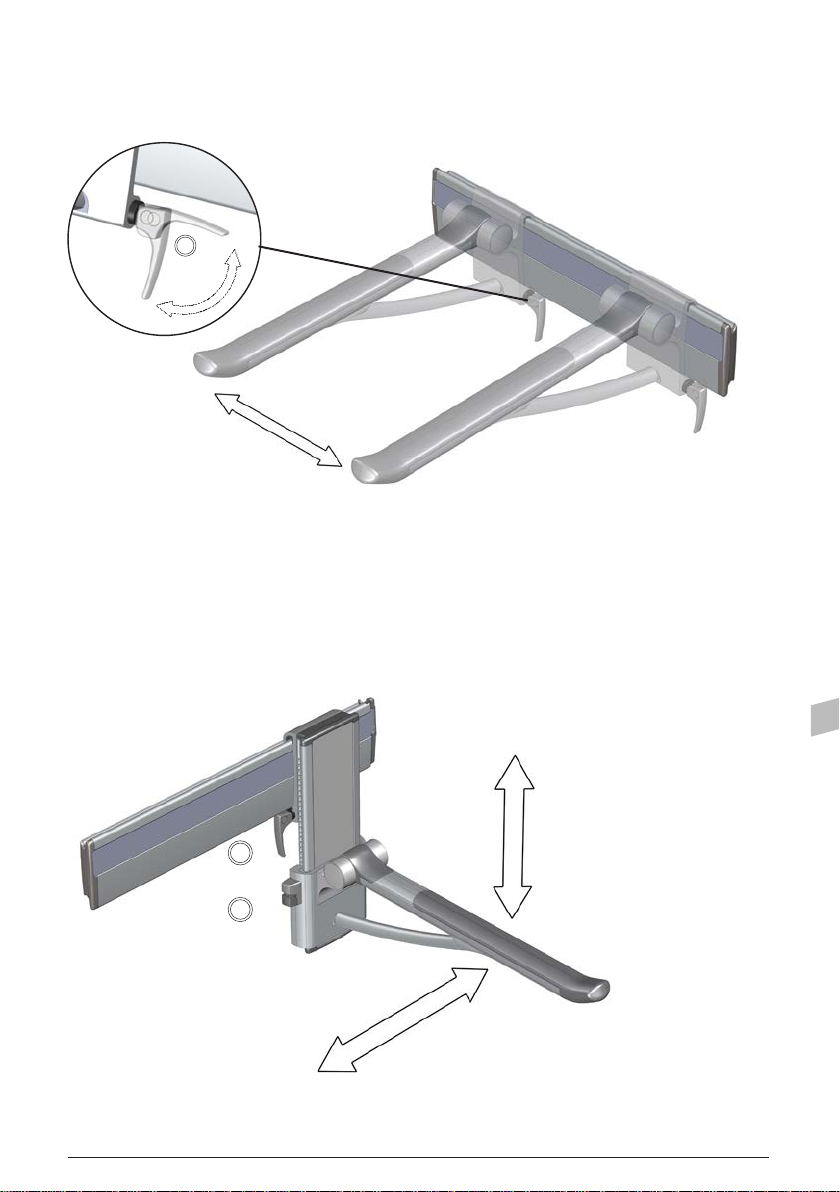

Release the locking handle ①and move the support arm sideways. Tighten the
locking handle again to secure the support arm in place.
Height and sideways adjustable support arms
Sideways adjustable support arms
Use the locking
handle ②and the
locking button ③to
adjust the support
arm horizontally and
vertically.
2
3
1

12
en

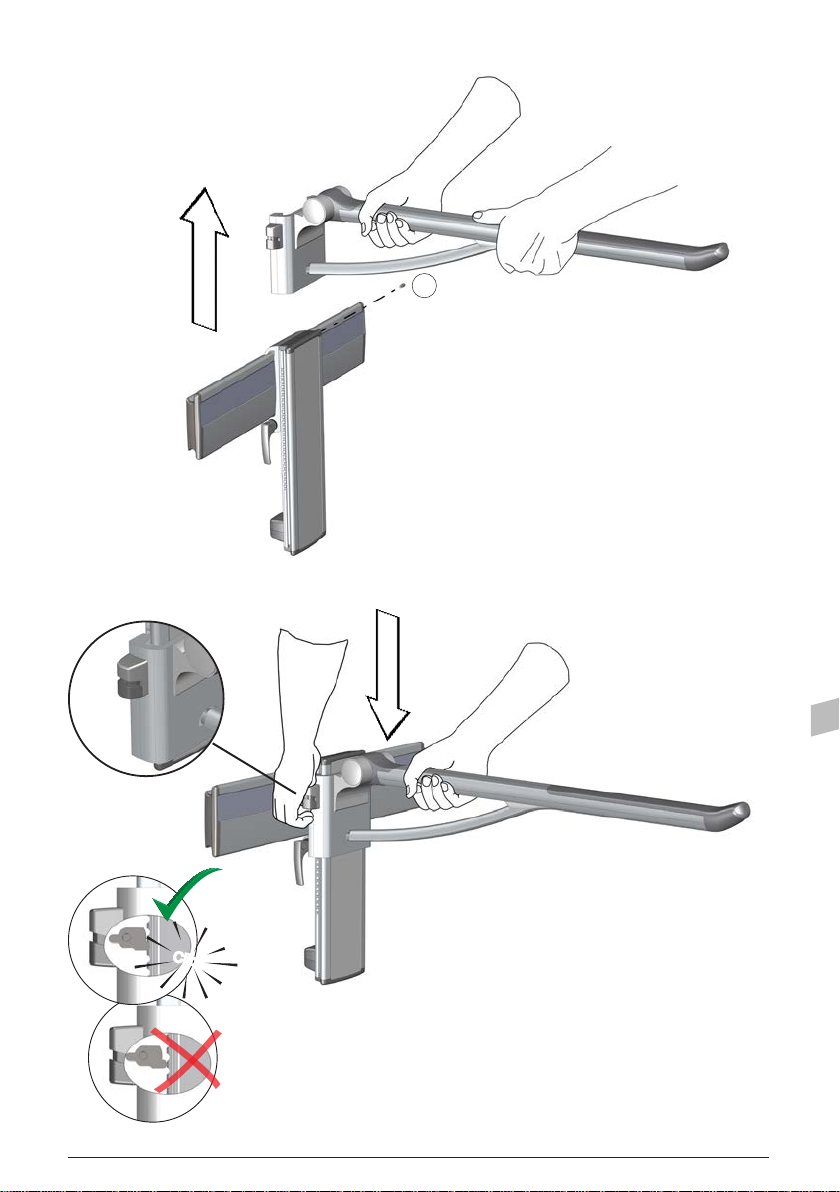

Dismounting from wall track
To remove the support arm from the wall track, release the locking handle ①
and lift the support arm upwards.
1

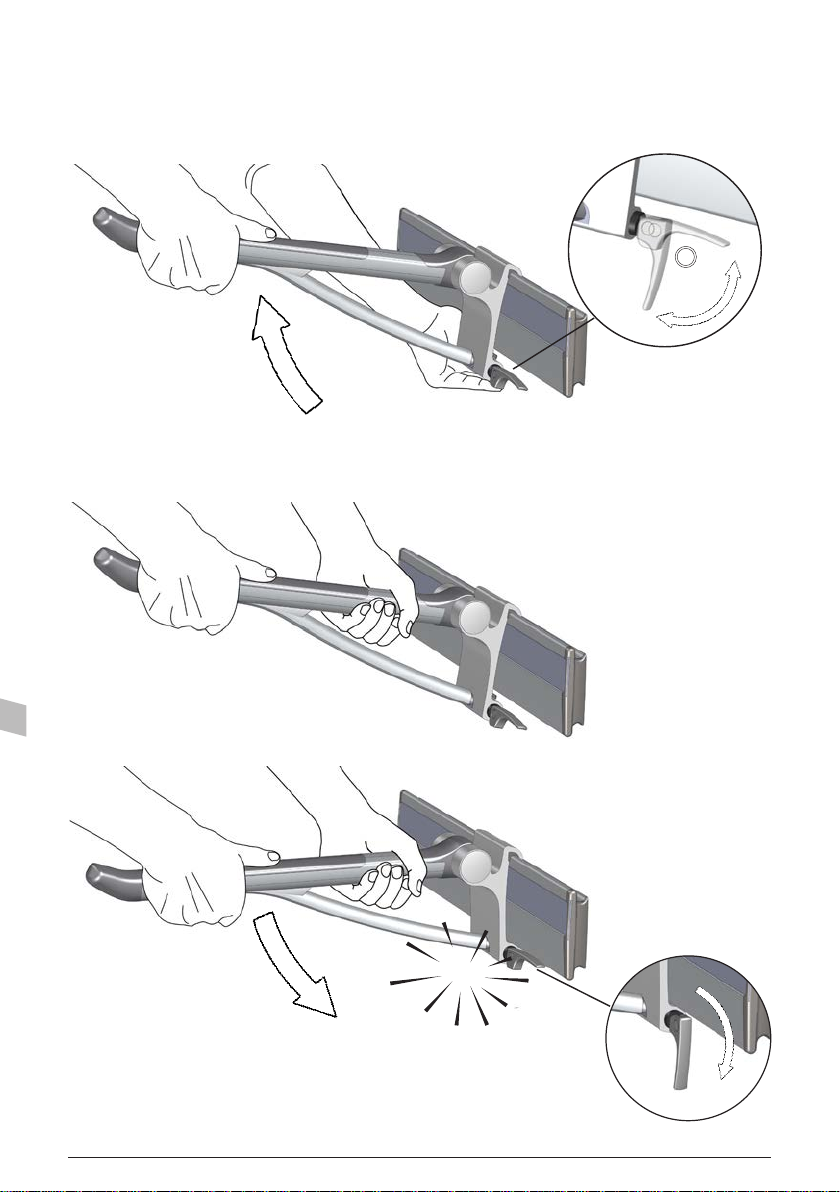

Hook the upper part of
the support arm on the
wall track.
Mounting on wall track
Click
Click the lower part of
the support arm firmly
to the wall track. Lock
the locking handle.

13
en
Mounting on vertical track
Dismounting from vertical track
Remove the set screw ① and slide
the support arm upwards and free
of the vertical track.
1
Pinch the locking button and hold
it closed while sliding the support
arm down on the vertical track.
Release the locking button to
secure the support arm in place.
Make sure that the locking button
pin is engaged in the notch.
Remount the set screw.
Click

14
en
!CAUTION
Always read the material safety data sheet (MSDS) and supplied
instructions of the cleaning, disinfecting or de-scaling agent and comply
with instructions for safe use, dilution, rinsing, drying, handling and
storage of the agent.
To remove limescale
To remove limescale marks on the aluminium parts, use 3 parts 30%
household vinegar to 7 parts water and afterwards wipe the parts with a cloth
wrung out in clean water.
In countries with relatively high levels of lime in the water supply, it may be
necessary to remove limescale deposits from the aluminium parts using a
de-scaling agent such as acetic acid. Test this first on a area that is not visible
when the product is in use.
Cleaning
Clean the product after each use. Use ordinary soapy water. Rinse off with
fresh water and dry with a soft cloth.
IMPORTANT
• Do not use an autoclave or other type of steam cleaner.
• Avoid aggressive cleaning agents containing acids or chloride.
• Never spray the product directly with a high pressure cleaner.
• Avoid use of aggressive, abrasive, corrosive or chlorine-based cleaning
or disinfecting products.

15
en
Maintenance
Remove dust from the wall mount of the sideways adjustable support arm at a
regular basis. Wipe with lubricant.
Expected service life of the support arm is 10 years.
Trouble-shooting
Symptom Cause Action
The product can’t be
moved sideways.
There might be dirt or
dust on the horizontal
walltrack.
Clean the walltrack and
grease it with silicone.
The locking button
doesn’t lock.
The lock is not properly
adjusted.
See mounting
instruction.
Technical data
Max user weight 150 kg / 331 lbs
Materials Anodized aluminium
Stainless steel
SEBS
ABS

16
en

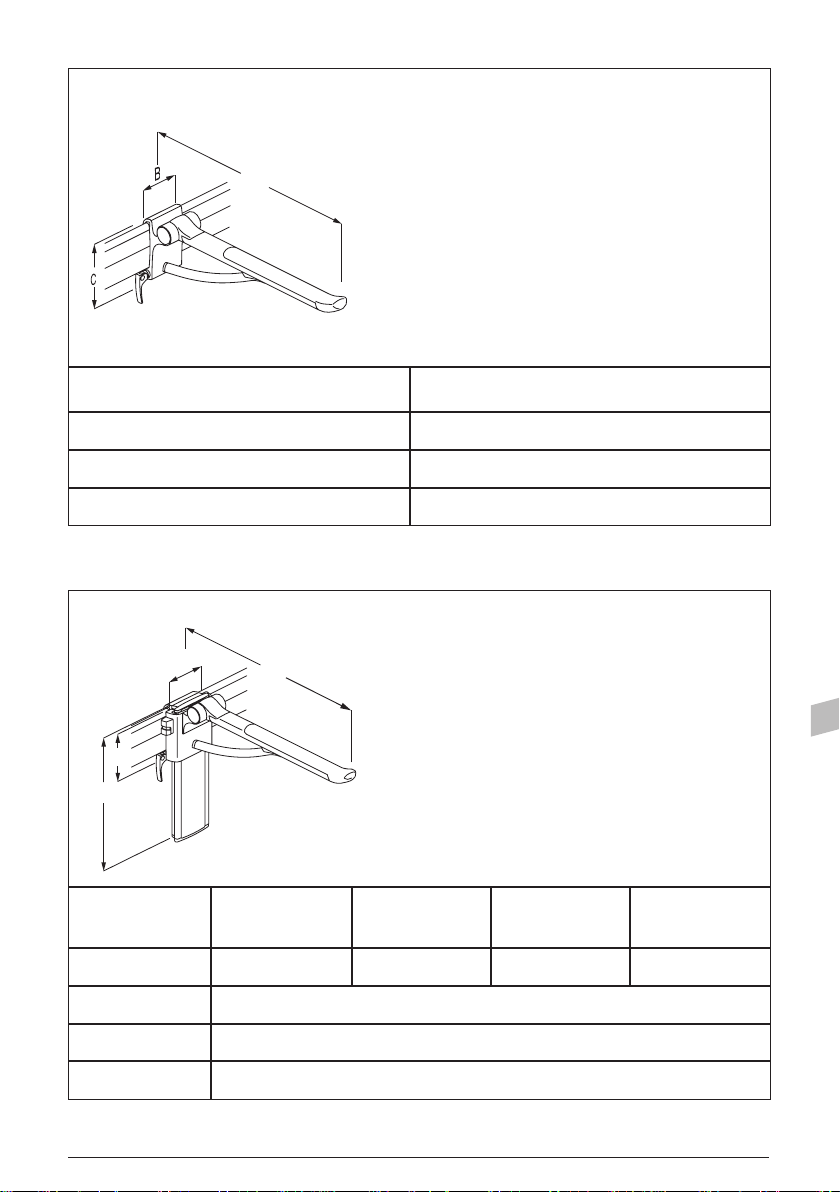

Dimensions, mm
A
B
D
C
R3070
RF070
R3085
RF085
A700 850
B100
C210
D168
B
A
C
D
R3107
RF107
R3108
RF108
R3117
RF117
R3127
RF127
R3165
RF165
R3170
RF170
R3175
RF175
R3185
RF185
A880 730 730 880
B128
C150
D424

17
en
A
R3285
A880
B104
C175
B
A
C
D
R3565
RF565
R3570
RF570
R3575
RF575
R3585
RF585
A770 770 920 920
B128
C150
D424

18
en
Dimensions, inches
A
B
D
C
R3070
RF070
R3085
RF085
A27.55 33.46
B3.9
C8.26
D6.61
B
A
C
D
R3107
RF107
R3108
RF108
R3117
RF117
R3127
RF127
R3165
RF165
R3170
RF170
R3175
RF175
R3185
RF185
A34.64 28.74 28.74 34.64
B5.03
C5.90
D16.69

19
en
A
R3285
A34.64
B4.09
C6.88
B
A
C
D
R3565
RF565
R3570
RF570
R3575
RF575
R3585
RF585
A30.31 30.31 36.22 36.22
B5.03
C5.90
D16.69

20
en
Product weights
Model number Product mass [kg] Product mass (lbs)
R3070, RF070
R3117, RF117
R3127, RF127
2,78 6.12
R3085, RF085
R3285
3,10 6,83
R3107, RF107
R3108, RF108
3,34 7.36
R3165, R3170
RF165, RF170
4,00 8.81
R3175, RF175
R3185, RF185
4,34 9.57
R3565, RF565
R3570, RF570
4,01 8.84
R3575, RF575
R3585, RF585
5,20 11.46
