Mounting instruction
A mounting instruction is included with the product. It can also
be downloaded from www.pressalitcare.com.

4
en
Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
!CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates important information about handling and use of
the product.
NOTICE
NOTICE is used to address practices not related to personal safety.
Hand injury warning
Feet injury warning
Head injury warning

5
en
!CAUTION
• Please comply with these instructions to avoid the product becoming
damaged or destroyed.
• Do not perform repairs, disassembly, or assembly operations,
extensions, re-adjustments or modifications to this product. These
must be carried out by Pressalit or by persons authorized by Pressalit
only.
• Never allow children to operate this product unless under supervision.
The product is not intended for play.
• Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our Assembly instruction.
• Pressalit cannot be held liable if the product is used in any way which
differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.
General safety

6
en

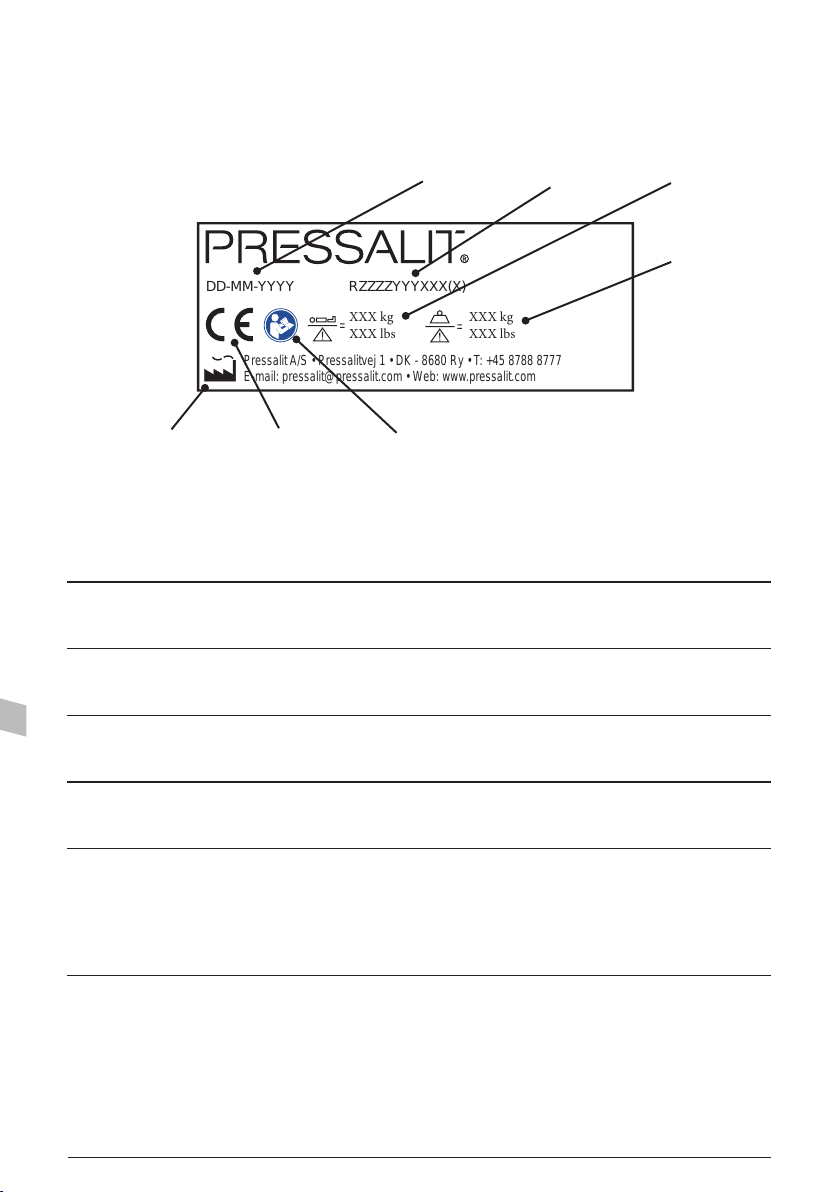

①Production date
②Article number
③Maximum user weight
④Maximum rated load
⑤Name and address of manufacturer
⑥This product is CE-marked in accordance with the European
Medical Device Directive 93/42/EEC, including amendments
incorporated in Directive 2007/47/EEC. A declaration of conformity
can be found at www.pressalitcare.com
⑦Consult manual for use
PressalitA/S • Pressalitvej 1 • DK - 8680 Ry • T: [phone]
E-mail: [email protected] • Web: www.pressalit.com
XXX kg
XXX lbs
XXX kg
XXX lbs
DD-MM-YYYY RZZZZYYYXXX(X)
④
①②③
⑤⑥⑦
Product label

7
en

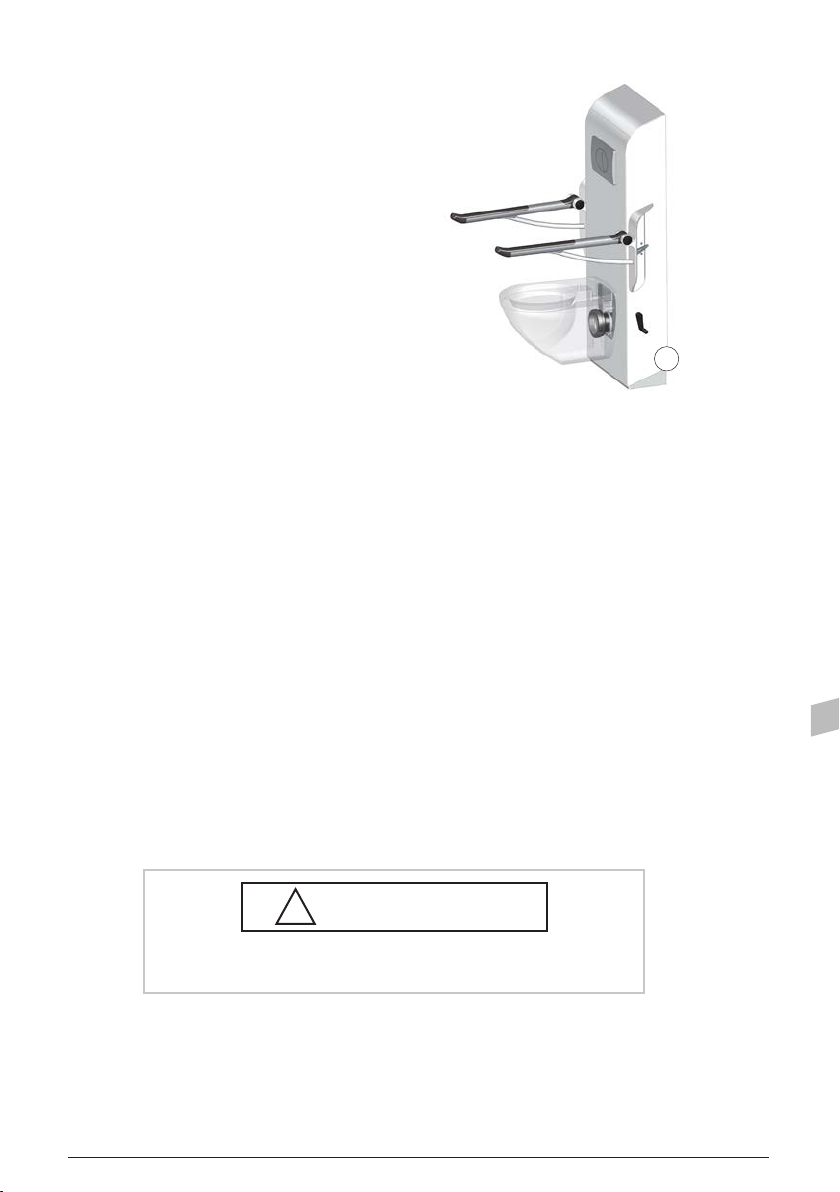

Intended use
This product is intended for optimum ergonomics at a toilet, for both seated
and standing users with disabilities.
Intended operator profile
The product can be used by all - adults, children, young and old.
Operating environment
For indoor use in a wet environment, such as a bathroom or wash room. The
product is intended to be used at room temperature in private homes, nursing
homes and hospitals under normal working conditions.
!CAUTION
Never place objects underneath the toilet.
Product label placement ①.
1

8
en
Versions
R8073, R8083
Compatible support arms
R3686, R3786 R3671, R3771
R1085, R1081

9
en

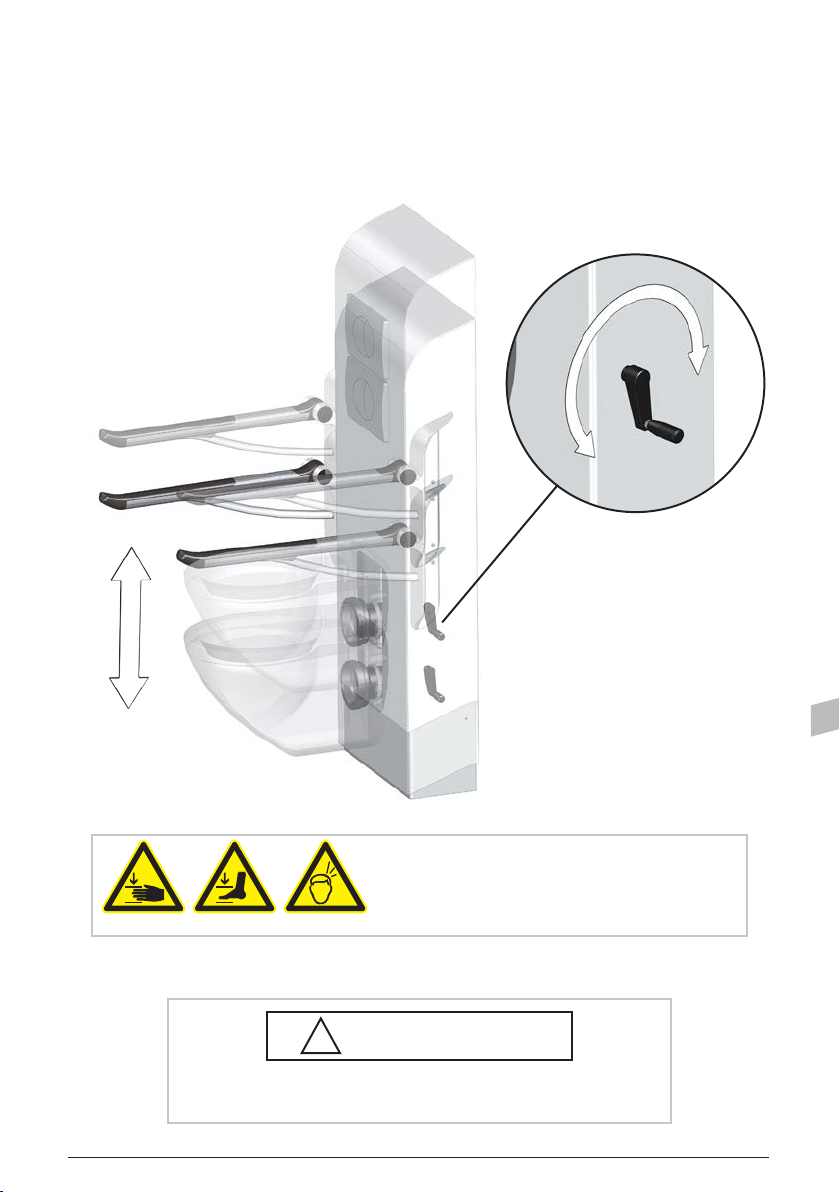

Operating instructions
The toilet lifter can be adjusted 200 mm up and down.
Max load toilet lifter: 200 kg / 440 lbs.
Max load support arms: 150 kg / 330 lbs.
Lower
Turn the crank handle
clockwise to raise the toilet,
and counterclockwise to
lower it.
The crank handle can be
placed in both sides of the
toilet lifter.
Raise
Take care to avoid injury to hands,
feets and head when in the vicinity
of moving mechanical parts.
!CAUTION
Never place objects underneath the toilet.

10
en
Take care to avoid
injury to hands when
in the vicinity of
closing moveable parts.
Support arms
The support arms can be folded up and
down. Fold them up when not in use.
For support arms R3686, R3786,
R3671 and R3771: You can hear a
click when the support arm is correctly
folded up.
The support arms can be adjusted 150
mm in height.
Fold up the arm.
Press and turn the height adjustment
locking handle ①.
Move the wing ② with the support arm
up or down.
Tighten the locking handle again. It will
slide back into place by itself.
1
2

11
en
Cleaning
Clean the product after each use. Use ordinary soapy water. Rinse off with
fresh water and dry with a soft cloth.
For surface disinfection, chlorine-based disinfectants may be used according
to the product specification and safety precautions for these products.
IMPORTANT
• Do not use an autoclave or other type of steam cleaner.
• Avoid aggressive cleaning agents containing acids or chloride.
• Never spray the product directly with a high pressure cleaner.
• Avoid use of aggressive, abrasive, corrosive or chlorine-based cleaning
or disinfecting products.
!CAUTION
Always read the material safety data sheet (MSDS) and supplied
instructions of the cleaning, disinfecting or de-scaling agent and comply
with instructions for safe use, dilution, rinsing, drying, handling and
storage of the agent.

12
en
Maintenance
Expected service life of the toilet lifter is 10 years, provided that maintenance
is carried out as described below.
It is recommended on a monthly basis to adjust the product to its maximum
positions up and down to lubricate the internal parts.
It is recommended that maintenance inspection is done once a year.
Maintenance inspection

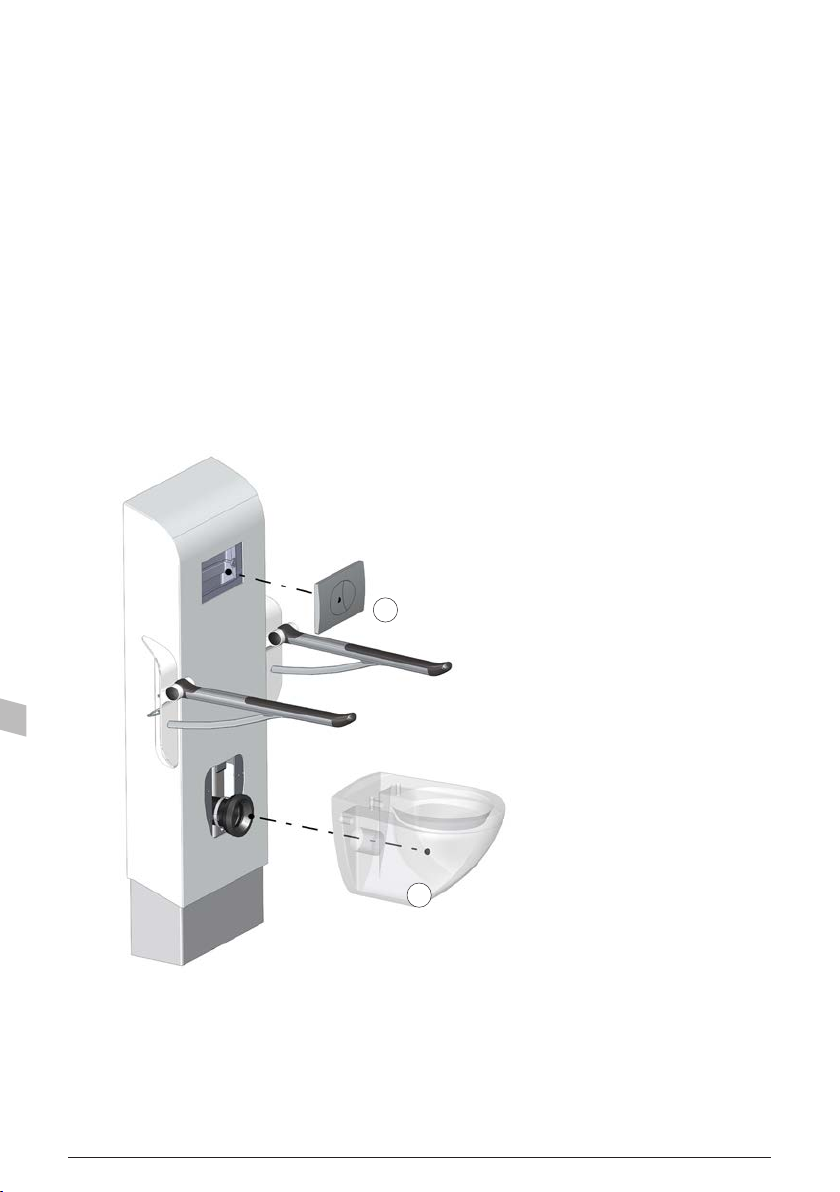

Take the toilet to its highest
position.
Remove the control panel ①.
Remove the toilet ②.
2
1

13
en
Unscrew the locking handles for
the support arms ③.
Unscrew the screws for the
support arms ④and remove both
the support arms.
Remove the crank handle ⑤.
Uncrew the screw ⑥ for the
lower front cover and remove
it.
3
34
4
5
78
7
Lubricate the inner square tubes ⑦and the hoisting
spindle mechanism ⑧with WD-40 or equivalent.
Reattach the front and lower front cover.
Mount the support arms and the toilet.
Take the toilet to its lowest position, and then run it
to the top position again to distribute the lubricant.
Remove the front cover.

14
en

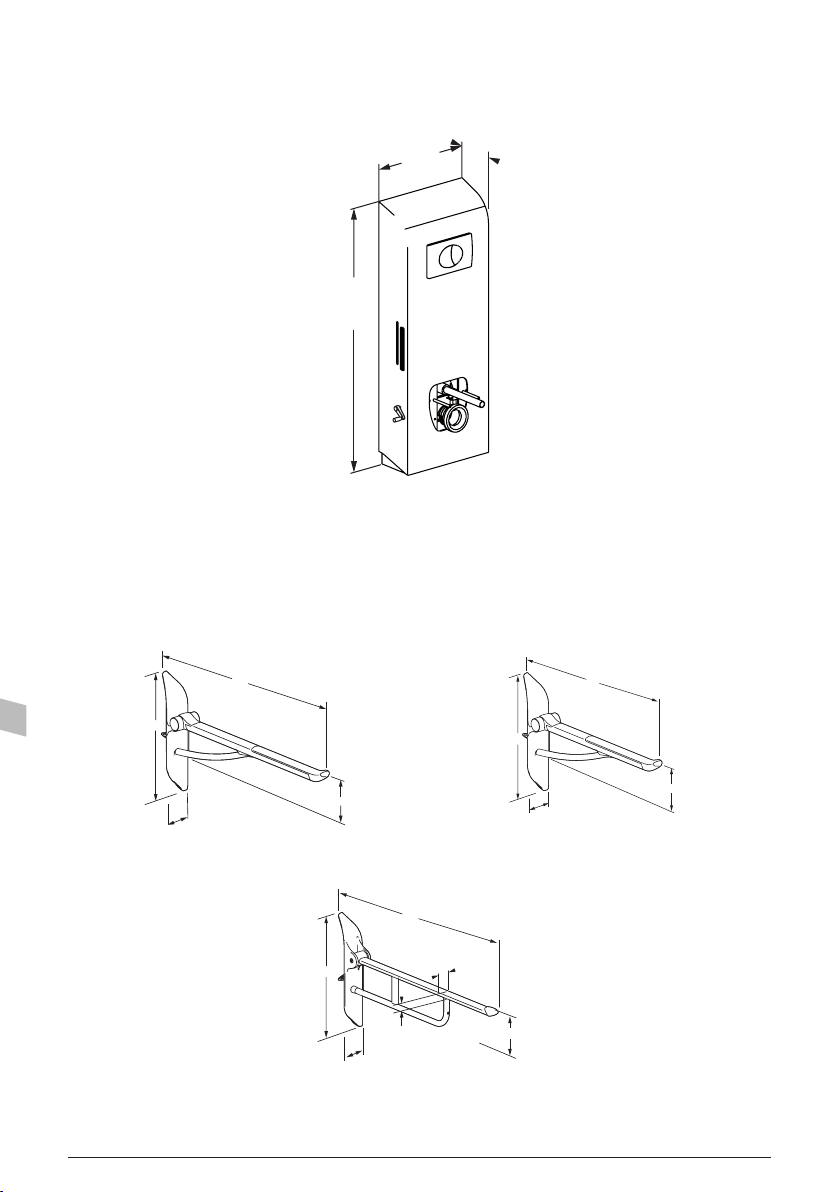

Dimensions - mm
511
Max.
1544
min.
1344
207
R8073, R8083
Support arms
965
168
430
115
815
168
430
115
R3686, R3786 R3671, R3771
965
155
100
40
20
430
R1085, R1081

15
en

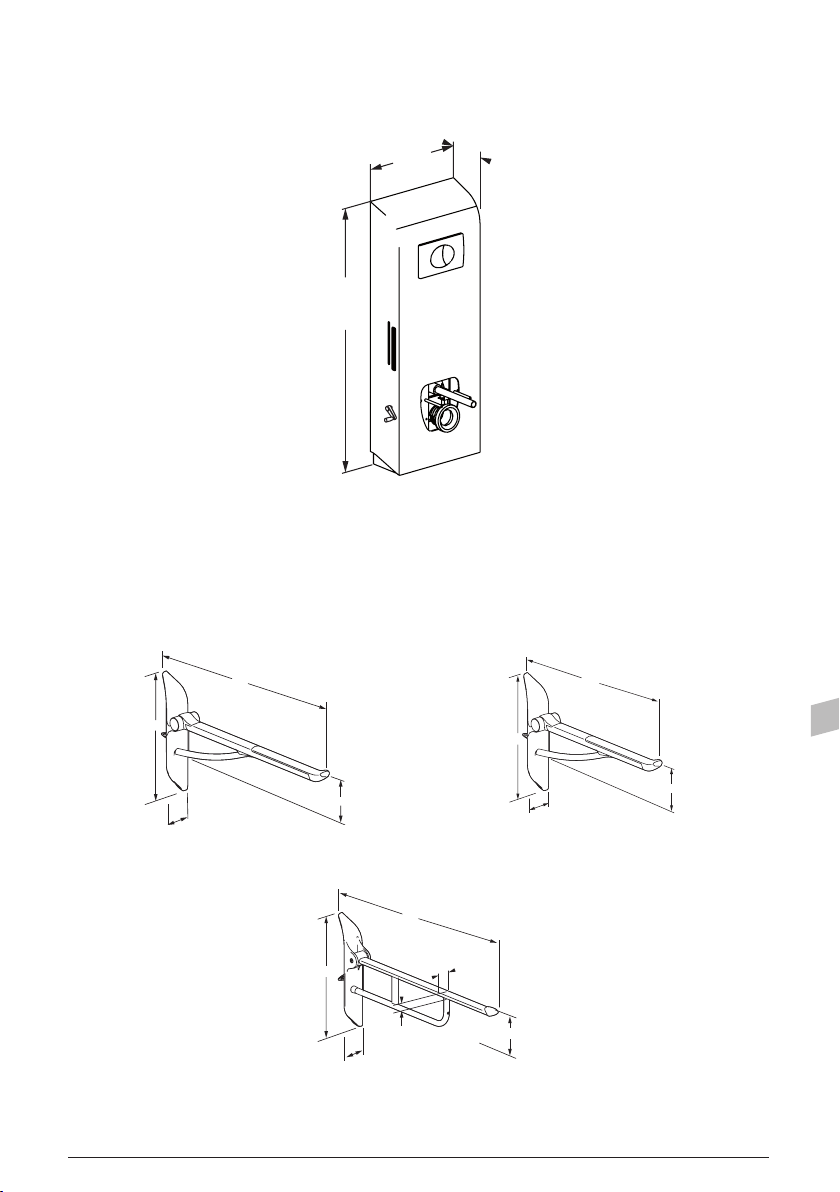

Dimensions - inch
8⁄
Max.
60⁄
min.
52⁄
20⁄
R8073, R8083
Support arms
6⁄
4⁄
16⁄
38
6⁄
4⁄
16⁄
32⁄
R3686, R3786 R3671, R3771
⁄
6⁄
38
1⁄
3⁄
16⁄
R1085, R1081

16
en
Technical data
Max load Toilet lifter: 200 kg / 440 lbs
Support arms: 150 kg / 330 lbs
Weight
R8273 52,2 kg / 115 lbs
R8083 52 kg / 114.6 lbs
R3686, R3786 5,24 kg / 11.5 lbs
R3671, R3771 4,9 kg / 10.8 lbs
R1085, R1081 3,15 kg / 6.9 lbs
Trouble-shooting
Symptom Cause Action
The product runs up
and down unevenly.
The inner square
tubes are not
properly lubricated.
Oil the inner square
tubes as described under
”Maintenance”.
Height adjustment of
support arms is not
possible.
The screws ①
holding the support
arm in place are
tightened too hard.
Loosen the screws until
height adjustment is
possible. Check mounting
instruction.
Contact Pressalit Care or your dealer if the problem cannot be remedied.
Do not attempt to repair the product yourself, as this will invalidate the
guarantee.
1

17
en
Disposal and recycling
The unit contains reusable materials. There are no known hazards or risks
associated with disposal of the product. All components can be discarded
after having been cleaned and disinfected.
When disposing of the product, we recommend that it be disassembled and
broken down into different waste groups for recycling or combustion.
The following table provides information on the recycling and handling of the
product.
Recyclable
components Material
Steel Steel can be recycled by being melted down and included
as a secondary material in the production of new steel.
Plastics Use plastic sorting and recycling systems where they are
locally available, otherwise incinerating plastic has the
added benefit of generating energy which can be used for,
for example, combined heat and power production.

dk
18
Indhold
Symboler, der er anvendt i denne vejledning ............................19
Generel sikkerhed ....................................................20
Produktmærkning ....................................................21
Tilsigtet brug .........................................................22
Tilsigtet brugerprofil .............................................22
Betjeningsmiljø ..................................................22
Versioner ............................................................23
Kompatible toiletstøtter ..........................................23
Betjening ............................................................24
Toiletstøtter ..........................................................25
Rengøring ...........................................................26
Vedligeholdelse.......................................................27
Vedligeholdelsesinspektion .......................................27
Mål – mm............................................................29
Toiletstøtter .....................................................29
Tekniske data ........................................................30
Fejlfinding ...........................................................30
Bortskaffelse og genbrug ..............................................31
Monteringsvejledning
Der følger en monteringsvejledning med dette produkt. Den
kan også downloades fra www.pressalitcare.com.

dk
19
Symboler, der er anvendt i denne vejledning
Følgende symboler er anvendt i denne vejledning og i den tilhørende
dokumentation, der følger med produktet.
!ADVARSEL
ADVARSEL angiver en potentielt farlig situation, som, hvis den ikke
undgås, kan medføre dødsfald eller alvorlig personskade.
!FORSIGTIG
FORSIGTIG angiver en potentielt farlig situation, som, hvis den ikke
undgås, kan medføre større eller mindre personskade. Det kan også bruges
til at advare om usikre fremgangsmåder.
VIGTIGT
VIGTIGT angiver vigtige oplysninger om håndtering og anvendelse af
produktet.
BEMÆRK
BEMÆRK vedrører fremgangsmåder, der ikke er forbundet med personlig
sikkerhed.
Advarsel om håndskade.
Advarsel om fodskade
Advarsel om hovedskade

dk
20
!FORSIGTIG
• Følg disse instruktioner for at undgå, at produktet beskadiges eller
ødelægges.
• Der må ikke foretages reparationer, demonteringer, samlinger,
udvidelser, tilpasninger eller ændringer på dette produkt. Dette må kun
udføres af Pressalit eller af personer, som er autoriseret af Pressalit.
• Lad ikke børn betjene dette produkt uden opsyn. Produktet er ikke
beregnet til leg.
• Produktet må ikke benyttes, hvis det er defekt eller beskadiget. Et defekt
produkt må ikke anvendes, før det er repareret.
!ADVARSEL
• Læs og forstå hele vejledningen før brug. Opbevar vejledningen tæt på
produktet.
• Følg denne vejledning for at undgå uheld og alvorlig personskade.
• Dette produkt må aldrig bruges eller håndteres på anden måde end
som angivet i denne vejledning, da dette vil kunne udgøre en risiko for
din sikkerhed og beskadige produktet.
• Sørg for, at alle, der installerer eller bruger dette produkt og dets
systemer, har de nødvendige oplysninger samt adgang til denne
vejledning.
BEMÆRK
• Oplysningerne i denne vejledning er baseret på korrekt justering
af produktet i overensstemmelse med vores monteringsvejledning.
• Pressalit kan ikke holdes ansvarlig, hvis produktet bruges på andre
måder end som beskrevet i vejledningen.
• Vi forbeholder os ret til at ændre denne vejledning uden forudgående
varsel.
Generel sikkerhed
