OPERATING INSTRUCTIONS
AND SAFETY NOTES
Two-hand grease gun
82 437 932 A406 GB

2
GB Operating instructions two-hand grease gun
Pressol Schmiergeräte GmbH
This documentation is exclusively intended for the operating company and their sta.
Without our written consent, the content of this documentation (textes, gures, drawings, charts,
diagrams etc. ), must not be duplicated or distributed, neither in full or in part, utilized for the purpose
of competition or passed on/made availabe to third parties.
Pressol Schmiergeräte GmbH
Parkstraße 7
93167 Falkenstein | Germany
Tel. [phone]
Fax [phone]
[e-mail]
www.pressol.com
Operating instructions translation
Date of issue: 10/2020
We reserve the right to make design and product modications, which serve to improve the product.
Table of Contents
1. Introduction ________________________________________________________________________3
1.1. Preface ____________________________________________________________________________3
1.2. Obligations of the personnel __________________________________________________________3
1.3. Symbols in this manual _______________________________________________________________3
1.3.1. Structure of the safety notes ___________________________________________________________3
1.3.2. Hazard sysmbols_____________________________________________________________________3
1.3.3. General symbols ____________________________________________________________________4
2. Safety notes ________________________________________________________________________4
2.1. Authorized personnel ________________________________________________________________4
2.2. Intended conditions of use ____________________________________________________________4
3. Design and functional description ______________________________________________________4
4. Area of application __________________________________________________________________4
5. Technical data_______________________________________________________________________5
6. Hazards when handling the grease gun __________________________________________________5
7. Assembly __________________________________________________________________________5
8. Making the grease gun ready for operation _______________________________________________6
8.1. Advises for an ideal operation __________________________________________________________8
9. Care/Maintenance ___________________________________________________________________8
10. Accessories according to DIN 1283 ______________________________________________________8
11. Repair/Service ______________________________________________________________________8
12. Disposal ___________________________________________________________________________8

3
Operating instructions two-hand grease gun GB
1. Introduction
1.1. Preface
Please carefully read these operating instructions and observe in particular all safety notes!
Our sta will be pleased to provide support if you have any questions about the product.
Yours sincerely, Pressol Schmiergeräte GmbH
1.2. Obligations of the personnel
Before they start work, all persons who are entrusted to work with the two-hand grease gun, are obliged:
– to follow all applicable regulations on occupational safety and accident prevention.
– to read and to comply with all safety instructions and warning notes contained in these operating
instructions.
Please observe the following instructions in the interest of all concerned:
 Refrain from any unsafe working methods!
 Adhere to all hazard and warning notes contained in this manual!
 In addition to this documentation, keep to all generally accepted safety rules, legal provisions as well as
all other binding rules regarding occupational safety, accident prevention and environmental protection!
 Wear appropriate protective clothing in accordance with the work to be done!
 Perform only work for which you have been suciently trained and instructed!
 Only genuine spare parts as well as original tools and auxiliaries of the manufacturer are allowed to be
used in order to ensure the functional safety and maintain the warranty coverage.
1.3. Symbols in this manual
1.3.1. Structure of the safety notes
The warning notes have the following structure:
SIGNAL WORD
Type and source of the hazard
– Consquences of non-compliance with the notes
– Measures to avoid that risk
Depending on the danger level, dierent signal words are used:
Signal word Danger level Consequences of non-com-
pliance
WARNING Possible threat of danger Death or serious bodily injury
CAUTION Possibly dangerous situation Minor bodily injury
ATTENTION Possibly dangerous situation Damage to material property
NOTE
Indicates further information or tips which facilitate work
1.3.2. Hazard symbols
Symbol Meaning
General hazard symbol. The warning note marked in this way contains supple-
mentary information on the type of hazard.

4
GB Operating instructions two-hand grease gun
1.3.2. General symbols
Symbol Meaning
A small black square indicates the work you have to perform
–The dash denotes lists
2. Safety notes
Various dangers may occur if the two-hand grease gun is improperly handled during installation, com-
missioning and daily operation.
WARNING
Risk of injury and damage to material property because of improper handling
 Hold the manual at the disposal of the operating sta at the usage site of the unit.
 Country-specic safety measures and accident prevention regulations must be
observed.
2.1. Authorized personnel
Only qualied and authorized persons are allowed to operate and to work on the two-hand grease gun.
Persons are qualied if they are, due to their training, experience, instruction and knowledge of the
relevant standards, able to assess assigned tasks and to identify potentially hazardous situations.
All persons charged with installation, operation, maintenance and repair work, must have read and
understood this operation manual.
2.2. Intended conditions of use
The two-hand grease gun is designed exclusively for the delivery of grease lubricants.
Any use beyond these parameters can lead to serious risks and is regarded as use that is contrary to the
intended purpose.
The operator is responsible for damages resulting from use other than the intended use.
3. Design and functional description
Two-hand grease gun, with ergonomic handles for 400 g and 500 g screw-in cartridges.
The grease gun is suitable for supplying lubricant greases under pressure up to the viscosity class NLGI 2.
– The vacuum technology allows an easy to understand design of the grease gun.
– Fast and easy cartridge replacement.
– A removal of partially emptied screw-in cartridges is possible.
– Complete emptying of cartridge reduces impact on environment.
– Continuous check of lling level and grease type.
– Designed for an operation with long lubricating lines.
– Easy to use due to an uncomplicated technology and design.
4. Area of aplication
The grease gun is suitable for supplying lubricant greases up to viscosity class NLGI 2 under pressure.
NOTE
 Recommendation: do not apply lubricants at temperatures below 10 °C

5
Operating instructions two-hand grease gun GB
5. Technical data
Two-hand grease guns 12 850
12 851
12 846
12 847
Diameter of grease gun pump piston: 10 mm 10 mm
Supply volume/stroke: 2,0 cm32,0 cm3
Operating pressure: up to 400 bar up to 400 bar
Grease gun discharge connection: M 10 x 1 M 10 x 1
Burst pressure of system: 850 bar 850 bar
Grease gun head burst pressure: 1200 bar 1200 bar
Filling options: 500-g-screw-in cartridge 500-g-screw-in cartridge
400-g-screw-in cartridge
Tab. 5.-1: Technical data
6. Filling options
ATTENTION
Excess pressure can result in the bursting of the grease gun head and
accessories
 Do not use force when actuating the hand lever.
 Do not use an extension or other auxiliaries.
 Do not exceed the working pressures given in section 5.
 Use only original accessories compliant with DIN 1283.
Excess pressure at the greasing point can damage the grease nipple, bea-
rings, and even the machine
 Do not exceed the working pressures given in section 5.
 Comply with the machine manufacturer‘s maintenance and service instructions.
CAUTION
Defective accessories can lead to personal injury and material damage
 High pressure hoses must not be kinked, twisted, or stretched.
 During their period of use, accessories must be checked for wear, cracks, and
other damages.
 Defective accessories should be replaced immediately.
 The period of use for connecting hoses is a maximum of 6 years after the date of
manufacture (see hose labelling).
7. Assembly
The grease gun is supplied assembled.
Depending on the model, accessories can or must be tted.
NOTE
 When tting accessories, ensure cleanliness and that the accessory makes a
perfect connection to the grease gun.
 Use suitable sealants and adhesives (e. g. Teon tape).

500 g
500 g
500 g
6
GB Operating instructions two-hand grease gun

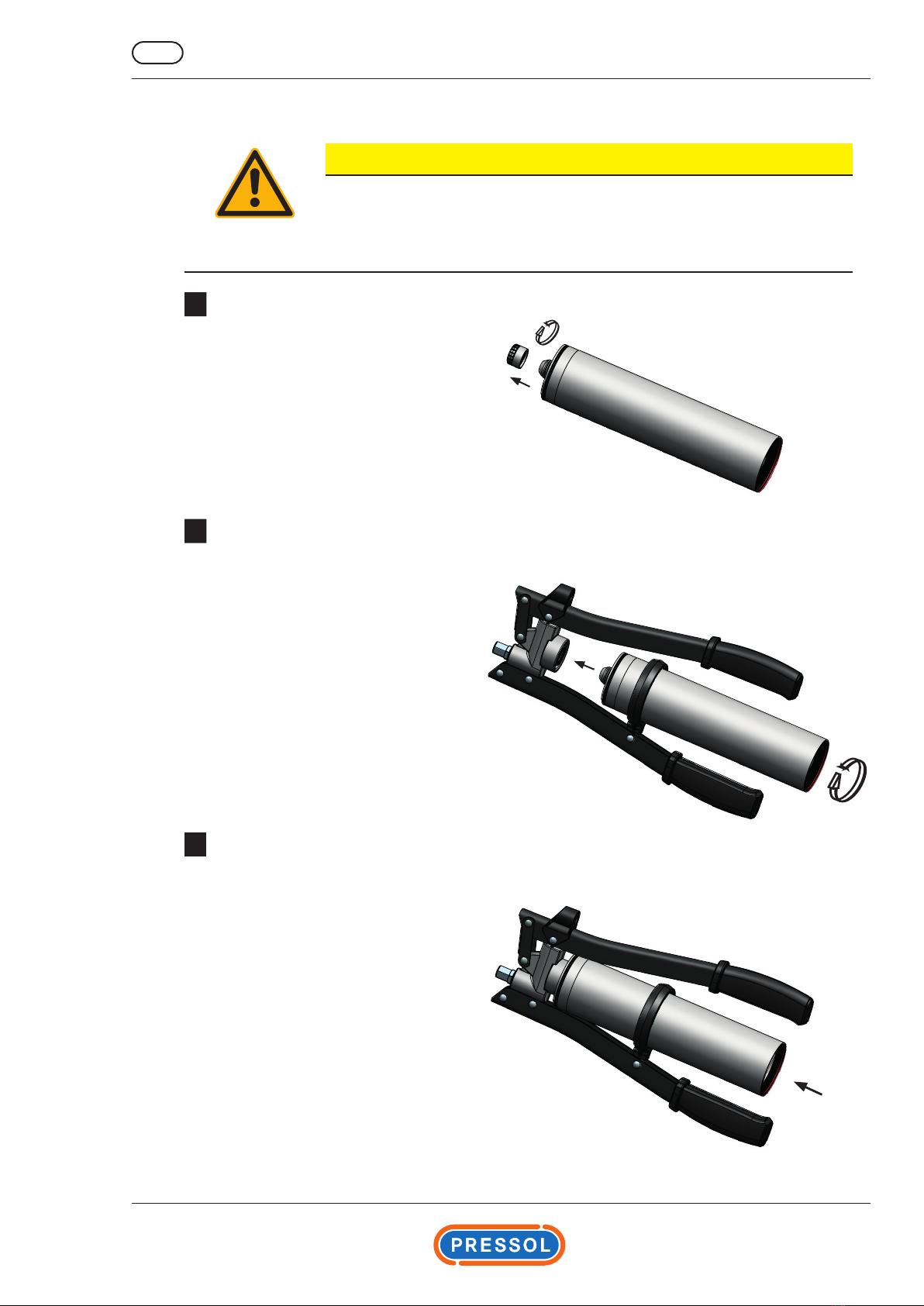

8. Making the grease gun ready for operation
CAUTION
Excess pressure can result in the bursting of the grease gun head and of
equipment
 When using the grease gun, use suitable equipment such as protective
gloves and eye protection.
1Remove the cap from the 500 g
cartridge.
Bleed the cartridge while pressing
lightly the follower of the cartridge
until grease emerges.
2Screw the cartridge through the
centering ring into the head of
the open grease gun and fasten it
hand-tight.
3Press on the follower piston and
start operating the grease gun
until grease escapes at the mouth-
piece. If required, repeat the proce-
dure several times.
Grease gun is now ready for ope-
ration.
Fig. 8.-1: Making the grease gun ready for operation with 500-g-screw-in cartridge

400 g
400 g
400 g
7
Operating instructions two-hand grease gun GB
1Remove the cap from the 400 g
cartridge.
Bleed the cartridge while pressing
lightly the follower of the cartridge
until grease emerges.
2Clip the adapter into the centering
ring.
3Screw the 400 g cartridge through
the centering ring into the head of
the open grease gun and fasten it
hand-tight.
Press on the follower piston and
start operating the grease gun
until grease escapes at the mouth-
piece.
If required, repeat the procedure
several times.
Grease gun is now ready for ope-
ration.
Fig. 8.-2: Making the grease gun ready for operation with 400-g-screw-in cartridge

8
GB Operating instructions two-hand grease gun
8.1.Advises for an ideal operation
NOTE
Since the piston chamber of the grease gun is not lled by spring pressure, but
by the vacuum created by the piston, never open the hand lever jerkily.
 Operate the grease gun with even and steady working strokes.
 Depending on the viscosity of the grease used (based on the NLGI class and
the temperature), the vacuum technology makes it necessary to wait for a
sucient relling of the piston chamber with grease.
9. Care/Maintenance
The two-hand grease gun needs little care and maintenance.
Because of operator responsibility, the following parts must be checked regularly in order to avoid
environmental, material or personal damage:
– Grease gun head
– Screwed connections
– Accessories (hoses, mouthpieces, etc.)
10. Accessories according to DIN 1283
(Extract from the Pressol range of accessories)
Item Description M 10 x 1 G /“
1 Precision mouthpiece 12 643 12 743
2 Angled spout 12 635 12 735
3 Straight spout 12 435 12 475
4 High pressure hose, 11 x 300 mm 12 655 12 735
5 High pressure hose, 11 x 500 mm 12 665 12 765
6 Adapter, G /“ f, M 10 x 1 m 12 016
11. Repairs/Service
The grease gun was developed and manufactured under compliance with the highest quality standards.
If in spite of all quality measures a problem occurs, please get in touch with our service contact partners:
Pressol Schmiergeräte GmbH
Tel [phone]
Fax [phone]
[email protected]
12. Disposal
The operating company is responsible for the proper disposal of the two-hand grease gun.
Dispose of the dierent materials in accordance with all industry-specic, local, regional and federal
regulations.
Only qualied personnel is authorized to disassemble and dispose of the grease gun.
