Prestige RAY 7R User manual

RAY 7R MOVING BEAM
USER MANUAL

! ! ! 2!
Ray 7R Moving Beam – User manual
TABLE OF CONTENTS
1Summary 3!
Product Introduction 3!
Content List 3!
2. Safety Information 3!
Safety notes 3!
Safety instructionS 4!
3. Product diagram 5!
4. Features 5!
Installation 6!
Safety 6!
Equipment mounting bracket installation 6!
Device Power 7!
Light Bulb Instructions 8!
Operating and control methods 9!
Control Panel Instructions 9!
Control panel menu functions: 10!
The Control Panel: 12!
Function Table of DMX Control Channel 14!
5. Trouble Shooting 17!
6. Technical Specifications 19!

! ! ! 3!
Ray 7R Moving Beam – User manual
1. SUMMARY
Thank you for purchasing our Ray 7R Moving Beam. Please read these instructions
carefully before operating the system to avoid any possible damage or misuse.
PRODUCT INTRODUCTION
The Ray 7R Moving Beam is an ultra-quiet product that encompasses advanced stage
light technology which is smart, efficient, and smooth to operate. It has internationally
advanced electronic control technology and an intuitive industrial design.
CONTENT LIST
oRay 7R Moving Beam (x1)
oUser Manual (x1)
oDrawbridge (x1)
oSignal Line (x1)
oPower cord (x1)
oBulb (x1)
2. SAFETY INFORMATION
SAFETY NOTES
Seek advice from a professional prior to authoring any repairs
Always ensure the system is disconnected from the power source before assembling,
deconstructing and moving
Avoid direct eye exposure when in use

! ! ! 4!
Ray 7R Moving Beam – User manual
SAFETY INSTRUCTIONS
oThe projector needs to be positioned so that the projection surface is at least
12 meters away from the lens of the projector.
oThe projector must be positioned so that it is at least 0.2 metres away from
flammable objects. Do NOT mount the fixture on flammable surfaces.
oDo not operate the projector if the ambient temperature exceeds 40° C
oThis fitting has an IP20 protection rating; it is not waterproof.
oThe projector must be connected to a power supply system fitted with an
efficient earthing line (Class I appliance according to standard EN 60598-1)
oA qualified electrical installer is required to connect the projector to the main
electrical source.
oEnsure that the main frequency and voltage of the power source corresponds
with projector (according to the electrical data label)
oThe maximum temperature that can be reached on the external surface of the
fitting in a thermally steady state is 100° C
oBefore starting any maintenance work or cleaning the projector, disconnect
from the main power supply.
oAfter switching off, do not remove any parts of the fitting for at least 35
minutes to avoid getting burnt.
oThe fitting is designed to hold in any splinters produced by a lamp exploding.
The lenses must be mounted and, if visibly damaged, they have to be replaced
with genuine spares.
oCarefully read the ‘operating instructions’ provided by the lamp manufacturer
before operating the lamp. Immediately replace the lamp if it is damaged or
deformed.
oThe products referred to in this manual conform to the European Community
Directives to which they are:
oLow Voltage 2006/95/CE
oElectromagnetic Compatibility 2004/08/CE

! ! ! 5!
Ray 7R Moving Beam – User manual

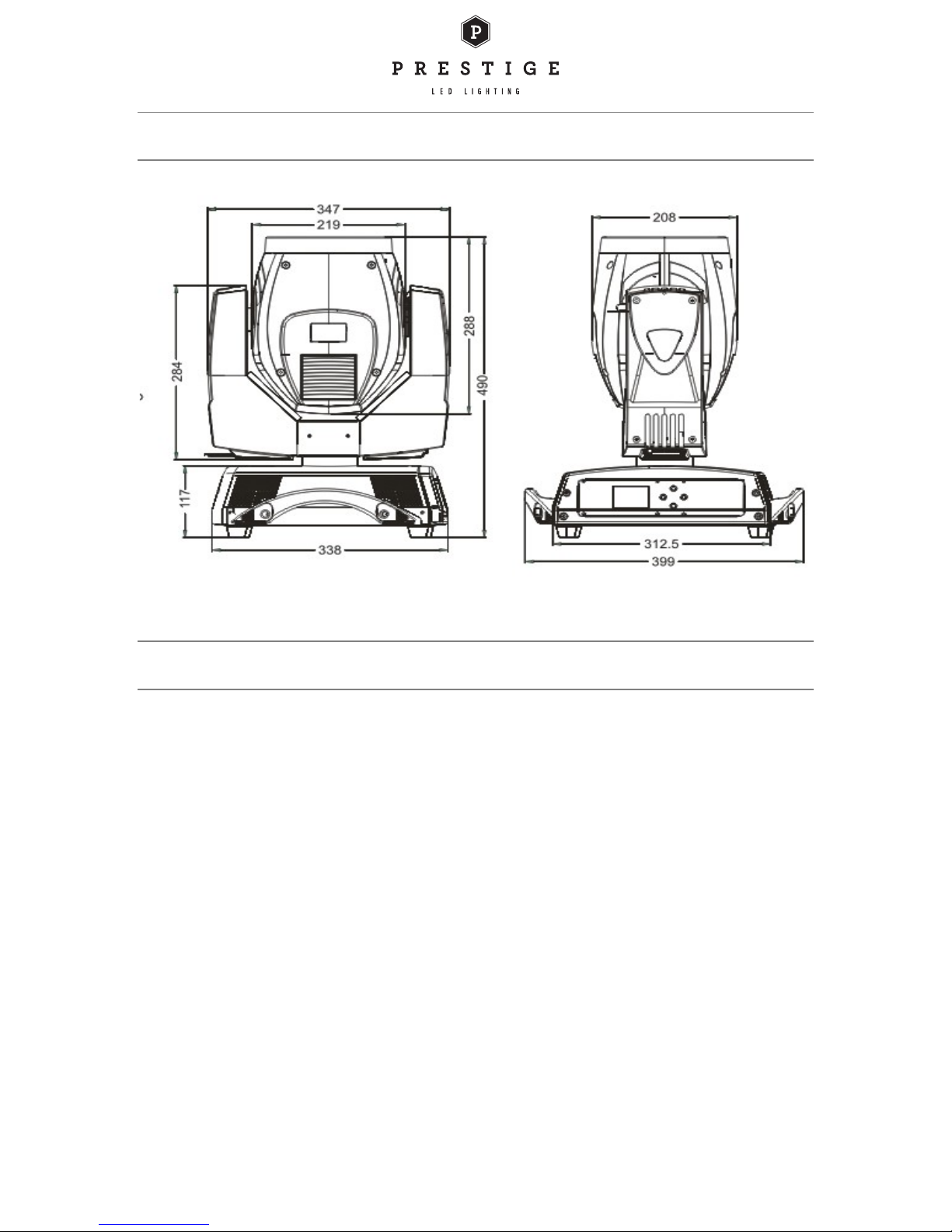

3. PRODUCT DIAGRAM
4. FEATURES
oChannel mode: 17 international standard DMX512 channels
oScanning: A wide range of high-speed scanners, including a Horizontal
scanner (540°) and aVertical scanner (270°), each with a 16 bit scanning
accuracy. It is both smooth and precise, and the scanning speed is adjustable.
oColor wheel: 14 color film + white light;
oGobo wheel: 17 fixed gobos + white circle;
oPrism wheel: includes an eight-prism, and can rotate in both a positive and
negative direction with 16 macro functions;
oDimming :0%~100% Linear dimming;

! ! ! 6!
Ray 7R Moving Beam – User manual
oFocusing :Electronic zoom, Advanced Micro Devices, smooth adjustment of
focal distance;
oAtomization: 0%~100% Linear adjustment of atomization effect;
oLCD panel with blue and white which makes it clear and easy to read the
content displayed;
INSTALLATION
SAFETY
oThis fixture requires professional installation. Please note that the customer
takes full responsibility for the installation of this fixture.
oEnsure all parts of the fixture are in good condition before installing.
oEnsure the point of anchorage is stable before positioning the projector
oThe safety chain must be properly hooked onto the fitting and secured to the
framework, so that if the primary support system fails, the fitting falls as little
as possible.

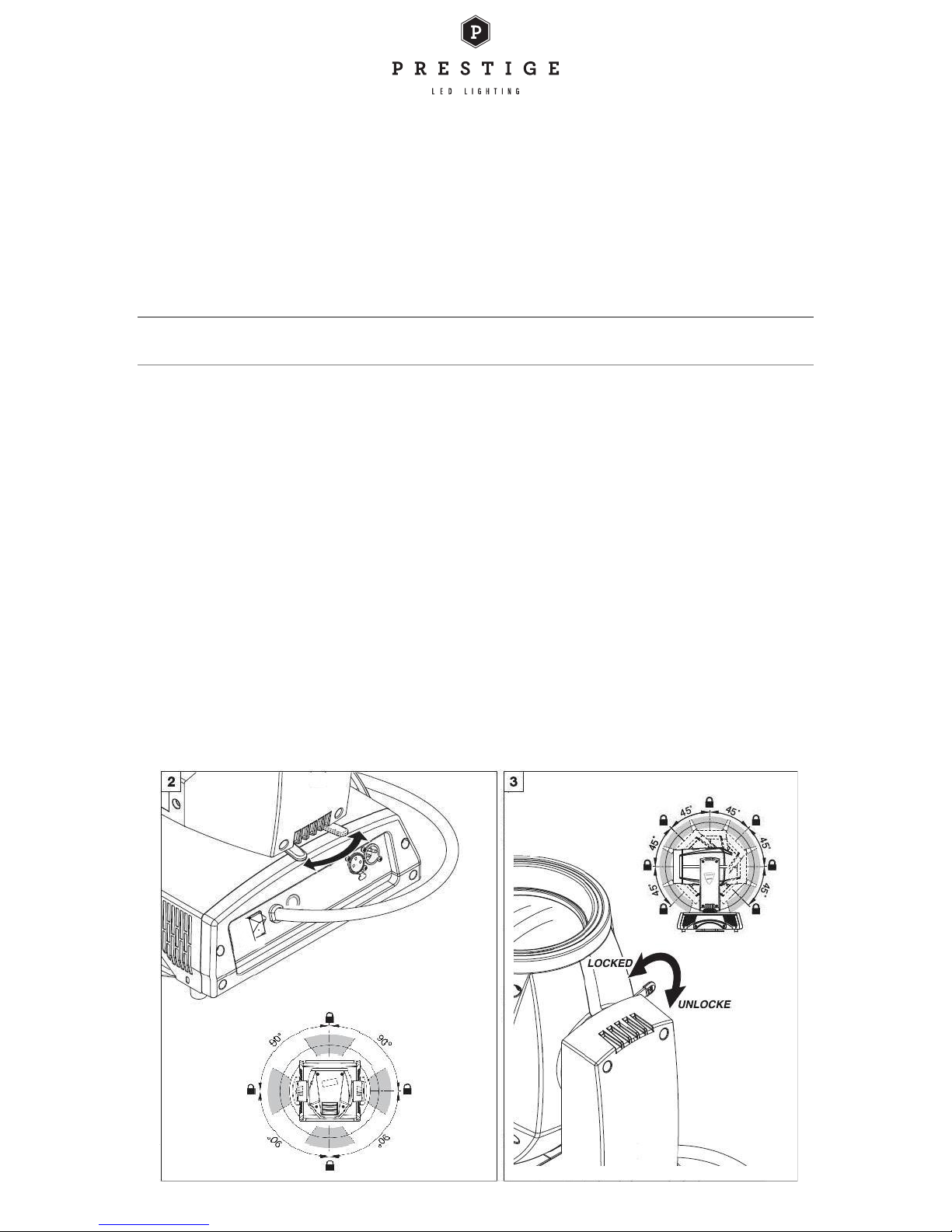

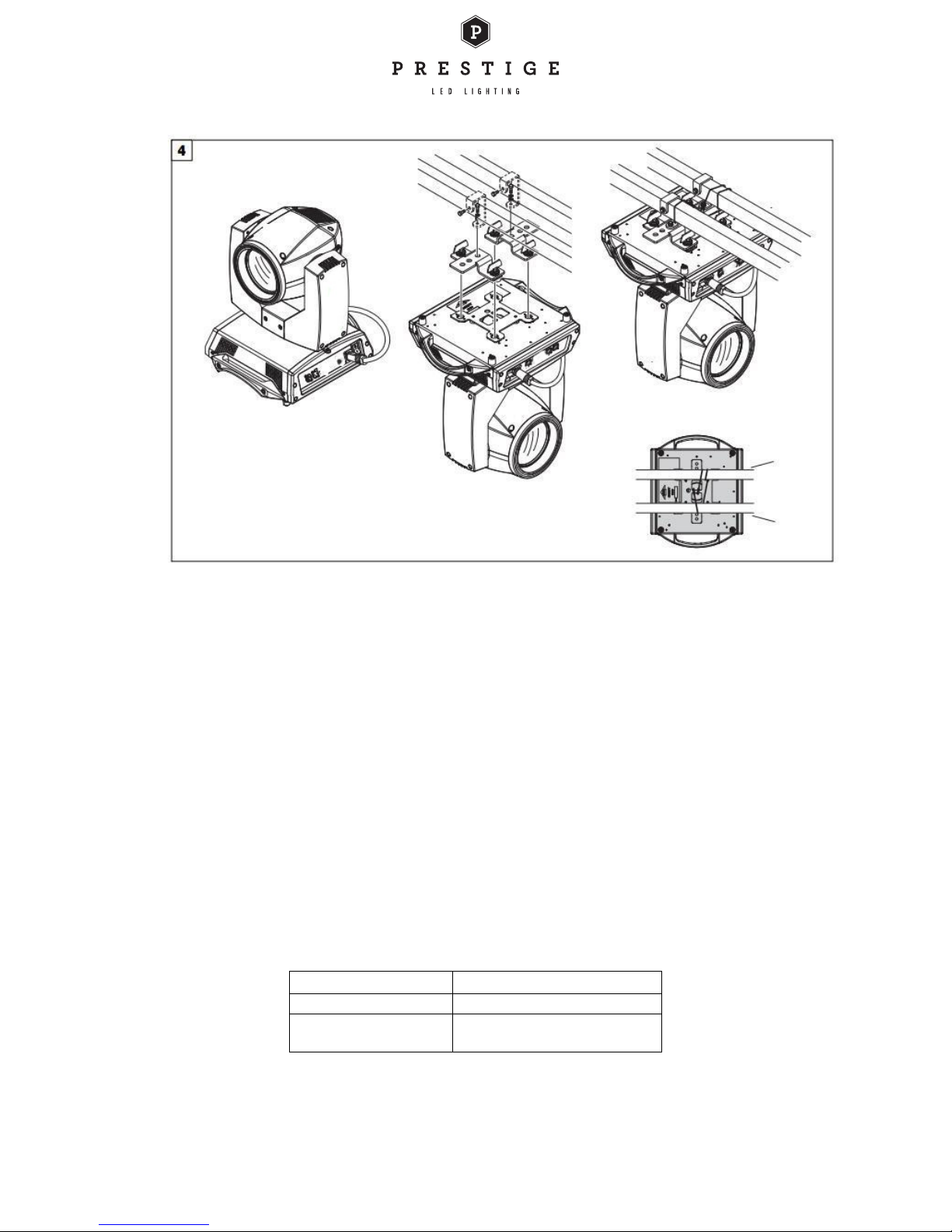

EQUIPMENT MOUNTING BRACKET INSTALLATION
There are transport protection locks on the X and Y axis to facilitate installation and
removal.
The specific method is as shown below.
X-axis of the lock-bit pattern (2)
Y-axis of the lock-bit pattern (3)

! ! ! 7!
Ray 7R Moving Beam – User manual
The lights can be placed on the ground or installed on a truss or on the ceiling/wall.
Caution:
1. Before installation, ensure the clamps and drawbridges and ceiling/truss are good
enough to withstand 10 time the weight of the equipment and other accessories
2. Fasten the clamps and drawbridge with the M12 screw and nuts.
3. Secure the drawbridge to the light base by screwing the fastener clockwise.
4. If the truss can go up and down, the device can be directly clamped from the flight
box. When the equipment is lifted up, place the obstacles underneath the work
area.
5. Secure the fixture with a safety rope and ensure that it can withstand 10 time the
weight of the lamp.
6. Verify that is nothing combustible within 1 meter of the fixture
7. Unlock the protection lock after the installation to avoid damaging the fixture
DEVICE POWER
Fuse:
Power supply
Fuse
200-250V
5A ( main fuse)
100-120V
7A （main fuse）

! ! ! 8!
Ray 7R Moving Beam – User manual
Power Connector:
The electrical professional must be qualified to connect the power for the fixture.
Confirm the power voltage requirement with the power marked on the lamp. Ensure
it has overload and leakage protection
Caution: Connect the equipment to the power supply directly. Do not connect to the
silicon box color system, otherwise it may damage the device. The power line must
have a standard 3-pin plug and socket, in which the yellow/green line can be
connected to the ground. If in doubt, consult a qualified electrician
Power supply color
Brown
Blue
Yellow and green
plug
Fire wire
The zero line
Ground line
mark
L
N
LIGHT BULB INSTRUCTIONS
 Philips 189W bulb  Osram 230W bulb  Philips 260W bulb
Caution: Installing any other types of bulbs may cause potential safety hazard and
equipment damage. In order to reduce the risk of lamp damage, change the bulb
before the light bulb exceeds 125% of its lifespan.
Caution: When changing the bulb, handle it with care. Do not touch the surface
of the bulb to avoid oil contamination. Bulbs must be kept clean. To clean the bulb,
use the paper provided. Bulb leading wires must be inserted securely. Contact of
terminal can damage bulbs. Ensure bulbs are in place and cooling fan wires are
correctly positioned. Routing wires shouldn’t block the fan blade or window
otherwise it will affect the bulb’s cooling effect.
1. Disconnect the power supply and let the lamps cool down. Position the lamp
head horizontally with the Y-axle locked.
2. Screw off the four cross screws of the 4*12 type on the top.
3. Screw off the three wires of the speed fan of 80*80 type.

! ! ! 9!
Ray 7R Moving Beam – User manual
4. Screw off connection plug of the bulb, then change the bulb.
OPERATING AND CONTROL METHODS

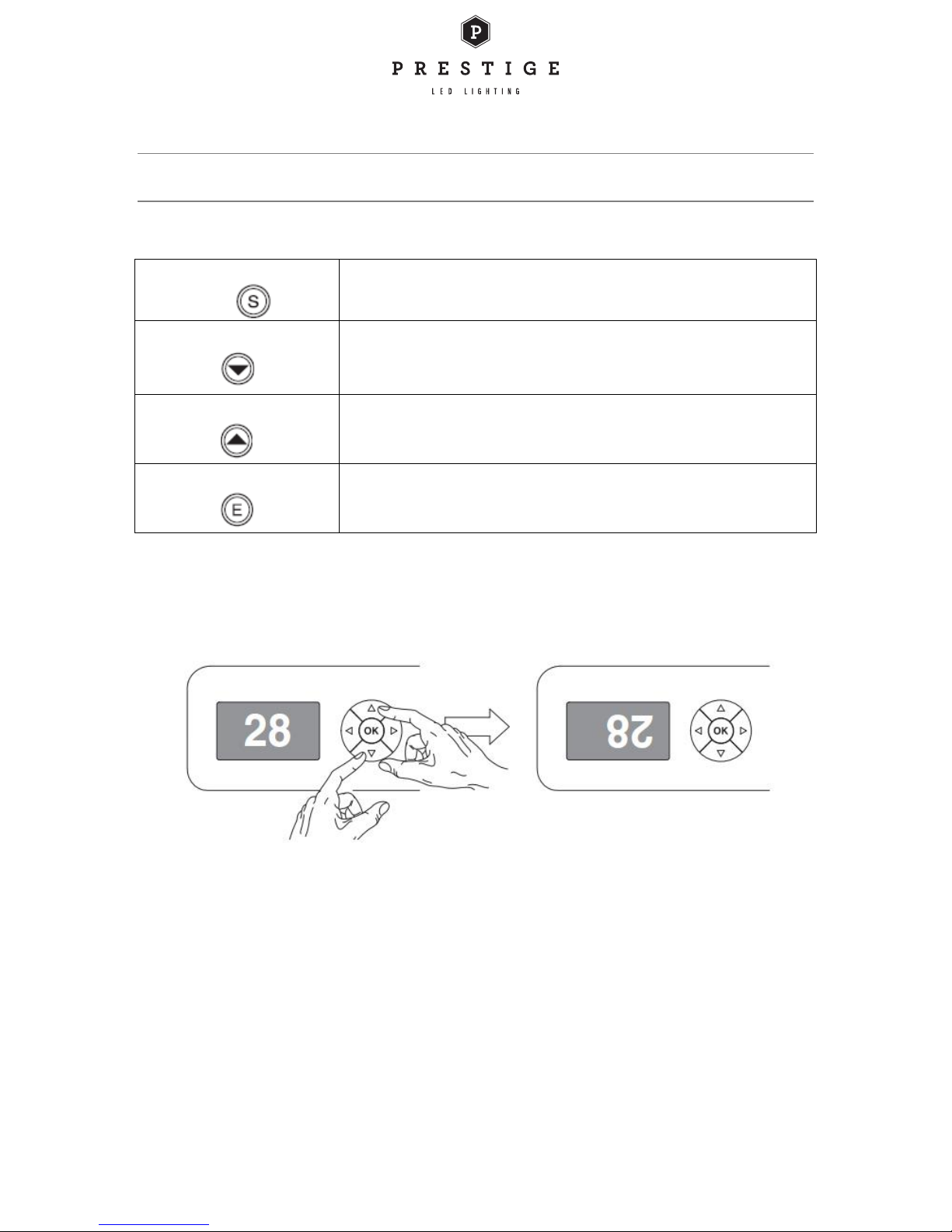

CONTROL PANEL INSTRUCTIONS
SELECT
If in setting menu: Return to Previous Level without
change (exit from the function ).
DOWN
Reduce the value shown or continue to the next item.
When setting parameters, keep holding the DOWN key to
reduce the parameters rapidly.
UP
Increase the value shown or continue to the previous item.
When setting parameters, keep holding the UP key to
increase the parameter rapidly .
ENTER
Enter into the setting menu whilst on standby, enter into
the next menu or confirm and save the parameter. If you
don’t press the key, all the settings will not be saved.
Pressing the DOWN and UP keys simultaneously while the display is in the rest
mode can activate the display reversal function. This is convenient whilst the fixture
is hanging upside down! Please note that when upside down, the S and E function
key will be opposite.

! ! ! 10!
Ray 7R Moving Beam – User manual
1.Press E into
1.DMX Address Set
2.Info
3.Options
5.
Manual control
4.Setting
7.Advanced
6.Test
2.Info
1.Power on
times
2.lamp on
times
3.Lamp strikes
4.System
version
Power on time
Clear time
Lamp on time
Clear time
Lamp strike
Reset strikes
5. Fan monitor
6.Info Feedback
3.Options
1.Pan Inverse
2.Tilt Inverse
3.Pan Tilt Swap
6.Reset via DMX
4.Lamp on via DMX
8.
Lamp off if no DMX
7.
Lamp on by powon
5.Lamp off via DMX
4Setting
1.language
2.Display
3Factory set
Simplified
Chinese
English
Brightness
Light
Mode
Light
Time
Display Inverse
CONTROL PANEL MENU FUNCTIONS:
