Prestige Vivid S150W Moving Spot User manual

Vivid S150W Moving Spot
USER MANUAL

2"
Vivid S150W Moving Spot – User Manual
TABLE OF CONTENTS
1. Summary 3!
Product Introduction 3"
Content List 3"
2. Safety Information 3!
Safety notes 3"
Safety instructionS 4"
3. Product diagrams 4!
4. Features 6!
5. DMX Control 7!
DMX channels 7"
6. Display Operation Instructions 11!
7. Menu InstructionS 12!
7.1 Menu 12"
7.2 DMX address code setting 13"
7.3 option setting 14"
7.4 display setting 15"
7.5 Manual Control Setting 16"
7.6 gobo and color wheel position calibration setting 17"
7.7 test operation setting 17"
7、8 recover factory default setting 18"
7.9 fixture reset 18"
7.10 send setting parameters to other fixtures 19"
8. XLR cable connecting 20!
XRL cable 20"
9. Wiring Diagram 21!
10. Trouble Shooting 23!
11. Technical Specifications 24!
12. Maintenance 24!

3"
Vivid S150W Moving Spot – User Manual
1. SUMMARY
Thank you for purchasing our Vivid S150W Moving Spot. Please read these
instructions carefully before operating the system to avoid any possible damage or
misuse.
PRODUCT INTRODUCTION
The Vivid Moving Spot is lightweight, energy-saving and uses a 150W LED light
source. Its’output luminous flux reaches 6200ml, and it has a 50000-100000 hour life
span. The configuration for the fixture includes: 2 gobo wheels, iris, zoom, focus,
prism and atomization, and its rotation angle can reach 540°Pan and 270°Tilt. It is
recommended that an international standard DMX 512 signal is used for best results,
however using both a DMX512 and DMX Ethernet network is optional.
.
CONTENT LIST
oVivid S150W Moving Spot (x1)
oDMX Signal Line (x1)
oClamp Hanger (x2)
oQuick Release Lock (x4)
oSafety Cable (x1)
oThe usermanual (x1)
oWarranty Card (x1)
2. SAFETY INFORMATION
SAFETY NOTES
Seek advice from a professional prior to authoring any repairs
Always ensure the system is disconnected from the power source before assembling,
deconstructing and moving
Avoid direct eye exposure when in use

4"
Vivid S150W Moving Spot – User Manual
SAFETY INSTRUCTIONS
Ensure the power supply voltage corresponds with the required voltage for the lights,
and is within the range of the requested technical restrictions.
Before installing,check the lights’fasteners and mechanical structuresare in good
condition and there is no apparent damage.
This light is designed for indoor use, however the working temperature must be
kept below 50 degrees. The protection rate is IP20, and the fixture should avoid
liquids –do not use in humid, overheated and dusty conditions.
The fixtures can be mounted in any position,provided there is adequate room for
ventilation. Make sure there are no inflammable and explosive items within 0.5 meters
of the fixture.
The yellow/green cables are for earthling safety. These should not flicker when fixture
is in use. Do not connect the fixture or power cords with any other dimming devices
or power cords.
3.PRODUCT DIAGRAMS

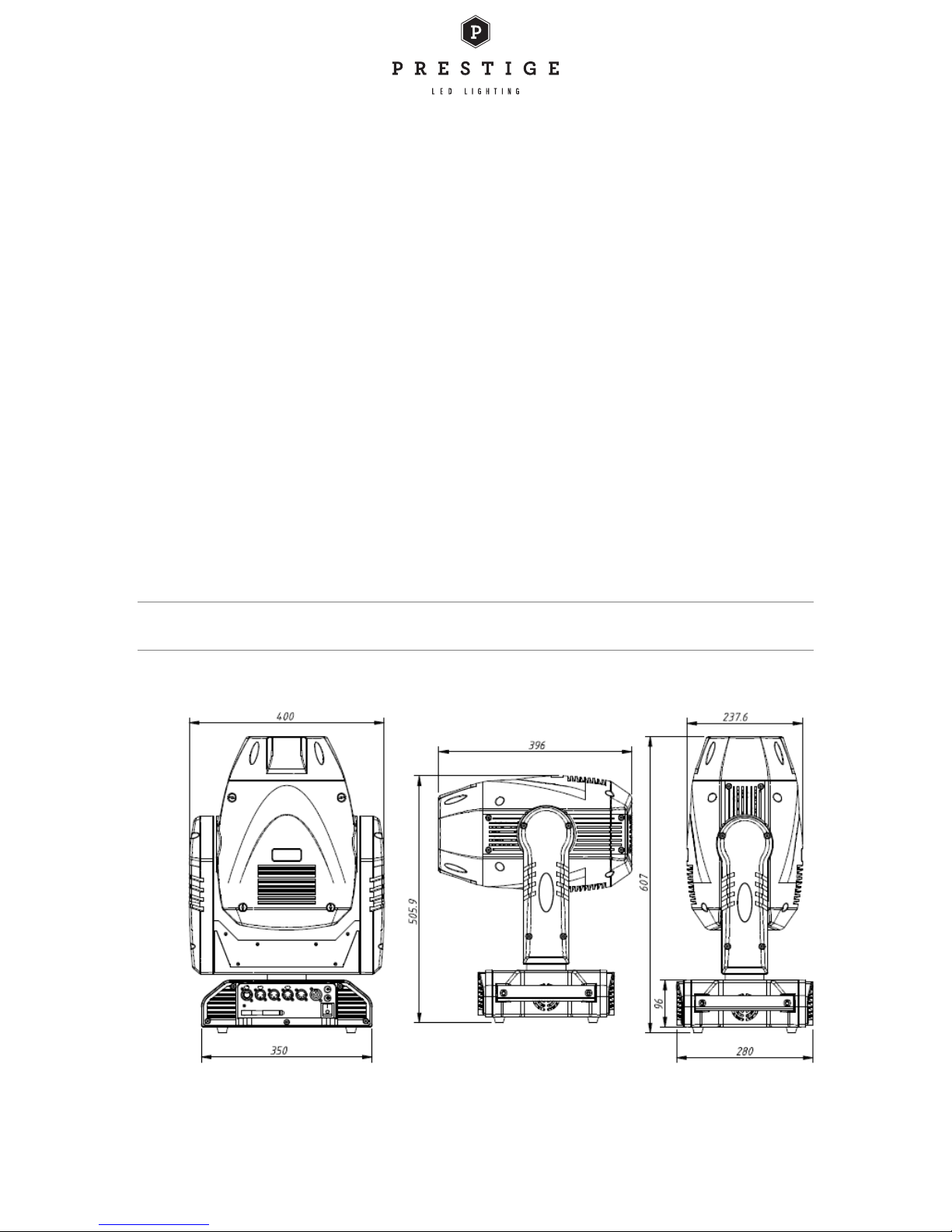

Dimensions:

5"
Vivid S150W Moving Spot – User Manual
Installation Instructions:

6"
Vivid S150W Moving Spot – User Manual
Charging Interchangeable Gobos:
4. FEATURES
o150W high brightness LED
o2 gobo wheels, 2 color wheels, iris, zoom, focus, prism and Atomization
oComplies with DMX512 protocol. Wireless DMX and DMX Ethernet
network is optional.
oThe color wheel can reach any position
o2 DMX channel modes
oMulti strobe effect, 5 dimmer modes
oSound control, auto run
oMaster-slave mode: no need to set slave manually; the slave will receive data
from master automatically
oThe fixture parameter is available for downloaded
oWhen the fan is not working, the LED won’t light up

7"
Vivid S150W Moving Spot – User Manual
5. DMX CONTROL
DMX CHANNELS
17channel
s
19channel
s
DMX
value
function
CH1
CH1
0~255
dimmingIntensity
Zero!full
CH2
CH2
0~10
11~20
21~60
61~100
101~140
141~180
181~220
221~255
ShutterStrobe
Shutter Closed
Shutter Open
Strobeslow!fast
Electronic Sinewaveslow!fast
Random Strobeslow!fast
Opening pulseslow!fast
Closing pulseslow!fast
Electronic Squarewaveslow!fast
CH3
CH3
0~255
Pan
-
CH4
0~255
Pan,fine
CH4
CH5
0~255
Tilt
-
CH6
0~255
Tilt,fine
CH5
CH7
0-255
Pan/tilt speedfast!slow
CH6
CH8
0~10
11~20
21~30
31~40
41~50
51~60
61~70
71~80
81~90
91~100
101~110
111~120
121~130
131~140
141~150
151~190
191~230
231~240
241~255
Gobo 1
no gobo
gobo1
gobo2
gobo3
gobo4
gobo5
gobo6
gobo7
shaking gobo1
shaking gobo2
shaking gobo3
shaking gobo4
shaking gobo5
shaking gobo6
shaking gobo7
CW flow effectslow!fast
CCW flow effectslow!fast
sound running
Reserved
CH7
CH9
0~20
21~80
81~140
141~220
221~255
Gobo rotation
No rotation
CWslow!fast
CCWslow!fast
CW!CCW cycleslow!fast
Reserved
CH8
CH10
Gobo 2

8"
Vivid S150W Moving Spot – User Manual
0~10
11~20
21~30
31~40
41~50
51~60
61~70
71~80
81~90
91~100
101~110
111~120
121~130
131~140
141~150
151~190
191~230
231~240
241~255
no gobo
gobo1
gobo2
gobo3
gobo4
gobo5
gobo6
gobo7
shaking gobo1
shaking gobo2
shaking gobo3
shaking gobo4
shaking gobo5
shaking gobo6
shaking gobo7
CW flow effectslow!fast
CCW flow effectslow!fast
sound running
Reserved
CH9
CH11
0~10
11~17
18
19~25
26
27~33
34
35~41
42
43~49
50
51~57
58
59~65
66
67~73
74
74~80
81~90
91~100
101~110
111~120
121~130
131~140
141~150
151~180
181~190
191~220
221~230
231~255
Color wheel 1
Open(white)
Continuously scrolling color wheel position
Open!Color 1
Color 1
Color 1!Color 2
Color 2
Color 2!Color 3
Color 3
Color 3!Color 4
Color 4
Color 4!Color 5
Color 5
Color 5!Color 6
Color 6
Color 6!Color 7
Color 7
Color 7!Open
Open
Stepped scroll (indexed) color wheel positions
Openwhite
Color 1dark blue
Color 2orange
Color 3red
Color 4purple
Color 5green
Color 6pink
Color 7light yellow
CW flow effectslow!fast
Color wheel stop
CCW flow effectslow!fast
sound running

9"
Vivid S150W Moving Spot – User Manual
Reserved
CH10
CH12
0~10
11~17
18
19~25
26
27~33
34
35~41
42
43~49
50
51~57
58
59~65
66
67~73
74
74~80
81~90
91~100
101~110
111~120
121~130
131~140
141~150
151~180
181~190
191~220
221~230
231~255
Color wheel 2
Open(white)
Continuously scrolling color wheel position
Open!Color 1
Color 1
Color 1!Color 2
Color 2
Color 2!Color 3
Color 3
Color 3!Color 4
Color 4
Color 4!Color 5
Color 5
Color 5!Color 6
Color 6
Color 6!Color 7
Color 7
Color 7!Open
Open
Stepped scroll (indexed) color wheel positions
Openwhite
Color 1fluorescent
Color 2light green
Color 3cooling tablet
Color 4copious cooling
Color 5yellow
Color 6wine red
Color 7light blue
CW flow effectslow!fast
Color wheel stop
CCW flow effectslow!fast
sound running
Reserved
CH11
CH13
0~150
151~190
191~230
231~255
Iris
Open!closed
Opening pulseslow!fast
Closing pulseslow!fast
Reserved
CH12
CH14
0~255
Zoomzoom in!zoom out
CH13
CH15
0~255
Focus
CH14
CH16
0~10
11~20
21~100
101~180
181~255
Prism
No prism
prism active
CWslow!fast
CCW slow!fast
CW!CCW cycleslow!fast
CH15
CH17
0~50
51~255
No atomization
Atomization
CH16
CH18
0~50
Blackout while P/T moving
Disable

10"
Vivid S150W Moving Spot – User Manual
51~255
Enable
CH17
CH19
0~10
11~20
21~30
31~40
41~50
51~60
61~254
255
Control channel
Dimmer modes set by menu
Dimmer off
Dimmer 1
Dimmer 2
Dimmer 3
Dimmer 4
Dimmer modes set by menu
Reset (at least keep 5S)

11"
Vivid S150W Moving Spot – User Manual

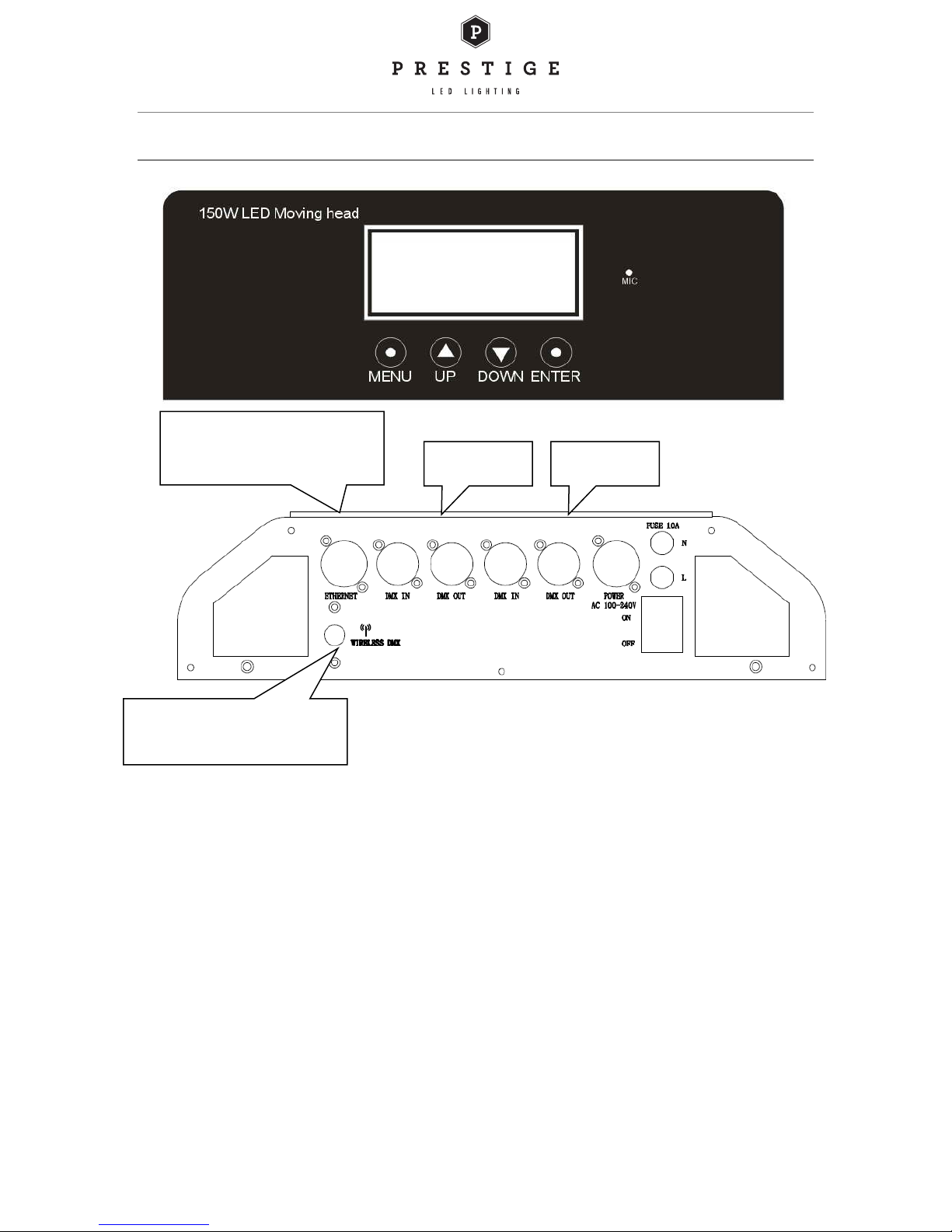

6. DISPLAY OPERATION INSTRUCTIONS
MENU: Return to the main menu or a previous menu option
ENTER: Select the current menu option or save the option
UP: Increase the menu selection
DOWN: Decrease the menu selection
DMX Ethernet can be
ordered seperately
Wireless DMX can be
ordered seperately
3PIN-XLR
5PIN-XLR

12"
Vivid S150W Moving Spot – User Manual
7. MENU INSTRUCTIONS
7.1 MENU
MENU
DMX
ADDRESS
001-512


OPTION
PAN INVERTE
ON/OFF


TILT INVERTE
ON/OFF


P/T SWAP
ON/OFF


P/T FEEDBACK
ON/OFF


DIMMER MODE
OFF,DIMMER1,DIMMER2,DIM
MER3,DIMMER4


CHANNEL MODE
17CH/19CH

DISPLAY
DISPLAY
INTENSITY
01-32


DISPLAY SLEEP
PERMANENTLY ON/2
MINUTES/5 MINUTES/10
MINUTES

MANUAL
CONTROL
CH1:INTENSITY
0-255


CH2:SHUT/STRO
BE
0-255


CH3:PAN
0-255


CH4:PAN FINE
0-255


CH5:TILT
0-255


CH6:TILT FINE
0-255


CH7:P/T SPEED
0-255


CH8:GOBO1
0-255


CH9:GOBO1
ROTATE
0-255


CH10:GOBO2
0-255


CH11:COLOR1
0-255


CH12:COLOR2
0-255


CH13:IRIS
0-255


CH14:ZOOM
0-255


CH15:FOCUS
0-255


CH16:PRISM
0-255


CH17:ATOMIZATI
ON
0-255


CH18:MOVING
0-255

13"
Vivid S150W Moving Spot – User Manual
BLACKOUT


CH19:CONTROL
0

CALIBRATION
GOBO1
0-255


GOBO2
0-255


COLOR1
0-255


COLOR2
0-255
PRISM
ATOMIZATION
0-255
0-255

TEST
OPERATION
SOUND
CONTROL
RUNNING… *


AUTO
RUNNING… *

FACTORY
DEFAULT
CALIBRATION
LOAD
YES/NO


SETTING LOAD
YES/NO

FIXTURE
RESET
YES/NO


SEND
SETTING
YES/NO

Note:
1. When entering MENU , the fixture is set automatically as a master to send data
for the other fixtures to receive and work synchronously. When turning on the light
after the power has been off, the fixture will return to the same position.
2. The content with underline is factory default value
7
.
2 DMX ADDRESS CODE SETTING
MENU
DMX ADDRESS
001-512
"Choose DMX ADDRESSfrom menu and press ENTER to set DMX
address code
"PressUP/DOWNto select address code 1~512
"PressENTERto exit and save your option

14"
Vivid S150W Moving Spot – User Manual
7
.
3 OPTION SETTING
MENU
OPTION
PAN INVERTE
ON/OFF


TILT INVERTE
ON/OFF


P/T SWAP
ON/OFF


P/T FEEDBACK
ON/OFF


DIMMER MODE
OFF,DIMMER1,DIMMER2,DIM
MER3,DIMMER4
CHANNEL
MODE
17CH/19CH
7
.
3
.
1 PAN INVERTE
Choose【PAN INVERTE】from menu, press【ENTER】to select PAN
INVERTE
Press【UP/DOWN】to choose【ON】or【OFF】
Press【ENTER】to exit and save the option
7
.
3
.
2 TILT INVERTE
Choose【TILT INVERTE】from menu, press【ENTER】to select TILT
INVERTE
Press【UP/DOWN】to choose【ON】or【OFF】
Press【ENTER】to exit and save the option
7
.
3
.
3 PAN/TILT SWAP
Choose【P/T SWAP】from menu, press【ENTER】to select PAN/TILT SWAP
Press【UP/DOWN】to choose【ON】or【OFF】
Press【ENTER】to exit and save the option
7
.
3
.
4PAN/TILT FEEDBACK
Choose【P/T FEEDBACK】from menu, press【ENTER】to select PAN/TILT
FEEDBACK
Press【UP/DOWN】to choose【ON】or【OFF】
Press【ENTER】to exit and save the option
Note: After pressing【ENTER】to confirm, PAN/TILT will reset automatically
7
.
3
.
5 Dimmer Modes Setting
Choose【DIMMER MODE】from menu, press【ENTER】to select dimmer
modes
Press【UP/DOWN】to choose【OFF】，【DIM1】，【DIM2】，【DIM3
】or【DIM4】

15"
Vivid S150W Moving Spot – User Manual
Press【ENTER】to exit and save the option
Note: From 【OFF】to【DIM4】, the dimming speed is fast to slow.
7
.
3
.
6DMX channel mode setting
Choose【CHANNEL MODE】from menu, press【ENTER】to select DMX
channel
Press【UP/DOWN】to choose【17CH】or【19CH】
Press【ENTER】to exit and save the option
7
.
4 DISPLAY SETTING
MENU
DISPLAY
DISPLAY INTENSITY
01-32


DISPLAY SLEEP
PERMANENTLY ON/2
MINUTES/5
MINUTES/10 MINUTES

16"
Vivid S150W Moving Spot – User Manual
7.4.1 Display Intensity Setting
Choose【DISPLAY INTENSITY】from menu, press【ENTER】to set display
intensity
Press【UP/DOWN】to choose【1~32】
Press【ENTER】to exit and save the option
7
.
4
.
2 Display Sleep Mode Setting
Choose【DISPLAY SLEEP】from menu, press【ENTER】to set display sleep
Press【UP/DOWN】to choose【PERMANENTLY ON】，【2 MINUTES】
，【5MINUTES】，【10 MINUTES】
Press【ENTER】to exit and save the option
7
.
5 MANUAL CONTROL SETTING
MENU
MANUAL
CONTROL
CH1:INTENSITY
0-255


CH2:SHUT/STROBE
0-255


CH3:PAN
0-255


CH4:PAN FINE
0-255


CH5:TILT
0-255


CH6:TILT FINE
0-255


CH7:P/T SPEED
0-255


CH8:GOBO1
0-255


CH9:GOBO1 ROTATE
0-255


CH10:GOBO2
0-255


CH11:COLOR1
0-255


CH12:COLOR2
0-255


CH13:IRIS
0-255


CH14:ZOOM
0-255


CH15:FOCUS
0-255


CH16:PRISM
0-255


CH17:ATOMIZATION
0-255


CH18:MOVING
BLACKOUT
0-255


CH19:CONTROL
0
Choose【MANUAL CONTROL】from menu, press【ENTER】to set manual
control of DMX value of【CH1】~【CH19】
Press【UP/DOWN】to choose【0~255】
Press【ENTER】to exit and save the option

17"
Vivid S150W Moving Spot – User Manual
Note: Please find the DMX value of 【CH1】~【CH19】in the DMX control
function section (Chap 5.)
7
.
6 GOBO AND COLOR WHEEL POSITION CALIBRATION
SETTING
MENU
CALIBRATION
GOBO1
0-255


GOBO2
0-255


COLOR1
0-255


COLOR2
0-255
PRISM
0-255


ATOMIZATION
0-255
Choose【CALIBRATION】from menu, press【ENTER】for 3S to set gobo,
color wheel, prism and atomization position calibration
Press【UP/DOWN】to choose【0~255】
Press【ENTER】to exit and save the option
Note:
1.After pressing【ENTER】to confirm, gobo and color wheel , prism and
atomization will reset automatically once
2.When the value is 128，the gobo and color wheel are in the middle; when
the value is below 128, the gobo and color wheel are moving left by fine
adjustment; when the value is above 128, the gobo and color wheel are moving
right by fine adjustment.
3. The best way to adjust the position of the prism:
(1) turn on the light, set the value of ZOOM channel to 255, diffuse the
light on the condenser lens.
(2) set the value of PRISM channel to 15.
(3) adjust the calibration value of PRISM from【0~255】, press【
ENTER】and observe from the condenser lens to make sure the light
goes through the prism completely and there is no light leak on the edge.
Note: The calibration part has been adjusted to the best position at factory. Please
do not change if not necessary.
7
.
7 TEST OPERATION SETTING
MENU
TEST
OPERATION
SOUND CONTROL
RUNNING… *


AUTO
RUNNING… *

18"
Vivid S150W Moving Spot – User Manual
7
.
7
.
1 Sound Control Mode
Choose【SOUND CONTROL】from menu, press【ENTER】to enter SOUND
CONTROL mode
Note: The sound control sensitivity is recognized by adjusting R3 on display
board.
7
.
7
.
2 Auto Run Mode
Choose【AUTO】from menu, press【ENTER】to enter auto run mode
7、8 RECOVER FACTORY DEFAULT SETTING
MENU
FACTORY
DEFAULT
CALIBRATION LOAD
YES/NO


SETTING LOAD
YES/NO
7
.
8
.
1Recover factory default of gobo and color wheel position
calibration load
Choose【CALIBRATION LOAD】from menu, press【ENTER】to recover the
factory default of gobo and color wheel position calibration load
Press【UP/DOWN】to choose【YES】
Press【ENTER】to exit and save the option
Note:
1. After pressing【ENTER】to confirm, gobo and color wheel will reset
automatically once
2. The factory default value is 128, i.e. the middle.
3. The calibration value of PRISM and ATOMIZATION will not be recovered.
7
.
8
.
2 Recover factory default of setting parameter
Choose【SETTING LOAD】from menu, press【ENTER】to recover the factory
default of setting parameter
Press【UP/DOWN】to choose【YES】
Press【ENTER】to exit and save the option
Note: After pressing【ENTER】to confirm, PAN/TILT will reset automatically
once
7
.
9 FIXTURE RESET
MENU
FIXTURE
RESET
YES/NO


19"
Vivid S150W Moving Spot – User Manual
Choose【FIXTURE RESET】from menu, press【ENTER】to enter fixture reset
Press【UP/DOWN】to choose【YES】
Press【ENTER】to confirm reset
7
.
10 SEND SETTING PARAMETERS TO OTHER FIXTURES
MENU
SEND
SETTING
YES/NO

Choose【SEND SETTING】from menu, press【ENTER】to set sending setting
parameters to other fixtures
Press【UP/DOWN】to choose【YES】
Press【ENTER】to confirm sending
Note:
The fixture should disconnect from the DMX controller before sending the
parameters.
The setting of【DMX ADDRESS】and 【CALIBRATION】of gobo, color
wheel , prism and atomization are invalid and won’t be sent.
The other fixtures will reset automatically once after receiving data correctly.

20"
Vivid S150W Moving Spot – User Manual
8. XLR CABLE CONNECTING
XRL CABLE
The standard connection of the XRL should have one end connecting to the male
plug, and the other connecting to the female.
As below: pin 1 -ground, pin 2 -negative signal, pin 3 -positive signal
Note: In order to avoid failures and interference with signal transmission, connect a
resistance 120（1/4W）at the end of the DMX connection as shown below:
The conversion between 3 pin and 5 pin XLR.
If the output cable of the DMX512 controller is a 5PIN, a5PIN to 3PIN cable is
necessary.
