20 01 15 5. .8 8 ( (V Ve er rs si io on n 1 1) )
WT-1550-EM10
1550nm External Modulated
Optical Transmitter
Operating Manual

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 1 -
Table of Contents
Table of Contents......................................................................................................- 1 -
Safety Instruction......................................................................................................- 2 -
1. Overview...............................................................................................................- 3 -
1.1 About This Manual ......................................................................................- 3 -
1.2 Product Description .....................................................................................- 3 -
1.3 Product Applications....................................................................................- 4 -
2. Technique Parameters...........................................................................................- 5 -
2.1 Optical Parameters.......................................................................................- 5 -
2.2 Model Test Indicators...................................................................................- 5 -
2.3 Test Condition..............................................................................................- 6 -
2.4 Technical Data Sheet....................................................................................- 6 -
3. Panel Interface and Menu System Description.....................................................- 7 -
3.1 Front Panel...................................................................................................- 7 -
3.1.1 Indicator Description .........................................................................- 7 -
3.2 Rear Panel....................................................................................................- 8 -
3.3 Power Module..............................................................................................- 8 -
3.3.1 220V Power Module..........................................................................- 8 -
3.3.2 48V Power Module............................................................................- 9 -
3.4 Menu Operation...........................................................................................- 9 -
3.4.1 Main Menu.........................................................................................- 9 -
3.4.2 Display Menu...................................................................................- 10 -
3.4.3 Set Menu.......................................................................................... - 11 -
3.4.4 Alarm Menu .....................................................................................- 12 -
3.4.5 AGC Mode....................................................................................... - 12 -
3.4.6 MGC Mode......................................................................................- 12 -
3.4.7 SBS Suppression Adjustment ..........................................................- 12 -
4. Installing the WT-1550-EM10 Optical Transmitter............................................- 13 -
4.1 Receiving and Inspecting...........................................................................- 13 -
4.2 Precautions.................................................................................................- 13 -
4.3 Mounting WT-1550-EM10 ........................................................................- 14 -
4.3.1 Mounting the EM10 in the Rack......................................................- 14 -
4.3.2 Connecting the RF Cables ...............................................................- 14 -
4.3.3 Connecting the Optical Fiber Cables...............................................- 14 -
4.3.4 Connecting the Ethernet Cable ........................................................- 15 -
4.3.5 Connecting Power............................................................................- 15 -
5. Communication Setup.........................................................................................- 16 -
5.1 RS232 Communication Interface Description...........................................- 16 -
5.2 Set up the Hyper Terminal .........................................................................- 16 -
5.3 Operating Parameters Configuration .........................................................- 18 -
5.4 Remote Monitoring: SNMP.......................................................................- 21 -
5.5 WEB Network Management......................................................................- 22 -

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 2 -
6. Maintenance and Troubleshooting......................................................................- 24 -
6.1 Cleaning Fiber Optic Connectors...............................................................- 24 -
6.1.1 Cleaning Patch Cord or Pigtail Fiber Optical Connectors...............- 24 -
6.2 Troubleshooting .........................................................................................- 25 -
6.3 After-sales Service Description..................................................................- 26 -
6.4 Disclaimer..................................................................................................- 26 -
Safety Instruction

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 3 -
1. Overview
1.1 About This Manual
This instruction manual is a complete guide to install and operate the (1RU)
WT-1550-EM10 series 1550nm external modulated optical transmitter. Please read
the entire manual before beginning installation.
This manual applies to WT-1550-EM10 series external modulated optical
transmitter.
• Chapter 1 gives general information about the WT-1550-EM10 series 1550nm
external modulated optical transmitter.
• Chapter 2 describes the complete technical specifications of WT-1550-EM10.
• Chapter 3 describes the front/rear panel interfaces and menu system.
• Chapter 4 tells you how to install WT-1550-EM10 series external modulated optical
transmitter.
• Chapter 5 tells you the communication setting of WT-1550-EM10.
• Chapter 6 describes maintenance and what to do in the event of problems.
1.2 Product Description
WT-1550-EM10 series optical transmitter is 1550nm external modulated single
output optical transmitter. It is specially developed for the CATV signal that satisfies
HFC network, and the medium/short distance transmission of cable phone and cable
data.
Working principle
WT-1550-EM10 series transmitter has 7 function modules: RF control, DFB laser,
optical modulator, SBS control, CSO control, communication/display control and
power supply.
Automatic gain control circuit (AGC) or manual gain control circuit (MGC)
amplifies the RF signal. AGC or MGC control makes the optical modulator maintain a
suitable input level. Use the detected RF root-meansquare(RMS)-total power to
calculate the optical modulation index(OMI).
In general we recommend using the AGC function, and special users can use the
MGC function to adjust the CNR/CSO/CTB performance indexes.
The core of transmitter is the optical modulator. The 1550nm signal input the
optical modulator, make the laser intensity changed follow the external RF signal
voltage, and then generate theAM optical signal.

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 4 -
Stimulated Brillouin Scattering (SBS) occurs, when the optical input power is
greater than a certain threshold value. SBS generate the lower frequency
backscattered light which will attenuate the transmission light and return to the laser
while destroying its performance. Causing optical power fluctuation, generates large
noise, and seriously deteriorates the system carrier to noise ratio (CNR). EM10 series
optical transmitter adopts SBS control technology which is independent researched
and developed by ourselves to improve the system CNR.
The optical modulator has a two-way optical signal output. Parts of that signal
are routed to an InGaAs photodiode. This detection of the optical signal has two
functions:
1) Detect whether the laser is normal working. Once the output optical power is
2dB lower than standard power, alarm will be set off.
2) Detect CSO distortion to optimize the bias point of the optical modulator. For
working normal the detector circuit needs at least two carrier signal inputs with an
interval of 24MHz. There is a CSO initialization program in the boot process. If the
CSO install failed, the RF indicator will flash red, see details in 6.2 Troubleshooting.
Block Diagram
1.3 Product Applications
• High-power distribution network
• Redundancy loop architecture
• FTTx network
• RFOG application
• DWDM network

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 5 -
2. Technique Parameters
2.1 Optical Parameters
Item
Unit
Value
Optical Wavelength
nm
1545～1560 (or specified by the user)
Side-mode Suppression ratio
dB
>30
Relative Intensity Noise
dB/Hz
<-155
Optical Power
dBm
1*3, 1*5,1*6
SBS Threshold Value
dBm
+13～+16.5 (Continuously adjustable)
Laser Linewidth
MHz
0.65
2.2 Model Test Indicators
Test Model
D59
D84
Channel Plan
PAL D59
PAL D84
Channel Number
TV/FM/QAM64
59/0/0
84/0/0
Bandwidth Noise
5
5
CNR Tx/Rx
52.5
51.0
CNR Link 1
52
50.5
CNR Link 2
51
49..5
CSO Tx/Rx and Link 1
65
65
CSO Link 2
65
65
CTB
65
64

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 6 -
2.3 Test Condition
First stage
EDFA
First
paragraph
fiber length
Second
stage
EDFA
Second
paragraph
fiber length
RX
SBS
(dBm)
Tx/Rx
No
No
No
no
0dBm
13.5
Link 1
No
35km
no
no
0dBm
13.5
Link 2
16dBm
65km
no
no
0dBm
16
Link 3
13dBm
50km
13dBm
50km
0dBm
13.5
Rx with 8 pA/ÖHz input noise current density; EDFA with 5dB noise figure; RF input level at 80
dBμV / TV channel;
2.4 Technical Data Sheet
Item
Unit
Technical Parameters
RF range
MHz
47～1003
RF flatness
dB
+/-0.75
RF return loss
dB
>16
RF input impedance
Ω
75
RF input connector type
F type
Rated input level
dBµV
80
Input level range
dBµV
78~96 (AGC mode, modulating signal)
AGC control range
dB
+3～-3
MGC adjustable range
dB
0~15
Optical connector
SC/APC, FC/APC
Operating temperature
°C
-5～50
Storage temperature
°C
-30～+70
Power Source
Specification
V
90～265VAC
36～72VDC
Consumption
W
≤60
Dimension
mm
483(L) ×455(W) ×44(H)
Total Weight
kg
5.5

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 7 -
3. Panel Interface and Menu System Description

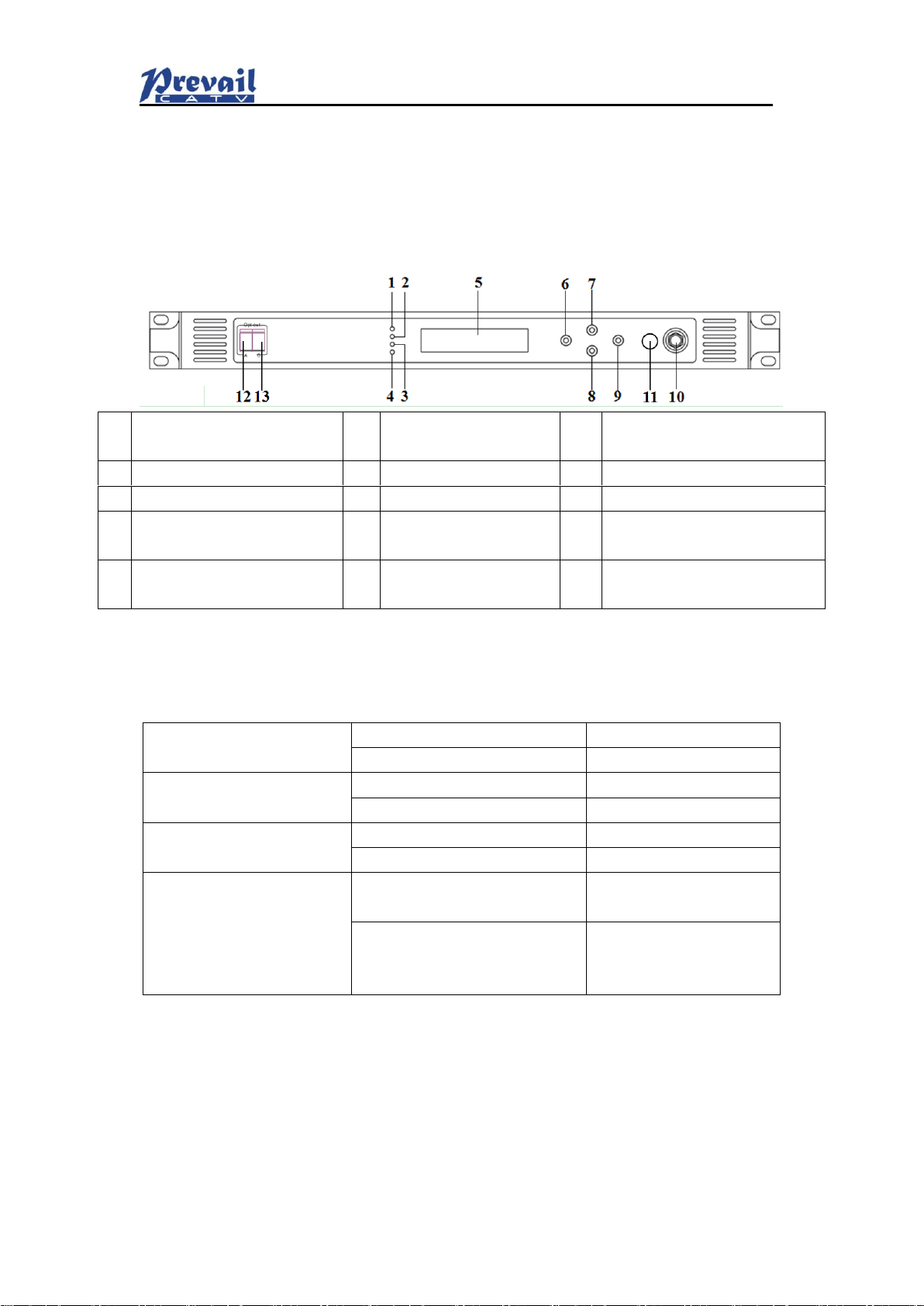

3.1 Front Panel
1
Power indicator
2
AGC indicator
3
RF modulation degree
indicator
4
Laser indicator
5
LCD
6
ESC key
7
UP key
8
DOWN key
9
Enter key
10
-20dB RF input test port
11
RF input port (or on the
rear panel, optional)
12
Optical output interfaceA (or
on the rear panel, optional)
13
Optical output interface B (or
on the rear panel, optional)
3.1.1 Indicator Description
Power indicator
One power supply
LED yellow
Two power supplies
LED green
AGC indicator
AGC mode
LED green
MGC mode
LED off
RF modulation degree
indicator
Normal
LED green
Abnormal
LED flash red
Laser indicator
Bias current, cooling current and
output power are all normal
LED green
At least one of bias current,
cooling current and output power
is abnormal
LED flash red

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 8 -

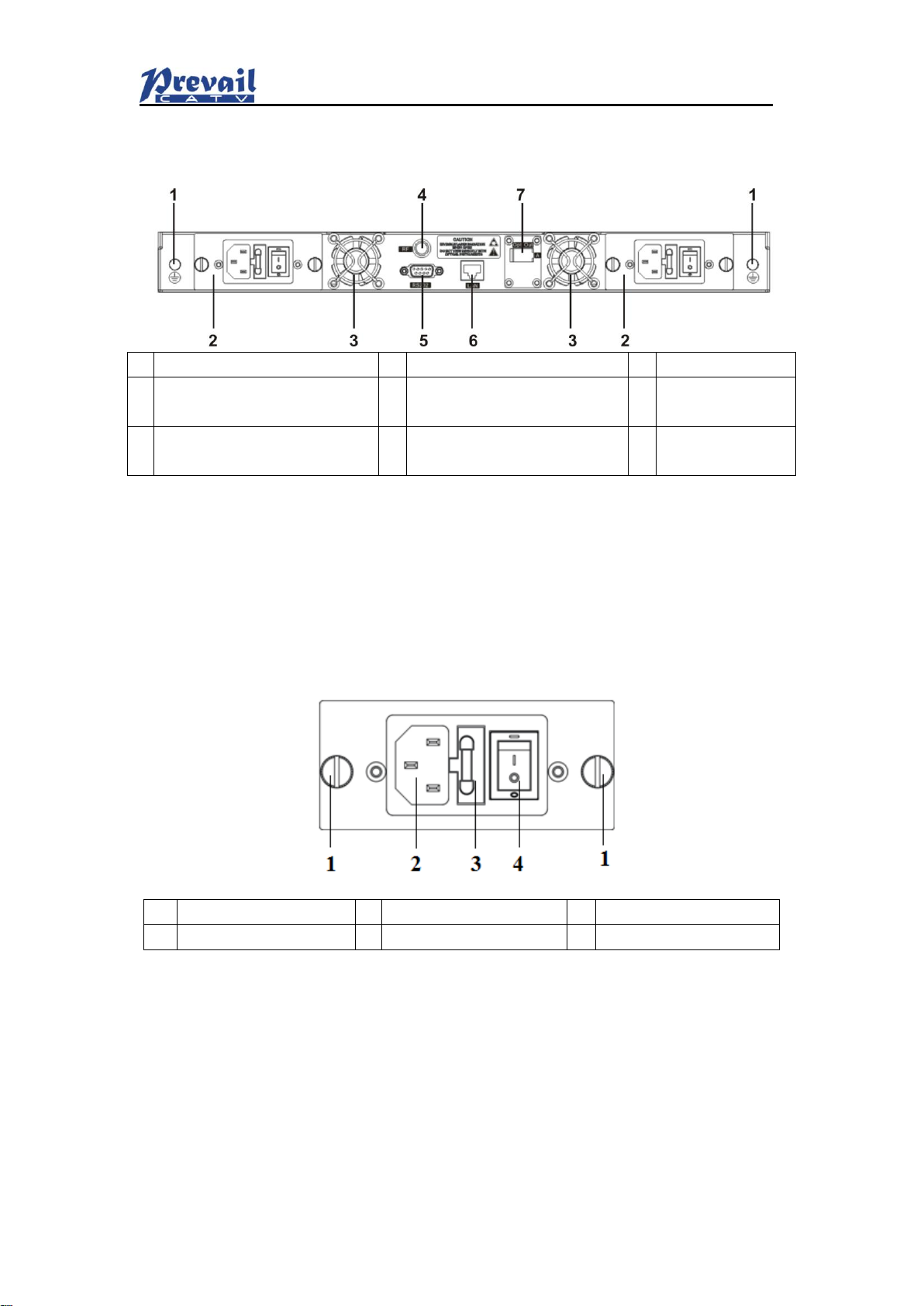

3.2 Rear Panel
1
Ground stud
2
Power module
3
Fan
4
RF input port (or on the front
panel, optional)
5
RS232 interface
6
LAN interface
7
Optical output interface (or on
the front panel, optional)
3.3 Power Module
3.3.1 220V Power Module
1
Mounting screws
2
220V power outlet
3
Fuse
4
Power switch

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 9 -

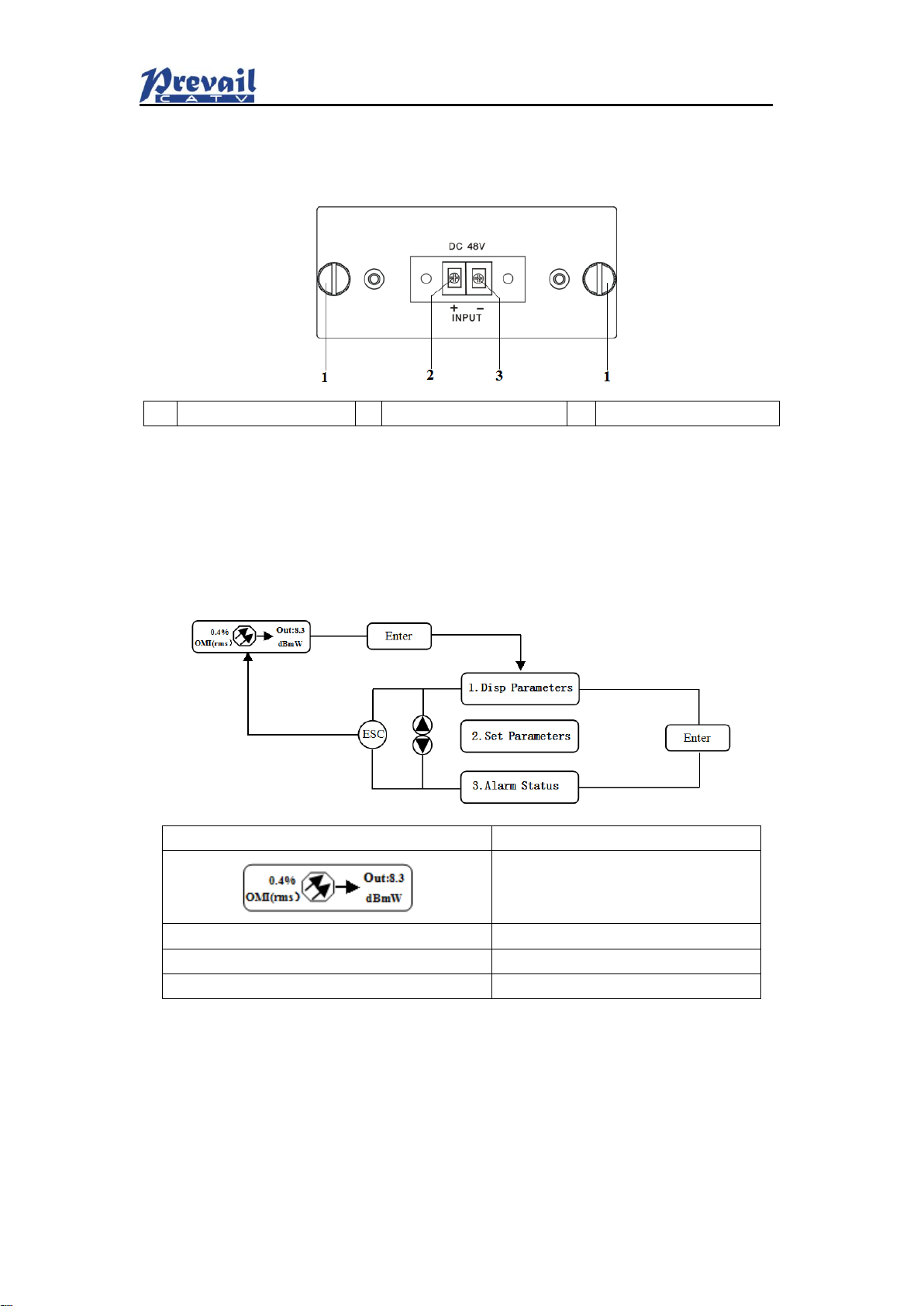

3.3.2 48V Power Module
1
Mounting screws
2
+ Positive terminal block
3
- Negative terminal block

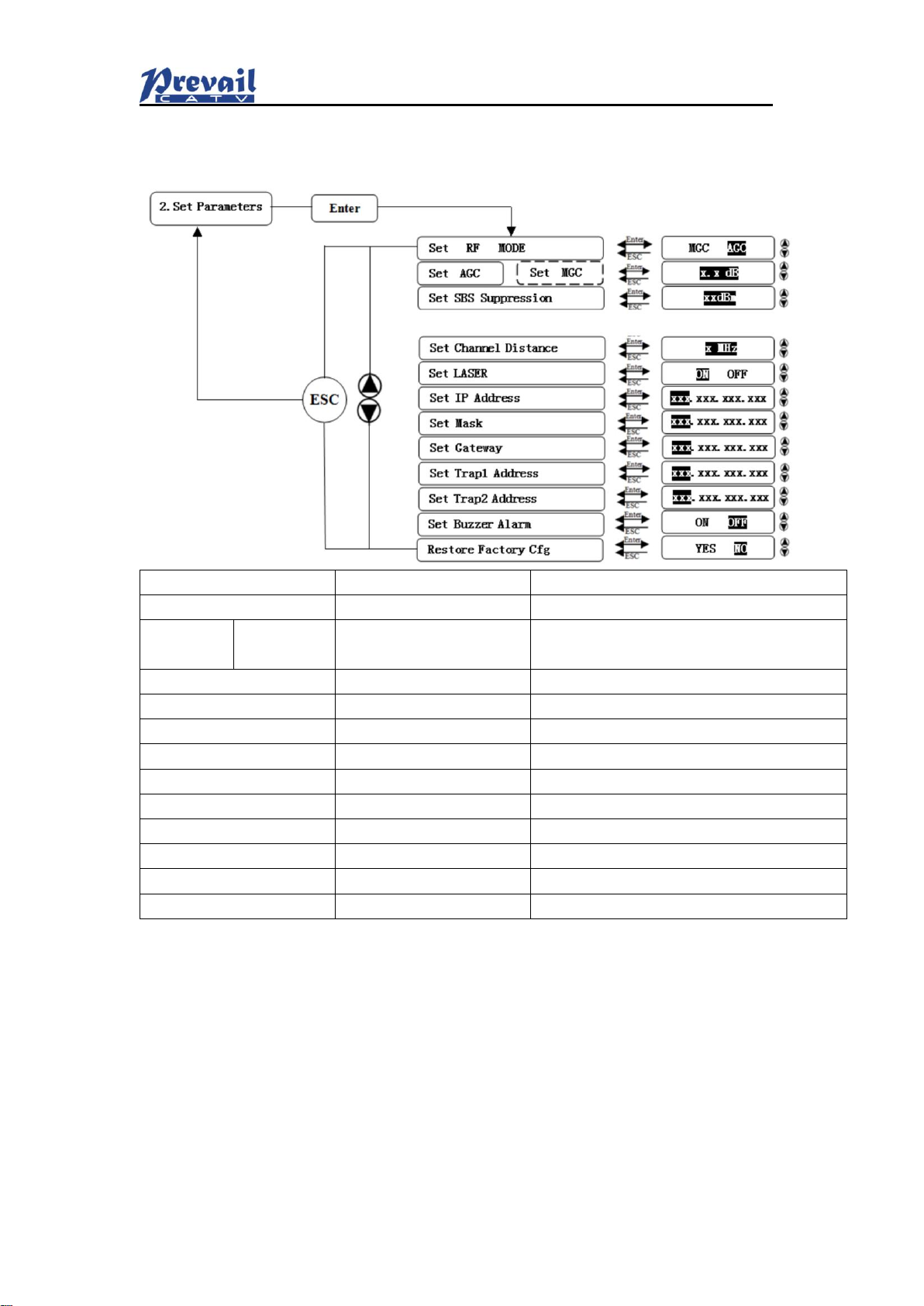

3.4 Menu Operation
3.4.1 Main Menu
Displayed parameters
Comments
Boot display
1.Disp Parameters
Menu one: Display parameters
2.Set Parameters
Menu two: Set parameters
3.Alarm Status
Menu three:Alarm status

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 10 -
3.4.2 Display Menu
Displayed
parameters
Comments
Displayed
parameters
Comments
Laser Output
Output optical power
+24V Read:
+24V monitor voltage
Laser Bias
Laser current
+12V Read:
+12V monitor voltage
RF CSO
CSO monitor voltage
-12V Read:
-12V monitor voltage
Laser Cooling
Cooling current
LASER：
Laser status
OMI(rms)
Total modulation degree
SBS Module
Temp：
SBS module temperature
RF Mode
RF control mode
BOX Temp：
Overall temperature
AGC
Adjusted value withAGC mode
MCU Temp：
MCU temperature
MGC
Adjusted value with MGC mode
S/N：
Serial number
+5V Read:
+5V monitor voltage
Version：
Version number
-5V Read:
-5V monitor voltage
Work Time:
Work time

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 11 -
3.4.3 Set Menu
Displayed parameters
Comments
Remarks
Set RF MODE
Set RF control mode
MGC andAGC two modes selectable
Set AGC
Set MGC
Set RF adjusted value
Adjustable range 0~15dB with MGC mode
Adjustable range -3~+3dB withAGC mode
Set SBS Suppression
Set SBS value
Range 13~16.5dBm, 0.5dB stepping
Set Channel Distance
Set channel distance
6MHz, 7MHz, 8MHz
Set LASER
Set laser status
ON/OFF
Set IPAddress
Set IP address
Set Mask
Set subnet mask
Set Gateway
Set gateway
Set Trap1Address
Set trap1 address
Set Trap2Address
Set trap2 address
Set BuzzerAlarm
Set buzzer alarm
ON/OFF
Restore Factory Cfg
Restore factory settings

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 12 -
3.4.4 Alarm Menu
The displayed alarm content
Comment
RF IN Status
HIGH（LOW）
The RF input signal is high (low)
Laser Bais
HIGH（LOW）
The laser bias current is high (low)
Laser TEC
HIGH
The laser cooling current is high
OutPutPower Status
HIGH（LOW）
The output optical power is high (low)
-5V Status
HIGH（LOW）
The -5V voltage is high (low)
+5V Status
HIGH（LOW）
The +5V voltage is high (low)
+12V Status
HIGH（LOW）
The +12V voltage is high (low)
-12V Status
HIGH（LOW）
The -12V voltage is high (low)
+24V Status
HIGH（LOW）
The +24V voltage is high (low)
Laser
OFF
The laser is off
CSO Initialization failed
The CSO initialization is failed
Power invalid
LEFT（RIGHT ）
The left (right) power is invalid
3.4.5 AGC Mode
This mode is the recommended mode and also the standard operation.
The optical transmitter will automatically adjust to the optimal gain while the input
level is in the working range (see the technical data sheet). And the specified OMI
(rms) modulation index will be automatic gain control.
3.4.6 MGC Mode
Special users, who need to adjust system CNR/CSO/CTB performance indexes to
satisfy the specified requirements, can use this mode. The amplification gain
attenuation range 0-15dB.
(Not recommend).
3.4.7 SBS Suppression Adjustment
SBS value is very important in 1550nm long-distance transmission system. Stable
continuous coherent light source, add +6 dBm optical power in the standard single
mode fiber may occur SBS phenomenon. Ultrahigh SBS threshold will reduce CNR
and CSO low-frequency indicators.
High SBS threshold will also influence self phase modulation (SPM) and reduce
high-frequency CSO indicator.
When meet the conditions, as far as possible to use a low threshold SBS.

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 13 -
4. Installing the WT-1550-EM10 Optical Transmitter
4.1 Receiving and Inspecting
As you unpack your unit, inspect the shipping container and equipment for damage.
Save the shipping material for future use. If the container or the equipment is
damaged, notify both the freight carrier and us.
CAUTION: To protect yourself from potential injury and to protect the
equipment from further damage, do not perform any
operational tests if the equipment appears to be damaged.
4.2 Precautions
Heed the following precautions when working with the WT-1550-EM10.
Warning
Read the installation instructions before connecting the system to
the power source.
Attention
Avant de brancher le système sur la source
d'alimentation,consulter les directives d'installation.
Warnung
Vor dem Anschließen des Systems an die Stromquelle die
Installationsanweisungen lesen.
Warning
The plug-socket combination must be accessible at all times,
because it serves as the main disconnecting device.
Attention
La combinaison de prise de courant doit être accessible àtout
moment parce qu'elle fait office de système principal de
déconnexion.
Warnung
Mit Wechselstrom betriebenes Modell: Der Netzstecker muss
jederzeit leicht zugänglich sein.

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 14 -
4.3 Mounting WT-1550-EM10
4.3.1 Mounting the EM10 in the Rack
Mounting the EM10 in the standard 19 inch equipment rack:
1. Place the equipment in the rack.
2. Use four screws fixed the mounting lug on the WT-1550-EM10 front panel to the
rack.
3. Reliably ground the equipment. The ground terminal is on the rear panel.
4. Visually inspect each key (button) on the front panel to ensure that it is not trapped
under the edge of its hole. If a key is trapped, tap the key to enable it to move freely.
4.3.2 Connecting the RF Cables
Verify the RF input F connector type according to the ordering information, then
screw on the matched RF cable.
4.3.3 Connecting the Optical Fiber Cables
WT-1550-EM10 has two output optical connectors.
DANGER: The fiber carries invisible laser radiation. AVOID DIRECT
EXPOSURE TO BEAM. Never operate the unit with a
broken fiber or with a fiber connector disconnected.
1. Verify the matched WT-1550-EM10 fiber cable connector type according to the
ordering information.
2. Verify that the fiber cable connector has been cleaned properly. If the fiber cable
connector needs to be cleaned, follow the cleaning procedure outlined in “Cleaning
Patch Cord or Pigtail Fiber Optical Connectors”.
3. Verify that the WT-1550-EM10 optical connector has not been exposed to any
contamination.
NOTE: Any contamination of optical connector can significantly degrade
optical link performance. This degradation will most likely
manifest itself as poor signal-to-noise (SNR) performance.
4. Note to butt the nick of the connectors and align them accordingly.

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 15 -
4.3.4 Connecting the Ethernet Cable
You can connect the WT-1550-EM10 to your TCP/IP network in order to monitor and
control the transmitter remotely. After you complete the installation procedures
described in this chapter, you can use a network management system (NMS) to
monitor and control the WT-1550-EM10.
To connect the WT-1550-EM10, you must use a shielded and grounded Category 5
Ethernet cable.
To connect the Ethernet cable:
1. Connect an Ethernet cable to the transmitter’s RJ-45 Ethernet port and to your
TCP/IP network. The Ethernet port is on the built-in transponder of the transmitter.
2. Verify that the green Link LED is illuminated, indicating that there is a connection.
The Link LED is above the Ethernet port on the rear panel.
4.3.5 Connecting Power
The WT-1550-EM10 is available in an AC power model or DC power model. After
mounting the WT-1550-EM10 in a rack, follow the power connection procedure
below for the model that you are installing.
The AC-powered WT-1550-EM10 has two optional power supplies 110V and 220V:
110V power supply has two 110 VAC (50/60 Hz) input connector that requires input
voltage from 90 to 130 VAC, at 50 to 60 Hz single phase. The AC power plug is
located on the rear panel.
220V power supply has two 220 VAC (50/60 Hz) input connector that requires input
voltage from 150 to 265 VAC, at 50 to 60 Hz single phase. The AC power plug is
located on the rear panel.
The DC-powered WT-1550-EM10 has two -48 VDC input connectors that require
input voltage from -36 to -72 VDC. The DC input connectors are located on the rear
panel.
Turn on the power source. It takes about 60 seconds for all systems to operate. When
connect one power supply, the power indicator is yellow; when connect two power
supplies, the power indicator is green.

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 16 -
5. Communication Setup
5.1 RS232 Communication Interface Description
Adopt DB9 standard connector, the pin definitions as follow:
1: No Connect
2: TX
3: RX
4: No Connect
5: GND
6: No Connect
7: No Connect
8: No Connect
9: No Connect
The serial communication uses the standard NRZ form, 1 starts bit, 8 data bits, 1
stop bit and the baud rate is 38400.
5.2 Set up the Hyper Terminal
If you have not setup the Hyper Terminal in your Windows system, follow the steps:
Click “start menu programaccessorycommunicationHyper Terminal”:
This results in the following screen:

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 17 -

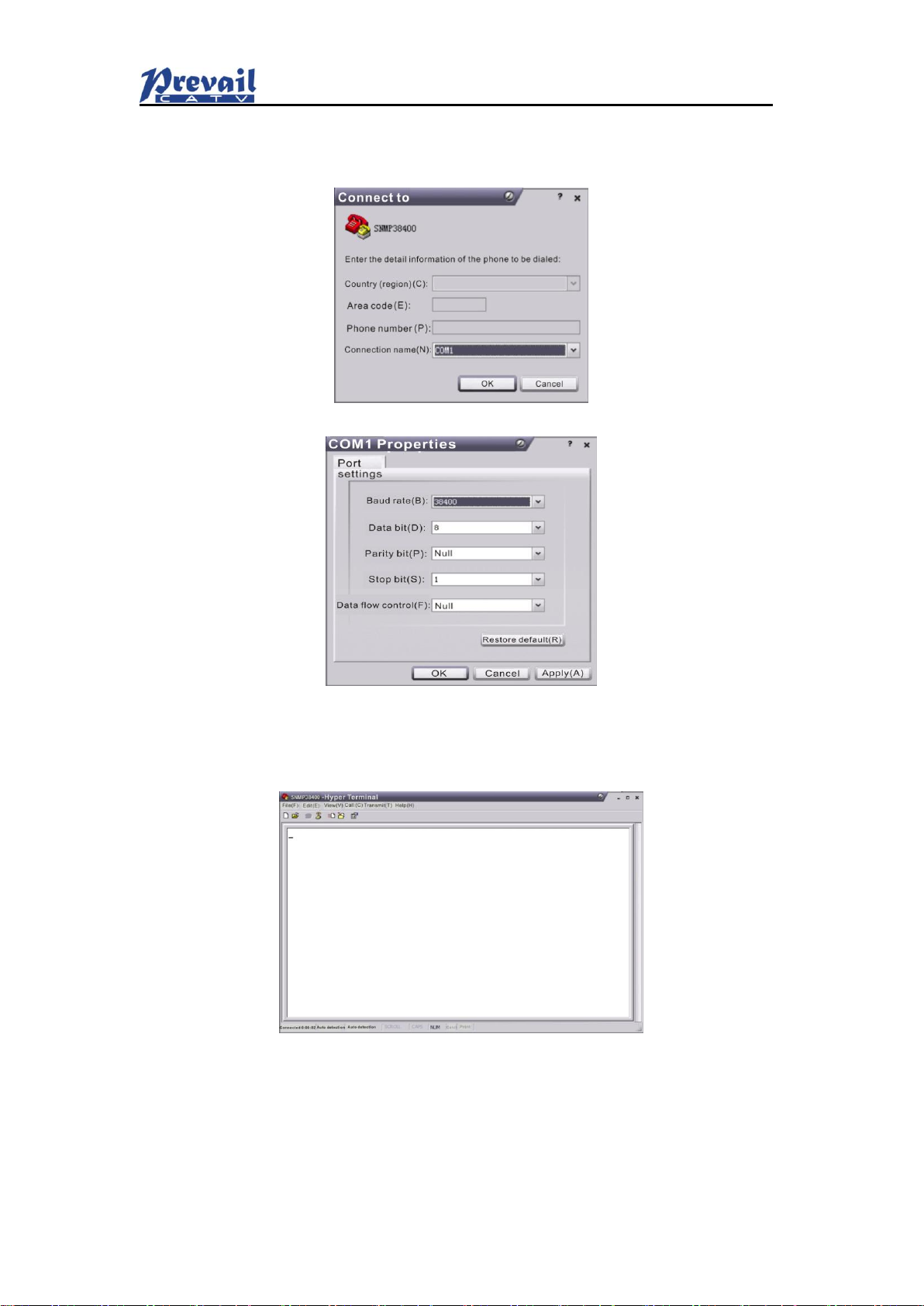

Then you input your connection name, such as “SNMP38400”，and choose the serial
port to connect with your equipment. As follows:
Press the “OK” button shows the configuration page of serial port. As follows:
Change the serial port configuration to 38400-baud rate, 8 data bits, no parity bit, 1
stop bit, no data flow control, press the “OK” button, you have set up the Windows
serial port Hyper Terminal.
You can click “filesave” menu to save this configuration of Hyper Terminal for
later using.

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 18 -
5.3 Operating Parameters Configuration
Under the condition of power off, use the serial port lines to connect the RS232 port
with the computer port. Open the Windows Hyper Terminal which you have set up.
Then turn on the power, you will see the page as follows. Enter the password to enter
the configuration interface.
Enter the password, display the following screen:
You can input your command in this page, and then configure the operating parameter
of the application program.

WT-1550-EM10 1550nm external modulated optical transmitter operating manual
- 19 -
System supports the following commands:
help
ethcfg
settrap
community
List
Restore
Specific using as follows：

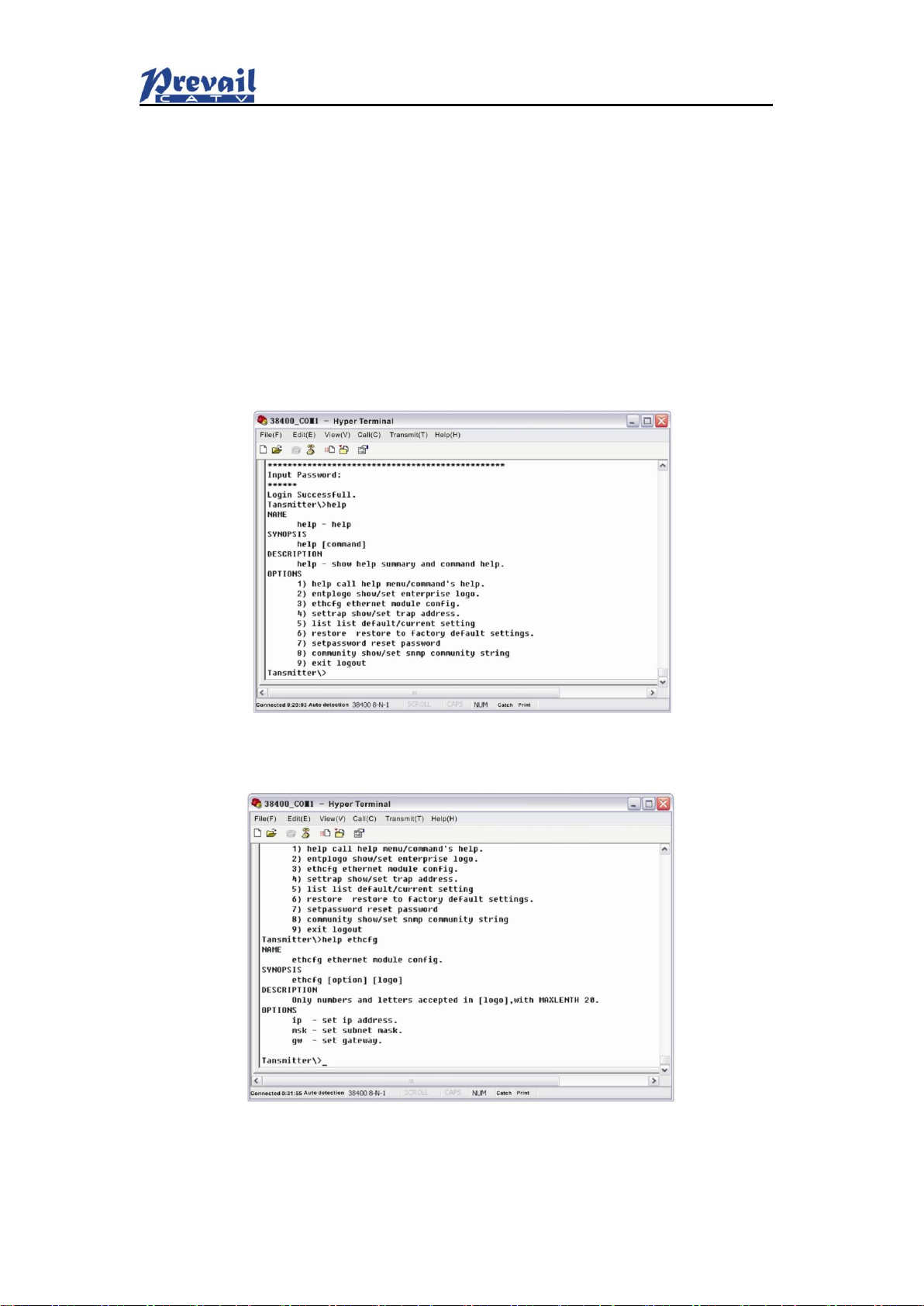

help
This command shows current application program version, program name and the
internal commands list of the system as follows:
You can also use the “help” command to show help information of other commands,
such as “help ethcfg”，ethcfg’s help information appears as follows:
ethcfg
This command configures the Ethernet parameters, including IP address, subnet mask
List internal commands of the system;
Configure the Ethernet operating parameters;
Configure the aim host IPaddress of the SNMPTrap;
Configure the SNMPgroup name;
List system default parameters or user updated parameters;
Restore the factory default values;
