SAFETY GUIDELINES
Copyright©2008
PrideMobilityProductsCorp.
INFMANU3677/RevA/February2008
AuthorizedPrideProvider:_____________________________________________________________________
Address:________________________________________________________________________________
Phone Number:___________________________________________________________________________
PurchaseDate:____________________________________________________________________________
NOTE: This owner’s manual is compiled from the latest specifications and product information available
at the time of publication. We reserve the right to make changes as they become necessary. Any changes to
our products may cause slight variations between the illustrations and explanations in this manual and the
product you have purchased. The latest/current version of this manual is available on our website.
WARNING! An authorized Pride Provider or a qualified technician must perform the initial setup
of this power chair and must perform all of the procedures in this manual.
Thesymbolsbelowareusedthroughoutthisowner'smanualandonthe power chair to identify warningsandimportant
information.Itisvery importantforyou toreadthem andunderstandthem completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated
procedures can cause either personal injury, component damage, or malfunction. On the product,
this icon is represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandatory
actions can cause personal injury and/or equipment damage. On the product, this icon is
represented as a white symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time or
in any circumstances. Performing a prohibited action can cause personal injury and/or equipment
damage. On the product, this icon is represented as a black symbol with a red circle and red
slash.
Quick Reference Information
088 609 661

Jazzy 614 Series www.pridemobility.com 3
I. INTRODUCTION.................................................................................................................................... 4
II. SAFETY.................................................................................................................................................... 5
III. YOUR POWER CHAIR....................................................................................................................... 17
IV. ASSEMBLY............................................................................................................................................ 21
V. COMFORT ADJUSTMENTS........................................................................................................... 23
VI. BATTERIES AND CHARGING ....................................................................................................... 28
VII. CARE AND MAINTENANCE ........................................................................................................... 32
VIII.WARRANTY........................................................................................................................................... 38
APPENDIX I - SPECIFICATIONS .......................................................................................................... 40
CONTENTS

4 www.pridemobility.com Jazzy 614 Series
I. INTRODUCTION
SAFETY
WELCOMEtoPrideMobility Products Corporation (Pride). The power chairyou have purchased combines state-of-
the-artcomponentswithsafety,comfort,andstylinginmind.We areconfident thatthese designfeatureswillprovideyou
withtheconveniencesyouexpectduringyourdailyactivities. Once you understand how to safelyoperate and care for
yourpower chair,it shouldgiveyouyears of trouble freeoperationandservice.
Readand followallinstructions,warnings,andnotesinthismanual beforeattempting tooperateyourpowerchairforthe
firsttime.Youmustalsoreadallinstructions,warnings,andnotes containedinanysupplementalinstructionalbookletsfor
thecontroller,front riggings, and/or seatingsystem that accompaniedyour powerchair beforeinitial operation.Your
safetydependsuponyou, as well as your provider,caretaker, or healthcare professional inusinggoodjudgement.
Ifthereisanyinformationin this manual which you do not understand, or if yourequire additional assistance for setup
or operation, please contact your authorized Pride Provider. Failuretofollow theinstructionsin this manualand
those located on your powerchair can lead to personal injury and/or damage to the powerchair, including
voidingthewarranty.
PURCHASER’S AGREEMENT
Byacceptingdelivery of this product, you promisethat you will not change,alter,or modify thisproduct or remove or
renderinoperableor unsafeanyguards,shields,orothersafetyfeaturesofthisproduct;fail,refuse, orneglecttoinstallany
retrofitkits from time to time provided by Pride to enhance or preserve the safe use of thisproduct.
SHIPPING AND DELIVERY
Beforeusing yourpowerchair,makesureyourdelivery is completeassome componentsmaybe individuallypackaged.
Ifyoudonot receiveacomplete delivery,pleasecontactyour authorizedPrideProvider immediately.Wheredamage has
occurredduring transport, eithertothepackaging or content, pleasecontactthedelivery company responsible.
INFORMATION EXCHANGE
Wewant tohearyourquestions,comments,andsuggestions aboutthismanual.Wewouldalsoliketohearaboutthesafety
andreliability ofyournewpower chair,andaboutthe service youreceivedfromyour authorizedPrideProvider.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
products,and new options that can increase your abilitytouseandenjoyyourpower chair.Pleasefeelfreetocontact us
attheaddressbelow:
USA: Canada:
PrideMobilityProductsCorporation PrideMobilityProductsCompany
Attn.:Customer CareDepartment 380VansickleRoad Unit 350
182SusquehannaAvenue St. Catharines, Ontario L2R 6P7
Exeter, PA18643-2694 1-888-570-1113
[e-mail]
1-800-424-8205
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and
we will be glad to send you a new one immediately.

Jazzy 614 Series www.pridemobility.com 5
II. SAFETY
PRODUCT SAFETY SYMBOLS
Thesymbolsbeloware usedon thepowerchairtoidentify warnings,mandatoryactions,andprohibited actions.Itisvery
importantfor youtoread and understandthemcompletely.
Read and follow the information in the owner’s manual.
Maximum seating weight.
Do not allow unsupervised children to play near the power chair while the batteries are
charging.
Keep your hands away from the tires when driving. Be aware that loose fitting clothing
can become caught in drive tires.
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and
store in a clean and dry condition.
Use correct tie-down points for controller harness to prevent the harness from getting
caught in the drive tires, pinched in the seat frame, or damaged when passing through
doorways.

6 www.pridemobility.com Jazzy 614 Series
II. SAFETY
Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating.
Removal of grounding prong can create electrical hazard. If necessary, properly install an
approved 3-pronged adapter to an electrical outlet having 2-pronged plug access.
Do not connect an extension cord to the AC/DC converter or the battery charger.
Do not lift the mobility vehicle while seated in it.
Do not lift the mobility vehicle while seated in it.
Corrosive chemicals contained in battery.
Wear safety goggles.

Jazzy 614 Series www.pridemobility.com 7
EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m.
II. SAFETY
Battery Set Configuration:
++
++
+ = Positive (Red) Terminal Post
- = Negative (Black) Terminal Post
Connect Red wires to Red Positive (+) Terminal Posts
Connect Black wires to Black Negative (––
––
–) Terminal Posts
Explosive conditions exist!
Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
Keep tools and other metal objects away from battery terminals.
Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new
batteries. Always replace both batteries at the same time.

8 www.pridemobility.com Jazzy 614 Series
Disposal and recycling - Contact your authorized Pride Provider for information on proper
disposal and recycling of your Pride product and its packaging.

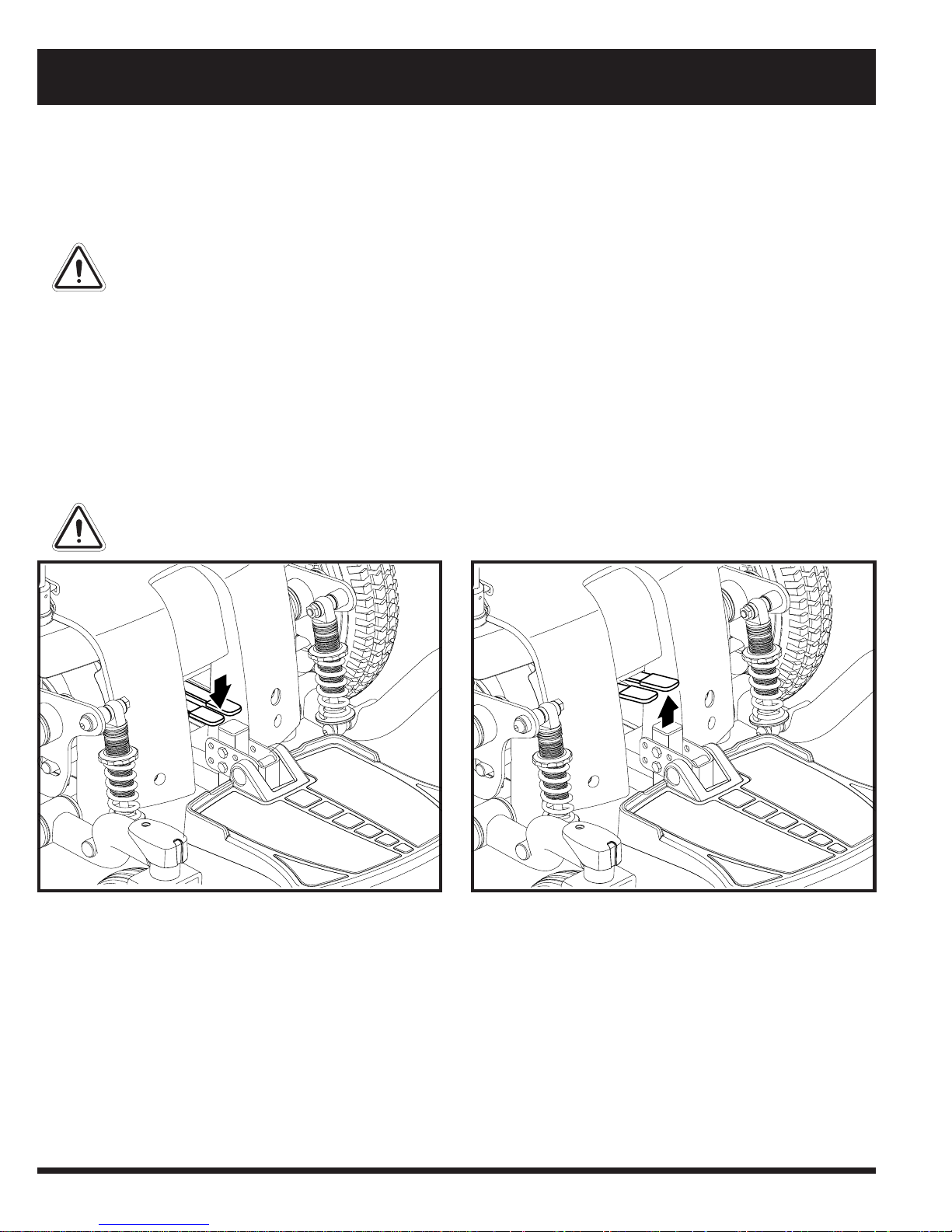

Locked and in drive mode.
Place unit on level ground and stand to one side when changing from
drive mode to freewheel mode or freewheel mode to drive mode.
Unlocked and in freewheel mode.
Battery charger for indoor use only.
Do not place power chair in freewheel mode on a decline.
Do not place power chair in freewheel mode on an incline.
Contains Lead.
II. SAFETY

Jazzy 614 Series www.pridemobility.com 9
II. SAFETY
GENERAL GUIDELINES
MANDATORY! Do not operate your new power chair for the first time without completely reading
and understanding this owner’s manual.
Your powerchairisastate-of-the-art life-enhancementdevicedesignedtoincrease mobility.Prideprovidesan extensive
varietyof products to bestfit theindividual needsof thepower chairuser. Pleasebe awarethat thefinal selectionand
purchasing decision regarding the type of power chair to be used is the responsibility of the power chair user, who is
capableof makingsucha decision, andhis/herhealthcare professional (i.e.,medicaldoctor,physical therapist,etc.).
Thecontents ofthismanual are basedonthe expectation thatamobility deviceexperthasproperly fittedthepowerchair
tothe userandhas assistedtheprescribing healthcare professionaland/orthe authorizedPrideProvider in theinstruction
processfor the use of theproduct.
Therearecertainsituations,includingsomemedicalconditions, wherethepowerchairuserwillneedtopracticeoperating
the power chair in the presence of a trained attendant.Atrained attendant can be defined as a family member or care
professionalspeciallytrainedinassistingapowerchairuserinvariousdailylivingactivities.
Asyoubeginusingyourpowerchairduringdailyactivities,youwill probablyencountersituationsinwhichyouwillneed
somepractice.Simplytakeyourtimeandyouwillsoonbeinfullandconfidentcontrolasyoumaneuverthroughdoorways,
onandoffofelevators, up and down ramps, and over moderate terrain.
Belowaresome precautions,tips,andothersafetyconsiderationsthatwillhelpyoubecome accustomedtooperatingyour
powerchairsafely.
Modifications
Pridehasdesignedandengineeredyourpowerchairtoprovidemaximummobilityand utility.Awiderangeofaccessories
isavailablefromyour authorized Pride Provider to further customize your powerchair to better suit your needs and/or
preferences.However,under nocircumstancesshouldyou modify,add, remove, ordisableanyfeature, part, orfunction
ofyour power chair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Do not use
accessories if they have not been tested or approved for Pride products.
Pre-Ride Safety Check
Gettoknowthefeelofyourpowerchairanditscapabilities.Priderecommendsthatyouperformasafetycheckbefore
eachuse to make sure your power chair operates smoothly and safely.
Performthe following inspections prior to using your power chair:
!Check for proper tire inflation. Maintain but do not exceed 35 psi (2.4 bar/240 kPa) in each tire if equipped
with pneumatic tires.
!Checkall electrical connections. Make sure they are tight and notcorroded.
!Checkallcontrollerconnections to the power base. Make sure they aresecured properly.
!Checkthe brakes. See VII. “Careand Maintenance.”
!Checkbattery charge. See VI. “Batteries andCharging.”
NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.

10 www.pridemobility.com Jazzy 614 Series
II. SAFETY
Weight Limitations
Yourpowerchair isratedfor amaximumweight capacity.Pleasereferto thespecificationstable forthislimit.
MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight
capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage
resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your power
chair may affect the center of gravity, resulting in a tip or a fall.
Tire Inflation
Ifyourpowerchair isequippedwith pneumatictires,you shouldcheckor havetheair pressurecheckedregularly.Proper
inflationpressureswillprolong thelifeof yourtiresand helpensurethe smoothoperationof yourpowerchair.
WARNING! It is important that 35 psi (2.4 bar/240 kPa) tire pressure be maintained in pneumatic
tires at all times. Do not underinflate or overinflate your tires. Low pressure may result in loss of
control, and overinflated tires may burst. Failure to maintain 35 psi (2.4 bar/240 kPa) tire pressure
in pneumatic tires at all times may result in tire and/or wheel failure.
WARNING! Inflate your power chair drive tires from a regulated air source with an available pressure
gauge. Inflating your tires from an unregulated air source could overinflate them, resulting in a
burst tire.

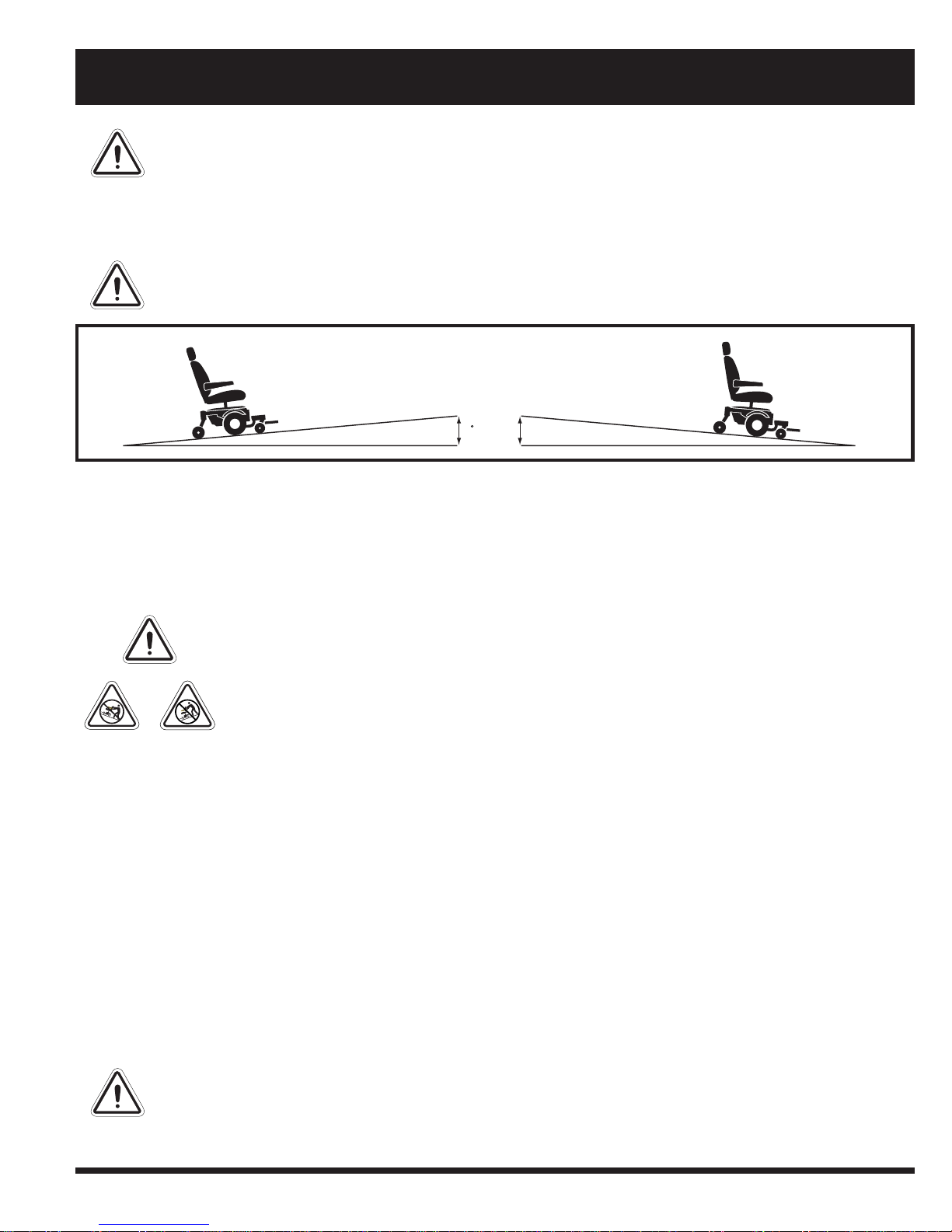

Incline Information
Moreandmorebuildingshaveramps withspecifieddegreesofinclination, designedforeasyandsafeaccess.Someramps
mayhave turning switchbacks(180-degreeturns) that requireyoutohave good corneringskillsonyour power chair.
!Proceedwith extreme caution as you approach the downgrade of a ramp or other incline.
!Takewideswingswithyourpowerchair’s frontwheels aroundanytightcorners.Ifyoudothat,the powerchair’s rear
wheelswill follow a widearc,notcut the corner short,andnotbump into or gethungupon any railing corners.
!When driving down a ramp, keep the power chair’s speed adjustment set to the slowest speed setting to ensure a
safelycontrolleddescent.
!Avoid sudden stops and starts.
Whenclimbinganincline,trytokeepyourpowerchairmoving.Ifyoumuststop,startup againslowlyandthenaccelerate
cautiously.When driving down an incline, set your power chair to the slowest speed setting and drive in the forward
directiononly.Ifyourpower chairstartsto move downtheincline fasterthanyouanticipated ordesired,allow it tocome
toa complete stopbyreleasingthe joystick, thenpushthejoystick forward slightlytoensurea safely controlleddescent.
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your power chair straight up the incline. This greatly reduces the possibility
of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! Never travel down an incline backward. Doing so may cause the power chair
to tip. Always exercise extreme caution when negotiating an incline.
WARNING! If your power chair is equipped with a reclining seatback, do not attempt to
negotiate inclines with the seat in a reclined position. Do not attempt to negotiate obstacles
with the seat in a reclined position unless an attendant is present to help stabilize the
chair. Failure to heed may result in the power chair tipping over.

Jazzy 614 Series www.pridemobility.com 11
II. SAFETY
Figure 1. Maximum Safe Slope (Ascending and Descending)
6 (10.5%)
WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated
in figure 1, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause instability in your power chair.
Priderecommendsthatthemaximumslopeofaninclineyouattempttosafelyascendordescendonyourpowerchairdoes
notexceed 6° (10.5%). Seefigure 1.
WARNING! Any attempt to climb or descend a slope steeper than 6° (10.5%) may put your power
chair in an unstable position and cause it to tip.
Freewheel Mode
Yourpowerchairisequippedwithtwomanualfreewheelleverstoallowformanualmaneuverabilitybyatrainedattendant.
Formore information abouthowtoplace your powerchairintoand out offreewheelmode,see III. “YourPowerChair.”
WARNING! Do not use your power chair in freewheel mode without an attendant present.
WARNING! Do not attempt to personally place your power chair in freewheel mode while
seated on it. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline or decline.
This could cause the chair to roll uncontrollably on its own.
Braking Information
Yourpowerchair is equippedwithtwopowerful brake systems:
!Regenerative— useselectricityto rapidlyslowthevehicle whenthejoystick returns tothecenter/stop position.
!DiscParkBrake—activatesmechanicallyafterregenerativebrakingslows thevehicle tonearstop,orwhenpoweris
removedfrom thesystemforany reason.
Cornering Information
Whileyour power chair is equipped withfrontandrearcasterwheels, excessively high cornering speeds can stillcreate
thepossibility of tipping. Factors which affect the possibility of tipping include, but are not limited to: cornering speed,
steeringangle (how sharply you areturning), uneven roadsurfaces, inclined roadsurfaces, riding froman area oflow
tractionto an area ofhigh traction (suchas passingfrom a grassyarea to apaved area– especially athigh speedwhile
turning),and abrupt directional changes. Highcorneringspeedsarenotrecommended. If you feel that youmaytipover
in a corner, reduce your speed and steering angle (i.e., lessen the sharpness of the turn) to prevent your power chair
fromtipping.
WARNING! When cornering sharply, reduce your speed and maintain a stable center of gravity.
This greatly reduces the possibility of a tip or fall.

12 www.pridemobility.com Jazzy 614 Series
II. SAFETY
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be aware
that it may be difficult for traffic to see you when you are seated on your power chair. Obey all
local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with
extreme caution.
Outdoor Driving Surfaces
Yourpowerchairisdesignedtoprovideoptimumstabilityundernormaldrivingconditions—dry,levelsurfacescomposed
ofconcrete,blacktop,orasphalt.However,Priderecognizesthattherewill betimeswhenyouwillencounterothersurface
types.Forthisreason,yourpowerchairisdesignedtoperformadmirablyonpackedsoil,grass,andgravel.Feelfreeto
useyourpower chair safely on lawns and in park areas.
!Reduceyour power chair’sspeedwhendriving on uneventerrainand/orsoft surfaces.
!Avoidtallgrassthatcanentangletherunninggear.
!Avoid loosely packedgravelandsand.
!Ifyou feelunsureabout adrivingsurface, avoidthatsurface.
Inclement Weather Precautions
Exposureof yourpowerchair toinclementweatherconditions shouldbeavoided wheneverpossible.Ifsuddenly caught
up in rain, snow, severe cold or heat while operating your power chair, proceed to shelter at the earliest opportunity.
Thoroughlydry yourpowerchair beforestoring,charging,oroperating yourpowerchair.
PROHIBITED! Operating in rain, snow, salt, mist/spray conditions, and on icy/slippery surfaces
can have an adverse affect on the electrical system. Maintain and store your power chair in a dry
and clean condition.
WARNING! Prolonged exposure to hot or cold conditions may affect the temperature of upholstered
and non-upholstered items on the power chair, possibly resulting in skin irritation. Exercise caution
when using your power chair in extremely hot or cold conditions or when exposing your power
chair to direct sunlight for prolonged periods of time.
Stationary Obstacles (Steps, Curbs, etc.)
Proceedwithextreme caution when driving near raised surfaces, unprotectedledges and/or drop-offs (curbs, porches,
stairs,etc.). Be sure your power chair is travelingperpendiculartoanycurbyouare required to navigate. See figure 2.

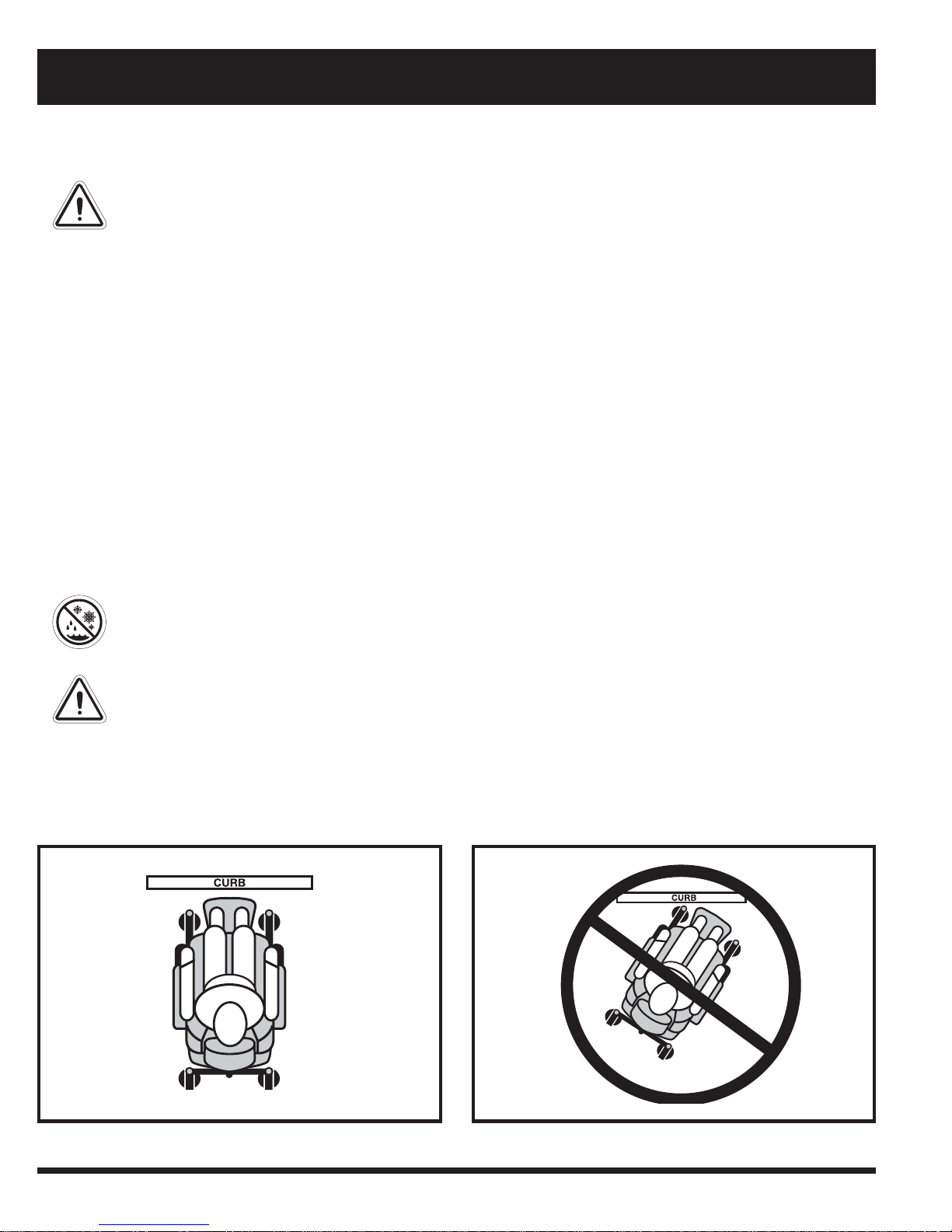

Figure 2. Correct Curb Approach Figure 3. Incorrect Curb Approach

Jazzy 614 Series www.pridemobility.com 13
II. SAFETY
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher
than 2 in. (5 cm) unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or
other obstacle. This may cause the power chair to tip.
Stairs and Escalators
Powerchairsarenotdesigned to travel up or down stairs or escalators.Always use anelevator.
WARNING! Never use your power chair to negotiate steps or escalators.
Doors
!Determineif the door opens toward or away from you.
!Driveyourpowerchairgentlyandslowlyforwardtopushthedooropen.Ordriveyourpowerchairgentlyandslowly
backwardto pull the dooropen.
Elevators
Modernelevators have a door edge safety mechanism that, when pushed, reopens the elevator door(s).
!Ifyou are in the doorway ofan elevator when thedoor(s) begin to close,push on the rubberdoor edge or allowthe
rubberdoor edge to contact thepower chair andthe door will reopen.
!Usecare that pocketbooks, packages,or power chairaccessories do notbecome caught inelevator doors.
Lifts/Elevation Products
Ifyouwillbetravelingwithyourpower chair,youmay findit necessarytousealift/elevationproducttoaidin transporta-
tion.Priderecommendsthatyou closely review the instructions, specifications, and safety information set forthby the
manufacturerofthelift/elevationproductbeforeusingthatproduct.
WARNING! Never sit on your power chair when it is being used in connection with any type
of lift/elevation product. Your power chair was not designed with such use in mind and any
damage or injury incurred from such use is not the responsibility of Pride.
Motor Vehicle Transport
Priderecommends thatyoudo notremainseated inyourpower chairwhiletravelingin amotorvehicle. Thepowerchair
shouldbestowed in the trunk ofa car or inthe back of a truckor van with batteriesremoved and properly secured.
WARNING! Do not sit on your power chair while it is in a moving vehicle.
WARNING! Always be sure your power chair and its batteries are properly secured when it is being
transported. Batteries should be secured in an upright position and protective caps should be
installed on the battery terminals. Batteries should not be transported with any flammable or
combustible items.
Positioning Belts
YourauthorizedPride Provider,therapist(s),and other healthcareprofessionalsareresponsible for determining yourre-
quirementfor a positioningbeltin order tooperateyourpower chair safely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure it is
fastened securely in order to reduce the possibility of a fall from the power chair.
WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle. Nor is
your power chair suitable for use as a seat in any vehicle. Anyone traveling in a vehicle should be
properly belted into seats approved by the vehicle manufacturer.

14 www.pridemobility.com Jazzy 614 Series
II. SAFETY
Batteries
In addition to following the warnings below, be sure to comply with all other battery handling information. For more
informationabout yourpowerchair’sbatteries,seeVI.“Batteries andCharging.”
MANDATORY! Battery posts, terminals, and related accessories contain lead and lead
compounds. Wear goggles and gloves when handling and wash hands after handling.
WARNING! Power chair batteries are heavy. See specifications table. If you are unable to
lift that much weight, be sure to get help. Use proper lifting techniques and avoid lifting
beyond your capacity.
WARNING! Always protect the batteries from freezing and never charge a frozen battery.
Charging a frozen battery may result in damage to the battery.
WARNING! Connect the battery harnesses in the proper manner. RED (+) cables must be
connected to positive (+) battery terminals/posts. BLACK (-) cables must be connected
to negative (-) battery terminals/posts. Protective caps should be installed over all battery
terminals. REPLACE cables immediately if damaged.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts, including the
armrests, seat, foot riggings, controller, and shrouds.
Preventing Unintended Movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This
will also eliminate the possibility of unintended chair movement from electromagnetic (EM) sources.
Reaching and Bending
Neverreach,lean,orbendwhile drivingyourpowerchair.Ifit isabsolutelynecessarytoreach, lean,orbendwhileseated
onyour power chair,itis important to maintain astable center ofgravity and keep thepower chair fromtipping. Pride
recommendsthatthe power chair user determine his/her personallimitations and practice bending andreaching in the
presenceofaqualifiedhealthcareprofessional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the
floor by reaching down between your knees or if you have to reach over the back of the
seat. Movements such as these may change your center of gravity and the weight
distribution of the power chair. This may cause your power chair to tip.
WARNING! Keep your hands away from the tires when driving. Be aware that loose fitting
clothing can become caught in drive tires.

Jazzy 614 Series www.pridemobility.com 15
II. SAFETY
Figure 4.IdealTransfer Position
Transfers
Transferring onto and off of your power chair requires a
goodsenseof balance.Alwayshaveanattendant orhealth-
careprofessionalpresentwhilelearningtoproperlytransfer
yourself.
Toeliminatethepossibilityofinjury,Priderecommendsthat
youor a trained attendant perform the following tasks be-
foreattemptingatransfer:
!Turnoffthepower to thecontroller.
!Ensureyourpowerchairisnot infreewheelmode.See
III.“Your PowerChair.”
!Turnthecasterwheelstowardthetransferdestination
toimprovepower chairstability duringtransfer.
!Make sure both armrests are flipped up or removed
fromyour powerchair.
!Flip up the foot platform or move the leg rests aside;
thiswill help to keep your feet from getting caught on
thefrontriggingduringthetransfer.
!Reducethedistancebetween yourpowerchairandthe
objectyou are transferringonto.
WARNING! Before transferring, position yourself as far back as possible in the power chair seat
to prevent the power chair from tipping forward during transfer.
WARNING! Avoid putting all of your weight on the power chair armrests and do not use the armrests
for weight bearing purposes, such as transfers. Such use may cause the power chair to tip, resulting
in a fall from the power chair and personal injury.
WARNING! Avoid putting all of your weight on the front riggings. Such use may cause the power
chair to tip.
Prescription Drugs/Physical Limitations
Usersmustexercise careand commonsense whenoperating apowerchair.Thisincludesawarenessofsafetyissueswhen
takingprescribed orover-the-counterdrugs orwhenthe userhasspecific physicallimitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or
if you have certain physical limitations. Some medications and limitations may impair your ability
to operate your power chair in a safe manner.

16 www.pridemobility.com Jazzy 614 Series
II. SAFETY
Alcohol/Smoking
Thepowerchairusermustexercise careandcommonsensewhenoperatinghis/her powerchair.Thisincludes awareness
ofsafetyissueswhileundertheinfluenceofalcoholorwhilesmoking.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your
power chair, although the power chair has passed the necessary testing requirements for cigarette
smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes
while seated in your power chair.
!Do not leave lit cigarettes unattended.
!Keep ashtrays a safe distance from the seat cushions.
!Always make sure cigarettes are completely extinguished before disposal.
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! Laboratory tests have shown that electromagnetic and radio frequency waves can
have an adverse affect on the performance of electrically-powered mobility vehicles.
Electromagneticand Radio FrequencyInterference can comefrom sourcessuch ascellular phones,mobile two-way
radios(such as walkie-talkies), radio stations,TVstations,amateurradio(HAM) transmitters, wireless computer links,
microwavesignals,pagingtransmitters, and medium-range mobile transceivers used byemergency vehicles. In some
cases,thesewavescancauseunintendedmovementordamageto thecontrolsystem.Everyelectrically-poweredmobility
vehiclehasanimmunity(orresistance)toEMI.Thehighertheimmunitylevel,thegreatertheprotectionagainstEMI.This
producthas been tested and has passed at an immunity level of 20 V/m.
WARNING! Be aware that cell phones, two-way radios, laptops, and other types of radio transmitters
may cause unintended movement of your electrically-powered mobility vehicle due to EMI.
Exercise caution when using any of these items while operating your mobility vehicle and avoid
coming into close proximity of radio and TV stations.
WARNING! The addition of accessories or components to the electrically-powered mobility vehicle
can increase the susceptibility of the vehicle to EMI. Do not modify your power chair in any way
not authorized by Pride.
WARNING! The electrically-powered mobility vehicle itself can disturb the performance of other
electrical devices located nearby, such as alarm systems.
NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If
unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Call Pride
at 800-424-8205 to report the incident.

Jazzy 614 Series www.pridemobility.com 17
III. YOUR POWER CHAIR
THE JAZZY 614 SERIES
Yourpower chair has two main assemblies: theseatassemblyandthepowerbaseassembly. See figure 5.Typically,the
seatassembly includesthearmrests, seatback,andseat base.Thepower baseassemblyincludes twomotor/brakeassem-
blies,two drive wheels, four caster wheels, two batteries, and wiring harnesses. See figures 5, 6, and 7.

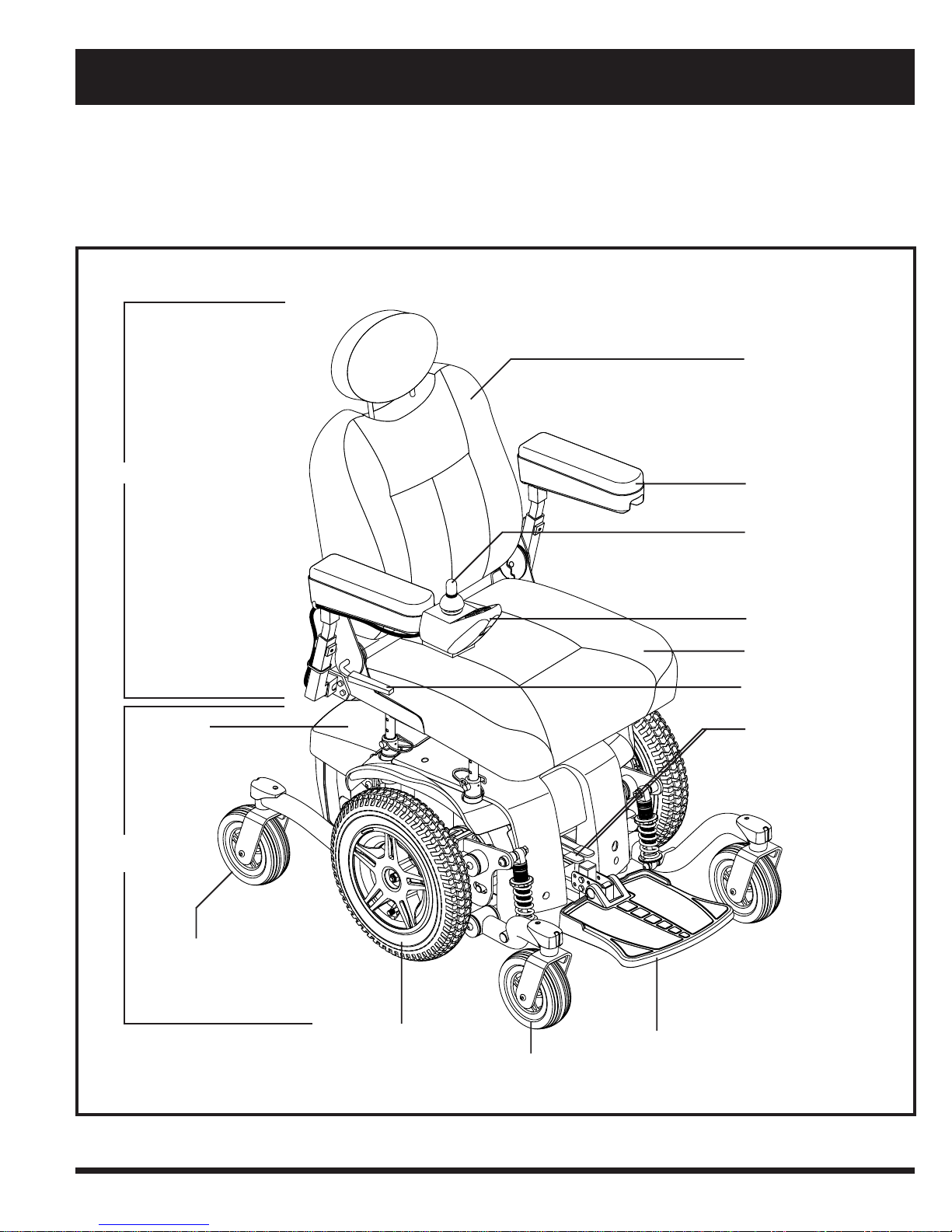

Figure 5.The Jazzy 614 Series Power Chair
SEAT ASSEMBLY
REAR
SHROUD
DRIVEWHEEL
CASTERWHEEL
FRONTRIGGING
(FOOT PLATFORM SHOWN)
CASTERWHEEL
MANUALFREEWHEEL
LEVERS
POWERBASE
ASSEMBLY
SEATBACK
JOYSTICK
SEATBASE
SEATBACKRELEASELEVER
ARMREST
CONTROLLER

18 www.pridemobility.com Jazzy 614 Series

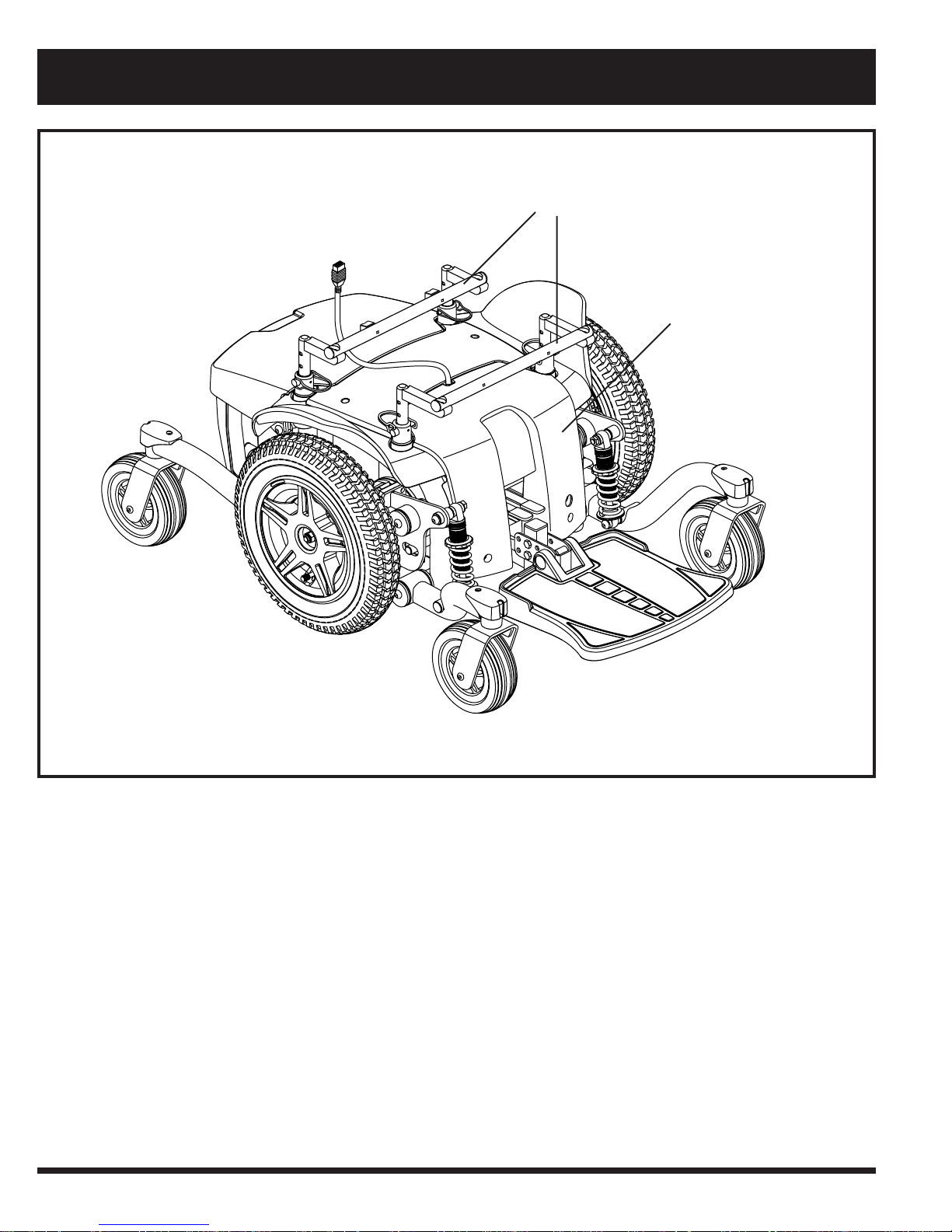

Figure 6.The Jazzy 614 Series Power Base
TRAPEZEBARS
FRONT COVER
III. YOUR POWER CHAIR
ELECTRICAL COMPONENTS
Theelectrical components arelocatedonor inside the powerbase.Themain circuit breaker islocatedonthe front of the
powerbase.The power module is located insidethe power base. See figure7.
MotorConnectors:This is where the controller connects to the motors.
BatteryConnector: Thisiswherethecontrollerconnectstothebatteries.
ControllerConnector:Thisiswhere thecontrollerconnectsto thepowermodule or powerbase.Each controllerusesa
differenttype ofcable.Regardlessof whichtypeofcontroller isused,thecable must besecuredto the seatassemblyand
notallowed to drag on the floor.

Jazzy 614 Series www.pridemobility.com 19

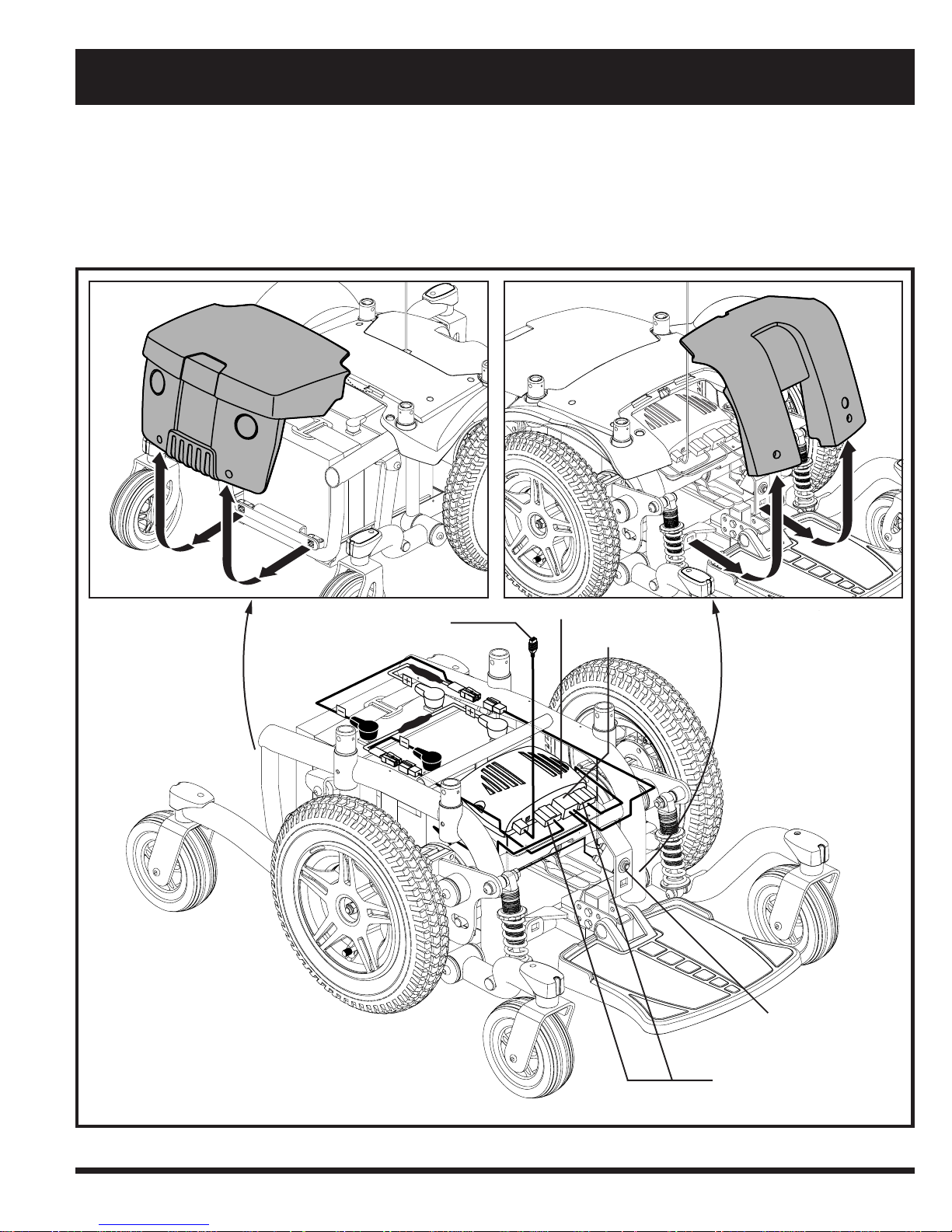

REAR SHROUD REMOVAL FRONT SHROUD REMOVAL
III. YOUR POWER CHAIR
MainCircuitBreaker:Themaincircuitbreakerisasafetyfeaturebuiltintoyourpowerchair.Whenthebatteriesandthe
motorsareheavilystrained(e.g.,fromexcessiveloads),themaincircuitbreakertripstopreventdamagetothemotorsand
theelectronics.Ifthecircuittrips, allowyour powerchairto“rest”forapproximatelyone minute.Next, pushinthecircuit
breakerbutton, turn onthecontroller, and continuenormaloperation. If the maincircuitbreaker continues to triprepeat-
edly, contactyourauthorizedPride Provider.
Figure 7. Jazzy 614 Series Electrical Components
BATTERY CONNECTOR
MAINCIRCUITBREAKER
POWERMODULE
MOTOR CONNECTORS
CONTROLLER CONNECTOR

20 www.pridemobility.com Jazzy 614 Series
Manual Freewheel Levers
Yourpowerchairhasamanualfreewheelleveroneachmotor. Manualfreewheel leversenable youto disengagethedrive
motorsfromthegearboxesandmaneuverthechair manually.
WARNING! Do not use the power chair while the drive motors are disengaged! Do not disengage
the drive motors when the power chair is on an incline, as the unit could roll on its own! Only
engage the freewheel mode when on a level surface.
WARNING! It is important to remember that when your power chair is in freewheel mode, the
braking system is disengaged.
To engage or disengage the drive motors:
1. Locate the lever on the front of each motor.
2. Push the two levers downward to engage the drive motors (drivemode).Seefigure8.
2. Pull the twoleversupwardto disengage the drive motors(freewheelmode).See figure 9.
Ifaleverisdifficulttomovein eitherdirection,slightlyrockthepowerchairbackandforth.Thelever shouldthenmoveto
thedesiredposition.
WARNING! Do not use the freewheel lever handles as tie-down points to secure this product.
III. YOUR POWER CHAIR
Figure 9. Freewheel Mode (Drive Disengaged)Figure 8. Drive Mode (Drive Engaged)
