Pride Mobility Quantum 1650 User manual

Pride Mobility Products
ACN# 088 609 661
AUS
Quantum1650
™

Page 2 www.pridemobility.com Rev. H/042406
Jazzy 1100Quantum™1650
Copyright © 2006
Pride Mobility Products®
INFMANU2382/Rev. H/042406
Introduction
Your new Pride Illustrated Parts Breakdown (IPB) Manual has been compiled from the latest product information available
at the time of publication. Pride Mobility Products reserves the right to make changes and updates to this manual and to the
product(s) it represents. Any changes, updates, or improvements to the product(s) may result in slight differences between
this manual and the product you purchased.
An IPB is an illustrated parts listing of all product components which have maintenance significance. IPB’s utilize “ex-
ploded” drawings to detail the individual components for each assembly and an itemized list of reference numbers, part
numbers, descriptions, and quantities per assembly. Some parts may be included in an assembly but may not be available for
purchase separately. Refer to the parts list to locate the part numbers for assemblies and components for ordering what you
need.
To achieve proper identification and relationship of detail parts and next higher assemblies, parts listings are presented in a
convenient alphanumeric reference system. Reference numbers for parent assemblies identify one part number that can be
used to order all of the components listed within it. Components of an assembly will have the same alpha character as its
parent assembly.
!For example, the parent assembly part number using reference number of A1 —A4 is the only number you need to place
an order for parts with references of A1, A2, A3, and A4. Instead of ordering 4 separate parts, use the parent assembly
part number to get the complete assembly.
Master assembly part numbers have reference numbers that include several subassemblies. By ordering parts using master
assembly part numbers, you can save a lot of time and reduce the chance for error.
!For example, A1 — G10, a master assembly reference number, includes all components of assemblies A, B, C, D, E, F,
and G. Use caution when ordering assemblies. Check to see if a master assembly part number exists for the components
that you need. If an entire master assembly is not needed, then the individual assembly part number (i.e. for reference
number G1 — G10) will be sufficient to use for ordering.
Asterisks (*) and NOTES are used throughout this service manual to point out important information regarding assembly
structure and contents.
!For example, in some illustrations, only the left OR right side is shown. In other drawings, only the front OR back is
depicted. The part numbers forALLcomponents are listed. An asterisk will also be used to indicate which components
are not illustrated.
Please note all pricing included with this manual is subject to change without prior notice from Pride.
Thank you for choosing products from Pride Mobility Products.

Jazzy 1100
Rev. H/042406 www.pridemobility.com Page 3
Quantum™1650 Table Of Contents
SECTION I.
Main FrameAssembly ................................................................................................................................................................................. 4
2-Battery ............................................................................................................................................................................................... 4
4-Battery ............................................................................................................................................................................................... 6
SECTION II.
MotorAssembly........................................................................................................................................................................................... 8
SECTION III.
FreewheelAssembly .................................................................................................................................................................................. 10
SECTION IV.
Anti-tipAssembly ...................................................................................................................................................................................... 12
SECTIONV.
Articulating BeamAssembly ..................................................................................................................................................................... 14
SECTIONVI.
ElectronicsAssembly................................................................................................................................................................................. 16
2-Battery ............................................................................................................................................................................................. 16
4-Battery ............................................................................................................................................................................................. 18
SECTIONVII.
ControllerAssembly .................................................................................................................................................................................. 20
SECTIONVIII.
FootrestAssembly ..................................................................................................................................................................................... 22
Standard Footplate.............................................................................................................................................................................. 22
Option Footplate................................................................................................................................................................................. 24
SECTION IX.
WheelAssembly ........................................................................................................................................................................................ 26
Pneumatic ........................................................................................................................................................................................... 26
Flat-free .............................................................................................................................................................................................. 27
SECTION X.
ShroudAssembly ....................................................................................................................................................................................... 28
SECTION XI.
ChargerAssembly ...................................................................................................................................................................................... 30
SECTION XII.
Owner’s and Decal Packages..................................................................................................................................................................... 31
APPENDIX A.
Electrical System Diagram ........................................................................................................................................................................ 32
2-Battery ............................................................................................................................................................................................. 32
4-Battery ............................................................................................................................................................................................. 33

Page 4 www.pridemobility.com Rev. H/042406

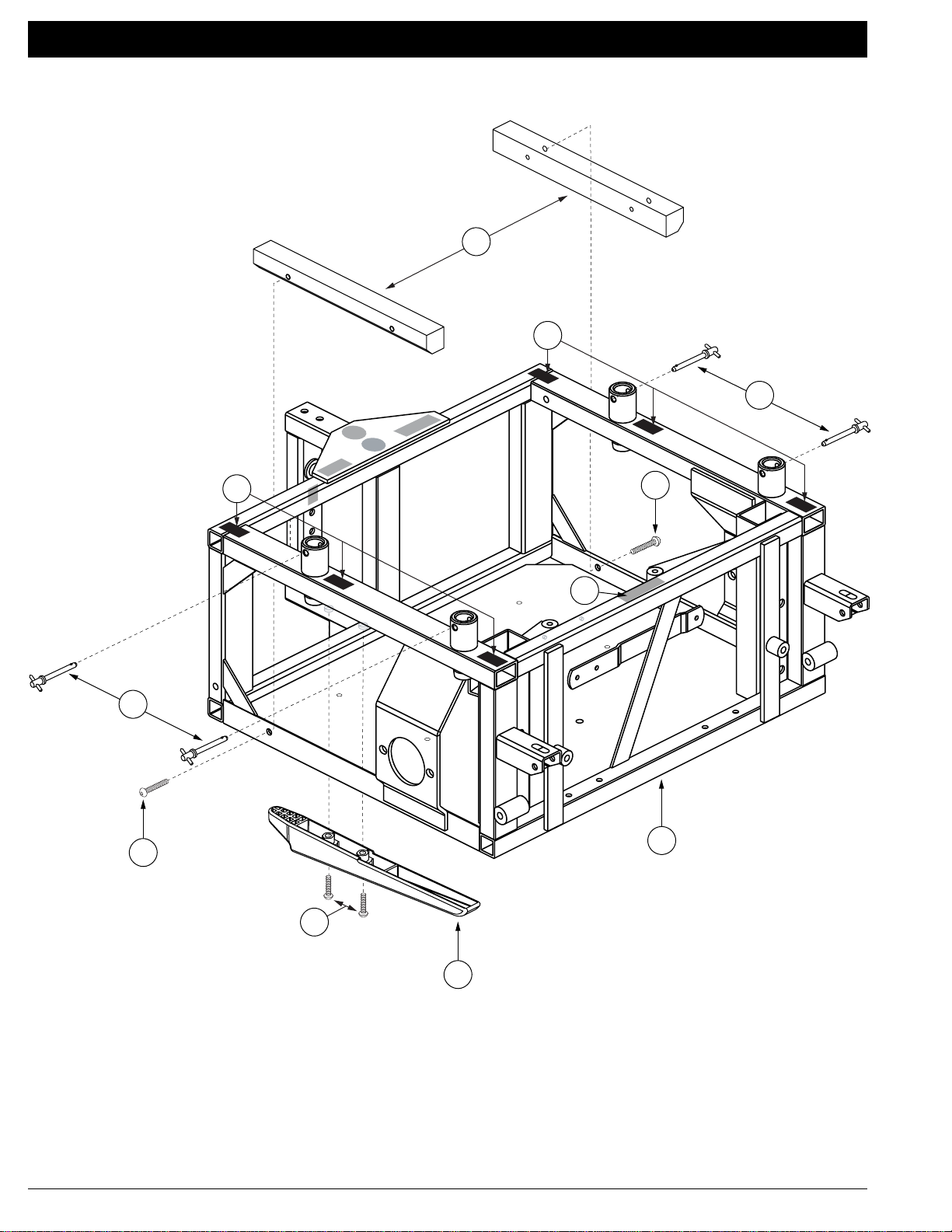

Jazzy 1100Quantum™1650I. Main Frame Assembly — 2-Battery
Standard Main FrameAssembly for 2-batteries. 4-batteries are an option for the Quantum 1650.
A1
A5
A5
A2
A4
A4
A3
C1
B2
B1
*Note: If an item has no callout, it is being shown for assembly purposes.

Jazzy 1100
Rev. H/042406 www.pridemobility.com Page 5
Quantum™1650 I. Main Frame Assembly — 2-Battery
A1 — A5
A1
A2
A3
A4
A5
B1 — B2
B1
B2
*C1
REF #
FRMASMB6254
DWR1650E004
DWR1122D016
SCRASBH1056
VELLOOP1002
PINCLEV1022
FRMASMB6638
SCRASBH1004
DWR1650B028
DECSERN1032
PART #
FRAME,ASSY,MAIN,JAZZY1650
FRAME,WELDMENT,MAIN,E-1650-004
BUMPER,SKID PLATE,PLASTIC,JAZZY1122,D-1122-016
SCREW,BHSCS,BLACK ZINC,5/16-18 X 2.00"
FASTENER,1"W X 1 1/2"L,REUSABLE, LOOP
QUICK RELEASE PIN,SELF LOCKING,1/4" X 1.50" GRIP
LENGTH,W/PLASTIC "T" HANDLE
BATTERY,ASSY,SPACER,JAZZY1650,2 BATTERY SYSTEM
SCREW,BHSCS,BLACK ZINC,1/4-20 X 0.875",GRADE 8
BATTERY SPACER,NYLON,B-1650-028
DECAL,SERIAL NUMBER,4" X 6",BARCODE,W/PRIDE LOGO
DESCRIPTION
1
1
1
2
6
4
1
4
2
1
QTY
2259.82
N/A
16.06
5.36
5.36
10.72
240.98
5.36
123.16
6
MSRP
Decal is not available for replacement.
Notes :
*C1
Standard Main Frame Assembly for 2-batteries. 4-batteries are an option for the Quantum 1650.
(AU$)
11i

Page 6 www.pridemobility.com Rev. H/042406
Jazzy 1100Quantum™1650I. Main Frame Assembly — 4-Battery
Main Frame Assembly for the 4-battery option.
A1
A5
A5
A2
B1
A4
A4
A3
C1
B1
B2
*Note: If an item has no callout, it is being shown for assembly purposes.

Jazzy 1100
Rev. H/042406 www.pridemobility.com Page 7
Quantum™1650 I. Main Frame Assembly — 4-Battery
A1 — A5
A1
A2
A3
A4
A5
B1 — B2
B1
B2
*C1
REF #
FRMASMB6254
DWR1650E004
DWR1122D016
SCRASBH1056
VELLOOP1002
PINCLEV1022
FRMASMB6639
SCRASBH1004
DWR1650B028
DECSERN1032
PART #
FRAME,ASSY,MAIN,JAZZY1650
FRAME,WELDMENT,MAIN,E-1650-004
BUMPER,SKID PLATE,PLASTIC,JAZZY1122,D-1122-016
SCREW,BHSCS,BLACK ZINC,5/16-18 X 2.00"
FASTENER,1"W X 1 1/2"L,REUSABLE, LOOP
QUICK RELEASE PIN,SELF LOCKING,1/4" X 1.50" GRIP
LENGTH,W/PLASTIC "T" HANDLE
BATTERY,ASSY,SPACER,JAZZY1650,4 BATTERY SYSTEM
SCREW,BHSCS,BLACK ZINC,1/4-20 X 0.875",GRADE 8
BATTERY SPACER,NYLON,B-1650-028
DECAL,SERIAL NUMBER,4" X 6",BARCODE,W/PRIDE LOGO
DESCRIPTION
1
1
1
2
6
4
1
2
2
1
QTY
2259.82
N/A
16.06
5.36
5.36
10.72
240.98
5.36
123.16
6
MSRP
Decal is not available for replacement.
Notes :
*C1
Main Frame Assembly for the 4-battery option.
(AU$)
11i

Page 8 www.pridemobility.com Rev. H/042406
Jazzy 1100Quantum™1650II. Motor Assembly
A2
A4
A3
A6
A5
A7
A1a/A1b
*Note: Right side shown. If an item has no callout, it is being shown for assembly purposes.

Jazzy 1100
Rev. H/042406 www.pridemobility.com Page 9
Quantum™1650 II. Motor Assembly
A1 — B1
A1a — B1
A1b — B1
*A1a
*A1b
A2
A3
A4
A5
A6
A7
*B1
REF #
DRVASMB1588
DRVASMB1587
DRVASMB1586
DRVMOTR1207
DRVMOTR1206
SCRSHCS1128
SCRHHCS1296
DWR1650A003
NUTNJAM1012
WASSTND1108
DWR1650A004
FRMASMB6314
PART #
MOTOR,ASSY,DRIVE,24 VOLT,INLINE,W/FREEWHEEL RELEASE
LEVER,PAIR
MOTOR,ASSY,DRIVE,24 VOLT,INLINE,W/FREEWHEEL RELEASE
LEVER,RIGHT
MOTOR,ASSY,DRIVE,24 VOLT,INLINE,W/FREEWHEEL RELEASE
LEVER,LEFT
MOTOR,DRIVE,24 VOLT,INLINE,RIGHT,E-1650-
008,(SHIHLIN:A9Y1X04271)
MOTOR,DRIVE,24 VOLT,INLINE,LEFT,E-1650-
009,(SHIHLIN:A9Y1X04272)
SCREW,SHCS,BLACK ZINC,3/8-24 X 2.00"
SCREW,HHCS,BLACK ZINC,M8-1.25 X 25MM,GRADE 10.9,W/NYLON
PATCH
KEY, SHAFT,STEEL,0.187" X 0.187" X 1.50",A-1650-003
NUT,NYLOCK JAM,ZINC,1/2-20,GRADE 5
WASHER,FLAT,STEEL,0.5625" ID X 1.00" OD X 0.125" TH
SPACER,STEEL,0.782"ID X 1.00"OD X 0.36"TH,A-1650-004
FREEWHEEL,ASSY,LEVER,JAZZY1650
DESCRIPTION
1
1
1
1
1
4
2
1
1
1
1
1
QTY
3716.38
1858.18
1858.18
1799.28
1799.28
5.36
5.36
10.72
5.36
5.36
42.84
74.98
MSRP
Contains A2 — A7.
Not shown. Contains A2 — A7.
Refer to SECTION III. — Freewheel Assembly for the illustration and parts list.
Notes :
*A1a
*A1b
*B1
Top-level assemblies will include components designated with corresponding lower-case letters. Parts without lower-case letters will be included in
all top-level assemblies.
(AU$)
11i

Page 10 www.pridemobility.com Rev. H/042406
Jazzy 1100Quantum™1650III. Freewheel Assembly
*Note: Right side shown. If an item has no callout, it is being shown for assembly purposes.
B1
B5
B4
B3
B6
B9
B5
B8
B7
B7
B5
B2

Jazzy 1100
Rev. H/042406 www.pridemobility.com Page 11
Quantum™1650 III. Freewheel Assembly
B1 — B9
B1
B2
B3
B4
B5
B6
B7
B8
B9
REF #
FRMASMB6314
DWR1650B016
DWR1650B013
DWR1650B015
BLTASHL1006
WASSAE1003
DWR1650B011
NUTNYLK1040
BLTASHL1133
SPCNYLN1022
PART #
FREEWHEEL,ASSY,LEVER,JAZZY1650
FREEWHEEL,T-HANDLE,B-1650-016
BOLT,1/4-20 THREAD BOTH ENDS X 3.50" LG,FREEWHEEL ARM,B-1650-
013
FREEWHEEL,ARM,BENT,B-1650-015
BOLT, SHOULDER,1/4"X 1/2"
WASHER,FLAT,BLACK ZINC,1/4,0.281" ID X 0.625" OD X 0.0625" TH,SAE
FREEWHEEL,ARM,STRAIGHT,B-1650-011
NUT, NYLOCK, 10-24, BLACK ZINC
BOLT, SHOULDER,1/4'' X 1.75''
SPACER,BLACK,NYLON,0.281" ID X 1.12" OD X 0.437" TH
DESCRIPTION
1
1
1
1
1
4
1
2
1
1
QTY
74.98
N/A
5.36
21.42
5.36
5.36
58.9
5.36
5.36
5.36
MSRP(AU$)
11i

Page 12 www.pridemobility.com Rev. H/042406
Jazzy 1100Quantum™1650IV. Anti-tip Assembly
*Note: Right side shown. If an item has no callout, it is being shown for assembly purposes.
D1
D4
D4
B7
D5
C2
A2
D2 B4
D3
A3
B1a/B1b
A1a/A1b
C1
B6
B8
B3
B2
B5

Jazzy 1100
Rev. H/042406 www.pridemobility.com Page 13
Quantum™1650 IV. Anti-tip Assembly
A1a — D5
A1b — D5
A1a — C2
A1b — C2
A1a
A1b
A2
A3
B1a — B8
B1b — B8
B1a
B1b
B2
B3
B4
B5
B6
B7
B8
C1 — C2
C1
C2
D1 — D5
D1
D2
D3
D4
D5
REF #
FRMASMB6310
FRMASMB6309
FRMASMB6312
FRMASMB6311
DWR1650C005
DWR1650C004
SCRHHCS1066
NUTNYLK1026
FRMASMB2631
FRMASMB2630
DWR1010C010
DWR1010C011
NUTNYLK1026
WASSTND1002
DWR1170A015
SCRASBH1030
WASETH1005
NUTNYLK1032
DWR1170A018
WHLASMB1334
BRGSLV1009
WHLATIP1003
FRMASMB6313
INDPART2077
SCRHHCS1186
SCRHHCS1183
NUTNYLK1026
WASNYLN1064
PART #
ANTI-TIP,ASSY,MAIN,CAM ADJUSTABLE,W/STRUT &
WHEEL,JAZZY1650,RIGHT
ANTI-TIP,ASSY,MAIN,CAM ADJUSTABLE,W/STRUT &
WHEEL,JAZZY1650,LEFT
BRACKET,ASSY,ANTI-TIP,W/FORK/WHEEL/CAM,JAZZY1650,RIGHT
BRACKET,ASSY,ANTI-TIP,W/FORK/WHEEL/CAM,JAZZY1650,LEFT
ANTI-TIP,CURB CLIMBER WELDMENT,RIGHT,C-1650-005
ANTI-TIP,CURB CLIMBER WELDMENT,LEFT,C-1650-004
SCREW, HHCS,BLACK ZINC,5/16-18 X 2 1/4",G5
NUT, NYLOCK,BLACK ZINC,5/16-18
CAM ADJ PLATE,ANTI-TIP BRACKET,.3750" SHAFT,RIGHT
CAM ADJ PLATE,ASSY,ANTI-TIP BRACKET,.3750" SHAFT,LEFT
ANTI-TIP BRACKET WELDMENT,SLOTTED,W/3/8" BOLT,RIGHT
ANTI-TIP BRACKET WELDMENT,SLOTTED,W/3/8" BOLT,LEFT
NUT, NYLOCK,BLACK ZINC,5/16-18
WASHER,FLAT,BLACK ZINC,0.3125" ID X 0.6875" OD X 0.0625" TH
ADJUSTABLE CAM WELDMENT,A-1170-015
SCREW,BHSCS,BLACK ZINC,5/16-24 X 1.00"
WASHER, EXTERNAL TOOTH,5/16" ID,LOCK
NUT, NYLOCK,BLACK ZINC,5/16-24
SPACER,BLACK,NYLON,0.375ID X 1.38OD X 0.313TH,A-1170-018
WHEEL,ASSY,200MM X 50MM,W/BEARINGS,CO-MOLDED
BEARING,SLEEVE,0.375"ID X 0.875"OD
WHEEL,ANTI-TIP,200 X 50,FOAM FILLED
ASSY,STRUT,5.00''LG,.586 STROKE,COIL SPRING SHOCK,JAZZY
1650
SPRING,SHOCK COIL,NON-ADJUSTABLE,BLACK,5.00" L,0.586" STROKE
SCREW,HHCS,BLACK ZINC,5/16-18 X 2.75",GRADE 8
SCREW,HHCS,BLACK ZINC,5/16-18 X 1.75",GRADE 8
NUT, NYLOCK,BLACK ZINC,5/16-18
WASHER,BLACK,NYLON,0.320"ID X 0.750"OD X 0.250"TH
DESCRIPTION
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
2
2
QTY
305.24
305.24
262.4
262.4
85.68
85.68
5.36
5.36
107.1
107.1
74.98
74.98
5.36
5.36
32.14
5.36
5.36
5.36
10.72
91.04
N/A
N/A
42.84
42.84
5.36
5.36
5.36
5.36
MSRP
Notes :
Top-level assemblies will include components designated with corresponding lower-case letters. Parts without lower-case letters will be included in
all top-level assemblies.
(AU$)
11i

Page 14 www.pridemobility.com Rev. H/042406
Jazzy 1100Quantum™1650V. Articulating Beam Assembly
A2
A7
A15
A6
A3
D1
D2
D1
A9
A1
D5
D2
A8
A5
A11
A14
A10
D4
D4
D5
E2
E2
A10
A16
A16
A11
A14
A10
D3
D3
D3
D3
E1
E1
E3
E3
B2
B1
B6
B5
B5 B6
B1 — C2
B3
B4 C1
C1 C2
A15
A13
D6
A12
A4
*Note: If an item has no callout, it is being shown for assembly purposes.

Jazzy 1100
Rev. H/042406 www.pridemobility.com Page 15
Quantum™1650 V. Articulating Beam Assembly
A1 — E3
A1 — A16
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
B1 — E3
B1 — C2
B1
B2
B3
B4
B5
B6
C1 — C2
C1
C2
D1 — E3
D1
D2
D3
D4
D5
D6
E1 — E3
E1
E2
E3
REF #
FRMASMB6255
FRMASMB6256
DWR1650E006
DWR1650C020
SCRHHCS1183
NUTNYLK1026
BRGFLNG1023
BLTASHL1077
NUTNYLK1078
DWR1650B030
SCRHHCS1156
BRGSLV1021
DWR1500A029
DWR1500B024
DWR1500A046
HDWINDV1041
DWR1500A045
DWR1500B071
FRMASMB3483
WHLASMB1427
WHLRIMS1015
WHLRIMS1020
TIRSOLI1034
DWR1500B056
NUTSTD1001
WASLOCK1031
WHLASMB1559
BRGBTRA1007
DWR1000C357
FRMASMB3484
DWR1500D020
SCRHHCS1203
SCRPPTC1001
DWR1500A021
NUTNYLK1006
NUTNJAM1022
FRMASMB3754
DWR1500B007
DWR1500D012
NUTNJAM1022
PART #
ARTICULATING BEAM,ASSY,ANGLED,MAIN, W/9'' FLAT FREE
CASTERS, JAZZY1650
ARTICULATING BEAM,ASSY,ANGLED,JAZZY1650
ARTICULATING BEAM,WELDMENT,BLACK,ANGLED,E-1650-006
ARTICULATING BEAM MOUNTING BRACKET WELDMENT,C-1650-020
SCREW,HHCS,BLACK ZINC,5/16-18 X 1.75",GRADE 8
NUT, NYLOCK,BLACK ZINC,5/16-18
BEARING,FLANGE,0.625"ID X 0.75"OD X 0.625"TH X 1.00"FOD X
0.125"F,(MCMASTER CARR: 6338K425)
BOLT,SHOULDER,5/8" X 4.25"
NUT, NYLOCK,BLACK,ZINC,1/2-13
ATTACHMENT PLATE,ARTICULATING BEAM,B-1650-030
SCREW,HHCS,BLACK ZINC,5/16-18 X 0.75",GRADE 8
BEARING,BALL,0.625"ID X 1.378"OD X 0.432"TH,620210-2NSE,A-1500-
032
SPACER,STEEL,0.630"ID X 1.00" OD X 0.82" TH,A-1500-029
END CAP,PLASTIC,ARTICULATING PIVOT BEAM BARREL,B-1500-024
WASHER,STEEL,0.630" ID X 1.365" OD X 0.1345" (10GA) TH,CUSTOM,A-
1500-046
O-RING,NEOPRENE,1.0625"ID X 1.3125"OD X 0.1250"W,SIZE
215,DUROMETER SHORE A 70 +/-5,(MSC 31954050)
SHIM,STEEL,5/8" BOLT SIZE,0.630-0.635" ID X 1.00" OD X 0.093",A-
1500-045
SPACER,STEEL,26MM ID X 30MM OD X 14.5MM TH,B-1500-071
FORK,ASSY,CASTER,W/9" FLAT FREE WHEEL,QUANTUM BLAST
WHEEL,ASSY,FLAT FREE,9",2.80/2.50-4,AQUA TREAD PATTERN
WHEEL,RIM,BLACK,5",FRONT, EXTERIOR W/VALVE STEM HOLE, XL
WHEEL,RIM,BLACK,3.95"DIAM X 1.65 DEPTH,REAR, INNER
TIRE,FLAT FREE,2.80 X 2.50 PRIMO DURATRAP
SPACER,STEEL,9" CASTER BEARING,0.377" ID X 0.623" SHOULDER
DIA,B-1500-056
NUT,5/16-24
WASHER,LOCK,ZINC,0.3125" ID X 0.50" OD X 0.0937" TH
WHEEL,ASSY,HUB,2.75''BC,W/BALL BEARINGS
BEARING, BALL,0.625''ID X 1.375''OD X 0.4331'',DOUBLE SEAL W/SNAP
RING
WHEEL,HUB,2.75''BC,W/STUDS,C-1000-357
FORK,ASSY,CASTER,FRONT,QUANTUM BLAST
CASTER FORK FENDER,PLASTIC,D-1500-020
SCREW,HHCS,BLACK ZINC,3/8-16 X 4.50"
SCREW, PPH,8-32 X 3/8",G5, SELF-TAP
SPACER,STEEL,0.377"ID X 1.00"OD X 0.52"TH,A-1500-021
NUT, NYLOCK,BLACK ZINC,3/8"-16
NUT,NYLOCK JAM,ZINC,5/8-18
WHEEL,ASSY,CASTER FORK,9",W/PIVOT STUD,D-1500-024
PIVOT STUD,CASTER FORK,5/8-18,,B-1500-007
CASTER,FORK,9'',QUANTUM BLAST,D-1500-012
NUT,NYLOCK JAM,ZINC,5/8-18
DESCRIPTION
1
1
1
1
2
2
2
1
1
1
2
4
2
2
2
2
3
2
2
1
1
1
1
1
4
4
1
2
1
1
1
1
4
2
1
2
1
1
1
1
QTY
1751.08
498.02
321.3
133.88
5.36
5.36
5.36
5.36
5.36
21.42
5.36
5.36
10.72
5.36
5.36
5.36
5.36
5.36
524.8
224.92
69.62
32.14
187.42
5.36
5.36
5.36
48.2
5.36
48.2
299.88
10.72
5.36
5.36
10.72
5.36
5.36
257.04
5.36
N/A
5.36
MSRP(AU$)
11i

Page 16 www.pridemobility.com Rev. H/042406
Jazzy 1100Quantum™1650VI. Electronics Assembly — 2-Battery
*Note: If an item has no callout, it is being shown for assembly purposes.
L(–) L(+)
R(+) R(–)
To
Joystick
A9
A7
A9
A8
A2
B1
A8
A6
A12
A4
A3
A5
A10
A1
A16
A16
A13
A11
C1
A14
A14

Jazzy 1100
Rev. H/042406 www.pridemobility.com Page 17
Quantum™1650 VI. Electronics Assembly — 2-Battery
A1 — A16
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
*A15
A16
B1
C1
REF #
ELEASMB3619
DWR1650H001
DWR1650B022
ELECBRK1012
DWR1650C018
SCRASBH1022
NUTNYLK1026
SCRASBH1128
SCRASBH1002
NUTNYLK1001
NUTNYLK1076
SCRASBH1019
SPCNYLN1049
SCRASBH1141
PLSCOVR1021
PLSTIE1004
ELEASMB2868
CTLDC1365
DWR1650H003
PART #
ELECTRONIC,ASSY,REMOTE PLUS,100 AMP,JAZZY1650,OFFBOARD
CHARGER,2 BATTERY SYSTEM
ELECTRONIC,HARNESS,BATTERY CABLE, REMOTE PLUS, 4
CONNECTIONS,H-1650-001
CIRCUIT BREAKER MOUNTING BRACKET,B-1650-022
ELECTRONIC,CIRCUIT BREAKER,80 AMP,AUTO-RESET
BATTERY QUICK CONNECT MOUNTING BRACKET,C-1650-018
SCREW,BHSCS,BLACK ZINC,5/16-18 X 0.750'',GRADE 5
NUT, NYLOCK,BLACK ZINC,5/16-18
SCREW,BHSCS,BLACK ZINC,10-32 X 1.50",GRADE 8
SCREW,BHSCS,BLACK ZINC,10-32-0.750",GRADE 8
NUT,NYLOCK,BLACK ZINC,10-32
NUT,NYLOCK,BLACK ZINC,6-32
SCREW,BHSCS,6-32 X 1.50"
SPACER,WHITE,NYLON,0.140" ID X 0.50" OD X 0.3125" TH
SCREW,BHSCS,BLACK ZINC,6-32 X 1.750''
COVER,DUST,RED,RUBBER,ANDERSON
CONNECTOR,(ANDERSON:134G1)
TIE WRAP,BLACK,8"
ELECTRONIC,ASSY,BATTERY CABLE,W/125A/32V FUSEABLE
LINK,QUICK DISCONNECT,H-1500-013
CONTROLLER,REMOTE PLUS,100AMP,W/PROFILES,W/2.0M
CABLE,POWER MODULE,H-1650-002
ELECTRONIC,HARNESS,2.0M L,REDEL CABLE,REMOTE PLUS,H-1650-
003,(PGDT:SA74375)
DESCRIPTION
1
1
1
1
1
2
2
2
4
4
4
2
2
2
2
1
2
1
1
QTY
1226.3
358.78
21.42
117.82
42.84
5.36
5.36
5.36
5.36
5.36
5.36
5.36
5.36
5.36
5.36
5.36
166
3277.26
412.34
MSRP
Not shown.
Notes :
*A15
(AU$)
11i

Page 18 www.pridemobility.com Rev. H/042406
Jazzy 1100Quantum™1650VI. Electronics Assembly — 4-Battery
LF(–) LF(+)
LR(–)
LR(+)
RF(+) RF(–)
RR(–)
RR(+)
To
Joystick
A9
A7
A9
A8
A2
B1
A8
A6
A12
A4
A3
A5
A10
A1
A16
A16
A13
A11
C1
*Note: If an item has no callout, it is being shown for assembly purposes.

Jazzy 1100
Rev. H/042406 www.pridemobility.com Page 19
Quantum™1650 VI. Electronics Assembly — 4-Battery
A1 — A16
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
*A14
*A15
A16
B1
C1
REF #
ELEASMB3563
DWR1650H001
DWR1650B022
ELECBRK1012
DWR1650C018
SCRASBH1022
NUTNYLK1026
SCRASBH1128
SCRASBH1002
NUTNYLK1001
NUTNYLK1076
SCRASBH1019
SPCNYLN1049
SCRASBH1141
PLSCOVR1021
PLSTIE1004
ELEASMB2868
CTLDC1365
DWR1650H003
PART #
ELECTRONIC,ASSY,REMOTE PLUS,100 AMP,JAZZY1650,OFFBOARD
CHARGER,4 BATTERY SYSTEM
ELECTRONIC,HARNESS,BATTERY CABLE, REMOTE PLUS, 4
CONNECTIONS,H-1650-001
CIRCUIT BREAKER MOUNTING BRACKET,B-1650-022
ELECTRONIC,CIRCUIT BREAKER,80 AMP,AUTO-RESET
BATTERY QUICK CONNECT MOUNTING BRACKET,C-1650-018
SCREW,BHSCS,BLACK ZINC,5/16-18 X 0.750'',GRADE 5
NUT, NYLOCK,BLACK ZINC,5/16-18
SCREW,BHSCS,BLACK ZINC,10-32 X 1.50",GRADE 8
SCREW,BHSCS,BLACK ZINC,10-32-0.750",GRADE 8
NUT,NYLOCK,BLACK ZINC,10-32
NUT,NYLOCK,BLACK ZINC,6-32
SCREW,BHSCS,6-32 X 1.50"
SPACER,WHITE,NYLON,0.140" ID X 0.50" OD X 0.3125" TH
SCREW,BHSCS,BLACK ZINC,6-32 X 1.750''
COVER,DUST,RED,RUBBER,ANDERSON
CONNECTOR,(ANDERSON:134G1)
TIE WRAP,BLACK,8"
ELECTRONIC,ASSY,BATTERY CABLE,W/125A/32V FUSEABLE
LINK,QUICK DISCONNECT,H-1500-013
CONTROLLER,REMOTE PLUS,100AMP,W/PROFILES,W/2.0M
CABLE,POWER MODULE,H-1650-002
ELECTRONIC,HARNESS,2.0M L,REDEL CABLE,REMOTE PLUS,H-1650-
003,(PGDT:SA74375)
DESCRIPTION
1
1
1
1
1
2
2
2
4
4
4
2
2
2
2
1
4
1
1
QTY
1601.14
358.78
21.42
117.82
42.84
5.36
5.36
5.36
5.36
5.36
5.36
5.36
5.36
5.36
5.36
5.36
166
3277.26
412.34
MSRP
Not shown.
Not shown.
Notes :
*A14
*A15
(AU$)
11i

Page 20 www.pridemobility.com Rev. H/042406

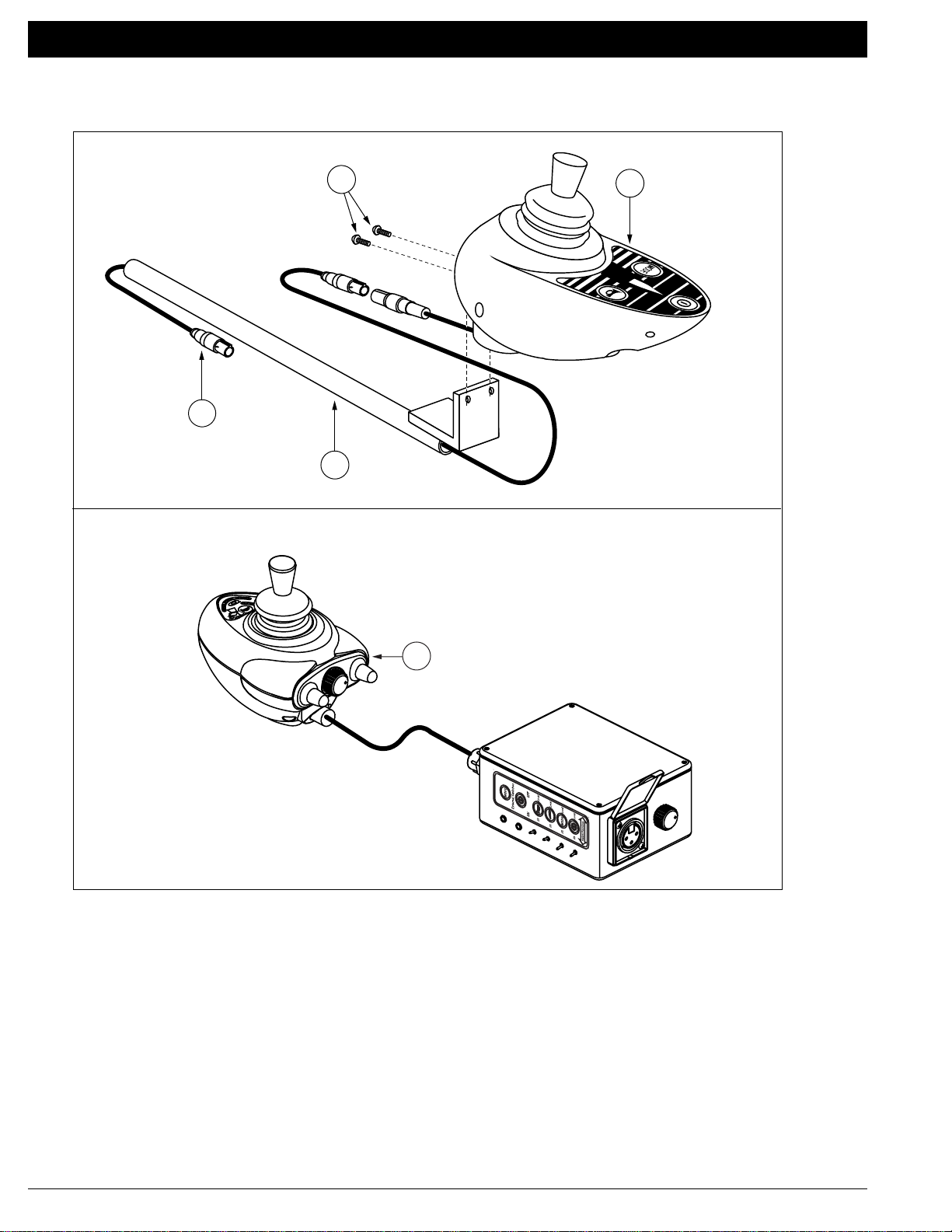

Jazzy 1100Quantum™1650VII. Controller Assembly
Remote Plus
To Power
Module
Remote Plus
Microdrive
A1
B1
C1
B2
D1
