PRIMEX™ SP6R-LSC Level Controller User Manual
WWW.PRIMEXCONTROLS.COM

SPECIFICATIONS
INPUT TYPE
4-20 mA signal.
INPUT IMPEDANCE
100 ohms.
INPUT RESOLUTION
12 - bits, 0.1% of full scale.
SAMPLING CYCLE TIME
100 mS.
AVERAGING
8 consecutive samples.
ACCURACY
0.5% of full scale.
EXCITATION VOLTAGE
24 VDC, 30 mA available for loop powered transducers.
RELAY OUTPUTS
Four programmable relay outputs with LED indication. “Form C” (SPDT)
contacts: rated at 10A at 240 VAC.
LEVEL DISPLAY
Eight character alpha-numeric LED for process value and program parameters.
POWER
24 VDC (+/- 10%). 200 mA nominal, 400 mA max.
OPERATING TEMPERATURE
-15oC to 70oC (0oF to 150oF) at up to 0-90% RH non-condensing.
ENCLOSURE RATING
Front Panel: IEC Standard IP54 (with additional gasket) for indoor use.
Rear Case: IEC Standard IP20.
BAR GRAPH
20 segment bar graph display for process value. Each bar represents 5% of full scale.
PRIMEX™ 2 SP6R-LSC Level Controller User Manual

The SP6R-LSC Duplex Lift Station Controller monitors the level in the wet well and controls the
operation of one or two pumps.
In addition, it also monitors the pump run, pump seal failure and pump over temperature status. The con-
troller has a built in alternator, run time meters, cycle counters and a level simulator. Level can be moni-
tored via a submersible transducer or any other 4-20 mA device. The controller can be configured for
pump down or pump up applications.
SP6R-LSC LEVEL CONTROLLER INTRODUCTION
The standard SP6R-LSC lift station controller kit contains (see Figure 2 on page 5 of this manual):
• one SP6R-LSC lift station controller
• two mounting brackets for panel mounting
• a two pin power supply connector block
• a five pin transducer connector block
• two 6 pin relay output connector blocks
• a 12 pin pump status input connector block
The SP6R-LSC-N4X version includes a controller mounted in a NEMA 4X enclosure. These units are
ideal for replacing float switch or “bubbler” control systems.
PRIMEX™ 3 SP6R-LSC Level Controller User Manual

WARNINGS
Failure to read and understand the information provided in this manual may result in personal injury or
death, damage to the product or product failure. Please read each section in its entirety and be sure you
understand the information provided in the section and related sections before attempting any of the proce-
dures or operations given.
Failure to follow these precautions could result in serious injury or death. Keep these instructions with
warranty after installation. This product must be installed in accordance with National Electrical Code,
ANSI/NFPA 70 so as to prevent moisture from entering or accumulating within the controller housing.
See additional specifications on page 14 of this manual.
ELECTRICAL SHOCK HAZARD
Disconnect power before installing or servicing this product.
A qualified service person must install and service this product according to applicable
electrical codes.
EXPLOSION OR FIRE HAZARD
Do not use this product with flammable liquids. Do not install in hazardous locations
as defined by National Electrical Code,
ANSI/NFPA 70.
• Do not install in area with: excessive or conductive dust, corrosive or flammable gas, moisture or
rain, excessive heat, regular impact shocks or excessive vibration.
• Do not place in water or let water leak onto the controller.
• Do not allow debris to fall inside the unit during installation.
• Double-check all the wiring before turning on the power supply.
• Do not touch live wires.
• Stay as far as possible from high-voltage cables and power equipment.
• Leave a minimum of 10 mm space for ventilation between the top and bottom edges of the control-
ler and enclosure walls.
PRIMEX™ 4 SP6R-LSC Level Controller User Manual

RESET
1 2
Run
Seal Fail
Pump
Over Temp.
High Level
Lag Pump
Lead Pump
Low Level
FIGURE 1 Dimensions and panel cut-out. Dimensions are indicative and may be subject to change without notification.
INSTALLATION & DIMENSIONAL DATA
PRIMEX™ 5 SP6R-LSC Level Controller User Manual

PRIMEX™ 6 SP6R-LSC Level Controller User Manual
PANEL CUT OUT TEMPLATE
FOR SP6R-LSC LIFT STATION CONTROLLER
8.6” (218 mm)
4 7/16”
(112 mm)
cut along dotted line

FIGURE 2 Standard SP6R-LSC duplex lift station controller kit.
INSTALLATION & DIMENSIONAL DATA
PRIMEX™ 7 SP6R-LSC Level Controller User Manual

ELECTRICAL CONNECTION
FIGURE 3 Wiring diagram, back view -
with a submersible pressure transducer.
1. POWER
Connect power to terminal 1 and 2: the unit requires 24 VDC (+/- 10%).
2. SENSOR
LOOP POWERED TRANSDUCER
For loop powered transducers (2 wire) connect power conductor to terminal 1 and 2. If the cable is pro-
tected with an overall shield, connect the shield to terminal (3). Terminal 4 and 5 must be connected if
an output follower is not required. If no valid input is present, the controller will flash “SENSOR” and all
outputs will be de-energized, except the high level alarm.
SELF POWERED SIGNAL TRANSDUCER
Connect to terminal 2 and 4 and shield to terminal 3.
NOTE: To avoid ground loops, the shield of the signal cable must only be grounded at one end.
PRIMEX™ 8 SP6R-LSC Level Controller User Manual

FIGURE 6 Loop Powered Transducer
Connection. FIGURE 7 Self Powered Signal Connection.
PRIMEX
™9 SP6R-LSC Level Controller User Manual

4. PUMP STATUS CONNECTIONS
Dry contacts: use potential free contacts only for pump status inputs.
WARNING
Equipment damage will result if any voltage is connected to the input terminals.
5. OUTPUT RELAY CONNECTIONS
The relay outputs are rated up to 10 A (resistive) at 240 VAC, fuse protection is required indi-
vidually or as a group.
Motor starters
auxiliary contacts Thermal switches
in motor winding.
Normally closed:
open on
over temperature.
Seal fail contact from
seal fail module.*
Do not connect if mois-
ture sensing probe is not
available in the pump.
*Seal fail module must be approved by pump manufacturer.
FIGURE 4 Pump Status connections.
FIGURE 5 Typical Output Relay connections.
PRIMEX™ 10 SP6R-LSC Level Controller User Manual

LEVEL
DISPLAY
Eight character
alpha-numeric
LED for process
value display
and program
parameters.
BAR GRAPH
20 segment bar
graph display for
process value.
Each bar repre-
sents 5% of full
scale.

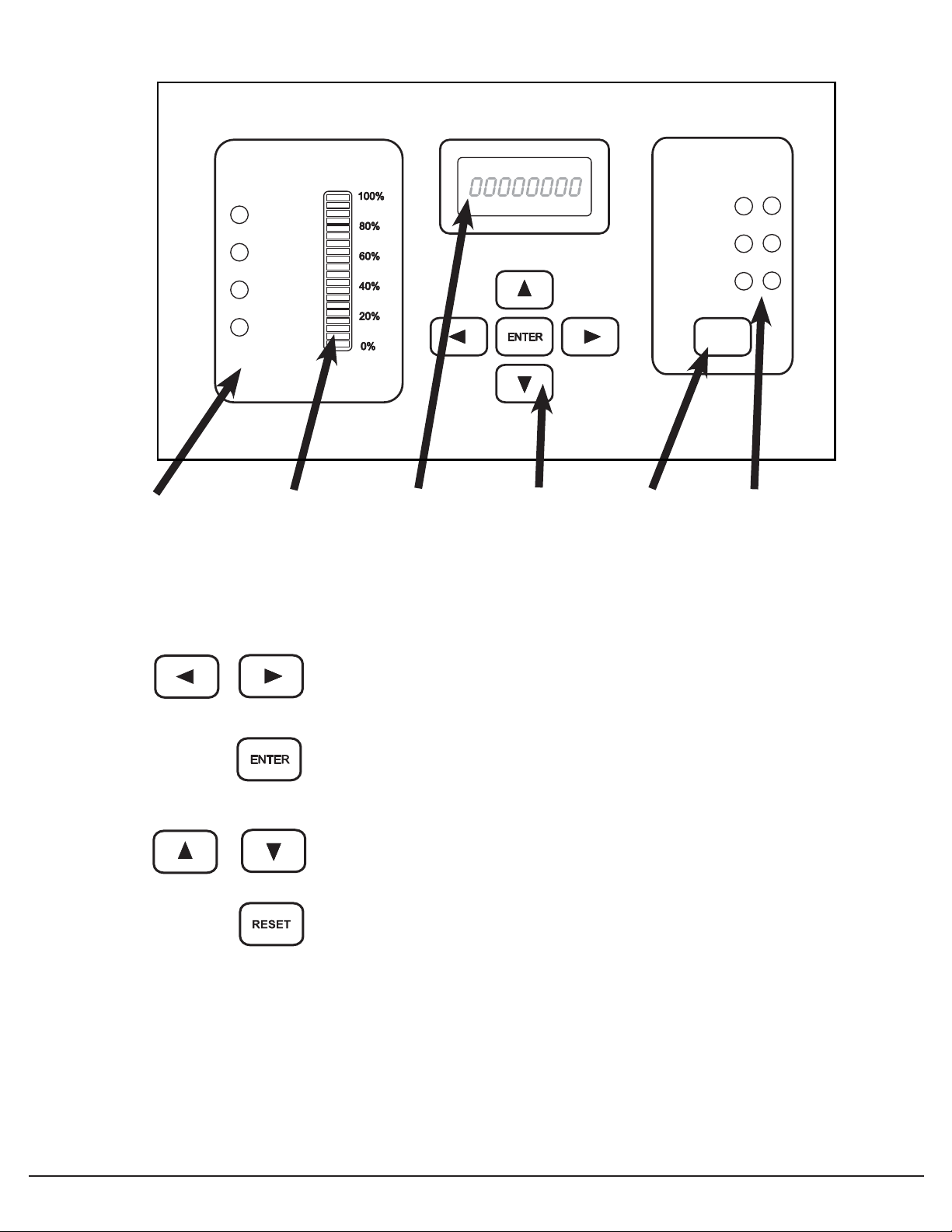

FUNCTION KEYS / DISPLAYS
LEFT AND RIGHT ARROW KEYS are used to navigate
through the menu items. These arrow keys can also be
used to back out when in editing and simulation mode.
ENTER KEY is used for selecting a menu item for editing.
This key is also used after a value has been edited to store
in memory.
UP AND DOWN ARROW KEYS are used to increase or
decrease the current value being edited.
RESET BUTTON is used to clear pump faults that are no
longer active.
NOTE: The display automatically returns to “level” after 20 seconds of inactivity,
regardless of where it was left.
Pressing once will increment the current value by one unit. Pressing and holding
will begin repeatedly incrementing after a short delay. If the operator continues to
hold the key, the value continues to increment at a faster rate.
RESET
1 2
Run
Seal Fail
Pump
Over Temp.
High Level
Lag Pump
Lead Pump
Low Level
PUMP
STATUS
DISPLAY
Indicators for
each pump:
run, seal fail and
over temperature
indicators.
LEVEL
STATUS
4 LEDs indicating
low level alarm,
high level alarm
and lead/lag pump
called to run.
RESET
Alarms can
be configured
to latch until
the fault reset
button is
pressed.
KEYPAD
Arrow keys are
used to navi-
gate through
the configura-
tion for adjust-
ing set points.
PRIMEX™ 11 SP6R-LSC Level Controller User Manual

lo0level
0stop0ld
stop0lag
0star0ld
star0lag
alternat
0etm10hr
00000ec1
0etm20hr
00000ec2
hi0level
LEVEL DISPLAY
LEVEL DISPLAY
FLASHING
STORE
SELECT EDIT
SETTING UP LEVELS
FIGURE 8 Example of how to move
from level display screen.
LO LEVEL: Low level alarm set point
STOP LD: Stop lead pump level set point
STOP LAG: Stop lag pump level set point
STAR LD: Start lead pump level set point
HI LEVEL: High level alarm set point
ALTERNAT:AUTO/1-2/2-1 alternation selector
PRIMEX™ 12 SP6R-LSC Level Controller User Manual

CONFIGURATION
To enter the configuration mode, simultaneously press the LEFT and
RIGHT arrow key and hold for three (3) seconds with the unit pow-
ered ON.
NOTE: Eight (8) seconds of inactivity (no keys pressed) will terminate
the configuration menu and exit back to the run menu.
The first item in the configuration menu is the UNITS selection. Use
the LEFT or RIGHT arrow keys to navigate through all the items in
this menu.
UNITS Select the unit of measure display after the process value.
FT= Feet
IN = Inches
CM= Centimeters
M= Meters
%= Percentage
NONE = Blank, No Units Displayed
When you are at the item you wish to edit, press the ENTER key
and the original value for the item selected will flash. Use the UP
and DOWN arrow keys to change to your desired value and press
ENTER.
NOTE: The edited value will not be saved until the ENTER key is
pressed.
4 mA Set the value displayed when the signal value is
equal to 4mA (zero). The default value is zero.
20 mA Set the value displayed when the signal value is
equal to 20mA (span). The default value is 10.0.
BAR MIN This value set the level for which all bars on the bar
graph will turn OFF.
BAR MAX This value set the level for which all bars on the bar
graph will turn ON.
PRIMEX™ 13 SP6R-LSC Level Controller User Manual

HYSTER. (hysteresis) This value will maintain the output on until the
process value falls under the set point - hysteresis value.
OFFSET An offset value can be added or subtracted to bring the display
value to zero at atmospheric pressure. If you are using a
submersible pressure transducer, the level readout at atmos-
pheric pressure (out of the wet well) should be zero. If it is
not, add or subtract (negative) a value to bring the display to
zero. Check the level readout to verify if it is zero. If not, try to
change the offset again.
LAG TMR Delay timer before starting lag pump. Set from one second
to 600 seconds.
SEAL FLT LED ONLY / LOCKOUT / LAG ONLY
LED ONLY: In the event of a seal failure, the pump will still be
allowed to run and the seal fail light will turn on.
LOCK OUT: Pump will not be allowed to run and light will turn on.
LAG ONLY: Pump with a seal fail is only allowed to run in a lag
situation. Seal fail light will turn on.
THERMAL AUTO RST / MANUAL
AUTO RST: The pump will shut down on over temperature, but will
be allowed to run again if the pump cools down and the
fault clears.
MANUAL: The pump will shut down on over temperature and will
not be allowed to run until the fault clears and the
RESET button is pressed by the operator.
FIGURE 5
PRIMEX™ 14 SP6R-LSC Level Controller User Manual

HI ALARM AUTO RST / MANUAL
AUTO RST: The high level alarm is automatically cleared as the
level drops below the HI ALARM set point.
MANUAL: The alarm will remain on until the RESET button is
pressed by the operator.
LO ALARM AUTO RST / MANUAL
AUTO RST: The low level alarm is automatically cleared as the
level rises above the LO ALARM set point.
MANUAL: The alarm will remain on until the RESET button is
pressed by the operator.
MODE In PUMP mode, as the level value rises above a set point,
the controller will switch ON the corresponding output relay and
it will remain ON until the level drops below the set point (the
PUMP mode is used for pump down or emptying applica-
tions).
In PUMP mode, the relays turn ON as the level drops below
the set points and remains ON until the level rises above the
set point (the PUMP mode is used for pump up or filling
applications).
RUN SIG USED/UNUSED
USED: The pump run indication LEDs are dependent on input
signals 1, 2, 3, 4 from motor starter auxiliary contacts.
UNUSED: The pump run indication LEDs are on when the output
relays for pump control are energized.
RES CTRS RESET ALL COUNTERS
Enter 12 in this field and all counters will be reset to
zero.
PRIMEX™ 14 SP6R-LSC Level Controller User Manual

000UNITS
0005.30ft
00 11.50ft 0023.00ft
000040MA
000200MA
00HYSTER.
+
00offset
000UNITS
0lag0tmr
seal0flt
0thermal
hi0alarm
lo0alarm
0000mode
0run0sig
res0ctrs
FIGURE 9 Use the arrow keys to navigate through
these menu items.
NOTE: Eight (8) seconds of inactivity (no keys pressed) will terminate the con-
figuration menu and exit back to the run menu.
LEVEL DISPLAY
HOLD BOTH ARROW KEYS FOR 3 SECONDS
PRIMEX™ 15 SP6R-LSC Level Controller User Manual

MIN MAX DEFAULT USER
OOOUNITS FT
OOOO4OMA -99.9 999.9 0.0 FT
OOO20OMA -99.9 999.9 10.0 FT
OBAROMIN -99.9 999.9 0.0 FT
OBAROMAX -99.9 999.9 10.0 FT
OOHYSTER. 0.0 9.9 0.2 FT
OOOFFSET -99.9 999.9 0.0 FT
OLAGOTMR 1.0 600 3.0 SEC
SEALOFLT
OTHERMAL
HIOALARM
LOOALARM
OOOOMODE PUMPXX PUMPXX PUMPXX
ORUNOSIG USED UNUSED UNUSED
RESOCTRS 0 0 0
CONFIGURATION MODE PARAMETERS
FT, IN, CM, M, %
LED ONLY, LOCK OUT,
LAG ONLY
AUTO RST,
LOCK OUT
AUTO RST,
MANUAL
AUTO RST,
MANUAL
LED
ONLY
AUTO
RST
AUTO
RST
AUTO
RST
NOTES:
PRIMEX™ 16 SP6R-LSC Level Controller User Manual

USER USER
MIN MAX DEFAULT FUNCTION VALUE
-9.9 999.9
LOOLEVEL 0.0 999.9 2.0 FT
OSTOPOLD 0.0 999.9 3.0 FT
STOPOLAG 0.0 999.9 4.0 FT
OSTAROLD 0.0 999.9 5.0 FT
STAROLAG 0.0 999.9 6.0 FT
HIOLEVEL 0.0 999.9 7.0 FT
ALTERNAT AUTO
OETM1OHR READ ONLY
OETM2OHR READ ONLY
OOOOOEC1 READ ONLY
OOOOOEC2 READ ONLY
SIMULATE
RUN MODE PARAMETERS
LEVEL
DISPLAY
4 mA value in
configuration 20 mA value in configuration
SENSOR on invalid input signal
NOTES:
AUTO 1-2/2-1
PRIMEX™ 17 SP6R-LSC Level Controller User Manual

SP6R LEVEL
CONTROLLER
The SP6R Level Controller is an easy-to-use micro-
processor-based controller which monitors any
4-20 mA signal. It has six programmable relay out-
puts that can be used for control and alarm The
transducer input zero and span are full configurable.
A simulation mode allows the user to test the set
points and relay operation. The controller can be
configured for pump up or pump down applications.
Applications include: level monitoring, pressure,
temperature, flow and analytical.
NEMA 4X
The SP6R Set Point Controller is also available in
a NEMA 4X enclosure. These units are ideal for
replacing float switch or “bubbler” control
systems. Call today for more information.
ASSEMBLED
IN THE
USA
© 2013 SJE-Rhombus® PN 1038548A PRIMEX™ is a trademark of SJE-Rhombus®
Ashland, OH 800-363-5842
Clearwater, FL 800-349-1905
Detroit Lakes, MN 888-342-5753
Milford, OH 513-831-9959
WWW.PRIMEXCONTROLS.COM
