Primrose Doublesided User manual

Awning Instrucons
Doublesided

Double Sided Awning Instrucons
Contents Guarantee
English
Warning
We recommend that two people are required to
assemble this awning.
The awning and frame may be supplied with a plasc
wrapper. This should be removed prior to use.
Plasc bags can be dangerous to children and babies.
Keep out of the reach of babies and children to avoid
the risk of suocaon.
Before assembly, check that all parts are contained
within the box. If any parts are found to be damaged or
missing, please contact your retailer.
We recommend installing your double sided awning into
the ground to prevent the awning from collapsing over.
Securely bolt the bases into concrete slabs, your awning
can be bolted onto railway sleepers, wooden decking,
garden slabs etc.
This awning is guaranteed against faulty parts and
workmanship for one year from the date of delivery.
Faulty parts will be replaced or exchanged within that
period. The guarantee covers domesc use only.
Gear-box
Swing
Handhook/
winder
Roller
Foong
Pole
Fabric
Valance
Front bar
Roller stand

Assembling Double Sided Awning How far out can the awning open?
With the double sided manual awnings, you can control
the posion of the awning by simply winding out as
far you want to go. The awning will hold at whichever
posion you wind to.
Once the awning is installed, it is important to note
how to properly care for the components, to make
your awning work as long and eciently as it can.
The awnings are constructed from weather resistant
powder-coated metal and hard-wearing polyester
fabric, and are designed to give many years of service.
Stains and bird droppings etc. can easily be washed
or sponged away and should not be le for prolonged
periods. The awning should always be retracted in
severe weather condions.
The hook sha, gearbox and joints on awnings should
be sprayed with silicone in order to lubricate (every 4-6
months). WD-40 can also be used instead of silicone.
Framework of the awning should be cleaned at least
once every year, with a so cloth or sponge and warm
water.
Fabric on the awning should be cleaned at the very
least once every year. By using a mild detergent with
warm water and a sponge or so cloth, the fabric
can be wiped and marks can be removed making the
awning look like new.
General care & precauons

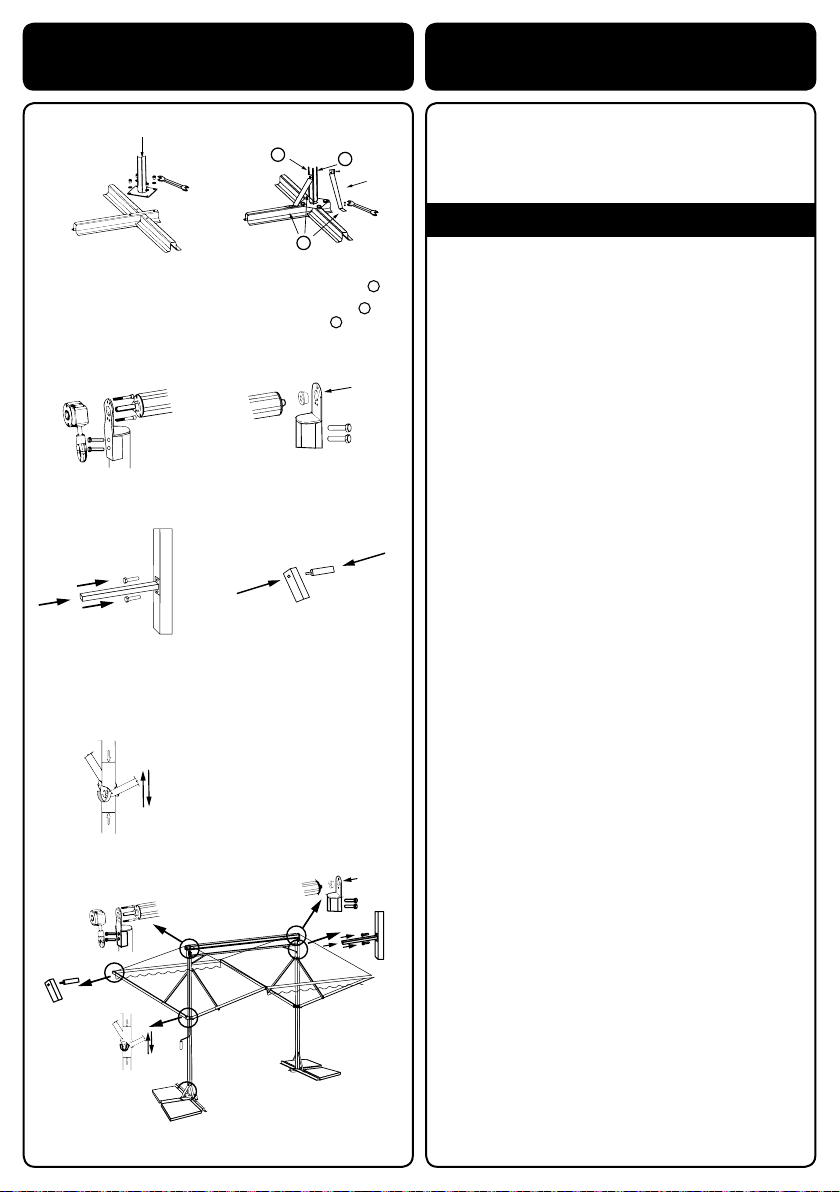

1.
Fig 1. Connect the pole and
footstand using M8x16mm bolts.
Repeat the process for the other
footstand.
Fig 2. Connect the side pole 1with
the pole using M8x55mm bolts,
using M8x68 for side pole 2, using
M8x16 for side pole 3.
2.
5.
Fig 3. Connect gear box with roller stand using M6x40mm bolts,
then insert the square sha into gear box. Repeat same process and
connect the other side.
3.
Fig 4. Connect the square bar with
the pole using M8x55mm bolts.
Fig 5. Connect the arm with the end
of the front bar. Repeat the same
process to connect the other side.
Fig 6. Adjust the height/angle arm by
loosing the screw. Once the height is
set, ghten up the screw.
