840MF-1298
840 SERIES
MULTI-FUNCTION
TIMERS
MULTI-FUNCTION TIMERS 840 SERIES
STANDARDFEATURES


New slim design - only 1.5 in. (4.04cm) thick.


Merlin Compensating Timers count down in
minutes and seconds or hours and minutes (maxi-
mum of 60 hours or 59 minutes and 59 seconds).


Available with four, eight or sixteen channels and
up to 40 pre-programmed menu items and duty
functions.


Easy-to-read alphanumeric display.


Each channel can be programmed indepen-
dently, and all channels can be used simulta-
neously.


Functions include total cook time, up to three
cook duties, hold time and a hold duty.


"Hidden access" programming button allows
only authorized changes.


Includes mounting brackets and menu stickers to
identify channels.


"Traffic signal" indicator lights change as count-
down elapses.


Manual or automatic alarm shut-off.


Audible alarm has four volume adjustments.


One-year parts and labor warranty.
The 840 Series Merlin Multi-Functiontimers are available
in four, eight and sixteen channel configurations.
840 Series Merlin II Multi-Function timers feature
channels that can be programmed to perform several
functions, including cook time, up to three different
cook duties, hold time and hold duty. Each channel can
be programmed independently and used simultaneously
with an illuminated LED light to indicate the function
that is closest to completion. An alphanumeric display
also indicates the channel and function currently being
monitored.
Merlintimers are simple to program and easy to
use. The push of a button activates each channel, and an
audible alarm and flashing channel button alert the
operator when timing is complete. When more than
one channel is used simultaneously, the LED display
shows the time remaining for the channel closest to
completion. Channels can also be monitored randomly
through use of the scan feature.
Featuring the same wall-mounted power supply as
740 models, Merlin timers are backed by a one-year
parts and labor warranty.

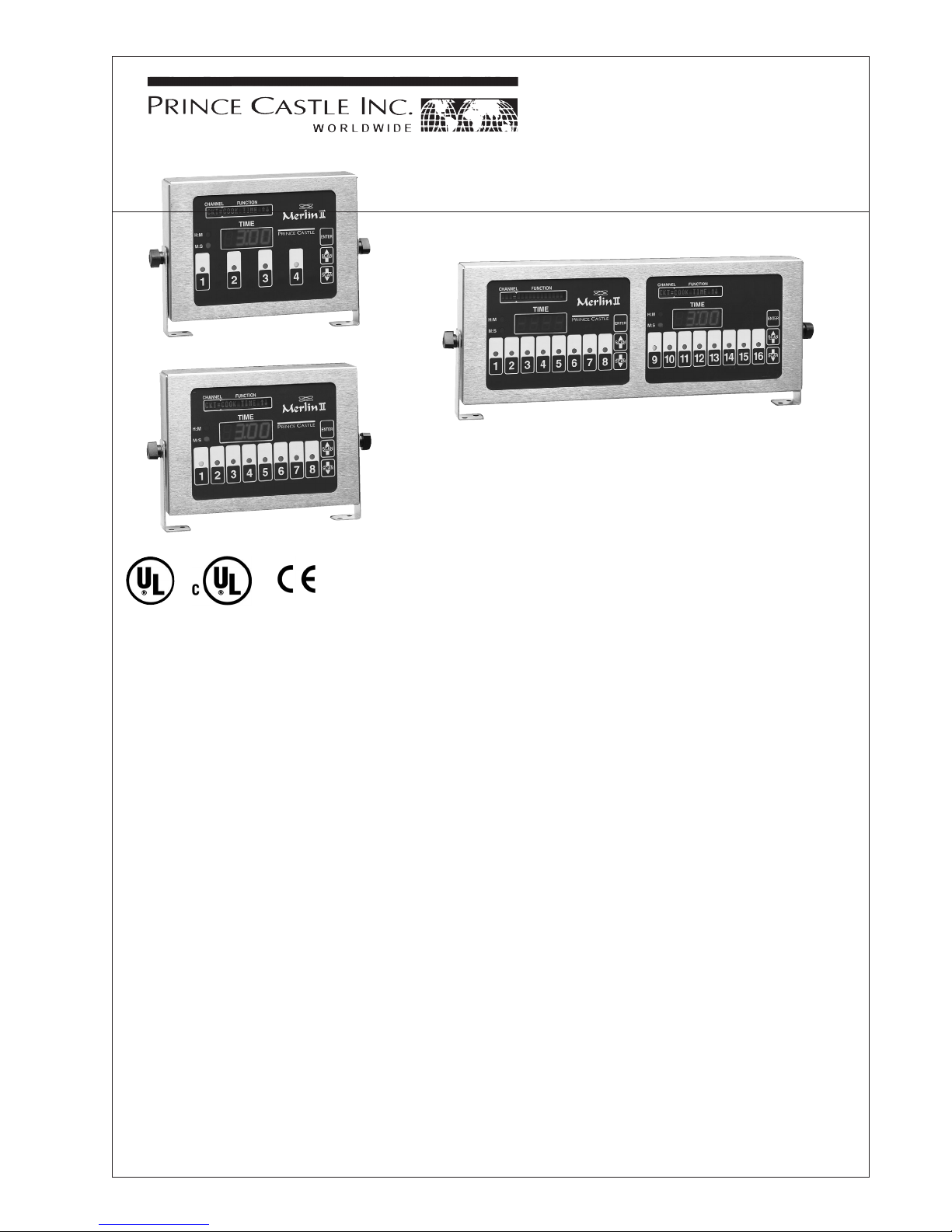

Model 840-T16D
Model 840-T4
Model 840-T8
355 East Kehoe Blvd. • Carol Stream, IL 60188 • Tel: [phone] • Fax: [phone] • Toll Free: 1-800-PCASTLE • www.princecastle.com

*Designs and specifications are subject to change without notice.
840 SERIES MULTI-FUNCTION TIMERS
840 SERIES
MULTI-FUNCTION
TIMERS
ELECTRICAL
MODEL PLUG PLUG
NUMBER DESCRIPTION VOLT* HZ. WATTS AMPS NUMBER CONFIG.
840-T4 4-Channel Timer 120 60 10 max 0.1 NEMA 5-15P
840-T8 8-Channel Timer 120 60 10 max 0.1 NEMA 5-15P
840-T16D 16-Channel Timer 120 60 25 max 0.2 NEMA 5-15P
SPECIFICATIONS
DIMENSIONS
MULTI-FUNCTION NET SHIPPING
MODEL TIMER HEIGHT WIDTH DEPTH WEIGHT WT.
NUMBER CHANNELS IN. (CM) IN. (CM) IN. (CM) LB. (KG.) LB. (KG.)
840-T4 4 5.38 (13.66) 9.31(23.65) 1.59(4.04) 4.5 (2.0) 6 (2.7)
840-T8 8 5.38 (13.66) 9.31(23.65) 1.59(4.04) 4.5 (2.0) 6 (2.7)
840-T16D 16 (dual display) 5.38(13.66) 15.71 (39.91) 1.59(4.04) 5.3 (2.4) 7 (3.2)
*Single phase.
5.38
(13.66)
9.31
(23.65)
1.59
(4.04)
AB
CA = 2.50" (6.35cm)
B = 2.05" (5.21cm)
C = 2.97" (7.54cm)
D= 0.25" (0.635cm)
L = 10 feet (3.05m)
L
