Patriot Lighting SOLAR SHED LIGHT User manual

THIS PRODUCT IS DESIGNED TO THE HIGHEST TECHNICAL SPECIFICATIONS AND STANDARDS. IT WILL SUPPLY YEARS OF MAINTENANCE-
FREE USE. PLEASE READ THESE INSTRUCTIONS THOROUGHLY PRIOR TO INSTALLATION.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE REFERENCE.
SOLAR SHED LIGHT
USER MANUAL
INSTALLATION
The solar panel (B) is fully weatherproofed and can be installed outside. Maximize sun exposure by orientating the panel towards the sun. This procedure
will optimize charging of the light’s internal battery pack. Be aware of overhanging trees or obstacles that can affect sun exposure on the panel.
The LED shed light (A) is an interior light and should only be installed in a dry area away from the effects of the weather.
TOOLS REQUIRED (not included)
Electric Power Drill Screwdriver Pencil Ladder Eye Protection Level
PARTS LIST
A - 5 LED Shed Light (x1)
1. Socket for solar panel plug
2. 5 Super bright LEDs
3. ON/OFF Switch
4. Key-hole mounting slots
B - Solar Panel (x1)
1. Mounting bracket
2. 8ft. wire
C - Mounting Screws (x5)
D - AA Battery Pack (x1)
166mm
~ 6.5 in
A1
1
2
2
3
4 4
BC
DBack View
Front View
IMPORTANT INFORMATION
• Avoid exposing the LED shed light to weather hazards including rain. The solar panel is weatherproof.
• If using a step ladder, have a second person help install the solar panel and/or shed light.
• Prior to installation, make sure all the components mentioned in the part list section (below) are present.
• Never look directly into the shed light when illuminated.
B
B
AA
Part #:
343-2460
Page 1
Phillips
AA

INSTALLING THE LED LIGHT
OPTION 1: INSTALLING THE LED LIGHT WITH INTEGRATED MAGNETS
The LED shed light (A) has integrated magnets for easy and practical installation without the use of screw holes.
OPTION 2: INSTALLING THE LED LIGHT WITH MOUNTING HARDWARE
INSTALLING THE SOLAR PANEL
First Use: It is recommended that the battery pack be charged by the solar panel in direct sunlight for 14 hours before the rst use.
The LED light (A) can be turned on/off by the switch (A3) located on the side. The solar shed light is now ready to be used and will run approximately
3 hours on full charge.
166mm
~ 6.5 in
166mm
~ 6.5 in
Back View
Back View
Metallic Surface
Wall
Front View
Side View
INSTALLATION (CONTINUED)
OPERATION
A
A
A
B
1
B
A
B
1
B2
A1
C
A
A3
Side View
A4 A4
Step 1
The LED shed light (A) has two pre-drilled key-hole mounting slots (A4) for permanent
installation. The two pre-drilled key-hole mounting slots are approximately 6.5 inches
apart.
Step 1
Place the solar panel mounting bracket (B1)
on the chosen surface. Using a pencil, mark
the three screw holes through the bracket.
Step 2
Use a power drill to drill the holes on
the chosen mounting surface.
Step 3
Screw the solar panel (B) to the
chosen surface with the included
screws (C).
Step 4
You can now connect the wire (B2) from the solar panel to
the LED shed light socket (A1).
Step 2
Use a power drill to drill
the holes on the chosen
mounting surface.
Step 3
Install the included screws
(C) into the chosen surface.
Step 4
Place the LED shed light (A)
over the screws, aligning the
key-hole mounting slots with
the screws. Pull downwards to
secure the light in place.
Wall
CA
A
Page 2

CARE AND MAINTENANCE
OPERATION (CONTINUED)

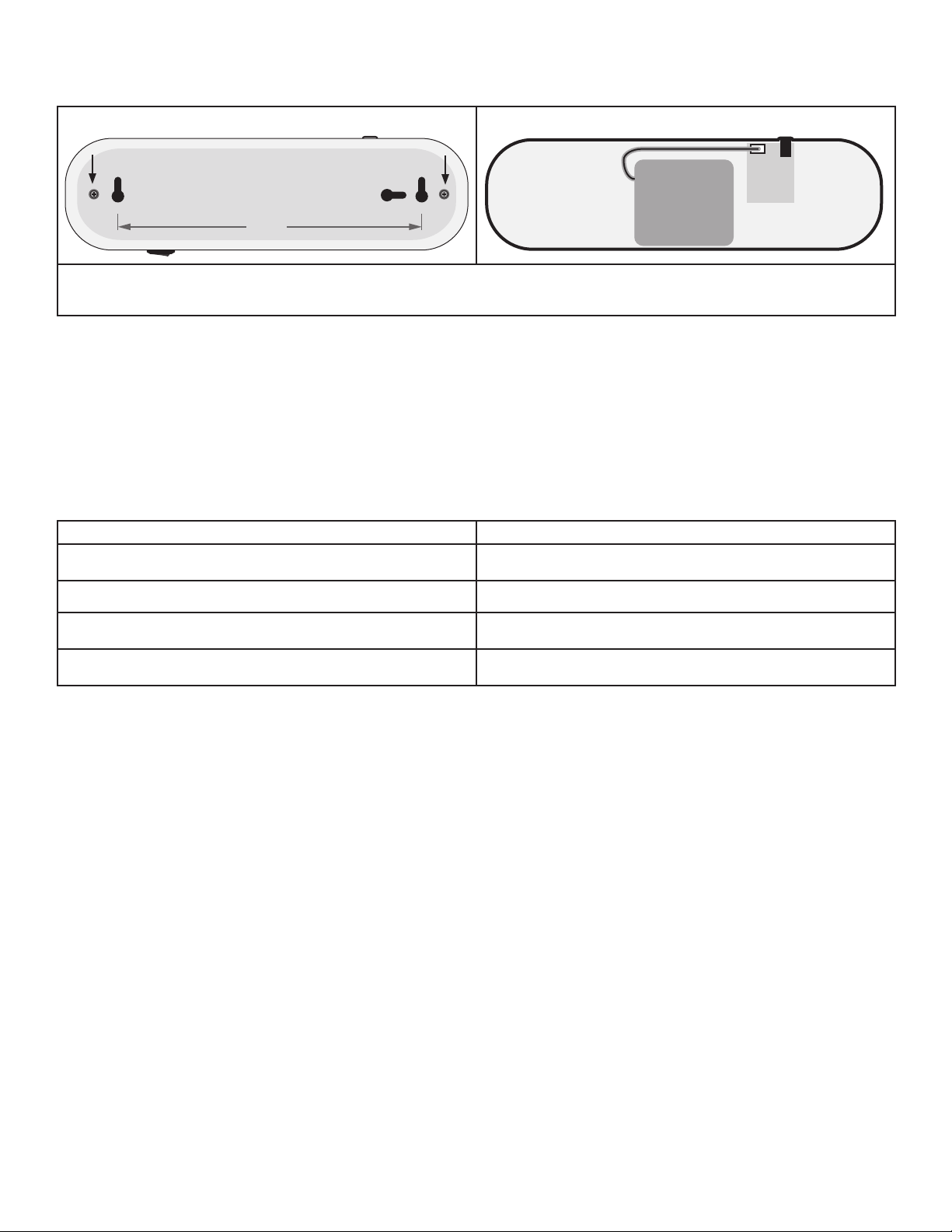

To change the battery pack in the LED light: Remove the 2 screws in the back of the light. Once the screws are removed, separate the cover from the
casing (this might have a little resistance). Once the case is removed, remove the battery pack (D) by unclipping it from the casing and replace it with
a new, fully charged battery pack. Finish by reassembling the light.
166mm
~ 6.5 in
Back View Back View
AA
Battery
Pack
PROBLEM SOLUTIONS
Where should the solar panel be mounted? Mount the solar panel in a position that will enable the most amount of light to be
absorbed. In the Northern Hemisphere this is usually south facing.
Does the solar panel require direct sun to charge? The solar panel can charge the internal battery pack in direct and indirect light.
For best results, try to optimize the solar panel’s sun exposure.
Can additional or extended cable wire for the solar panel be
purchased?
At this point there are no extensions available for the cable that connects the light to the
solar panel. Any additions to the cable will void the warranty.
What type of battery does the LED shed light require to operate? The LED shed light requires the use of a Ni-MH rechargeable AA battery pack
(made up of 3 batteries).
TROUBLESHOOTING
WARRANTY
ONE-YEARLIMITEDWARRANTY:If,duringnormaluse,thisPATRIOTLIGHTING®lightingxturebreaksorfailsduetoadefectinmaterialand
workmanshipwithinone(1)yearfromthedateoforiginalpurchase,simplybringthislightingxturewiththeoriginalsalesreceiptbacktoyournearest
MENARDS® retail store. At its discretion, PATRIOT LIGHTING® agrees to have the product or any defective part(s) repaired or replaced with the same
or similar PATRIOT LIGHTING® product or part free of charge, within the stated warranty period, when returned by the original purchaser with original
sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs and batteries; (2) does not cover damage that has
resultedfromabuseormisuse;and(3)doesnotcoveranylosses,labor,injuriestopersons/propertyorcosts.Thiswarrantydoesgiveyouspeciclegal
rights and you may have other rights, which vary from state to state.
For questions regarding this product, please call 1-888-478-6435 from Monday to Friday, 8:30 am to 5:00 pm (Eastern Standard Time).
Proof of purchase including date, and an explanation of complaint is required for warranty service.
• From time to time, ensure the plug between the solar panel and light is securely connected.
• It is advisable to adjust the angle of the solar panel to optimize the exposure of the sun during the winter months.
• The solar panel should be cleaned with a damp cotton cloth on a regular basis. This will ensure optimal performance and battery charging.
Utilize the same technique periodically to clean the lens of the shed light.
• Never let any abrasive material come into contact with the solar panel.
A A
