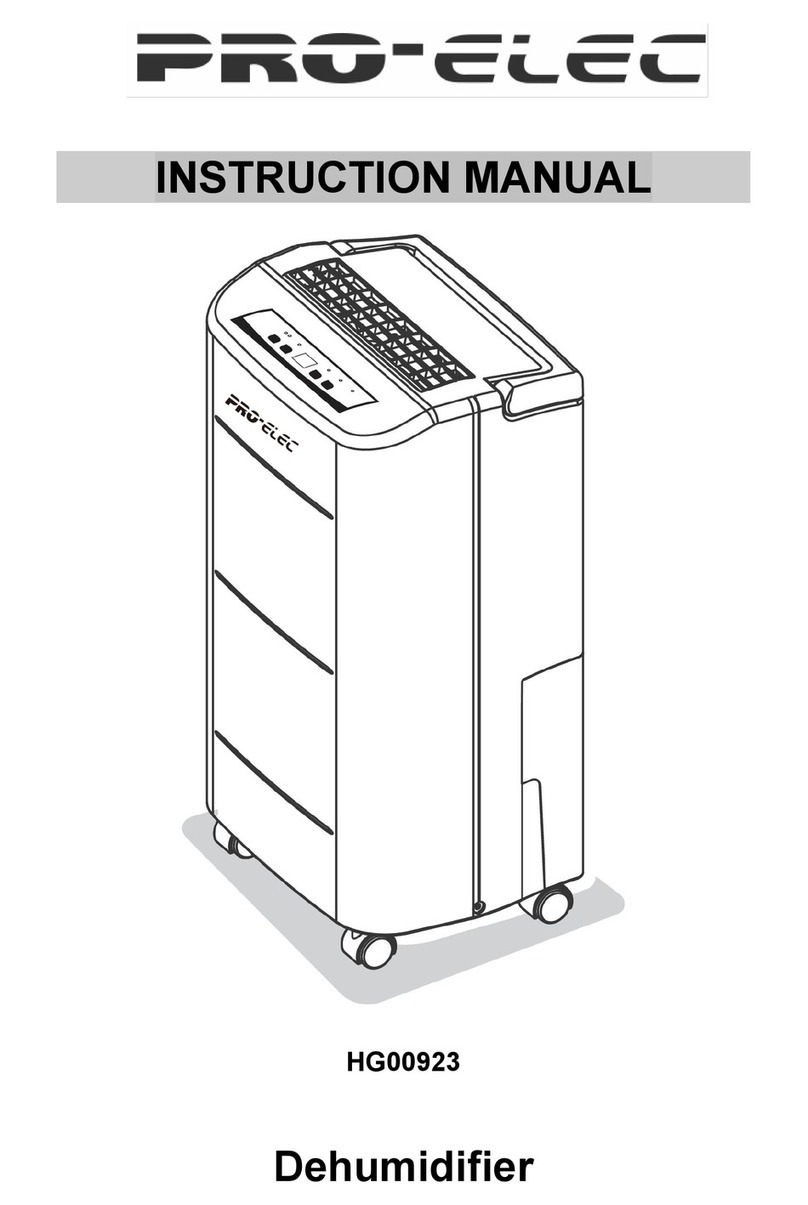

Pro-Elec HG00923 User manual

1
12L Dehumidier
Model: HG00923

2
CONTENTS
Page Number Details
2 Important Safety Information
3 Product Overview
4 Placement
4 Control Panel
5 Operation
5 Emptying the Collected Water
6 Maintenance
7 Troubleshooting
7Technical Specication
IMPORTANT SAFETY INFORMATION
Please read these instructions carefully before use and retain for future
reference.
• When using electrical appliances basic safety precautions should always be
followed.
• Check that the voltage indicated on the rating plate corresponds with that of the
local network before connecting the appliance to the mains power supply.
• This appliance is intended for domestic use only.
• Children shall not play with the appliance.
• Cleaning and maintenance shall not be carried out by children without supervision.
• There are no user-serviceable parts in this product. Refer servicing to qualied
personnel.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or
after being dropped or damaged in any way.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory, or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understands the hazards involved.
• Do not insert anything through the intake or discharge ducts when the dehumidier
is connected to the supply.
• Make sure that the dehumidier is on a stable surface when operating.
• Do not operate the dehumidier in an enclosed space, such as a cupboard or
closet.
• Disconnect from the supply when not in use, or during maintenance or cleaning.

3
PRODUCT OVERVIEW
Features
•Lightweight portable design: The castors on the bottom of the unit make it easy
to move the appliance.
•Low temperature operation with automatic defrost:When the unit is running
in a room at a temperature between 5°C and 12°C, it will stop every 30 minutes to
defrost. Between 12°C and 20°C it will defrost every 45 minutes.
•Adjustable humidity: The humidity can be set to a range of levels.
•Timer on/off: The unit can be programmed to turn on and off automatically.
•Quiet operation.
•Drainage pipe (optional).
Front
Rear
Louvre
Control panel
Wheel
Continuous
drainage port
Supply cord
Water tank
Air lter
Handle

4
PLACEMENT
•Place the dehumidier on a at, solid surface, ensuring that it is at least 20cm
away from any other wall or surface. Do not position near a bath, sink or other
permanently damp or wet area.
CONTROL PANEL
Indication Lights
•Power: turns green when the unit is plugged in, regardless of whether the
unit is operating or not.
•Tank full: turns red when the tank is full. If the light is on, empty the water
out of the drainage tank and make sure that the tank is repositioned
properly.
•Timer: turns green when the timer is set/programmed to turn the unit on or
off automatically.
•Adjustable humidity setting: turns green when the humidity level is being
adjusted.
•Humidity level and timer display: this two-digit display indicates ve
functions.
1. When the unit is plugged in, it will indicate the room humidity level.
2. When the humidity level is being set, it will indicate the humidity level
selected.
3. When the humidity in the room is less than 35%, it will show LO.
4. When the humidity in the room is higher than 95%, it will show HI.
5. When the timer to turn the unit on or off is being set, it will show the
number of hours selected.
20cm
20cm

5
Push Button Functions
•Power: press the button once to start the operation. The default humidity
level is 60%. Press again to stop the operation.
•Timer: 24-hour timer setting. Press the button to programme the number of
hours delay to when the unit turns on and off. It can be set between 1 and
24. To cancel the timer programming, press the button to adjust the time to
00.
•Adjustable humidty: press to set the desired humidity level in the room,
which can be set in order: 60%, 65%, 70%, 75%, 80%, 40%, 50%, 55%,
60%. When the relative humidity in the room is lower than the selected
humidity, the operation of the unit will stop automatically.
•Fan speed: press to set the desired fan speed. There are two settings -
high or low speed.
OPERATION
• Open the air outlet manually.
Before starting the unit, make sure that the louvre is open. If the louvre is closed,
the unit may overheat and will not work effectively.
• Turn the unit on.
•When the unit is plugged in, a buzzer will beep and the humidity indicator shows
the default humidity level at 60% with a low fan speed.
• Press the power button to start operating.
•To stop the dehumidier, press the power button.
• Never stop the unit by just unplugging the supply cord.
EMPTYING THE COLLECTED WATER
When the drainage tank is full, the tank indicator light will turn on, the operation will
stop automatically and the buzzer will beep 15 times to alert the user that the water
needs to be emptied from the drainage tank.
Emptying the drainage tank
• Firstly, turn the unit off and disconnect it from the mains before
removing the water tank.
• Lightly press on the sides of the tank with both hands and gently pull
the tank out.
• Empty the collected water.
Note: do not remove the oat from the water tank. The water sensor
will no longer be able to detect the water level correctly without the
oat and water may leak from the tank.
• If the drainage is dirty, wash it with cold or lukewarm water.
• Do not use any chemicals, abrasives or solvents that could damage
the dehumidier and cause water leakage.

6
•When replacing the drainage tank, press the tank rmly into place
with both hands. If the tank is not positioned correctly, the “tank full”
sensor will be activated and the dehumidier will not operate.
Continuous Water Drainage
• The unit features a continuous drainage port. By connecting a
plastic pipe (with an inner diameter of 9mm) to it, the water from
the dehumidifier can be drained continuously.
MAINTENANCE
IMPORTANT: In order to avoid an electric shock, turn off the dehumidier and remove
the plug from the socket before performing any maintenance or cleaning.
Cleaning
• Unplug from the mains supply before cleaning.
•Do not splash the water into the dehumidier.
•Clean the outside of the dehumidier with a damp cloth and dry thoroughly before
use.
• Do not use any chemicals, abrasives or solvents that could damage the surface of
the dehumidier.
Filter
•Remove the air lter.
•Run a vacuum cleaner lightly over the surface of the lter to
remove the dust. If the air lter is exceptionally dirty, wash it
with warm water and a mild detergent and dry thoroughly.
•Ret the air lter.
Note: Do not run the dehumidier without the air lter.
Storage
•If the dehumidier is not going to be used for a long time, follow the steps below:
•Unplug the dehumidier from the mains.
• Empty any water left in the drainage tank and dry thoroughly.
• Fold up the power supply cord and put it in the drainage tank.
•Clean the air lter.
• Store in a dry place.

7
TROUBLESHOOTING
Problem Possible Cause Solution
The unit does
not operate
Has the power cord been
disconnected?
Plug the power cord into the
outlet.
Is the “tank full” indication lamp
ashing?
Empty the water into the
drainage tank and then
reposition the tank correctly.
Is the room temperature above
35°C or below 5°C?
The protection device is
activated and the unit cannot
be started.
The
dehumidifying
function does
not work
Is the air lter clogged? Clean the air lter as instructed
in the “Maintenance” section.
Is the air intake or discharge
duct obstructed?
Remove the obstruction from
the air intake or discharge duct.
No air is
discharged Is the air lter clogged? Clean the air lter as instructed in the “Maintenance” section.
The operation
is noisy
Is the unit tilted or unsteady? Move the unit to a stable and
level surface.
Is the air lter clogged? Clean the air lter as instructed
in the “Maintenance” section.
If the problem persists, turn the dehumidier off and unplug from the mains.
Consult either your retailer or a qualied person for additional assistance.
TECHNICAL SPECIFICATION
Mains voltage 220-240V~50Hz
Power consumption 220W
Dehumidifying capacity (30°C 80%) 12L/24hr
Water tank capacity 2.8 litre
Noise ≤ 46dB(A)
Motor air volume 105m³hr
Working temperature 5°C - 35C
Recommended room size 24m²
Refrigerant/charge R134a/120g
Dimensions (W x H x D) 310 x 543 x 230mm
Weight 11.8kg

8
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF
ELECTRICAL & ELECTRONIC EQUIPMENT.
When this product has reached the end of its life it must be treated as Waste Electrical
& Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with
general household waste, but kept separate for the treatment, recovery and recycling
of the materials used. Contact your local authority for details of recycling schemes in
your area.
Made in China. PR2 9PP
V 1.1
