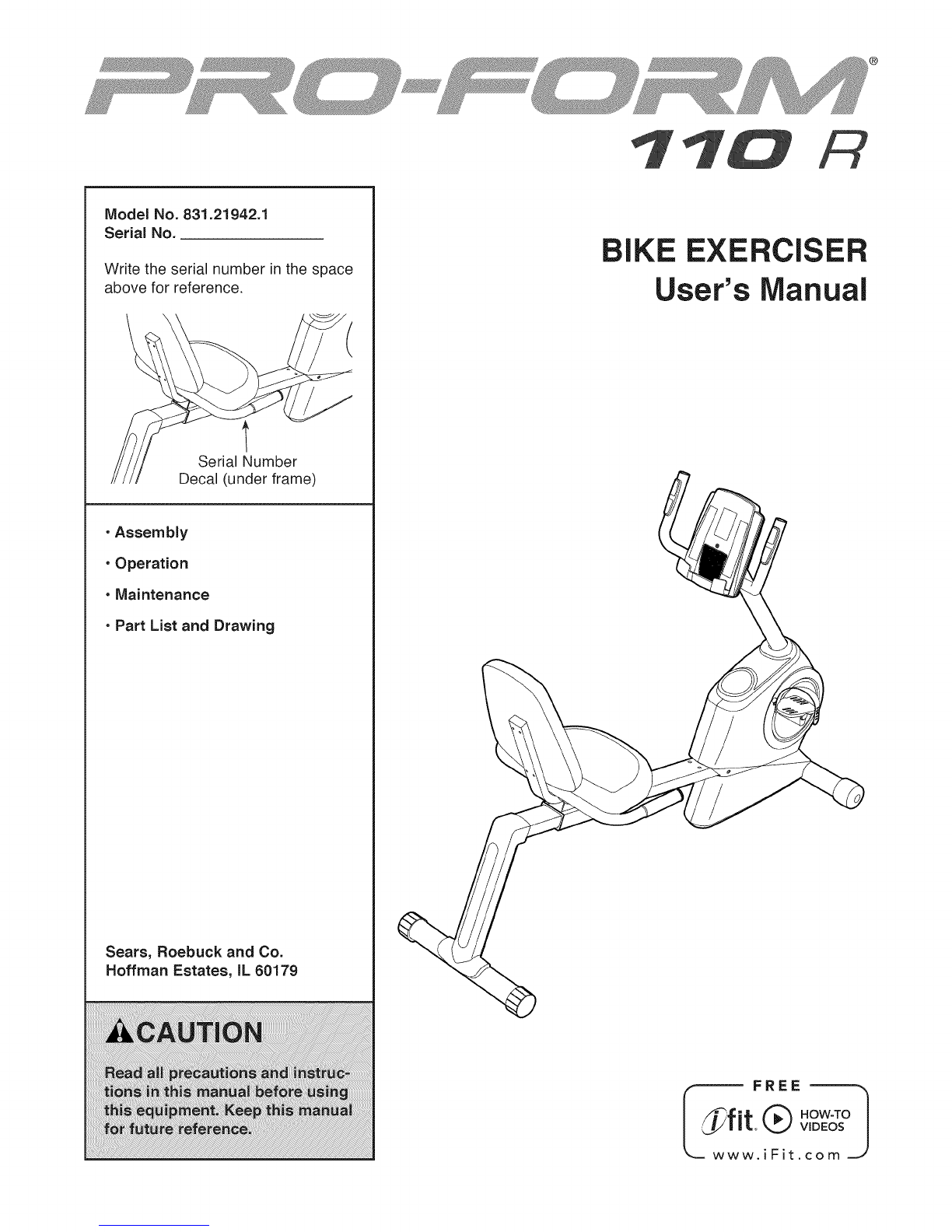

Pro-Form 110 R User manual

g
Model No. 831.21942.1
Serial No.
Write the serial number in the space
above for reference.
t
Serial Number
Decal (under frame)
•Assembly
• Operation
•Maintenance
•Part List and Drawing
Sears, Roebuck and Co.
Hoffman Estates, IL 60179
BIKE EXERCISER
User's Manual
_w FREE
t Q v",°Ew&°I
.iFit.com ._

TABLE OF CONTENTS
WARNING DECAL PLACEMENT ............................................................... 2
IMPORTANT PRECAUTIONS .................................................................. 3
BEFORE YOU BEGIN ........................................................................ 4
PART IDENTIFICATION CHART ................................................................ 5
ASSEMBLY ................................................................................ 6
HOW TO USE THE EXERCISE BIKE ........................................................... 12
FCC INFORMATION ........................................................................ 17
MAINTENANCE AND TROUBLESHOOTING .................................................... 18
EXERCISE GUIDELINES .................................................................... 20
PART LIST ................................................................................ 22
EXPLODED DRAWING ...................................................................... 23
ORDERING REPLACEMENT PARTS ................................................... Back Cover
90 DAY FULL WARRANTY ........................................................... Back Cover

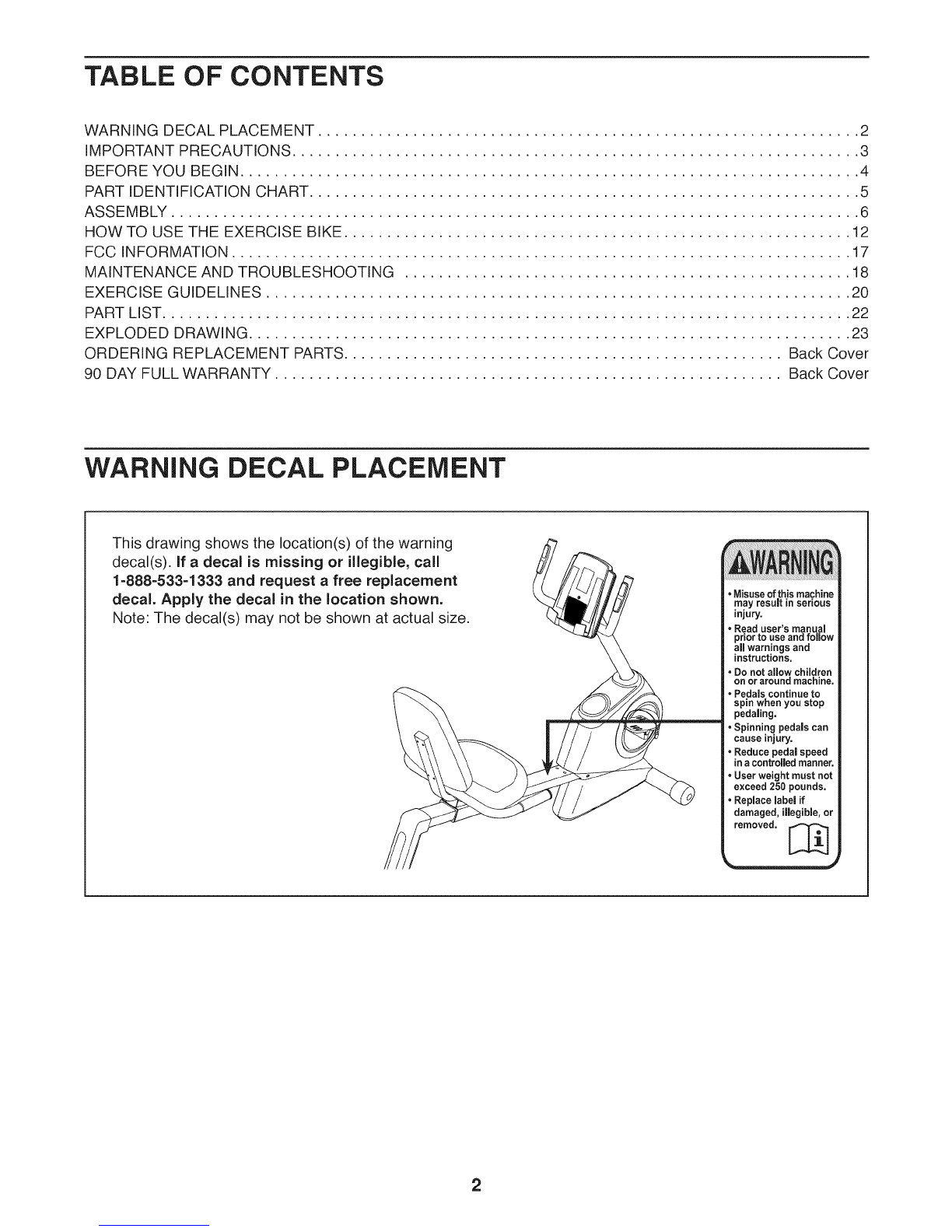

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s), if adecal is missing or illegible, call
1-888-533-1333 and request a free replacement
decal. Apply the decal in the location shown.
Note: The decal(s) may not be shown at actual size.
•Do not allow children
on oraround machine.
=Pedals continue to
spin when you stop
pedaling.
•Spinning pedals can
cause injury.
• Reduce pedal speed
in acontrolledmanner.
• User weight must not
exceed 250 pounds.
• Replace label if
damaged, illegible, or
removed. [_
2

iMPORTANT PRECAUTIONS
WARNING: Toreducetheriskofseriousinjury,readallimportantprecautionsand
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
Sears assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program, 9.
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
2. Use the exercise bike only as described in 10.
this manual.
,
=
.
.
.
it is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutiona! setting.
Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in agarage or covered patio, or near
water.
Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
11.
12.
13.
14.
The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in general.
The exercise bike should not be used by
persons weighing more than 250 Ibs.
(113 kg).
Always keep your back straight while using
the exercise bike; do not arch your back.
The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
Over exercising may result in serious injury
or death, if you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
3

BEFORE YOU BEGIN
Thank you for selecting the new PROFORM '_'110
R exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The 110 R exercise bike provides
a selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the back cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Length: 5 ft. (152 cm)
Width: 1 ft. 9 in. (53 cm) Console
Heart Rate Monitor
Handlebar
Accessory Tray \
Backrest Pedal
Seat
Wheel
Handlebar
Leveling Cap
4

PART iDENTiFiCATiON CHART

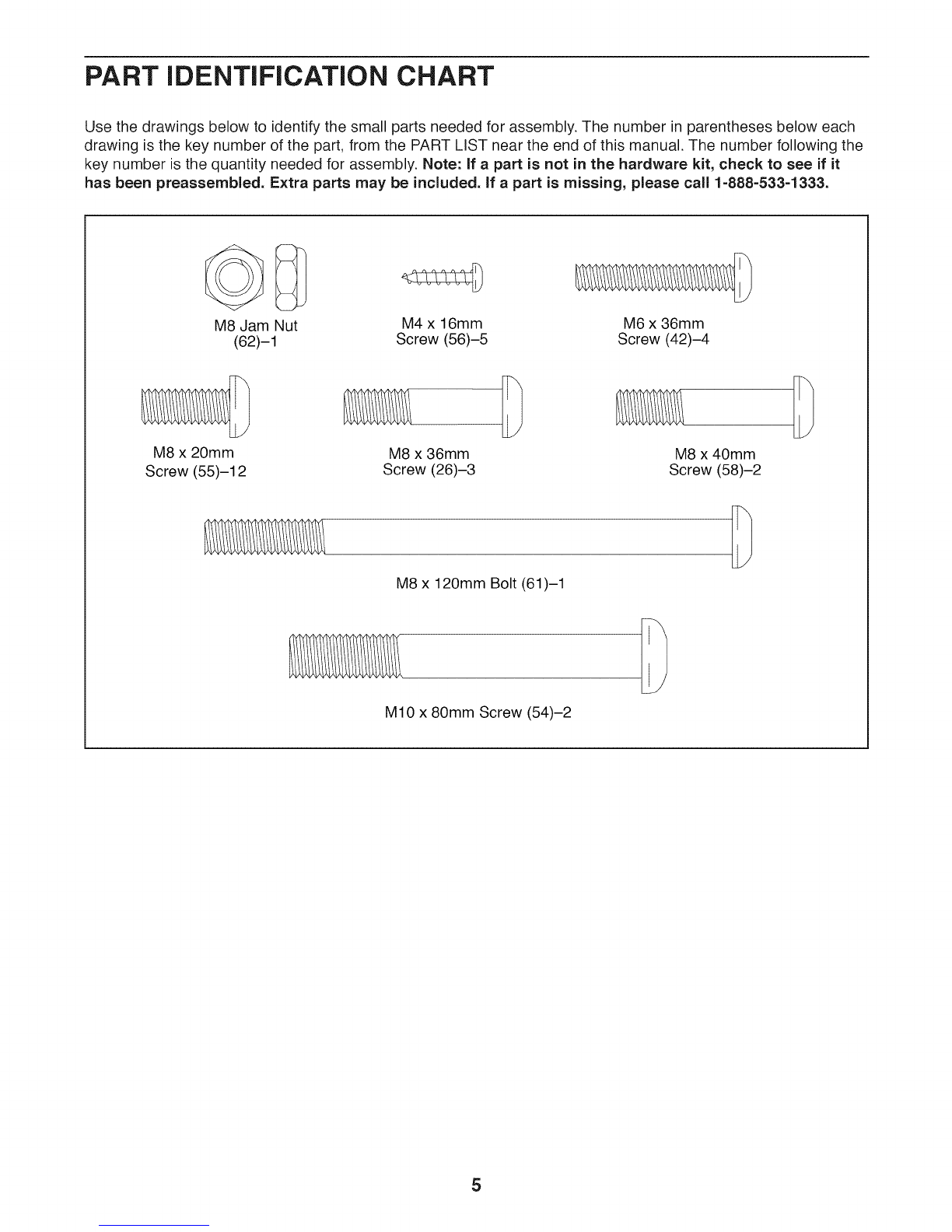

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included, if a part is missing, please call 1-888=533=1333.
M8 Jam Nut
(62)-1
M8 x 20mm
Screw (55)-12
M4 x 16mm M6 x 36mm
Screw (56)-5 Screw (42)-4
M8 x 36mm
Screw (26)-3
M8 x 120mm Bolt (61)-1
M8 x 40mm
Screw (58)-2
M10 x 80mm Screw (54)-2
5

ASSEMBLY
Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
To identify small parts, see page 5.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver (E_C:_=====_
one adjustable wrench
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
.Orient the Front Stabilizer (32) as indicated by
the decal.
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (32) with
two M10 x 80mm Screws (54).
32
54
.Orient the Rear Stabilizer (31) and the Carriage
Rail (9) as shown.
Attach the Rear Stabilizer (31) to the Carriage
Rail (9) with three M8 x 36mm Screws (26). Do
not tighten the Screws yet. 26 31 9
6

.Tip: It may be helpful to loosen the four M6
× 36ram Screws (42) in the Seat Frame (7)
before you begin this step. Retighten the
Screws after you complete this step.
If the Adjustment Knob (14)is not attached
to the Seat Carriage (3), partially tighten the
Adjustment Knob into the Seat Carriage.
Orient the Seat Carriage (3), the Backrest Frame
(5), and the Seat Frame (7) as shown.
Set the Backrest Frame (5) on the Seat Frame
(7), and then slide the Seat Carriage (3) onto the
Backrest Frame.
Attach the Seat Carriage (3) and the Backrest
Frame (5) to the Seat Frame (7) with two M8 x
40mm Screws (58), an M8 x 120mm Bolt (61),
and an M8 Jam Nut (62).
62
58
\
314
42
.Orient the Seat Carriage (3) as shown. Loosen
the Adjustment Knob (14) if necessary. Then,
slide the Seat Carriage onto the Carriage Rail
(9).
1
9
5. Tighten the Adjustment Knob (14).
Attach a Carriage Bumper (24) to the underside
of the Carriage Rail (9) with an M4 x 16mm
Screw (56).
14
9
24
56
7

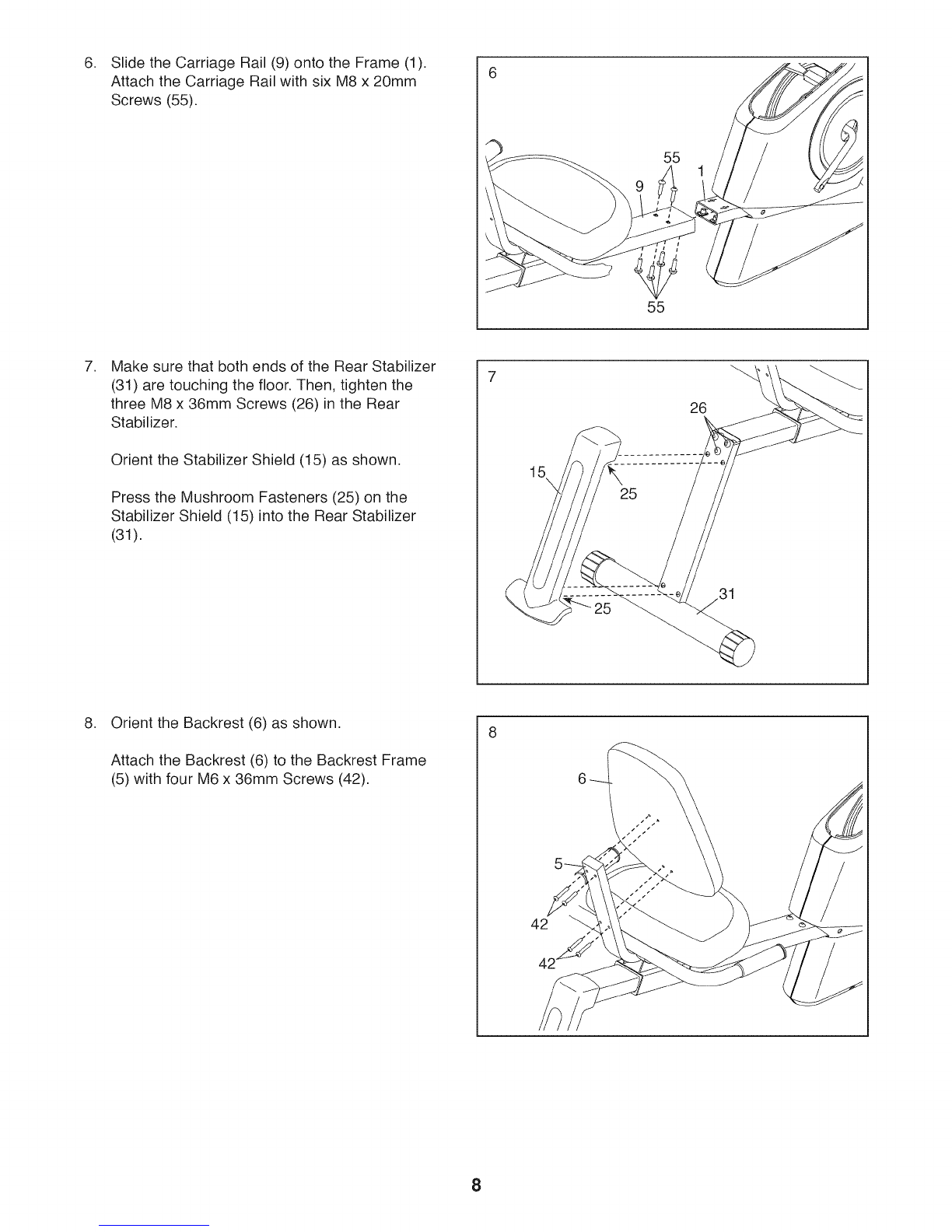

Slide the Carriage Rail (9) onto the Frame (1).
Attach the Carriage Rail with six M8 x 20mm
Screws (55).
55
55
,Make sure that both ends of the Rear Stabilizer
(31) are touching the floor. Then, tighten the
three M8 x 36mm Screws (26) in the Rear
Stabilizer.
Orient the Stabilizer Shield (15) as shown.
Press the Mushroom Fasteners (25) on the
Stabilizer Shield (15) into the Rear Stabilizer
(31).
7
15\
26
31
,Orient the Backrest (6) as shown.
Attach the Backrest (6) to the Backrest Frame
(5) with four M6 x 36mm Screws (42).
8

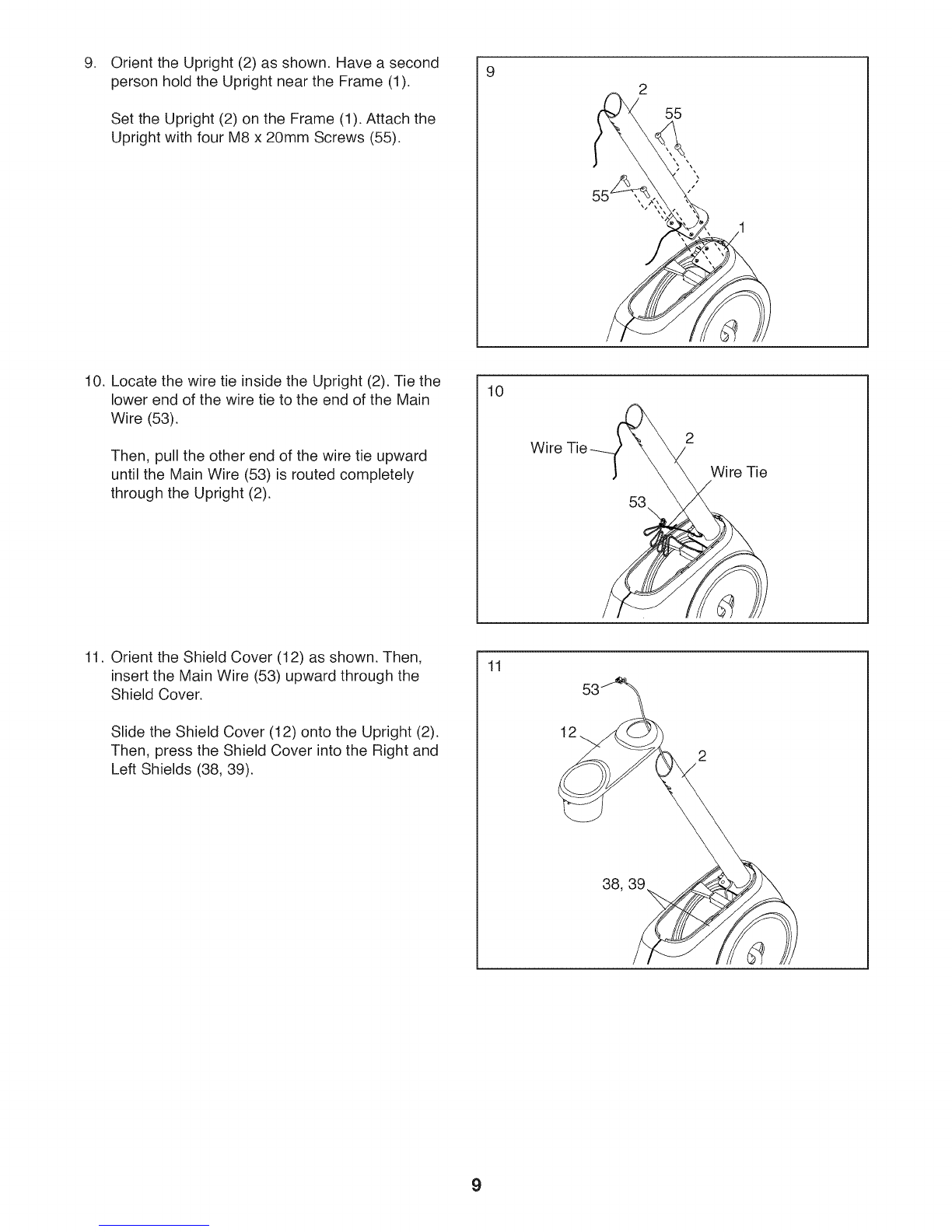

.Orient the Upright (2) as shown. Have a second
person hold the Upright near the Frame (1).
Set the Upright (2) on the Frame (1). Attach the
Upright with four M8 x 20mm Screws (55).
92
55
10. Locate the wire tie inside the Upright (2). Tie the
lower end of the wire tie to the end of the Main
Wire (53).
Then, pull the other end of the wire tie upward
until the Main Wire (53) is routed completely
through the Upright (2).
10
Wire
53
2
Wire Tie
11. Orient the Shield Cover (12) as shown. Then,
insert the Main Wire (53) upward through the
Shield Cover.
Slide the Shield Cover (12) onto the Upright (2).
Then, press the Shield Cover into the Right and
Left Shields (38, 39).
11
2
9

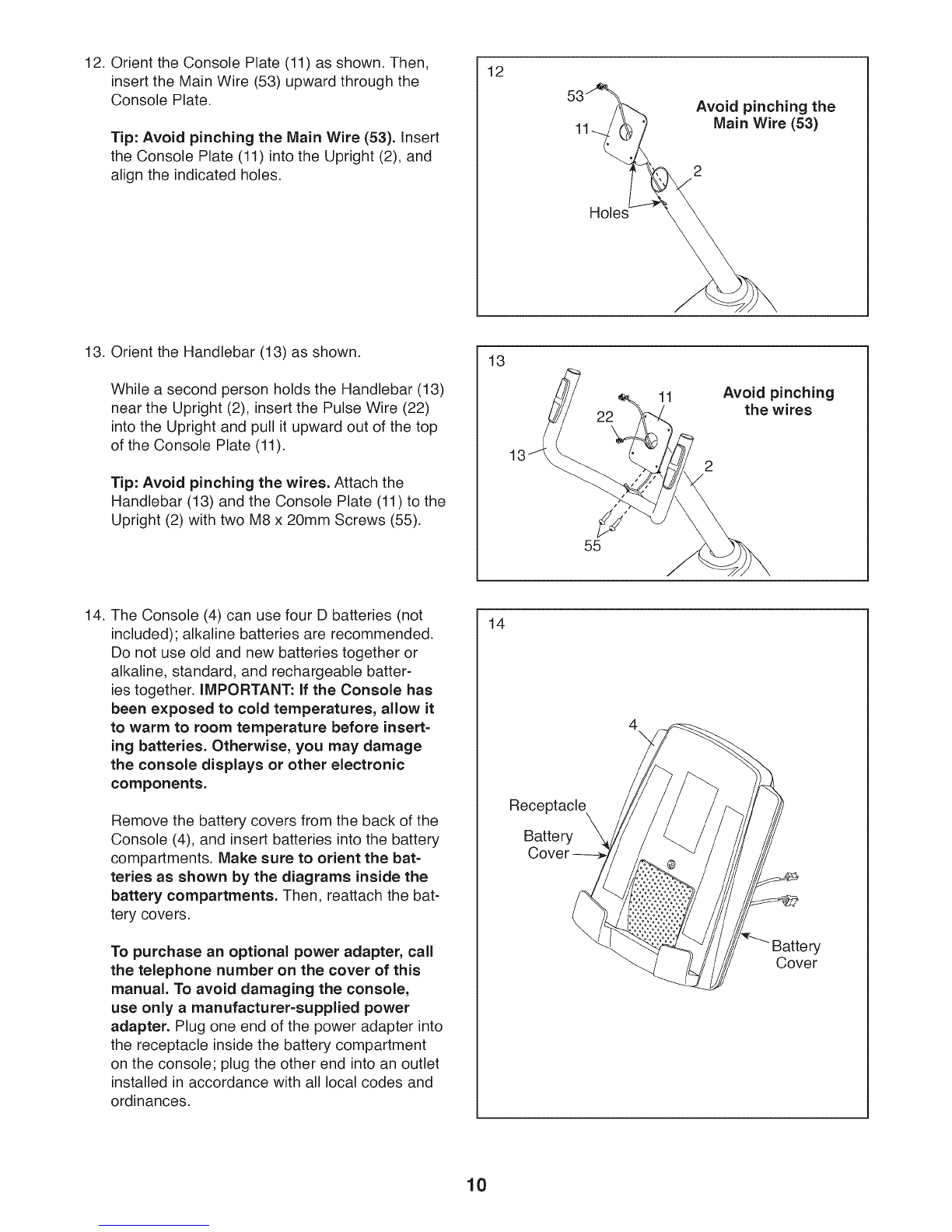

12. Orient the Console Plate (11) as shown. Then,
insert the Main Wire (53) upward through the
Console Plate.
Tip: Avoid pinching the Main Wire (53). Insert
the Console Plate (11) into the Upright (2), and
align the indicated holes.
12
53_ Avoid pinching the
11_', _, Main Wire (53)
T2d
Holes- _
13. Orient the Handlebar (13) as shown.
While a second person holds the Handlebar (13)
near the Upright (2), insert the Pulse Wire (22)
into the Upright and pull it upward out of the top
of the Console Plate (11).
Tip: Avoid pinching the wires. Attach the
Handlebar (13) and the Console Plate (11) to the
Upright (2) with two M8 x 20mm Screws (55).
13
_ 11 Avoid pinching
22 _-_ the wires
3 2
14. The Console (4) can use four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together, iMPORTANT: if the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert=
ing batteries. Otherwise, you may damage
the console displays or other electronic
components.
Remove the battery covers from the back of the
Console (4), and insert batteries into the battery
compartments. Make sure to orient the bat=
reties as shown by the diagrams inside the
battery compartments. Then, reattach the bat-
tery covers.
To purchase an optional power adapter, call
the telephone number on the cover of this
manual. To avoid damaging the console,
use only amanufacturer-supplied power
adapter. Plug one end of the power adapter into
the receptacle inside the battery compartment
on the console; plug the other end into an outlet
installed in accordance with all local codes and
ordinances.
14
Receptacle
Battery
4
Y
Cover
10
