USERʼS MANUAL
Serial Number Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. PFEVEX74712.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
Call: 08457 089 009
From Ireland: 053 92 36102
E-mail: Visit www.iconsupport.eu
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC, Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
www.iconeurope.com

2
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOW TO USE THE EXERCISE BIKE . . . . . . . . . . . . . . . . . . . . ......................................8
EXERCISEGUIDELINES ....................................................................9
PARTLIST ..............................................................................10
EXPLODEDDRAWING.....................................................................11
ORDERINGREPLACEMENTPARTS ..................................................BackCover
PROFORM is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this man-
ual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Place the exercise bike
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is at least 2 ft. (0.6 m) of clearance
around the exercise bike.
6. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
7. Keep children under age 12 and pets away
from the exercise bike at all times.
8. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
9. The exercise bike should not be used by
persons weighing more than 250 lbs.
(113 kg).
10. Always keep your back straight while using
the exercise bike; do not arch your back.
11. The exercise bike does not have a freewheel;
the pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
12. To stop the flywheel quickly, press the brake
lever downward.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS

4
Thank you for selecting the new PROFORM®390 SPX
exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The 390 SPX exercise bike pro-
vides a selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Resistance Knob
Brake Lever
Seat
Adjustment Knob
Adjustment Knob
Pedal/Strap
Water Bottle Holder
Leveling Foot
Handlebar
BEFORE YOU BEGIN
Wheel
Leveling Foot

5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench and a Phillips
screwdriver .
Note: If a part is not in the hardware kit, check to see if it has been preattached.

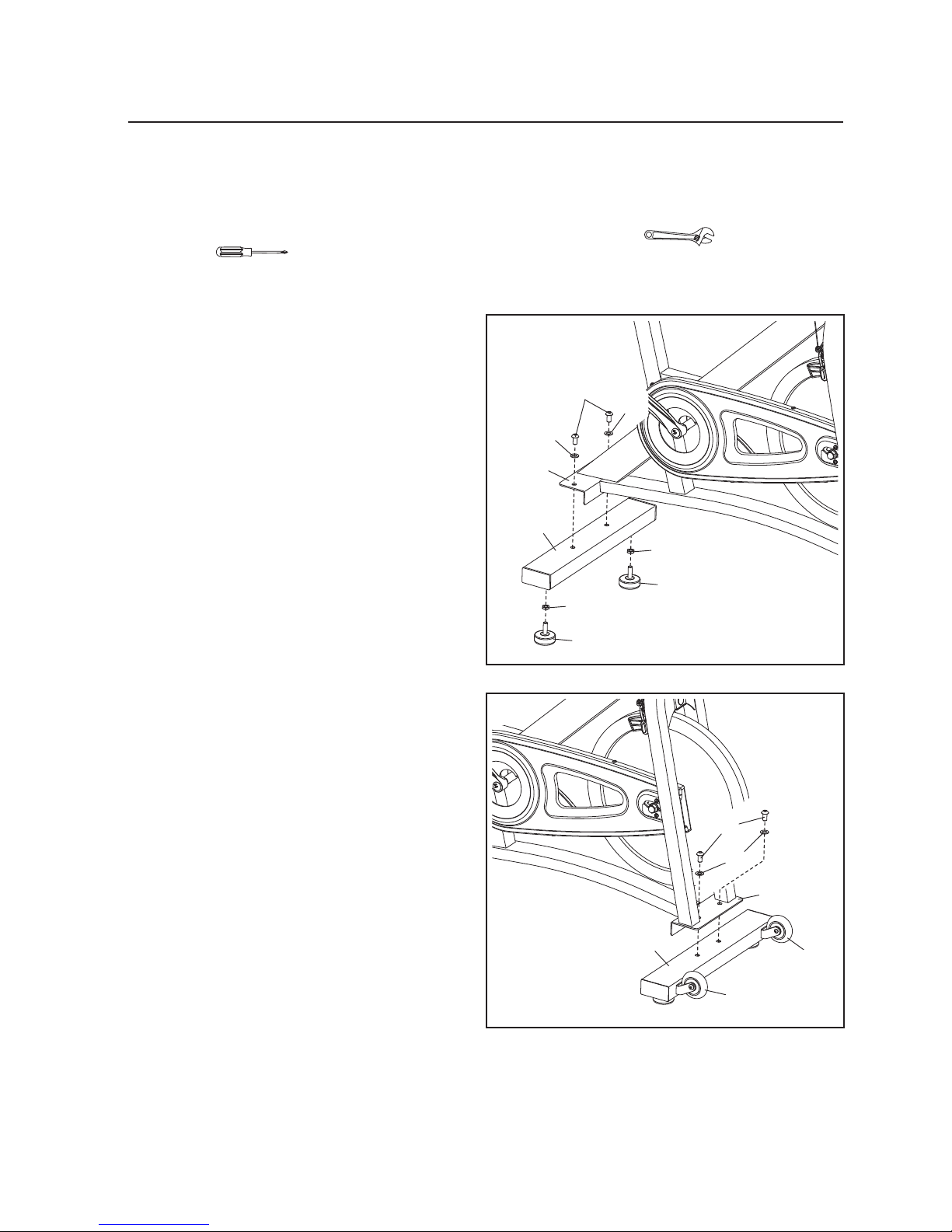

1. Remove the two screws, the two washers, and
the shipping bracket (not shown) from the rear
of the Frame (1). Discard the screws, washers,
and shipping bracket.
Identify the Rear Stabilizer (7), which does not
have wheels.
Tighten two M10 Hex Nuts (49) onto two
Leveling Feet (16). Next, tighten the Leveling
Feet into the underside of the Rear Stabilizer
(7).
Attach the Rear Stabilizer (7) to the Frame (1)
with two M10 x 25mm Screws (34) and two
M10 Washers (33).
2. Remove the two screws, the two washers, and
the shipping bracket (not shown) from the front
of the Frame (1). Discard the screws, washers,
and shipping bracket.
Orient the Front Stabilizer (8) so that the
Wheels (21) are in the position shown.
Attach the Front Stabilizer (8) to the Frame (1)
with two M10 x 25mm Screws (34) and two
M10 Washers (33).
1
34
33
49
16
7
1
1
8
49
16
21
21
34
33
2
33

6
5. Attach the Handlebar (5) to the Handlebar Post
(4) with two M10 x 25mm Screws (34) and two
M10 Washers (33).
5
4
5
34
33
4. Orient the Handlebar Post (4) as shown.
Locate the Adjustment Knob (23) on the front of
the Frame (1). Loosen the Adjustment Knob
and pull it outward. Then, insert the Handlebar
Post (4) into the Frame.
Move the Handlebar Post (4) upward or down-
ward to the desired position, release the
Adjustment Knob (23) into an adjustment hole
in the Handlebar Post, and then tighten the
Adjustment Knob.
Move the Handlebar Post (4) upward or
downward slightly to make sure that the
Adjustment Knob (23) is firmly engaged in
an adjustment hole in the Handlebar Post.
3
4
3. Identify the Right Pedal (35), which is marked
with an “R.”
Using an adjustable wrench, firmly tighten the
Right Pedal (35) clockwise into the Right Crank
Arm (31).
Next, tighten the Left Pedal (61) counterclock-
wise into the Left Crank Arm (not shown).
IMPORTANT: Tighten both Pedals (35, 61) as
firmly as possible. After using the exercise
bike for one week, retighten the Pedals.
61
35
4
23
1
31

7
6
6. Orient the Seat Post (2) as shown.
Locate the Adjustment Knob (23) on the rear of
the Frame (1). Loosen the Adjustment Knob
and pull it outward. Then, insert the Seat Post
(2) into the Frame.
Move the Seat Post (2) upward or downward to
the desired position, release the Adjustment
Knob (23) into an adjustment hole in the Seat
Post, and then tighten the Adjustment Knob.
Move the Seat Post (2) upward or downward
slightly to make sure that the Adjustment
Knob (23) is firmly engaged in an adjust-
ment hole in the Seat Post.
2
123
7
3
2
1
23
22
7. Orient the Seat (22) and the Seat Carriage (3)
as shown.
See the inset drawing. Attach the Seat (22) to
the Seat Carriage (3) with two M8 Hex Nuts
(66). Make sure that the nose of the Seat is
pointing straight ahead before you tighten
the Hex Nuts.
Locate the Adjustment Knob (23) on the Seat
Post (2). Loosen the Adjustment Knob and pull
it downward. Then, insert the Seat Carriage (3)
into the Seat Post.
Slide the Seat Carriage (3) to the desired posi-
tion, release the Adjustment Knob (23) into one
of the adjustment holes in the Seat Carriage,
and then tighten the Adjustment Knob.
Make sure that the Adjustment Knob (23) is
firmly engaged in an adjustment hole in the
Seat Carriage (3).
8. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise bike to protect the floor.
66
22
3

8
STEP 4
Install the saddle (7) to the Horizontal seal post
(31) with Multifunctional wrench.
Then tighten the Horizontal seal post (31) on the
Saddle supporting tube (6) with Flat washer(19),Nut
(20). Last, insert the Saddle supporting tube (6) to
the Main frame (1) and tightly with Knob bolt (28) .
Note:
1. You can control the Knob bolt (28) to adjust
the appropriate height which is suitable for you .
2. Before use the bike, please make sure that
the Saddle(7) have locking on the Horizontal seal
post (31).
STEP 5
Attach the Pedals (10L/R) to the Cranks (35L/R) of
the Main Frame (1).
Note: The left pedal (10L) should be tighten in the
counterclockwise direction, the right pedal (10R)
should be tighten in the clockwise direction.
STEP 6
Connect the Sensor connective wire (21) and
Pulse wire (27) with the Computer wires corre-
spondingly. Then x the Computer (9) on the com-
puter bracket with the Flat washer (33) and Screw
(34) .
Now, your machine is ready for use.
V

9
FEATURES OF THE CONSOLE
The console offers a selection of features designed
to provide instant exercise feedback and make your
workouts more effective.
The console also allows you to personalize settings,
select a system of measurement, and enter user
information before you begin exercising.
To personalize console settings, see the instructions
at the right. To set the clock, see page 11. To use
the console, see page 11.
Before using the console, make sure that batteries
are installed in the console and the transmitter (see
assembly step 10 on page 9 and assembly step
12 on page 10). If there is a sheet of plastic on the
display, remove the plastic.
HOW TO PERSONALIZE CONSOLE SETTINGS
1. Turn on the console.
Press any button to turn on the console.
2. Enter the setup mode.
First, press the Left button
repeatedly until the
word SPEED appears in
the lower display.
Then, press and hold the Right button for several
seconds to enter the setup mode.
Note: The console will exit the setup mode automati-
cally if several seconds pass and no buttons
are pressed.

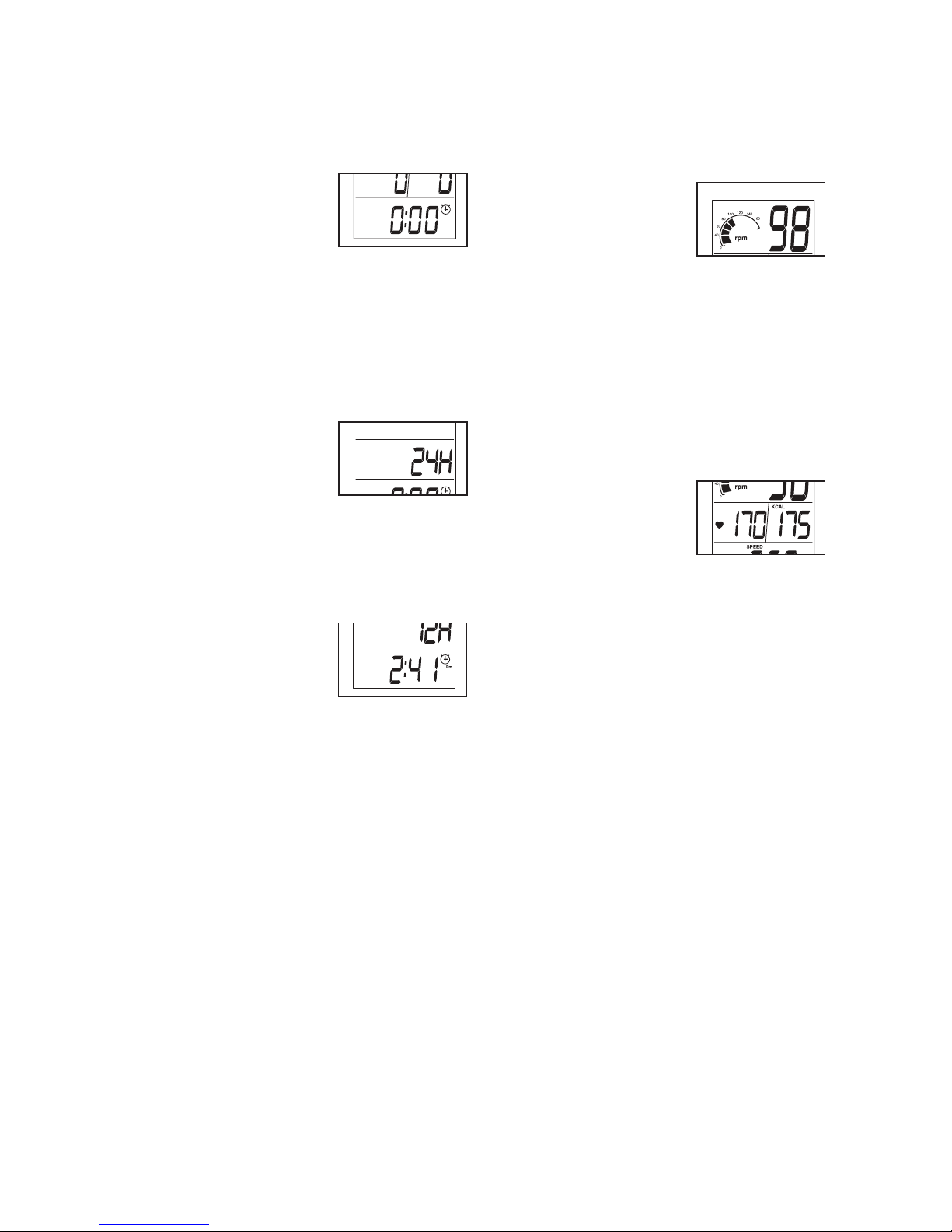

3. Set a time goal if desired.
When you enter the setup
mode, the minutes place
in the lower display will
ash.
To set a time goal for
your workout, press the
Right button repeatedly to
select the desired number
of minutes. To select a
time goal quickly, press and hold down the Right
button.
Note: You can set a time goal between 1 and 99
minutes.
Note: If you set a time goal, the lower display will
count down the time remaining in your workout
instead of the elapsed time (see step 3 of HOW TO
USE THE CONSOLE on page 11).
Press the Left button to advance to the next setting.

10

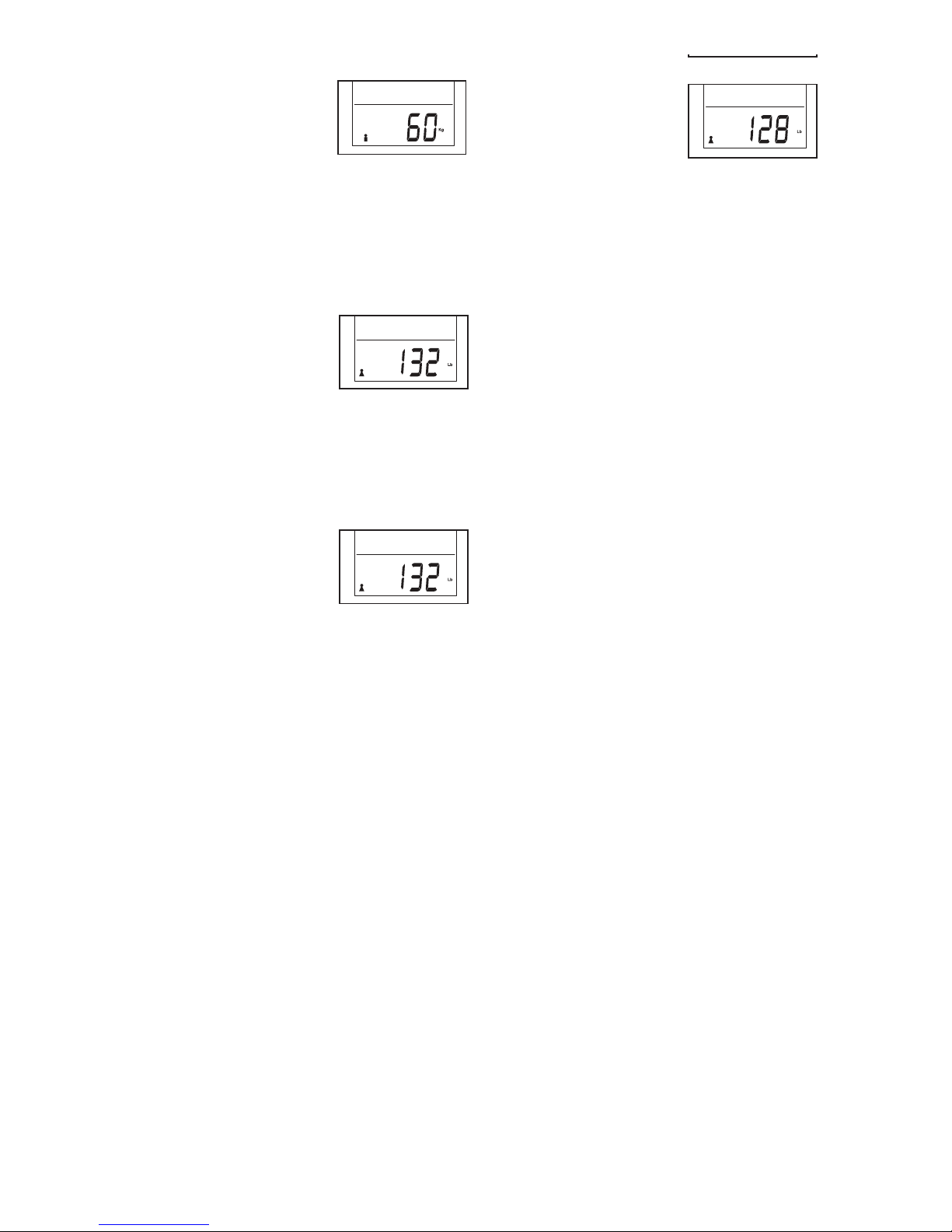

4. Enter your gender if desired.
A gender symbol will
ash in the lower display.
Press the Right button repeatedly to select the
symbol that represents your gender.
Press the Left button to advance to the next
setting.
6. Select a unit of measurement if desired.
The console can display speed, distance, and
weight in standard or metric measurements.
The letters Lb (standard)
or Kg (metric) will ash in
the lower display to show
which unit of measurement
is selected.
Press the Right button repeatedly to select the
desired unit of measurement.
Press the Left button to advance to the next
setting.
7. Enter your weight if desired.
A weight setting will ash
in the lower display.
Press the Right button
repeatedly to select your
weight. To select your
weight quickly, press and
hold down the Right
button.
Note: You can select a weight setting between
44 and 396 pounds or between 20 and 180 kilo-
grams. The exercise bike should not be used
by persons weighing more than 275 pounds
or 125 kilograms.
8. Exit the setup mode at any time.
The console will exit the setup mode automati-
cally if several seconds pass and no buttons are
pressed.
Note: To advance again through the settings
described in steps 3 to 7, press the Left button
repeatedly.

11
HOW TO SET THE CLOCK
1. Turn on the console.
Press any button to turn on the console.
2. Enter the clock mode.
First, press the Left button
repeatedly until the clock
symbol appears in the lower
display.
Then, press and hold the Right button for several
seconds to enter the clock mode.
Note: The console will exit the clock mode auto-
matically if several seconds pass and no buttons are
pressed.
3. Change the time notation if desired.
The time notation will
ash in the middle right
display.
Press the Right button repeatedly to select the
desired time notation. Select 12H for a 12-hour
clock. Select 24H for a 24-hour clock.
4. Set the time.
Press the Left button to select
the hour setting. The hour
setting will ash in the lower
display.
Press the Right button repeatedly to select the
desired hour setting. Make sure to select the cor-
rect am or pm setting when you select the hour
setting.
Press the Left button to select the minute setting.
The minute setting will ash in the lower display.
Press the Right button repeatedly to select the
desired minute setting.
5. Exit the clock mode at any time.
The console will exit the clock mode automatically
if several seconds pass and no buttons are
pressed.
HOW TO USE THE CONSOLE
1. Turn on the console.
Press any button to turn on the console.
2. Follow your progress with the displays.
The upper left display—
As you pedal, the rpm
meter in this display indi-
cates your approximate
pedaling speed in revolu-
tions per minute (rpm) in
a range from 0 rpm to 200 rpm. Bars will appear or
disappear in increments as you change your pedal-
ing speed.
The upper right display—This display shows your
pedaling speed in revolutions per minute (rpm) in a
range from 0 rpm to 240 rpm.
Note: When you stop pedaling, this display shows
the average pedaling speed (AVG rpm) for your
workout.
The middle left display—
This display shows
your heart rate (heart
symbol) in beats per minute
(bpm) in a range from
0 to 240 bpm when you
wear an optional heart rate monitor (see page 18).
The middle right display—This display shows the
approximate number of calories (KCAL) you have
burned.

12

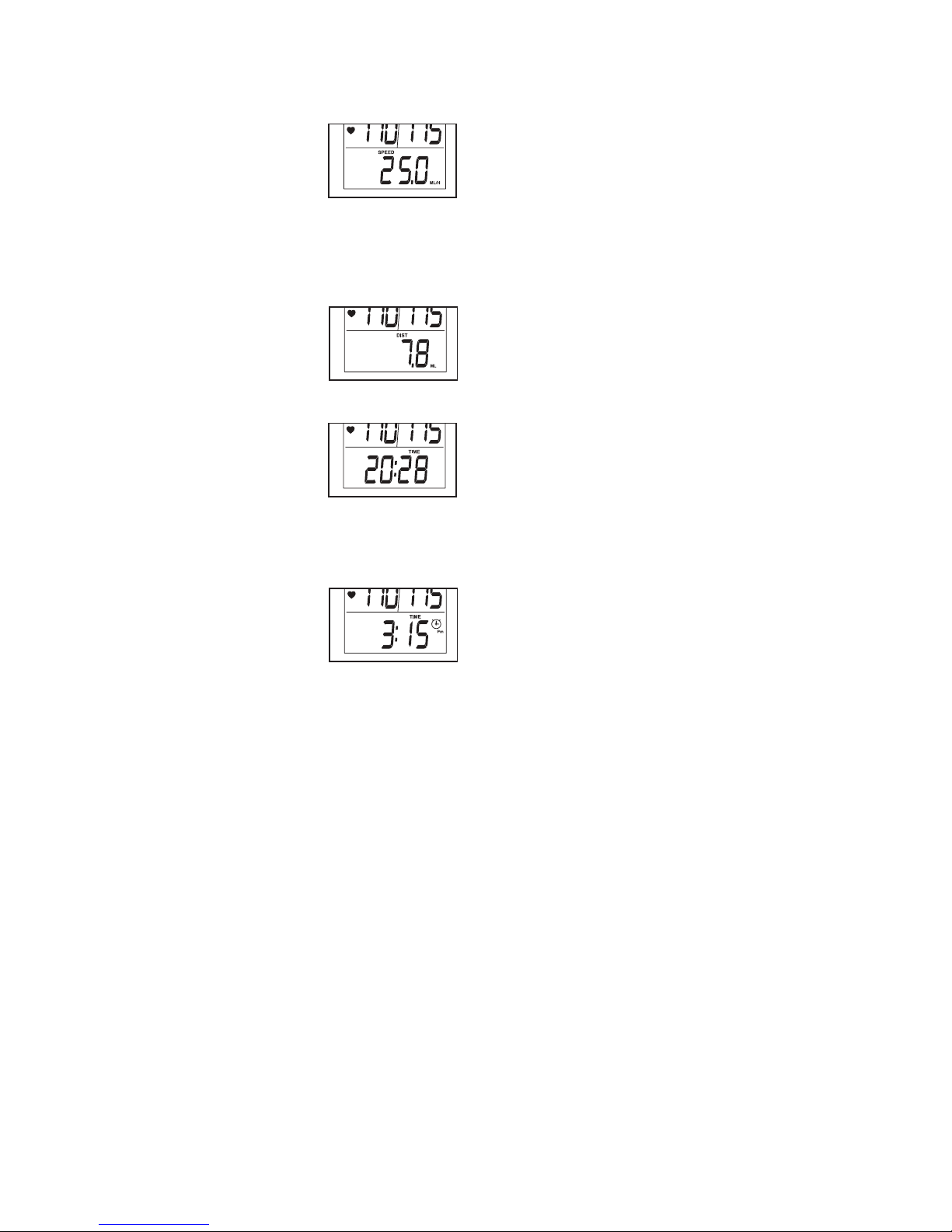

The lower display—This display can show the
following workout information:
Speed (SPEED)—
This display shows
your pedaling speed
in miles per hour
(ML/H) or kilometers
per hour (KM/H).
Note: When you stop pedaling, this display
shows the average pedaling speed (AVG
SPEED) for your workout.
Distance (DIST)—
This display shows
the distance you
have pedaled in
miles (ML) or kilometers
(KM).
Time (TIME)—This
display shows the
elapsed time in a
range from 0 minutes
to 99 minutes.
Note: If you set a time goal (see step 4), this
display shows the time remaining in your work-
out instead of the elapsed time.
Clock (Clock symbol)—
This display shows the
time of day using a 12-hour
clock or a 24-hour clock.
Press the Left button repeatedly until the lower
display shows the workout information you are
interested in viewing.
To reset the displays, press the Left button re-
peatedly until the word TIME appears in the
lower display. Then, press and hold the Right
button until
zeros appear in the displays.
To turn on the console backlight for a few sec-
onds, press the Right button once at any time.
Note: The console can display speed and dis-
tance in either miles or kilometers. The letters
ML/H or KM/H will appear in the display to show
which unit of measurement is selected. To
change the unit of measurement, see step 6 on
page 10.
4. Set a time goal, if desired.
To set a time goal, see step 3 on page 9.
To clear the time goal, press the Left button
repeatedly until the word TIME appears in the
lower display. Then, press and hold the Right
button until zeros appear in the lower display.
Note: If you set a time goal, the lower display will
count down the time remaining in your workout
instead of the elapsed time.
When you reach your goal, a tone will sound for
several seconds. Then, the console will begin to
count the elapsed time.
6. When you are nished exercising, the con-
sole will turn off automatically.
The console has an “auto-off” feature. If the ped-
als do not move and the buttons are not pressed
for a few minutes, the power will turn off auto-
matically to save the batteries.

13
HOW TO ADJUST THE ANGLE OF THE SEAT
You can adjust the angle of the seat to the position
that is most comfortable. You can also slide the seat
forward or backward to increase your comfort or to
adjust the distance to the handlebar. To adjust the
seat, see the drawing in assembly step
7 on page 8. Loosen the nuts on the seat clamp a
few turns, and then tilt the seat upward or downward
or slide the seat forward or backward to the desired
position. Then, retighten the nuts.
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE SEAT
To adjust the horizontal
position of the seat, rst
loosen the adjustment
knob and pull it
downward. Then, move
the seat forward or
backward, release the
adjustment knob into
an adjustment hole in the seat carriage, and rmly
tighten the adjustment knob. Make sure that the
adjustment knob is engaged in an adjustment
hole.
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the proper
height. As you pedal,
there should be a slight
bend in your knees
when the pedals are in
the lowest position. To
adjust the height of the
seat post, rst loosen the
adjustment
knob and pull it outward.
Then, move the seat
post upward or downward, release the adjustment knob
into an adjustment hole in the seat post, and rmly
tighten the adjustment knob. Make sure that the
adjustment knob is engaged in an adjustment
hole.
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE HANDLEBAR
To adjust the horizontal
position of the
handlebar, loosen
the handle, move the
handlebar forward or
backward to the desired
position, and then
tighten the handle.
Note: The handle functions like a ratchet. To loosen
the handle, turn the handle counterclockwise, pull
the handle outward, turn the handle clockwise,
push the handle inward, and then turn the handle
counterclockwise again. Reverse this process to
tighten the handle installed in accordance with all local
codes and ordinances.
HOW TO ADJUST THE HANDLEBAR POST
To adjust the
height of the
handlebar post,
rst loosen the
adjustment
knob and pull
it outward.
Then, move
the handlebar
post upward
or downward,
release the
adjustment knob
into an adjustment hole in the handlebar post, and
rmly tighten the adjustment knob.
Make sure that the adjustment knob is engaged in
an adjustment hole.
HOW TO USE THE EXERCISE BIKE
Adjustment
Knob
Handlebar
Post
Adjustment
Knob
Seat
Seat
Post
Adjustment
Knob
Handlebar
Handle

14
HOW TO ADJUST THE PEDAL STRAPS
To tighten the pedal straps (see the drawing on page
4), simply pull the ends of the pedal straps. To
loosen the pedal straps, press and hold the tabs on
the buckles, adjust the pedal straps to the desired
position, and then release the tabs.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of
the pedals, turn
the resistance
knob clockwise;
to decrease the
resistance, turn the
resistance knob
counterclockwise.
To stop the
ywheel, push
the brake lever
downward. The ywheel should
quickly come to a complete stop.
IMPORTANT: When the exercise bike is not in use,
tighten the resistance knob completely.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike rocks slightly on your oor during
use, turn one or both of the leveling feet on the front
or rear stabilizer (see the drawing on page 4) until the
rocking motion is eliminated.
HOW TO MAINTAIN THE EXERCISE BIKE
Inspect and tighten all parts of the exercise bike
regularly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
HOW TO ADJUST THE HANDLEBAR POST

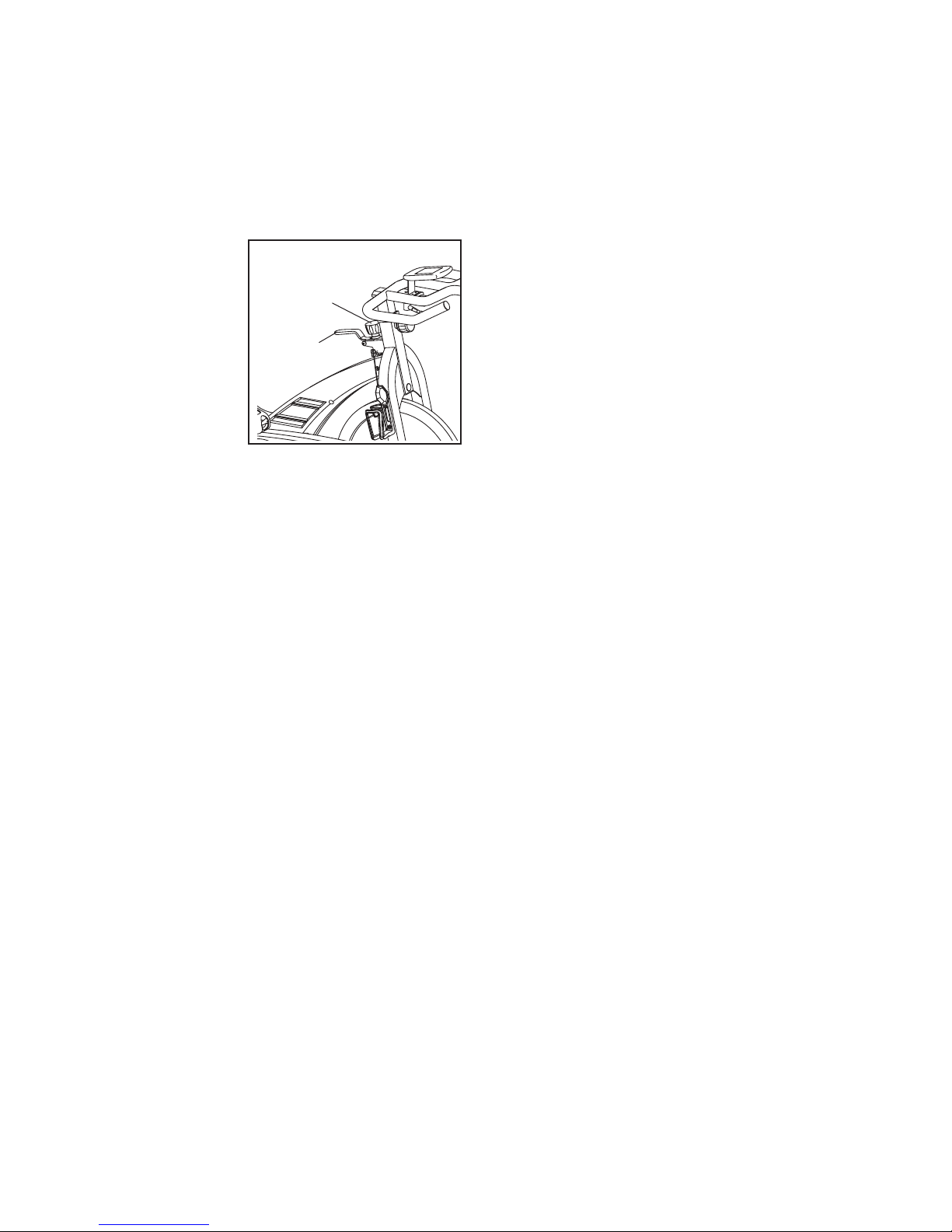

If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, see the drawing in assembly step 13 on
page 10.
Rotate the ywheel until the magnet is aligned with
the reed switch. Slide the reed switch slightly toward
or away from the magnet. Then, rotate the ywheel
for a moment. Repeat these actions until the console
displays correct feedback.
Brake
Lever
Resistance
Knob

15
EXERCISE GUIDELINES
WARNING:
Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device. Vari-
ous factors may affect the accuracy of heart
rate readings. The pulse sensor is intended
only as an exercise aid in determining heart
rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper in-
tensity is the key to achieving results. You can use
your heart rate as a guide to nd the proper intensity

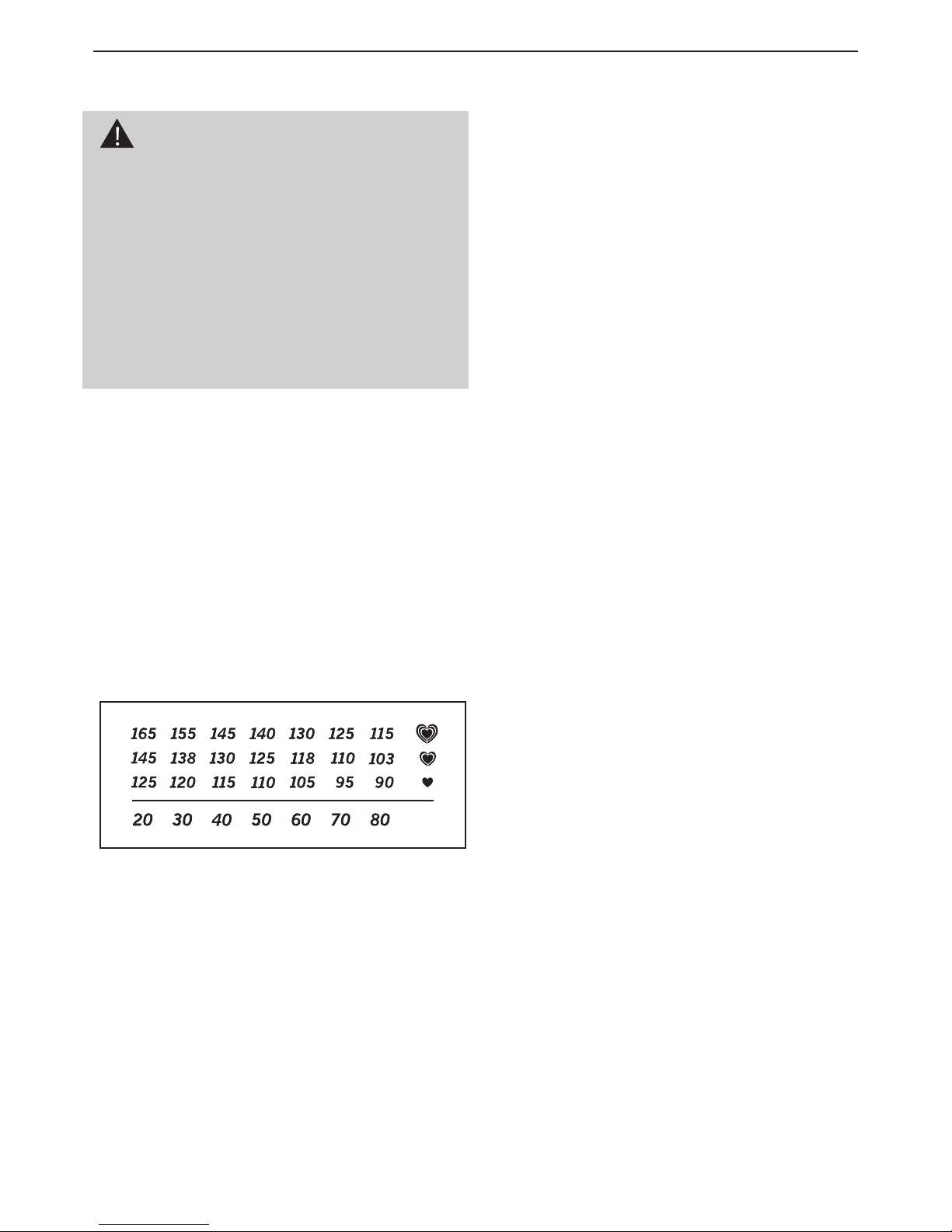

level. The chart below shows recommended heart
rates for fat burning and aerobic exercise.
To nd the proper intensity level, nd your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age dene your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is
the heart rate for maximum fat burning, and the high-
est number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the rst few minutes of exercise, your
body uses carbohydrate calories for energy. Only af-
ter the rst few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training one. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in prepara-
tion for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
he rst few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as
you exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the exibility of your
muscles and helps to prevent post-exercise prob-
lems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular ex-
ercise, you may complete up to ve workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.

16
SUGGESTED STRETCHES

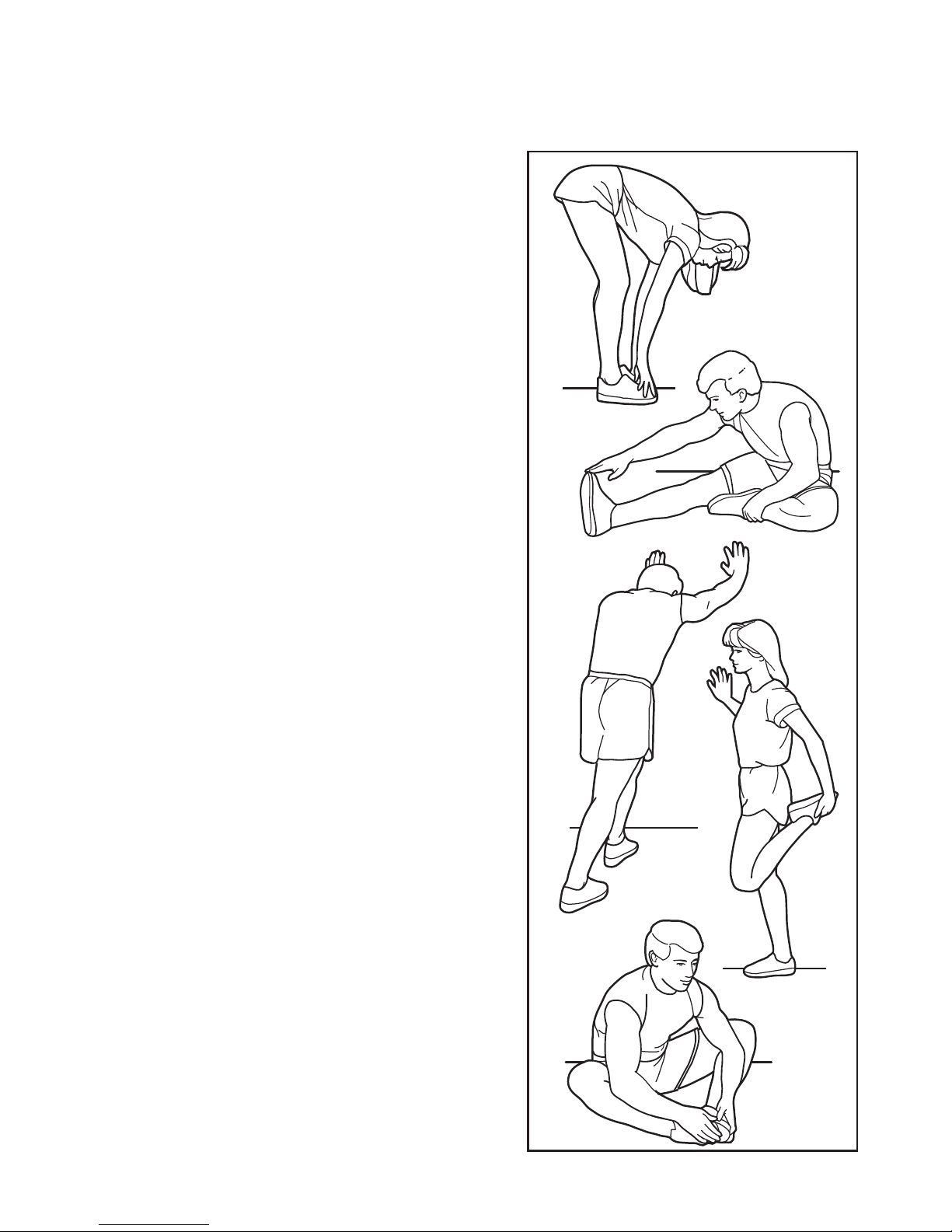

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—
never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly
bend forward from your hips. Allow your back and
shoulders to relax as you reach down toward your
toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back
of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the
opposite foot
toward you and rest it against the inner thigh of
your extended leg.Reach toward your toes as far
as possible. Hold for 15 counts, then relax. Repeat
3 times for each leg. Stretches: Hamstrings, lower
back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward
and place your hands against a wall. Keep your
back leg straight and your back foot at on the
oor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then
relax. Repeat 3 times for each leg. To cause further
stretching of the achilles tendons, bend your back
leg as well. Stretches: Calves, achilles tendons and
ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back
and grasp one foot with your other hand. Bring your
heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3
times
for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your
knees outward. Pull your feet toward your groin area
as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
2
3
4
5

17
Inspect and tighten all parts of the exercise bike
regularly.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap.
IMPORTANT: To avoid damage to the console,
keep liquids away from the console and keep the
console out of direct sunlight.
MAINTENANCE AND TROUBLESHOOTING

18
EXPLODED DRAWING—Model No. PFEVEX74712.0
19
17
2
22
3
23
19
34
33 33
4
19
5
67
50
11
43
10
9
50
42
62
23
60
52
63
58
17
23
12 53 32
61
61
56
24
25
64
51
41
65 34
33
34
33
1
18
50
50
46
21
46
49
16
46
50
21
46
50 49
16
18 8
49
16
18
7
6
29
40
38
55
39
44
44
36
31
47
28
57
37
55
38
40
29
6
20
27
13
52
59
13
14
13 13
35
35
35
32 53
48
30
45 27
26
15
54
27
18
49
16
45
52
48
66
66

19
PART LIST—Model No. PFEVEX74712.0
Item
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
Description
Right Pedal/Strap
Flywheel
Flywheel Axle
Flywheel Bracket
Sleeve
M8 Locknut
Brake Pad
Brake Clamp
Small Knob Washer
Flywheel Bearing
Crank Bearing
Wheel Bearing
Flywheel Sprocket
Snap Ring
M10 Hex Nut
Wheel Bolt Set
M6 x 40mm Bolt
M5 Washer
Crank Nut
M5 x 25mm Screw
M12 Thin Hex Nut
M6 Flange Nut
Spanner Nut
M10 Locknut
M5 x 12mm Screw
Water Bottle Holder
Left Pedal/Strap
M5 x 12mm Screw
Brake Cable
Caliper Brake
Brake Pad Mount
M8 Hex Nut
Handlebar Post Bushing
* – Assembly Tool
* – Userʼs Manual
Qty.
1
1
1
2
1
2
2
1
1
2
2
4
1
2
4
3
1
4
2
2
3
1
2
1
2
1
1
2
2
1
2
2
1
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Description
Frame
Seat Post
Seat Carriage
Handlebar Post
Handlebar
M12 Acorn Nut
Rear Stabilizer
Front Stabilizer
Brake Lever
Felt Washer
Resistance Knob
Left Crank Arm
Self-tapping Screw
Right Shield
Left Shield
Leveling Foot
Seat Post Bushing
Stabilizer Cap
Post Cap
Shield Cover
Wheel
Seat
Adjustment Knob
Brake Cap
Frame Cap
6.5mm Plastic Spacer
Nut
Chain
Bracket Washer
Crank Axle
Right Crank Arm/Crank Wheel
Crank Cap
M10 Washer
M10 x 25mm Screw
Qty.
1
1
1
1
1
2
1
1
1
1
1
1
7
1
1
4
2
4
3
1
2
1
3
1
1
2
5
1
2
1
1
2
6
6

ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
IMPORTANT RECYCLING INFORMATION FOR E. U. CUSTOMERS
This electronic product must not be disposed of in municipal waste. To preserve
the environment, this product must be recycled after its useful life as required by
law. Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information about
safe and correct disposal methods, please contact your local city ofce or the
establishment where you purchased this product.
SPECIFICATION :
Open Dimension : (L x l x h):133 x 50,5 x 121 cm
Product Weight : 51 Kg
Printed in China © 2013 Icon Health & Fitness, Inc.
