Pro-Form Smart Power 10.0 User manual

Model No. PFEX16718.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Serial
Number
Decal
USER’S MANUAL
proform.com
To register your product and
activate your warranty today,
go to my.proform.com.
For service at any time, go to
proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE EXERCISE BIKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MAINTENANCE AND TROUBLESHOOTING.....................................................30
EXERCISE GUIDELINES ....................................................................32
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS

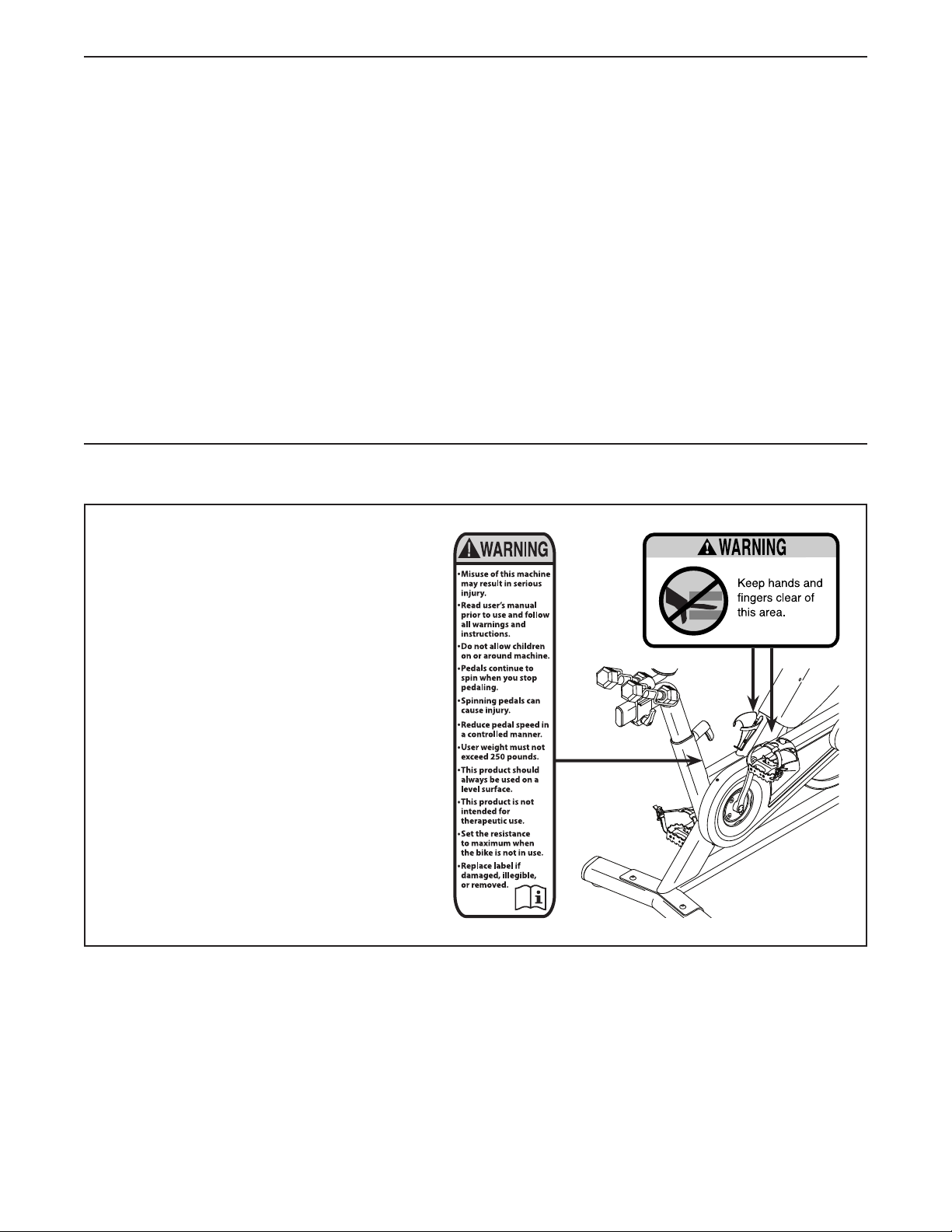

This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth®word mark and
logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade-
mark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to
ensure that all users of the exercise bike are
adequately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
9. Keep children under age 13 and pets away
from the exercise bike at all times.
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
11. The exercise bike should not be used
by persons weighing more than 250 lbs.
(114 kg).
12. Be careful when mounting and dismounting
the exercise bike.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
15. To stop the flywheel quickly, press the
brake knob downward.
16. To avoid damaging the brake pads, do not
lubricate the brake pads.
17. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4
STANDARD SERVICE PLANS

5
Thank you for choosing the new PROFORM®
SMART POWER 10.0 exercise bike. Cycling is an
effective exercise for increasing cardiovascular fit-
ness, building endurance, and toning the body. The
SMART POWER 10.0 exercise bike provides a selec-
tion of features designed to make your workouts at
home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Brake Knob
Saddle
Hand Weight
Adjustment Handle
Adjustment Handle
Water Bottle Holder*
*Water bottle is not included
Pedal/Strap
Leveling Foot
Handlebar
Console
BEFORE YOU BEGIN
Wheel
Length: 4 ft. 9 in. (145 cm)
Width: 1 ft. 10 in. (56 cm)
Carraige Handle

6
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M4 x 20mm
Screw (87)–1
M4 x 16mm
Screw (81)–4
M6 x 15mm
Screw (71)–4
M6 Bolt Set (70)–2 M10 x 25mm
Screw (69)–4

7
1
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”

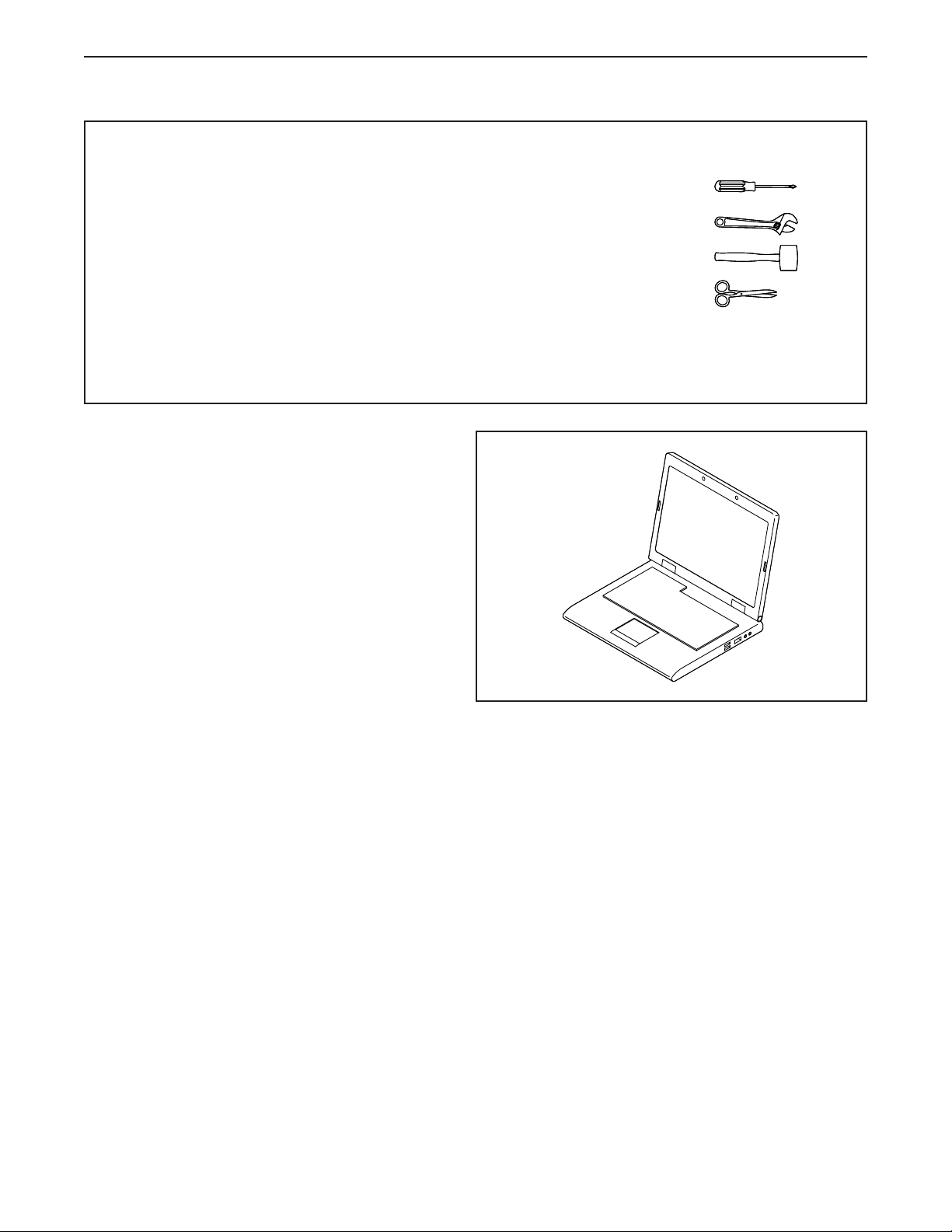

• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
one adjustable wrench
one rubber mallet
one pair of scissors
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. Go to my.proform.com on your computer and
register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

8
2. If there are shipping tubes (not shown) attached
to the front and rear of the Frame (1), remove
and discard the shipping tubes and the hardware
attaching them.
Orient the Front Stabilizer (2) as shown, and
attach it to the Frame (1) with two M10 x 25mm
Screws (69).
2
69
2
1
69
3
3
3. Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 25mm Screws (69).
1

9
1
4
7
14

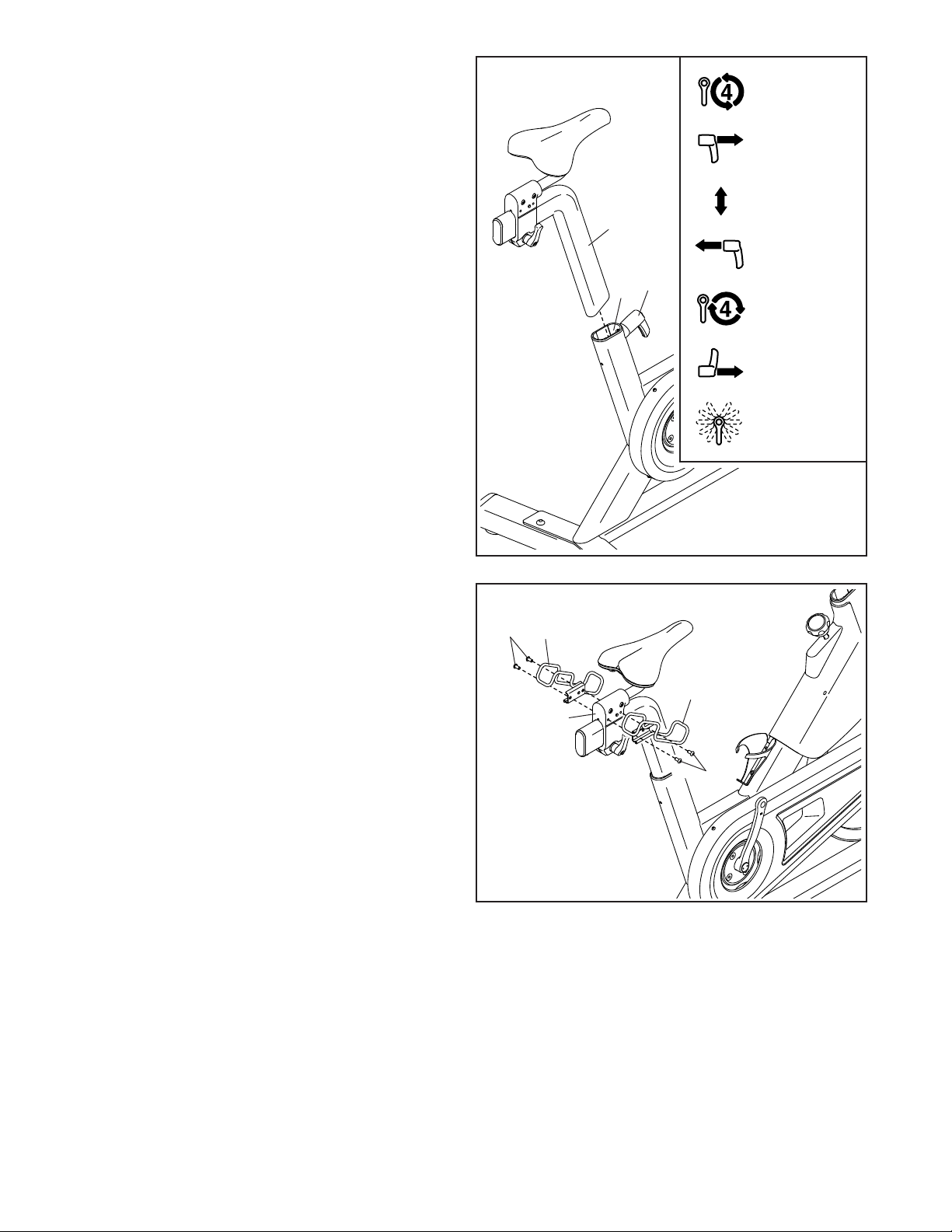

4. Tip: See the inset drawing to learn how to
operate the Adjustment Handle (14).
Locate the Adjustment Handle (14) on the rear
of the Frame (1). Pull the Adjustment Handle
outward, and insert the Saddle Post (7) into the
Frame.
Next, move the Saddle Post (7) upward or
downward to the desired position, release the
Adjustment Handle (14) into an adjustment
hole in the Saddle Post, and then tighten the
Adjustment Handle four turns. Make sure that
the Adjustment Handle is firmly engaged in
an adjustment hole.
Then, pull the Adjustment Handle (14) outward,
turn it so that it points downward as shown, and
then release it.
10
11
71
12
71
5. Orient the Left and Right Weight Rests (11, 12)
as shown.
Attach each Weight Rest (11, 12) to the Saddle
Carriage (10) with two M6 x 15mm Screws (71).
5
Loosen handle
Pull handle
Adjust post
Release handle
Tighten handle
Pull handle
Turn handle
down

10
6
16
6. Note: You can attach your own pedals if
desired.
Identify the Right Pedal (16). Using the included
wrench, firmly tighten the Right Pedal
clockwise into the Right Crank Arm (18).
Firmly tighten the Left Pedal (17)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
18
17
7. Have a second person hold the Handlebar (4)
near the Frame (1).
Next, locate the wire tie (A) in the Frame (1).
Tie the wire tie to the Upper Wire (B) in the
Handlebar (4). Then, pull the lower end of the
wire tie until the Upper Wire is routed through
the Frame. Untie and discard the wire tie.

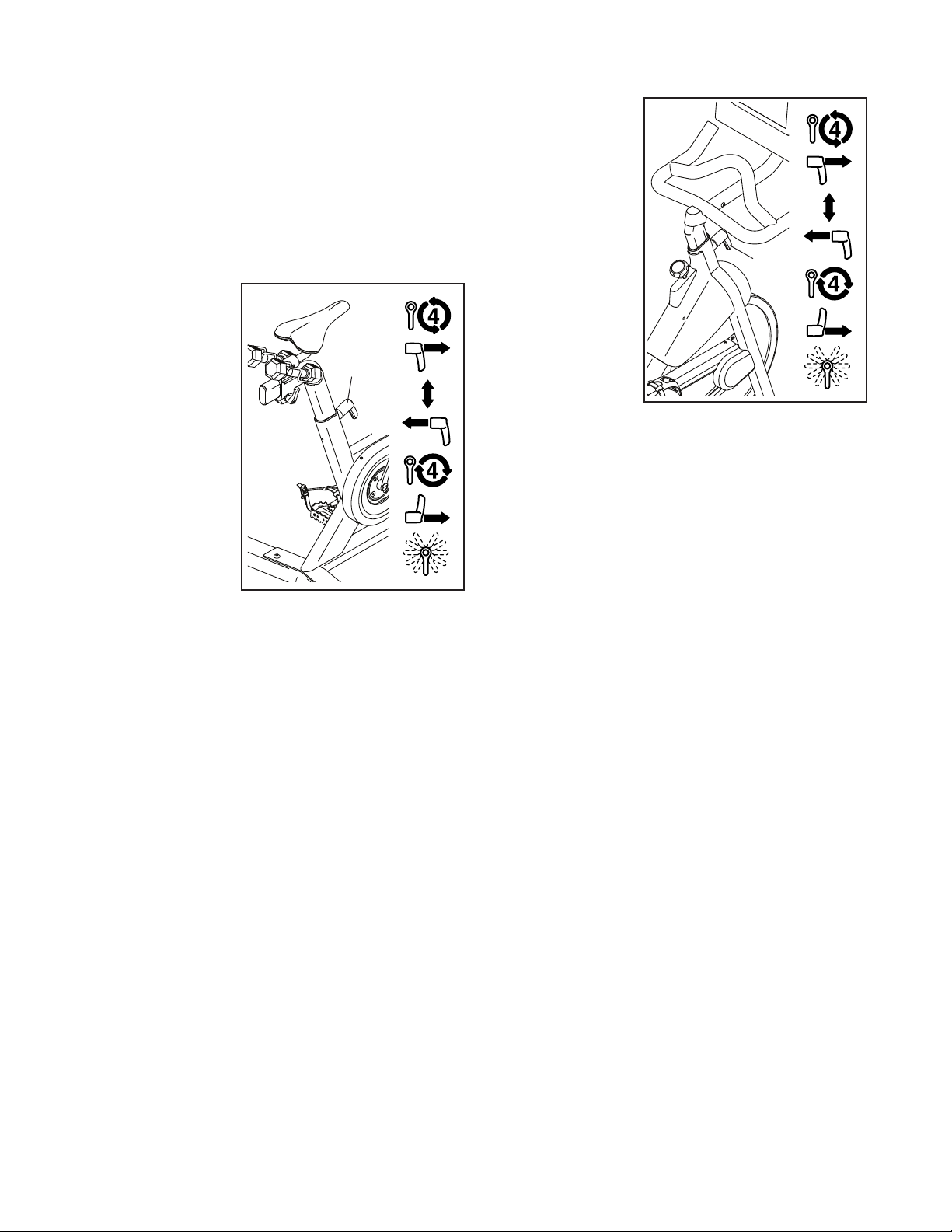

Tip: See the upper inset drawing to learn how
to operate the Adjustment Handle (14).
Next, locate the Adjustment Handle (14) on
the front of the Frame (1). Pull the Adjustment
Handle outward. Then, insert the Handlebar (4)
into the Frame.
Move the Handlebar (4) downward and release
the Adjustment Handle (14) into the indi-
cated adjustment hole (C). Then, tighten the
Adjustment Handle four turns. Make sure that
the Adjustment Handle is firmly engaged in
the adjustment hole.
Then, pull the Adjustment Handle (14) outward,
turn it so that it points downward as shown, and
then release it.
See the lower inset drawing. Insert the Upper
Wire (B) through the zip tie (D) on the Frame (1);
do not connect the Upper Wire and do not
tighten the zip tie yet.
7
D
4
C
14
A
A
1
1
B
D
B
Loosen
handle
Pull
handle
Adjust
post
Release
handle
Tighten
handle
Pull
handle
Turn handle
down

11

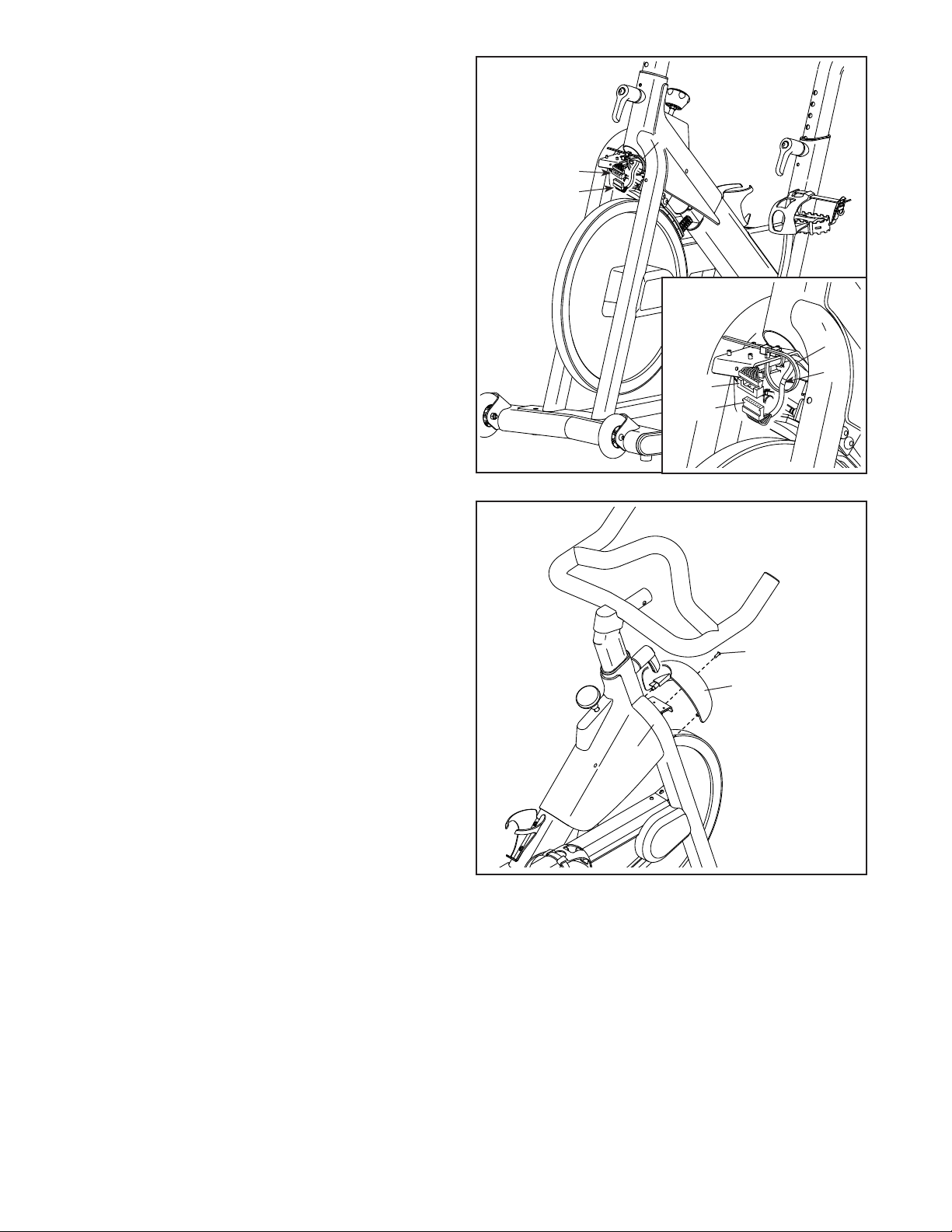

8. See the inset drawing. Connect the connector
on the Upper Wire (B) to the connector on the
Lower Wire (82).
Next, tighten the zip tie (D) around the indicated
mark (E) on the Upper Wire (B). Then, cut off the
excess zip tie.
8
B
82
D
D
E
B
82
9
9. Tip: Avoid pinching the wires. Press the Motor
Cover (38) onto the Frame (1), and then attach it
with an M4 x 20mm Screw (87).
87
38
1
Avoid
pinching
the wires

12

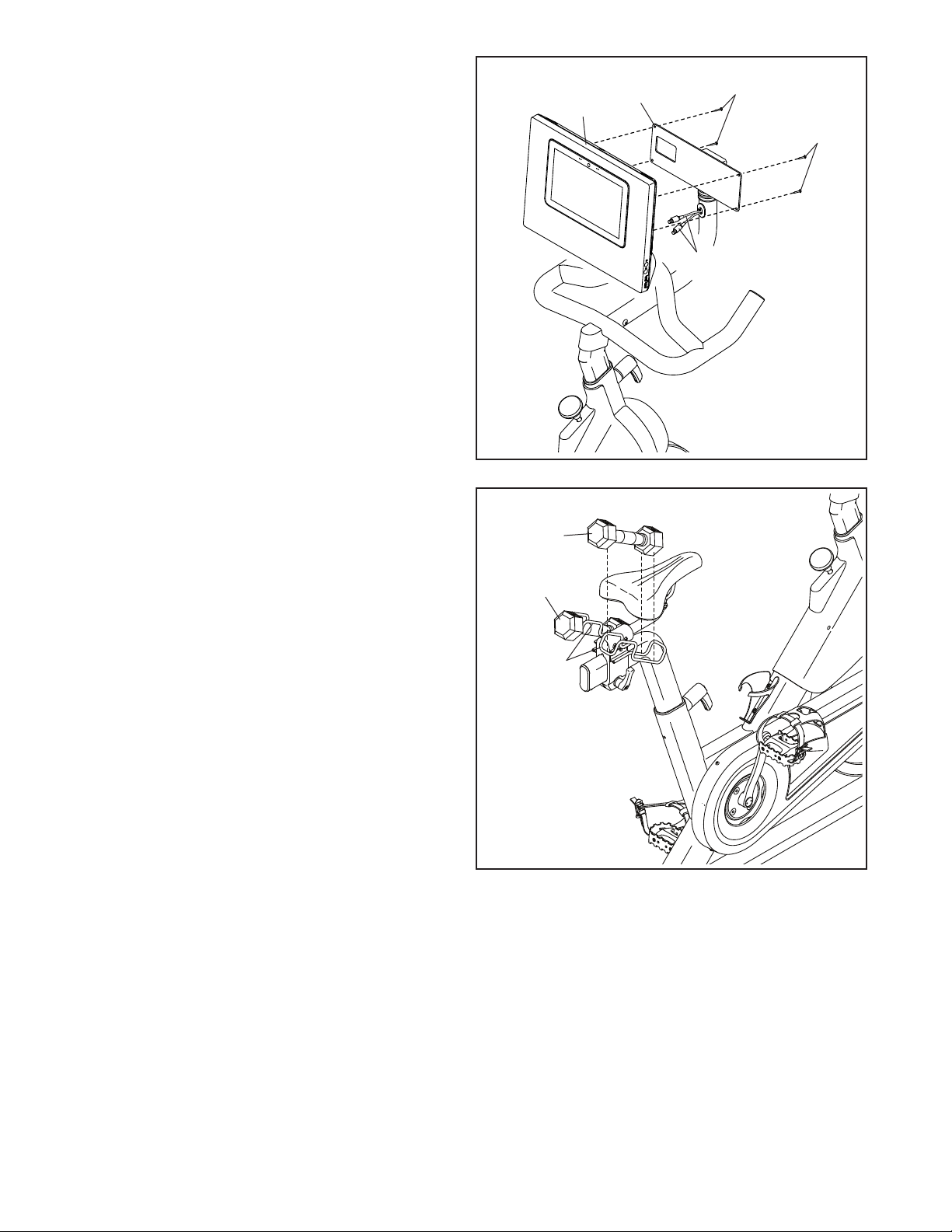

10. While a second person holds the Console Mount
(5) near the Handlebar (4), connect the 6-pin
and 8-pin Wires (90, 91) in the Console Mount to
the matching connectors on the Upper Wire (B)
in the Handlebar.
Tip: Avoid pinching the wires. Gently pull on
the wires in the indicated location (F) as you
slide the Console Mount (5) onto the Handlebar
(4). Make sure that the wires inside the
Handlebar are out of the way of the bolt
holes.
You can attach the Console Mount (5) in either
the standard position or the extended position.
For the standard position, align the Console
Mount with the inner holes (G, H). For the
extended position, align the Console Mount with
the outer holes (H, I).
Tip: Avoid pinching the wires. Attach the
Console Mount (5) with two M6 Bolt Sets (70).
11
11. Press the Wire Protector (98) into the Console
Mount (5).
98
5
10
70
B
90, 91
5
GHI
F
4
Avoid pinching
the wires
70

13
12
Avoid pinching
the wires
12. Have a second person hold the Console (6) near
the Console Bracket (26).
Plug the 6-pin and 8-pin Wires (90, 91) into the
matching receptacles on the back of the Console
(6); make sure to plug the Wire marked with
red into the receptacle marked with red,
and plug the Wire marked with yellow into
the receptacle marked with yellow. Make
sure that the flat side of each Wire is facing
outward.
Tip: Avoid pinching the wires. If necessary,
tilt the Console Bracket (26) upward to
make this step easier. Attach the Console (6)
to the Console Bracket with four M4 x 16mm
Screws (81); start all the Screws, and then
tighten them.
26
6
81
81
90, 91
13
13. Set the Hand Weights (59) in the Weight
Rests (11, 12).
59
59
11, 12

14
14
14. Plug the Power Adapter (86) into the receptacle
in the Frame (1).
Note: To plug the Power Adapter (86) into an
outlet see HOW TO PLUG IN THE POWER
ADAPTER on page 15.
86 1
15. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly, that it
functions properly, and that all parts are properly tightened. Extra parts may be included. Place a mat
under the exercise bike to protect the floor or carpet.

15
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the exercise bike has been exposed
to cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter (A).
If you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter (A) into the
receptacle on the
back of the con-
sole. Then, plug
the power adapter
into an appropriate
outlet that is properly
installed in accor-
dance with all local codes and ordinances.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on your
floor during use,
turn one or both of
the leveling feet (B)
beneath the rear
stabilizer until the
rocking motion is
eliminated.
HOW TO ADJUST THE ANGLE OF THE SADDLE
You can adjust the angle of the saddle to the position
that is most comfortable. You can also slide the saddle
forward or backward to increase your comfort or to
adjust the distance to the handlebar.
To adjust the saddle,
loosen the nuts (C)
on the saddle clamp
a few turns, and then
tilt the saddle upward
or downward or slide
the saddle forward
or backward to the
desired position.
Then, retighten the nuts.
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE SADDLE
To adjust the position
of the saddle, first
loosen the carriage
handle (D) and pull it
outward. Then, move
the saddle forward
or backward, release
the carriage handle,
and then firmly
tighten the carriage
handle.
Note: The carriage handle (D) functions like a ratchet.
Turn the carriage handle in the desired direction, pull it
outward, turn it in the opposite direction, push it inward,
and then turn it in the desired direction again. Repeat
this process as many times as necessary.
A
B
B
C
D
HOW TO USE THE EXERCISE BIKE

16
HOW TO ADJUST THE SADDLE POST
For effective exercise, the saddle should be at the
proper height. As you pedal, there should be a slight
bend in your knees when the pedals are in the lowest
position.
IMPORTANT: To prevent the hand weights from
falling out of the weight rests, hold the saddle post
firmly with one hand at all times while making this
adjustment.
To adjust the
height of the
saddle post, first
loosen the adjust-
ment handle (E)
four turns and
pull it outward.
Next, move the
saddle post
upward or down-
ward, release the
adjustment handle
into an adjust-
ment hole in the
saddle post, and
firmly tighten the
adjustment han-
dle four turns.
Make sure that the adjustment handle is engaged
in an adjustment hole. Then, pull the adjustment
handle outward, turn it so that it points downward as
shown, and then release it.
HOW TO ADJUST THE HANDLEBAR
To adjust the
height of the
handlebar, first
loosen the adjust-
ment handle (F)
four turns and
pull it outward.
Then, move
the handlebar
upward or down-
ward, release the
adjustment handle
into an adjust-
ment hole in the
handlebar, and
firmly tighten the
adjustment han-
dle four turns.
Make sure that the adjustment handle is engaged
in an adjustment hole. Then, pull the adjustment
handle outward, turn it so that it points downward as
shown, and then release it.
To adjust the horizontal position of the handlebar,
see assembly step 11 on page 12.
E
F

17
HOW TO USE THE PEDALS
To use the pedals
(G), insert your shoes
into the toe cages
and pull the ends of
the toe straps. To
adjust the toe straps,
press and hold the
tabs on the buckles,
adjust the toe straps
to the desired posi-
tion, and then release the tabs.
Note: You can attach your own pedals to the
exercise bike if desired.
HOW TO USE THE BRAKE KNOB
To change the resis-
tance of the pedals,
press the buttons on
the console (see step
3 on page 21). To
stop the flywheel,
push the brake
knob (H) downward.
The flywheel should
quickly come to a
complete stop.
G
G
H

18
Andy
EBPF16718
PFEX16718
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
resistance of the pedals as it guides you through an
effective exercise session.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
While you exercise, the console will display continuous
exercise feedback. You can also measure your heart
rate using an optional chest heart rate monitor (see
page 28 for more information).
You can also listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To activate the console or turn off the console,
see page 19. To learn how to use the touch
screen, see page 19. To set up the console, see
page 20.

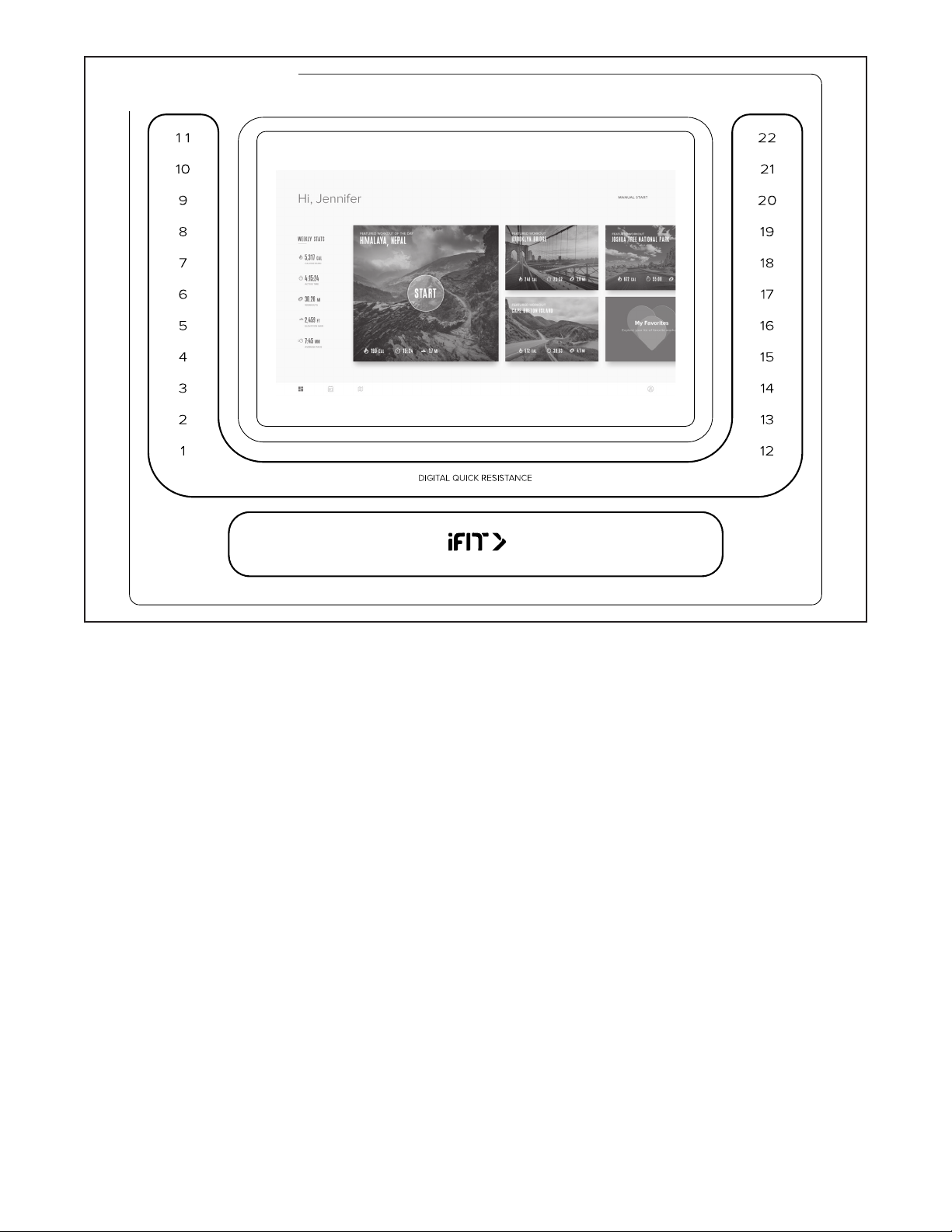

CONSOLE DIAGRAM

19
HOW TO ACTIVATE THE CONSOLE
The included power adapter must be used to operate
the exercise bike. See HOW TO PLUG IN THE
POWER ADAPTER on page 15. When the power
adapter is plugged in, simply touch the screen to acti-
vate the console.
HOW TO TURN OFF THE CONSOLE
When you are finished exercising, unplug the power
adapter. IMPORTANT: If you do not do this, the
electrical components on the exercise bike may
wear prematurely.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you use the
touch screen:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout.
• To type information into a text box, first touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch ?123. To view
more characters, touch ~[<. Touch ?123 again to
return to the number keyboard. To return to the letter
keyboard, touch ABC. To use a capital character,
touch the shift button (upward-facing arrow symbol).
To use multiple capital characters, touch the shift
button again. To return to the lowercase keyboard,
touch the shift button a third time. To clear the last
character, touch the clear button (backward-facing
arrow with an X symbol).

20
HOW TO SET UP THE CONSOLE
Before you use the exercise bike for the first time, set
up the console.
1. Connect to your wireless network.
To use iFit workouts and to use several other
features of the console, the console must be con-
nected to a wireless network. Follow the prompts
on the screen to connect the console to your wire-
less network.
2. Customize settings.
Follow the prompts on the screen to set the desired
unit of measurement and your time zone.
Note: To change these settings later, see HOW TO
CHANGE CONSOLE SETTINGS on page 26.
3. Log into or create an iFit account.
Follow the prompts on the screen to log into your
iFit account or to create an iFit account.
4. Tour the console.
The first time you use the console, a tour presen-
tation will guide you through the features of the
console. Note: To view the tour presentation again
at any time, touch the profile button (person sym-
bol) on the screen, touch Settings, and then touch
How It Works.
5. Check for firmware updates.
First, touch the profile button, touch Settings,
touch Maintenance, and then touch Update. The
console will check for firmware updates. For more
information, see HOW TO CHANGE CONSOLE
SETTINGS on page 26.
The console is now ready for you to begin working out.
The following pages explain the workouts and other
features that the console offers.
To use the manual mode, see page 21. To
use a map workout or an onboard workout, see
page 22. To create a draw-your-own-map work-
out, see page 24. To use an iFit workout, see
page 25.
To change console settings, see page 26. To
connect to a wireless network, see page 27. To
use the sound system, see page 28. To connect
an HDMI cable, see page 28.
Note: If there is a sheet of plastic on the screen,
remove the plastic.
