Pro-Form 810 Tr Treadmill User manual

Serial Number
Decal
Model No. PFTL79807.0
Serial No.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
tomer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
V
Write the serial number in the space
above for reference.
USER'S MANUAL
With Universal Dock for iPod®

TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
The decals shown here have been applied
in the locations shown. If a decal is miss-
ing or illegible, call the telephone num-
ber on the front cover of this manual
and request a free replacement decal.
Apply the decal in the location shown.
Note: The decals may not be shown at ac-
tual size.
WARNING DECAL PLACEMENT
PROFORM is a registered trademark of ICON IP, Inc.
iPod®is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over the age of 35 or persons
with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 325 lbs. (147 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women.
Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
12), plug the power cord into a surge sup-
pressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 12. To purchase a surge suppressor, see
your local PROFORM dealer or call the tele-
phone number on the front cover of this man-
ual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOTING on page 26 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 14).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
WARNING: Toreduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS

4
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 25.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the frame is held securely in the
storage position.
23. Never insert any object into any opening on
the treadmill.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the revolutionary PROFORM®
810 TR treadmill with Universal Dock for iPod®.The
810 TR treadmill with Universal Dock for iPod offers an
impressive array of features designed to make your
workouts at home more enjoyable and effective. And
when you’re not exercising, the unique 810 TR tread-
mill with Universal Dock for iPod can be folded up, re-
quiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill.If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.

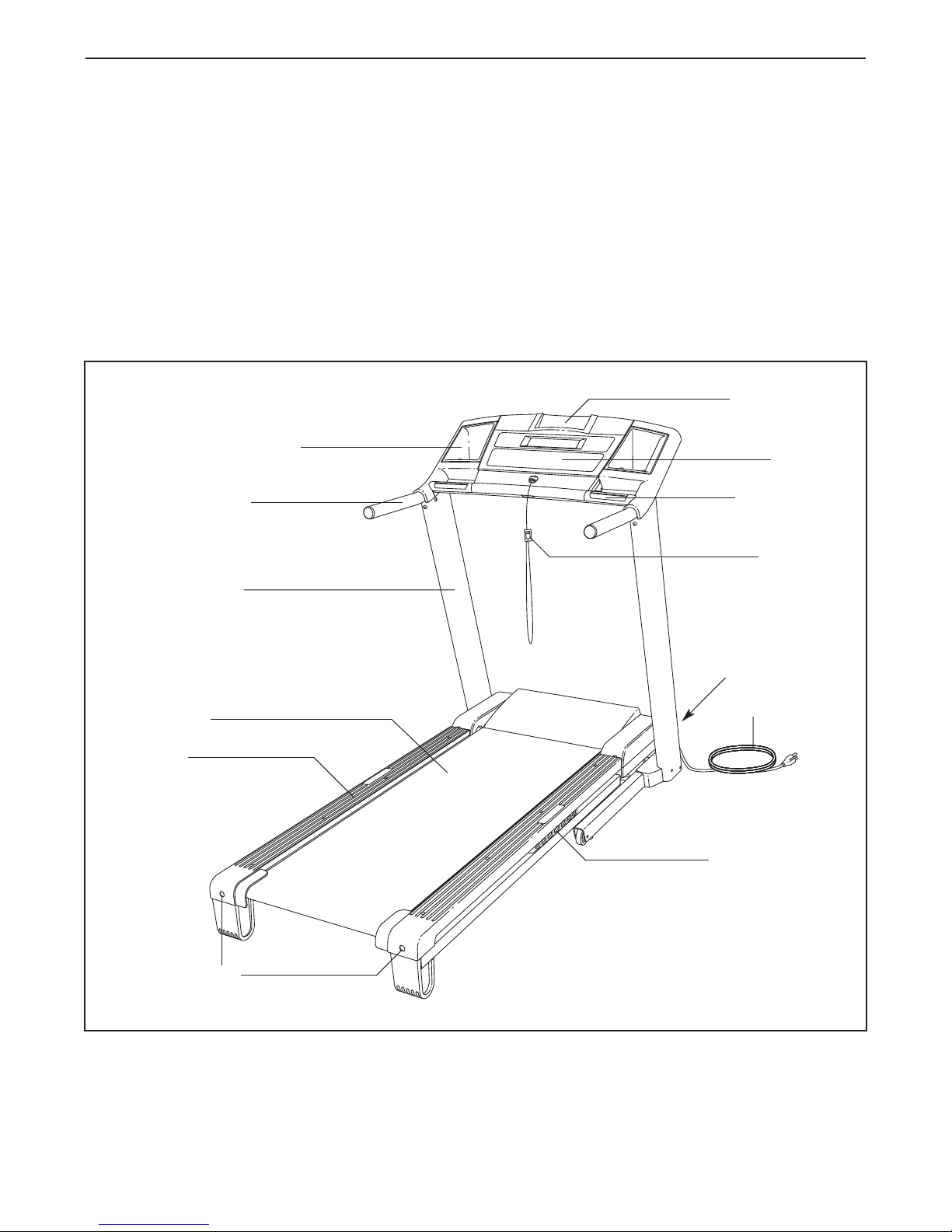

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Accessory Tray
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Platform Cushion
Foot Rail
Power Cord
Rear Roller
Adjustment Bolts
Console
Console Tray
Pulse Sensor

6
ASSEMBLY
Tohire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , and needlenose pliers .

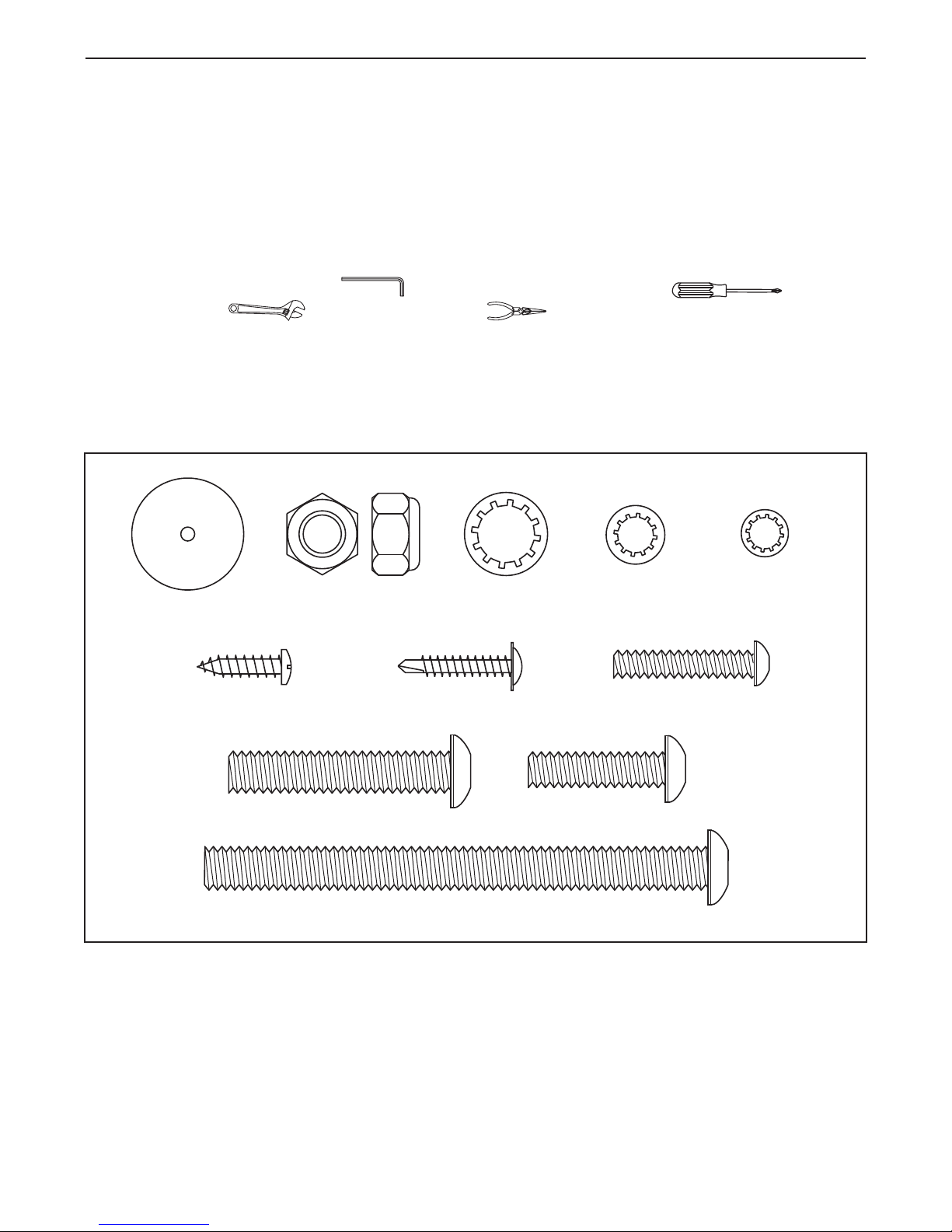

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Extra hardware may be included.
#8 x 3/4" Screw (1)–4
3/8" Nut (8)–3
#8 x 1" Tek Screw (2)–4
Base Pad Spacer
(13)–2
3
1/4" Star
Washer (33)–2
3/8" Star
Washer (9)–4
5/16" Star
Washer (10)–6
5/16" x 1 1/4" Bolt (7)–6
5
1/4" x 1 1/4" Bolt (5)–2
3
3/8" x 2" Bolt (4)–3
3
3/8" x 4 1/2" Bolt (6)–4

7

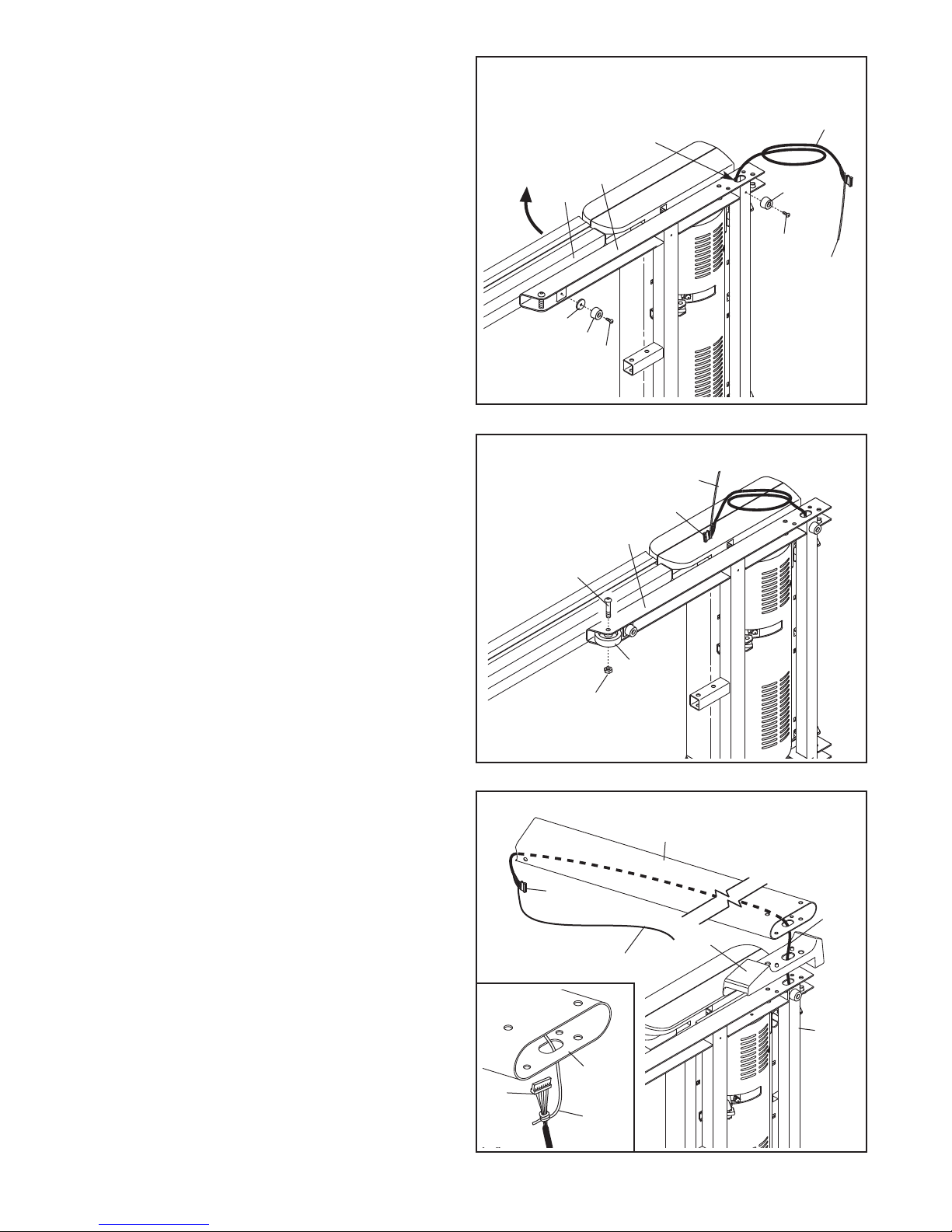

2. Remove the 3/8" Nut (8) and the 3/8" x 2" Bolt
(4) from the Base (83). Attach a Wheel (84) with
the Bolt and the Nut that you just removed. Do
not overtighten the Nut; the Wheel must turn
freely.
Cut the tie off the Upright Wire (38).
83
38
Tie
4
8
2
84
3. Identify the Right Upright (78) and the Right
Upright Spacer (79), which are marked with
stickers. Insert the Upright Wire (38) through the
Right Upright Spacer as shown.
See the inset drawing. Tie the long tie in the
Right Upright (78) securely around the end of
the Upright Wire (38). With the help of a second
person, hold the Right Upright near the Base
(83). Then, pull the other end of the long tie until
the Upright Wire is routed completely through
the Right Upright.
83
38
78
79
38
3
Long
Tie
Long Tie
78
38

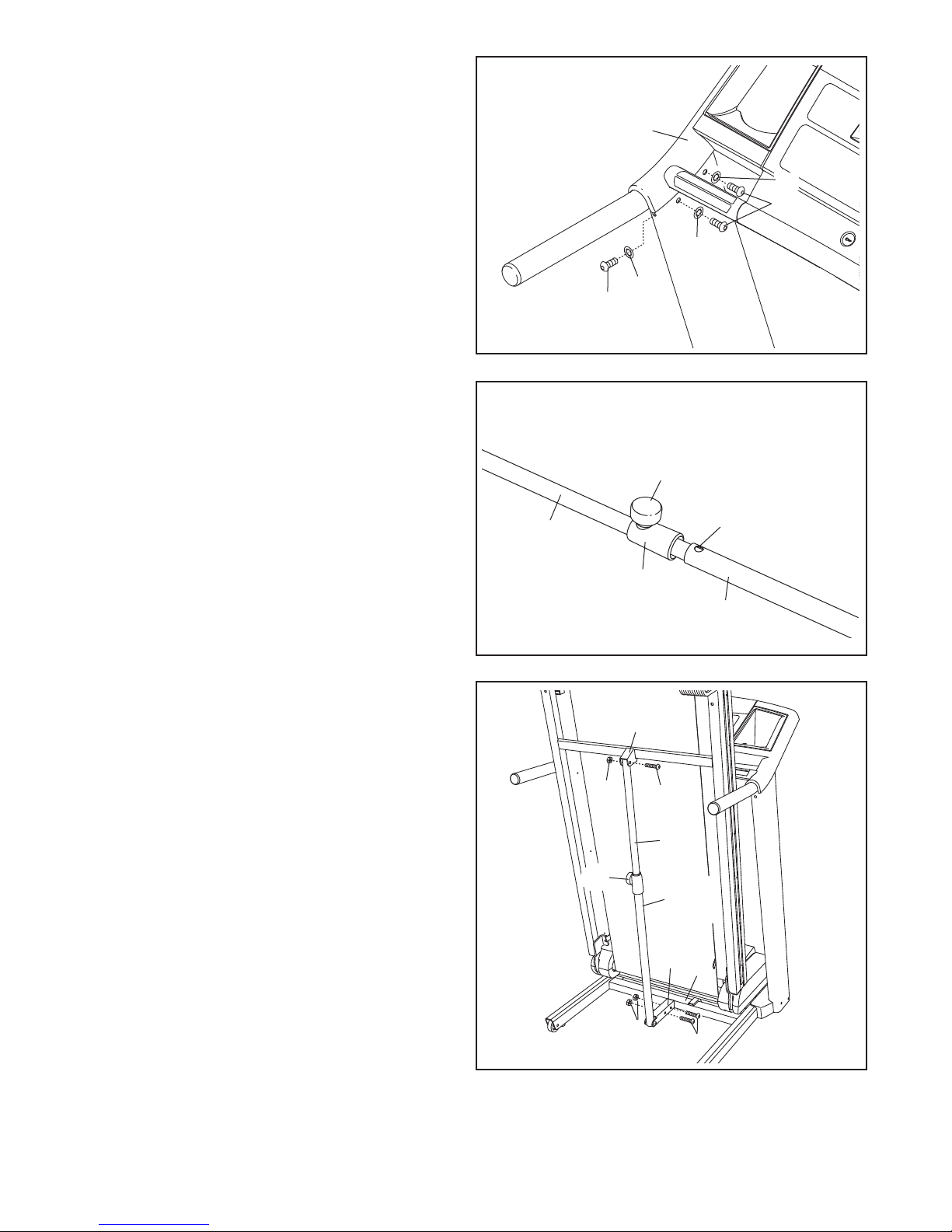

1.Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the tie securing the Upright Wire (38) to the
Base (83). Locate the tie in the indicated hole in
the Base, and use the tie to pull the Upright Wire
out of the hole.
Attach a Base Pad (81) to the Base (83) in the
location shown with a Base Pad Spacer (13) and
a#8 x 1" Tek Screw (2). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
83
2
56 81
1
81 2
38
Tie
Hole
13

8
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so the treadmill is more stable; do
not fully fold the Frame yet.
Attach a Base Pad (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
aBase Pad Spacer (13). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
Remove the 3/8" Nut (8) and the 3/8" x 2" Bolt
(4) from the Base (83). Attach a Wheel (84) with
the Bolt and the Nut that you just removed. Do
not overtighten the Nut; the Wheel must turn
freely.
5
83
84
56
4
8
81
2
81
13
2
6. Set the Left Upright Spacer (76) on the Base
(83). With the help of a second person, hold a
Bolt Spacer (88) inside the lower end of the Left
Upright (74). Insert a 3/8" x 4 1/2" Bolt (6) with a
3/8" Star Washer (9) into the Left Upright and
the Bolt Spacer. Repeat this step with a sec-
ond Bolt Spacer (88), 3/8" x 4 1/2" Bolt (6),
and 3/8" Star Washer (9). Then, set the Left
Upright in the Left Upright Spacer.
Tighten the 3/8" x 4 1/2" Bolts (6) with your fin-
gers; do not fully tighten the Bolts yet.
With the help of a second person, tip the tread-
mill so that the Base (83) is flat on the floor.
76
74
6
83
88
6
9
4. Set the Right Upright Spacer (79) on the Base
(83). Becareful not to pinch the Upright Wire
(38). With the help of a second person, hold a
Bolt Spacer (88) inside the lower end of the
Right Upright (78). Insert a 3/8" x 4 1/2" Bolt (6)
with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (88), 3/8" x 4 1/2"
Bolt (6), and 3/8" Star Washer (9). Then, set
the Right Upright in the Right Upright Spacer.
Tighten the 3/8" x 4 1/2" Bolts (6) with your fin-
gers; do not fully tighten the Bolts yet.
79
78
88
6
4
83
38
9

9
8. Tighten a 1/4" x 1 1/4" Bolt (5) with a 1/4" Star
Washer (33) into the bracket and Handrail
Crossbar (94) on each side of the console as-
sembly (only one side is shown).
Remove the wire tie from the console wire.
9. Remove the long tie from the Upright Wire (38).
Have a second person hold the console assem-
bly near the Right Upright (78) and Left Upright
(not shown). Connect the Upright Wire (38) to
the console wire. See the inset drawing. The
connectors should slide together easily and
snap into place. If they do not, turn one connec-
tor and try again. IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CON-
SOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
Set the console assembly on the Right Upright
(78) and Left Upright (not shown). Be careful
not to pinch the wires.
Console
Assembly
Console
Wire
Long
Tie
38
78
9
38
Console
Wire
7. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Hold the Right Handrail (95) near the con-
sole assembly. Next, insert the console wire into
the large hole in the bottom of the Right
Handrail and out of the top as shown. If neces-
sary, use needlenose pliers to help pull the con-
sole wire out.
Attach the Right Handrail (95) and the Left
Handrail (not shown) with four #8 x 3/4" Screws
(1) (only one side is shown). Make sure that no
wires are pinched. Start all four Screws be-
fore tightening any of them; do not over-
tighten the Screws.
1
95
1
Console
Wire
7
Console
Assembly
5
33
94
Console
Assembly
Wire
Tie
8
Console
Wire
Bracket

10
12. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (53) so that the large
barrel and the Latch Knob (54) are in the posi-
tions shown.
Attach the Latch Bracket (14) and Storage Latch
(53) to the Base (83) with two 3/8" x 2" Bolts (4)
and two 3/8" Nuts (8).
Attach the upper end of the Storage Latch (53)
to the bracket on the Frame (56) with a 3/8" x 2"
Bolt (4) and a 3/8" Nut (8). Note: It may be nec-
essary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 25).
53
8
8
Large
Barrel
83
4
56
14
12
4
11. Identify the Storage Latch (53). Remove the tie
from the end of the tube. Make sure that the
sleeve has been slid over the indicated hole and
that the Latch Knob (54) is locked into the indi-
cated hole. Pull on the sleeve to make sure
that it is locked into place.
11
54
Sleeve
Hole
Tube
53
10. Attach the console assembly with six 5/16" x 1
1/4" Bolts (7) and six 5/16" Star Washers (10)
(only one side is shown).
See steps 4 and 6. Tighten the 3/8" x 4 1/2"
Bolts (6).
Console
Assembly
10
7
10
10
10
7
54

11
If you purchase the optional chest pulse sensor (see page 24), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
Remove the indicated #8 x 3/4" Screw (1) and
the Access Door (87) from the Console Base
(91).
2. Connect the wire on the receiver (A) to the indi-
cated wire extending from the Console Base
(91). Hold the receiver so the small cylinder
is oriented as shown and is facing the
Console Base. Attach the receiver to the plastic
posts on the Access Door (87) with the two in-
cluded small screws.
3. Make sure that no wires are pinched.
Reattach the Access Door (87) with the #8 x
3/4" Screws (1). Discard the other wires in-
cluded with the receiver.
A
87
Small
Cylinder
1
91
Wire
Small
Screws
14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Note: Extra hardware may be included. Keep the included hex keys in a secure place; the large hex key
is used to adjust the walking belt (see pages 27 and 28).
13. Press the Left Accessory Tray (99) and the
Right Accessory Tray (106) into the Console
Base (91).
91
99 106
13

12
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone
number on the front cover of this manual and order
part number 146148, or see your local electronics
store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current, reducing the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin

13
FEATURES OF THE CONSOLE
This revolutionary treadmill console offers a selection
of features designed to make your workouts more ef-
fective and enjoyable. When you use the manual mode
of the console, you can change the speed and incline
of the treadmill with the touch of a button. As you exer-
cise, the console will display continuous exercise feed-
back. You can even measure your heart rate using the
handgrip pulse sensor or the optional chest pulse sen-
sor (see page 24 for more information on the optional
chest pulse sensor).
In addition, the console features twenty customizable
classic workouts and four event training workouts. Each
workout automatically controls the speed and incline of
the treadmill as it guides you through an effective work-
out. You can even create your own custom workouts
and save them for future use.
The console also features a fitness journal, which auto-
matically records and stores your exercise information
so that you can view your workout history and track
your progress.
You can even listen to your favorite workout music or
audio books with the console’s premium stereo sound
system while you get in shape. This product has been
designed specifically to work with iPod and has been
certified by the developer to meet Apple performance
standards.
To turn on the power, follow the steps on page 14. To
personalize console settings, see page 14. To iden-
tify yourself as User 1 or User 2, see page 15. To use
the manual mode, see page 16. To use a classic
workout,see page 18. To use an event training
workout, see page 19. To create and use a custom
workout, see pages 20 and 21. To view the fitness
journal,see page 22. To reset the fitness journal,
see page 23. To use the information mode, see
page 23. To use the stereo sound system, see page
24.
CONSOLE DIAGRAM
Clip
Key
Navigation Buttons

14
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, the console displays or other electrical
components may become damaged.
Plug in the power cord
(see page 12). Next, lo-
cate the reset/off circuit
breaker on the treadmill
frame near the power
cord. Switch the circuit
breaker to the reset posi-
tion.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and switch the reset/off
circuit breaker to the reset position, the demo
mode is turned on. To turn off the demo mode,
hold down the Stop button for a few seconds. If the
displays remain lit, see THE INFORMATION MODE
on page 23 to turn off the demo mode.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 13)
and slide the clip onto the waistband of your clothes.
Then, insert the key into the console. After a moment,
the displays will light. IMPORTANT: In an emergency
situation, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
Note: If there is a sheet of clear plastic on the face
of the console, remove the plastic. To prevent dam-
age to the walking platform, wear clean athletic
shoes while using the treadmill. The first time you
use the treadmill, observe the alignment of the
walking belt, and center the walking belt if neces-
sary (see page 28).
Note: The console can display speed and distance in
either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of mea-
surement, see THE INFORMATION MODE on page
23. For simplicity, all instructions in this section refer to
miles.
HOW TO PERSONALIZE CONSOLE SETTINGS
The console has a user mode that allows you to desig-
nate yourself as User 1 or User 2, enter user informa-
tion before you begin exercising, and select console
settings. The user information you enter will also be
recorded and stored in the fitness journal, which allows
you to view your workout history (see HOW TO VIEW
THE FITNESS JOURNAL on page 22).
Follow the steps below to personalize console settings.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER to the left.
2. Select the user mode.
To select the user mode, press the Enter button.
The console can store information and keep track
of workout history for two different users.
When you select the user mode, the word LOGIN
will appear in the display for a few seconds and
then the login menu will appear.
Important: To highlight options within a menu,
press the up, down, left, or right Navigation
buttons. To select options within a menu, press
the Enter button.
Note: To exit the user mode at any time, press the
Back button repeatedly until the manual mode is se-
lected (see page 16). To re-enter the user mode
from the manual mode, press the Enter button.
3. Enter user information.
To enter your user information, first highlight the
SETUP option and press the Enter button. The
setup menu will then appear in the display.
Next, highlight the SETUP USER 1 or SETUP USER
2option and press the Enter button. The user infor-
mation menu will then appear in the display.
Reset
Position

15
You can now enter your name and your weight.
Highlight the desired option in the menu and press
the Enter button. A cursor will appear in a field in
the display. To enter a number or letter above the
cursor, press the up and down Navigation buttons.
To move the cursor, press the left and right
Navigation buttons. When you have finished enter-
ing the desired numbers or letters in the field,
press the Enter button. Repeat this action to enter
all the desired user information. Note: For more in-
formation about the RESET JOURNAL option, see
page 23.
To return to the setup menu, press the Back but-
ton. To exit the user mode, highlight the SAVE
AND EXIT option and press the Enter button.
4. Select a default user setting.
The console can record, store, and load informa-
tion for two different users. The default user setting
allows you to choose the user information that will
be loaded and recorded when you turn on the con-
sole at the beginning of a workout session.
To select a default user setting, first highlight the
SELECT DEFAULT USER option in the setup
menu and press the Enter button. A list of default
user options will then appear in the display.
To select a default user option, press the up and
down Navigation buttons until an arrow appears
next to the desired option. Then, press the Enter
button. When you select an option, an “x” will ap-
pear in the box next to the selected option.
Note: You can also turn on or turn off the wel-
come screen from this menu. If the SHOW WEL-
COME SCREEN option is selected, then a wel-
come message with the name of the selected user
will appear in the display each time you turn on the
console. To turn on or turn off the welcome screen,
move the arrow to the SHOW WELCOME
SCREEN option and press the Enter button.
To exit the default user menu, press the Back but-
ton. The setup menu will then appear in the dis-
play.
5. Set the date and time.
Setting the date and time will allow the console to
record your workout history accurately in the fit-
ness journal.
To set the date and time, first highlight the
CHANGE DATE OR TIME option in the setup
menu and press the Enter button. The date setting
will then appear in the display.
To set the date, first press the left and right
Navigation buttons to highlight the month, day, or
year field. Then, press the up and down Navigation
buttons to select the desired month, day, or year.
When you have finished setting the date, press the
Enter button. The time setting will then appear in
the display.
To set the time, first press the left and right
Navigation buttons to select the hour or minute
field. Then, press the up and down Navigation but-
tons to select the desired hour or minute; make
sure to select the correct AM or PM time in the
hour field. When you have finished setting the
time, press the Enter button. The console will then
exit the user mode.
HOW TO IDENTIFY YOURSELF AS USER 1 OR
USER 2
The console can load information and keep track of the
workout history for two different users. To identify your-
self as User 1 or User 2 for a workout session, first
press the Enter button and enter the user mode.
The word LOGIN will appear in the display for a few
seconds and then the login menu will appear. Press
the up and down Navigation buttons to highlight USER
1or USER 2. Note: If you have personalized the con-
sole settings (see page 14), then the name you en-
tered will appear instead of USER 1 or USER 2.
Press the Enter button to confirm your choice. The
console will then exit the user mode.

16
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
14.
2. Personalize console settings if desired.
See HOW TO PERSONALIZE CONSOLE SET-
TINGS on page 14.
3. Select the manual mode.
Each time you insert the key, the manual mode will
be selected. If the welcome screen is turned on,
the welcome screen will appear. If you have se-
lected a workout, press any of the workout buttons

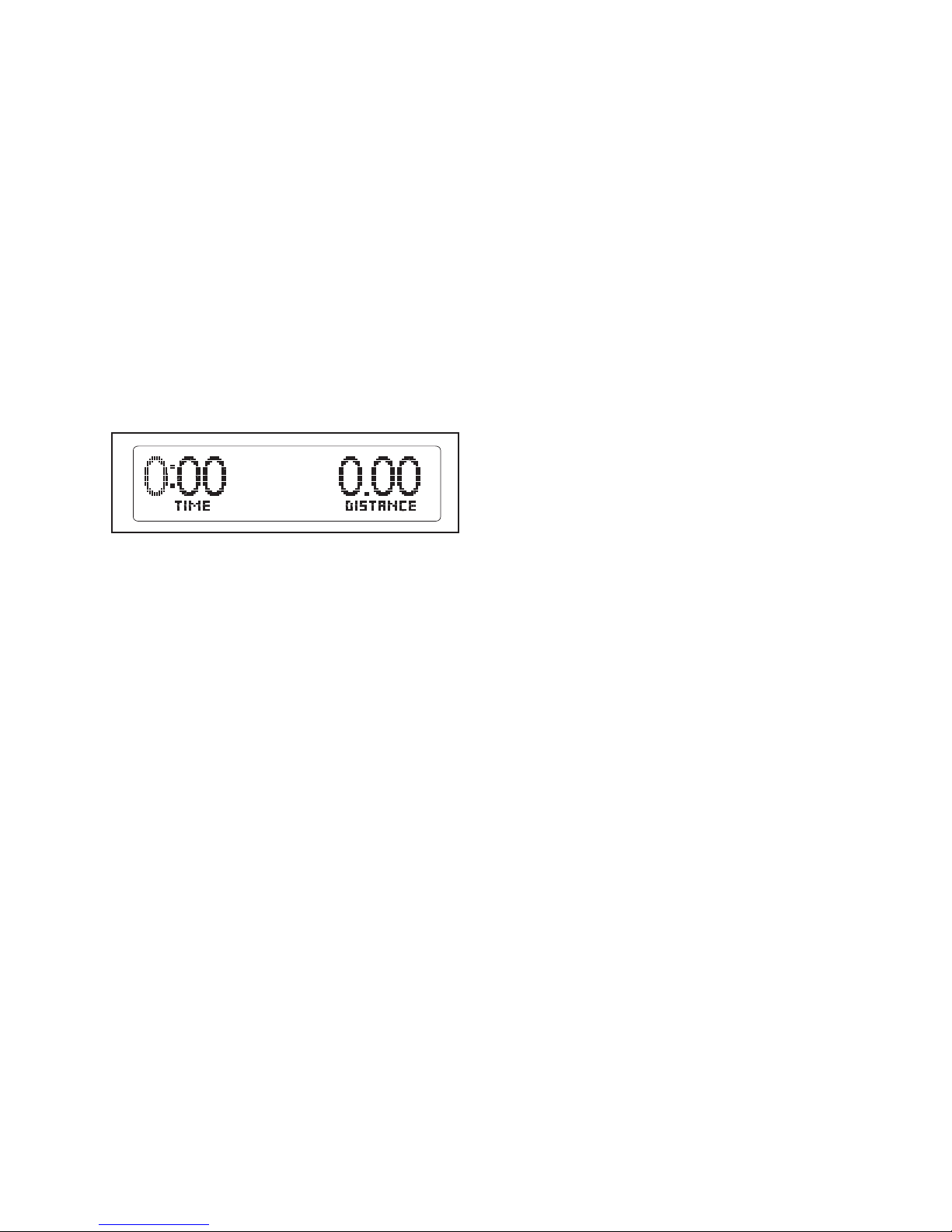

repeatedly until only zeros appear in the display.
4. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the Precision
Quick Speed buttons numbered 1 to 12. Note:
After you press the buttons, it may take a moment
for the walking belt to reach the selected speed.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons. Each time you press
abutton, the speed setting will change by 0.1 mph;
if you hold down a button, the speed setting will
change in increments of 0.5 mph. If you press one
of the twelve numbered speed buttons, the walking
belt will gradually increase in speed until it reaches
the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the twelve num-
bered speed buttons.
5. Change the incline of the treadmill as desired.
Tochange the incline of the treadmill, press the
Incline increase or decrease buttons, or one of the
Quick Incline buttons numbered 0 to 12. Each time
you press a button, the incline will gradually adjust
until it reaches the selected incline setting.
6. Select a display mode and follow your progress
with the display.
The console offers three display options. The dis-
play option you select will determine which workout
information is shown. Press the Display button re-
peatedly to select the desired display option.
As you walk or run on the treadmill, the display can
show the following workout information:
•The elapsed time.
•The distance that you have walked or run.
•The speed of the walking belt.
•The approximate number of calories you have
burned.
• The date.
• A track representing 1/4 mile (400 meters).
•The incline level of the treadmill.
•Your heart rate. Note: Your heart rate can be dis-
played only while you use the handgrip pulse
sensor or the optional chest pulse sensor.
• The display can also show an animation of a
runner. As you increase or decrease the speed
of the walking belt, the runner will speed up or
slow down.
Note: Regardless of which display mode you select,
the speed or incline setting will appear in the dis-
play for a few seconds each time you change the
setting. In addition, your heart rate will appear in the
display each time you use the handgrip pulse sen-
sor or the optional chest pulse sensor (see step 7
on page 17).

17
7. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip pulse sensor or the optional chest pulse
sensor (see page 24 for information about the op-
tional chest pulse sensor). Note: If you hold the
handgrip pulse sensor and wear the optional chest
pulse sensor at the same time, the console will not
display your heart rate accurately.
Before using
the handgrip
pulse sensor,
remove the
sheets of
clear plastic
from the metal
contacts. In
addition,
make sure
that your hands are clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the handrail—
avoid moving your hands.When your pulse is de-
tected, your heart rate will be shown. For the most
accurate heart rate reading, continue to hold
the contacts for about 15 seconds.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when you fold the treadmill to the storage posi-
tion or you may damage the treadmill. Next, re-
move the key from the console and put it in a secure
place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. Important: If you do not
do this, the electrical components of the tread-
mill may wear prematurely.
Contacts

18
HOW TO USE A CLASSIC WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
14.
2. Personalize console settings if desired.
See HOW TO PERSONALIZE CONSOLE SET-
TINGS on page 14.
3. Select a preset classic workout.
Press the Classic Workouts button. Then, press
the left, right, up, and down Navigation buttons
until the name of the desired classic workout ap-
pears in the display. Note: To return to a previous
display, press the Back button. To return to the
manual mode, press the Classic Workouts button.
When you select a classic workout, the display will
show the name, the duration, the maximum incline
setting, and the maximum speed setting of the
workout. In addition, a profile of the speed settings
of the workout will appear in the display.
When the desired workout is selected, press the
Enter button.
Each classic workout is divided into one-minute
segments. One speed setting and one incline set-
ting are programmed for each segment. Note: The
same speed and/or incline setting may be pro-
grammed for consecutive segments.
4. Press the Start button to start the workout.
Amoment after you press the Start button, the
treadmill will automatically adjust to the first speed
and incline settings of the workout. Hold the
handrails and begin walking.
A profile of the speed settings of the workout will ap-
pear in the display. A small arrow below the profile
will indicate your progress.
At the end of the first one-minute segment of the
workout, a series of tones will sound. If a different
speed and/or incline setting is programmed for the
second segment, the speed and/or incline setting
will flash in the display for a moment to alert you.
The treadmill will then automatically adjust to the
speed and incline settings for the second segment
and the small arrow will move one position to the
right.
The workout will continue in this way until the small
arrow reaches the right end of the profile. The
walking belt will then slow to a stop.
If the speed or incline setting for the current seg-
ment is too high or too low, you can override the
setting by pressing the Speed or Incline buttons;
however, when the next segment begins, the
treadmill will automatically adjust to the speed
and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
5. Select a display mode and follow your progress
with the display.
When you select a classic workout, the display will
show the time remaining in the workout, the dis-
tance you have walked or run, the approximate
number of calories you have burned, the incline of
the treadmill, and the speed of the walking belt.
In addition, a profile of the speed settings of the
workout will appear in the display. A small arrow
below the profile will indicate your progress. The dis-
play can also show the date and an animation of a
runner. Press the Display button repeatedly to select
the desired display option.
6. Measure your heart rate if desired.
See step 7 on page 17.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.

19
HOW TO USE AN EVENT TRAINING WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
14.
2. Personalize console settings if desired.
See HOW TO PERSONALIZE CONSOLE SET-
TINGS on page 14.
3. Select an event training workout.
Press the Event Training Workouts button, Then,
press the left, right, up, and down Navigation but-
tons until the name of the desired workout (5K
Run, 10K Run, Half Marathon, or Boston
Marathon) and a track appear in the display. Note:
To return to a previous display, press the Back but-
ton. To return to the manual mode, press the Event
Training Workouts button.
4. Press the Start button to start the workout.
Amoment after you press the Start button, the
walking belt will begin to move at 3 mph. Hold the
handrails and begin walking.
After a few minutes, the speed setting will flash in
the display and a series of tones will sound. The
speed of the walking belt will then increase to 4
mph.
After a few more minutes, the speed setting will
flash in the display and a series of tones will
sound. The speed of the walking belt will then in-
crease to 5 mph.
After another minute, the speed setting will flash in
the display and a series of tones will sound. The
speed of the walking belt will then increase to 6.5
mph.
To change the speed of the walking belt or the in-
cline of the treadmill at any time during the work-
out, press the Speed or Incline buttons. Note: If
you press a Speed button, the speed setting will no
longer change automatically.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton. The walking belt will begin to move at 1 mph.
Adjust the speed of the walking belt as desired by
pressing the Speed increase and decrease buttons
or one of the numbered speed buttons.
Note: When you have completed an event, your
total time and the words “Cool Down” will appear in
the display. If the speed of the walking belt was
greater than 5 mph when you completed the event,
the walking belt will then slow to 5 mph for one
minute. After one minute, the walking belt will slow
to 4 mph for a few minutes. The walking belt will
then slow to 3 mph for a few minutes. The walking
belt will then slow to a stop.
5. Select a display mode and follow your progress
with the display.
See step 6 on page 16.
During an event training workout, the display will
show the number of miles or kilometers still to be
walked or run.
6. Measure your heart rate if desired.
See step 7 on page 17.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.

20
HOW TO CREATE A CUSTOM WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
14.
2. Personalize console settings if desired.
See HOW TO PERSONALIZE CONSOLE SET-
TINGS on page 14.
3. Select one of the four custom workouts.
To select a custom workout, press the Custom
Workouts button. Then, press the left, right, up, or
down Navigation buttons until the name of the de-
sired workout (CUSTOM WORKOUT 1, CUSTOM
WORKOUT 2, CUSTOM WORKOUT 3, or CUS-
TOM WORKOUT 4) appears in the display.
In addition, the maximum speed and incline set-
tings of the workout, the workout time, and a profile
of the speed settings of the workout will appear.
Note: If the custom workout has not yet been
designed, a program time of three minutes will
appear in the display and the profile will only
have three segments (see the picture above). If
the workout time is more than three minutes,
see HOW TO USE A CUSTOM WORKOUT on
page 21.
4. Press the Start button and program the desired
speed and incline settings.
Amoment after you press the Start button, the
walking belt will begin to move. Hold the handrails
and begin walking.
Each custom workout is divided into one-minute
segments. One speed setting and one incline set-
ting can be programmed for each segment. To pro-
gram a speed setting and an incline setting for the
first segment, simply adjust the speed and incline
of the treadmill as desired by pressing the Speed
and Incline buttons.
When the first segment of the workout ends, a se-
ries of tones will sound and the current speed set-
ting and the current incline setting will be saved in
memory. Program a speed setting and an incline
setting for the second segment as described
above.
Continue programming speed and incline settings
for as many segments as desired; custom work-
outs can have up to forty segments. When you are
finished with your workout, press the Stop button
twice. The speed and incline settings that you have
programmed and the program time will then be
saved in memory.
5. Select a display mode and follow your progress
with the display.
See step 5 on page 18.
6. Measure your heart rate if desired.
See step 7 on page 17.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.
