Pro-Form 831.299510 User manual

USER'S MANUAL
Serial Number
Decal
Model No. 831.299510
Serial No.
The serial number is found in the location
shown below. Write the serial number in
the space above for future reference.
SEARS, ROEBUCK AND CO.
HOFFMAN ESTATES, IL 60179
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
CAUTION
Read all precautions and in-
structions in this manual before
using this equipment. Save this
manual for future reference.

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. Save the
EXPLODED DRAWING and PART LIST for future reference.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with
eight feet of clearance behind it. Do not place
the treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 250 pounds or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth-
ing that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 7),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit. Do not use an extension
cord.
11. Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppres-
sor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dis-
sipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and
15 amps. To purchase a surge suppressor,
see your local SEARS dealer or call 1-800-366-
7278 and order part number 146148.
12. Keep the power cord and the surge suppres-
sor away from heated surfaces.
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
2

13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BE-
FORE YOU BEGIN on page 4 if the treadmill
is not working properly.)
14. Never start the treadmill while you are
standing on the walking belt. Always hold
the handrails while using the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
16. Never leave the treadmill unattended while it
is running. Always remove the key and un-
plug the power cord when the treadmill is not
in use.
17. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on pages 5 and 6, and HOW TO
FOLD AND MOVE THE TREADMILL on page
10.) You must be able to safely lift 45
pounds (20 kg) to raise, lower, or move the
treadmill.
18. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
19. Inspect and tighten all parts of the treadmill
every three months.
20. Never drop or insert any object into any
opening.
21. DANGER:Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
22. This treadmill is intended for in-home use
only. Do not use this treadmill in any com-
mercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

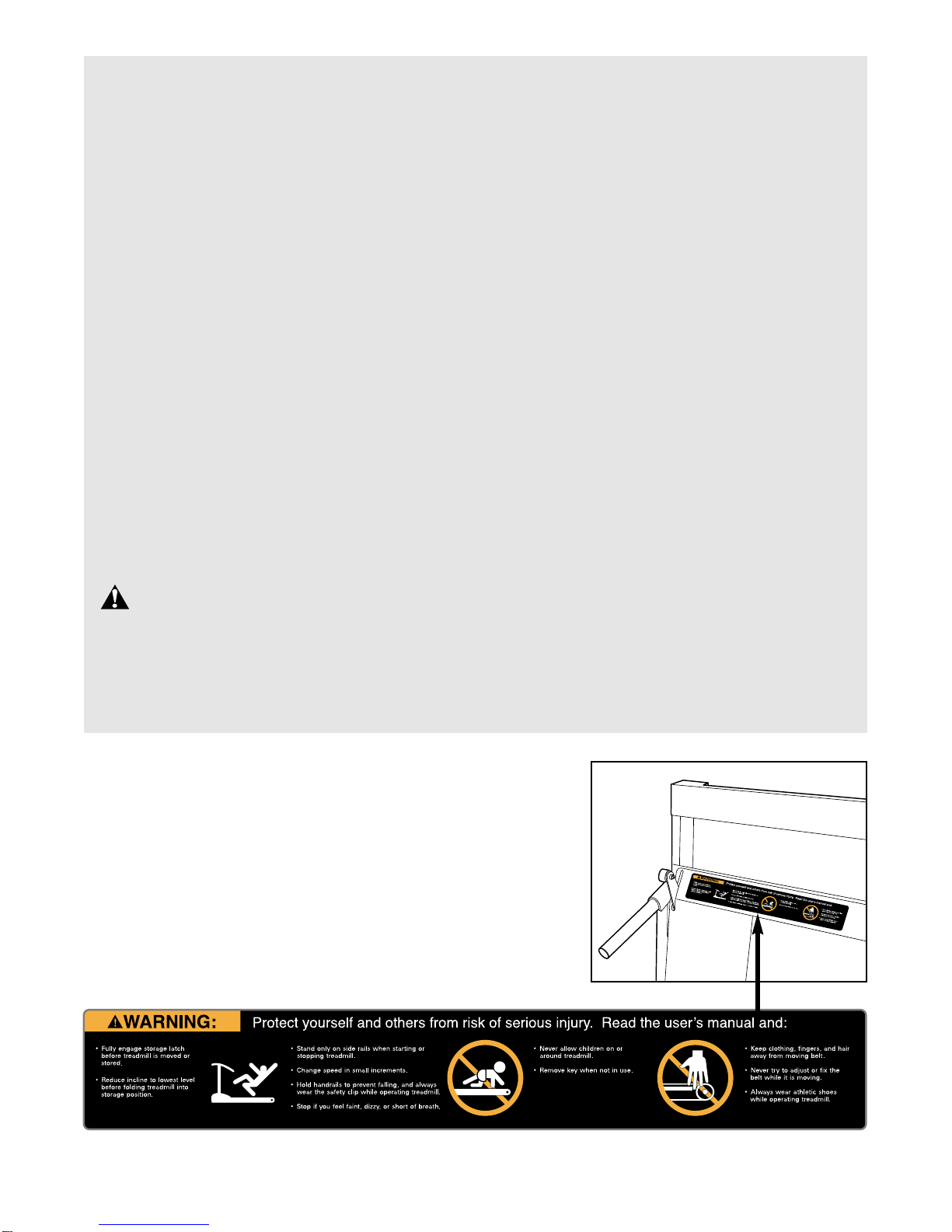

The decal shown below has been placed on your treadmill. If the
decal is missing, or if it is not legible, please call our toll-free
HELPLINE to order a free replacement decal (see the back cover
of this manual). Apply the decal in the location shown.
Note: Decal is shown at 38% of actual size.
3

Thank you for selecting the new PROFORM®400
CROSSWALK treadmill. The 400 CROSSWALK tread-
mill combines advanced technology with innovative de-
sign to let you enjoy an excellent form of cardiovascu-
lar exercise in the convenience and privacy of your
home. And when you’re not exercising, the unique 400
CROSSWALK can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our toll-free HELPLINE at 1-800-736-6879,
Monday through Saturday, 7 a.m. until 7 p.m. Central
Time (excluding holidays). To help us assist you,
please note the product model number and serial num-
ber before calling. The model number of the treadmill
is 831.299510. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).

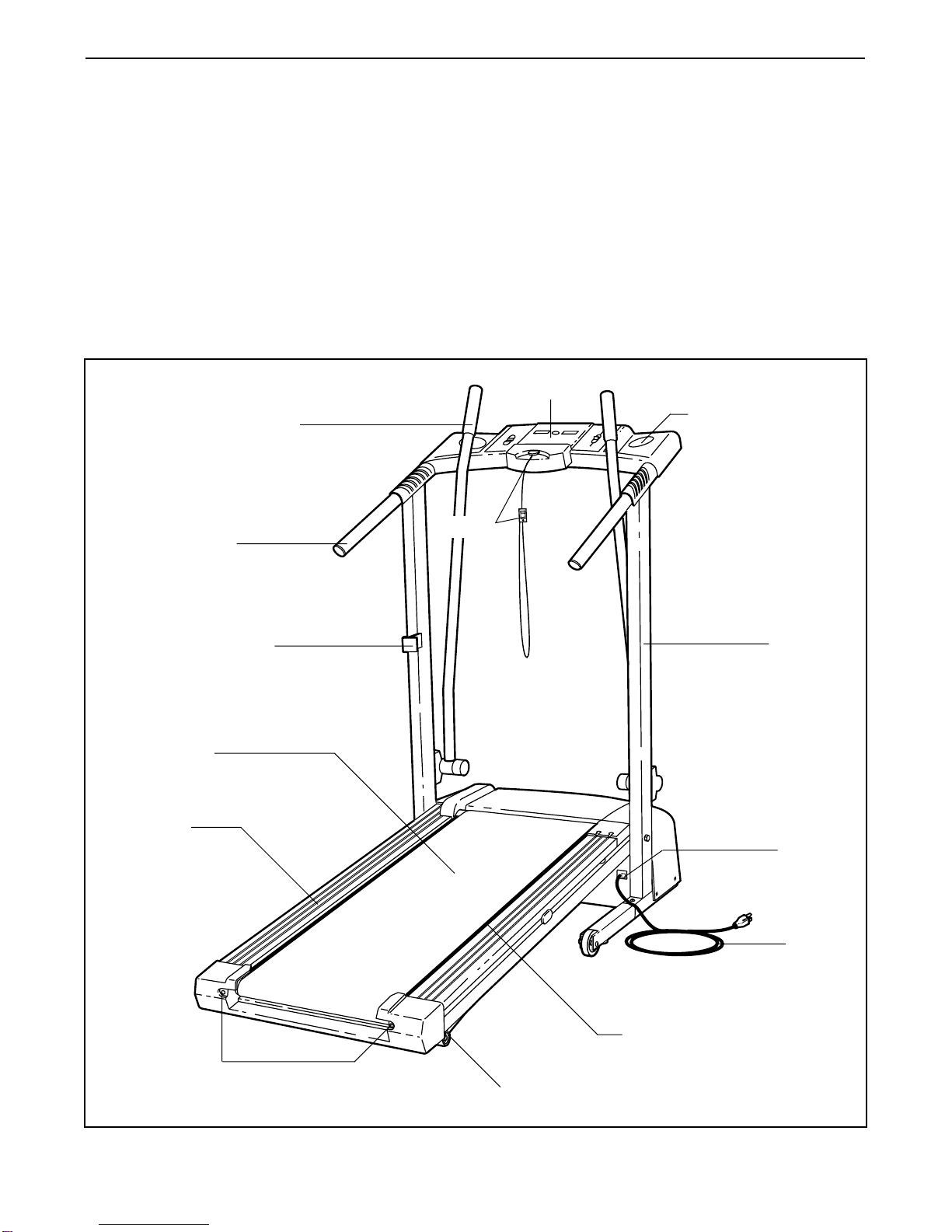

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
BEFORE YOU BEGIN
Handrail
Upright
Storage Latch
Key/Clip
Circuit
Breaker
Walking Belt
Cushioned Walking Platform
for maximum exercise comfort
Foot Rail
Power
Cord
BACK
RIGHT SIDE
Rear Roller
Adjustment Bolts
Console Water Bottle Holder
(Bottle not included)
Incline Leg
Upper Body Arms
4

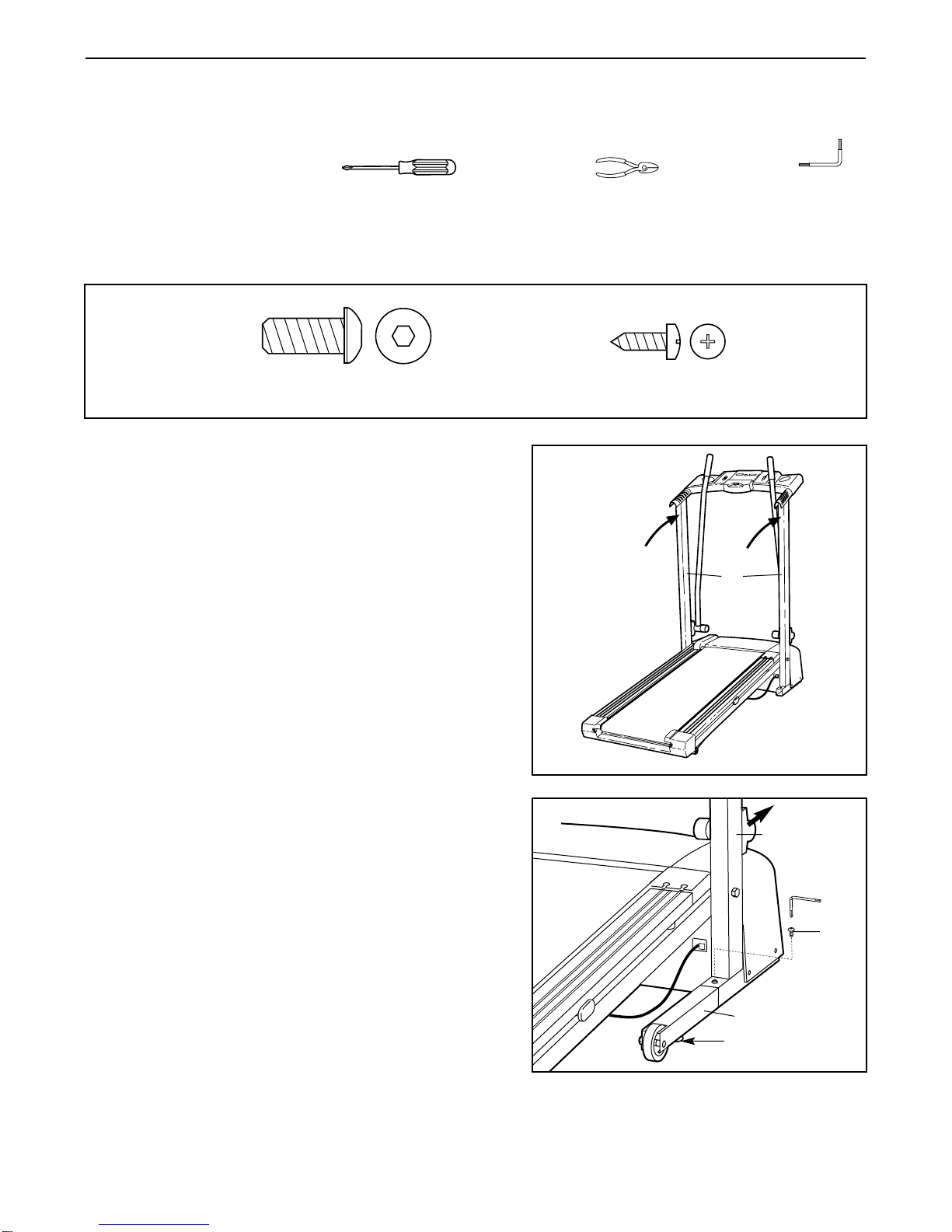

1. Cut the plastic tie off the side of the treadmill.
With the help of a second person, carefully raise the
Uprights (11) until the treadmill is in the position shown.
2. Insert one of the Extension Legs (34) into the treadmill
as shown. (Note: It may be helpful to tip the Uprights
[11] in the direction shown by the arrow as you insert
the Extension Leg.) Make sure that the Base Pad (40) is
on the indicated side of the Extension Leg. Attach the
Extension Leg with an Extension Leg Screw (53). Be
sure to push on the head of the Extension Leg
Screw while tightening it.
Attach the other Extension Leg (34) in the same way.
Extension Leg Screw/Handrail Screw (53)–4 Latch Screw (35)–2
11
1
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver and wire cutters .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
34
53
11
40
2
5

6. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the floor or carpet,
place a mat under the treadmill.
4. Align the hole in the Handrail (1) with the indicated hole
in the Upright (11). Tighten a Handrail Screw (53) into the
Upright and the Handrail at the angle shown in drawing
4b. It may be helpful to lift up and push down on the
Handrail as you thread the Handrail Screw.
Attach the other Handrail to the left Upright (not shown).
1
53
53
11
4a 4b
Bottom View
3. Back out a Handrail Screw (53) from one of the Handrails
(1). Insert the Handrail into the tube at the upper end of
the right Upright (11). 11
1
3
5. Attach the Storage Latch (14) to the left Upright (11) with
two Latch Screws (35). Be careful not to overtighten
the Latch Screws.
35
14
11
5
6
53

OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right).
To purchase a surge suppressor, see your local
SEARS dealer or call toll-free 1-800-366-7278 and
order part number 146148. Use only a single-outlet
surge suppressor that is UL 1449 listed as a transient
voltage surge suppressor (TVSS). The surge suppres-
sor must have a UL suppressed voltage rating of 400
volts or less and a minimum surge dissipation of 450
joules. The surge suppressor must be electrically rated
for 120 volts AC and 15 amps.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.

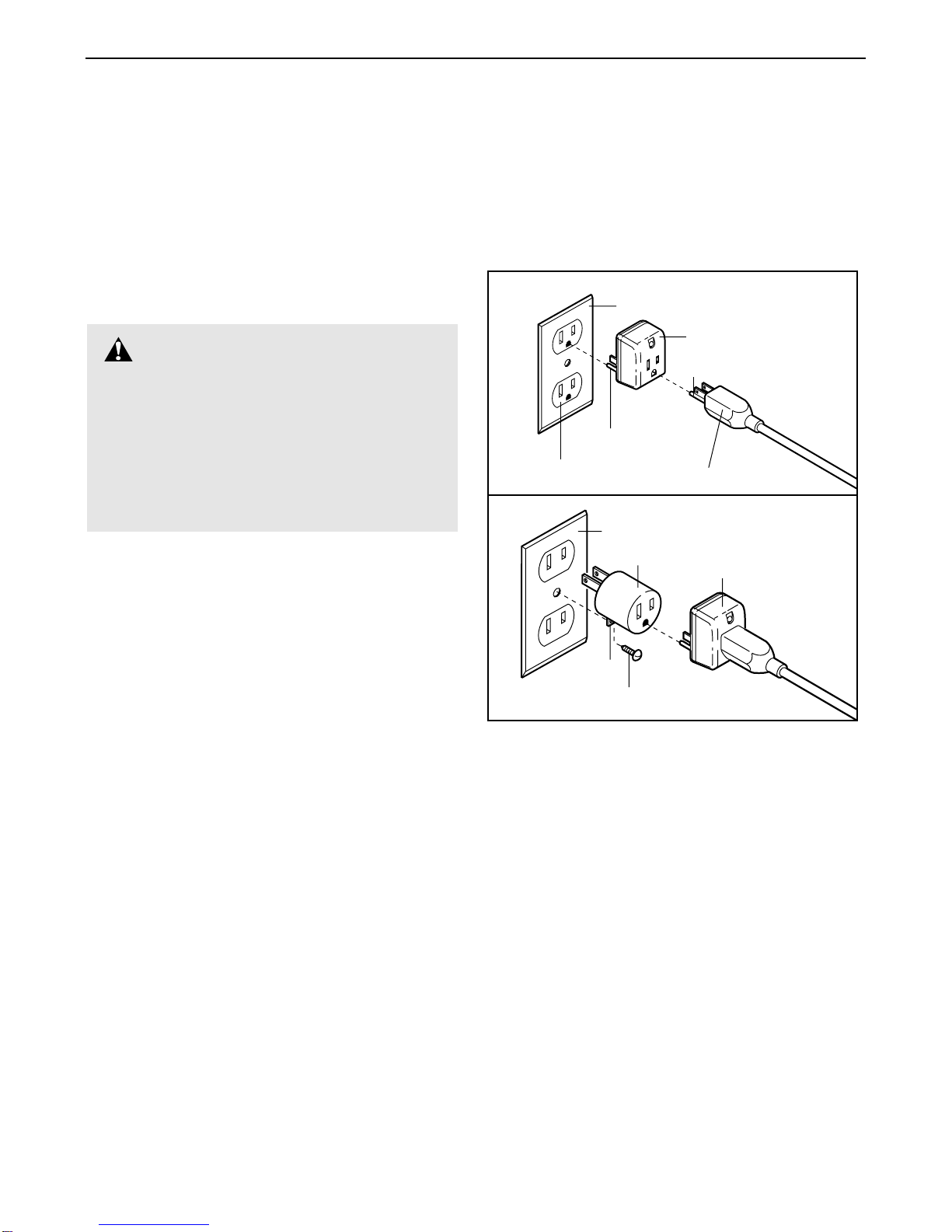

Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER:Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
7

BATTERY INSTALLATION
The console requires two "AA" batteries (not in-
cluded). Alkaline batteries are recommended. Open
the battery cover as shown in the drawing at the upper
right. Insert two batteries into the battery compartment,
making sure that the negative (–) ends of the batteries
are touching the springs in the battery compartment.
Close the battery cover, push up on the battery cover
tab, and then push the tab forward as shown in the
inset drawing. Be sure that the tab locks into place.
STEP-BY-STEP CONSOLE OPERATION
Before operating the console, make sure that the
power cord is properly plugged in. (See HOW TO
PLUG IN THE POWER CORD on page 7.)
Stand on the foot rails of the
treadmill. Find the clip at-
tached to the key and slide
the clip onto the waistband
of your clothing. Next, insert
the key into the console.
Test the clip by carefully taking a few steps back-
ward until the key is pulled from the console. If the
key is not pulled from the console, adjust the posi-
tion of the clip as needed.
CAUTION:Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turn-
ing on the power.
• Always wear the clip (see the drawing at
the lower right) while using the treadmill.
When the key is removed from the console,
the walking belt will stop.
• Adjust the speed in small increments.
• The training zones marked beside the
speed control are general guidelines only.
See page 14 for more information.
• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and use only a sealable
water bottle.
Battery
Cover Battery
Cover Tab
CONSOLE DIAGRAM
Note: If there is a thin sheet of clear
plastic on the face of the console,
remove it before operating the console.
Clip
Batteries
8

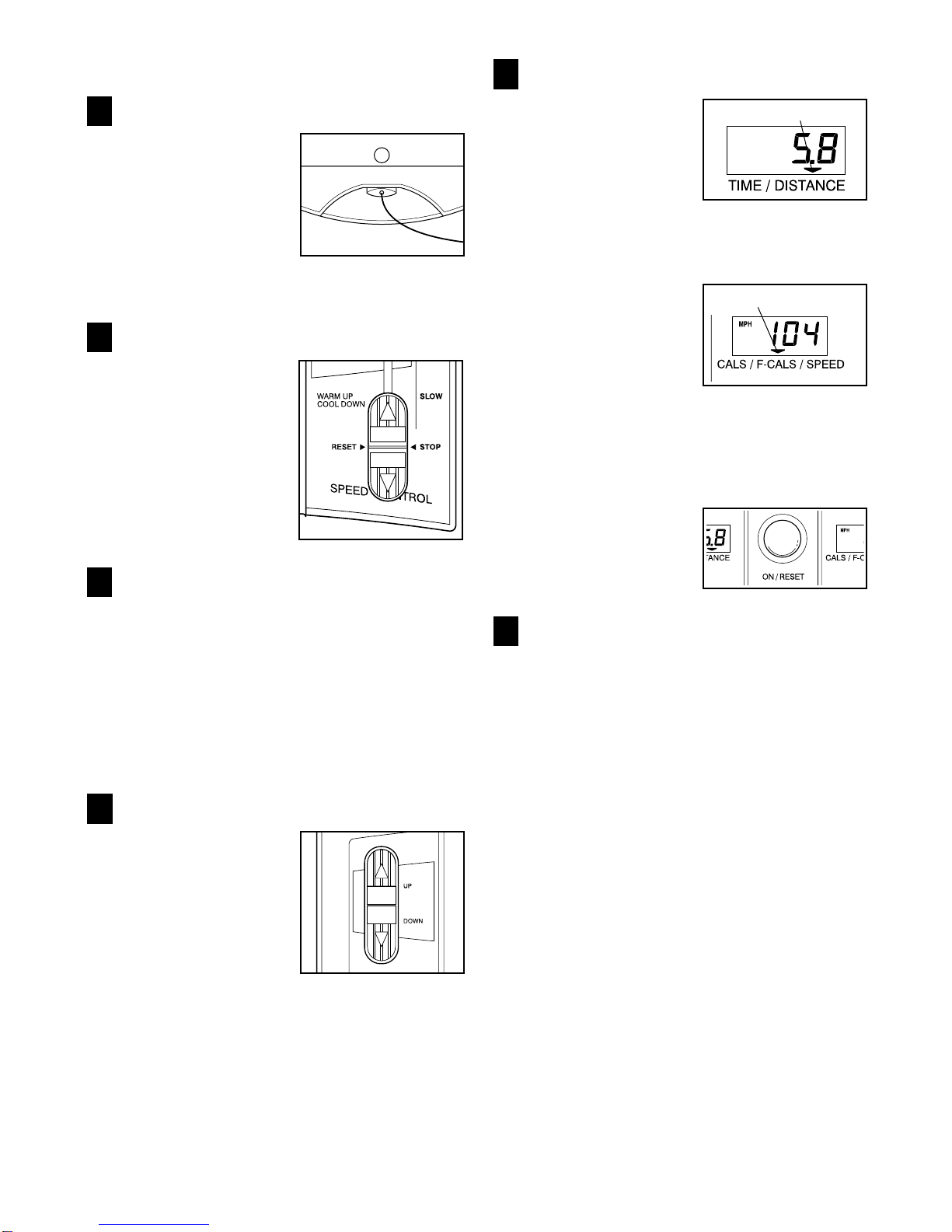

Follow the steps below to operate the console.
Insert the key into the power switch.
Inserting the key will
not turn on the dis-
plays. The displays will
turn on when the
ON/RESET button is
pressed or when the
walking belt is started.
Note: If you just
installed batteries, the displays will already be on.
Reset the speed control.
Slide the speed control
down to the RESET
position. Note: Each
time the walking belt
is stopped, the speed
control must be
moved to the RESET
position before the
walking belt can be
restarted.
Start the walking belt.
After you have moved the speed control to the
RESET position, slowly slide it upward until the
walking belt begins to move at slow speed.
Carefully step onto the walking belt and begin ex-
ercising. Change the speed of the walking belt as
desired by sliding the speed control.
To stop the walking belt, step onto the foot rails
and slide the speed control to the RESET position.
Adjust the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
top or bottom of the in-
cline control until the
desired incline level is
reached.
Monitor your progress with the two displays.
TIME/DISTANCE dis-
play—This display
shows the elapsed time
and distance that you
have walked or run, in
miles. Every seven sec-
onds, the display will
change from one number to the other, as shown by
the arrows in the display.
CALS/FAT CALS/
SPEED display—This
display shows the ap-
proximate numbers of
calories and fat calories
you have burned. (See
FAT BURNING on
page 14.) In addition, the display shows the speed
of the walking belt, in miles per hour. Every seven
seconds, the display will change from one number
to the next, as shown by the arrows in the display.
To reset the displays at
any time, press the
ON/RESET button.
When you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails, stop the walking belt and
remove the key from the console. The displays will
turn off about five minutes after the key is removed.
Note: Any time that the walking belt is stopped
and the ON/RESET button is not pressed for
five minutes, the displays will automatically
turn off in order to conserve the batteries.
6
5
4
3
2
1Arrow
9
Arrow

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord. Caution:
You must be able to safely lift 45 pounds (20 kg) in order
to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. To decrease the possibility of injury, bend
your legs and keep your back straight. As you raise
the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the
vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Raise the treadmill until the storage latch
closes over the catch. Make sure that the storage latch
is fully engaged over the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° Fahrenheit. Storage
Latch
Catch
Engaged
HOW TO USE THE UPPER BODY ARMS
As you exercise on the treadmill, you can hold either the
handrails or the upper body arms. The upper body arms are
designed to exercise your arms, shoulders, and back for a
total body workout. Hold one upper body arm with each
hand, and move them forward and back as you walk on the
treadmill.
To vary the intensity of your upper body exercise, the resis-
tance of the upper body arms can be adjusted. To increase
the resistance, turn the resistance knobs clockwise; to de-
crease the resistance, turn the knobs counterclockwise.
Upper Body
Arms
Resistance
Knobs
10

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand
as shown. Using your left thumb, press the storage latch
and hold it. Pivot the treadmill until the frame and foot rail
are past the storage latch.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Do not drop the treadmill frame to
the floor. To decrease the possibility of injury, bend
your legs and keep your back straight.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described on page 10. Make sure that the
storage latch is closed fully over the catch.
1. Hold the upper ends of the handrails. Place one foot on
the base as shown.
2. Tilt the treadmill back until it rolls freely on the front
wheels. Carefully move the treadmill to the desired loca-
tion. To reduce the risk of injury, use extreme caution
while moving the treadmill. Do not move the treadmill
over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
Storage
Latch
Unlatched
Base
Front Wheels
11

TROUBLE-SHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, call our toll-free HELPLINE at
1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged
into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor that is UL 1449
listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed
voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and 15 amps. Important: The treadmill is not compatible with
GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

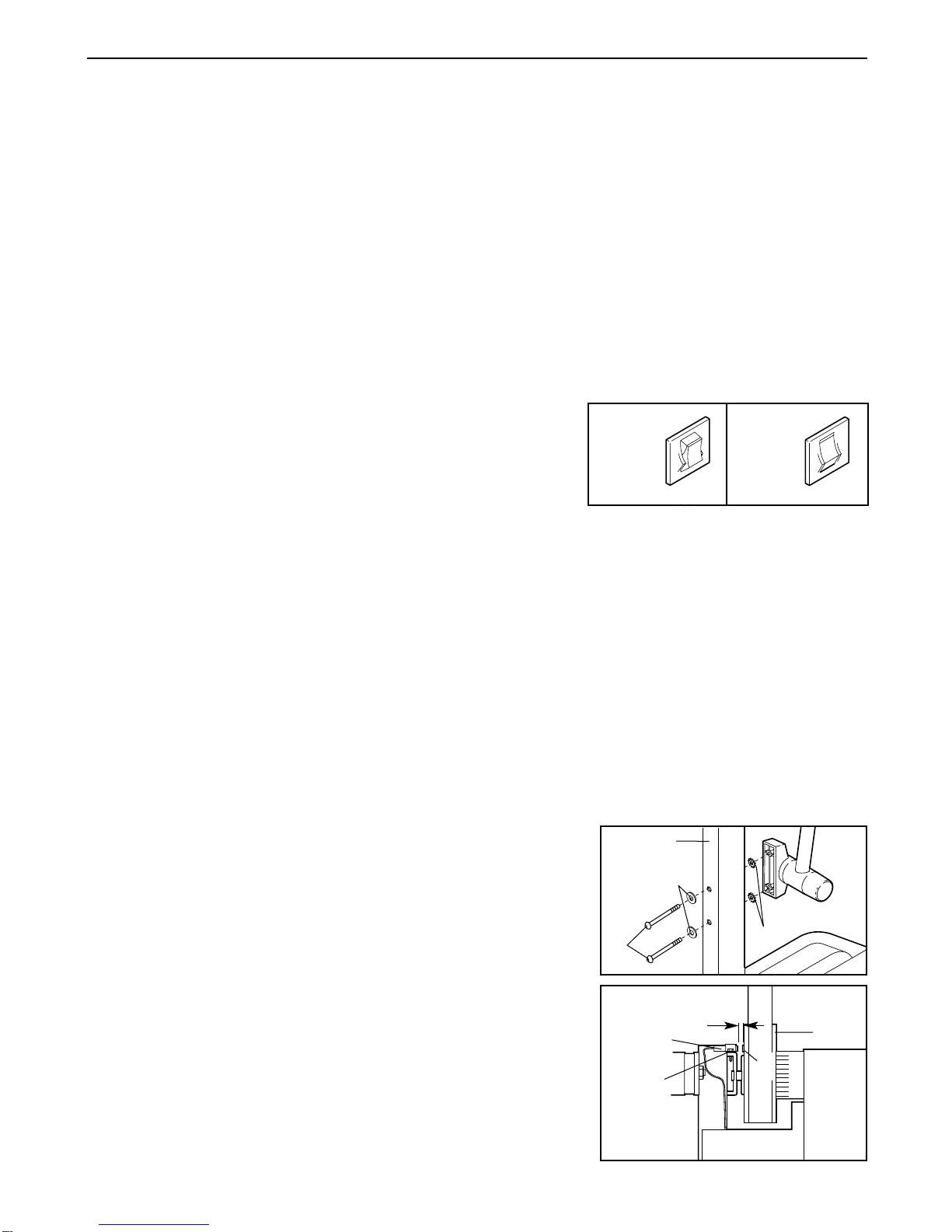

c. Check the circuit breaker located on the treadmill near the
power cord. If the switch protrudes as shown, the circuit
breaker has tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.
2. SYMPTOM: THE POWER TURNS OFF DURING USE
a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit
breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our toll-free HELPLINE.
3. SYMPTOM: THE DISPLAYS OF THE CONSOLE DO NOT FUNCTION PROPERLY
a. Check the batteries in the console. See BATTERY INSTALLATION on page 8. Most problems are the result
of drained batteries.
b. Remove the key from the console and UNPLUG THE POWER
CORD. Remove the two Resistance Bracket Bolts (78), Washers
(39) and Star Washers (29) from the left Upright (11). Remove
the screws from the hood. Carefully remove the hood.
Locate the Reed Switch (44) and the Magnet (45) on the left side
of the Pulley (50). Turn the Pulley until the Magnet is aligned with
the Reed Switch. Make sure that the gap between the Magnet
and the Reed Switch is about 1/8”. If necessary, loosen the
Screw (33) and move the Reed Switch slightly. Retighten the
Screw. Re-attach the hood first, then the left Upper Body Arm
assembly. Run the treadmill for a few minutes to check for a cor-
rect speed reading.
Tri
pp
ed Reset
Tripped Reset
c
45
44
33
Top
View
1/8” 50
39
11
b
29
78
12

4. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a. Use only a UL-listed surge suppressor, rated at 15 amps, with a 14-gauge cord of five feet or less in length.
b. If the walking belt is overtightened, treadmill performance may
decrease and the walking belt may be permanently damaged.
Remove the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustment bolts counterclock-
wise, 1/4 of a turn. When the walking belt is properly tightened,
you should be able to lift each side of the walking belt 2 to 3
inches off the walking platform. The center of the walking belt
should just touch the walking platform. Be careful to keep the
walking belt centered. Plug in the power cord, insert the key and
run the treadmill for a few minutes. Repeat until the walking belt
is properly tightened.
c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.
5. SYMPTOM: THE WALKING BELT IS OFF-CENTER
a. If the walking belt has shifted to the left, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt clockwise, and the right
bolt counterclockwise, 1/4 of a turn each. Be careful not to over-
tighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
b. If the walking belt has shifted to the right, first remove the
key and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt counterclockwise, and the
right bolt clockwise, 1/4 of a turn each. Be careful not to over-
tighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
c. If the walking belt slips when walked on, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn both rear roller adjustment bolts clockwise, 1/4 of a turn.
When the walking belt is correctly tightened, you should be able
to lift each side of the walking belt 2 to 3 inches off the walking
platform. Be careful to keep the walking belt centered. Plug in
the power cord, insert the key and run the treadmill for a few
minutes. Repeat until the walking belt is properly tightened.
6. SYMPTOM: ONE OF THE UPPER BODY ARMS SQUEAKS DURING USE
a. Correcting this problem requires a small amount of white marine grease, available at most hardware stores.
Turn the Resistance Knob (98) counterclockwise until it can be
removed. Remove the Resistance Cone (93) and the Upper
Body Arm (89), along with the 3/8” Washers (57), Spring Washer
(95), Thrust Washers (96), and Thrust Bearing (97). (Note: If the
Resistance Sleeve [92] comes out of the Resistance Bracket
[91], press it back in.) Apply a thin layer of white marine grease
to the outer surface of the Resistance Cone (93). Reattach all
parts in the order shown at the right.
a
Rear Roller Adjustment Bolts
2”–3”
b
93
92
91 89
98
96 95
57
57
97
b
c
13
a

CONDITIONING GUIDELINES

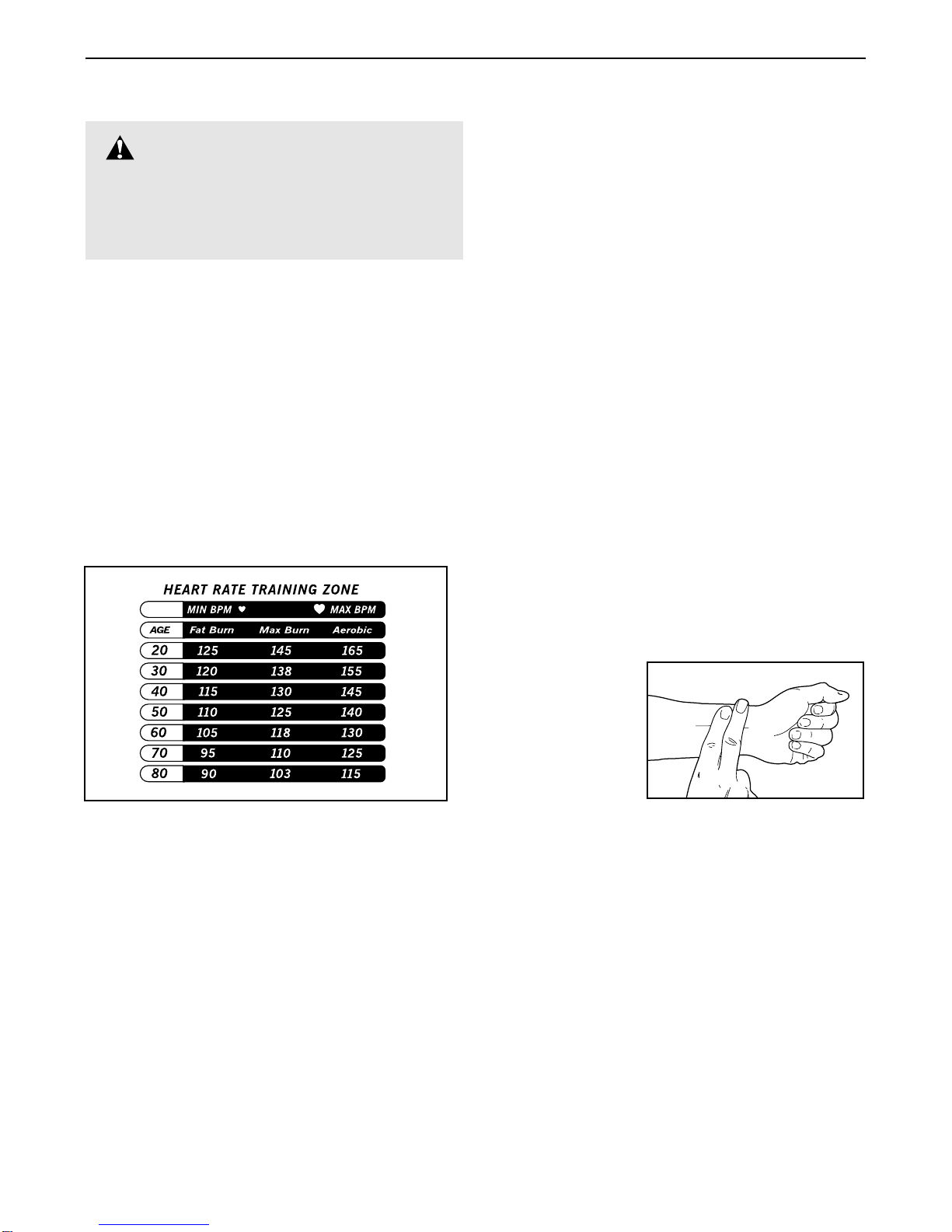

The following guidelines will help you to plan your ex-
ercise program. Remember—these are general guide-
lines only. For more detailed exercise information, ob-
tain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the de-
sired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exer-
cise.
To find the proper heart rate for you, first find your age
on the left side of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers to
the right of your age. The three numbers are your
“training zone.” The lower two numbers are recom-
mended heart rates for fat burning; the higher number
is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your
training zone. It may also be helpful to set the speed
control on the console to FAT BURN to help you main-
tain the proper intensity level. (See page 9.)
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone. It may also be helpful to set the speed control on
the console to AEROBIC to help you maintain the
proper intensity level. (See page 9.)
High Performance Athletic Conditioning
If your goal is high performance athletic conditioning,
set the speed control on the console to PERFOR-
MANCE to help you maintain the proper intensity level.
(See page 9.) Note: During the first few weeks of your
exercise program, keep your heart rate near the low
end of your training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, stop ex-
ercising and place
two fingers on
your wrist as
shown. Take a six-
second heartbeat
count, and multiply
the result by ten to
find your heart rate. (A six-second count is used be-
cause your heart rate drops quickly when you stop ex-
ercising.) If your heart rate is too high or too low, adjust
the speed or incline of the treadmill accordingly.
WORKOUT GUIDELINES
A well-rounded workout includes the following three
important parts:
A Warm-up
Start each workout with 5 to 10 minutes of stretching
and light exercise (see SUGGESTED STRETCHES on
page 15). A proper warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
WARNING:Before beginning
this or any exercise program, consult your
physician. This is especially important for in-
dividuals over the age of 35 or individuals
with pre-existing health problems.
14

Training Zone Exercise
After warming up, increase the intensity of your exer-
cise until your pulse is in your training zone for 20 to
60 minutes. (During the first few weeks of your exer-
cise program, do not keep your pulse in your training
zone for longer than 20 minutes.) Breathe regularly
and deeply as you exercise—never hold your breath.
A Cool-down
Finish each workout with 5 to 10 minutes of stretching
to cool down. This will increase the flexibility of your
muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired.
The key to success is to make exercise a regular and
enjoyable part of your everyday life.
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the
right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees, and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot flat on the floor. Bend your front leg, lean forward and
move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for each leg. To cause further stretching of the
achilles tendons, bend your back leg as well. Stretches:
Calves, achilles tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for both legs. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold
for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
1
2
3
4
5
15

34
REMOVE THIS EXPLODED DRAWING
AND PART LIST FROM THE MANUAL
Save this EXPLODED DRAWING and PART LIST for future reference.
Note: Specifications are subject to change without notice. For information about
ordering replacement parts, see the back cover of the User’s Manual.

PART LIST—Model No. 831.299510 R0401A
Key No. Qty. Description
1 2 Handrail
2 1 Key/Clip
3 2 Incline Leg Pivot Bolt
4 1 Battery Cover
5 2 Foot Rail
6 1 Lift Motor
7 1 Rear Roller
8 1 Speed Potentiometer
9 1 Speed Control Knob
10* 1 Console Assembly
11 1 Upright Base
12 1 Motor Belt
13 17 Small Screw
14 1 Storage Latch
15 2 Frame Pivot Spacer
16 7 8” Cable Tie
17 1 Incline Leg Pivot Nut
18 1 Pulley/Flywheel/Fan
19 1 Motor
20* 1 Motor/Pulley/Flywheel/Fan
21 1 Wire Harness
22 4 Belt Guide Screw
23 1 Motor Hood
24 1 Hood Shield
25 5 Small Screw
26 1 Controller
27 1 Motor Swivel Bolt
28 1 Motor Tension Nut
29 5 Star Washer
30 1 Motor Tension Washer
31 2 Motor Tension Bolt
32 1 Incline Stop Bracket
33 8 Belly Pan/Clip/Handrail Screw
34 2 Extension Leg
35 2 Latch Screw
36 2 Wheel Bolt
37 2 Wheel
38 6 Wheel Nut/Lift Nut
39 11 Washer
40 4 Base Pad
41 2 Handrail Cap
42 1 Latch Catch
43 1 Reed Switch Clip
44 1 Reed Switch
45 1 Magnet
46 1 Console Base
47 2 Front Isolator
48 4 Platform Screw
49 4 Middle Isolator
50 1 Front Roller/Pulley
51 1 Front Roller Adj. Bolt
52 2 Incline Wheel
53 4 Extension Leg Screw/HandrailScrew
Key No. Qty. Description
54 1 Power Cord
55 1 Power Cord Grommet
56 1 Circuit Breaker
57 6 3/8” Washer
58 2 Frame Pivot Bolt
59 1 Latch Decal
60 1 Motor Belly Pan
61 2 Cable Tie Clamp
62 4 Rear Platform Screw
63 3 Releasable Tie
64 1 Choke
65 2 Belt Guide
66 4 Belly Pan Fastener
67 1 Walking Belt
68 1 Walking Platform
69 1 Belly Pan
70 6 Electronics Screw
71 1 Incline Wire Harness
72 1 Upright Grommet
73 4 Isolator Screw
74 1 Allen Wrench
75 1 Frame
76 2 Front Endcap
77 2 Incline Wheel Bolt
78 4 Resistance Bracket Bolt
79 2 Incline Wheel Nut
80 1 Ground Wire
81 12 Ground Screw/Long Hood Screw
82 1 Incline Leg
83 2 Rear Roller Adj. Bolt
84 1 Rear Endcap
85* 2 Extension Leg Assembly
86 1 Incline Motor Bolt
87 2 Belly Pan Screw
88 2 Foam Grip
89 1 Left Upper Body Arm w/Foam Grip
90 2 Resistance Bolt
91 2 Resistance Bracket
92 2 Resistance Sleeve
93 2 Resistance Cone
94 1 Right Upper Body Arm w/Foam Grip
95 2 Spring Washer
96 4 Thrust Washer
97 2 Thrust Bearing
98 2 Resistance Knob
# 1 14” White Wire, M/F
# 1 5” Black Wire, 2 Ring
# 1 8” White Wire, Pigtail
# 1 User’s Manual
* Includes all parts shown in the box
# These parts are not illustrated

22 65
48
25
24
56 25
13
76 76
13
42
25
77
40
25
40
25
59
9
8
85*
78
39
49
73
49
73
2
46
10*
34
12
38
20*
21
25
27
19
18
31 30
29
33
43
36
38
44
37
45
50
15
48
48
39 51
11 23
81
25
58
70
53
36
37
38
40
33
33
33
60 33
33
26
73
61
63
64
70
15 53
34
69
68
67
48
5
5
74
84
83 39
83
39
66
7
40
57
28
62
16
38
38
75
13
13
13
13
4
13
13
55
54
81
80
25
25
33
71
13
61
81
66
47
14
35
3
52
82
38 77
52
79
3
38
17
6
31 32
38
72
39
53
53
47
73
73
62
85*
86
79
87 39
1
41
90
91 92
98
95
57
97
96
93
89
88
98
92
93
57
96
97
95
90
91
88
94
57
57
1
41
29
29
78
39
EXPLODED DRAWING—Model No. 831.299510 R0401A

Part No. 174282 R0401A Printed in USA © 2001 Sears, Roebuck and Co.
The model number and serial number of your PROFORM®400
CROSSWALK treadmill are listed on a decal attached to the frame.
See the front cover of this manual to find the location of the decal.
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center.
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.
When requesting help or service, or ordering parts, please be
prepared to provide the following information:
• The NAME OF THE PRODUCT (PROFORM®400 CROSSWALK
treadmill)
• The MODEL NUMBER OF THE PRODUCT (831.299510)
• The KEY NUMBER AND DESCRIPTION OF THE PART (see the
EXPLODED DRAWING and PART LIST included in this manual)
Model No. 831.299510
QUESTIONS?
If you find that:
• you need help assembling or
operating the PROFORM 400
CROSSWALK treadmill
• a part is missing
• or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
Monday–Saturday, 7 am–7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need
to be replaced, call the following
toll-free number
1-800-FON-PART
(1-800-366-7278)
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United
States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.
This warranty does not apply when the TREADMILL EXERCISER is used commercially or for rental pur-
poses.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
