Pro SCIO 3.3 User manual
ENGLISH
PRO SCIO
ss
o
33_35_41_eng.indd 1 11/21/07 12:25:26
P
2
english
WARNINGS & CAUTIONS 4
COMPONENTS OF THE CYCLECOMPUTER 5
REPLACING THE BATTERY 6
CHANGING THE BATTERY IN THE WIRELESS
SPEED TRANSMITTER 7
CHANGING THE BATTERY IN THE HEART RATE
TRANSMITTER BELT 8
WEARING THE HEART RATE TRANSMITTER STRAP 9
INSTALLING THE CYCLOCOMUTER ON YOUR BIKE 10-14
PRO SCIO SERIES DISPLAY FIELDS 15
MAIN OPERATING MODES 16-17

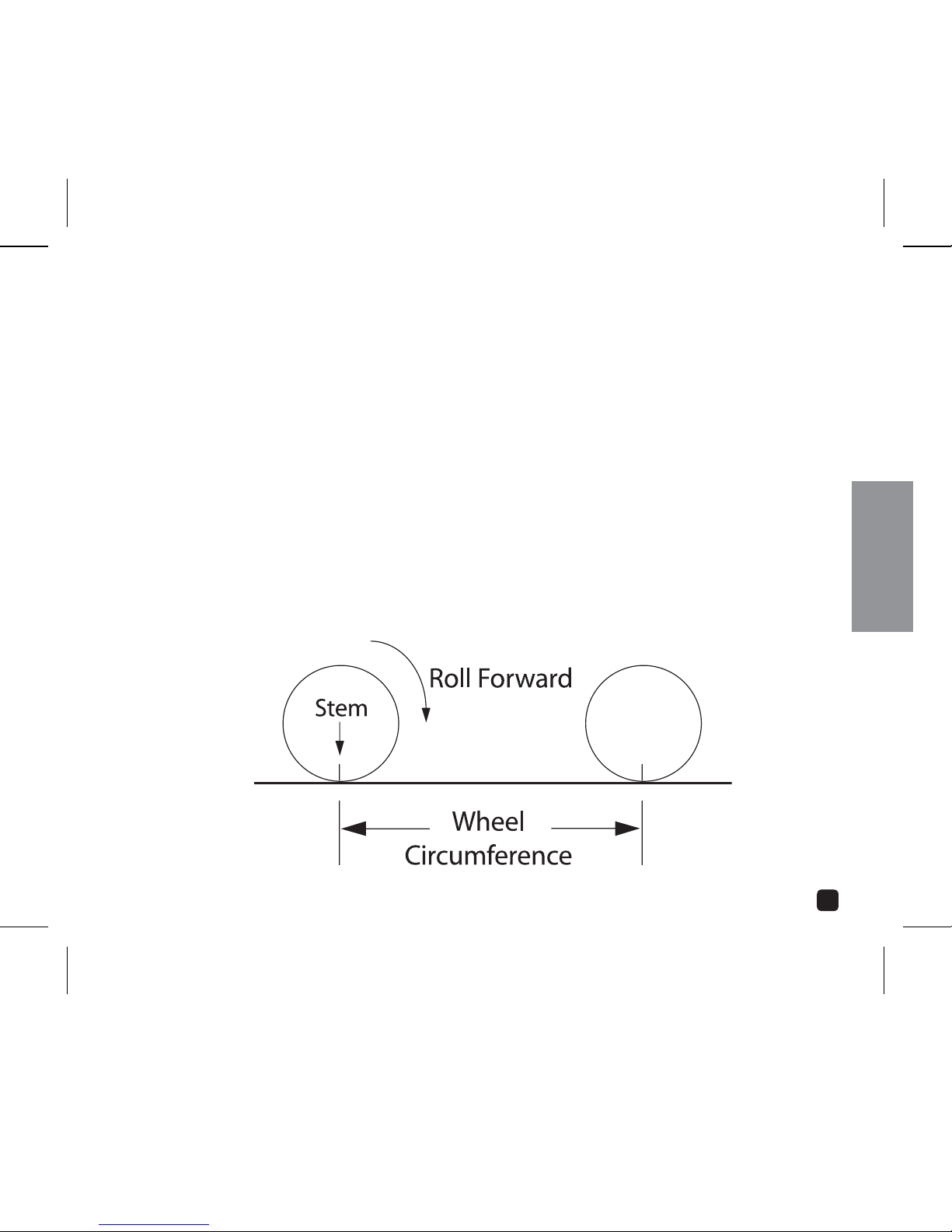

MEASURING WHEEL SIZE 18-19
PROGRAMMING THE CYCLOCOMPUTER
SELECTING MILES OR KILOMETERS 21
SETTING WHEEL SIZE 22-23
SETTING ODOMETER 24
SETTING TIME OF DAY 25
SETTING DISTANCE COUNTDOWN 26
TABLE OF CONTENTS
o
33_35_41_eng.indd 2 11/21/07 12:25:26
P
3
english
TABLE OF CONTENTS
PROGRAMMING THE CYCLOCOMPUTER (CONTINUED)
SETTING PERSONAL DATA 27-28
SETTING THE STOPWATCH 29-30
SETTING HEART RATE TRAINING ZONE 31
SETTING THE ALTIMETER 32
OPERATING THE CYCLOCOMPUTER
SLEEP MODE 33
RESETTING THE UNIT 33
SELECT BIKE 1 OR BIKE 2 34
DISTANCE TRAVELED / DISTANCE COUNTDOWN 35
OPERATING THE STOPWATCH 36
VIEWING LAP DATA 37
TEMPERATURE MODE 38
CADENCE MODE (PRO SCIO 3.3) 39
HEART RATE MODE (PRO SCIO 4.1) 40
ALTIMETER & POWER MODE (PRO SCIO 3.5 & 4.1) 41
OPERATING THE EL/BACKLIGHT SYSTEM 42
TROUBLESHOOTING 43
FUNCTIONAL SPECIFICATIONS & RANGES 44
WARRANTY & CONTACT 45
o
33_35_41_eng.indd 3 11/21/07 12:25:27
P
4
english
WARNINGS & CAUTIONS
s 7!2.).' Failure to pay attention to the road, trail, traffic or your surroundings
could result in an accident, with risk of serious injury, paralysis or death. You must
focus on riding, not your computer. Learn computer operations, and do all possible
computer operations when not riding. For any operations you choose to perform while
riding, choose a time and place where this distraction has less risk.
s #!54)/. Mount the Cyclecomputer according to the directions in this instruction
manual.
s #!54)/. Avoid direct impact to the Cyclecomputer unit.
s #!54)/. Do not submerge the Cyclecomputer unit.
s #!54)/.Avoid using the Cyclecomputer unit in or near strong electromagnetic fields
such as high-voltage power lines or other transmitters.
s #!54)/. Do not disassemble the unit.
s #!54)/.Make sure the magnet and the transmitter are well aligned and check them
regularly.
s #!54)/.PRO Scio Cyclecomputers are intended for use on bicycles only and should
not be used on any motorized vehicle.
s #!54)/. Change the battery prior to failure to avoid data loss.
s #!54)/. Clean the unit with a mild detergent and a soft dry cloth. Never use any
kind of solvent or alcohol.
o
33_35_41_eng.indd 4 11/21/07 12:25:27
P
5
english
COMPONENTS OF THE CYCLECOMPUTER
#9#,/#/-054%25.)4
7)2%,%33&/2+42!.3-)44%2
7(%%,-!'.%4
:)04)%3
7)2%,%33&/2+42!.3-)44%2
-/5.4).'0!$
7)2%,%33-/5.4).'"2!#+%4
(PRO SCIO 3.5 & 4.1)
-/5.4).'"2!#+%425""%2
0!$
7)2%$#!$%.#%42!.3-)44%2
-/5.4).'"2!#+%4
(PRO SCIO 3.3)
(%!242!4%42!.3-)44%2
342!0
(PRO SCIO 4.1)
1
2
3
4
7
6
5
8
9
o
33_35_41_eng.indd 5 11/21/07 12:25:29
P
6
english
REPLACING THE BATTERY
PRO Scio Cyclecomputers are powered by a CR2032 3v Lithium Battery. Under normal condi-
tions, this battery should last approximately one year.
REPLACING THE COMPUTER BATTERY
Using a coin, turn the battery door counter clockwise until the
door comes free.
2. Take care not to damage the O-ring seal for the battery com-
partment and carefully remove the old battery.
3. Place a new battery in the battery compartment with the posi-
tive (+) side toward the battery door. Be extremely careful not
to bend the battery contact when inserting a new battery.
4. Place the battery door over the opening and tighten it down by using a coin and turn-
ing in a clockwise direction.
5. If the O-ring has been damaged, replace it before reinstalling the battery door.
#!54)/.Extreme care should be taken when replacing the battery to ensure the unit
remains fully water resistant. Failure to properly replace the battery and correctly seal the
unit may cause the unit to become damaged and may void the warranty.
o
33_35_41_eng.indd 6 11/21/07 12:25:30
P
7
english
CHANGING THE BATTERY IN THE WIRELESS
SPEED TRANSMITTER - PRO SCIO
The Wireless Speed Transmitter uses a 23A 12v Alkaline battery.
Under normal conditions, this battery should last approximately
one year.
1. Using a coin, turn the battery door counter clockwise until the
door comes free.
2. Take care not to damage the O-ring seal for the battery
compartment and carefully remove the old battery.
3. Place a new battery in the transmitter positive (+) side toward
the battery door.
4. Place the battery door over the opening and tighten it down
by using a coin and turning in a clockwise direction.
5. If the O-ring has been damaged, replace it before reinstalling
the battery door.
./4%Extreme care should be taken when replacing the battery to
ensure the unit remains fully water resistant. Failure to properly
replace the battery and correctly seal the unit may cause the unit to
become damaged and may void the warranty.
o
33_35_41_eng.indd 7 11/21/07 12:25:30
P
8
english

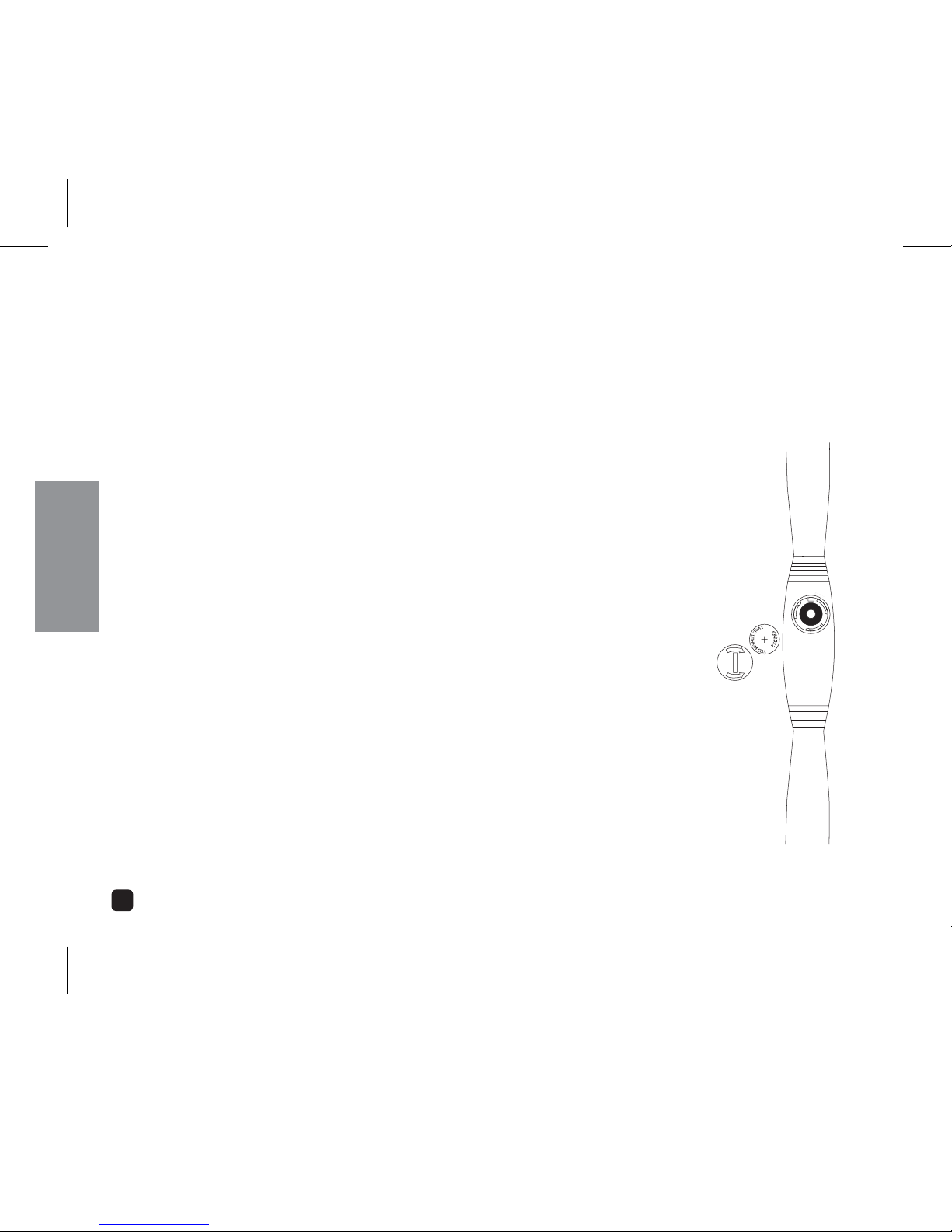

The PRO Scio 4.1 features a wireless heart rate transmitter, powered by a CR2032 3v
Lithium battery. Under normal conditions you can expect to get approximately 700-800
hours of heart rate transmitter use with a fresh battery.
Using a coin, turn the battery door counter clockwise until the door
comes free of the watch.
2. Take care not to damage the O-ring seal for the battery compartment
and carefully remove the old battery.
3. Place a new battery in the battery compartment with the positive (+)
side toward the battery door.
4. Place the battery door over the opening and tighten it down by using
a coin and turning in a clockwise direction.
5. If the O-ring has been damaged, replace it before reinstalling the bat-
tery door. Most jewelers and watch shops should have replacement
O-ring seals.
./4% Extreme care should be taken when replacing the battery to ensure
the unit remains fully water resistant. Failure to properly replace the bat-
tery and correctly seal the unit may cause the unit to become damaged and
may void the warranty.
CHANGING THE BATTERY IN THE HEART RATE
TRANSMITTER BELT - PRO SCIO 4.1
o
33_35_41_eng.indd 8 11/21/07 12:25:31
P
9
english

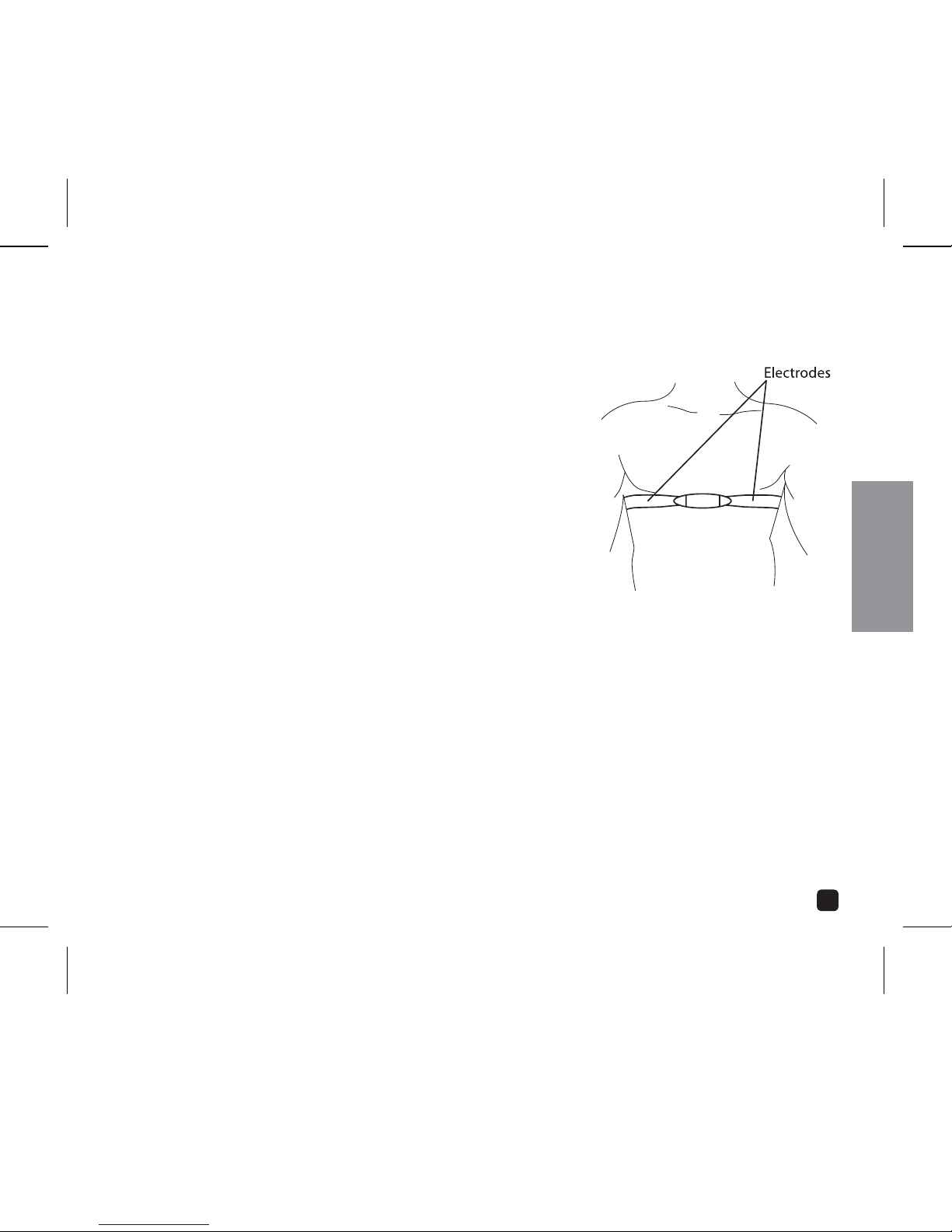

To ensure a proper heart rate display, the chest transmitter
must be moistened and properly adjusted. Wet the elec-
trodes (located to the right and left of the main transmitter
case) with saliva or ECG conductive gel. Do not use water,
moisturizing creams or suntan oil, as these are insulators
and may interfere with the heart rate signal. Snap the
plastic tabs at the end of the elastic belt into the holes
at the end of the transmitter, and adjust the strap so that
the transmitter fits tightly below the pectoral muscles, as
shown in the drawing.
./4%Users with significant chest hair may have a problem
obtaining contact between the transmitter electrodes and their skin, resulting in poor
performance. It may be necessary for these individuals to shave the area of their chest
beneath the transmitter.
./4% In dry and cold climates it may take a few minutes of use for the electrodes to soften,
and a layer of perspiration to form between the contact and the skin for good performance.
Moistening the electrodes with saliva or ECG conductive gel can speed up this process.
WEARING THE HEART RATE TRANSMITTER BELT -
PRO SCIO 4.1
o
33_35_41_eng.indd 9 11/21/07 12:25:31
P
10
english
INSTALLING THE CYCLECOMPUTER ON YOUR BIKE -
PRO SCIO 3.3
MOUNTING THE WIRED CADENCE SENSOR
On the PRO Scio 3.3, speed is picked up wirelessly from the front wheel
and cadence is picked up via a wired connection from the crank arm.
The wired cadence sensor is best installed starting with the cadence
sensor unit and then working up toward the handlebar or stem bracket.

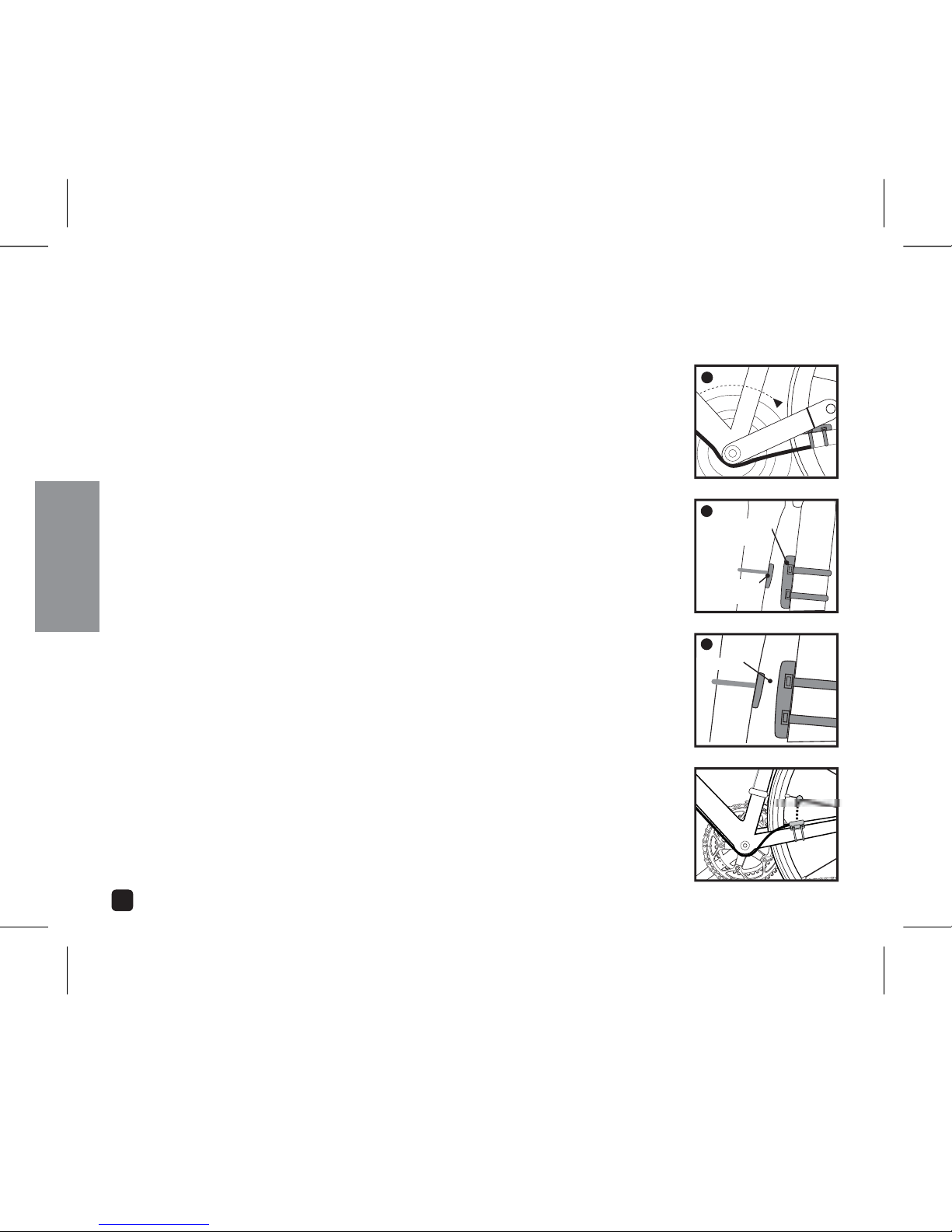

1. Attach the cadence sensor to the LEFT chain stay near where the
crank/pedal pass the stay using the zip-ties provided. Do not fully
tighten zip-ties.
./4%The wires exiting the sensor should be pointing toward the front
of the bike.
Attach the cadence magnet to the back side of the LEFT crank arm
using the zip-tie provided.
Align the cadence sensor and magnet and rotate the sensor so the
magnet passes within 1-3mm.
1
CADENCE
SENSOR
CADENCE
MAGNET
2
1-3 MM
3
o
33_35_41_eng.indd 10 11/21/07 12:25:34
P
11
english
INSTALLING THE CYCLOCOMPUTER ON YOUR BIKE -
PRO SCIO 3.3
MOUNTING THE WIRED CADENCE SENSOR
(continued)
4. Route the sensor wire forward and under the bottom bracket and
along the bottom of the down tube securing it occasionally with
tape. Once you are near the head tube the sensor wire should be
wrapped around the front or rear derailleur cable housing and the
around the front brake cable housing.
Wrap any excess wire around the front brake cable housing. Use
electrical tape to secure the cable in place if necessary. When you
are done you should have just enough wire left to connect to the
receiver unit’s mounting point.
#!54)/.Make sure you leave enough slack in the sensor wire so the
handle bars can turn fully from side to side.
4
o
33_35_41_eng.indd 11 11/21/07 12:25:36
P
12
english
INSTALLING THE CYCLOCOMPUTER ON YOUR BIKE
INSTALLING THE WIRELESS FORK TRANSMITTER
The PRO Scio 3.3, 3.5 and 4.1 receive speed and distance from a wireless transmitter
mounted to the front fork.

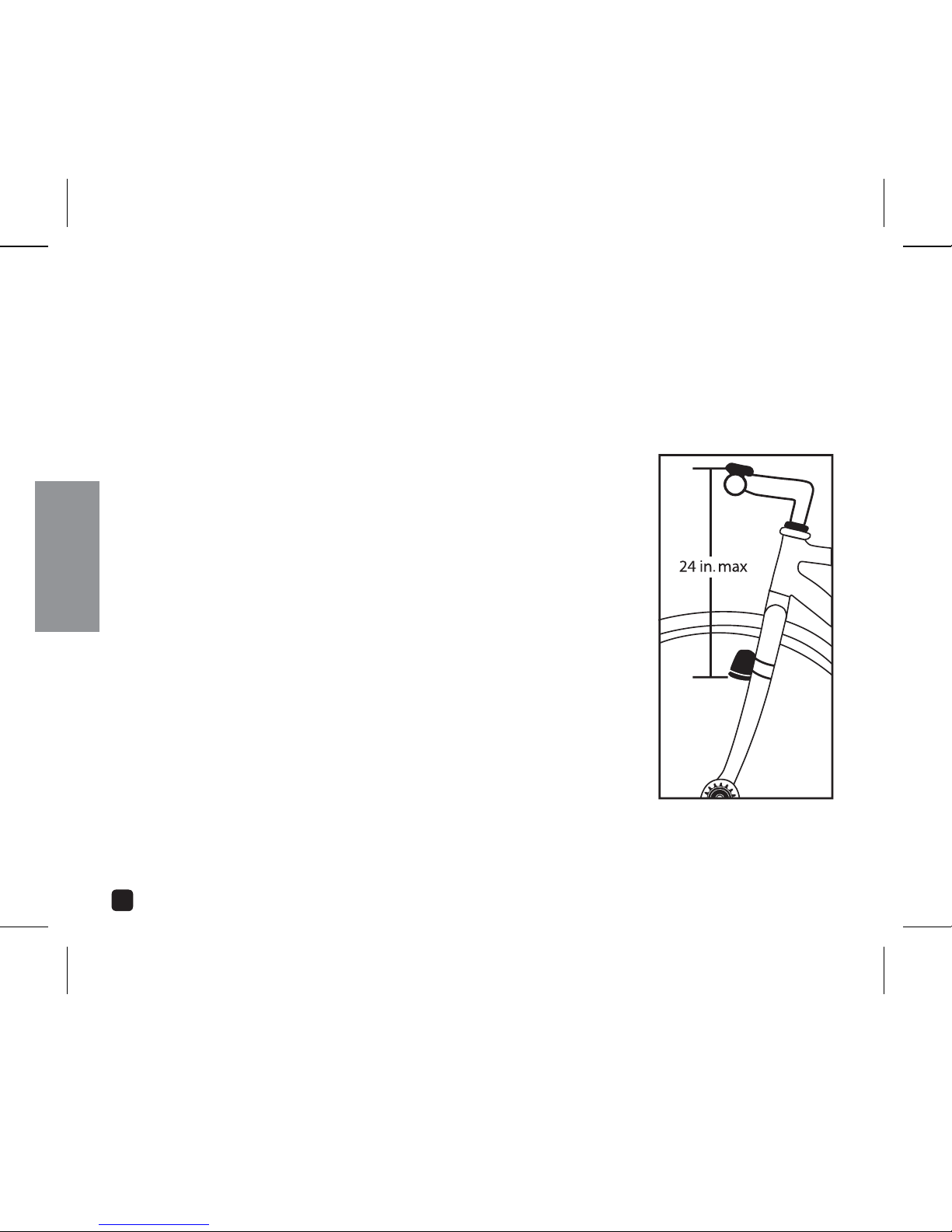

1. Attach the wireless front wheel sensor and rubber mounting
pad to the front of the left fork blade using the zip-ties
provided so the battery cap is pointing downward. Snug up
the zip-ties but do not fully tighten them. The sensor should
be mounted as high on the fork blade as possible. The range
of the transmitter is approximately 18in (46cm). Mounting
it high on the fork will assure good signal reception. Other
mounting locations may work, but we feel this is the best
location for most applications.
2. Attach the spoke magnet to a spoke on the same side of
the wheel as the sensor. Tighten the attachment screw just
enough to hold the magnet in place but loose enough so that
it is still movable.
o
33_35_41_eng.indd 12 11/21/07 12:25:38
P
13
english
INSTALLING THE CYCLOCOMPUTER ON YOUR BIKE
INSTALLING THE WIRELESS FORK TRANSMITTER
(CONTINUED)

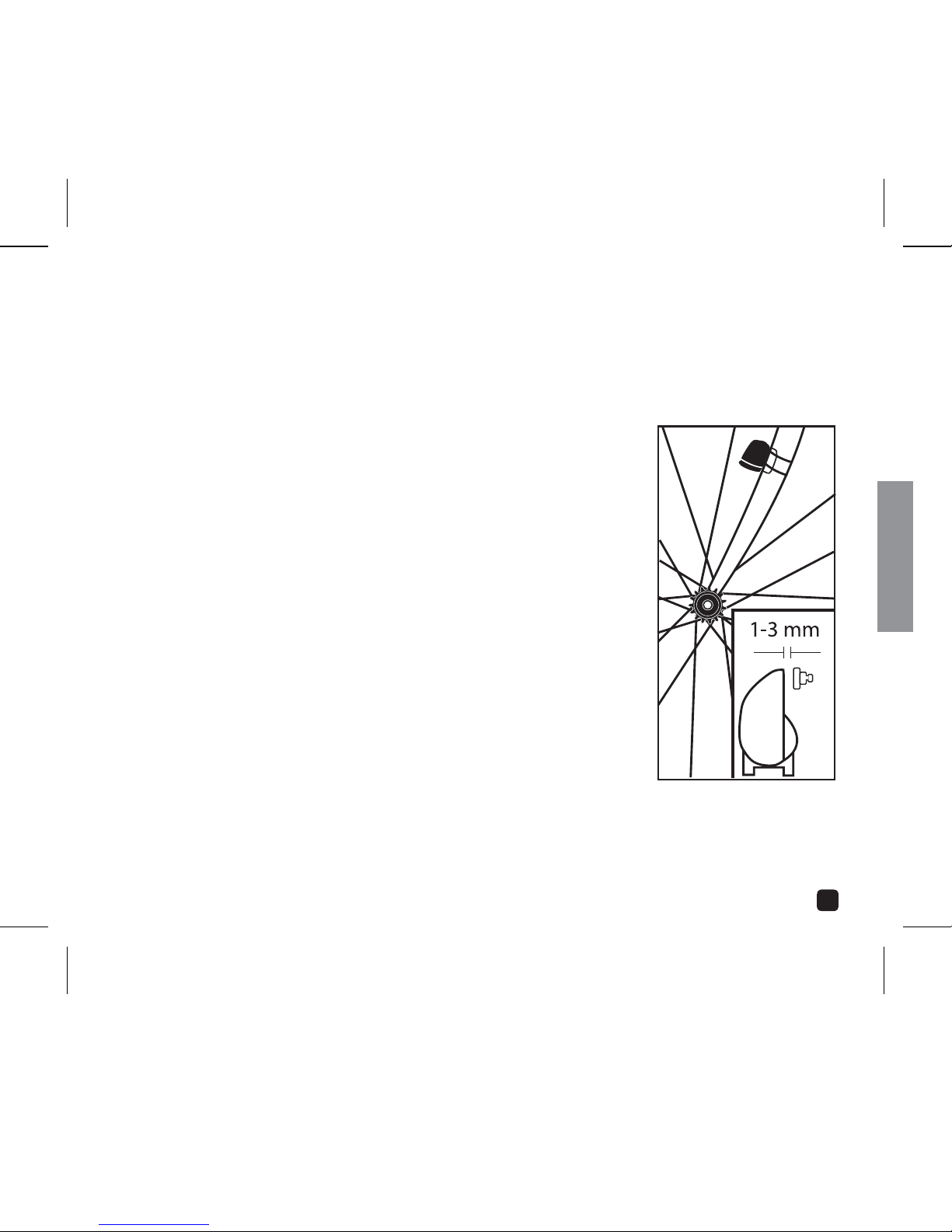

3. Adjust the position of the sensor and magnet so they are in
proper alignment as shown. The magnet should pass by the
sensor adjacent to the molded plastic line at a distance of
1-3mm.
4. Once everything is in alignment, fully tighten the spoke
magnet in place and tighten the zip-ties holding the sensor to
the fork.
continued next page
o
33_35_41_eng.indd 13 11/21/07 12:25:38
P
14
english
INSTALLING THE CYCLOCOMPUTER ON YOUR BIKE
MOUNTING THE HANDLEBAR/STEM BRACKET
Place the Cyclecomputer unit into the mounting bracket and turn
clockwise until the unit snaps into place.
./4%When mounting the unit on the stem, you must first remove the
4 screws on the back of the mounting bracket and rotate it 90 degees.
Replace the screws - do not overtighten. The unit is now properly aligned
for mounting on the stem.
2. Place the mounting bracket in the desired position on handle bars
or stem.
3. Thread the zip-ties provided through the holes on one side of the
mounting sleeve and around the handlebar or stem. Once the unit
is positioned correctly, secure the zip-ties and trim off the excess
ends.
o
33_35_41_eng.indd 14 11/21/07 12:25:41
P
15
english
PRO SCIO 3.3, 3.5 AND 4.1 DISPLAY FIELDS
30%%$
")+%
,/7"!44%29).$)#!4/2
,/7%2$)30,!9,).%
Displays information specific to
current operating mode
5.)43-ILESOR+ILOMETERS
(%!242!4%)#/.(PRO Scio
4.1) Indicates Heart Rate signal
received
4%-0%2!452%
30%%$$)34!.#%"!2
2)$%4)-%
&5.#4)/.,).%
Indicates current operating mode
o
33_35_41_eng.indd 15 11/21/07 12:25:42
P
16
english
MAIN OPERATING MODES
The PRO Scio 3.3 has 7 main operating modes. In all modes, Speed and Temperature and
Ride Time are constant. Current operating mode is displayed in the lower display line.
3CROLLTHROUGHMODESBY0RESSINGTHE-/$%KEY
!6%-!830%%$ $)34!.#% /$/-%4%2 4)-%/&$!9
-).-!8
4%-0%2!452%
#!$%.#% 34/07!4#(
o
33_35_41_eng.indd 16 11/21/07 12:25:50
P
17
english
MAIN OPERATING MODES
The PRO Scio 3.5 has 8 main operating modes. The PRO Scio 4.1 has 9 main operat-
ing modes. In all modes, Speed and Ride Time are constant. Current operating mode is
displayed in the lower display line. 3CROLLTHROUGHMODESBY0RESSINGTHE-/$%KEY
!6%-!830%%$
0/7%27!443
$)34!.#%
!,4)-%4%2
/$/-%4%2
-).-!8
4%-0%2!452%
(%!242!4%
02/3#)/
4)-%/&$!9
34/07!4#(
o
33_35_41_eng.indd 17 11/21/07 12:26:00
P
18
english
MEASURING WHEEL SIZE
DETERMINING YOUR WHEEL SIZE
PRO Scio Computers use the rolling circumference of your wheel and tire combination to
determine speed and distance. The more accurate this setting, the more accurate your ride
information will be. However, variations of less than 30mm from the actual circumference
will have very little impact on the overall accuracy of the unit.
For easy setup, PRO Scio computers come with 14 pre-programmed wheel/tire sizes. Simply
select the size of your tire as you scroll through the list in the programming sequence.
If your wheel/tire size is not one of the sizes in the accompanying chart, or if you desire abso-
lute accuracy, you may enter an exact wheel circumference into the system. Use the method
on the following page for measuring the circumference of your wheel/tire combination.
WHEEL SIZE CIRCUMFERENCE
26 X 1.0 1973
26 X 1.5 2026
26 X 1.6 2051
26 X 2 2114
700 X 20C 2114
700 X 23C 2133
WHEEL SIZE CIRCUMFERENCE
700 X 25C 2146
700 X 28C 2149
700 X 32C 2174
700 X 35C 2205
700 X 40C 2224
o
33_35_41_eng.indd 18 11/21/07 12:26:04
P
19
english
MEASURING WHEEL SIZE
MEASURING WHEEL SIZE USING ROLLOUT METHOD
The roll-out method is the most accurate method for determining the circumference of your
wheel/tire combination.
1. On a flat open surface make a mark on your tire and the floor exactly where they
meet.
2. Roll your bike forward one full revolution of the front wheel and mark the point on the
floor where the revolution is complete. For maximum accuracy be sitting on the bike
while someone rolls you and the bike forward.
3. Measure the distance from the first mark to the second in millimeters and enter the
resulting number into your computer.
o
33_35_41_eng.indd 19 11/21/07 12:26:04
P
20
english
SELECTING MILES OR KILOMETERS, SETTING WHEEL SIZE AND
ODMETER
In Odometer Mode, Press & Hold the MODE key to enter the Setting Menu. There are 5
individual fields of information in the Odometer Setting Menu. Scroll through the fields by
Pressing the OPTION or EL key.
.OTEyou may exit the Setting Sequence at any time by Pressing & Holding the MODE key.
PROGRAMMING THE CYCLECOMPUTER
3%45.)4 3%47(%%,
3%4/$/
3%47(%%,
3%4/$/
o
33_35_41_eng.indd 20 11/21/07 12:26:07
P
This manual suits for next models
2
Table of contents
Other Pro Bicycle Accessories manuals
